fc-hypermesh is an Octave package which allows to mesh any d-orthotope (hyperrectangle in dimension d) and their m-faces with simplices or orthotopes. It was created to show the implementation of the algorithms given in the report Vectorized algorithms for regular tessellations of d-orthotopes and their faces .
This package uses Octave objects and is provided with meshes visualisation tools for dimension less than or equal to 3.

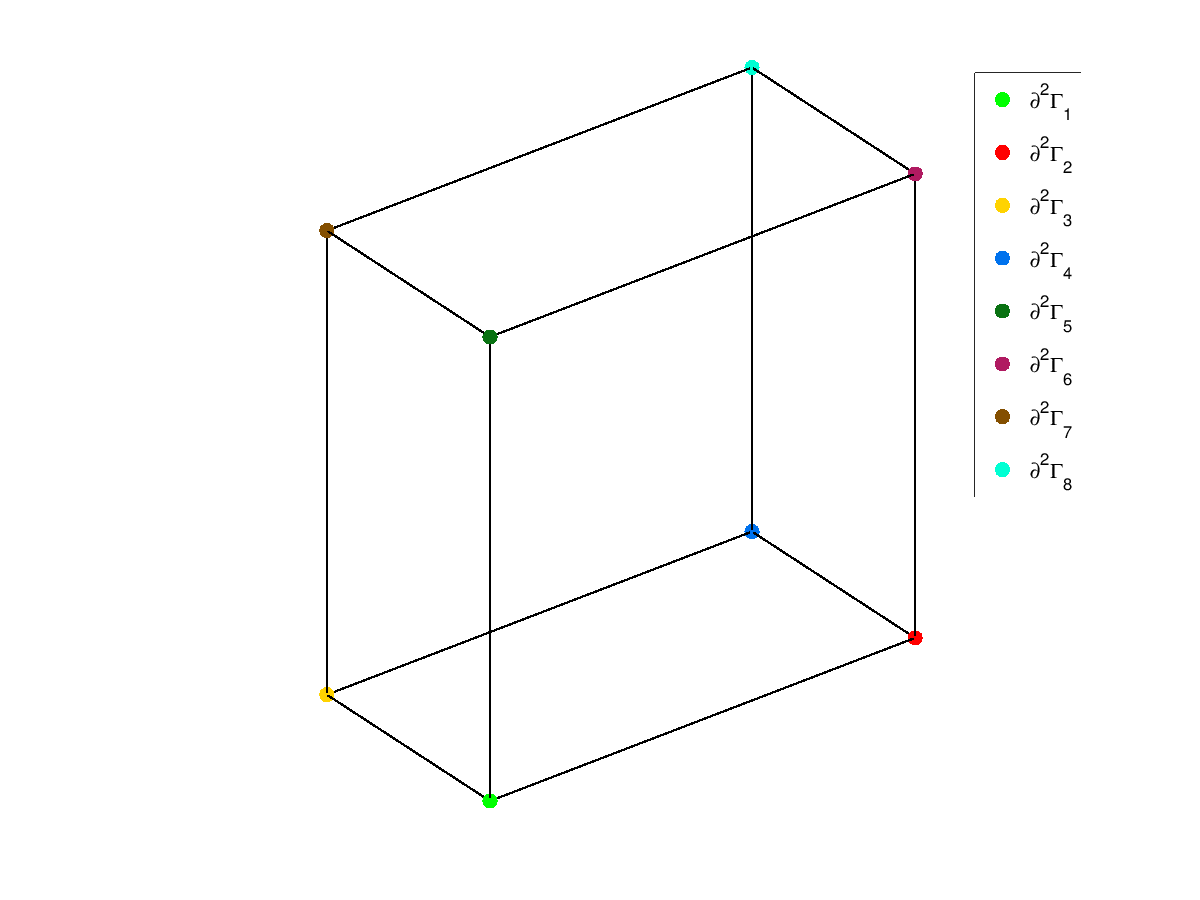

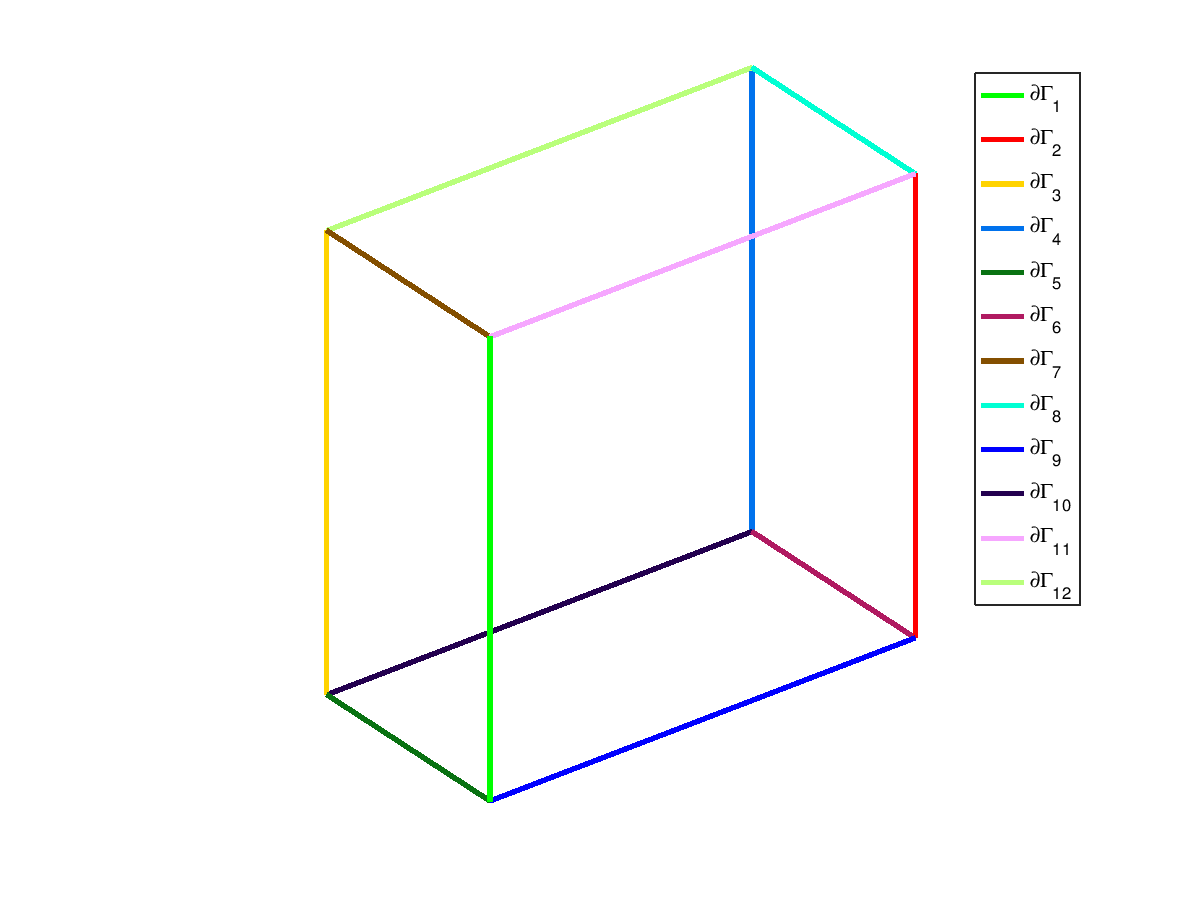

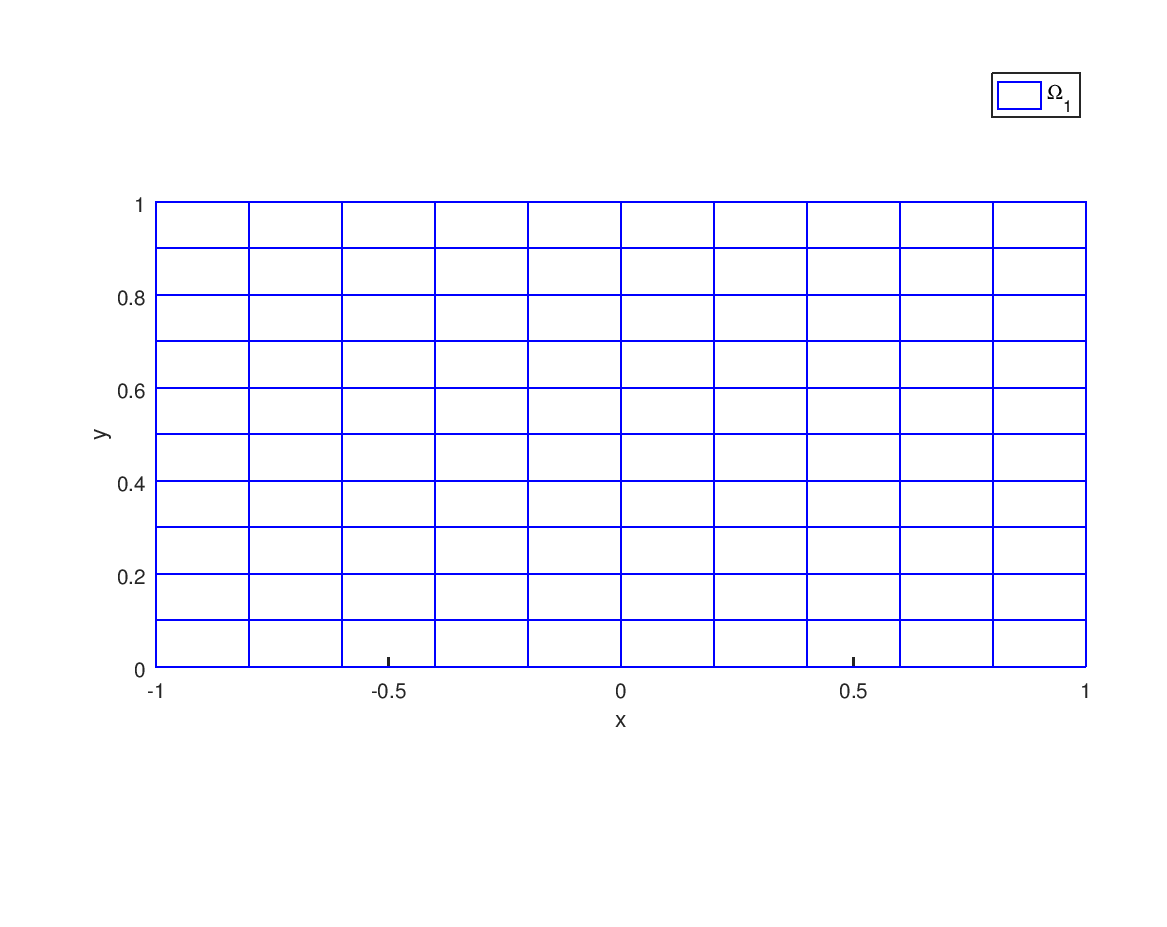

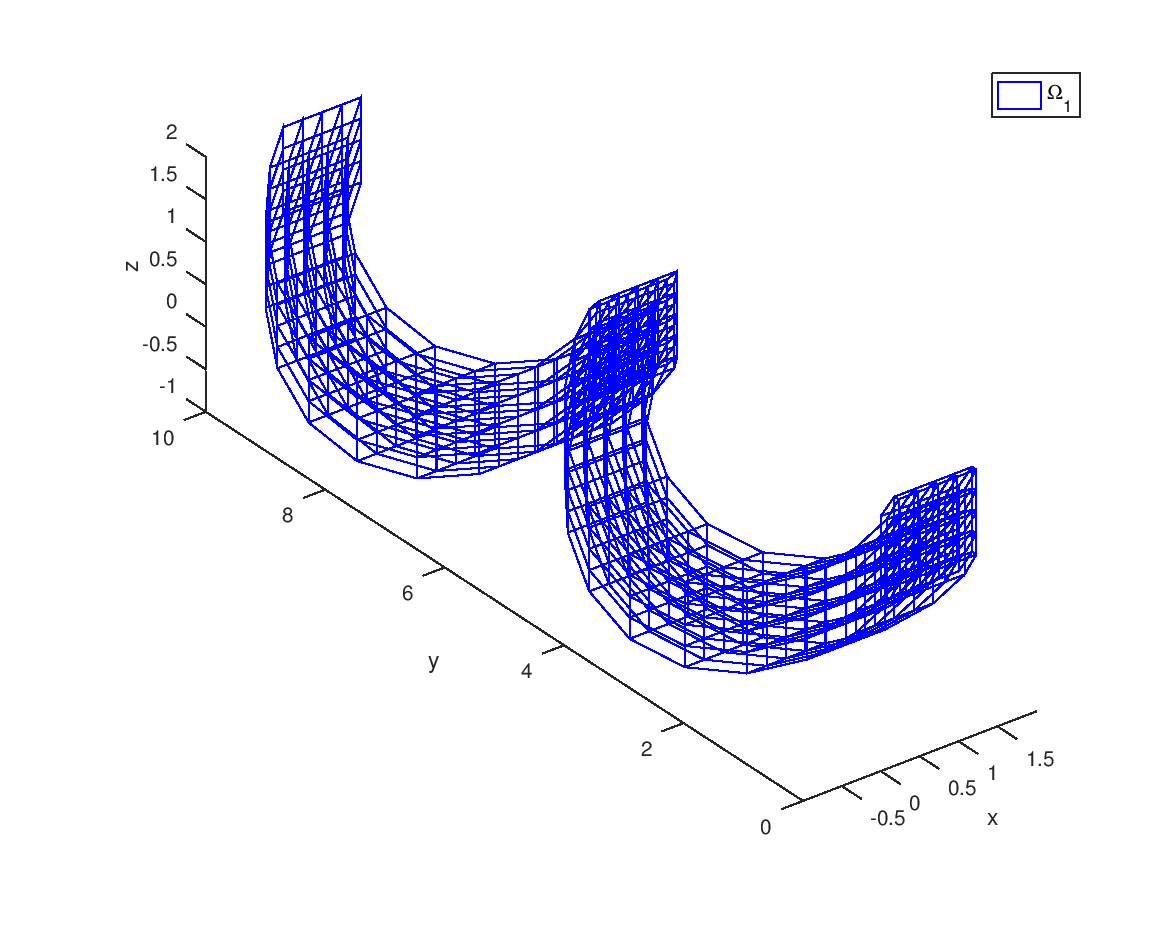

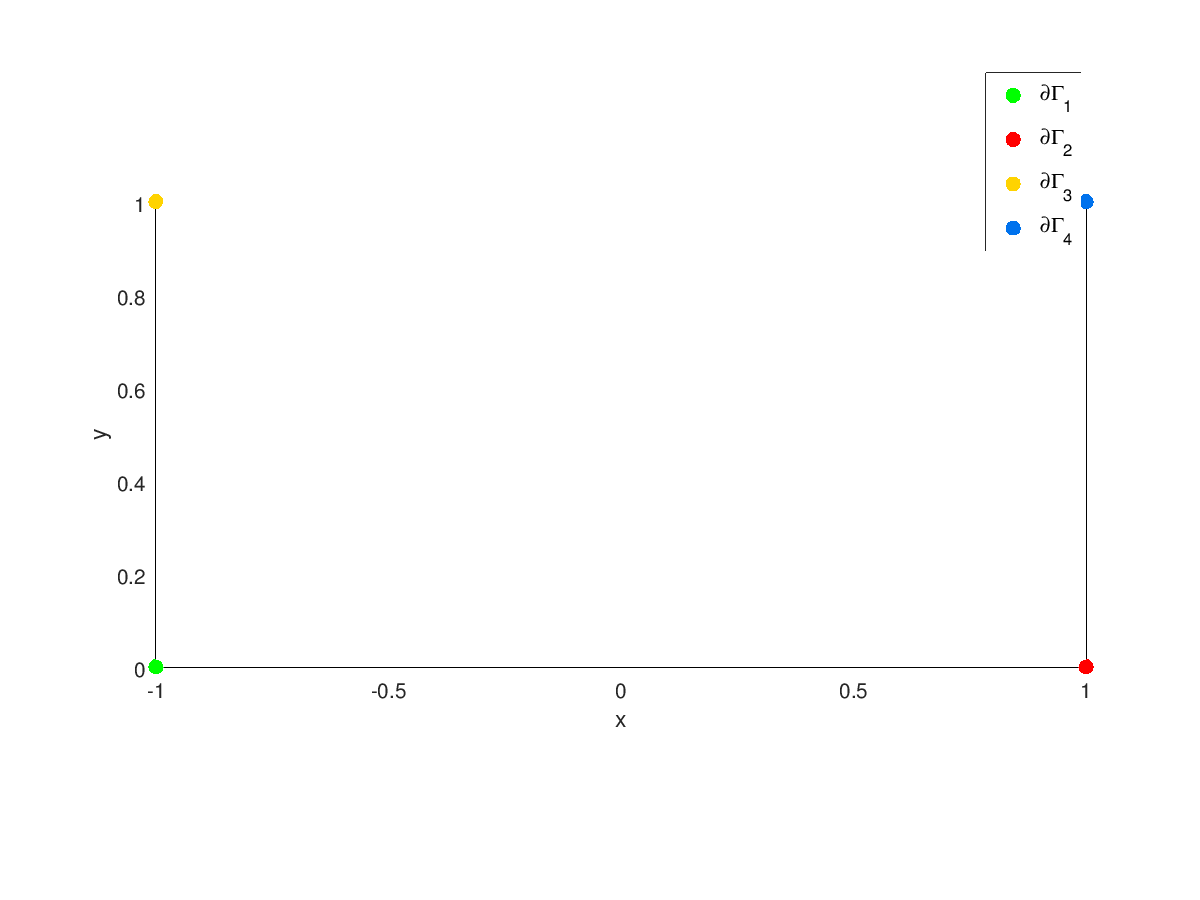

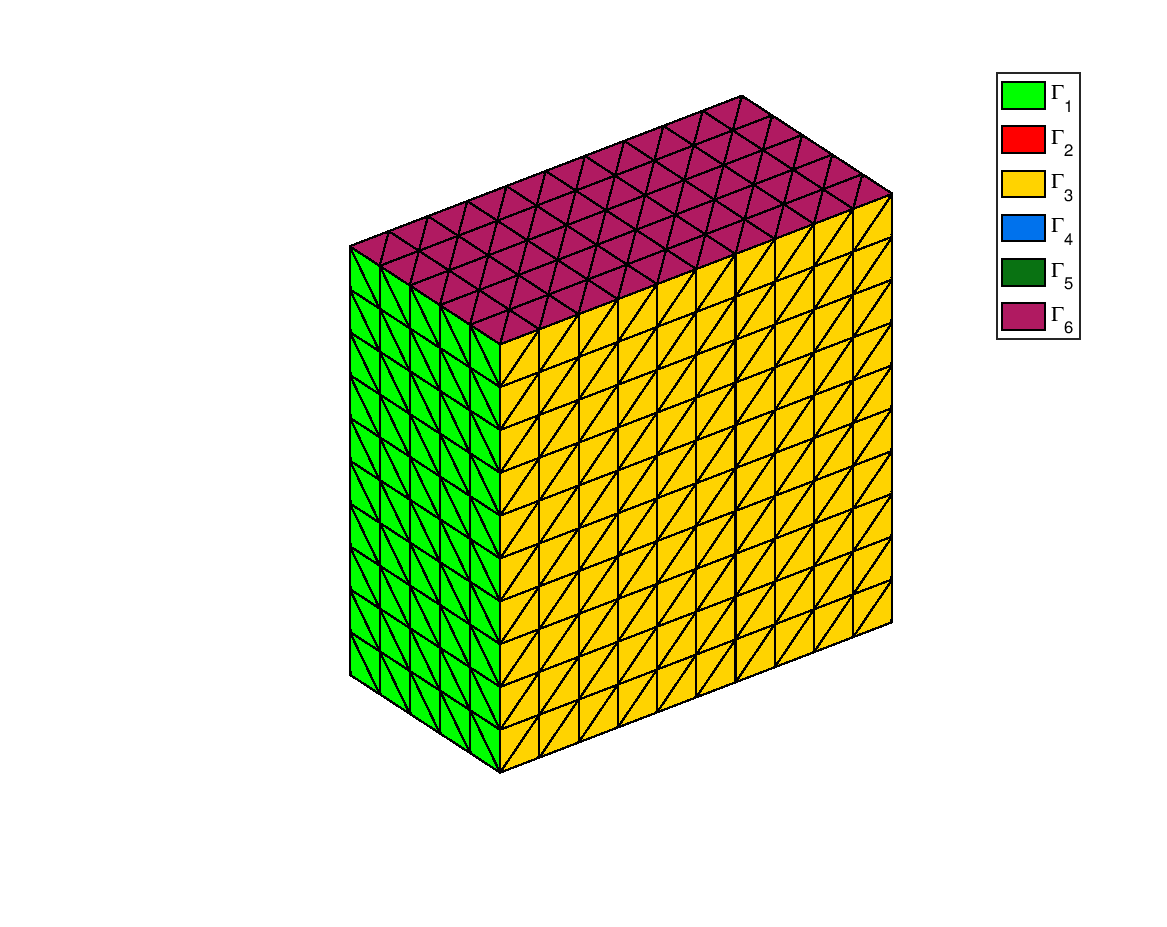

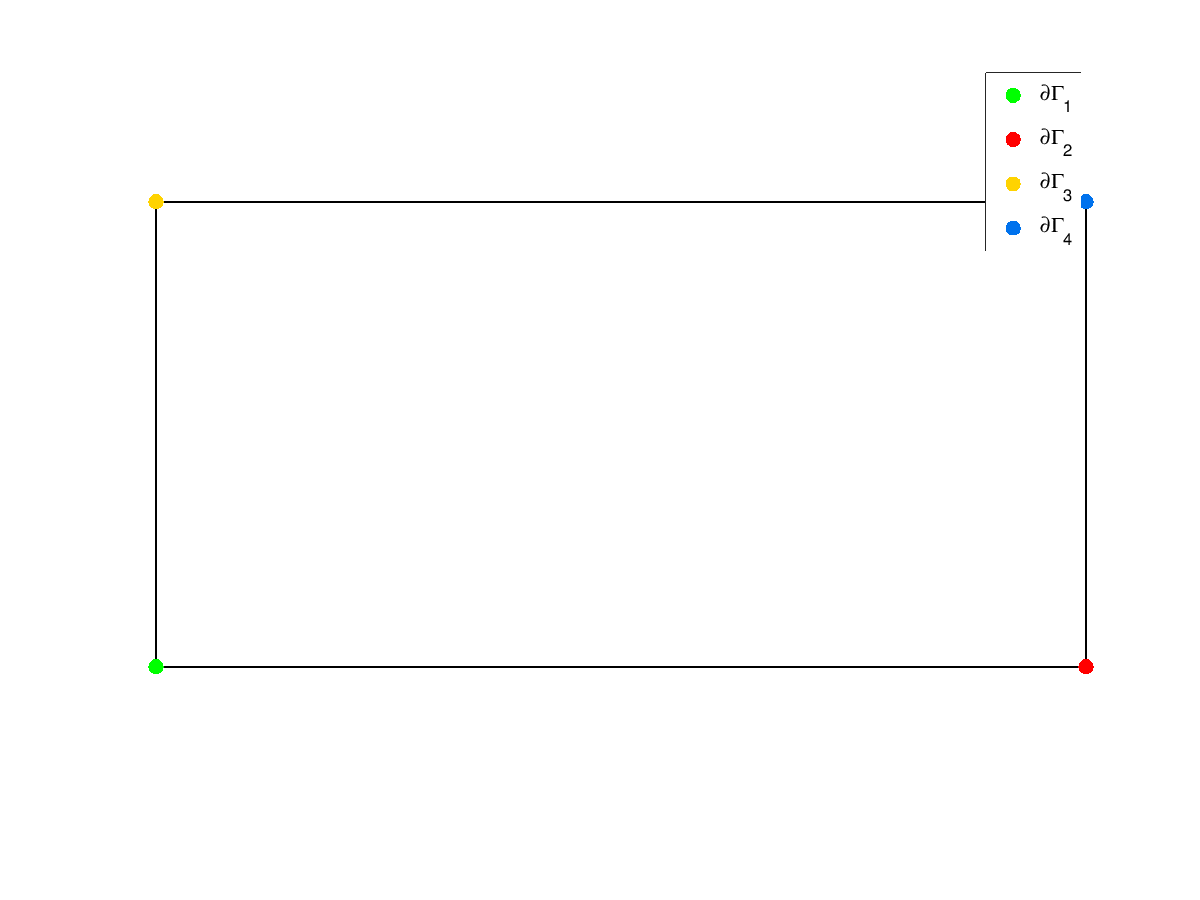

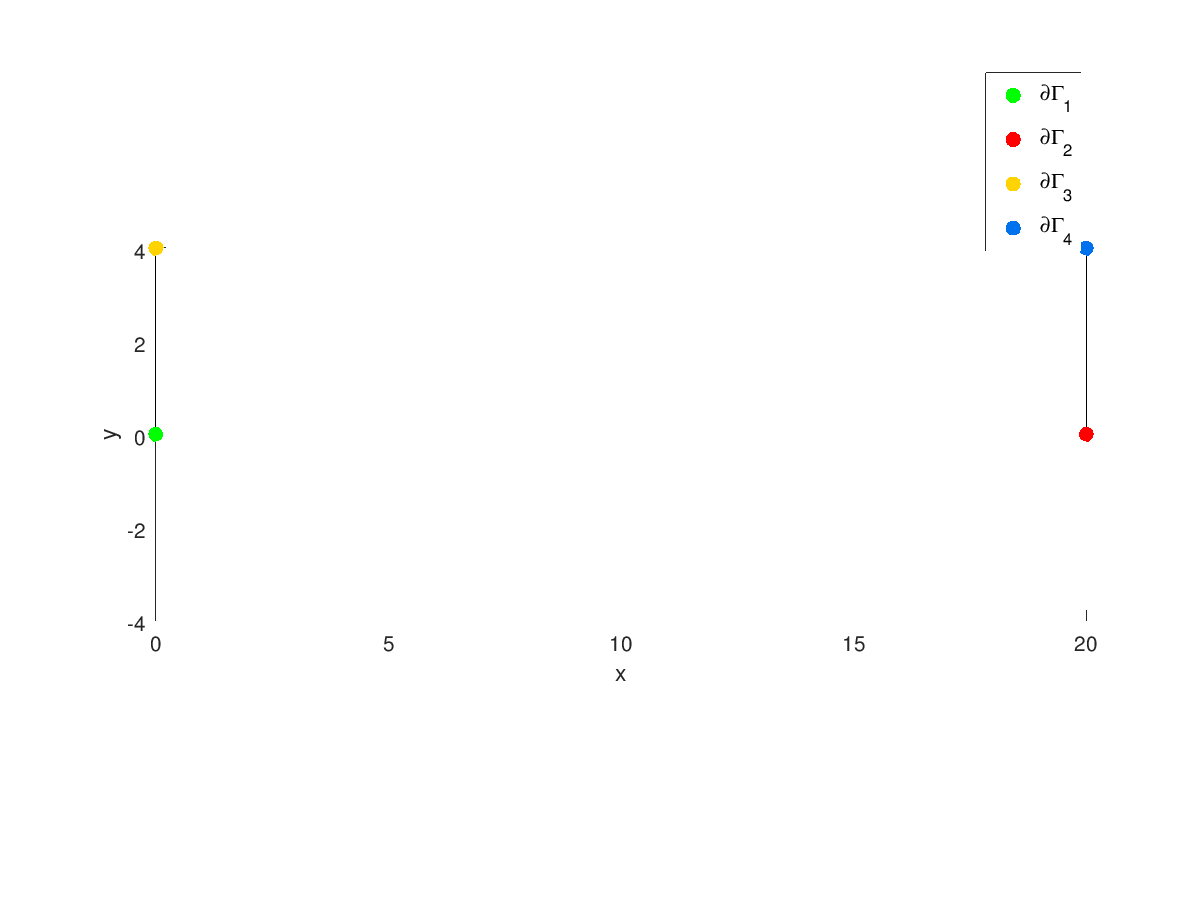

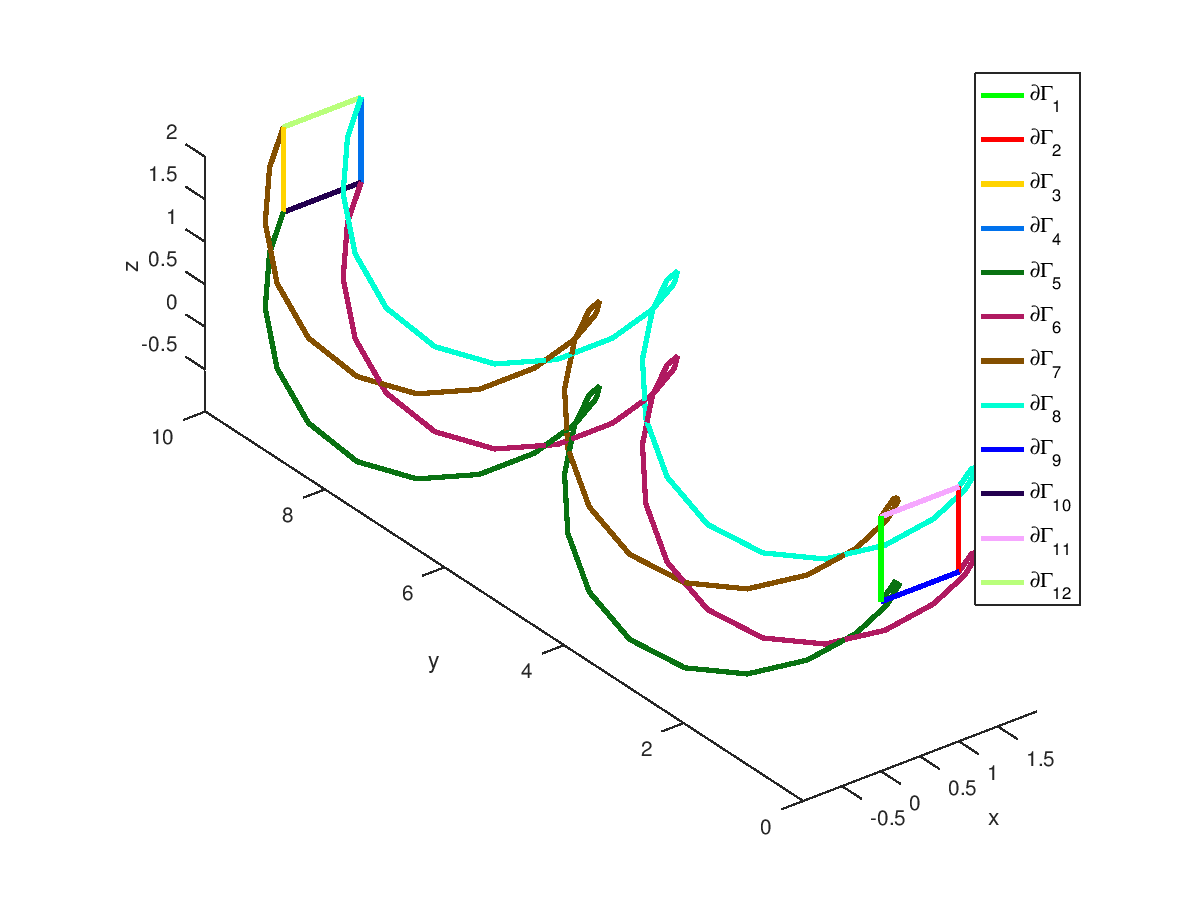

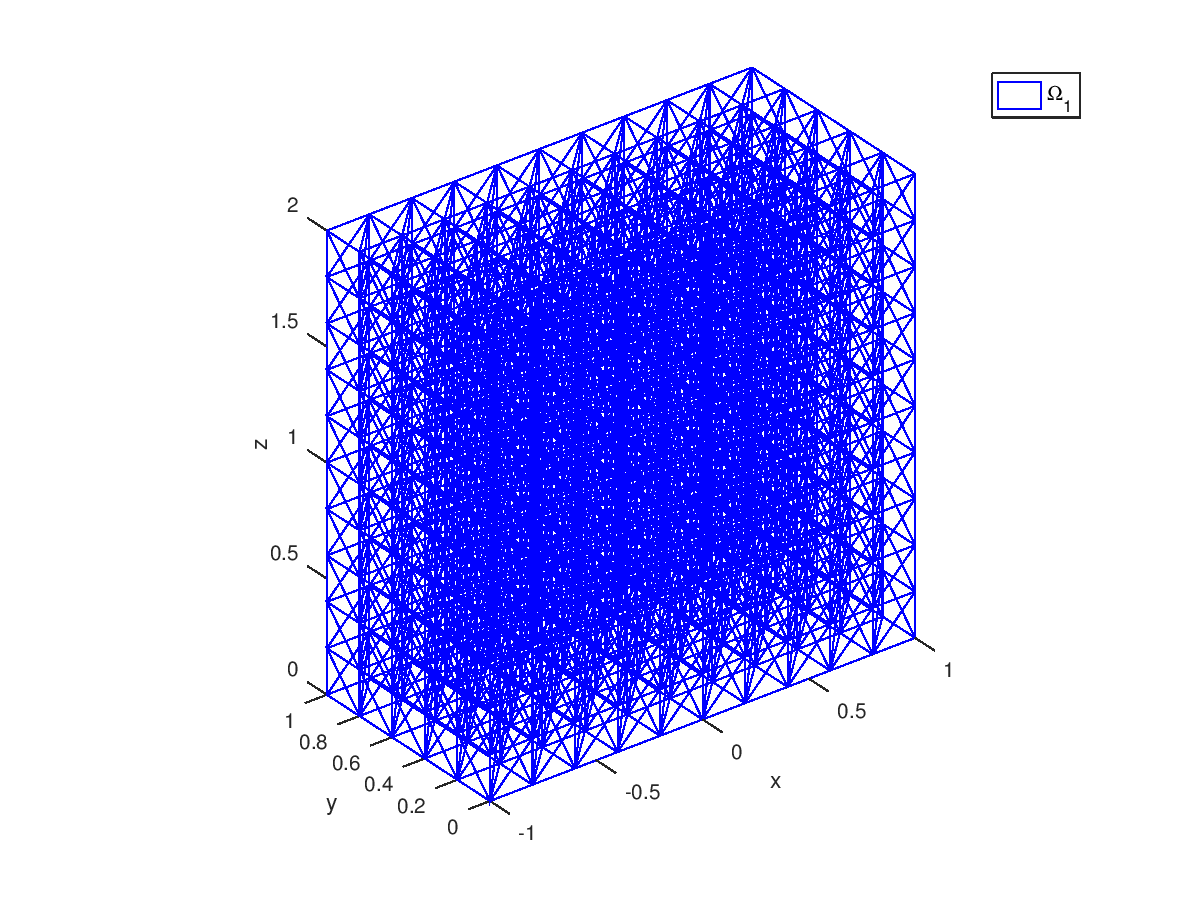

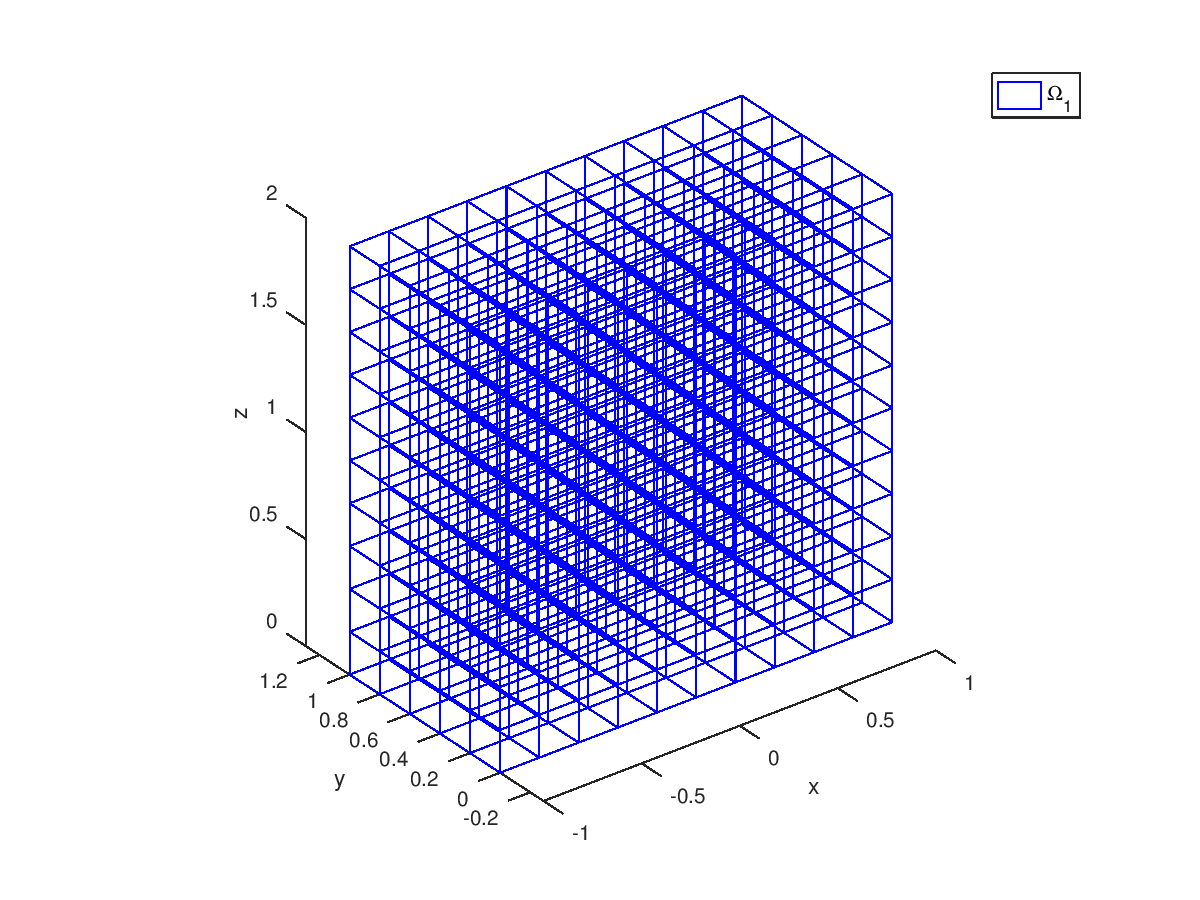

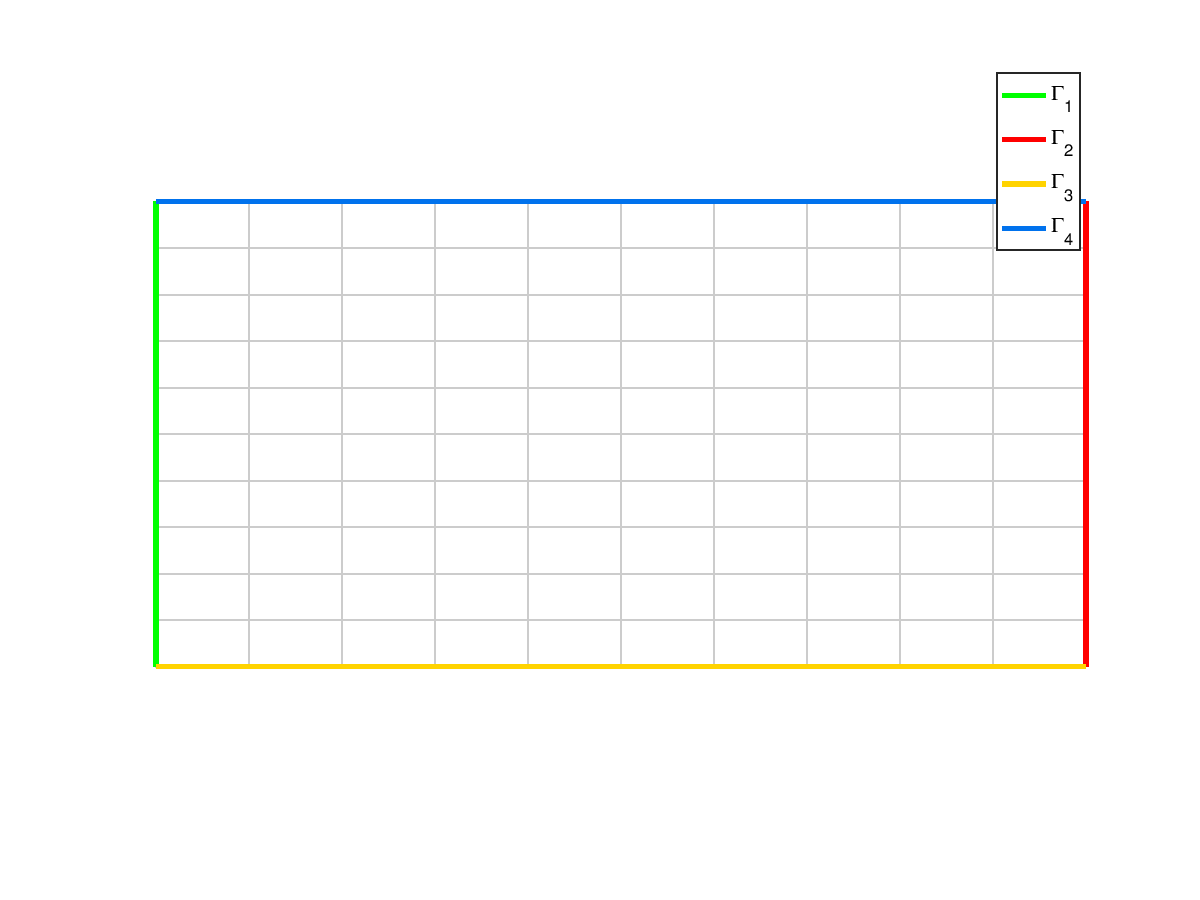

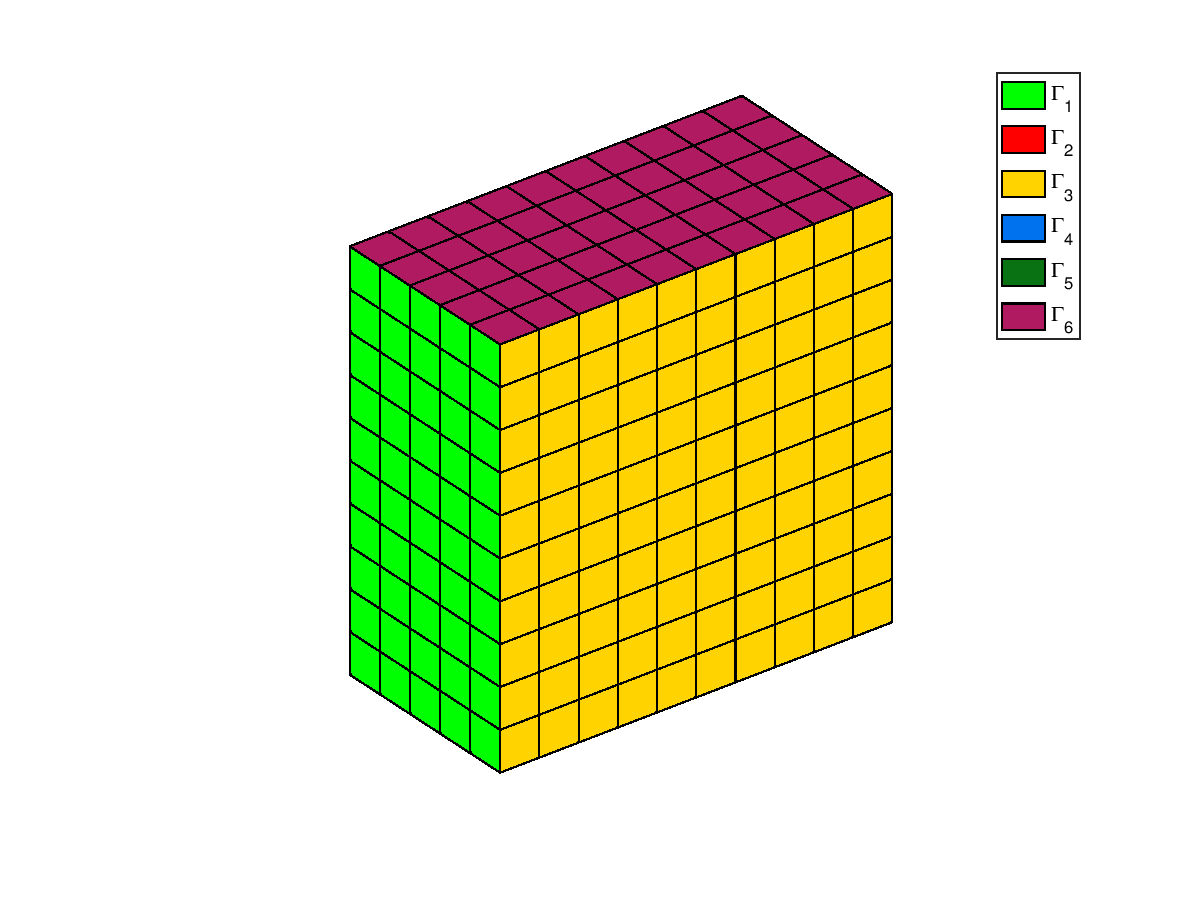

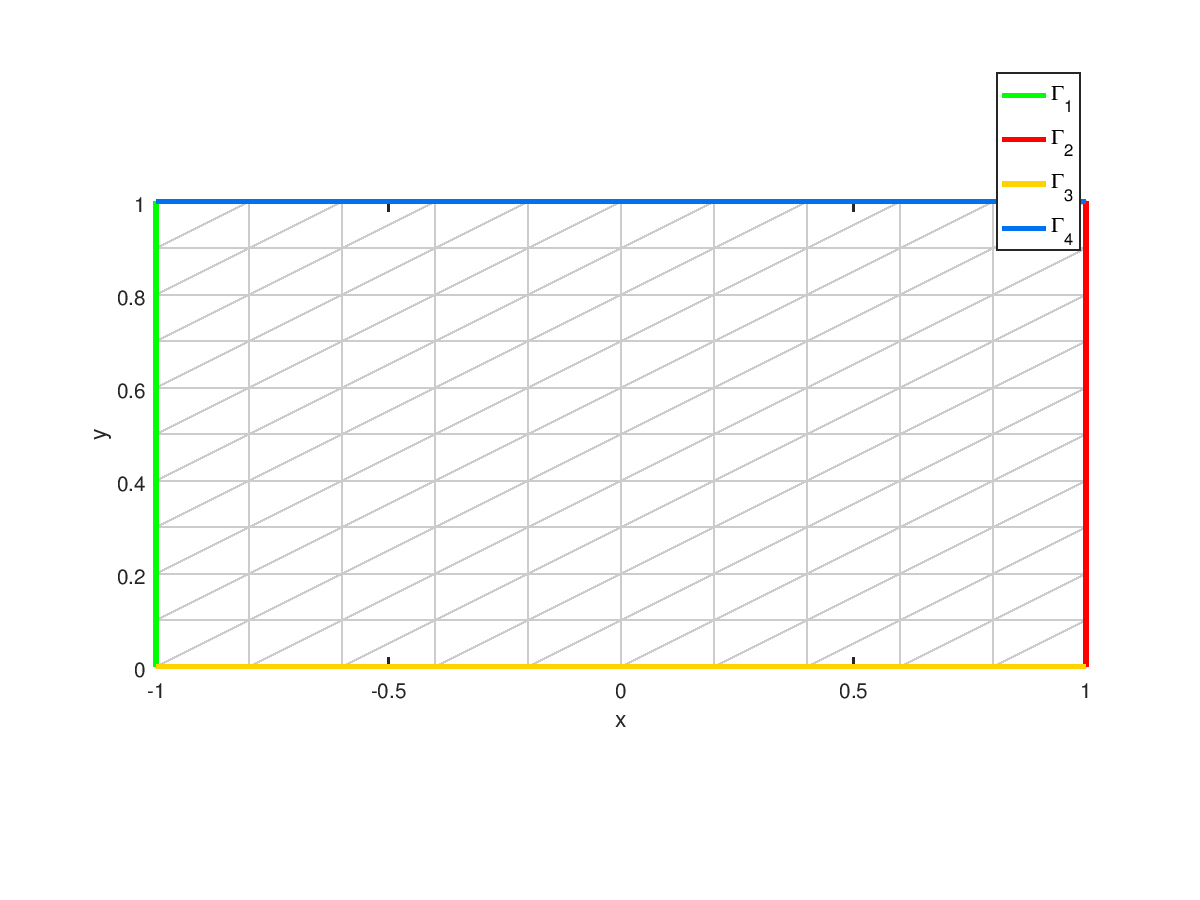

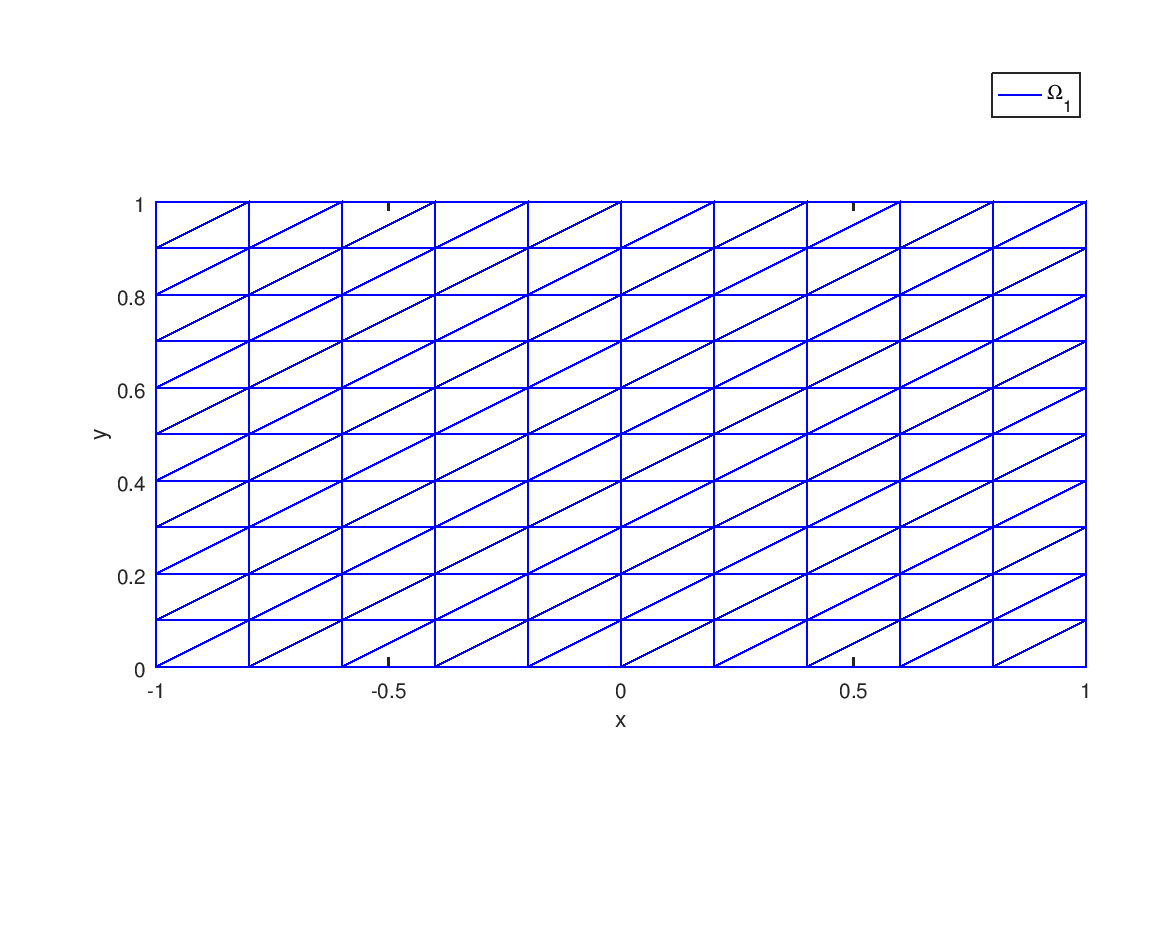

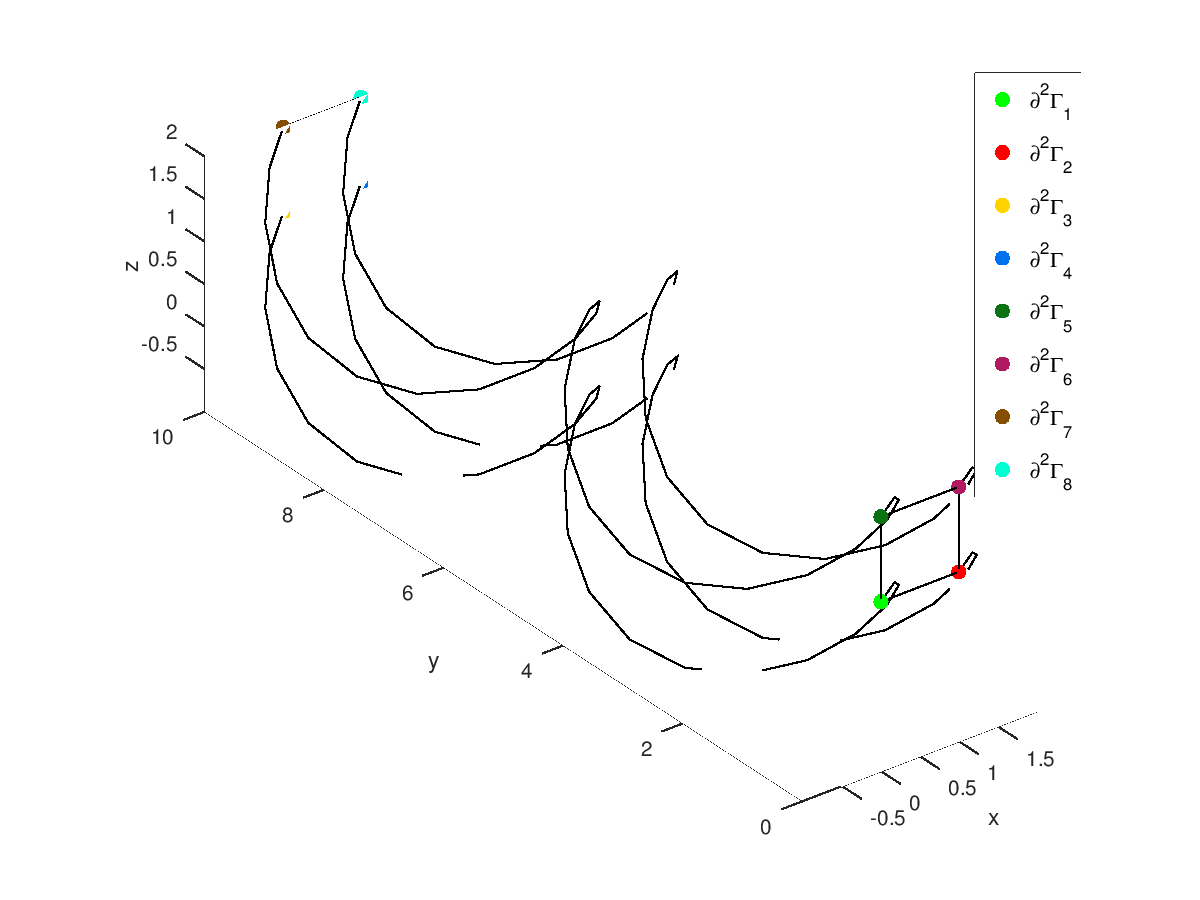

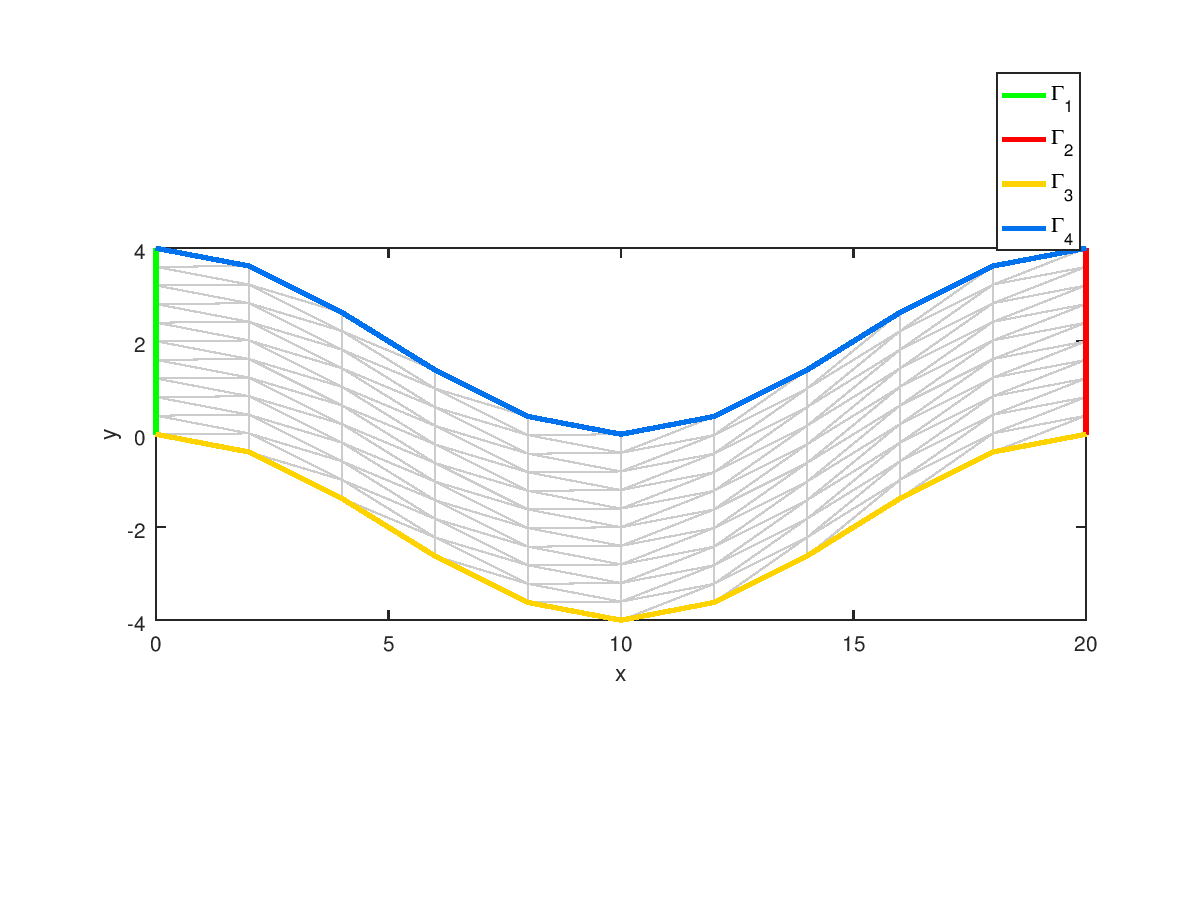

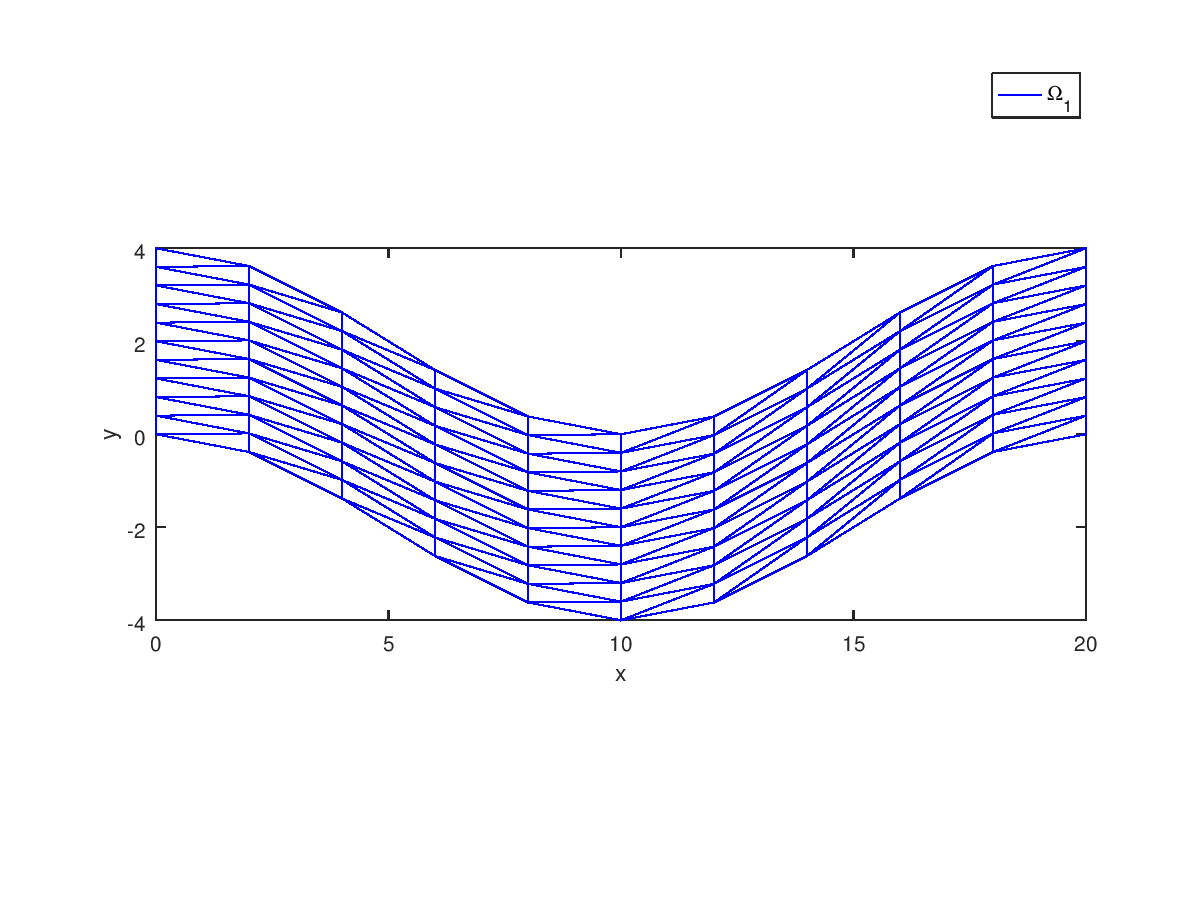

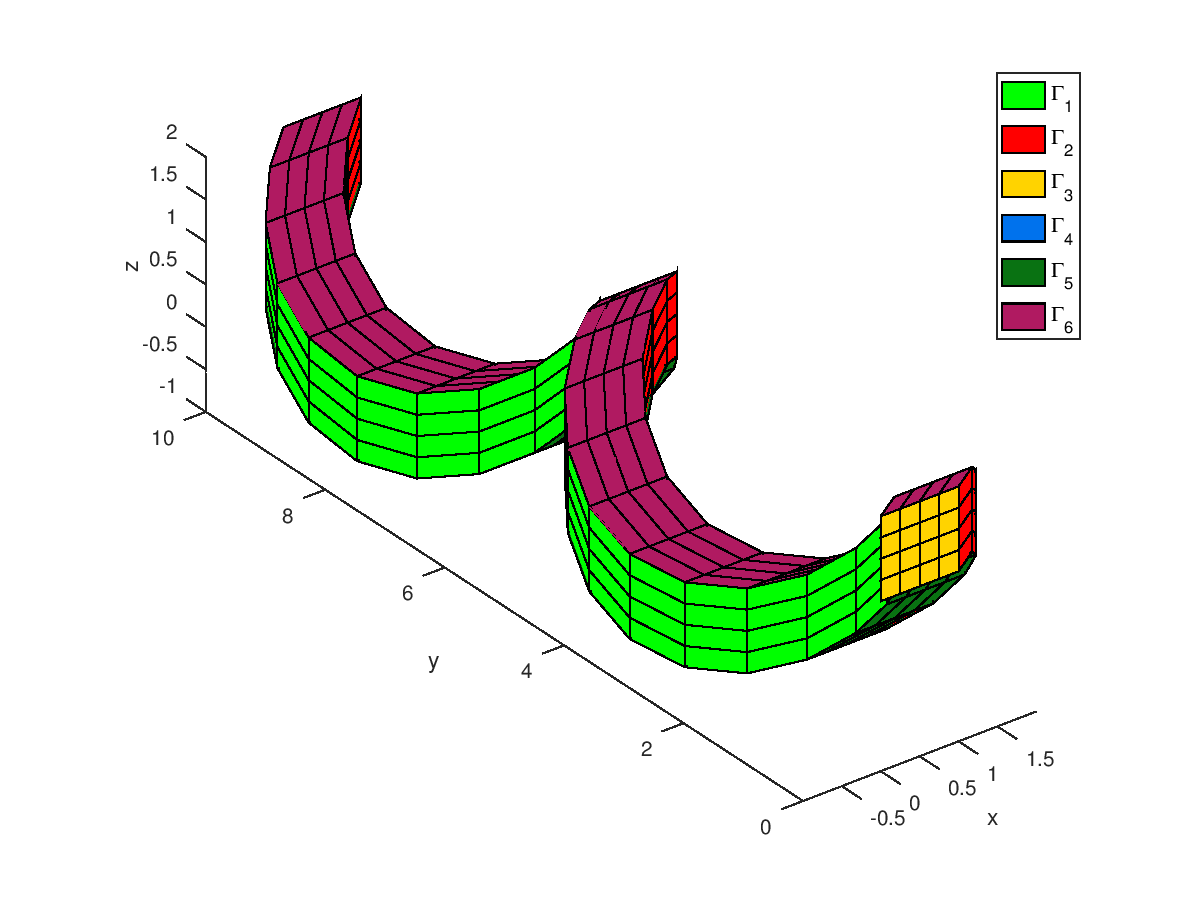

  Snapshots

This package was tested under

Windows 10.0.16299 :

with Octave 4.2.0 and 4.2.1

Mac OS X 10.12.6 :

with Octave 4.2.1 (installed with homebrew)

Mac OS X 10.3.3 :

with Octave 4.2.1 (installed with homebrew)

Ubuntu 14.04.5 LTS :

with Octave 4.2.0 and 4.2.1 (both compiled from source)

Ubuntu 16.04.3 LTS :

with Octave 4.2.0 and 4.2.1 (both compiled from source)

Ubuntu 17.10 :

with Octave 4.2.0 and 4.2.1 (both compiled from source)

Fedora 27 :

with Octave 4.2.0 and 4.2.1 (both compiled from source)

OpenSUSE Leap 42.3 :

with Octave 4.2.0 and 4.2.1 (both compiled from source)

It is not compatible with Octave 4.0.x and previous.

  Current development release

Version	date	package	archives	install	User guide	preprint
0.0.6	December 28, 2017	(22 Ko)	(22 Ko) (35 Ko) (19 Ko)	(2 Ko)	(876 Ko)

  Installation via pkg command (recommended)

• Download the packages. For example, in a terminal :

  Linux Console

  # wget http://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave/fc-tools/0.0.20/fc-tools-0.0.20.tar.gz
  # wget http://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave/fc-hypermesh/0.0.6/fc-hypermesh-0.0.6.tar.gz

• Under Octave :

  Octave Console

  >> pkg install fc-tools-0.0.20.tar.gz
  >> pkg install fc-hypermesh-0.0.6.tar.gz

• Now to use fc-hypermesh in any Octave session, it is necessary to load the package :

  Octave Console

  >> pkg load fc-hypermesh

• To try the package, one can launch a demo :

  Octave Console

  >> fc_hypermesh.demo01

For uninstalling the package, just do in an Octave session :

  All-in-one installation

For this method, one just has to get/download the install file (2 Ko) ofc_hypermesh_install.m Thereafter, it should be run under Octave. This command downloads, extracts and configures the fc-hypermesh and the required fc-tools packages in the current directory.

For example, to install this package in directory ~/Octave/packages, in a terminal one can do :

Then in a Octave terminal run the following commands

This is the output of the ofc_hypermesh_install command :

The complete package (i.e. with all the other needed packages) is stored in the directory ~/Octave/packages/fc-hypermesh-full and, for each Octave session, one has to set the package by :

To uninstall, one just has to delete directory ~/Octave/packages/fc-hypermesh-full

  Old development releases

Version	date	package	archives	install	User’s Guide
0.0.5	November 3, 2017	(21 Ko)	(21 Ko) (34 Ko) (19 Ko)	(2 Ko)	(980 Ko)
0.0.4	October 5, 2017	(21 Ko)	(21 Ko) (34 Ko) (18 Ko)	(2 Ko)	(826 Ko)
0.0.2	December 24, 2016	(19 Ko)	(20 Ko) (29 Ko) (17 Ko)	(2 Ko)	(585 Ko)
0.0.1	December 18, 2016	(19 Ko)	(29 Ko) (17 Ko)	(2 Ko)
