The experimental fc-vfemp1 Matlab toolbox contains vectorized codes to solve scalar and vector Boundary Value Problems by ℙ₁-Lagrange ﬁnite element method in any space dimension.

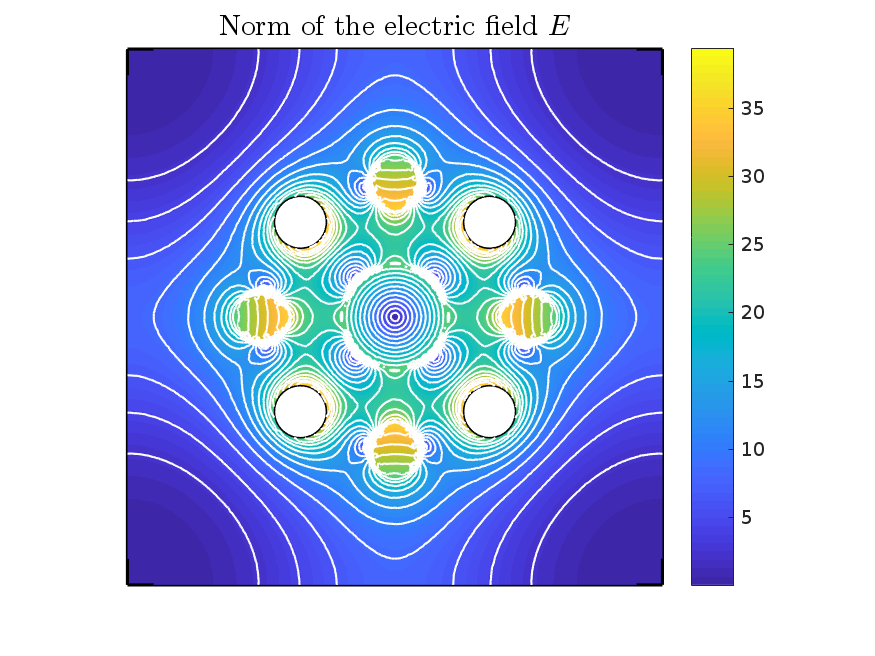

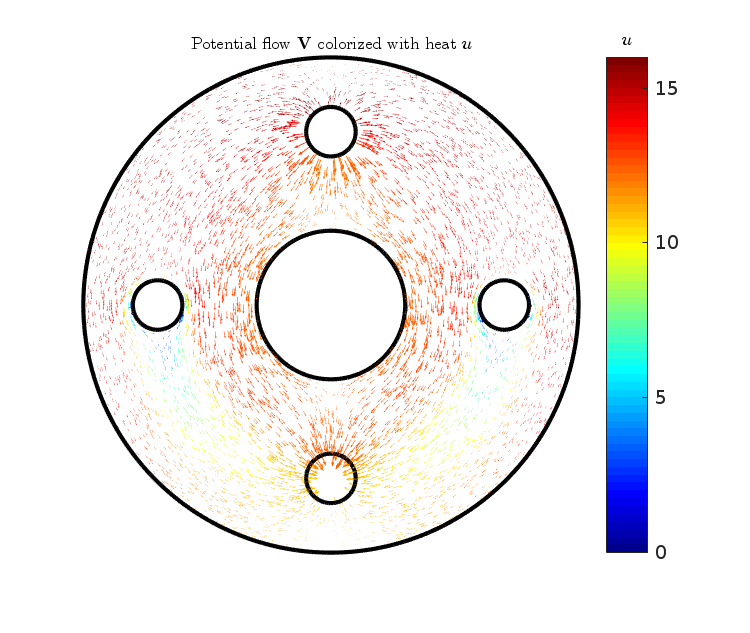

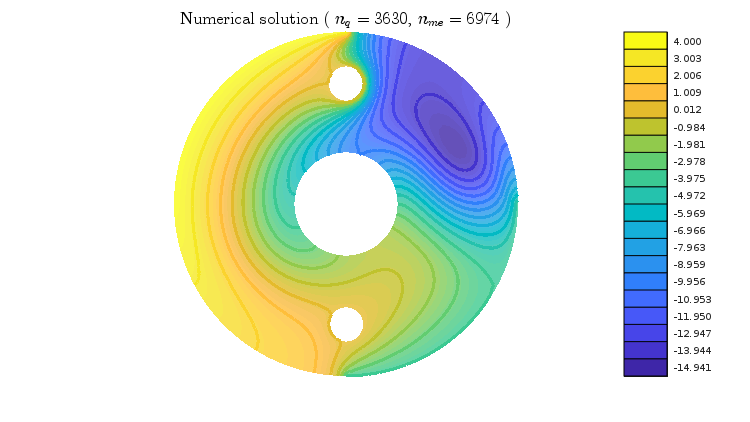

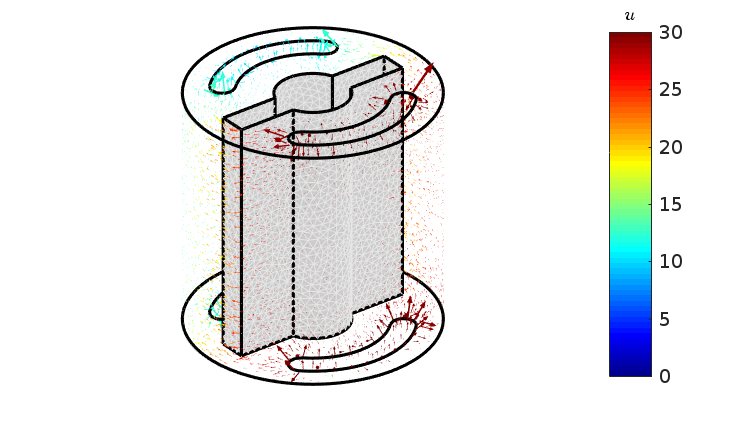

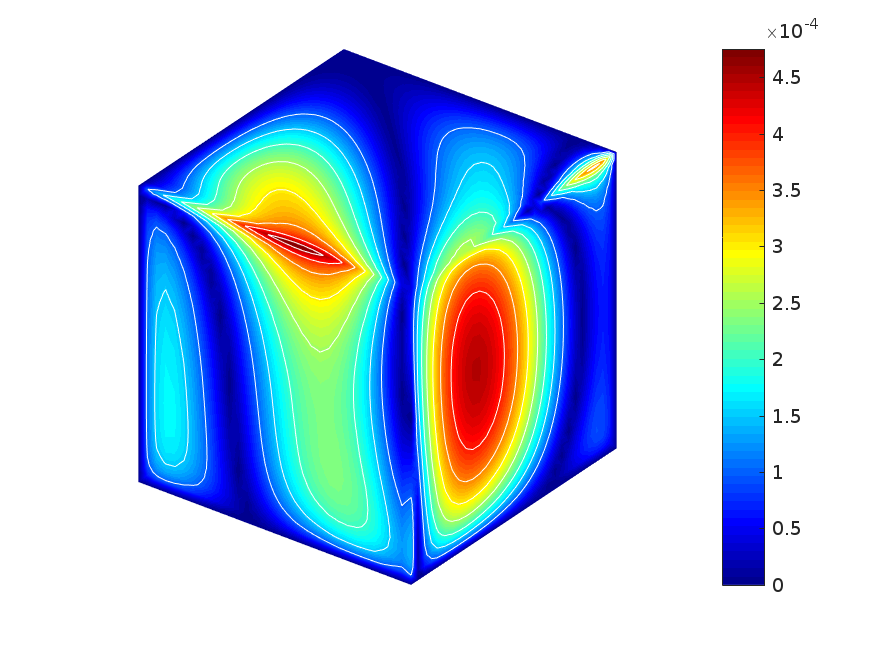

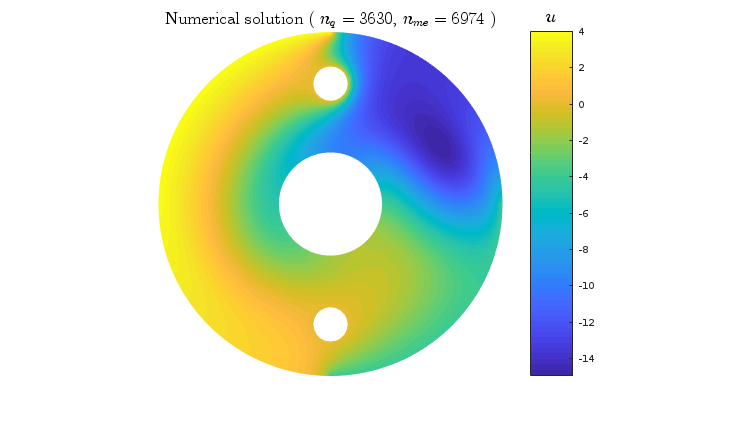

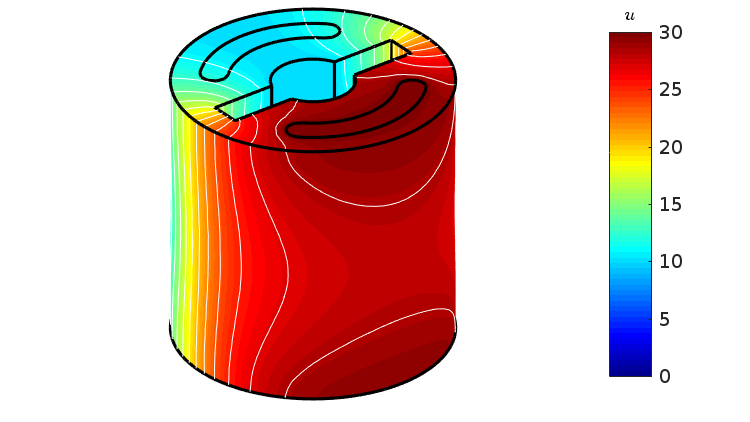

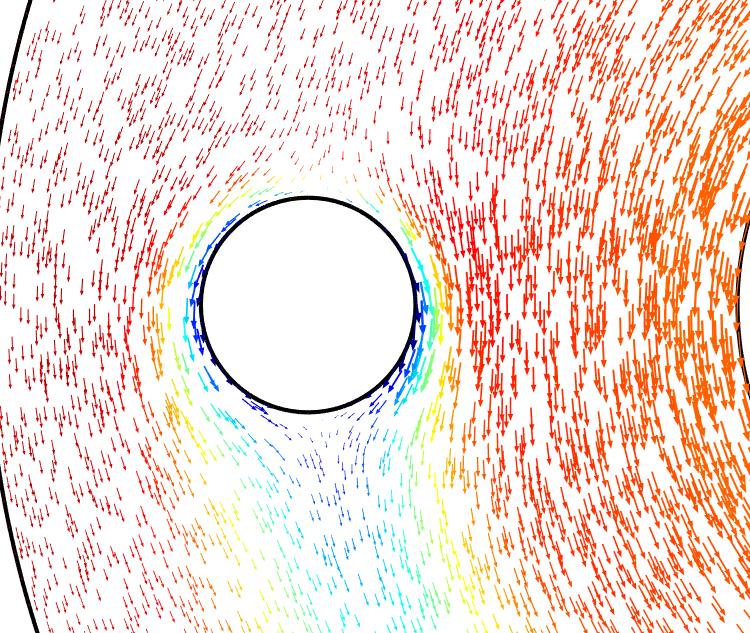

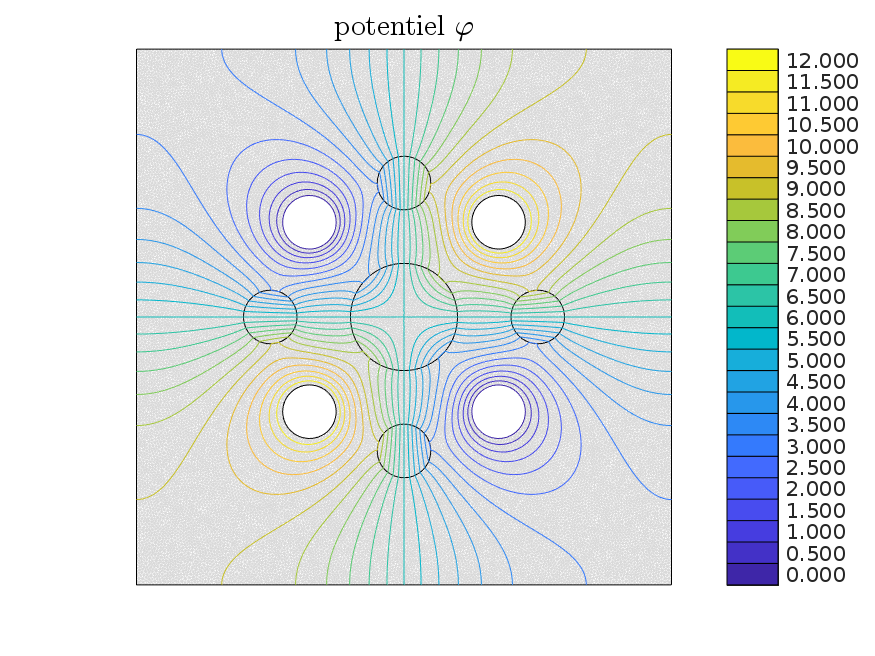

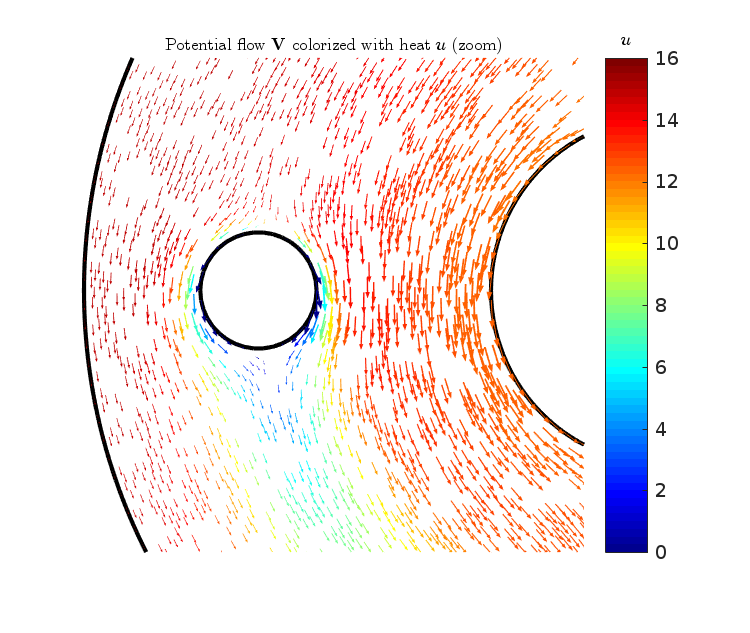

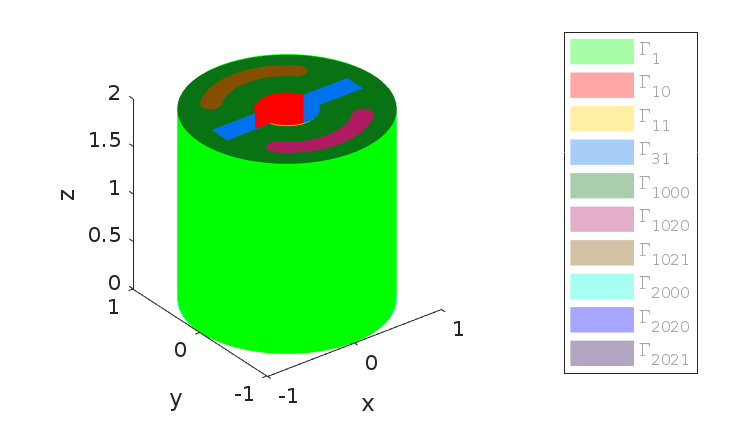

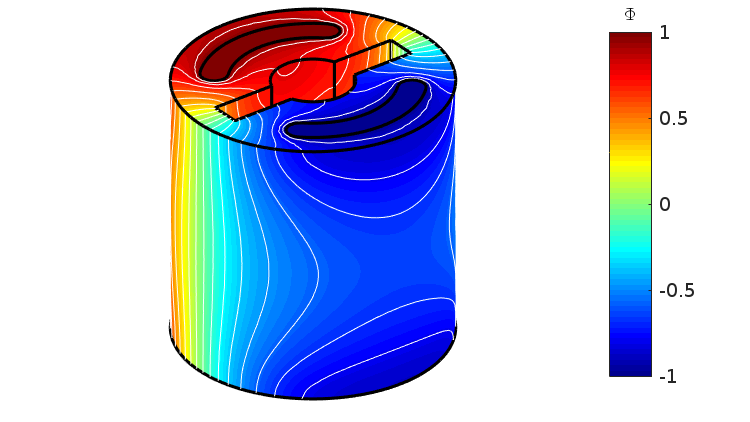

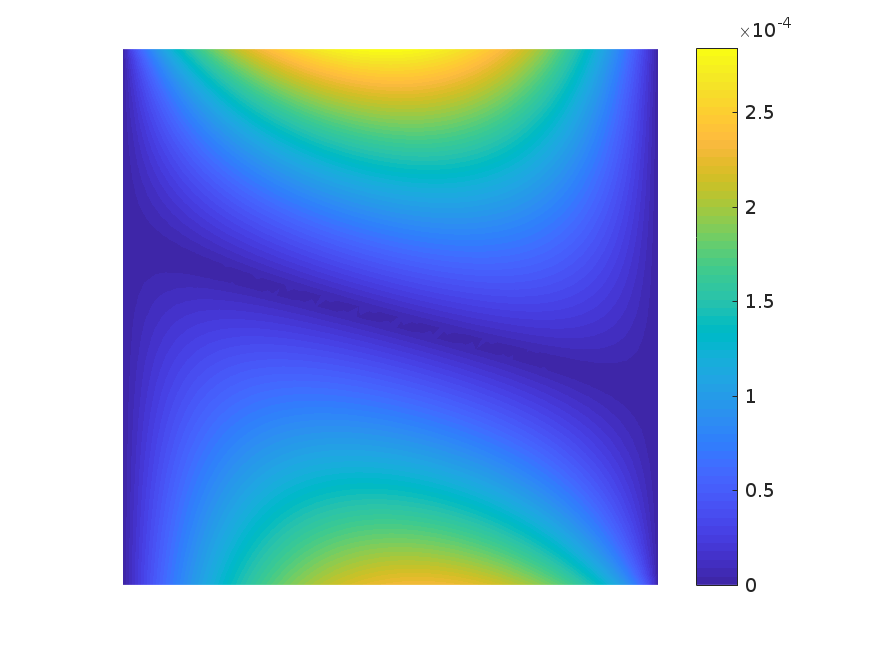

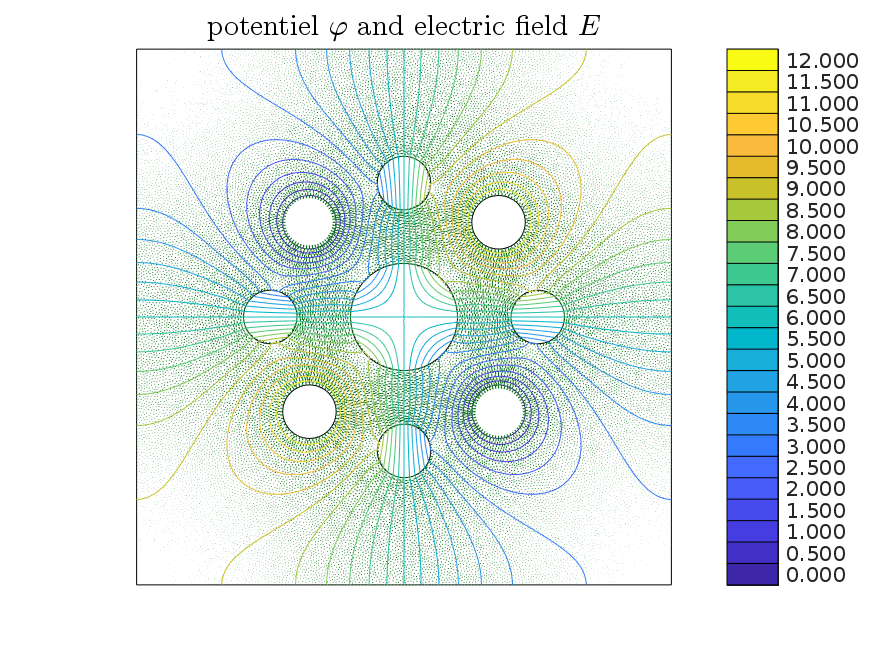

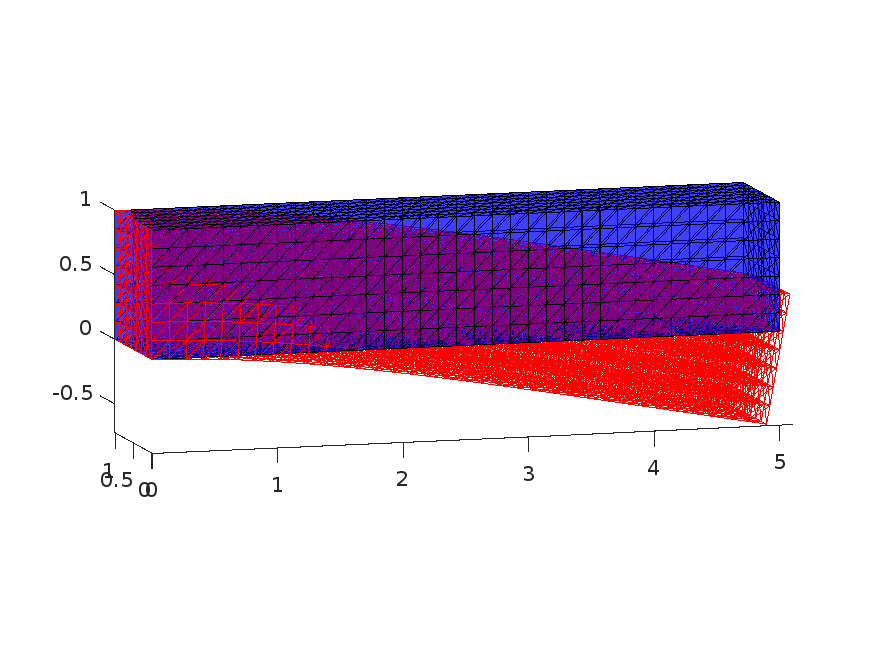

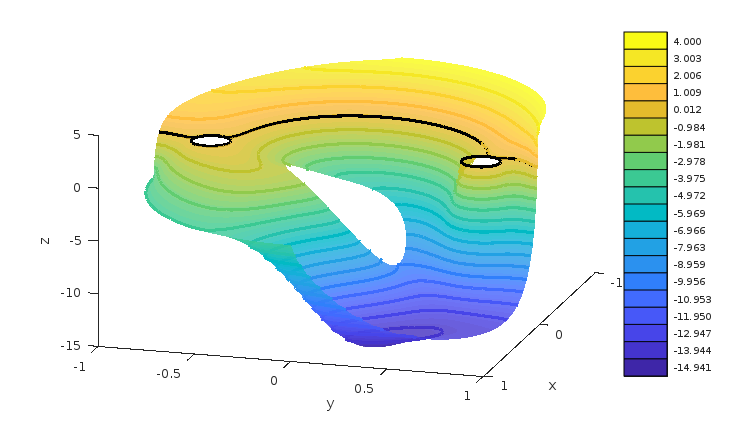

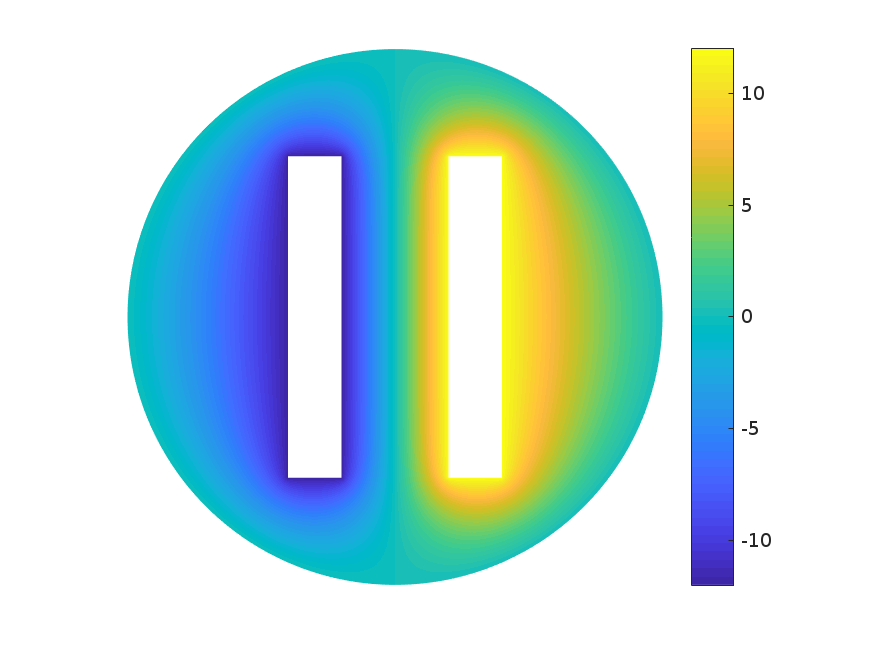

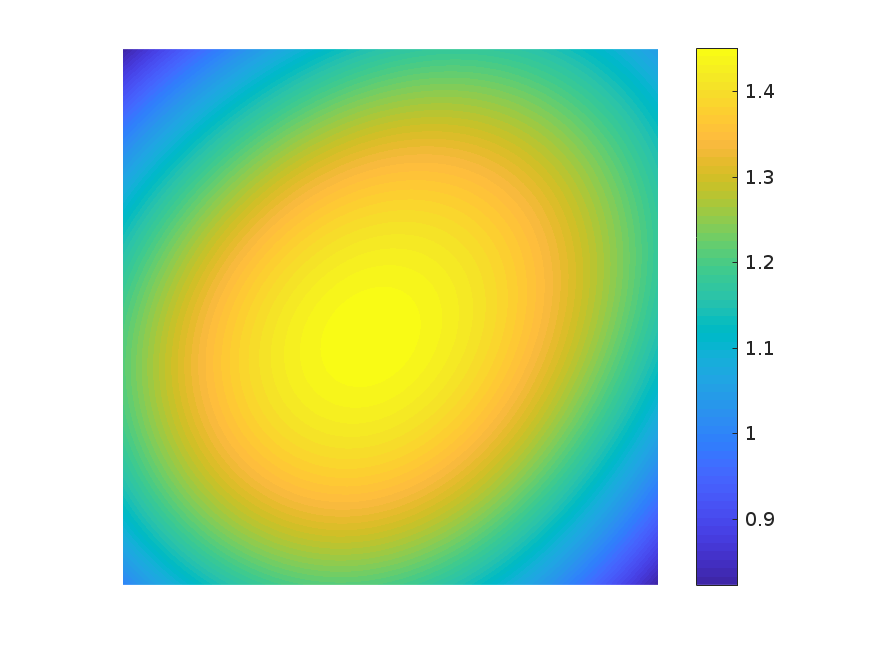

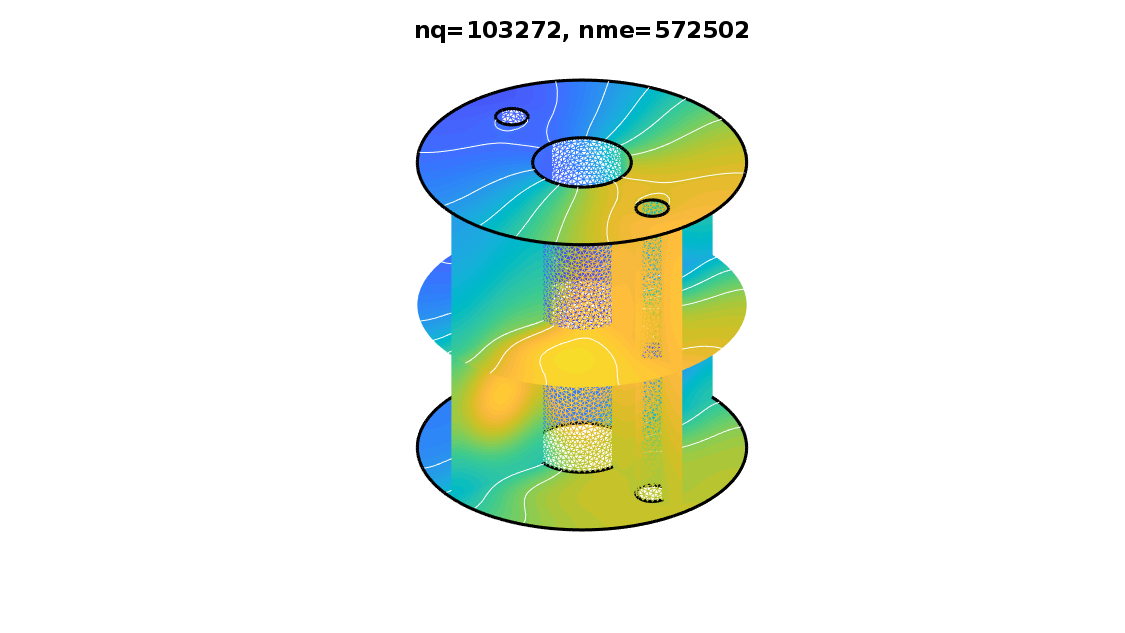

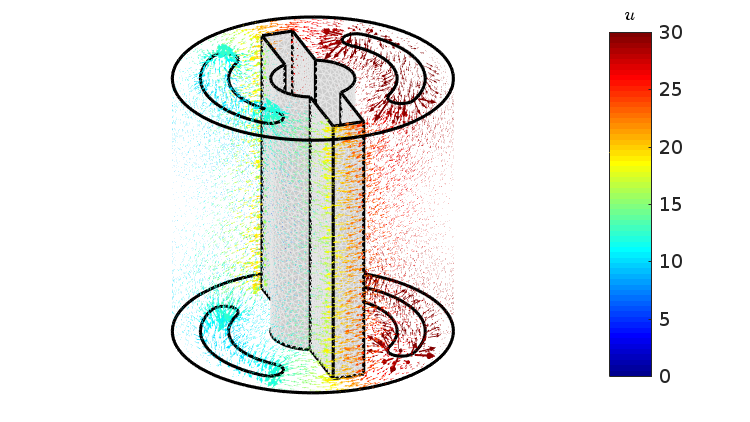

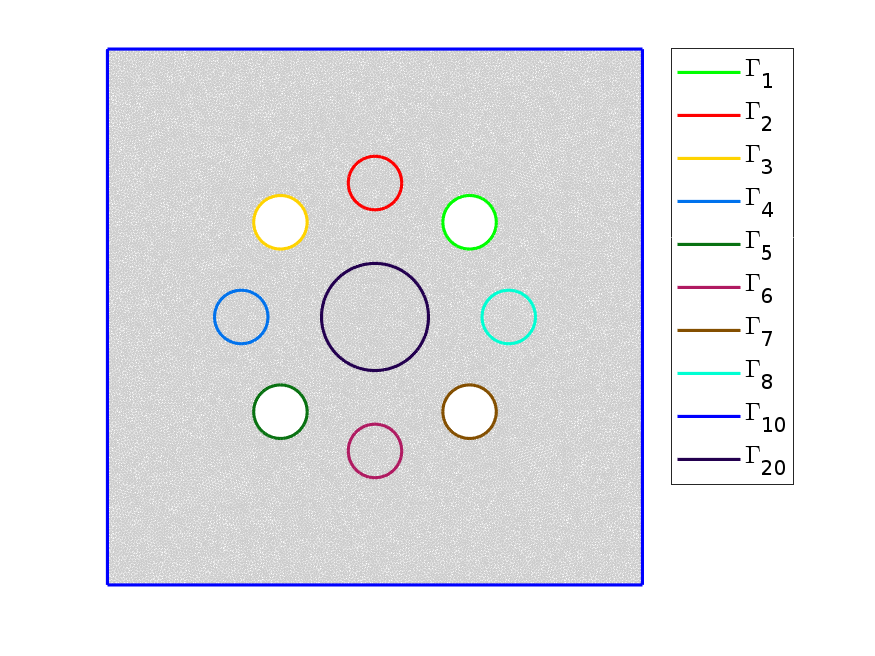

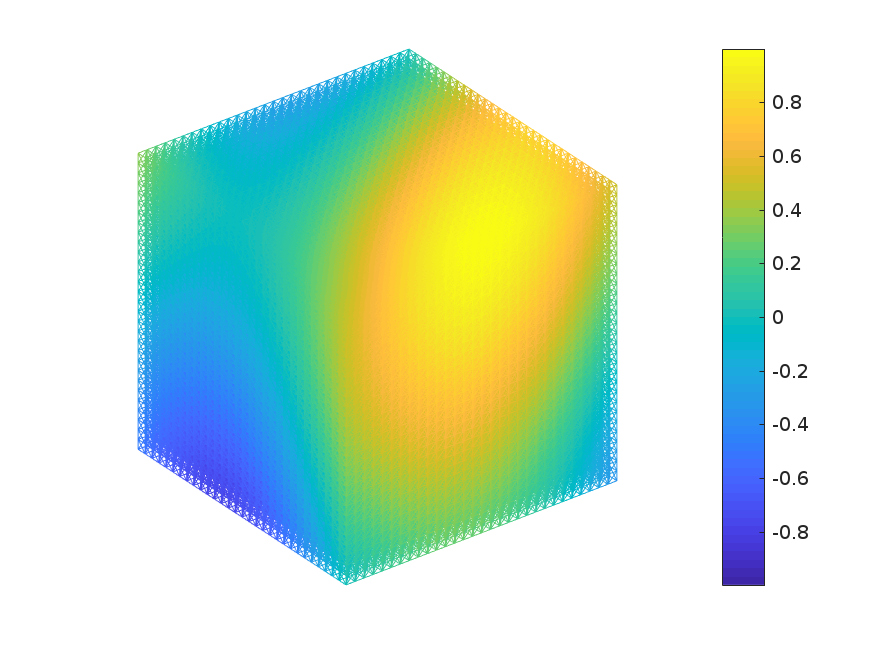

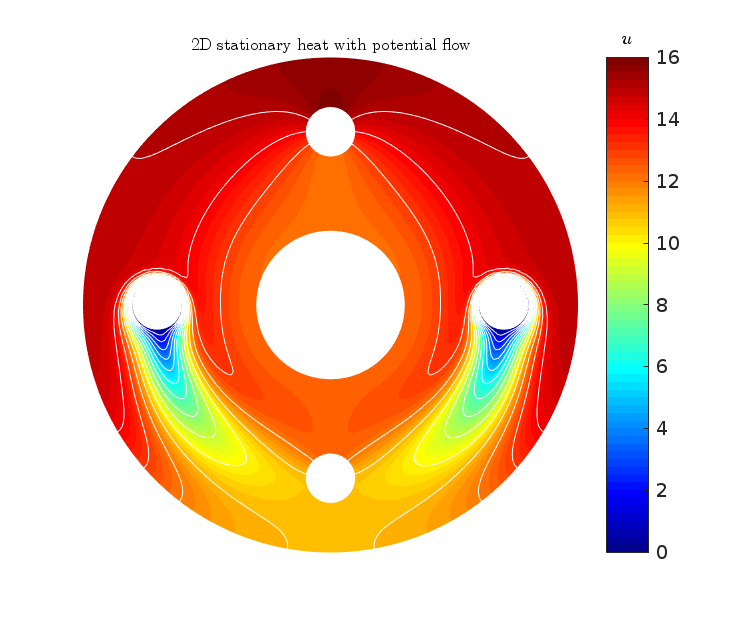

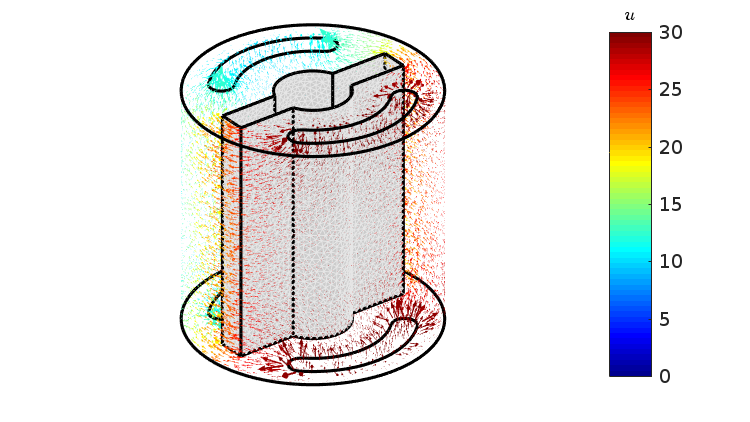

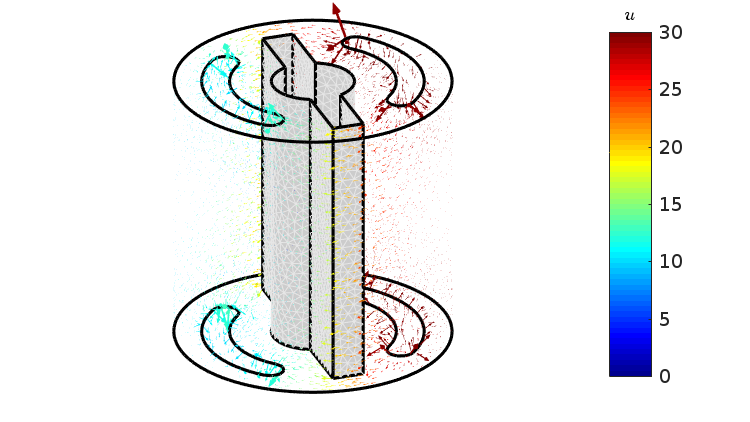

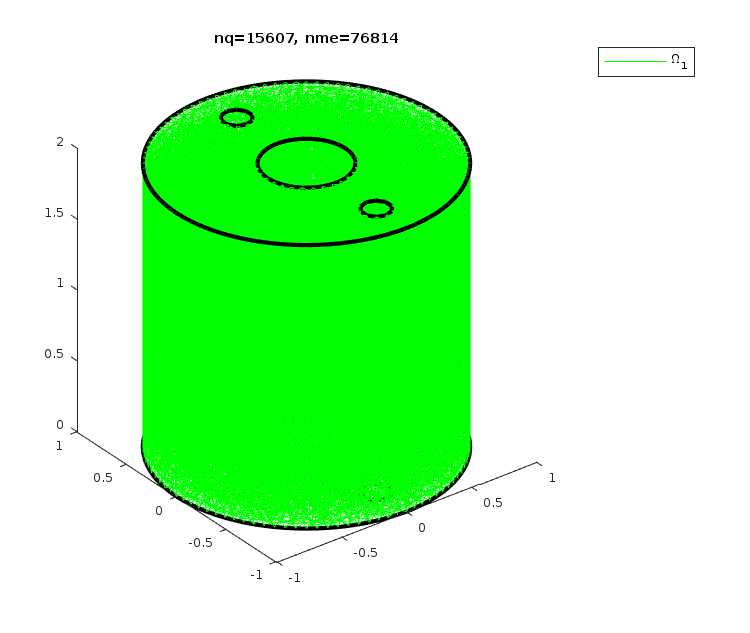

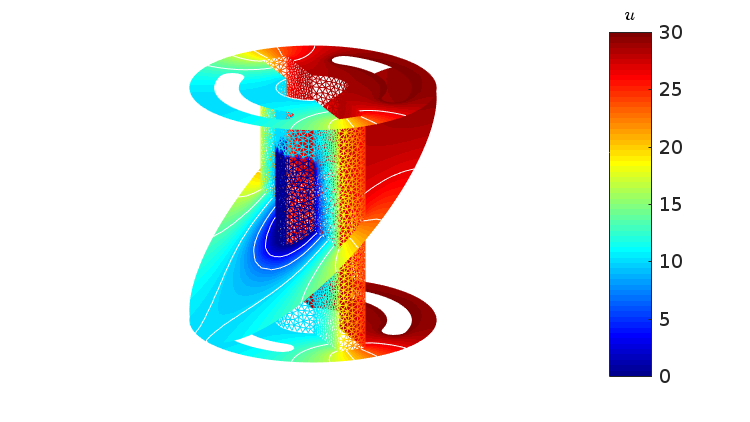

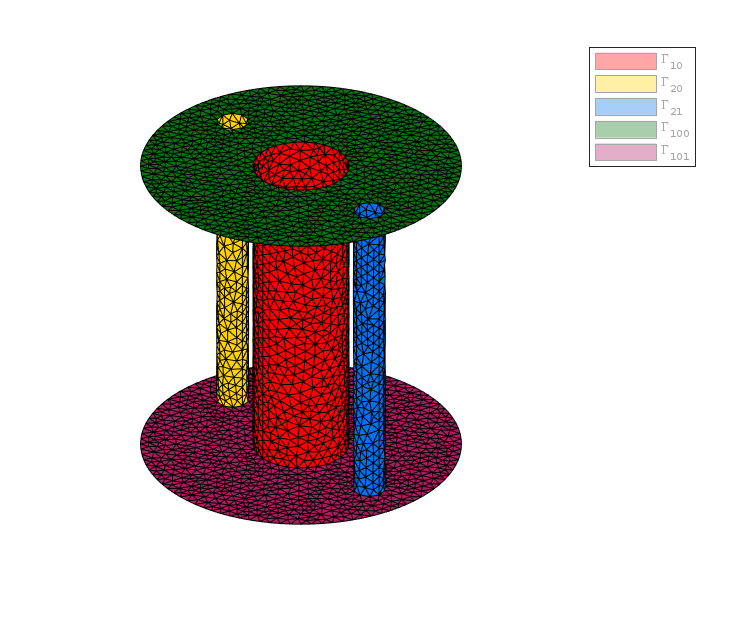

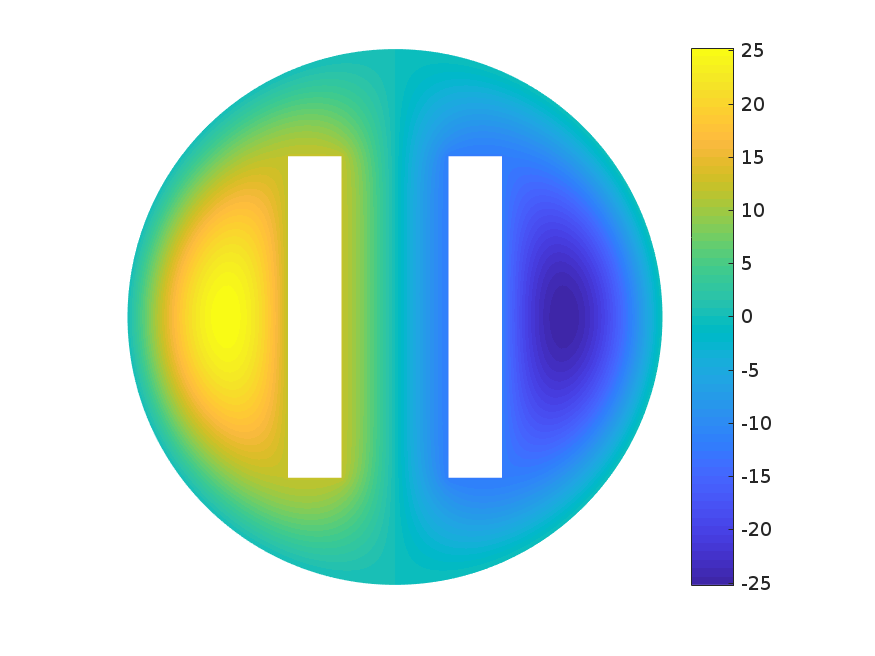

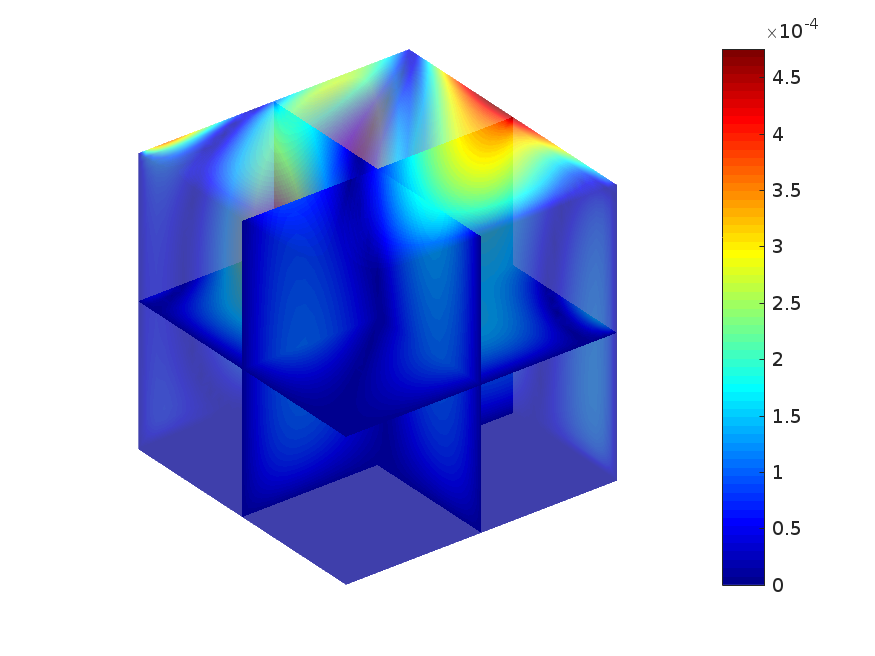

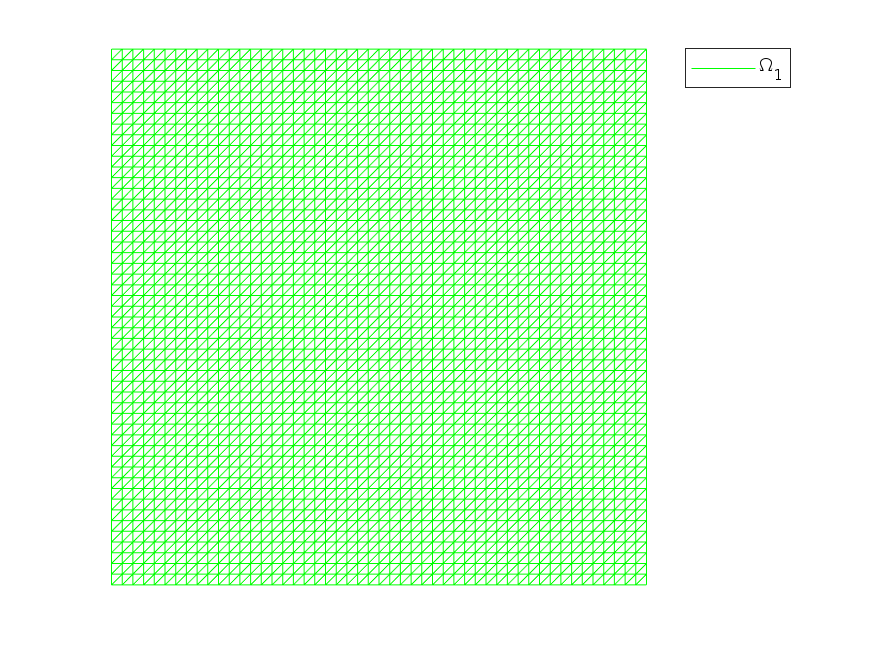

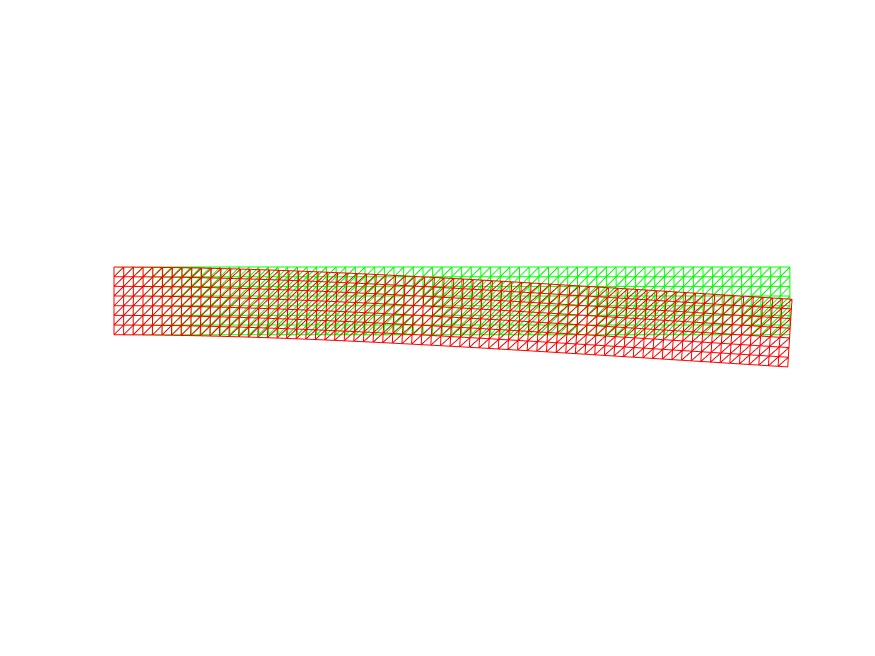

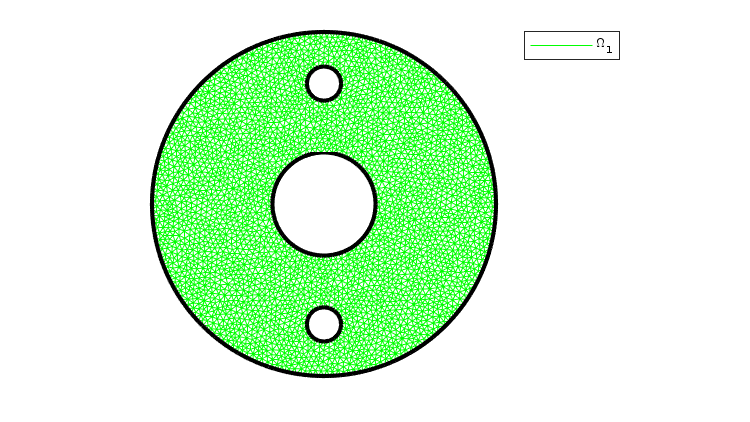

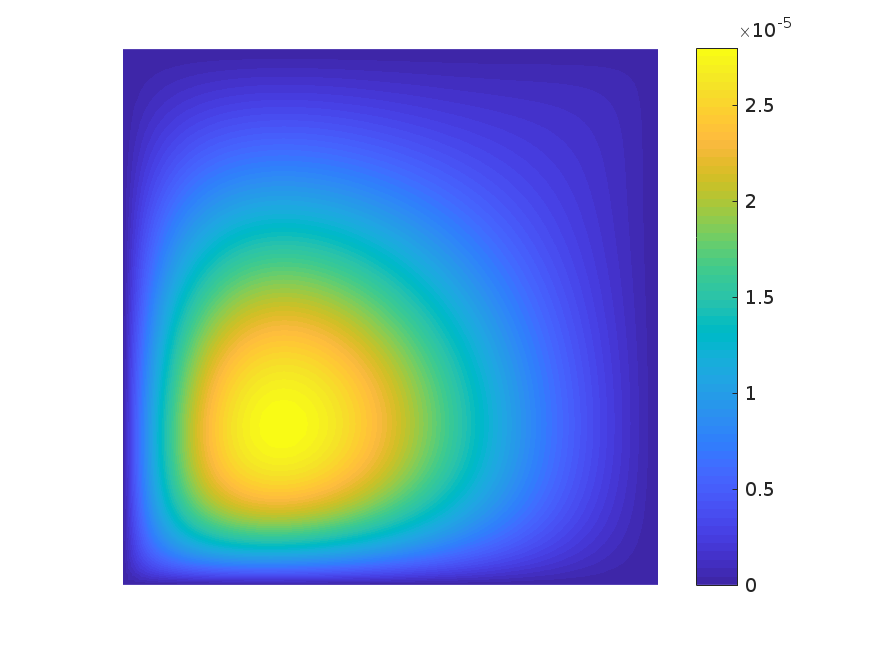

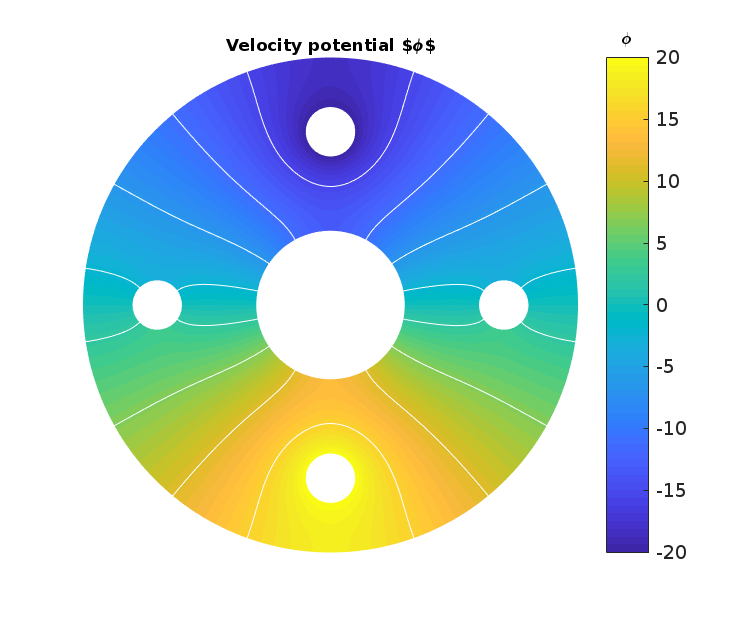

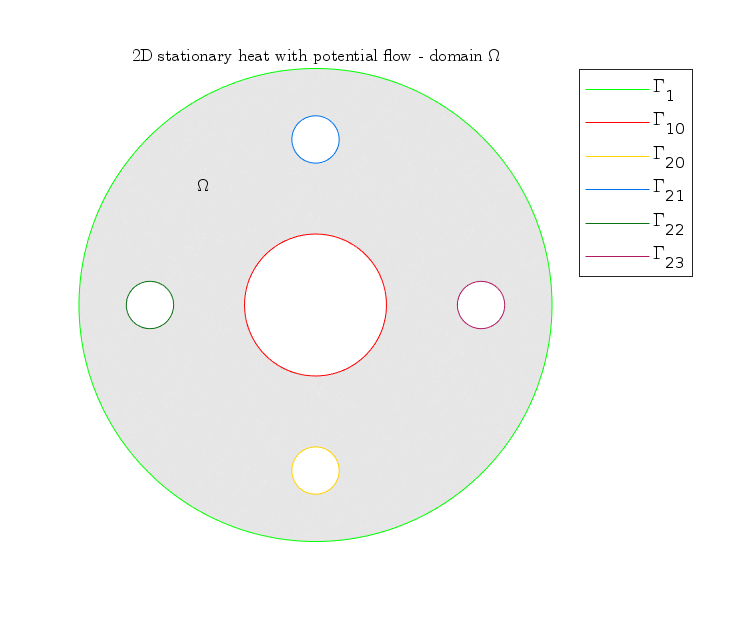

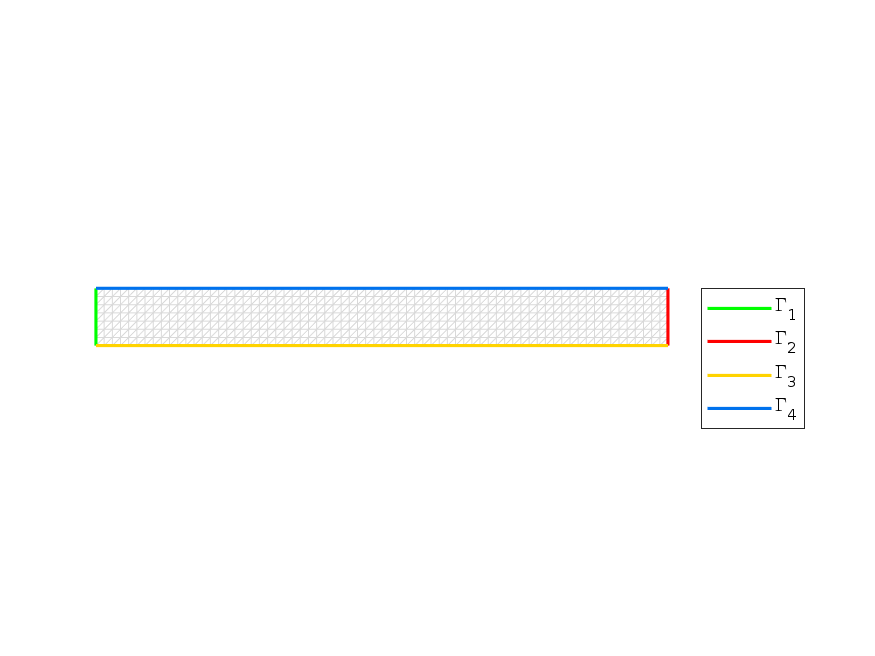

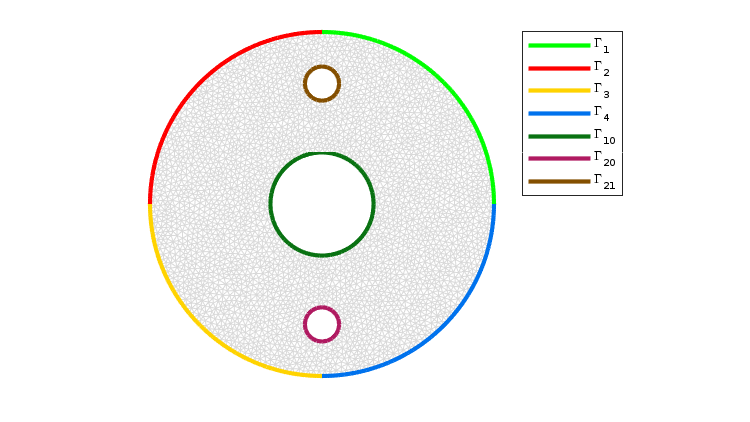

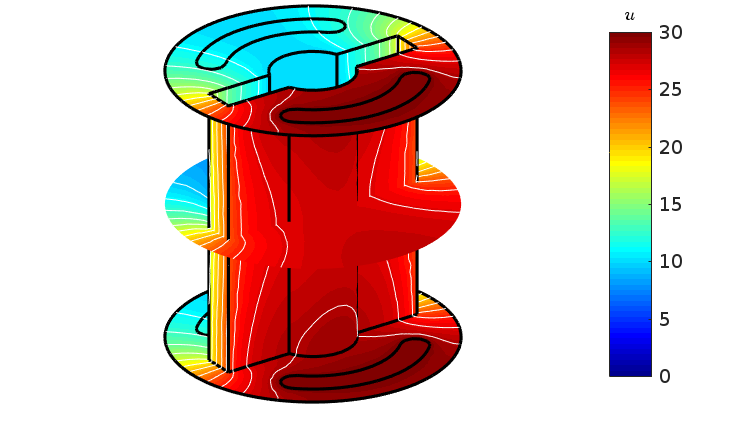

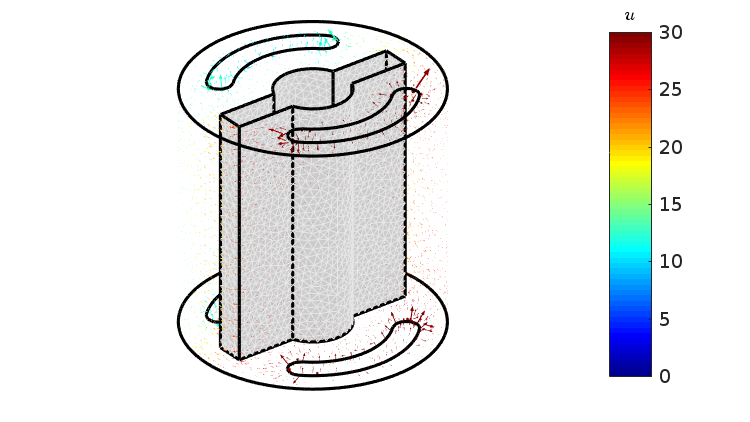

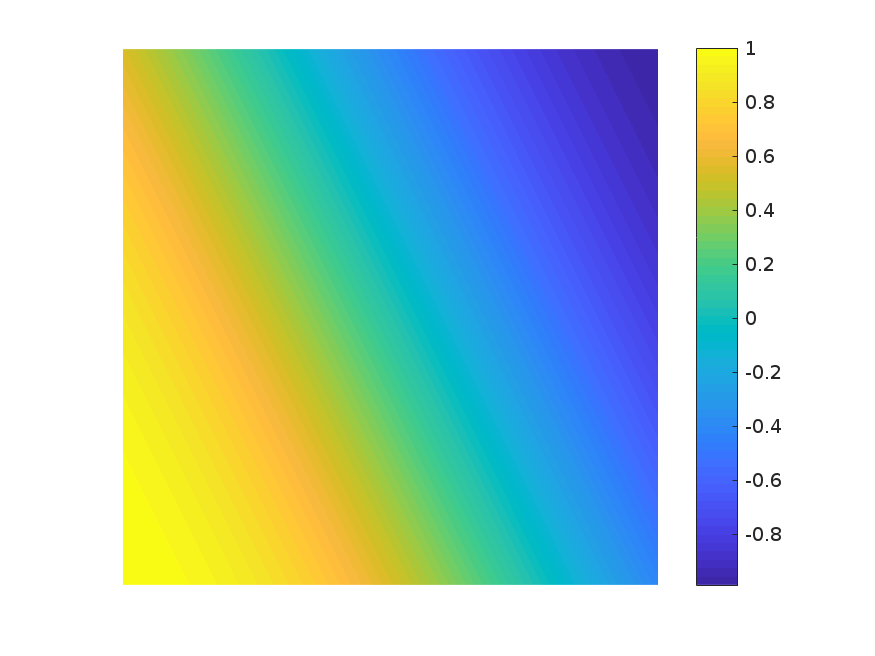

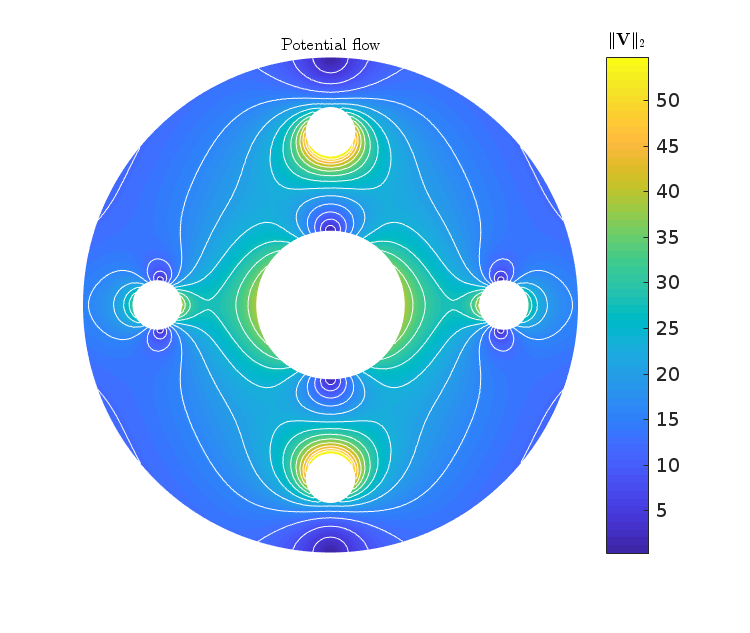

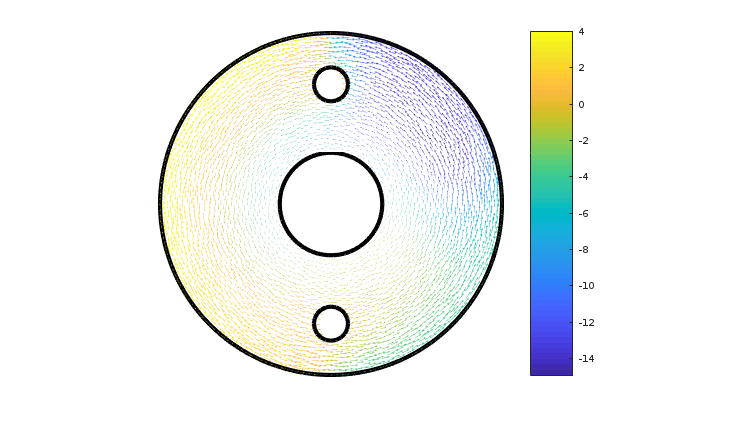

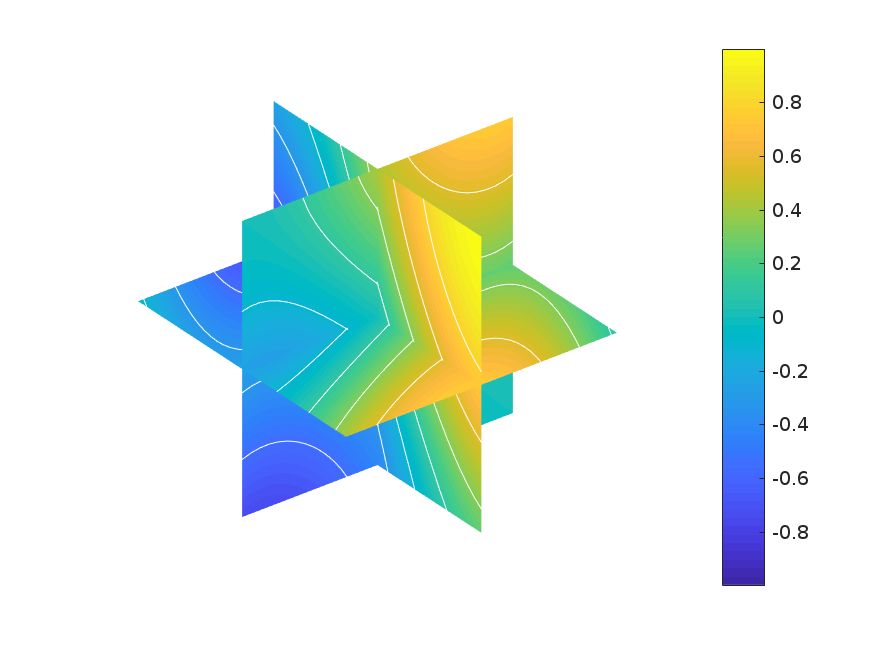

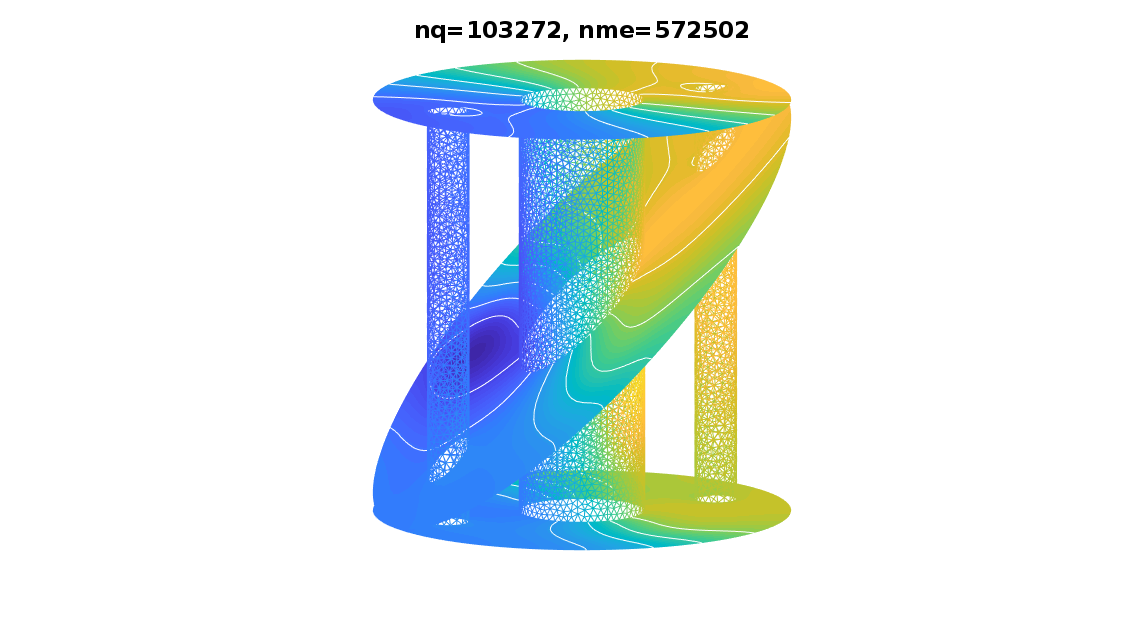

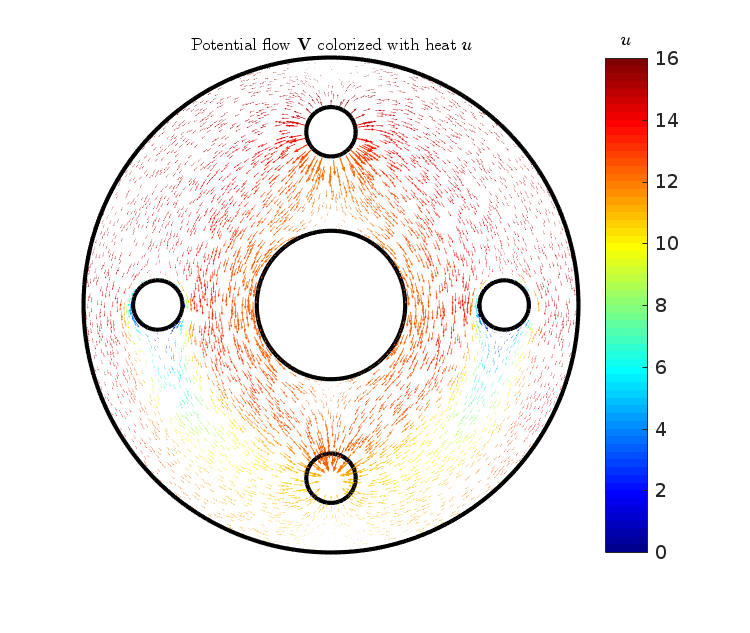

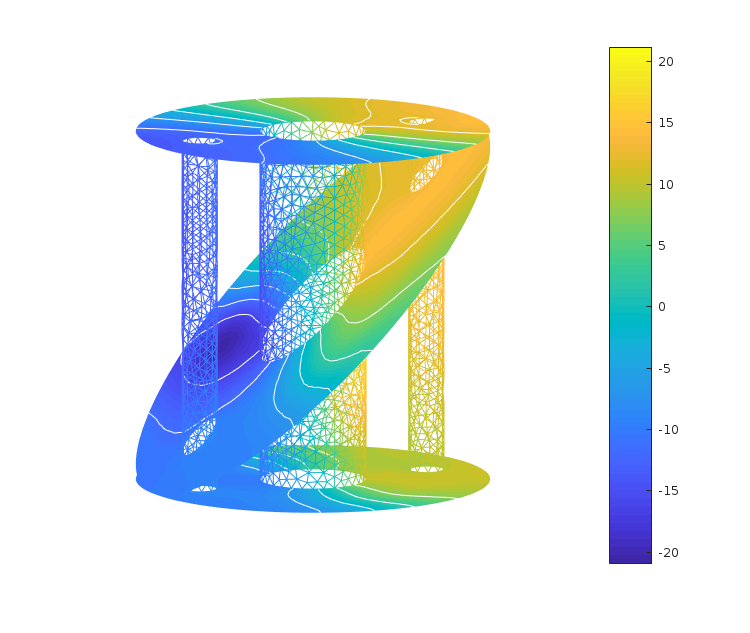

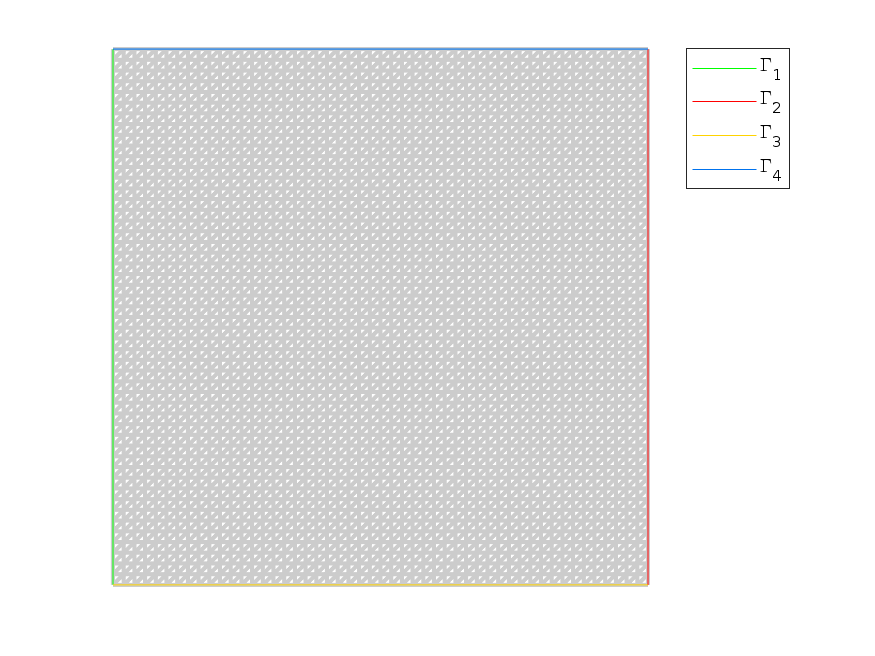

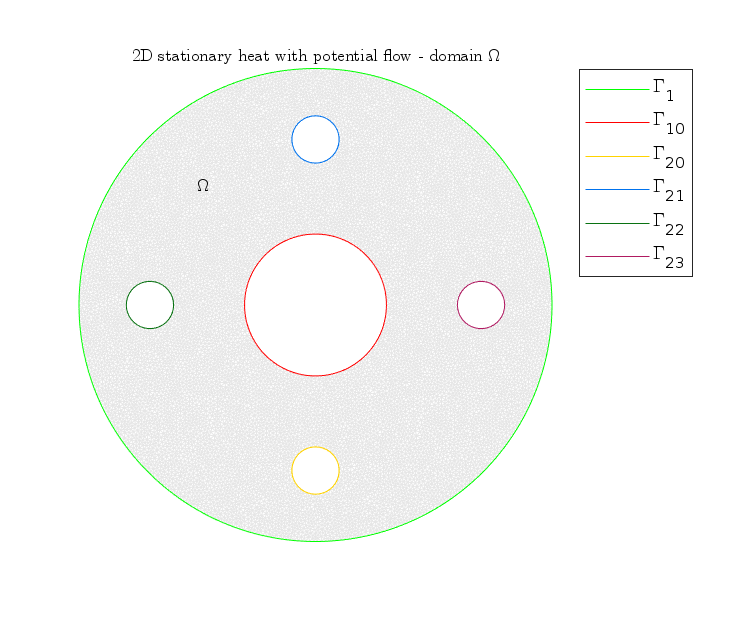

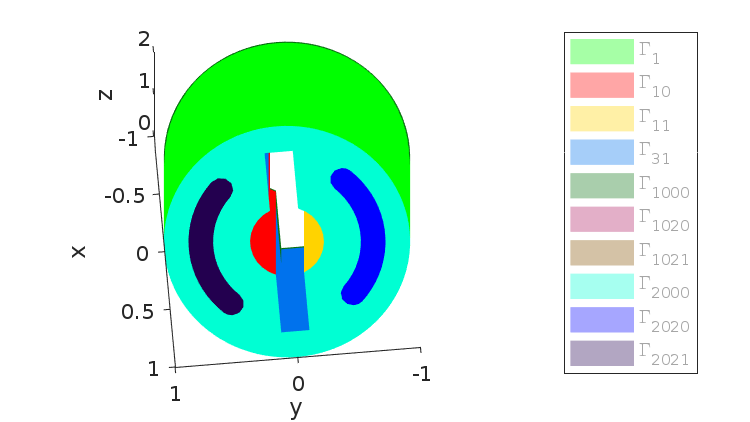

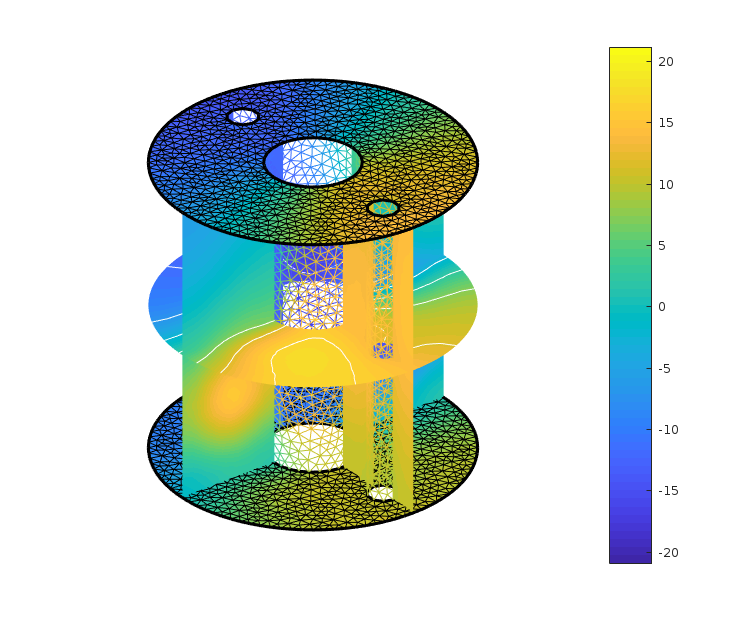

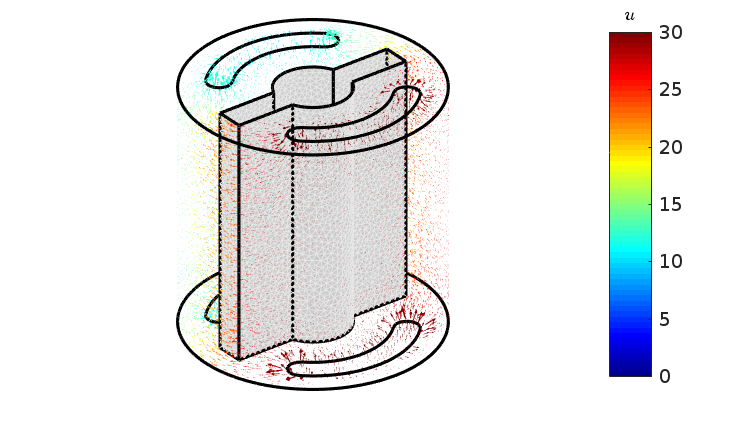

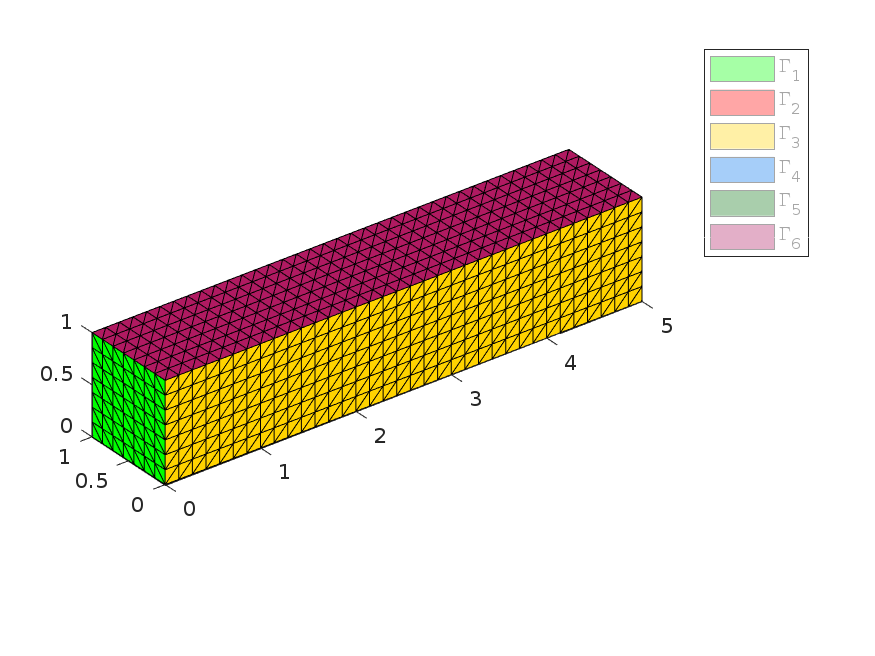

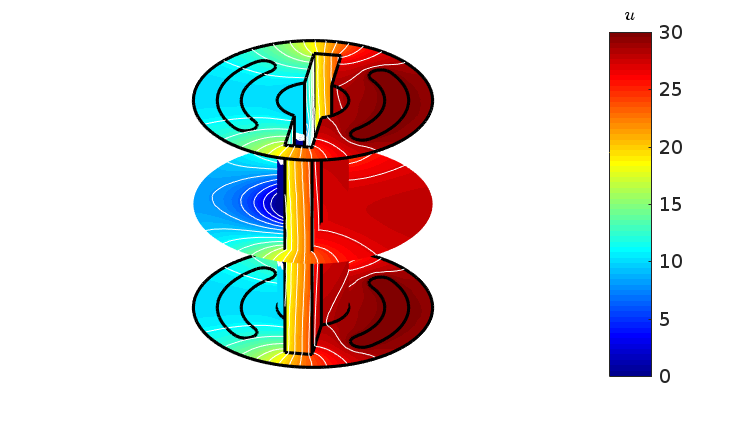

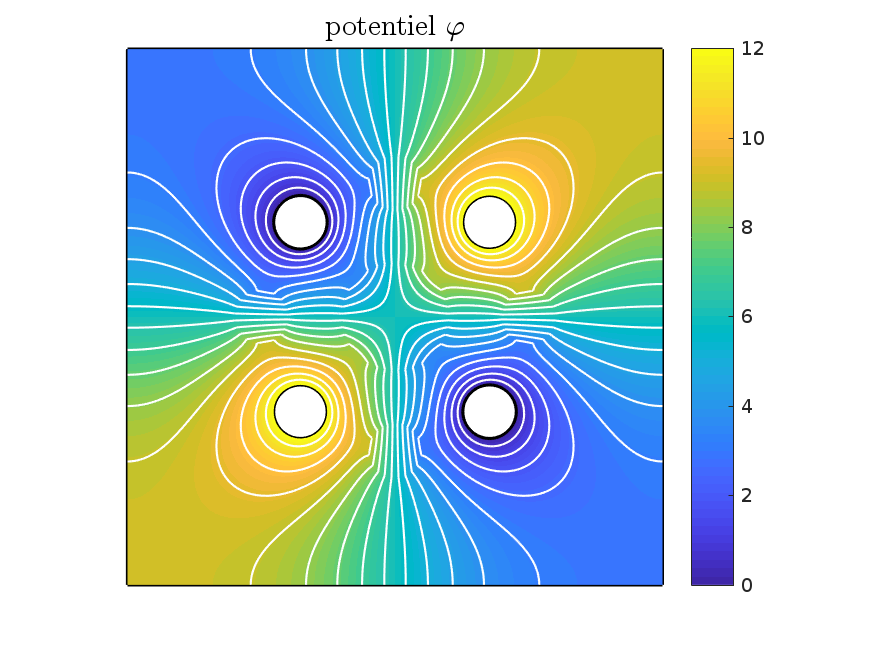

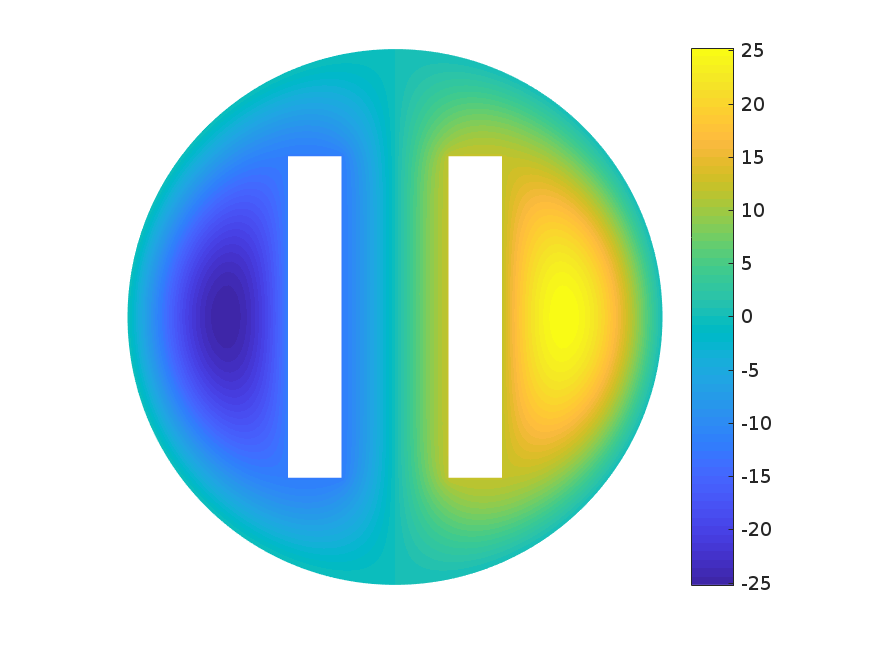

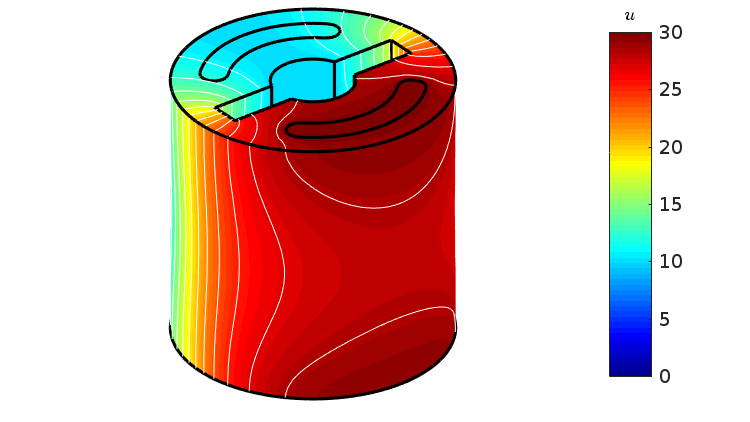

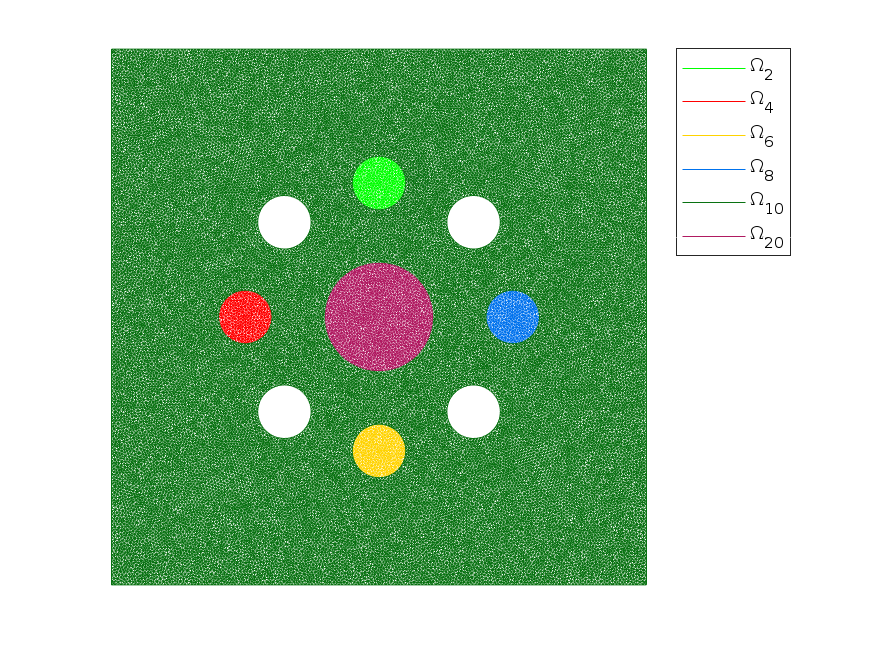

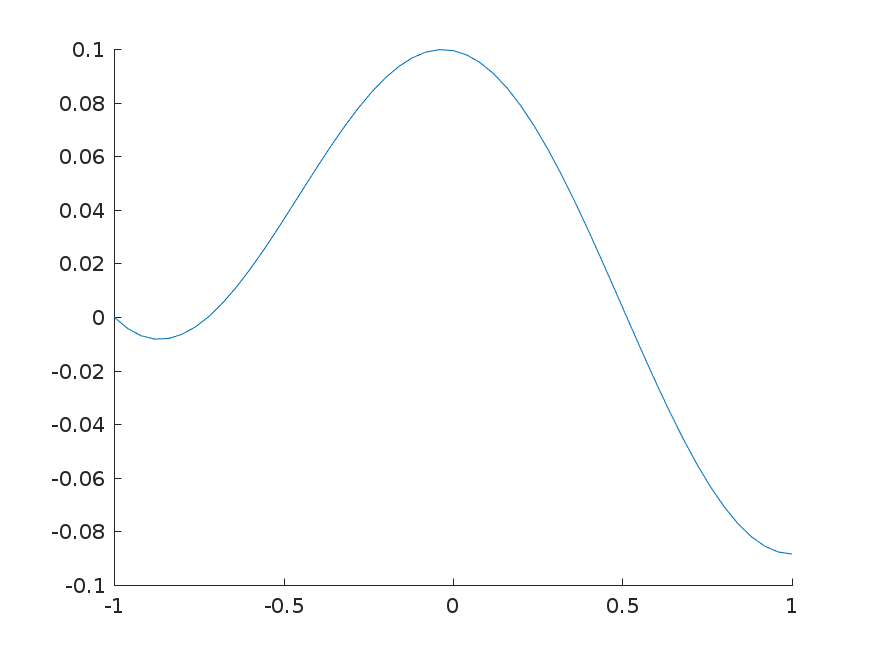

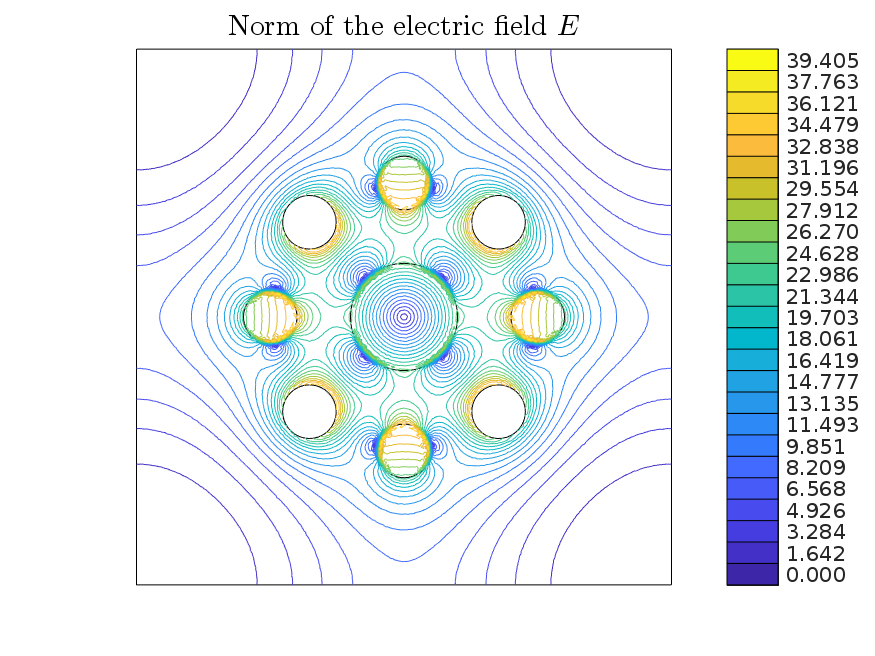

Snapshots

This toolbox was tested under

Windows 10.0.16299 :: with Matlab R2015b to R2017b (opengl hardware on NVIDIA Quadro K600 with nvidia-376 driver)
Mac OS X 10.12.6 :: with Matlab R2015b to R2017b (opengl hardware on Intel HD Graphics 3000 with 2.1 INTEL-10.2.37 driver)
Ubuntu 14.04.5 LTS :: with Matlab R2015b to R2017b (opengl hardware on NVIDIA Quadro K1100M with nvidia-340 driver)
Ubuntu 16.04.3 LTS :: with Matlab R2015b to R2017b (opengl hardware on NVIDIA GeForce GTX 1070 with nvidia-384 driver)
Ubuntu 17.10 :: with Matlab R2015b to R2017b (opengl hardware on NVIDIA GeForce GTX 1080 Ti with nvidia-384 driver)

Current development release

Version

date

Installation automatic, all in one (recommanded)

For this method, one just have to get/download the install ﬁle (2 Ko) mfc_vfemp1_install.m Thereafter, one run it under Matlab. This command download, extract and conﬁgure the fc-vfemp1 and the required toolbox fc-simesh in the current directory.

For example, to install this toolbox in ~/Matlab/toolboxes directory, one have to copy the ﬁle mfc_vfemp1_install.m in the ~/Matlab/toolboxes directory. Then in a Matlab terminal run the following commands

Matlab Console

>> cd ~/Matlab/toolboxes
>> mfc_vfemp1_install()

There is the output of the mfc_vfemp1_install() command on a Linux computer :

Matlab Ouput

Parts of the Matlab <fc-vfemp1> toolbox.
Copyright (C) 2016-2017 F. Cuvelier <cuvelier@math.univ-paris13.fr>

**************************************
Downloading and installing the toolbox
    <fc-simesh>[0.2.1]
**************************************
Parts of the Matlab <fc-simesh> toolbox.
Copyright (C) 2016-2017 F. Cuvelier <cuvelier@math.univ-paris13.fr>

1- Downloading and extracting the toolboxes
   -> <fc-tools>[0.0.19] ... OK
   -> <fc-hypermesh>[0.0.6] ... OK
   -> <fc-oogmsh>[0.0.17] ... OK
   -> <fc-simesh>[0.2.1] ... OK
   -> <fc-graphics4mesh>[0.0.2] ... OK
   -> <fc-siplt>[0.0.2] ... OK
2- Setting the toolboxes
2-a) Setting the <fc-hypermesh> toolbox
Write in ~/Matlab/toolboxes/fc-vfemp1-full/fc_hypermesh-0.0.6/configure_loc.m ...
  -> done
2-b) Setting the <fc-oogmsh> toolbox
[fc-oogmsh] Using GMSH binary : ~/bin/gmsh
[fc-oogmsh] Writing in ~/Matlab/toolboxes/fc-vfemp1-full/fc_oogmsh-0.0.17/configure_loc.m ...
[fc-oogmsh] configured with
   ->     gmsh_bin=’~/bin/gmsh’;
   ->     mesh_dir=’~/Matlab/toolboxes/fc-vfemp1-full/fc_oogmsh-0.0.17/meshes’;
   ->      geo_dir=’~/Matlab/toolboxes/fc-vfemp1-full/fc_oogmsh-0.0.17/geodir’;
   -> fc_tools_dir=’~/Matlab/toolboxes/fc-vfemp1-full/fc_tools-0.0.19’;
[fc-oogmsh] done
2-c) Setting the <fc-simesh> toolbox without graphics
2-d) Setting the <fc-graphics4mesh> toolbox
Write in ~/Matlab/toolboxes/fc-vfemp1-full/fc_graphics4mesh-0.0.2/configure_loc.m ...
  -> done
2-e) Setting the <fc-siplt> toolbox
Write in ~/Matlab/toolboxes/fc-vfemp1-full/fc_siplt-0.0.2/configure_loc.m ...
  -> done
2-f) Setting the <fc-simesh> toolbox with graphics
[fc-simesh] Writing in ~/Matlab/toolboxes/fc-vfemp1-full/fc_simesh-0.2.1/configure_loc.m ...
[fc-simesh] configured with
   -> oogmsh_dir    =’~/Matlab/toolboxes/fc-vfemp1-full/fc_oogmsh-0.0.17’;
   -> hypermesh_dir =’~/Matlab/toolboxes/fc-vfemp1-full/fc_hypermesh-0.0.6’;
   -> siplt_dir     =’~/Matlab/toolboxes/fc-vfemp1-full/fc_siplt-0.0.2’;
[fc-simesh] done
3- Using instructions
   To use the <fc-simesh> toolbox:
   addpath(’~/Matlab/toolboxes/fc-vfemp1-full/fc_simesh-0.2.1’)
   fc_simesh.init()

   See ~/Matlab/toolboxes/mfc_simesh_set.m
    <fc-simesh>[0.2.1]: installed

**************************************
Downloading and installing the toolbox
    <fc-vfemp1>[0.1.0]
**************************************
*** Setting the <fc-vfemp1> toolbox
Write in ~/Matlab/toolboxes/fc-vfemp1-full/fc_vfemp1-0.1.0/configure_loc.m ...
  -> done
*** The <fc-vfemp1>[0.1.0] is installed
*** Using instructions
   To use the <fc-vfemp1> toolbox:
   addpath(’~/Matlab/toolboxes/fc-vfemp1-full/fc_vfemp1-0.1.0’)
   fc_vfemp1.init()

   See ~/Matlab/toolboxes/mfc_vfemp1_set.m

The complete toolbox (i.e. with all the other needed toolboxes) is stored in the directory

~/Matlab/toolboxes/fc-vfemp1-full

and, for each Matlab session, one have to set the toolbox by :

Matlab Console

>> addpath(’~/Matlab/toolboxes/fc-vfemp1-full/fc-vfemp1-0.1.0’)
>> fc_vfemp1.init()

To quickly test this toolbox, one can run one of the script examples located in the directory
+fc_vfemp1/+examples. For example, runs

Matlab Console

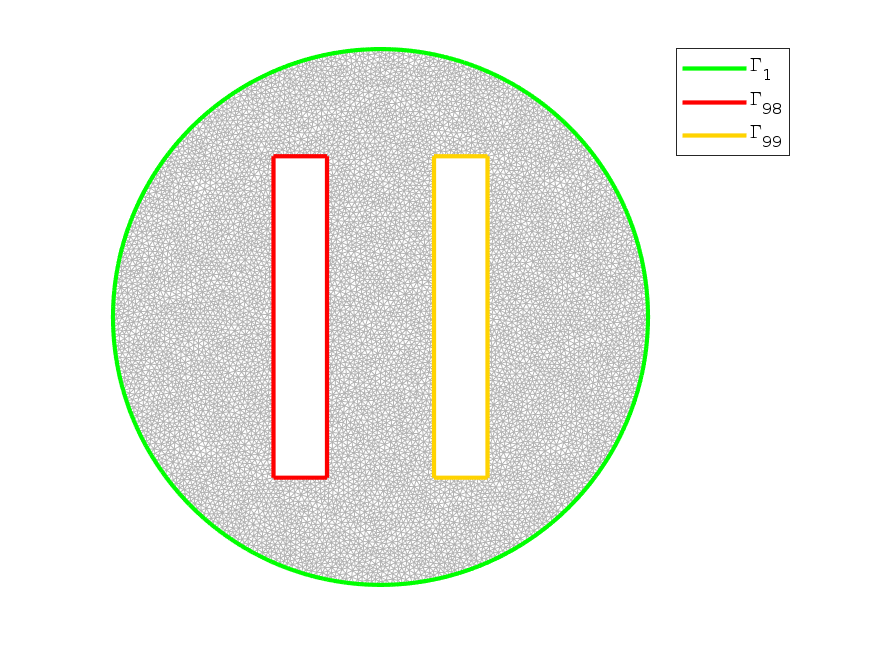

>> fc_vfemp1.examples.BVPCondenser2D01

or the complete demo (take a long time)

Matlab Console

>> fc_vfemp1.demos()

To install the fc-vfemp1 toolbox without graphical extension one can use the following command

Matlab Console

>> mfc_vfemp1_install(’graphics’,false)

For uninstalling, one just have to delete directory

~/Matlab/toolboxes/fc-vfemp1-full

Version history

0.0.6 (October 12, 2017) :
0.0.5 (February 8, 2017) : ﬁrst version for Linux, Windows and macOS.
