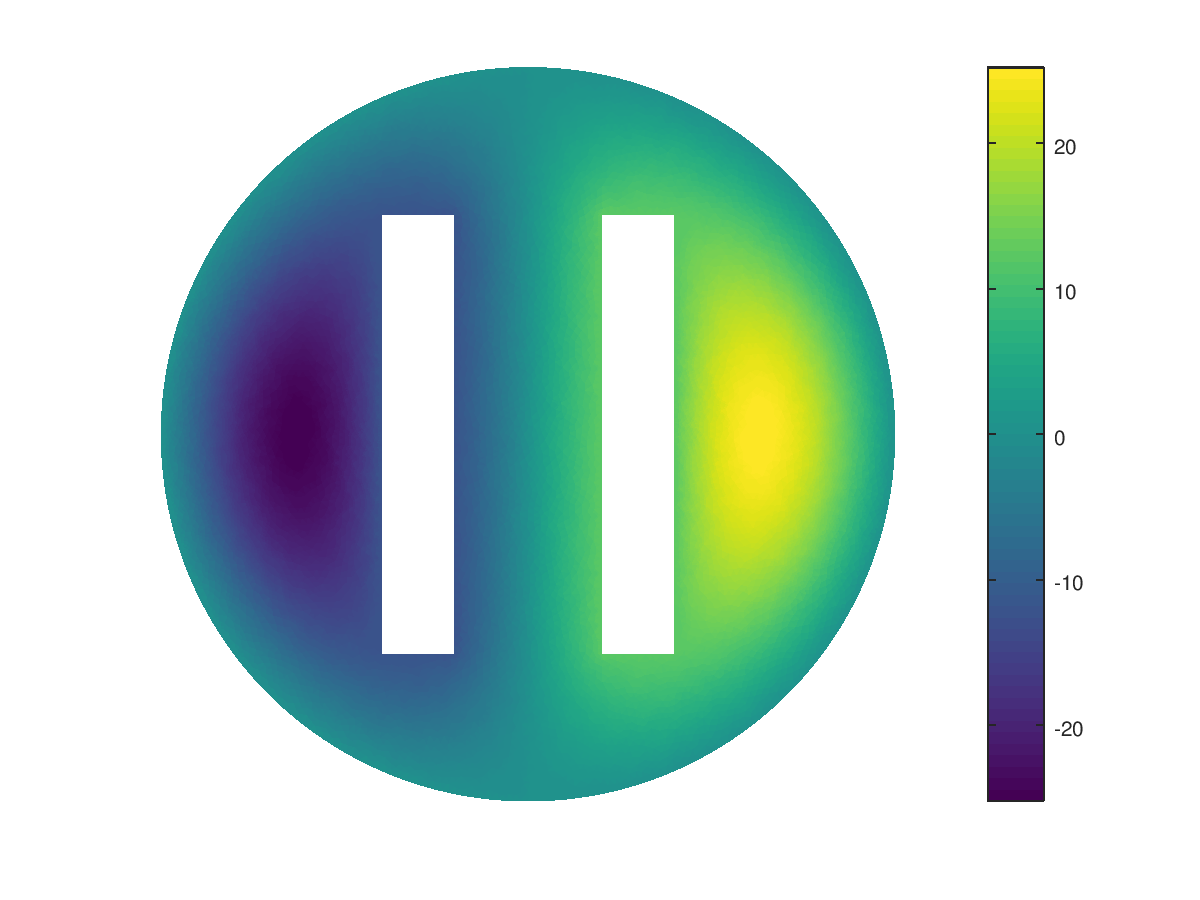

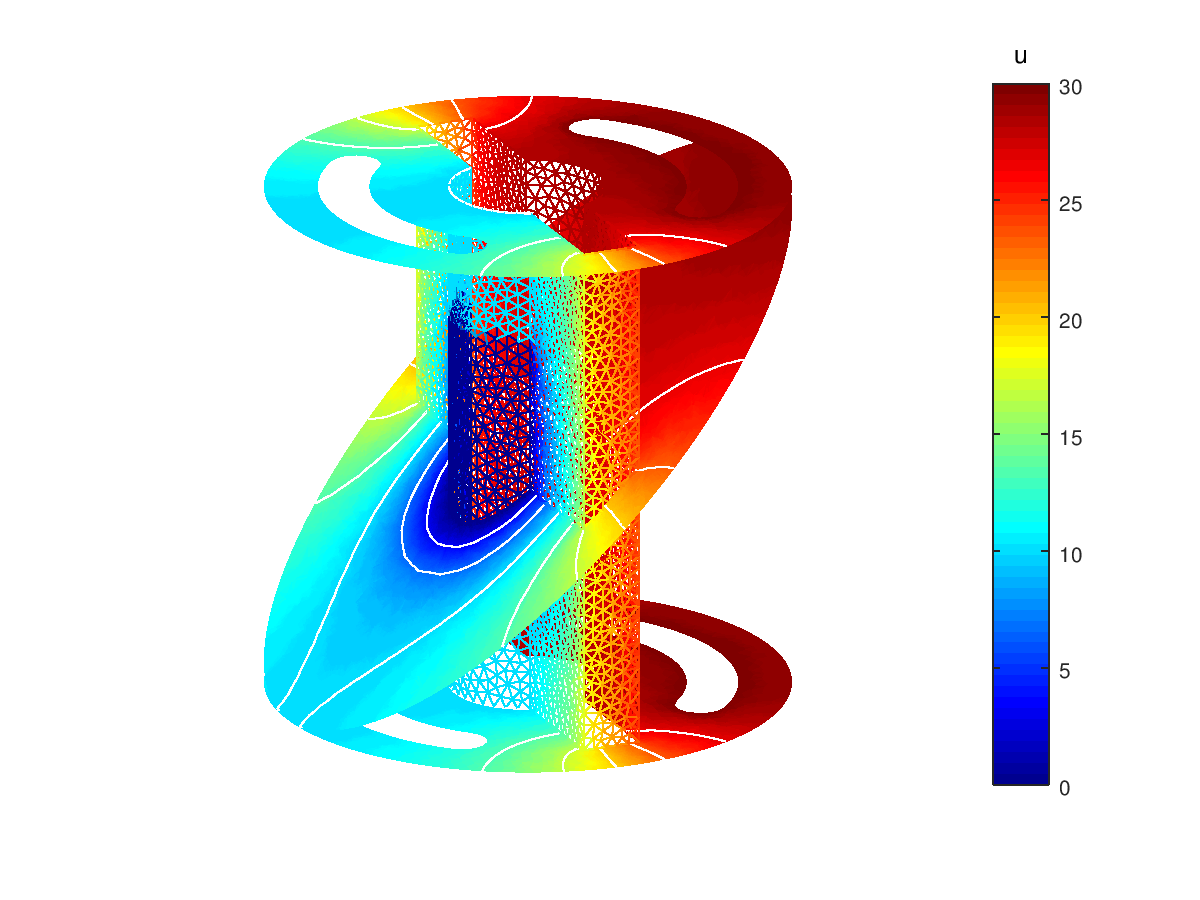

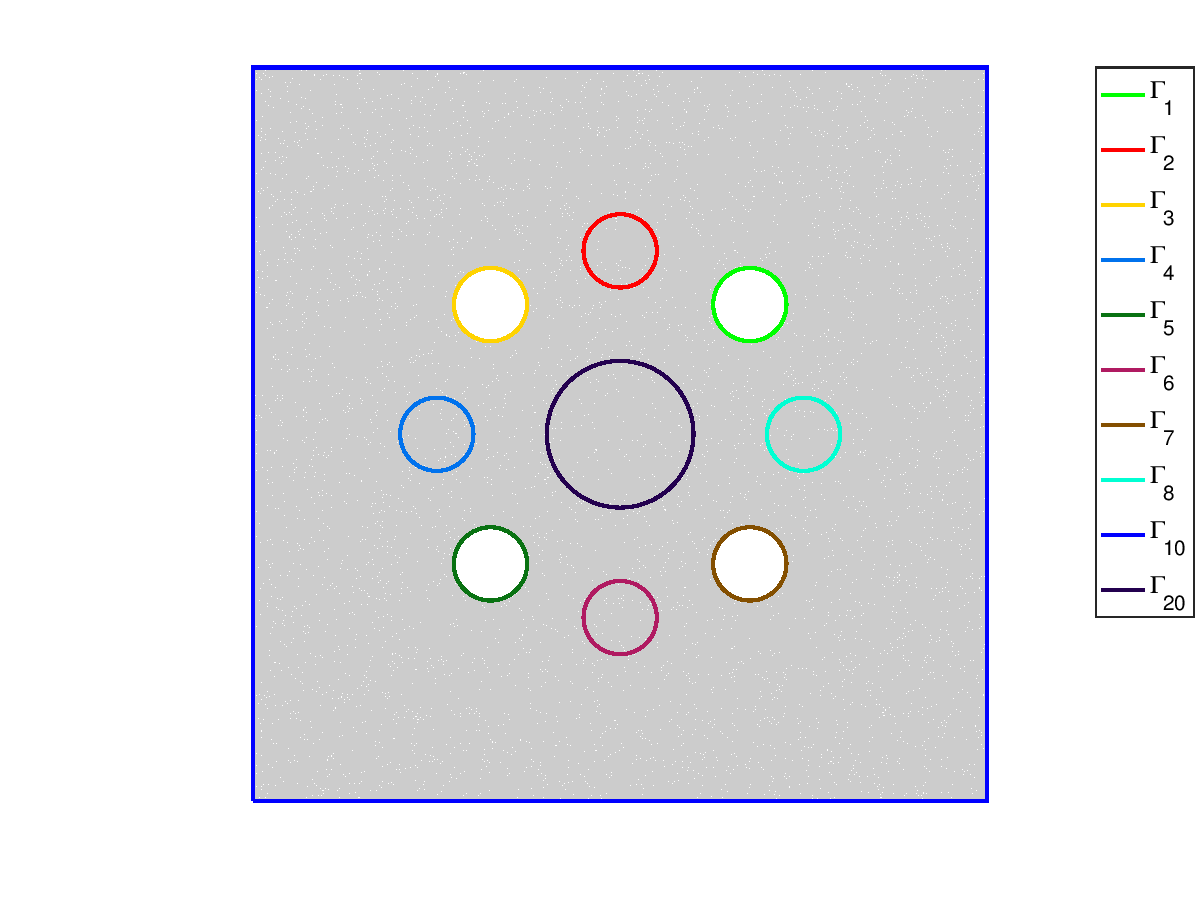

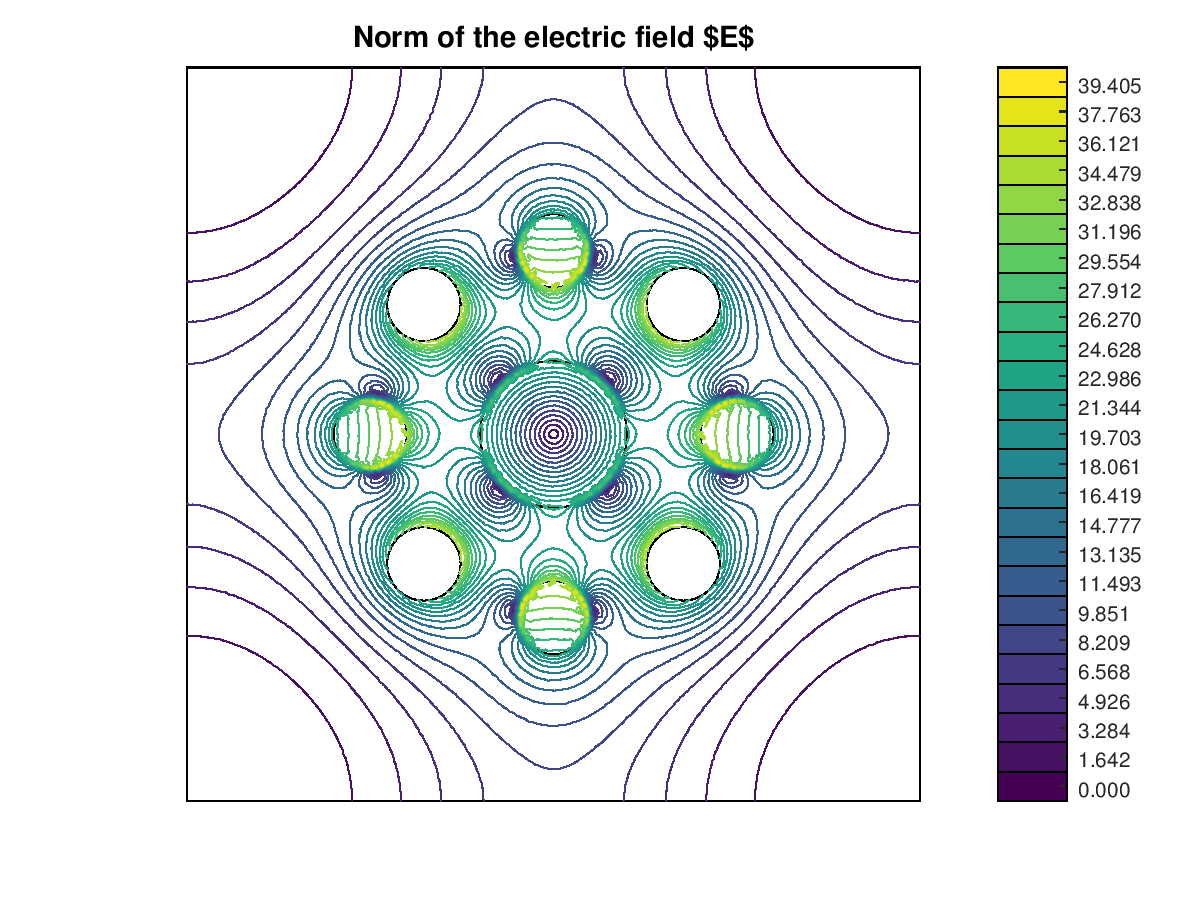

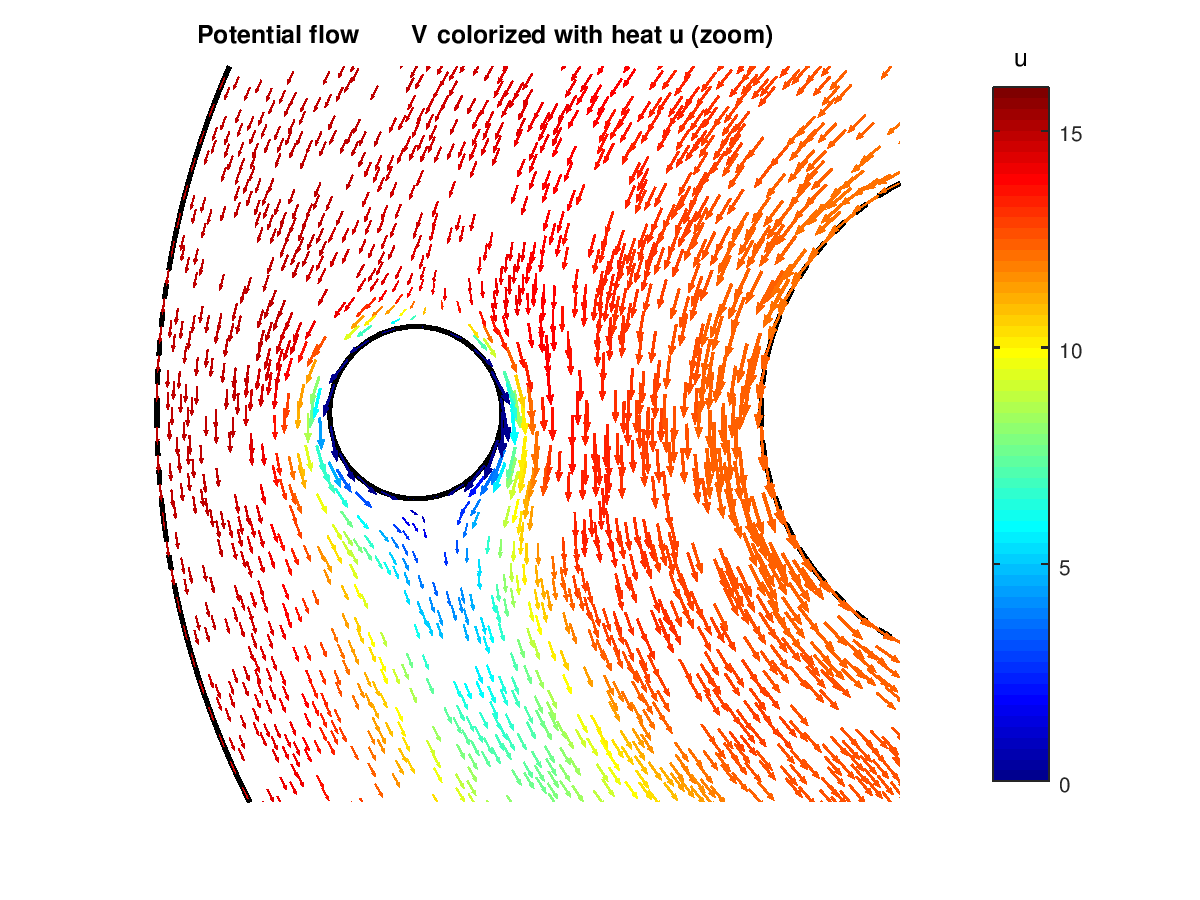

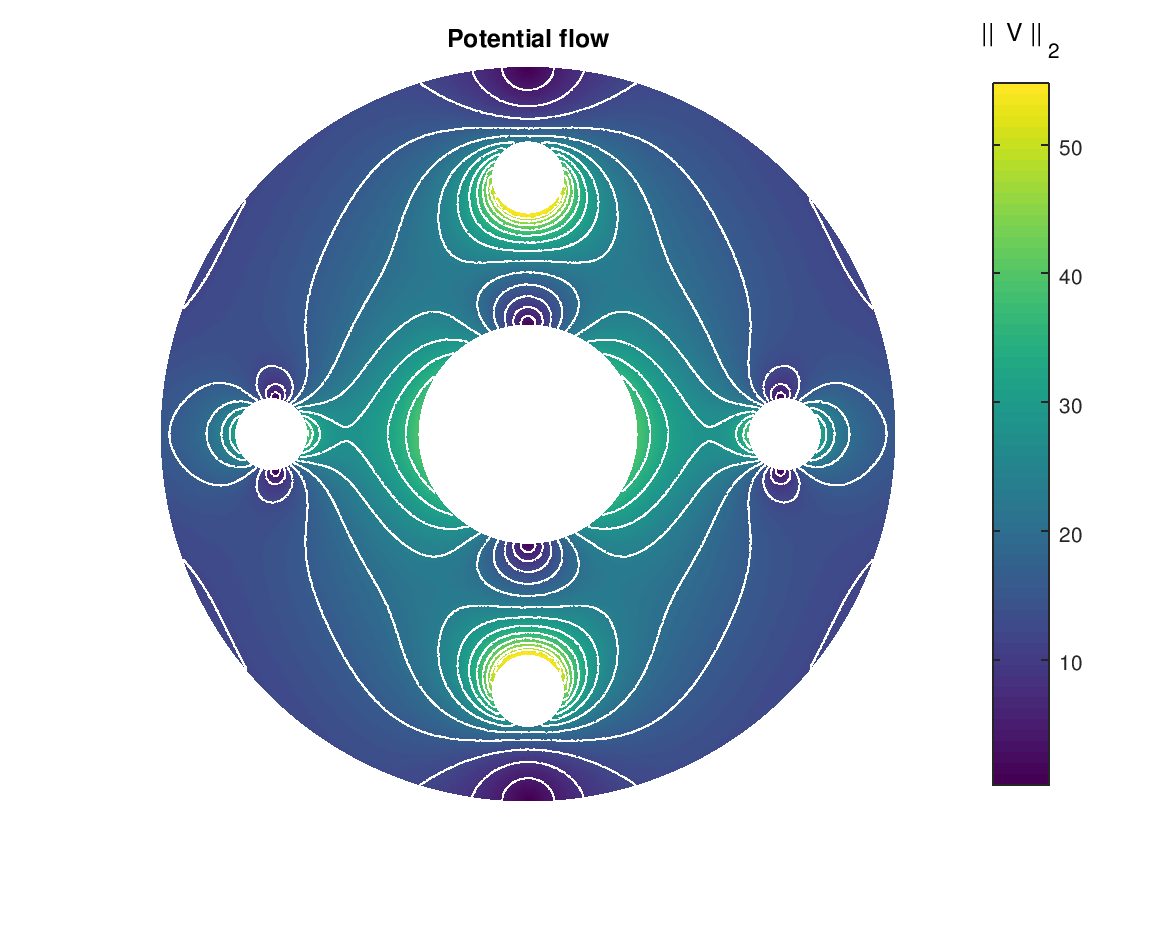

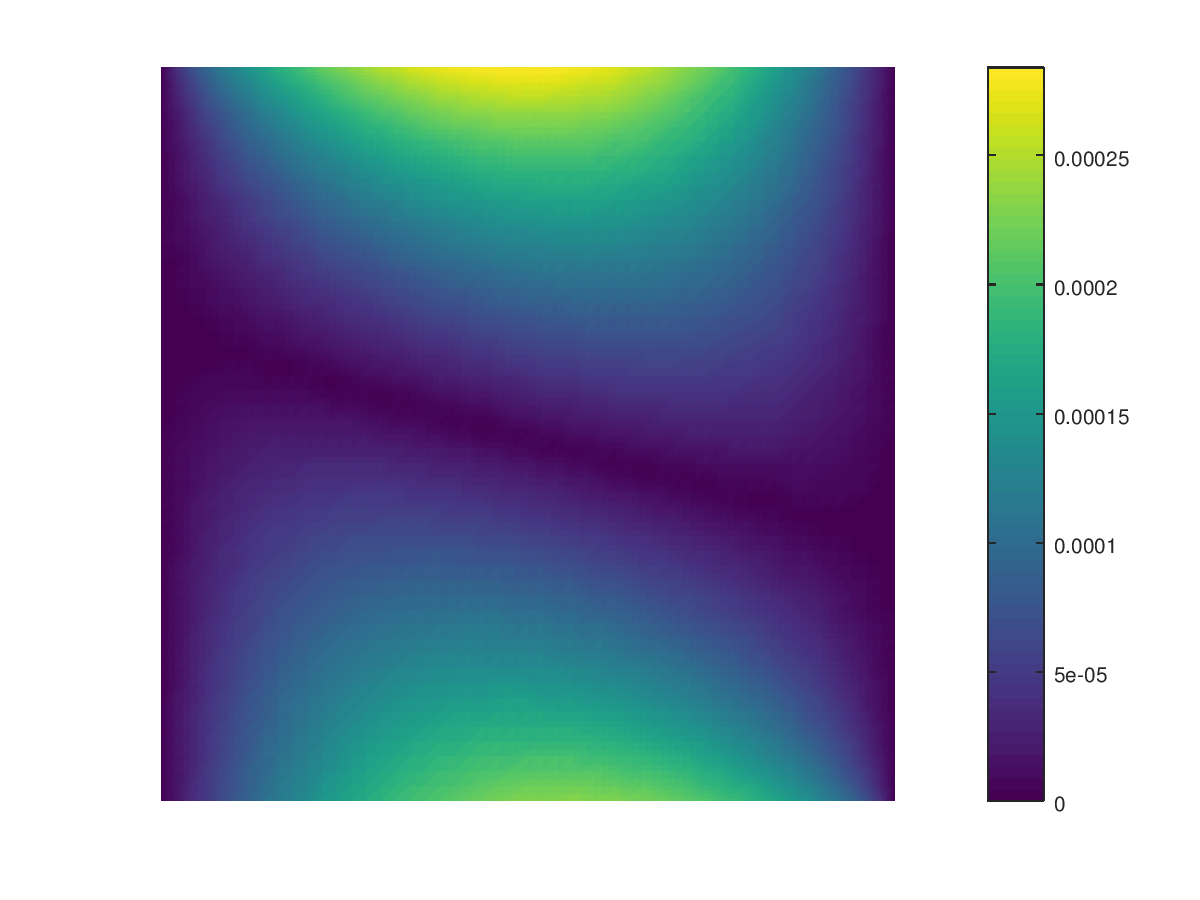

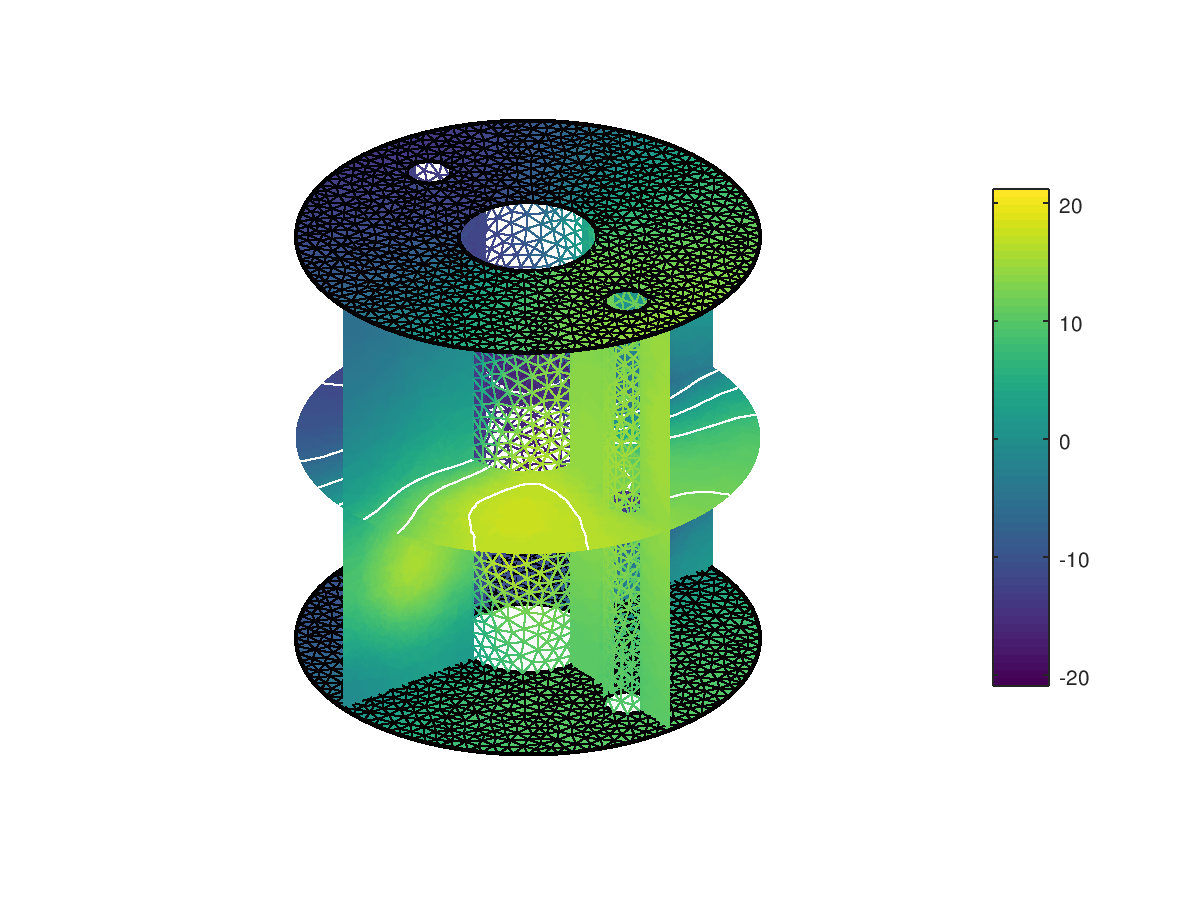

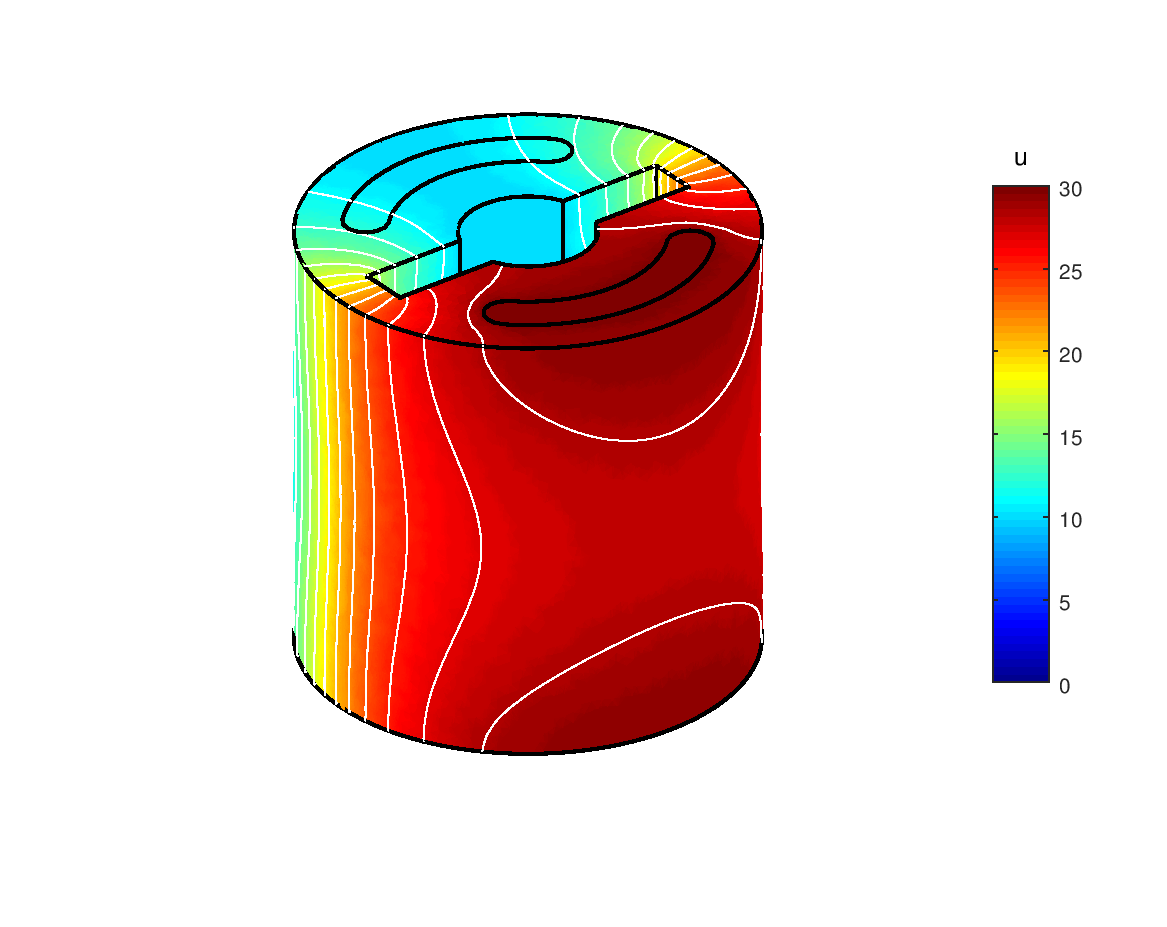

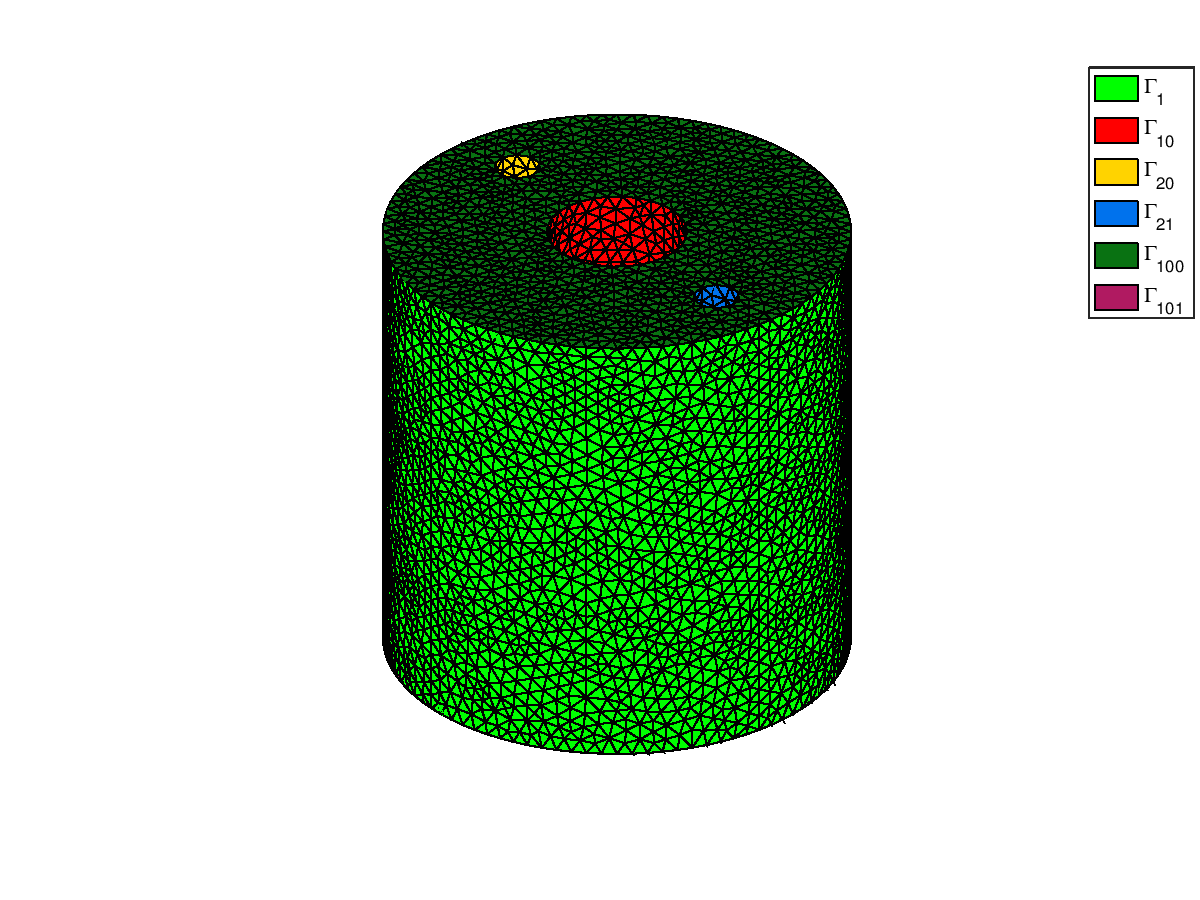

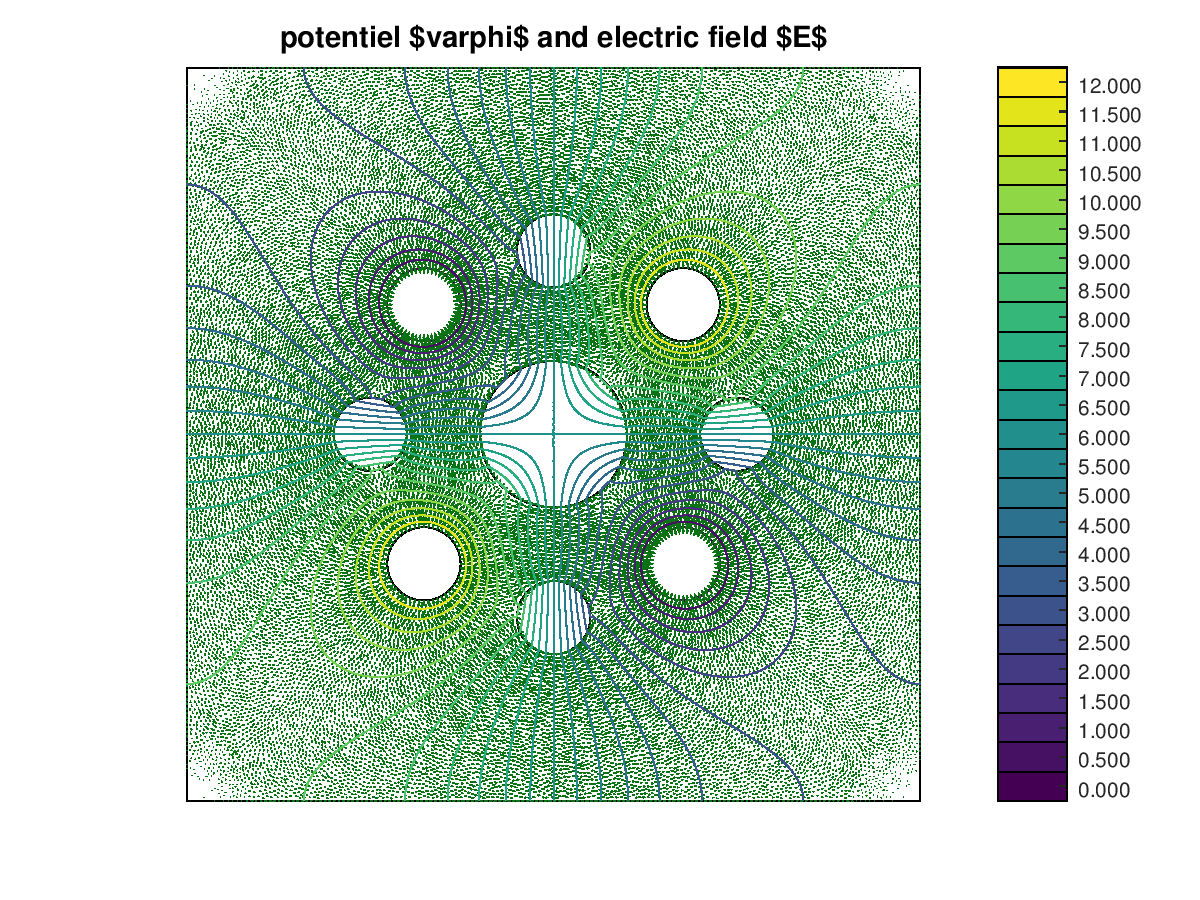

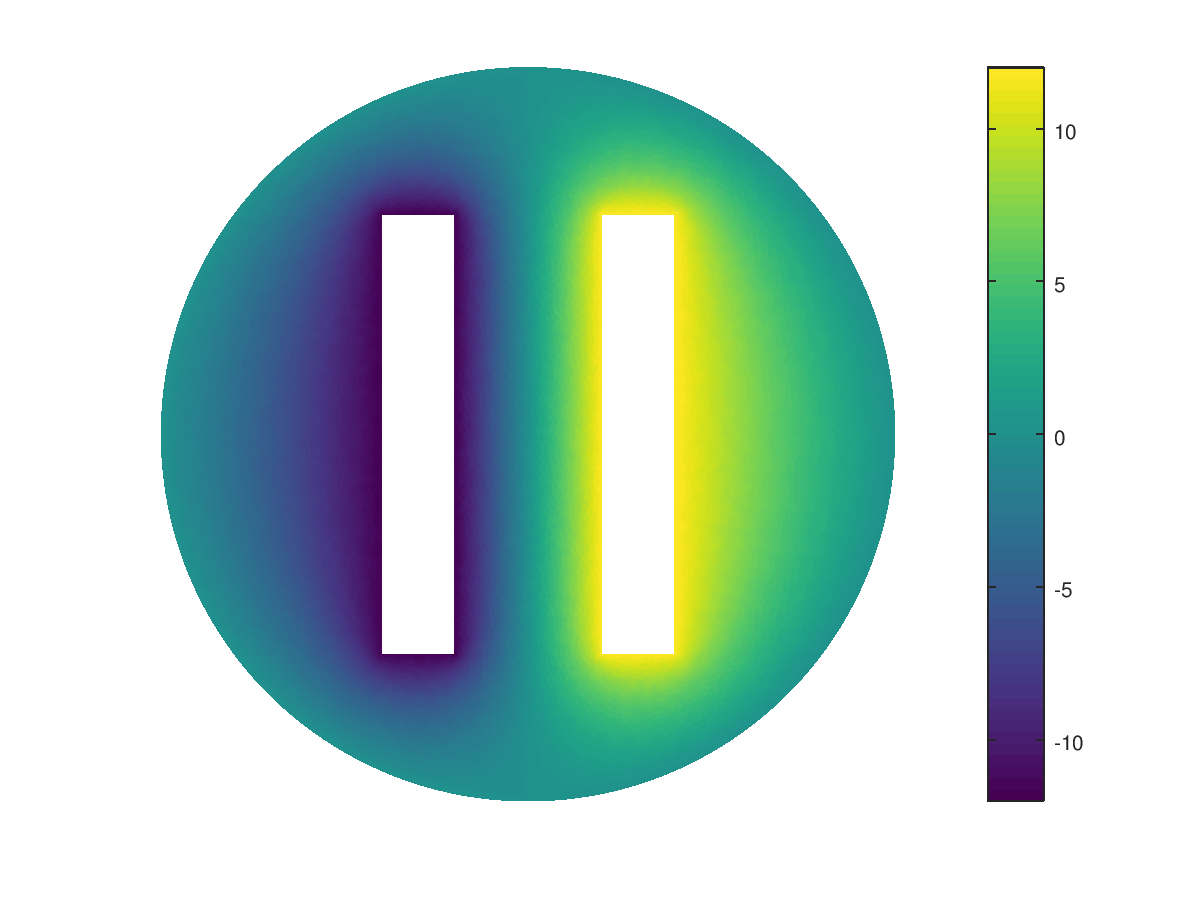

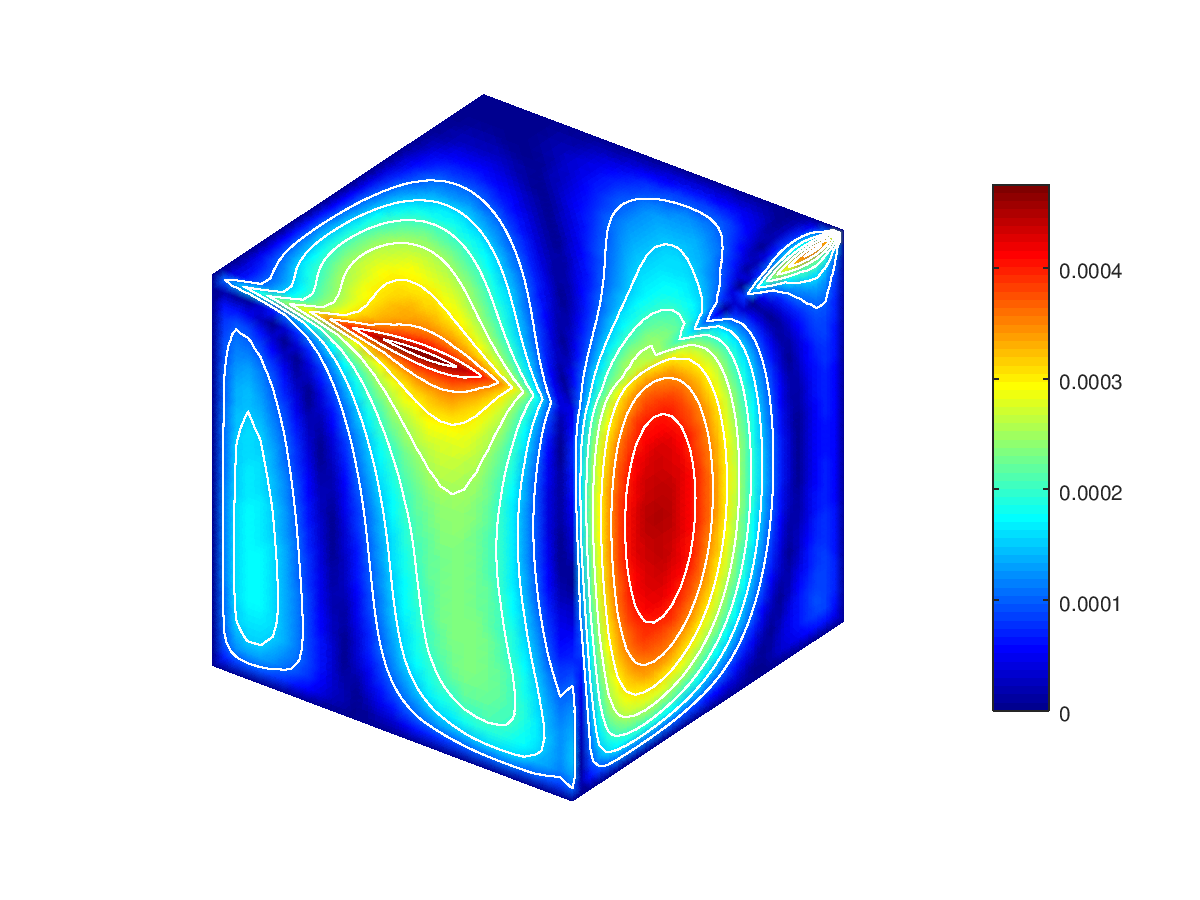

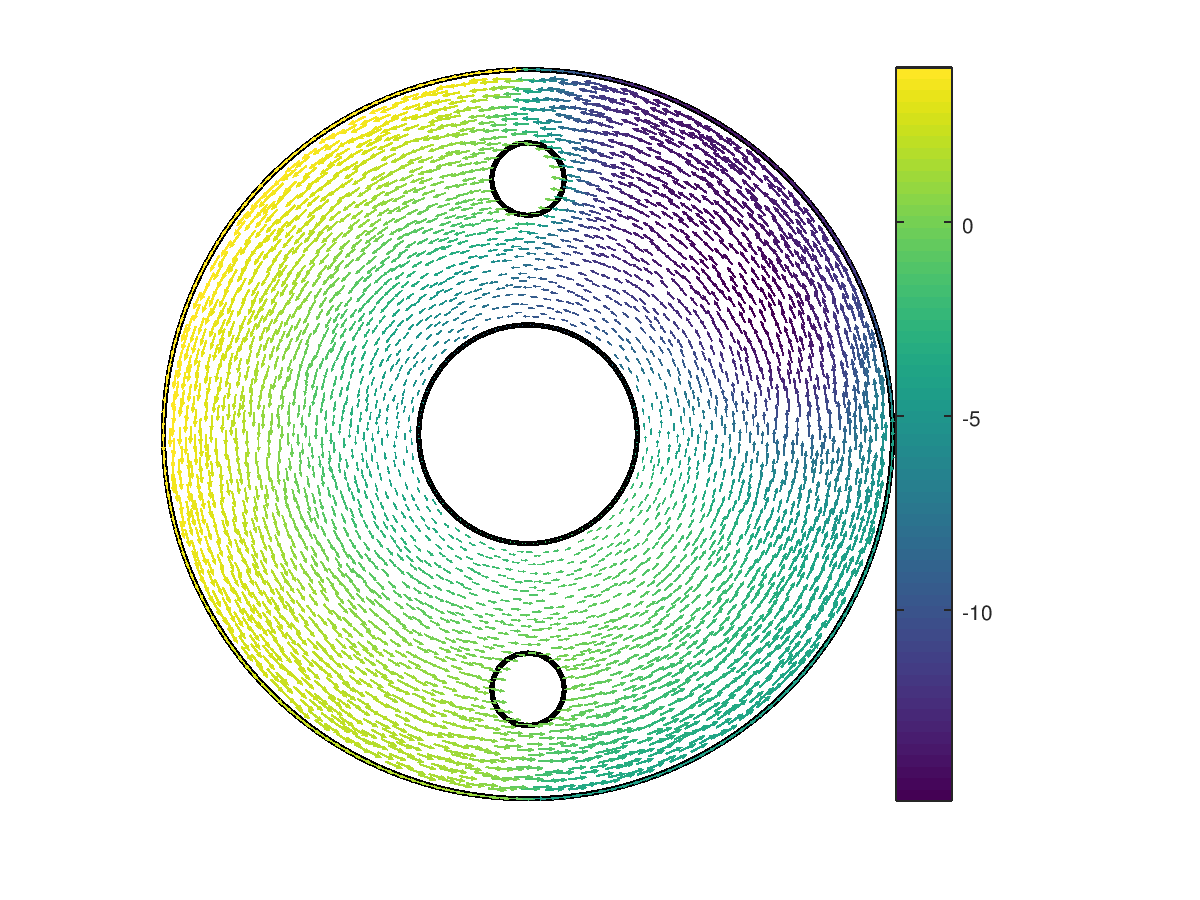

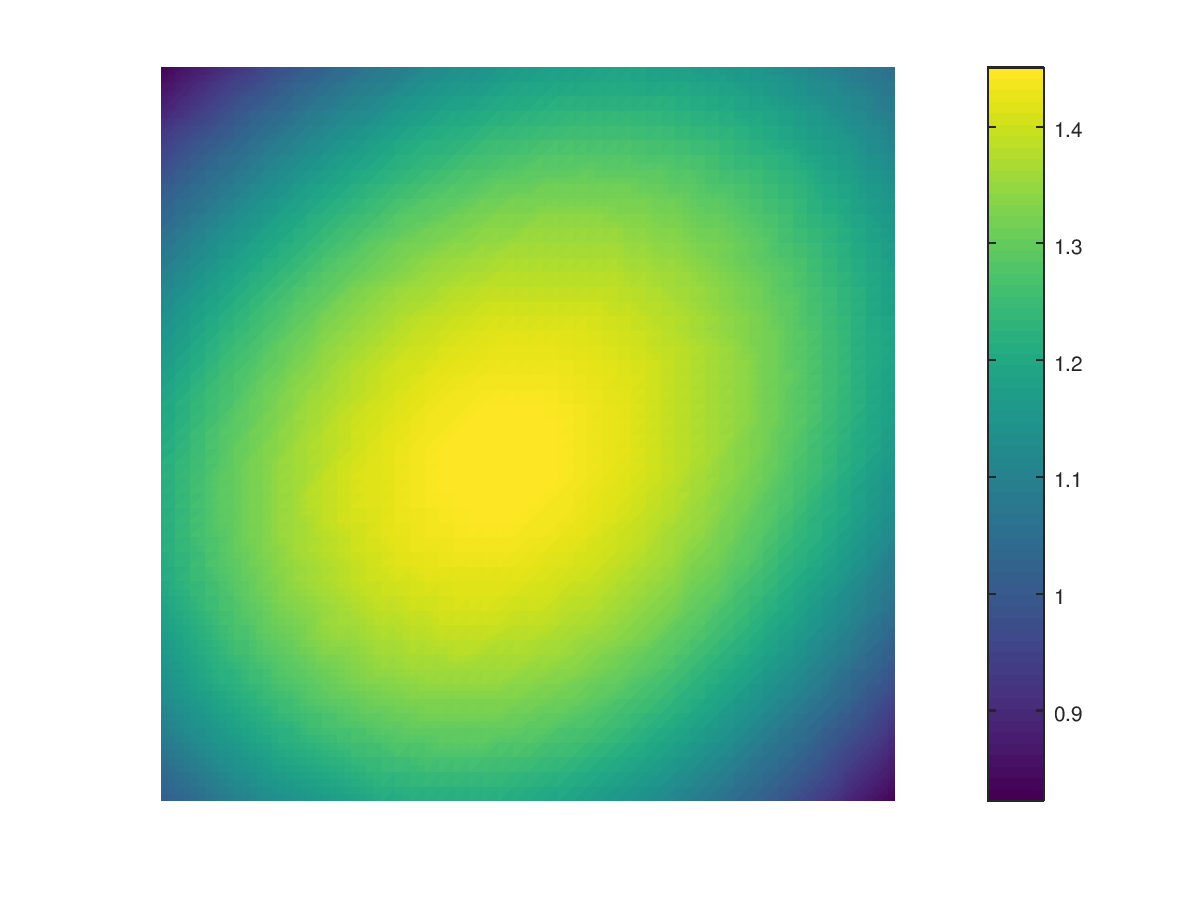

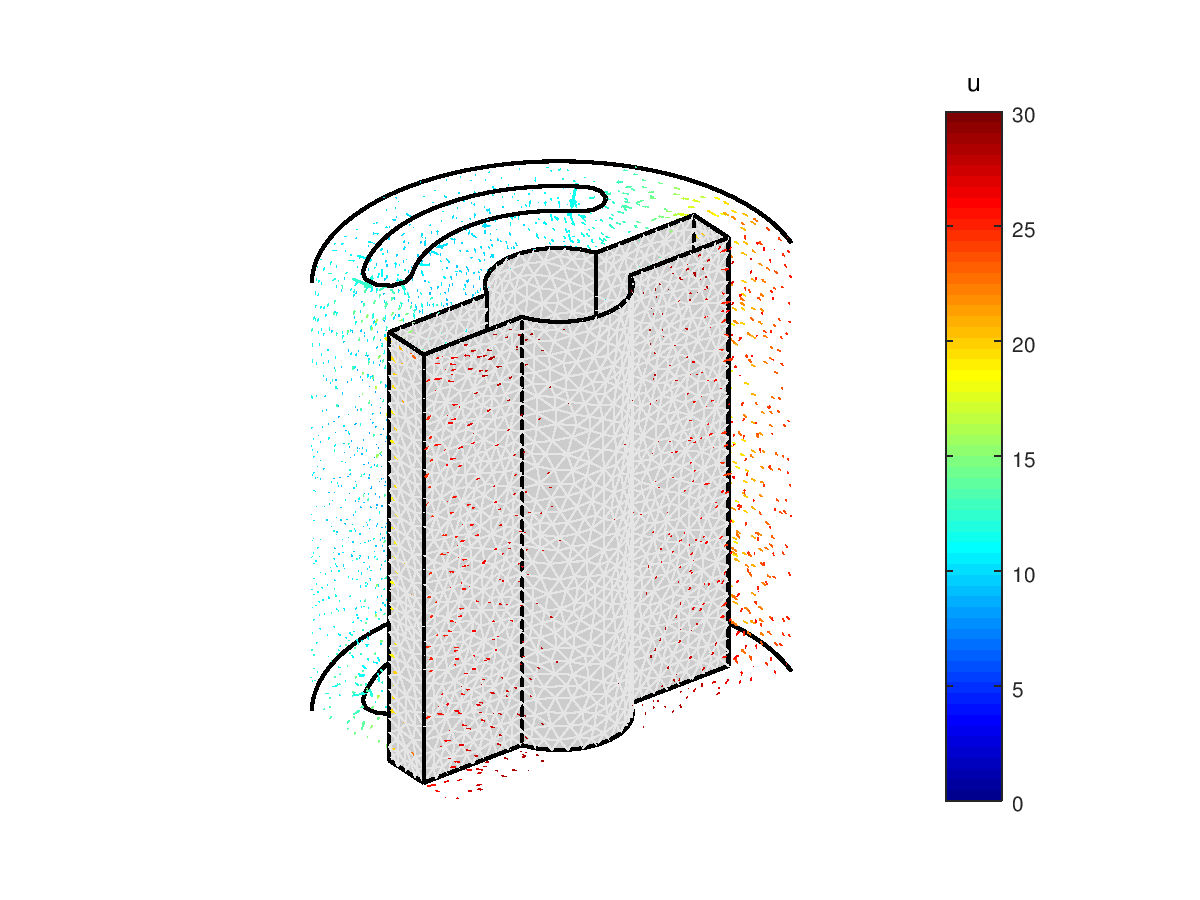

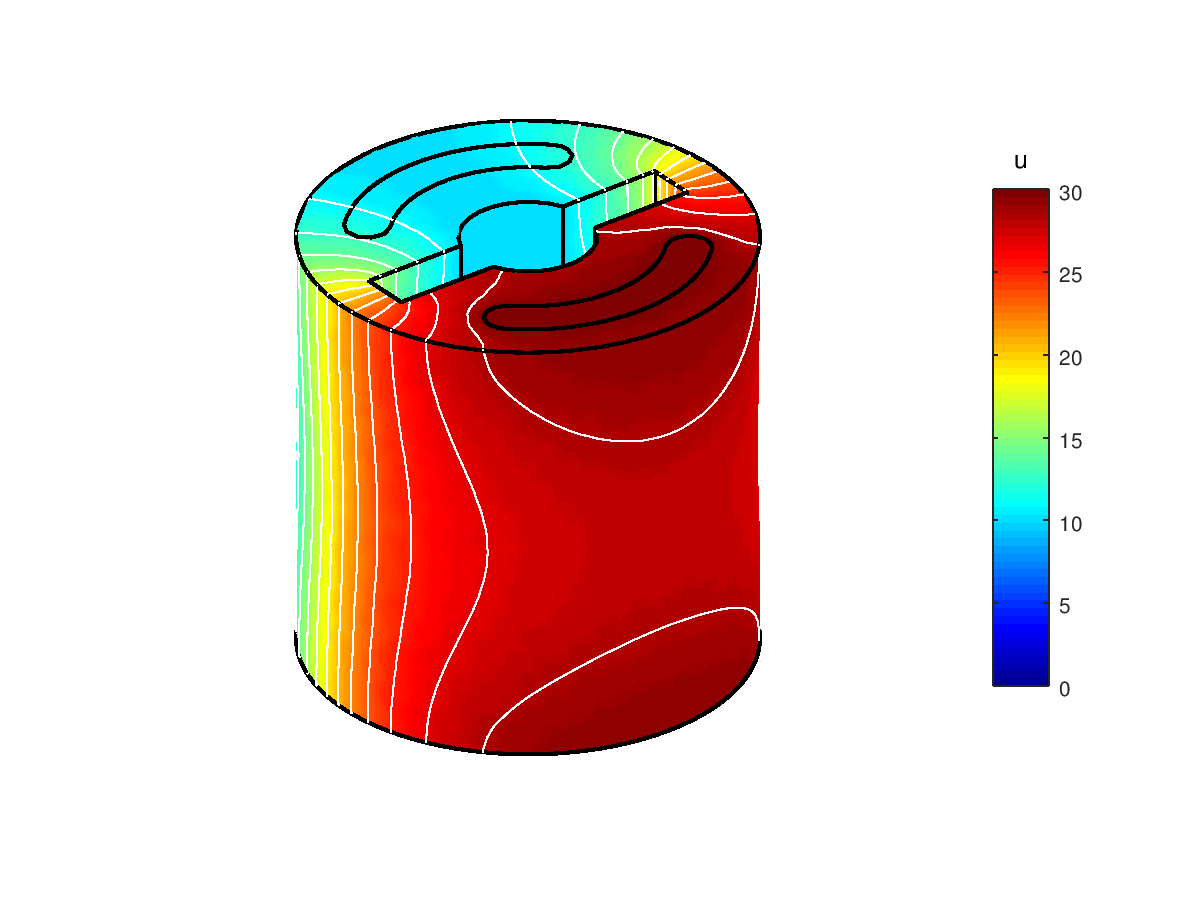

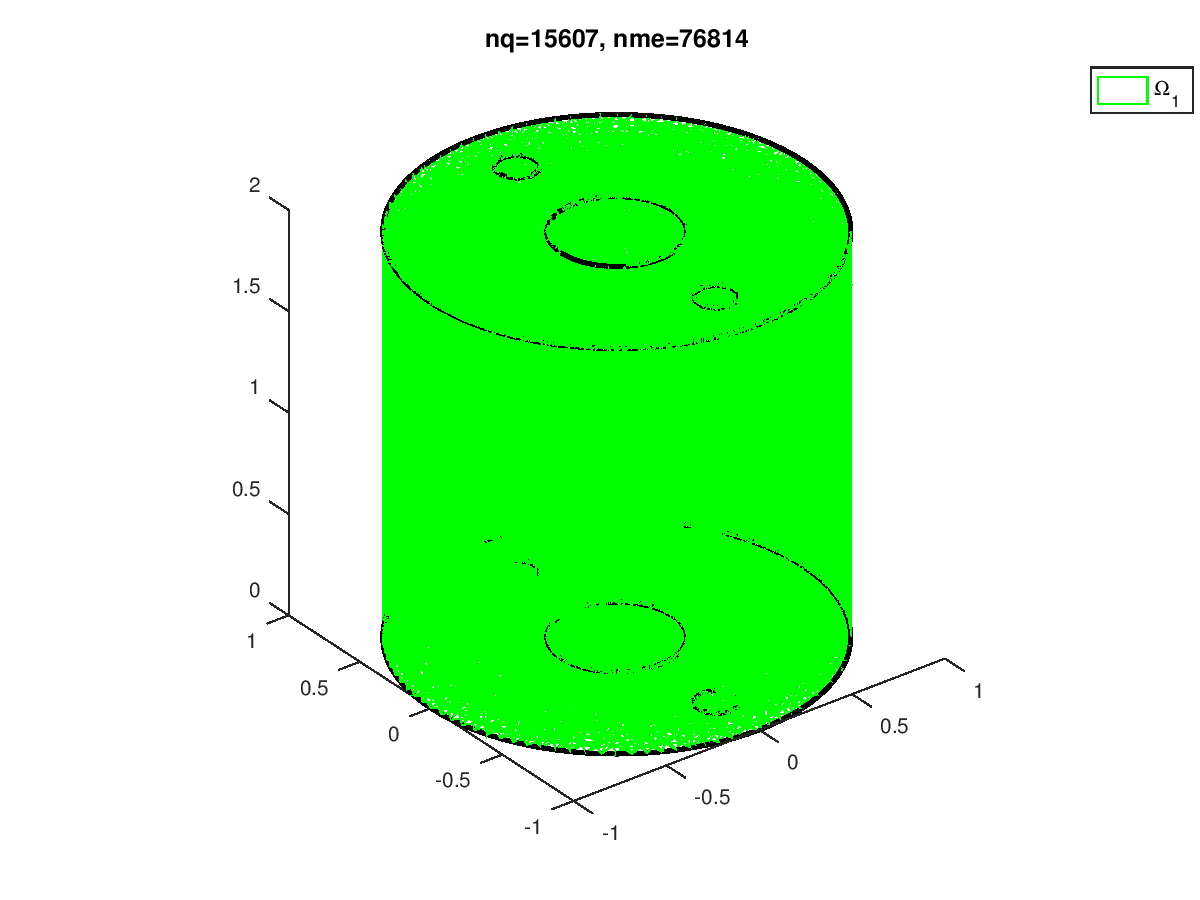

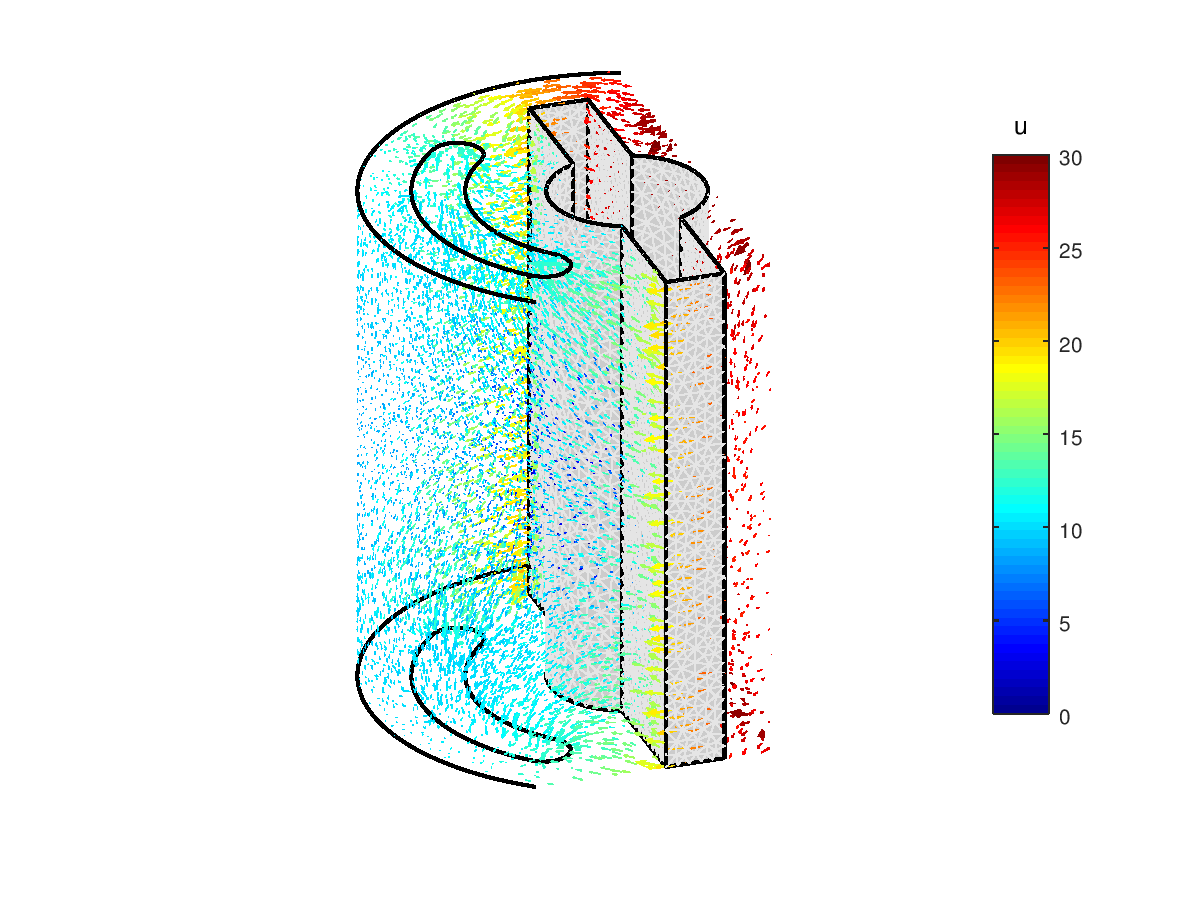

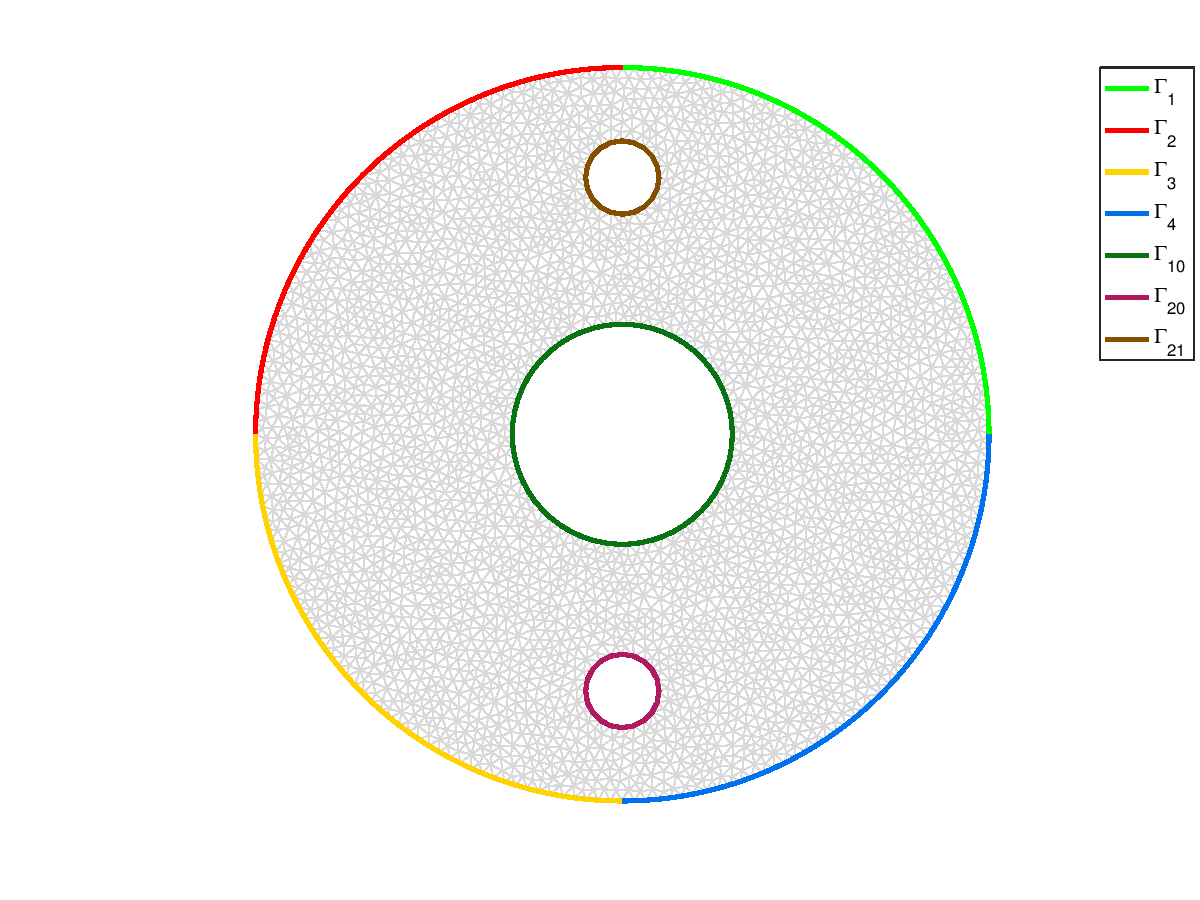

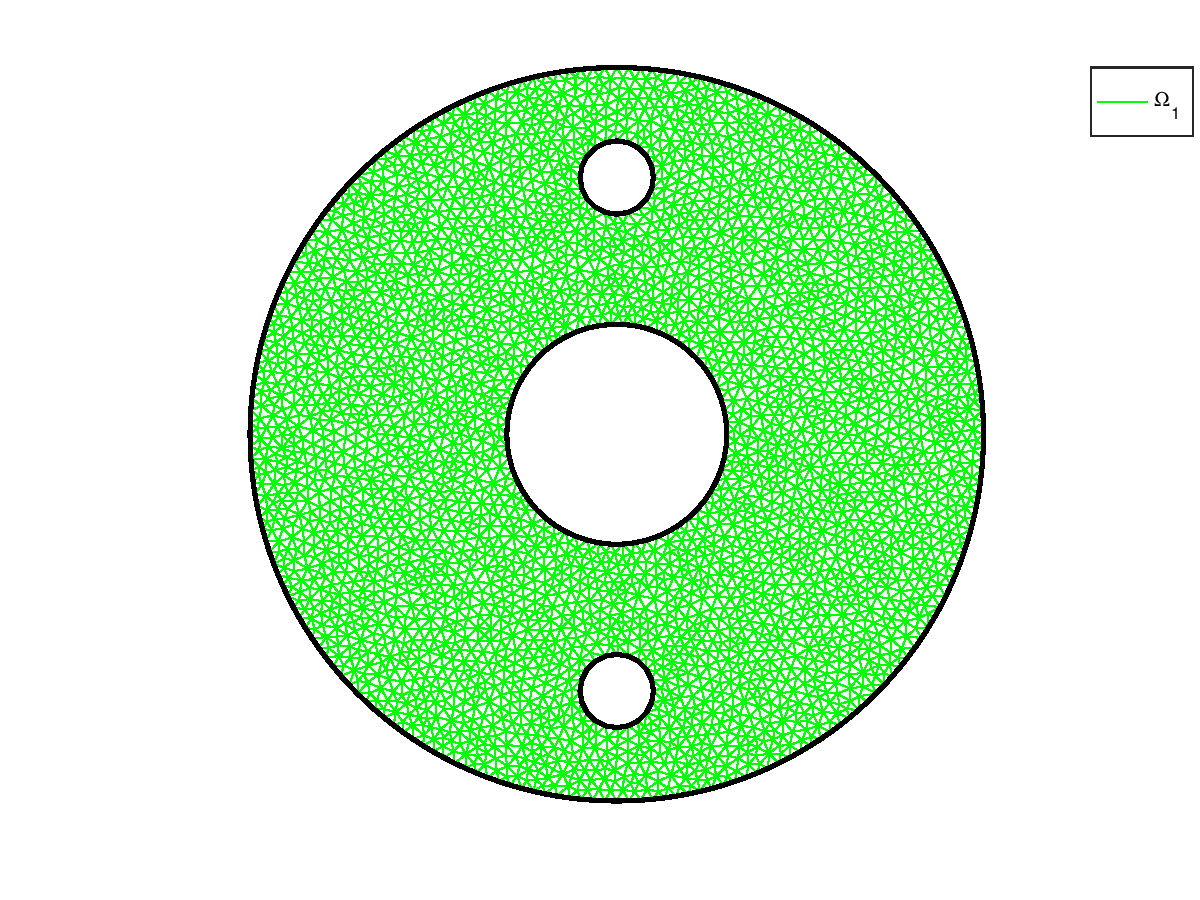

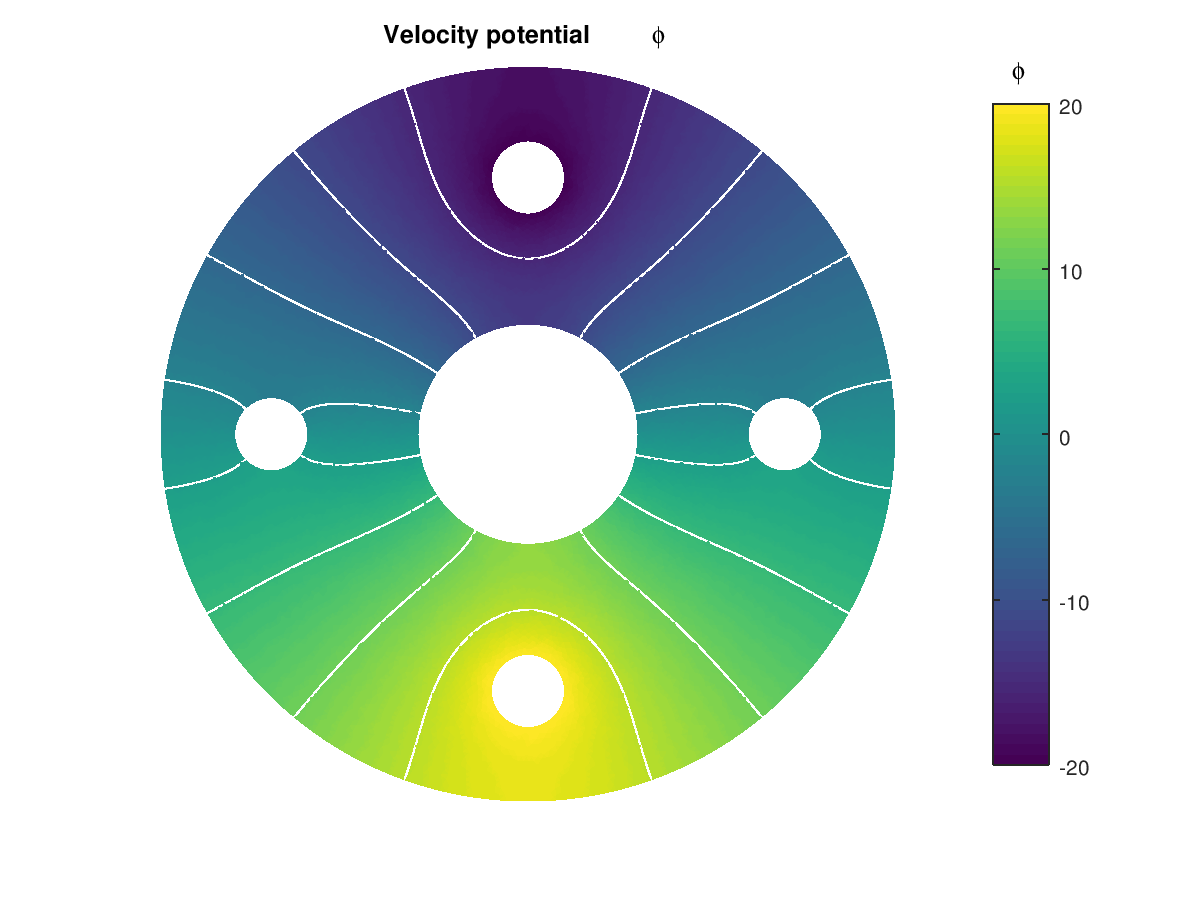

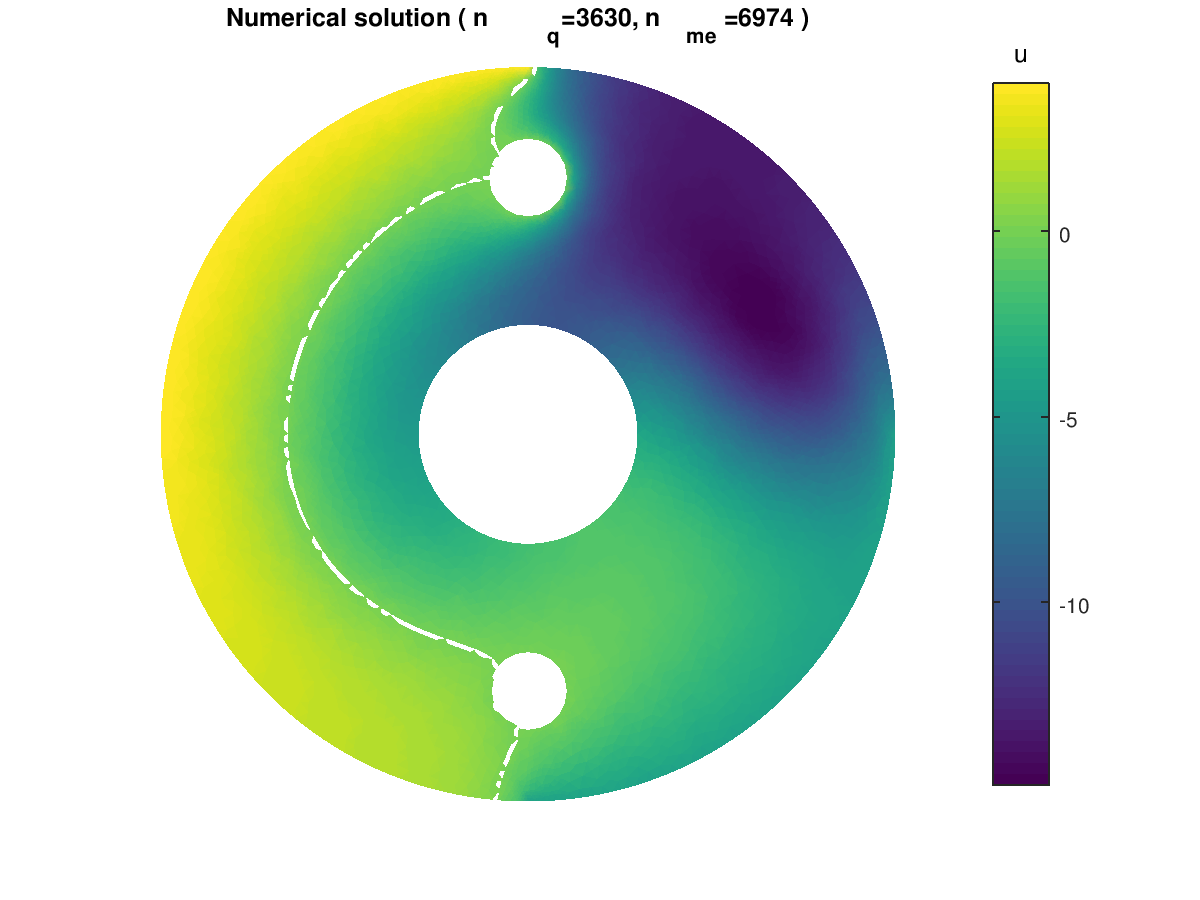

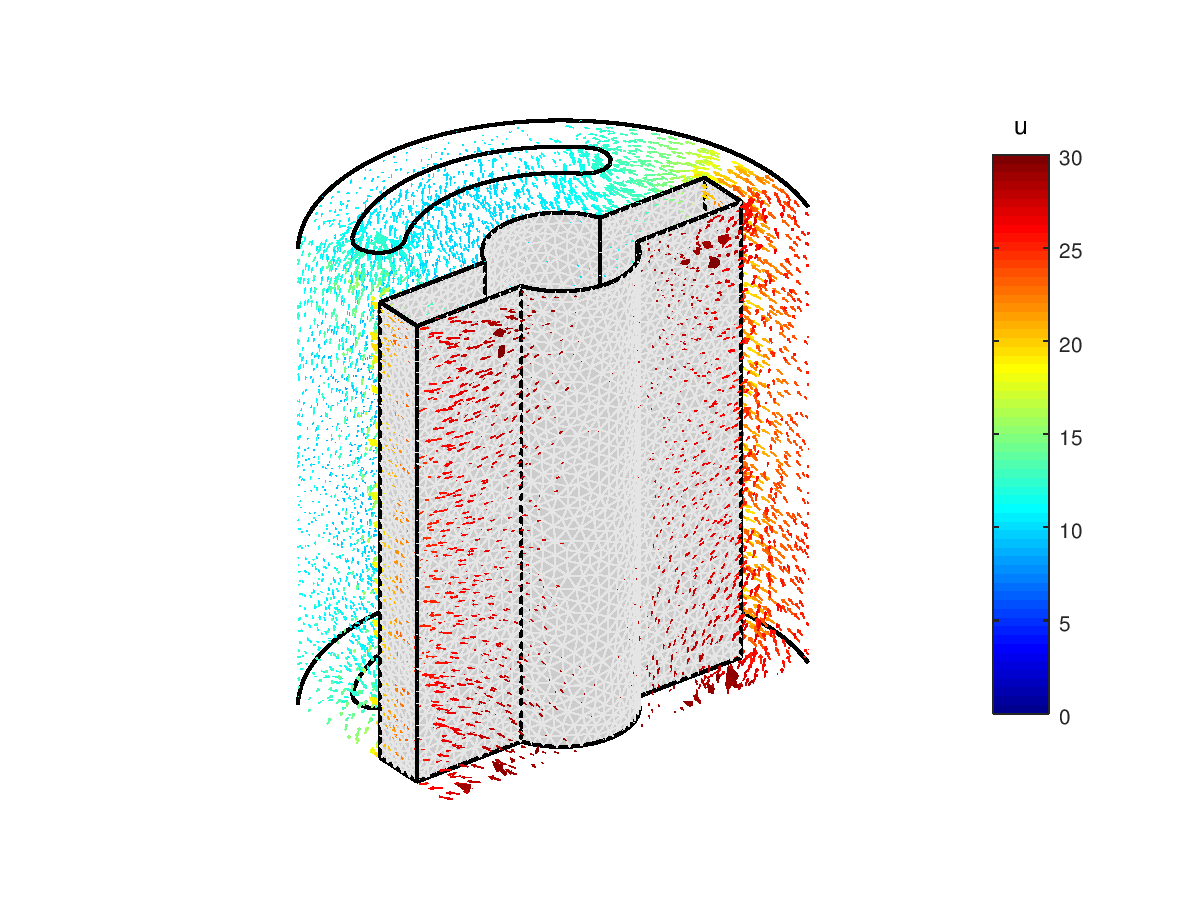

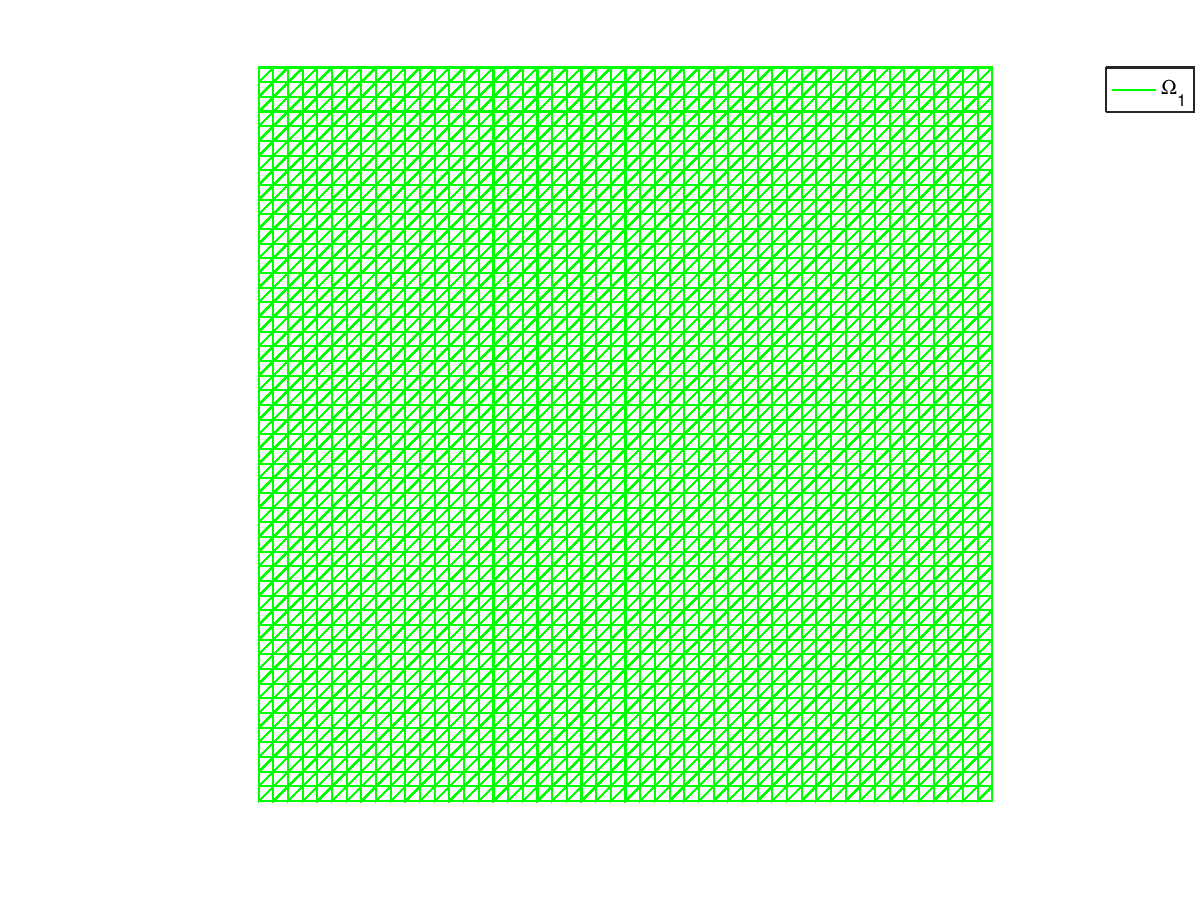

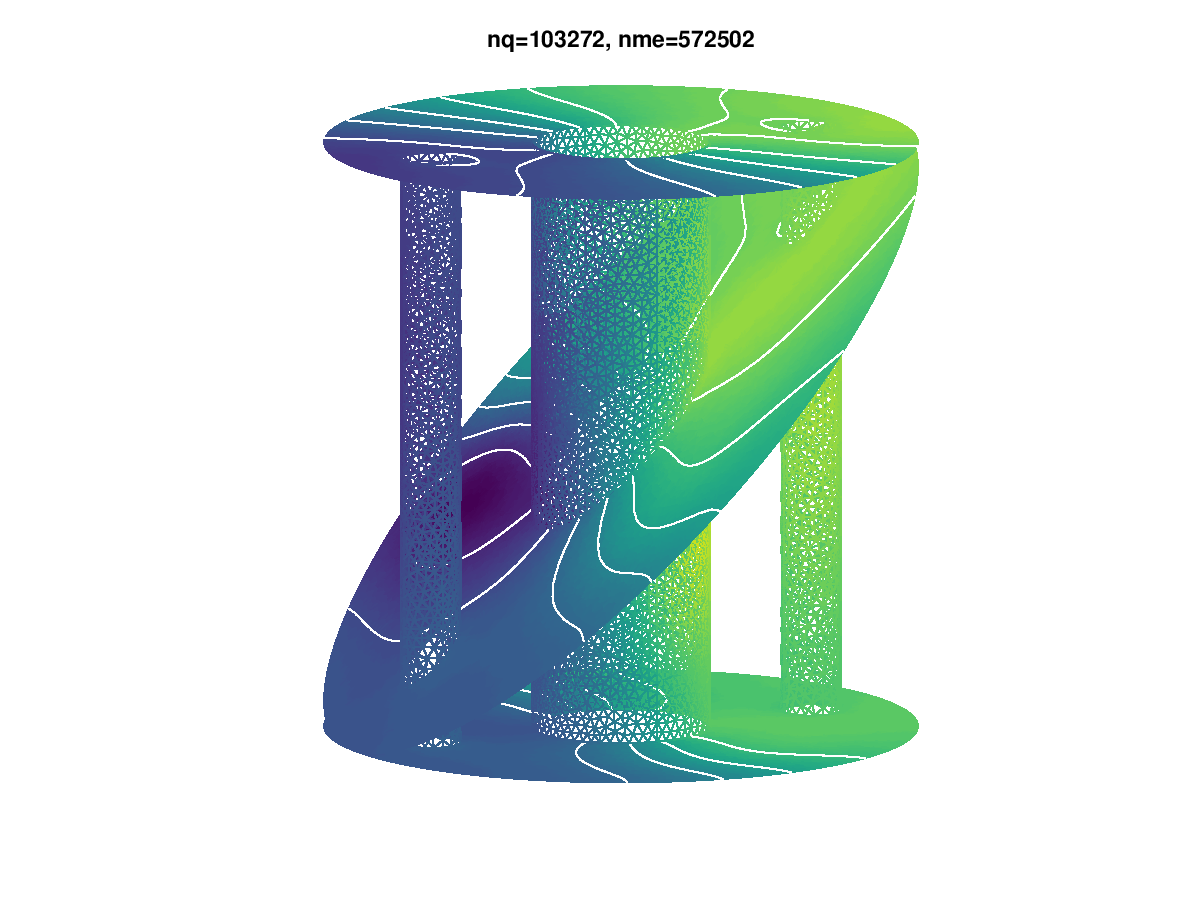

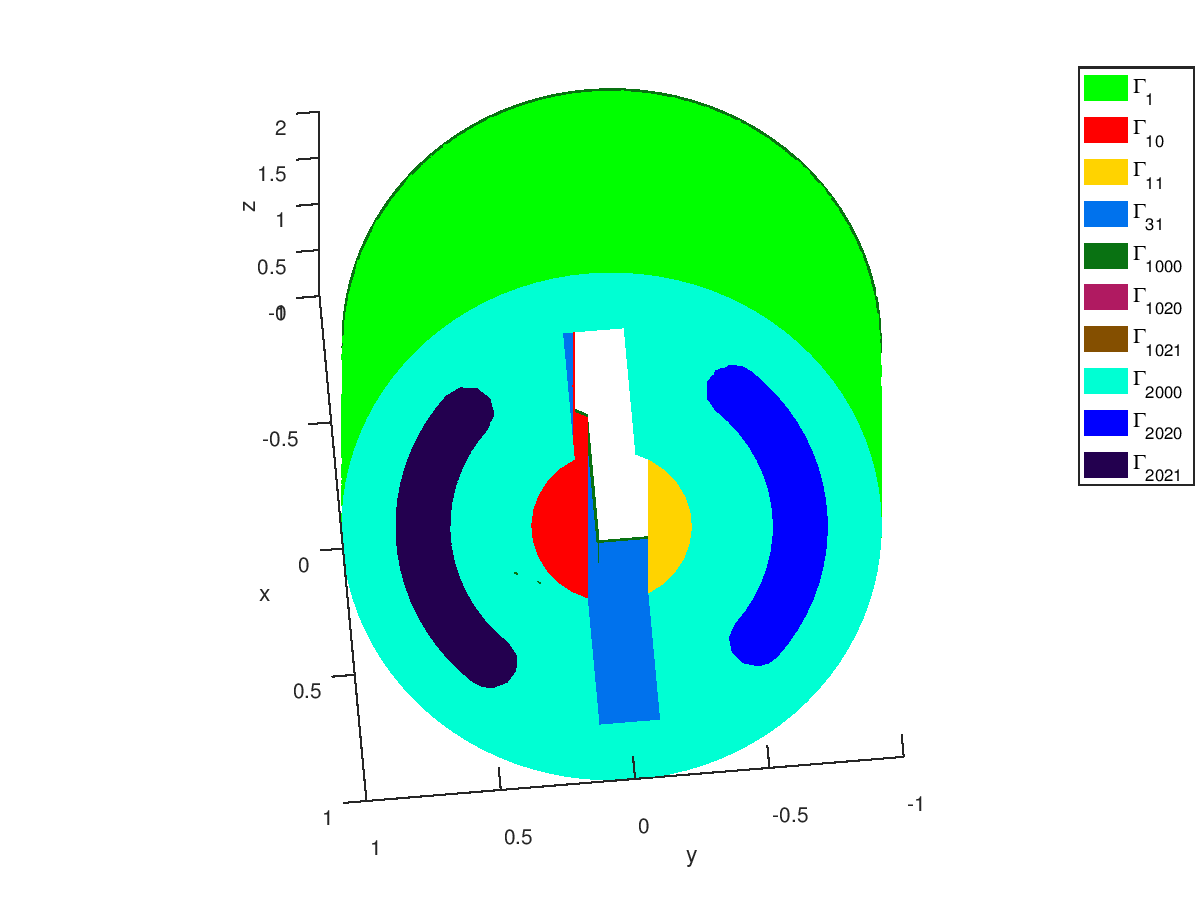

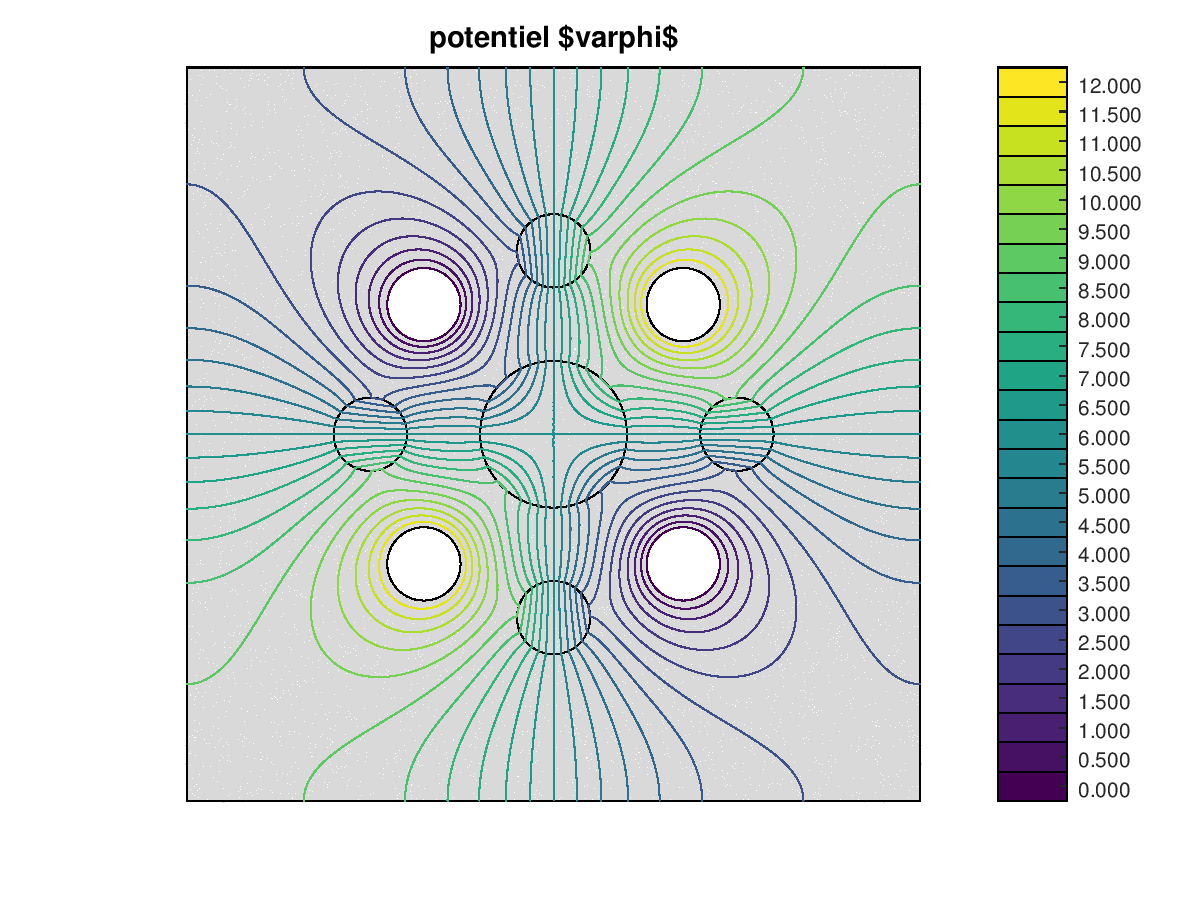

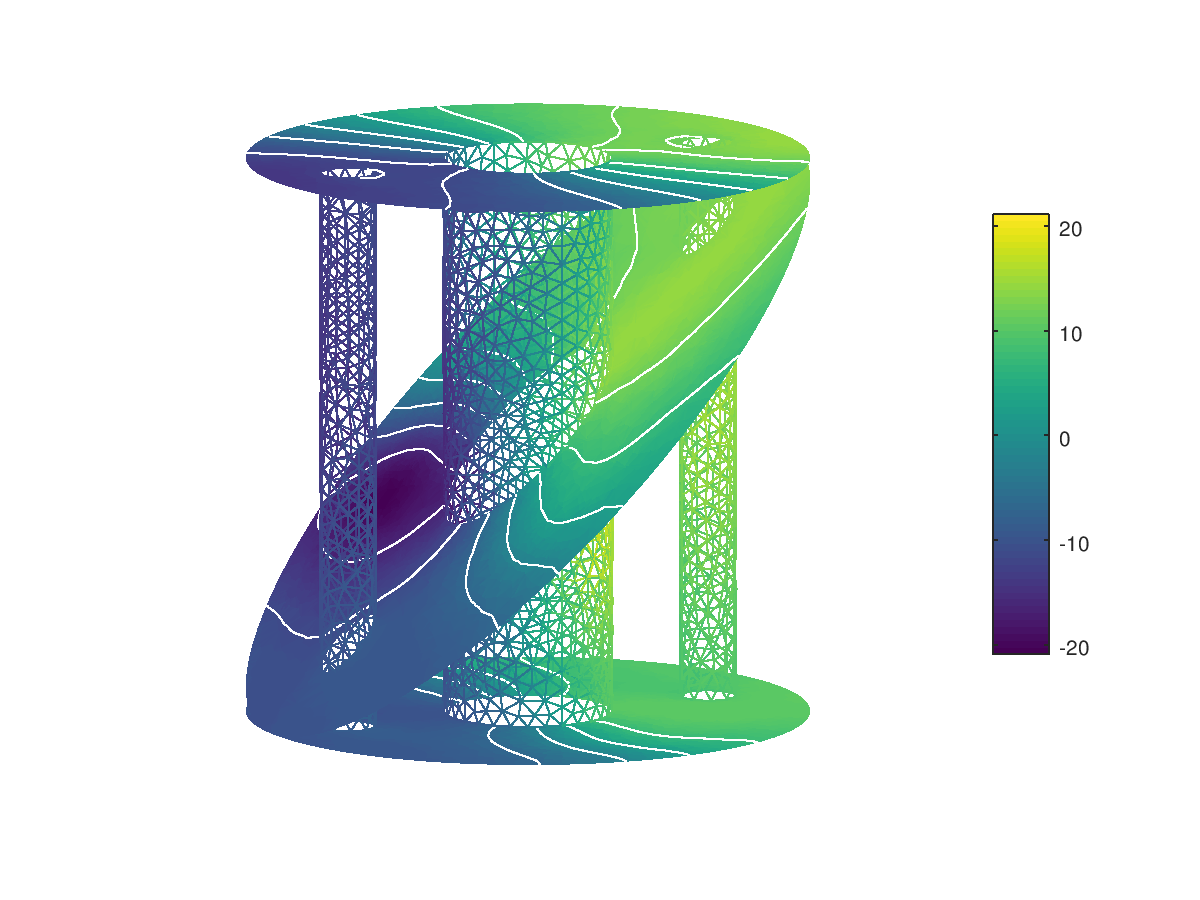

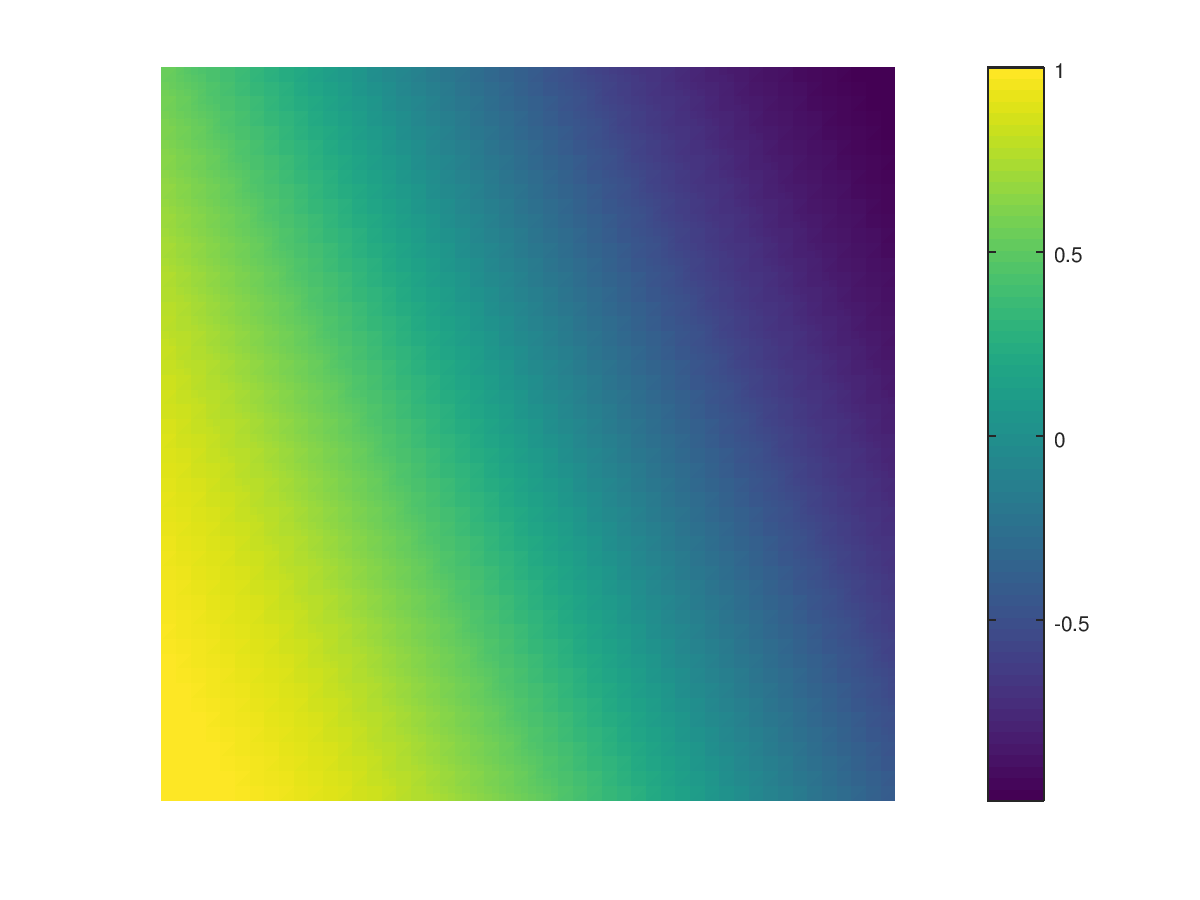

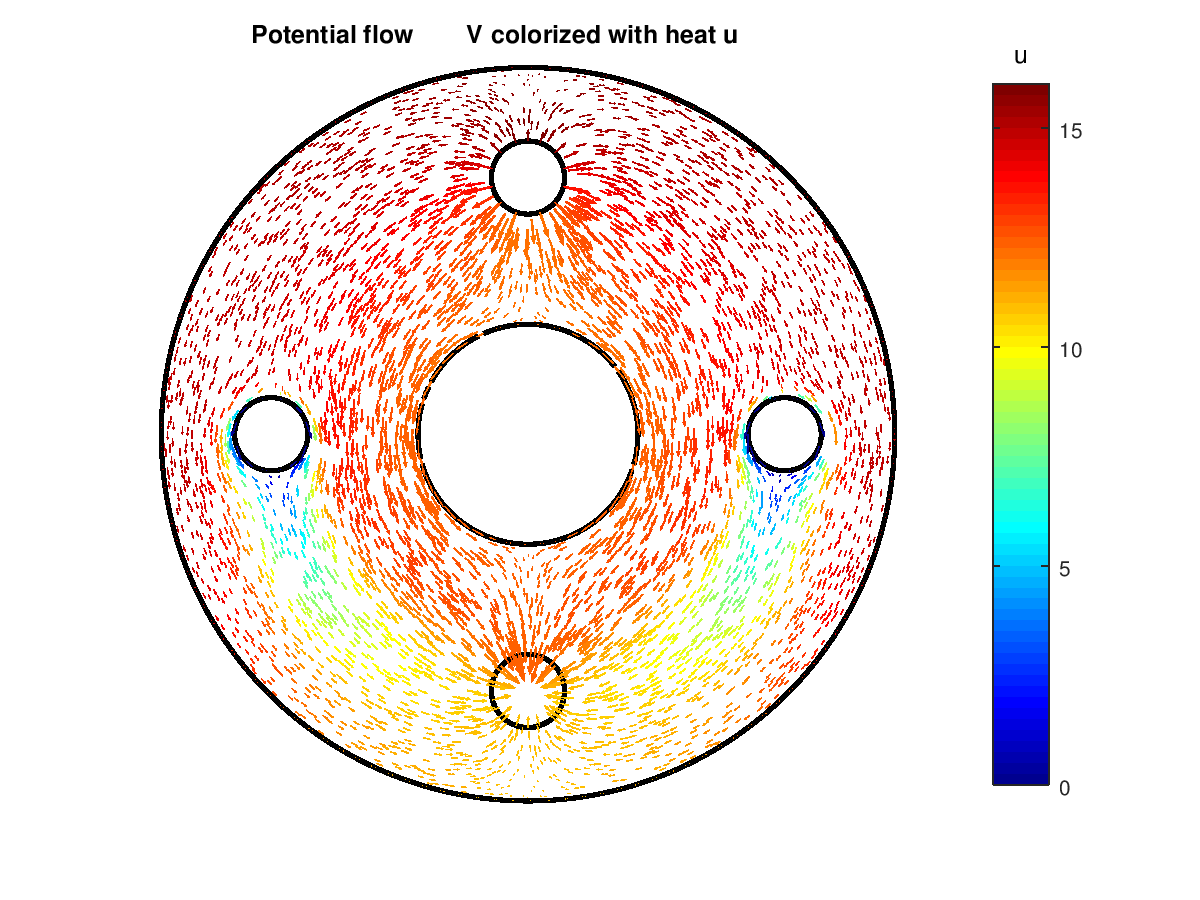

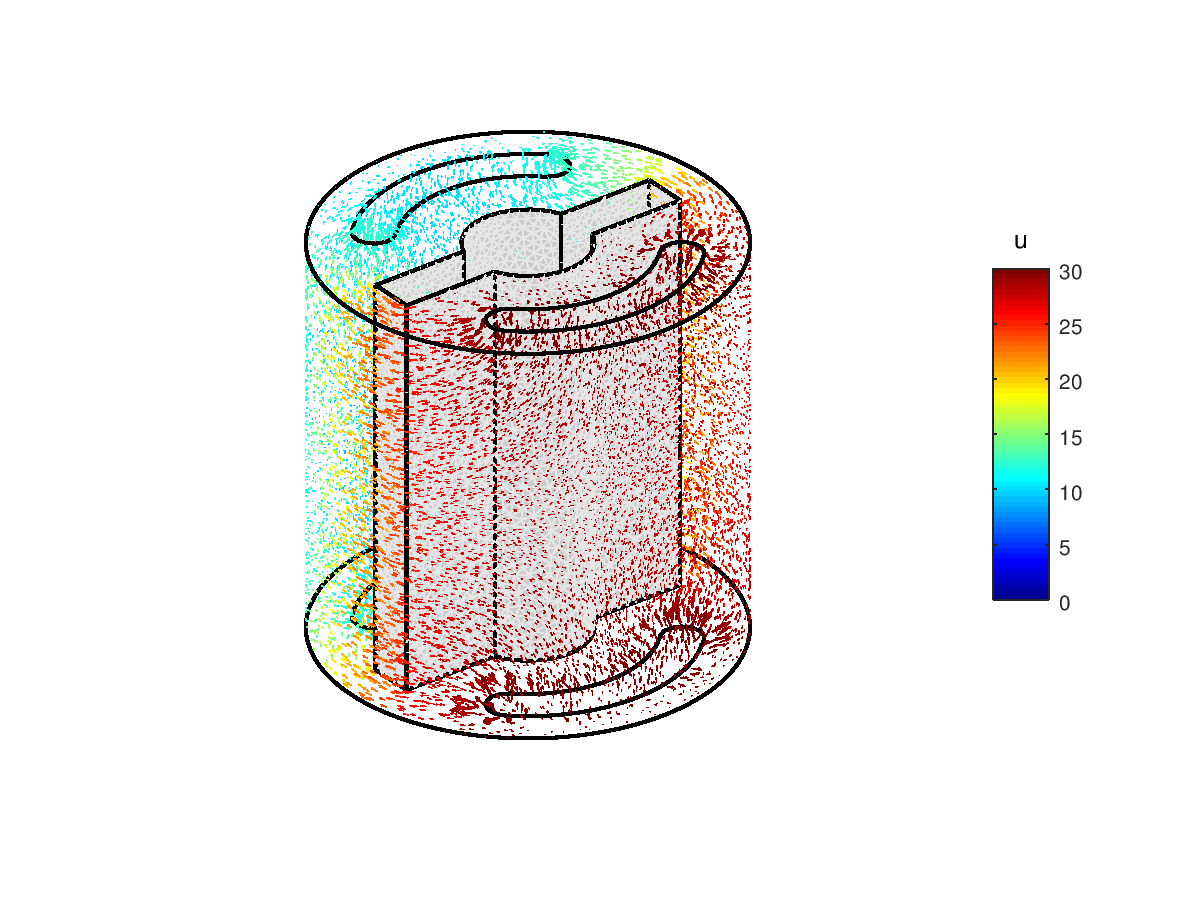

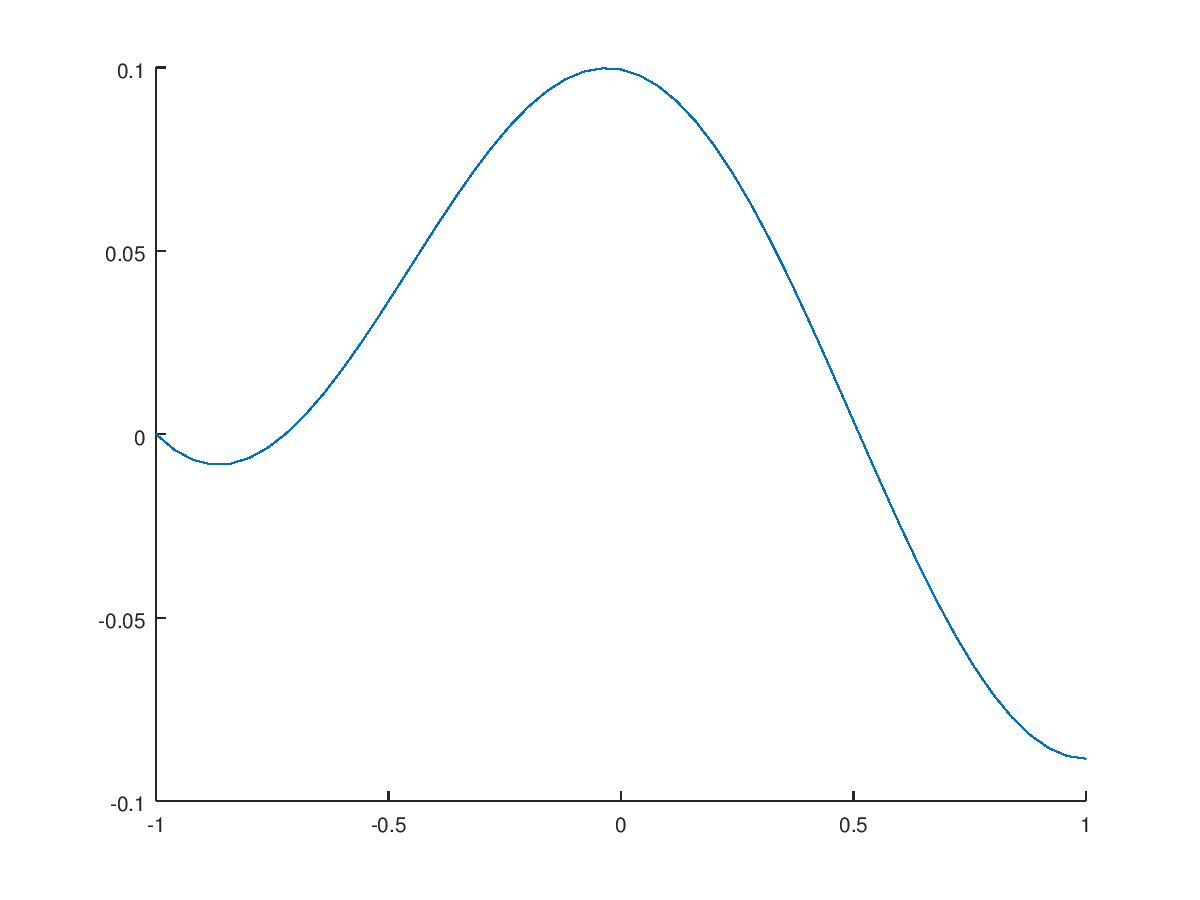

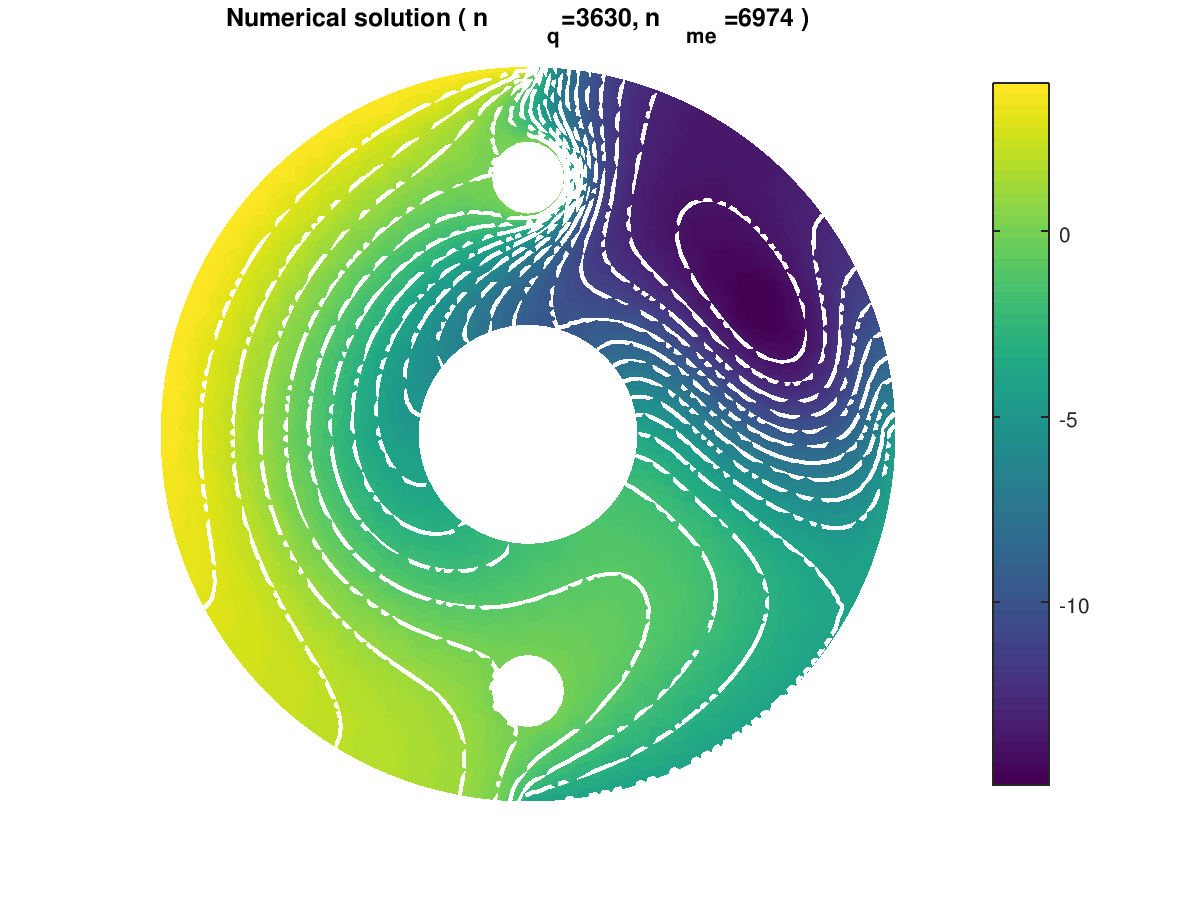

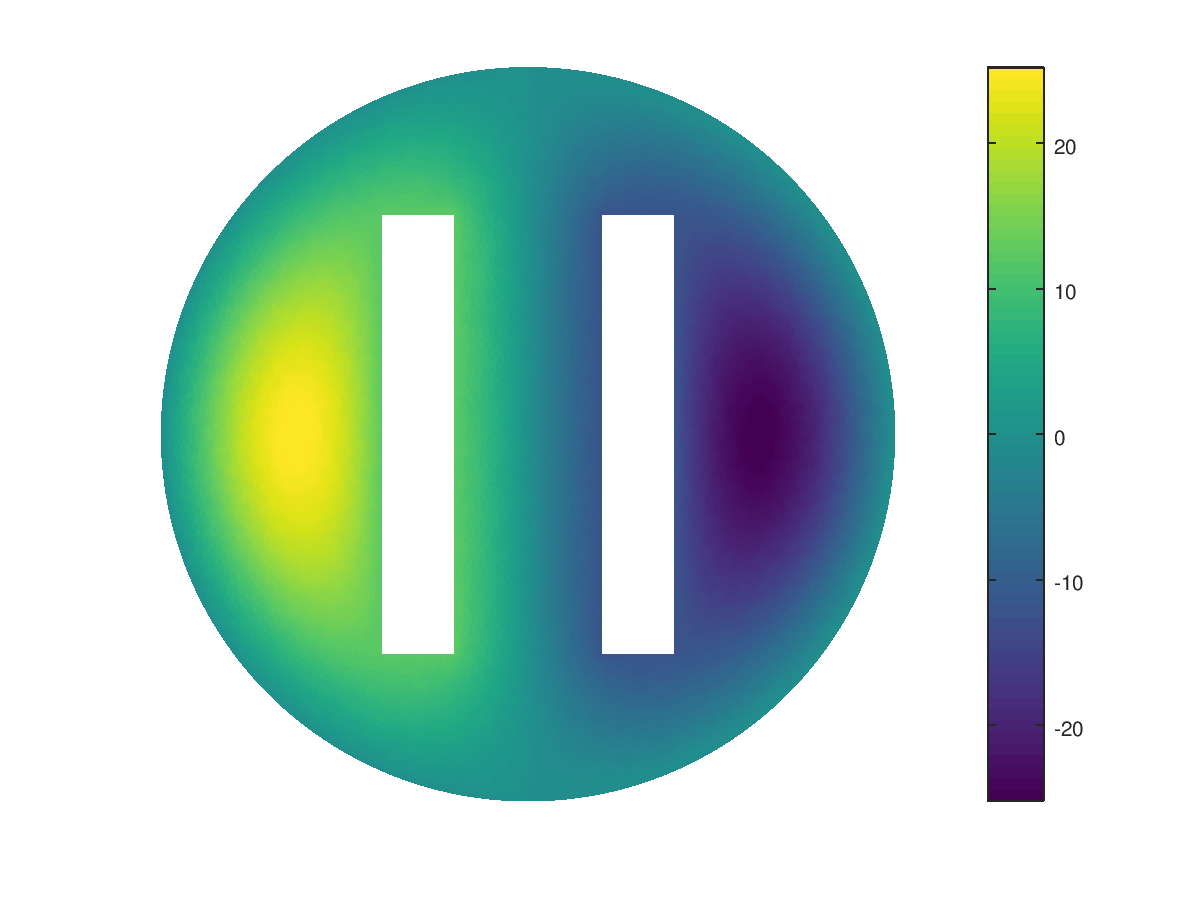

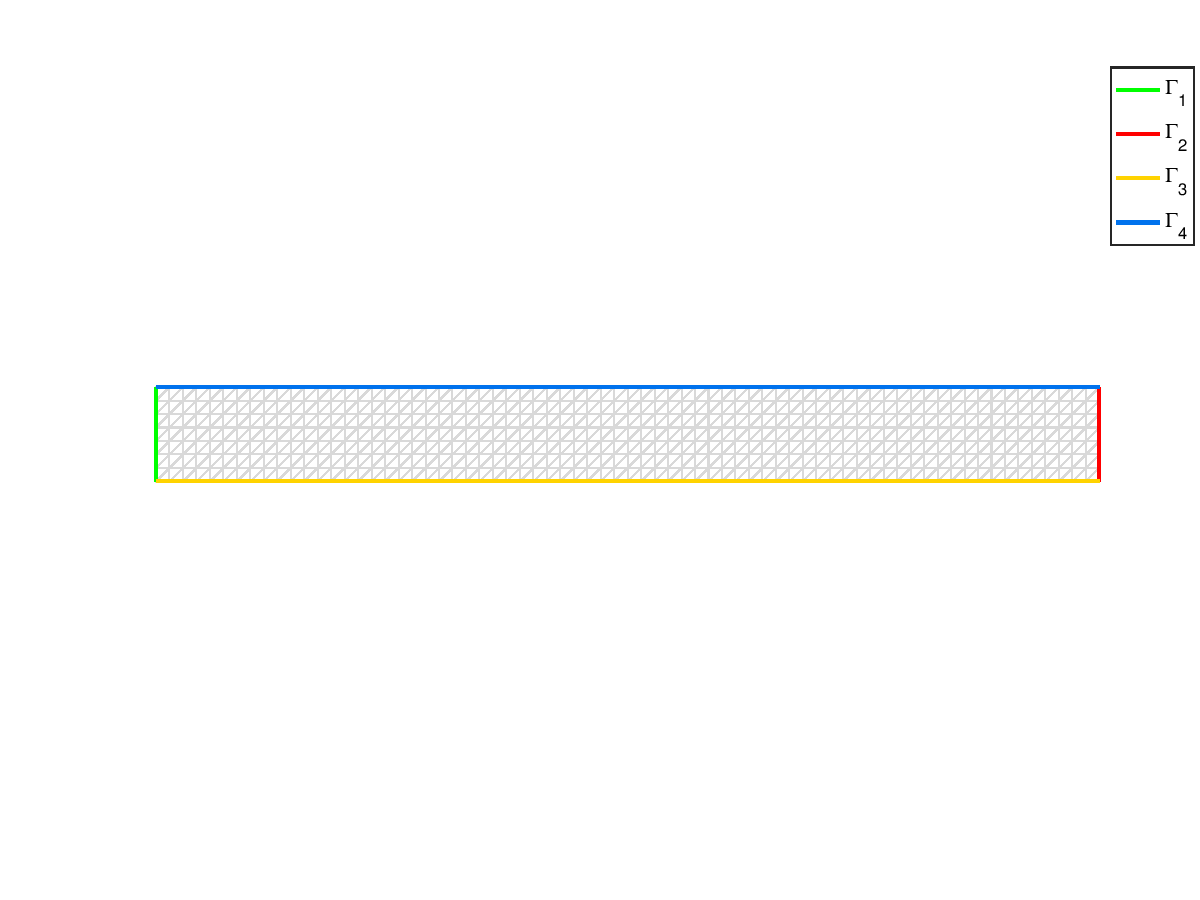

Snapshots|
| ||||||
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
||
|
| ||||||
This package was tested under
It is not compatible with Octave 4.0.x and previous.
Current development release|
| ||||||||
| Version | date | package | archives | install | User’s Guide |
|||
| 0.0.6 | October 13, 2017 |
|
|
|
|
|||
Installation automatic, all in one (recommanded)For this method, one just have to get/download the install file
(3 Ko) ofc_vfemp1_install.m
Thereafter, one run it under Octave. This command download, extract and configure the fc-vfemp1 and the
required packages (fc-tools, fc-oogmsh, fc-hypermesh) in the current directory.
For example, to install this package in ~/Octave/packages directory, one have to copy the file mfc_vfemp1_install.m in the ~/Octave/packages directory. Then in a Octave terminal run the following commands
>> cd ~/Octave/packages
>> mfc_vfemp1_install
There is the output of the mfc_vfemp1_install command on a Linux computer :
Parts of the GNU Octave <fc-vfemp1> package.
Copyright (C) 2017 Francois Cuvelier <cuvelier@math.univ-paris13.fr>
**************************************
Downloading and installing the package
<fc-simesh>[0.2.1]
**************************************
Parts of the GNU Octave <fc-simesh> package.
Copyright (C) 2016-2017 Francois Cuvelier <cuvelier@math.univ-paris13.fr>
1- Downloading and extracting the packages
-> <fc-tools>[0.0.19] ... OK
-> <fc-hypermesh>[0.0.6] ... OK
-> <fc-oogmsh>[0.0.17] ... OK
-> <fc-simesh>[0.2.1] ... OK
-> <fc-graphics4mesh>[0.0.2] ... OK
-> <fc-siplt>[0.0.2] ... OK
2- Setting the packages
2-a) Setting the <fc-hypermesh> package
Write in ~/Octave/packages/fc-vfemp1-full/fc_hypermesh-0.0.6/configure_loc.m ...
-> done
2-b) Setting the <fc-oogmsh> package
[fc-oogmsh] Using GMSH binary : ~/bin/gmsh
[fc-oogmsh] Writing in ~/Octave/packages/fc-vfemp1-full/fc_oogmsh-0.0.17/configure_loc.m ...
[fc-oogmsh] configured with
-> gmsh_bin=’~/bin/gmsh’;
-> mesh_dir=’~/Octave/packages/fc-vfemp1-full/fc_oogmsh-0.0.17/meshes’;
-> geo_dir=’~/Octave/packages/fc-vfemp1-full/fc_oogmsh-0.0.17/geodir’;
-> fc_tools_dir=’~/Octave/packages/./fc-vfemp1-full/fc_tools-0.0.19’;
[fc-oogmsh] done
2-c) Setting the <fc-simesh> package without graphics
[fc-simesh] Unable to load the fc-siplt toolbox/package in current path
[fc-simesh] Guess path does not exists:
-> siplt
[fc-] Guess path does not exists:
-> [fc-simesh] Use fc_simesh.configure(’fc_siplt_dir’,<DIR>) to correct this issue
[fc-simesh] no graphics package installed
[fc-simesh] Writing in ~/Octave/packages/fc-vfemp1-full/fc_simesh-0.2.1/configure_loc.m ...
[fc-simesh] configured with
-> oogmsh_dir =’~/Octave/packages/./fc-vfemp1-full/fc_oogmsh-0.0.17’;
-> hypermesh_dir =’~/Octave/packages/./fc-vfemp1-full/fc_hypermesh-0.0.6’;
-> siplt_dir =’’;
[fc-simesh] done
2-d) Setting the <fc-graphics4mesh> toolbox
Write in ~/Octave/packages/fc-vfemp1-full/fc_graphics4mesh-0.0.2/configure_loc.m ...
-> done
2-e) Setting the <fc-siplt> toolbox
Write in ~/Octave/packages/fc-vfemp1-full/fc_siplt-0.0.2/configure_loc.m ...
-> done
2-f) Setting the <fc-simesh> toolbox with graphics
[fc-simesh] Writing in ~/Octave/packages/fc-vfemp1-full/fc_simesh-0.2.1/configure_loc.m ...
[fc-simesh] configured with
-> oogmsh_dir =’~/Octave/packages/./fc-vfemp1-full/fc_oogmsh-0.0.17’;
-> hypermesh_dir =’~/Octave/packages/./fc-vfemp1-full/fc_hypermesh-0.0.6’;
-> siplt_dir =’~/Octave/packages/./fc-vfemp1-full/fc_siplt-0.0.2’;
[fc-simesh] done
3- Using instructions
To use the <fc-simesh> package:
addpath(’~/Octave/packages/./fc-vfemp1-full/fc_simesh-0.2.1’)
fc_simesh.init()
See ~/Octave/packages/ofc_simesh_set.m
<fc-simesh>[0.2.1]: installed
**************************************
Downloading and installing the package
<fc-vfemp1>[0.1.0]
**************************************
*** Setting the <fc-vfemp1> package
Write in ~/Octave/packages/fc-vfemp1-full/fc_vfemp1-0.1.0/configure_loc.m ...
-> done
*** The <fc-vfemp1>[0.1.0] is installed
*** Using instructions
To use the <fc-vfemp1> package:
addpath(’~/Octave/packages/./fc-vfemp1-full/fc_vfemp1-0.1.0’)
fc_vfemp1.init()
See ~/Octave/packages/ofc_vfemp1_set.m
The complete package (i.e. with all the other needed packages) is stored in the directory ~/Octave/packages/fc-vfemp1-full and, for each Octave session, one have to set the package by :
>> addpath(’~/Octave/packages/fc-vfemp1-full/fc-vfemp1-0.1.0’)
>> fc_vfemp1.init()
To quickly test this toolbox, one can run one of the script examples located in the directory +fc_vfemp1/+examples. For example, runs

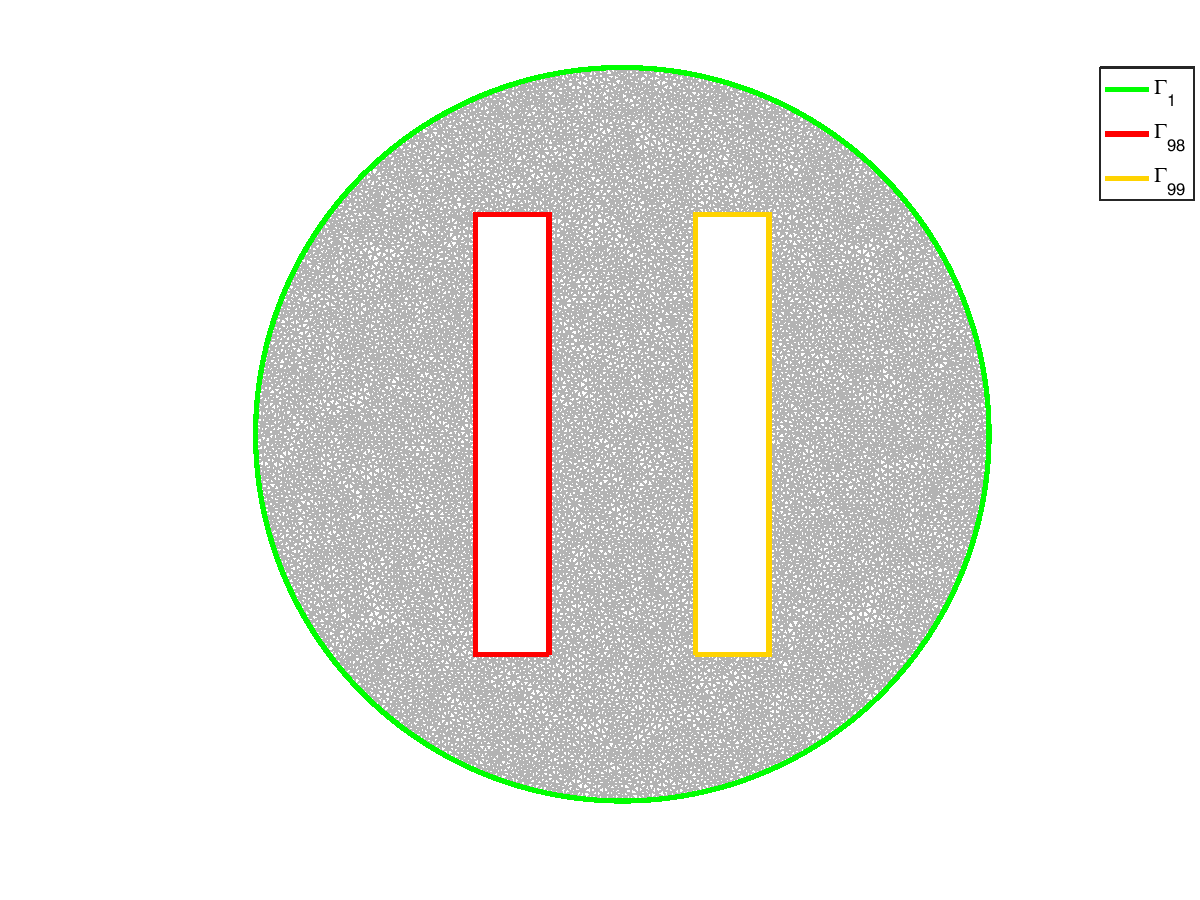

>> fc_vfemp1.examples.BVPCondenser2D01
>> fc_vfemp1.demos()
To install the fc-vfemp1 package without graphical extension one can use the following command
>> ofc_vfemp1_install(’graphics’,false)
For uninstalling, one just have to delete directory
~/Octave/packages/fc-vfemp1-full
Version history
Old development releases|
| ||||||||
| Version | date | package | archives | install | User’s Guide |
|||
| 0.0.5 | February 8, 2017 |
|
|
|
|
|||
| 0.0.4 | February 3, 2017 |
|
|
|
|
|||
| 0.0.2 | January 9, 2017 |
|
|
|
|
|||
