Matlab toolbox contains vectorized codes to solve scalar and vector Boundary Value
Problems by ℙ1-Lagrange finite element method in any space dimension.

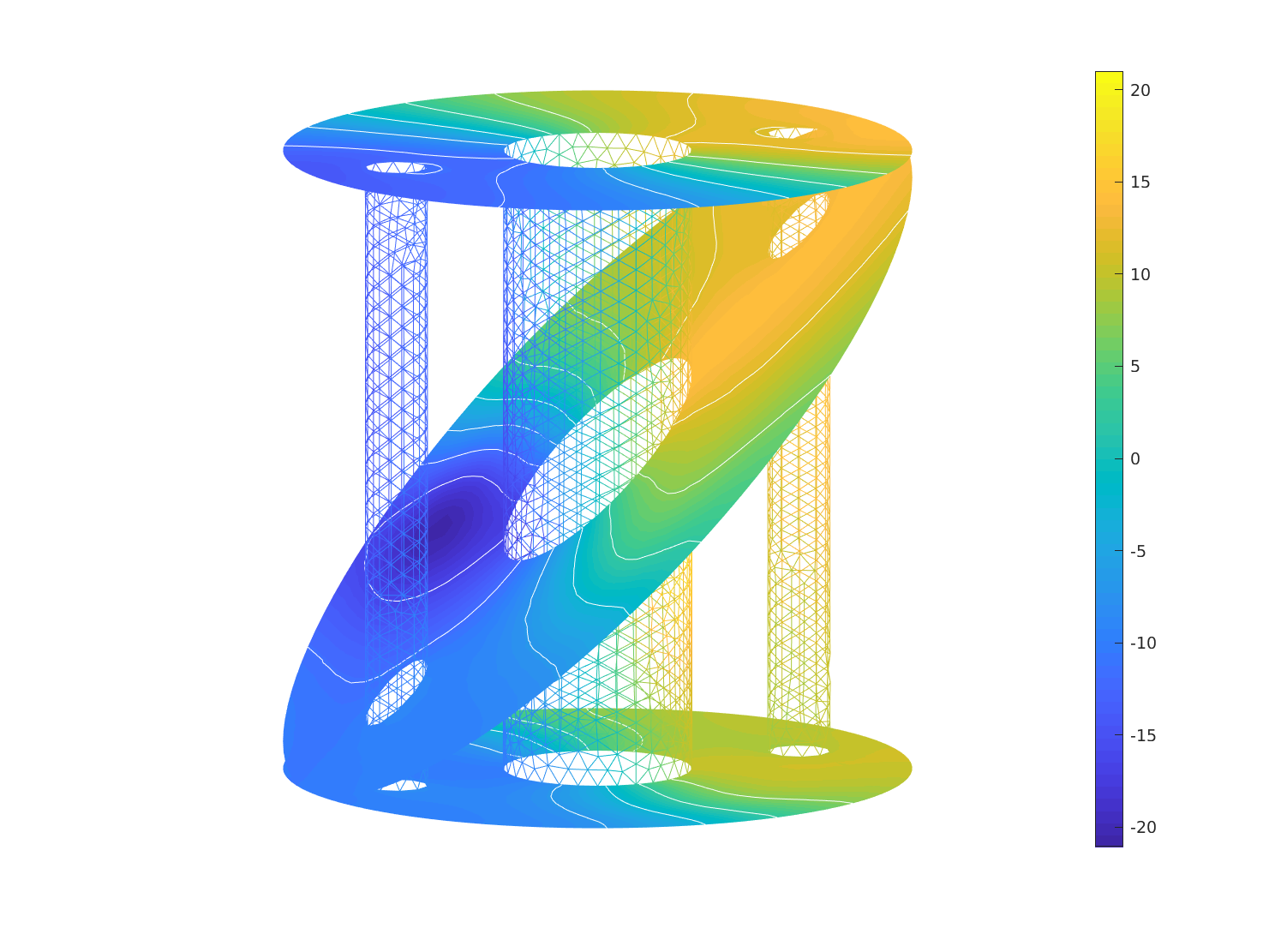

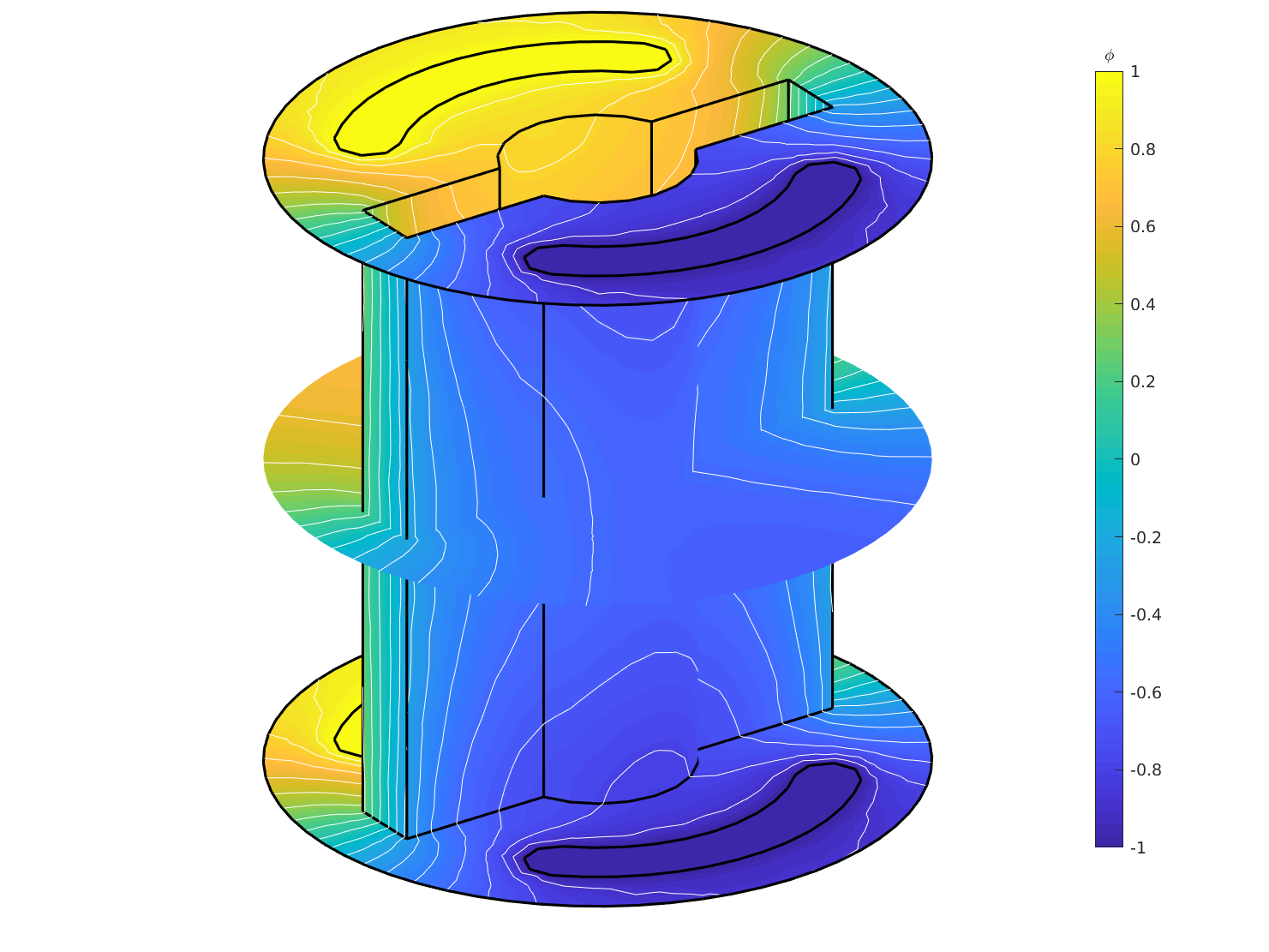

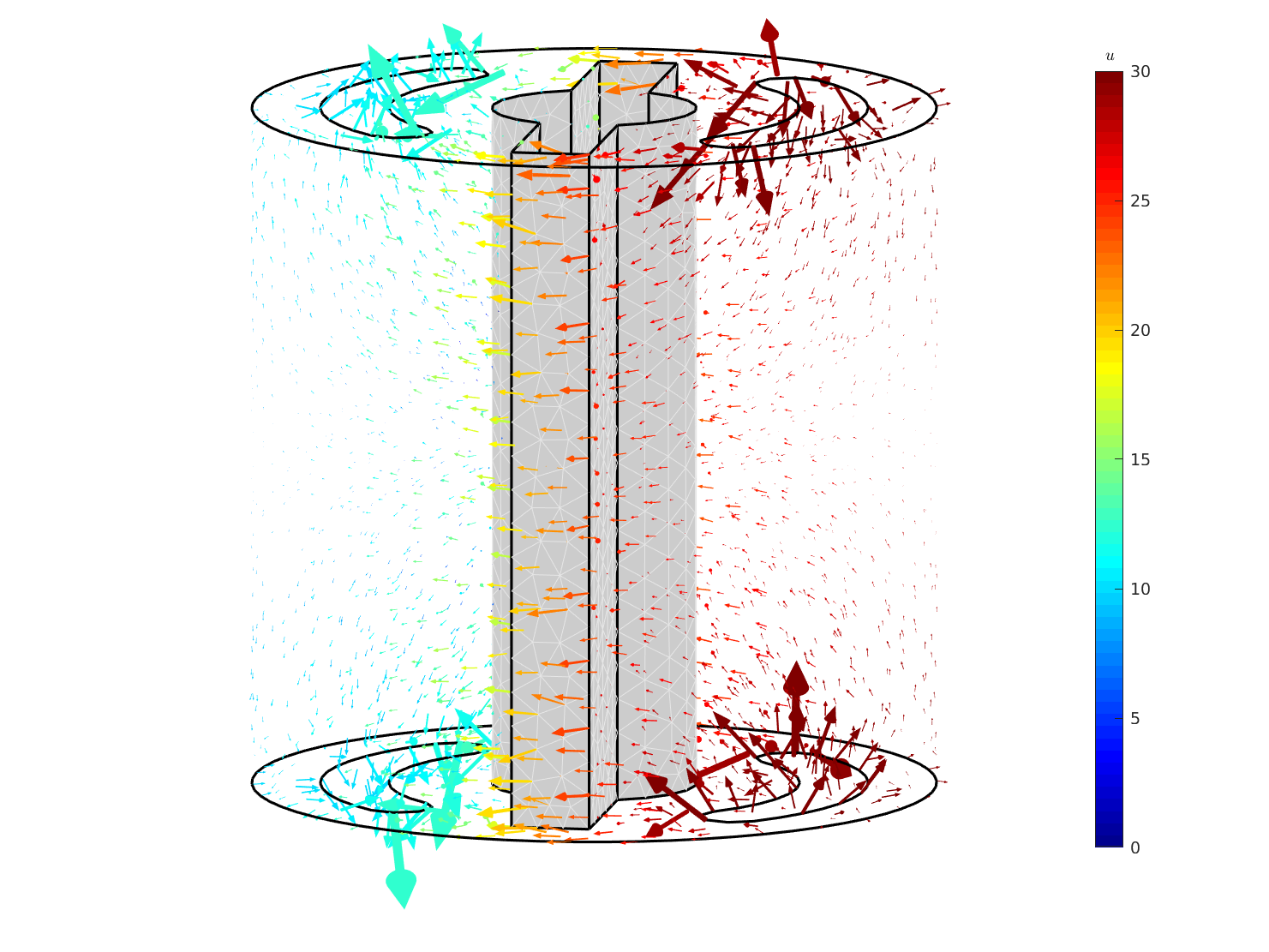

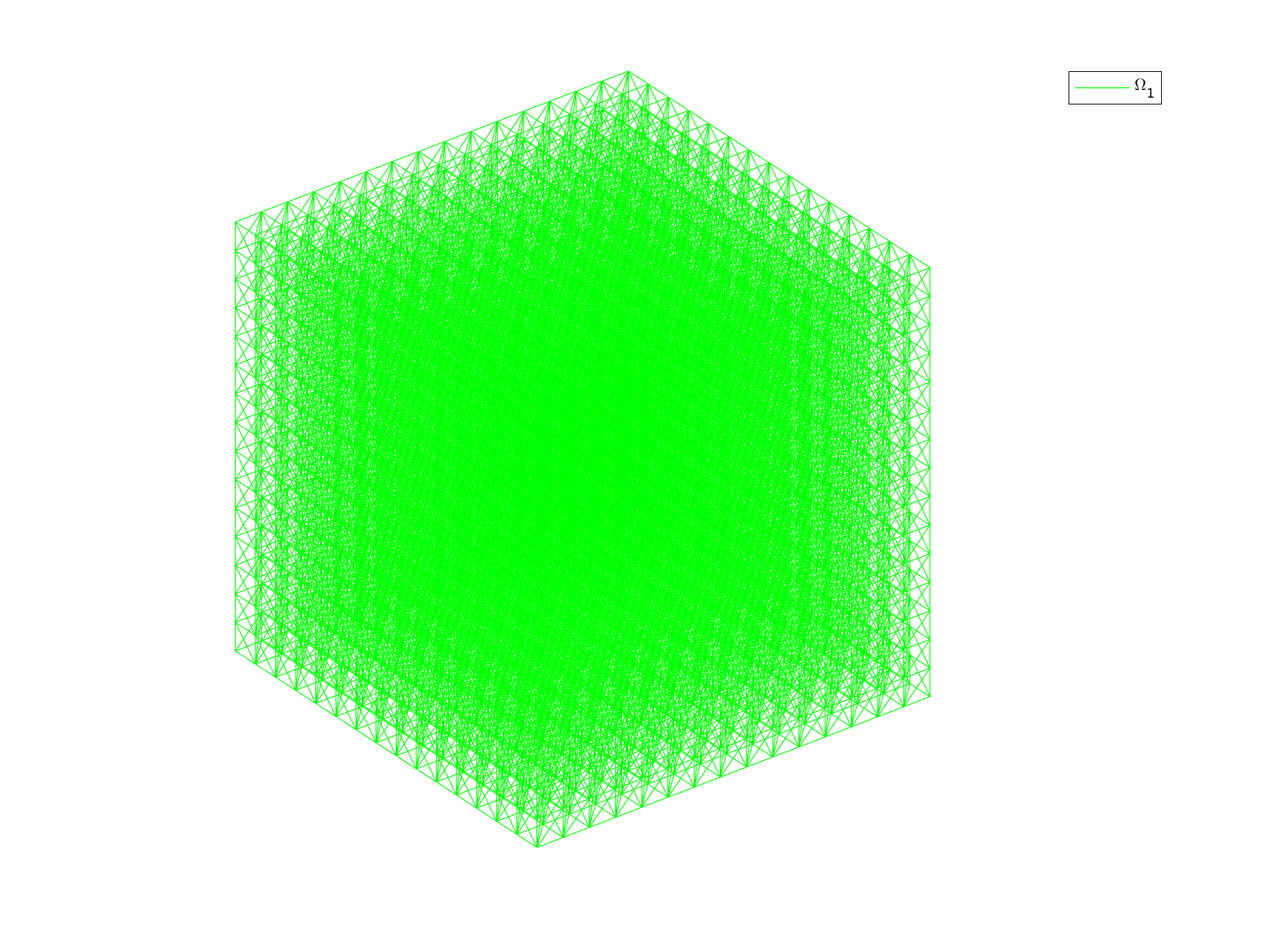

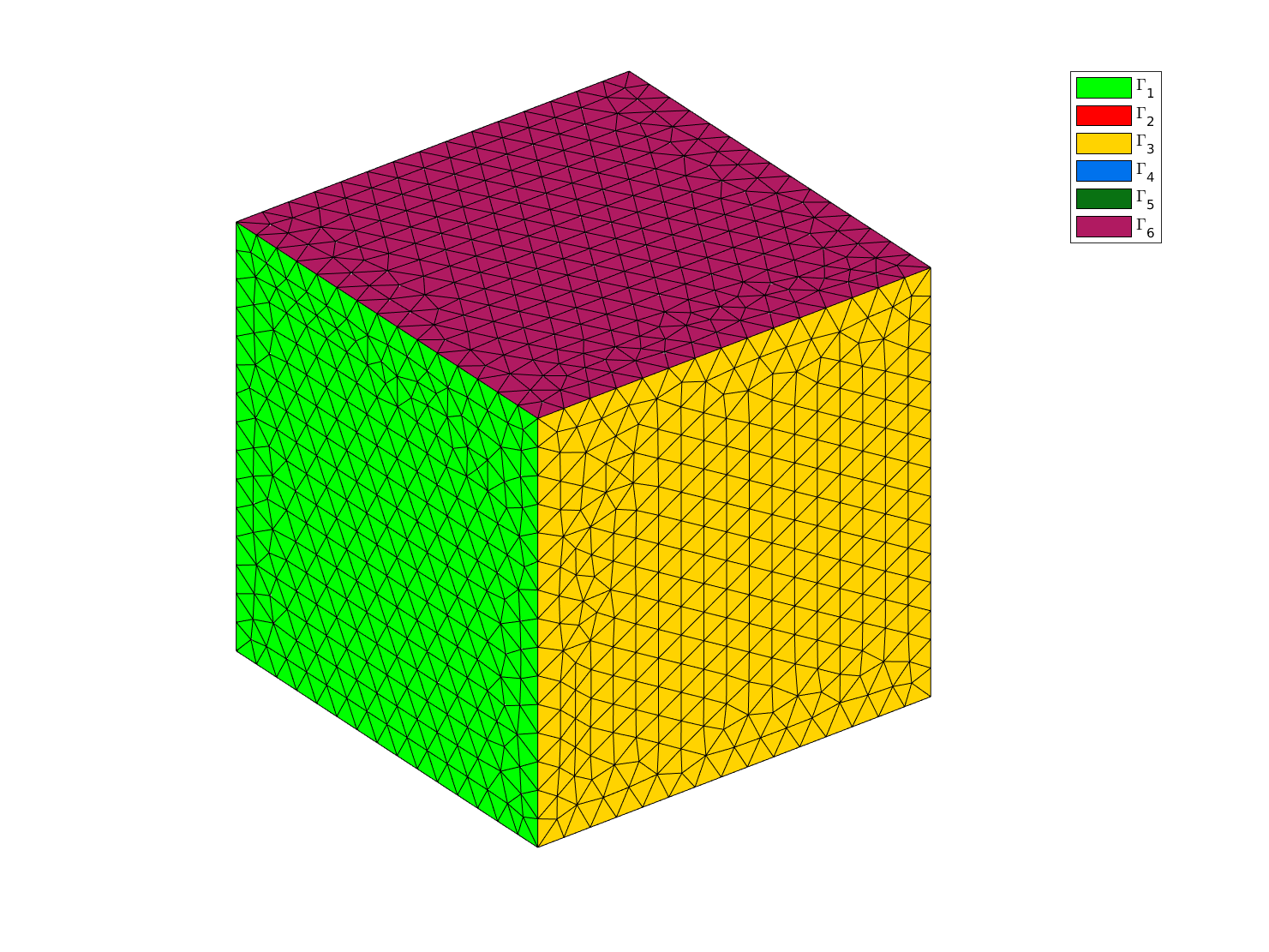

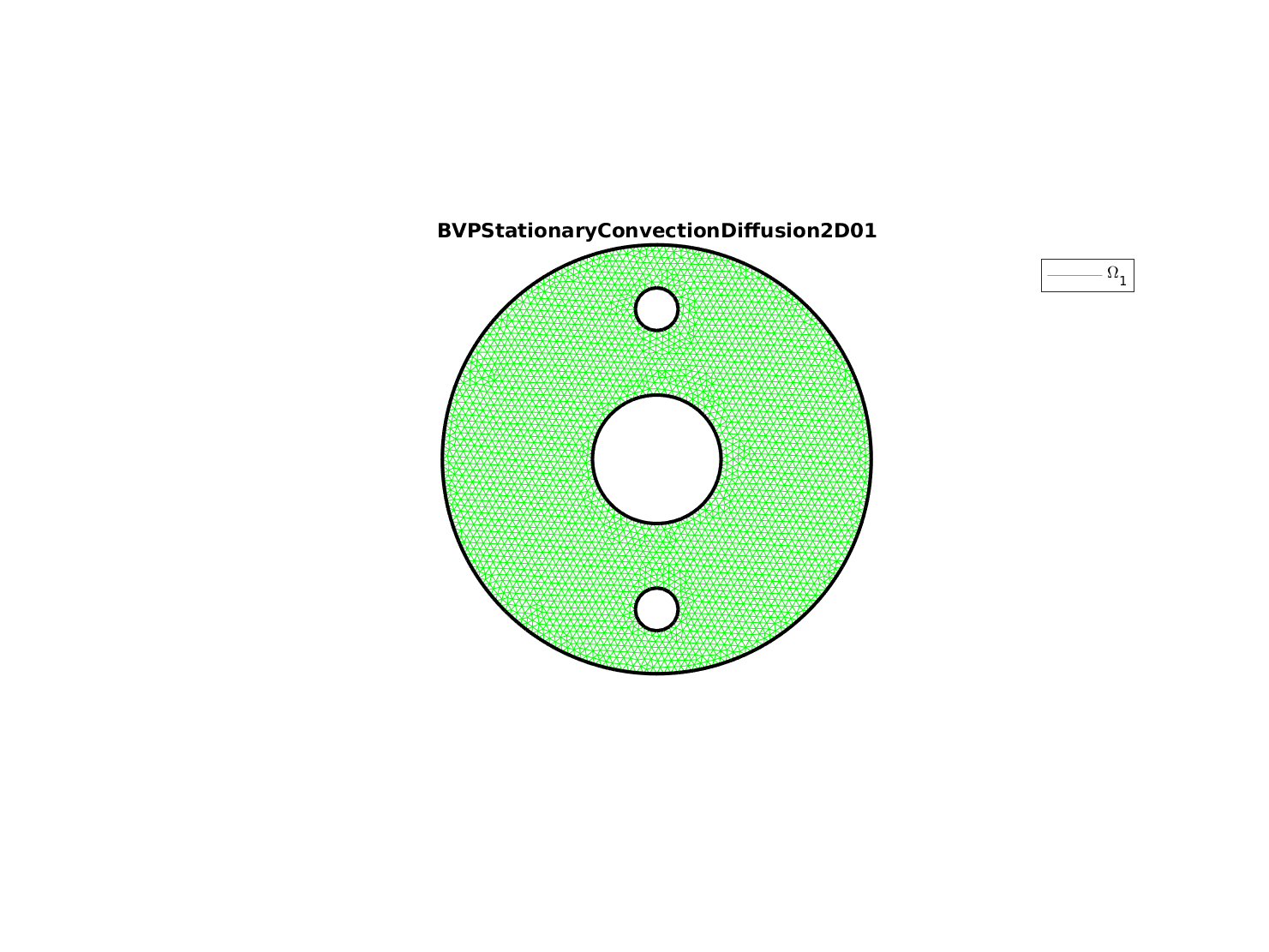

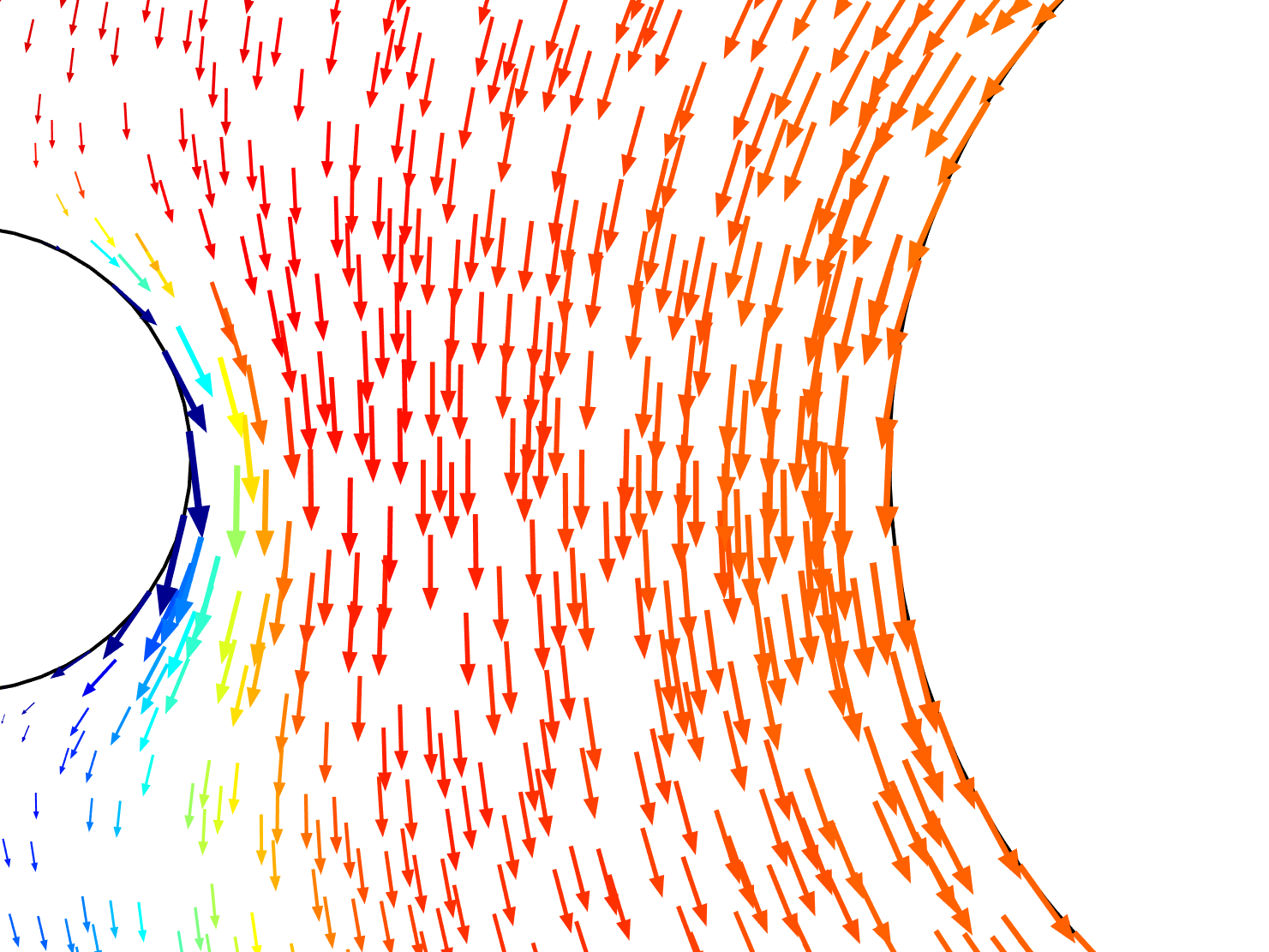

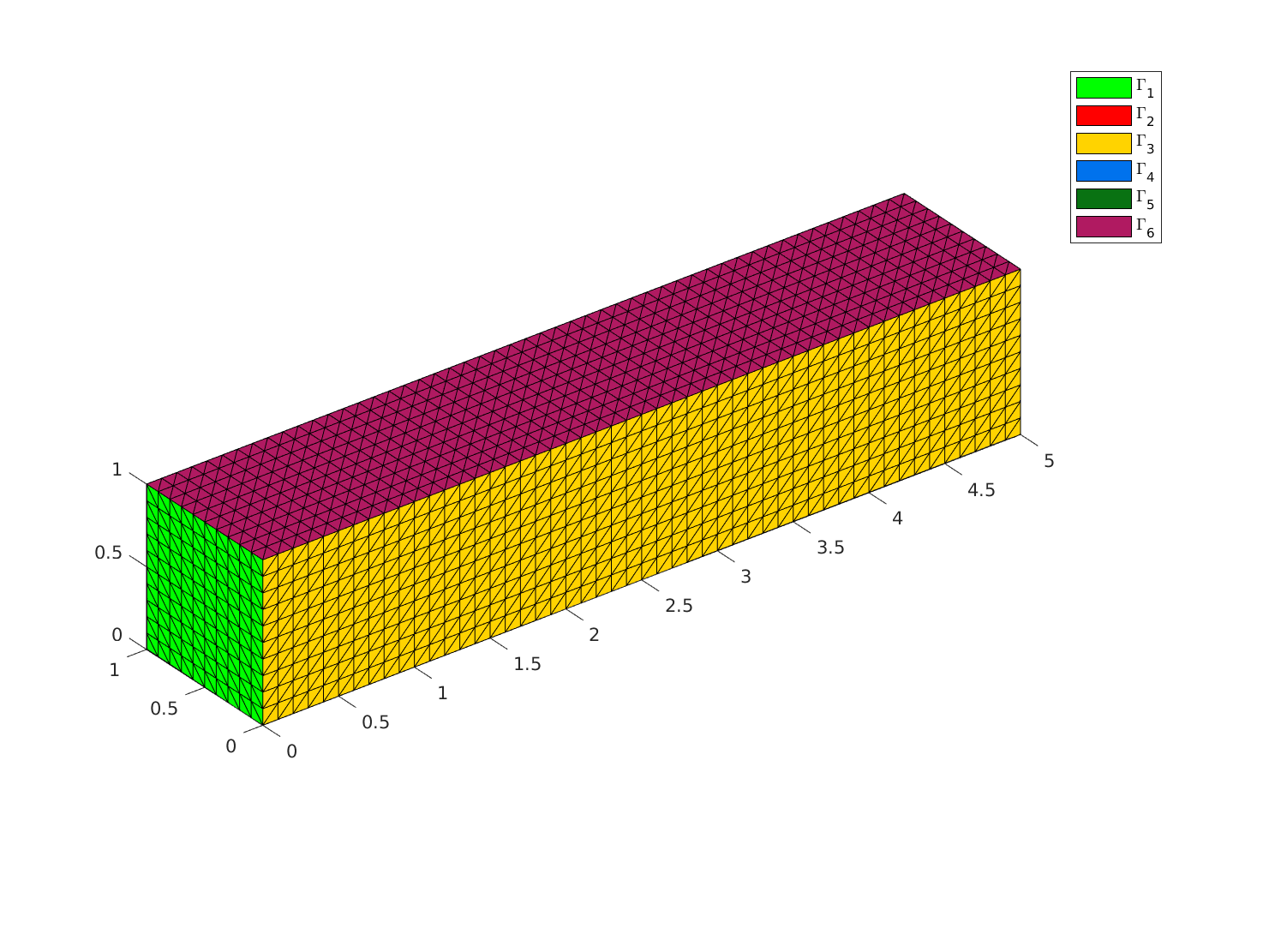

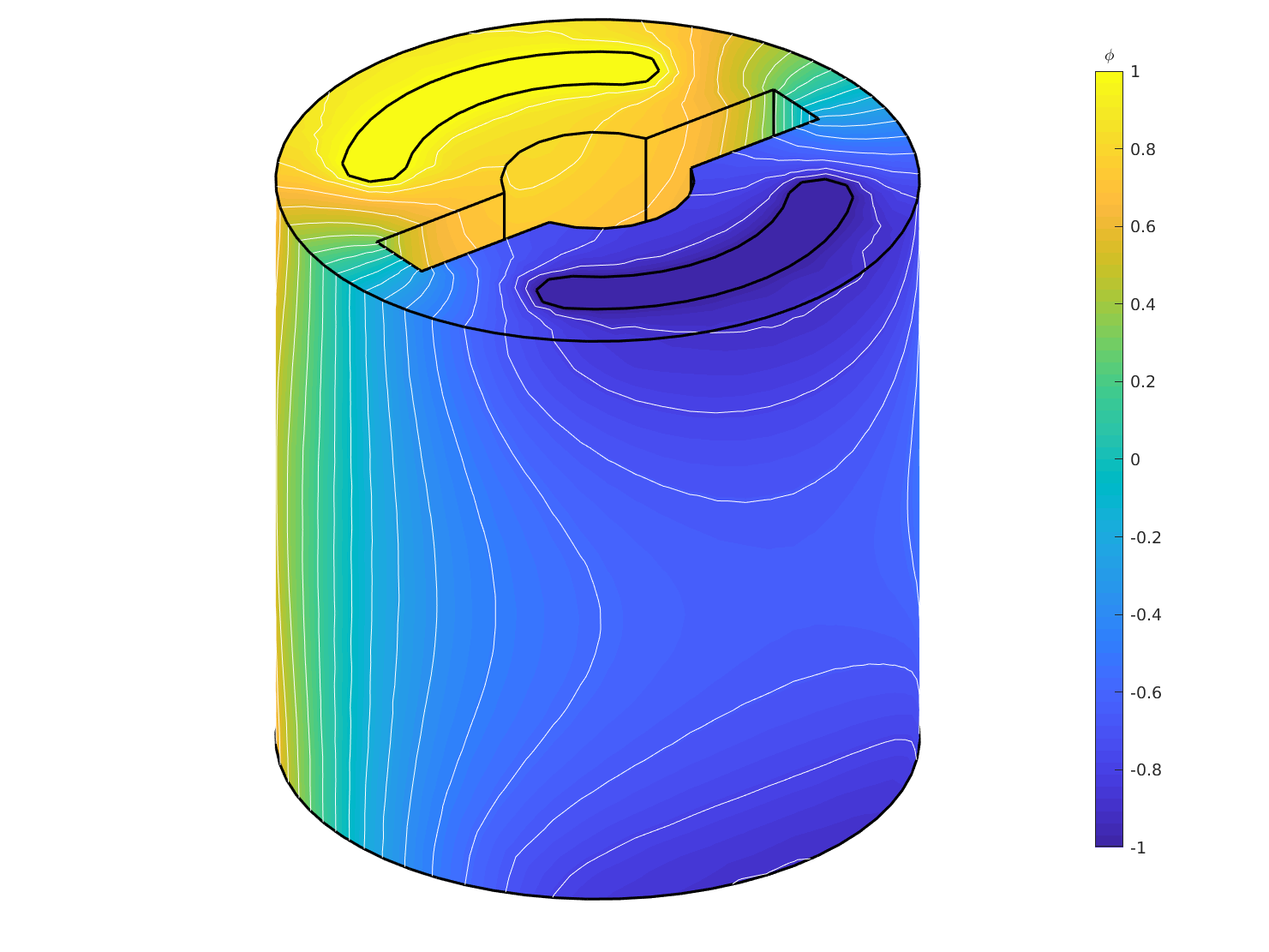

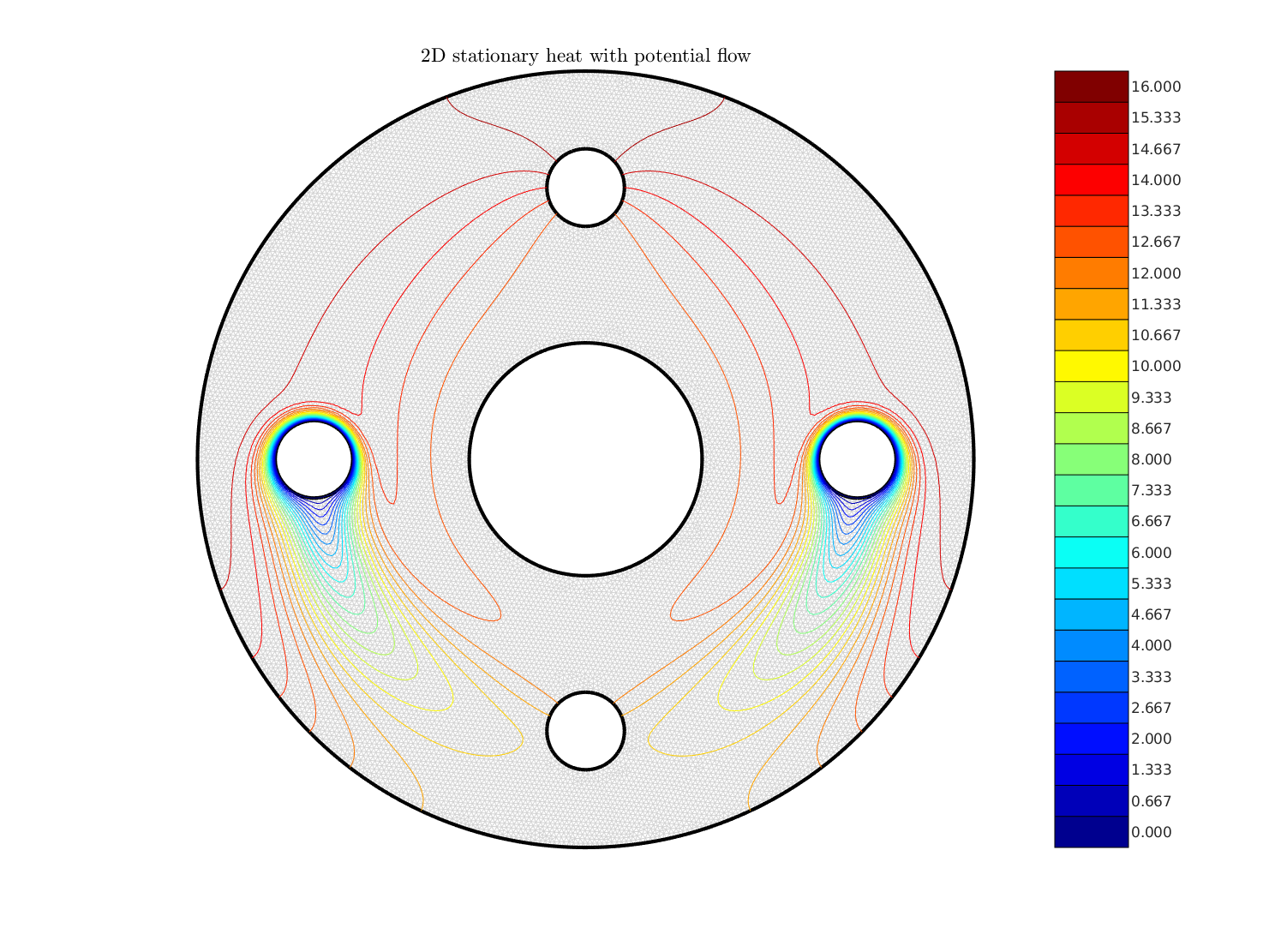

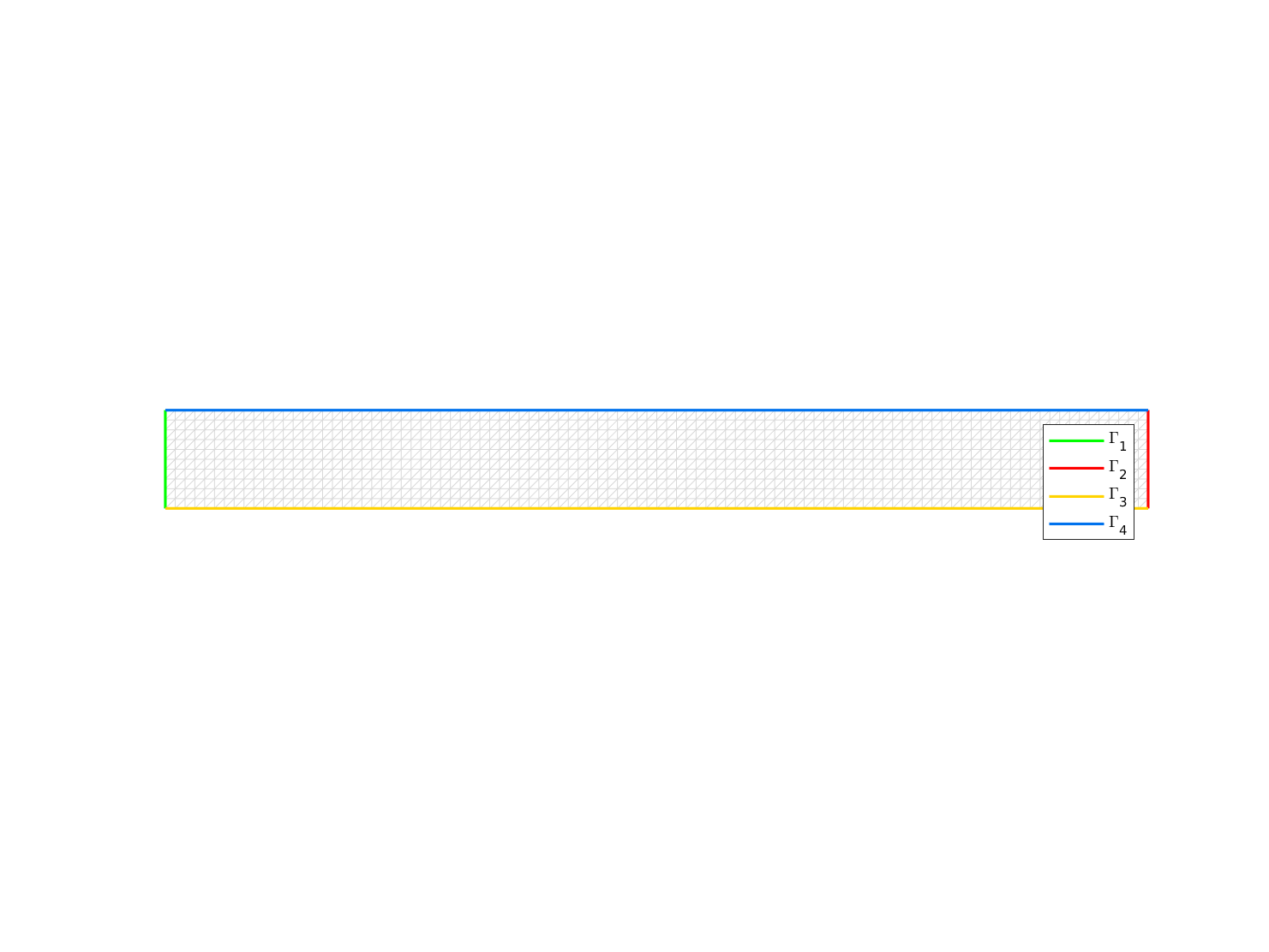

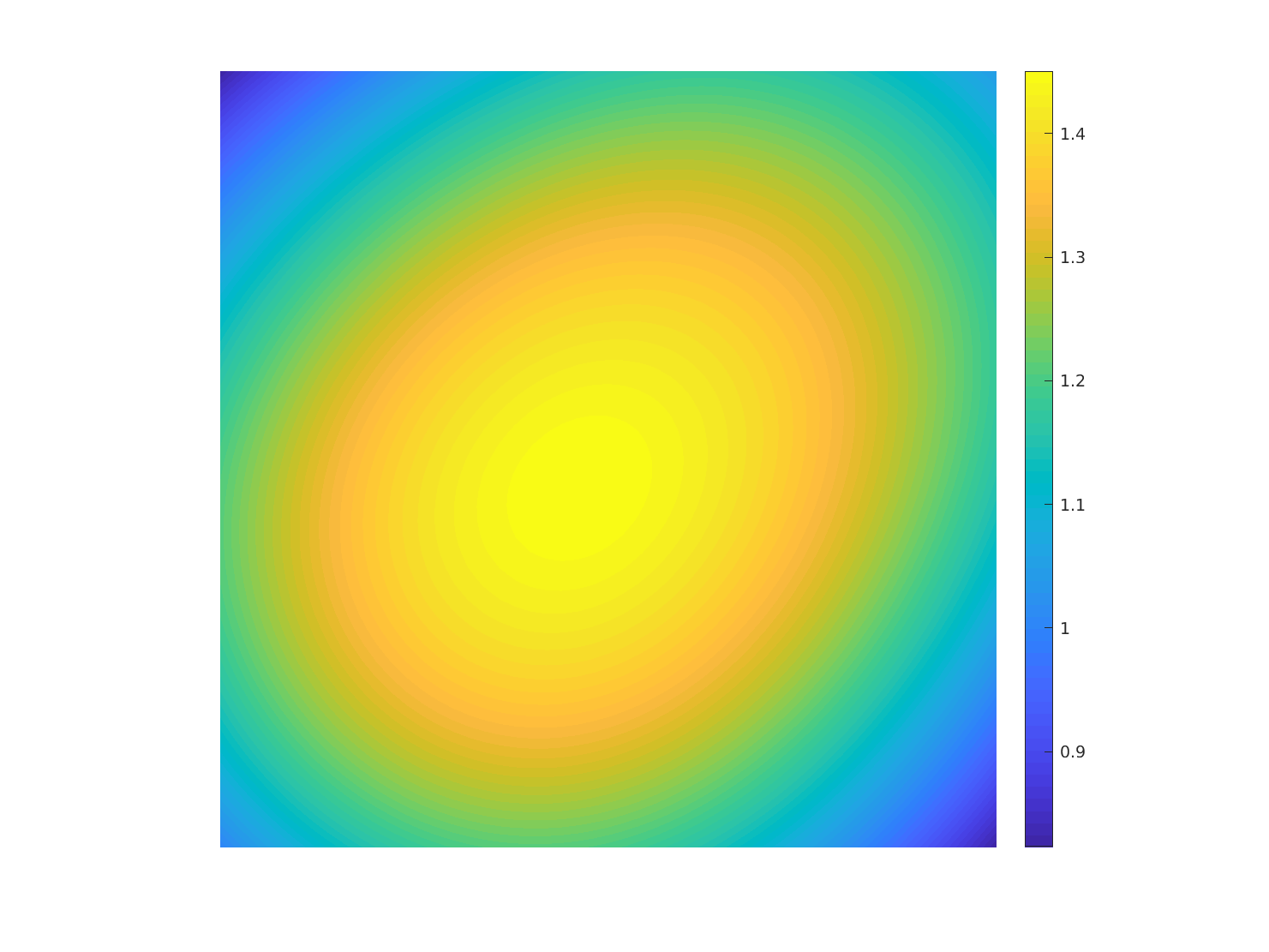

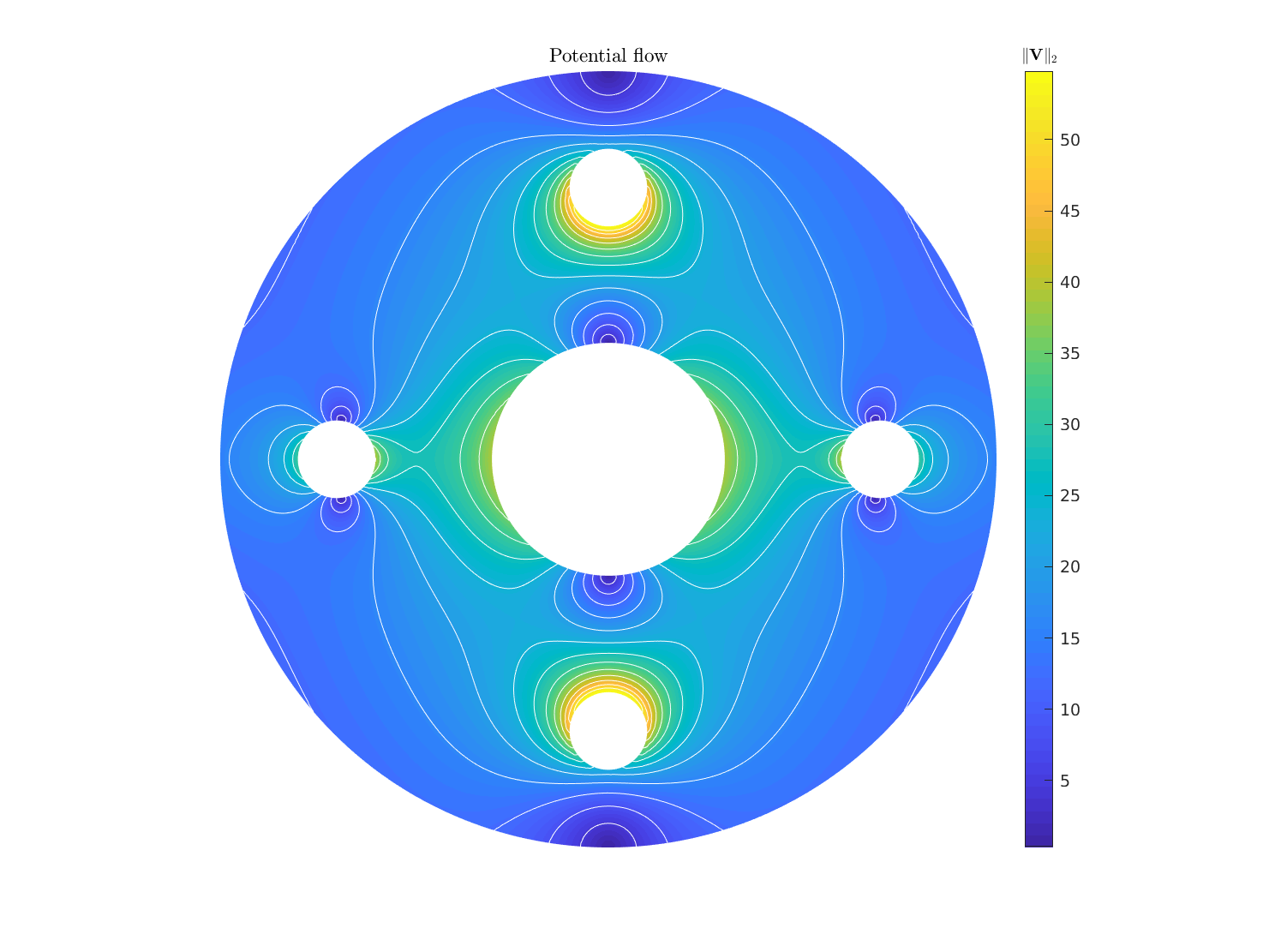

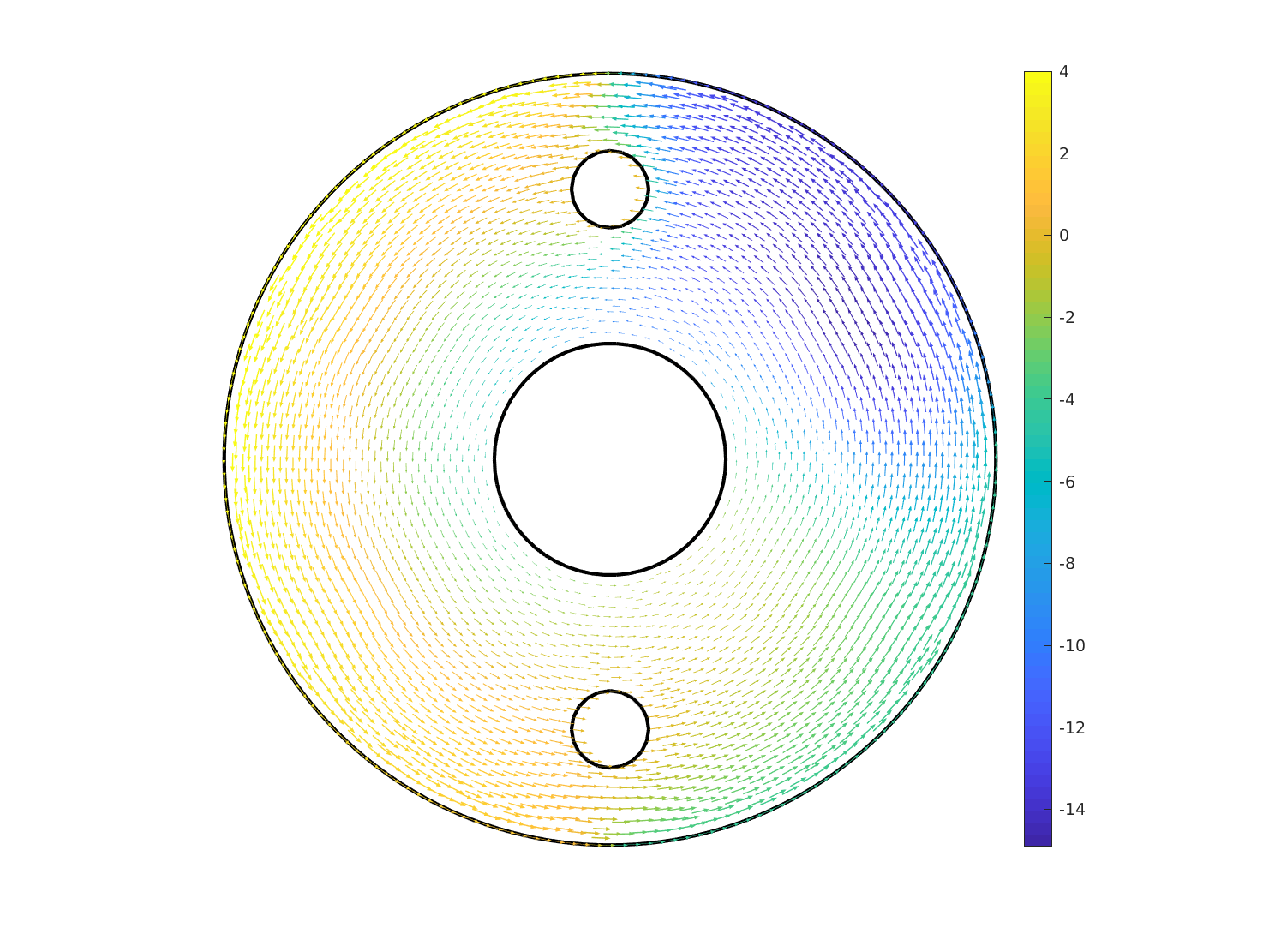

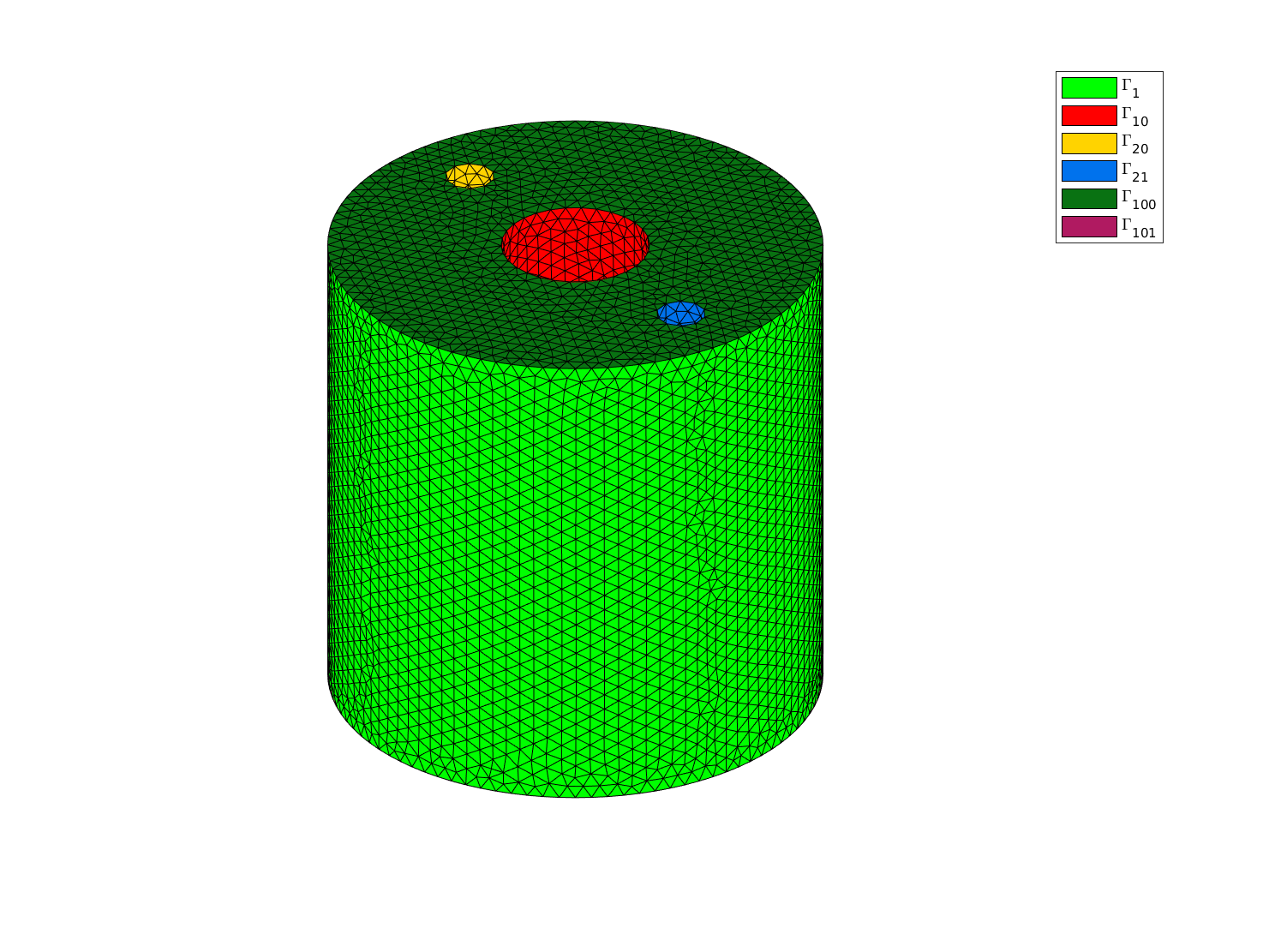

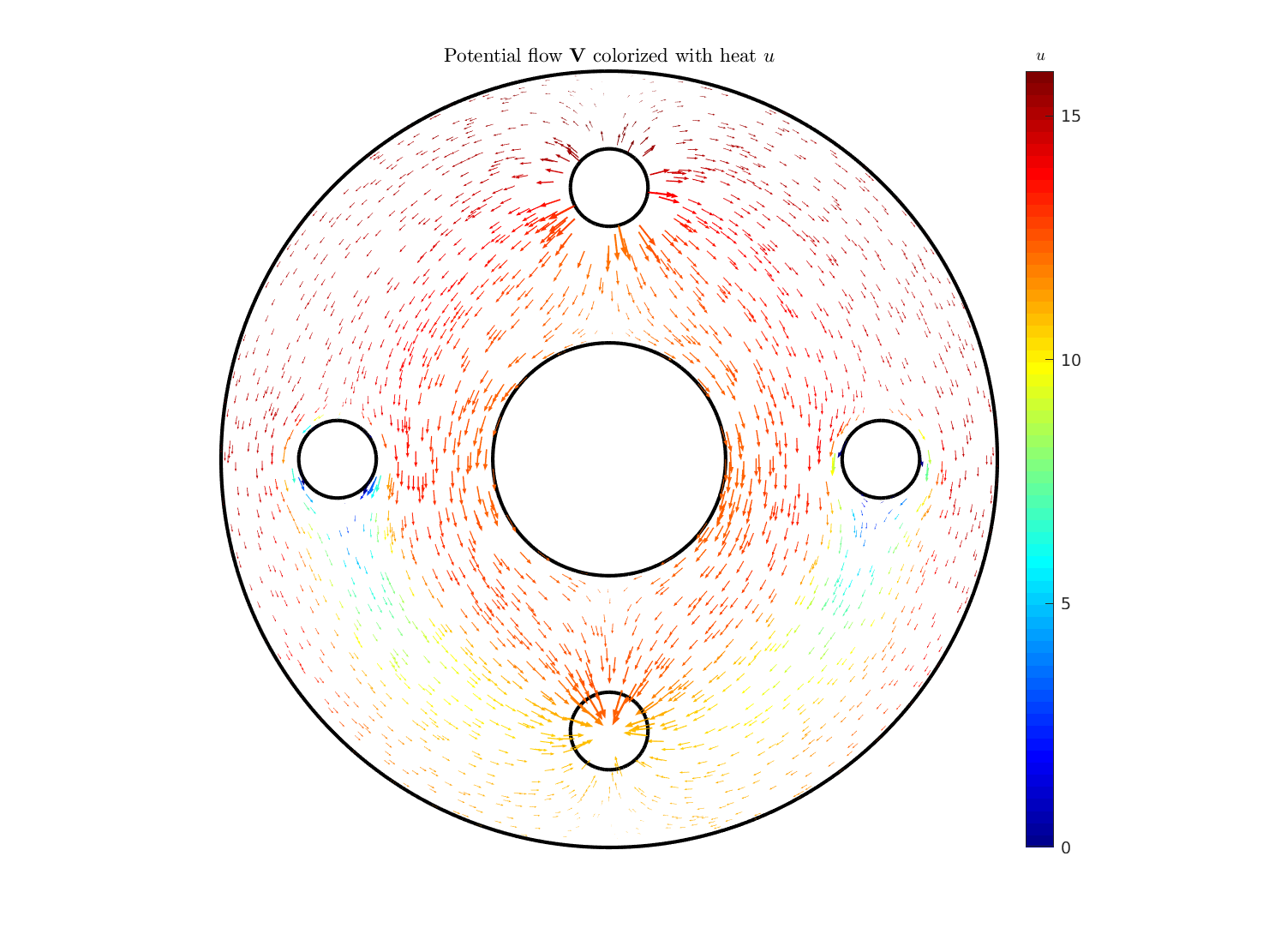

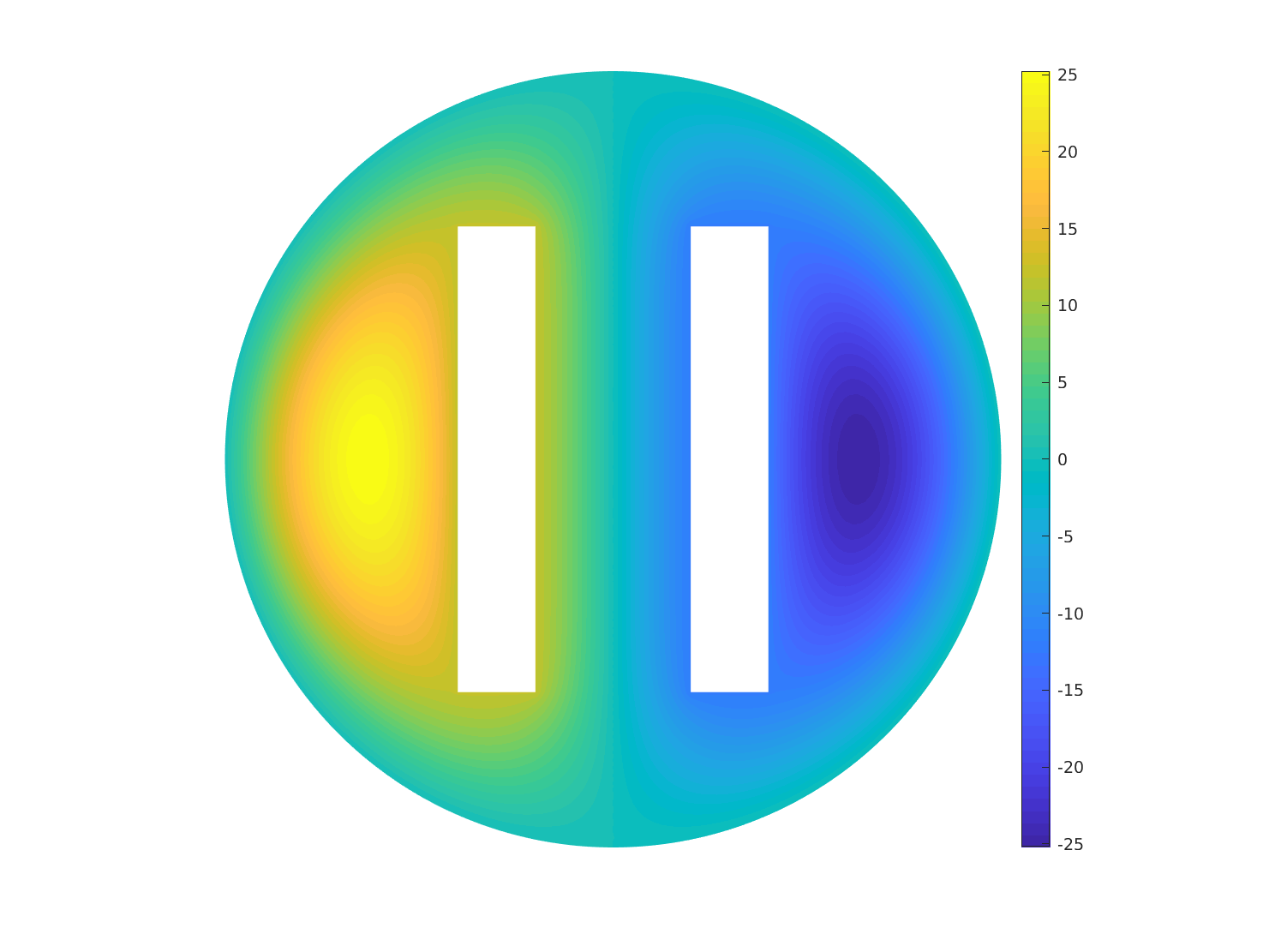

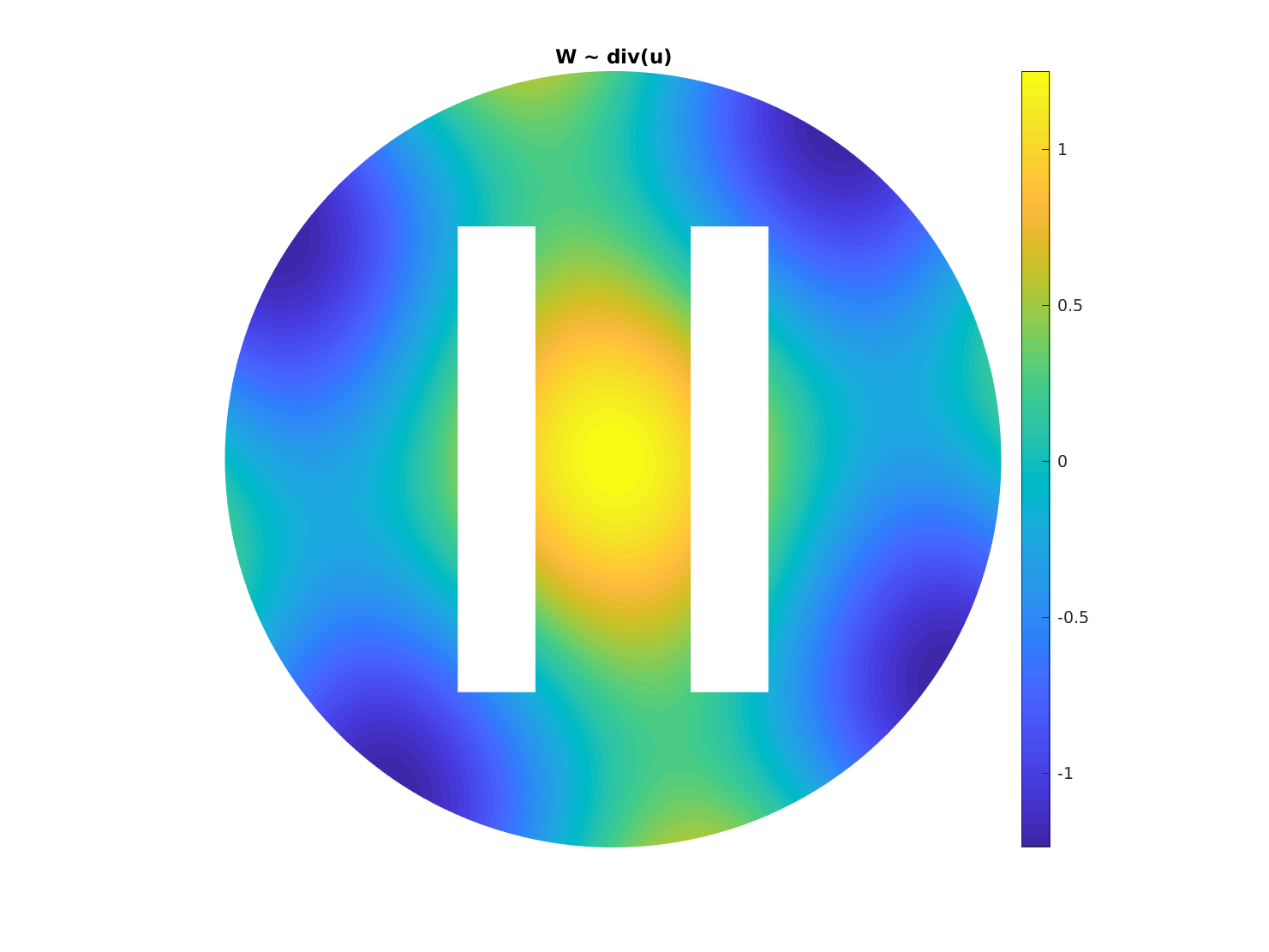

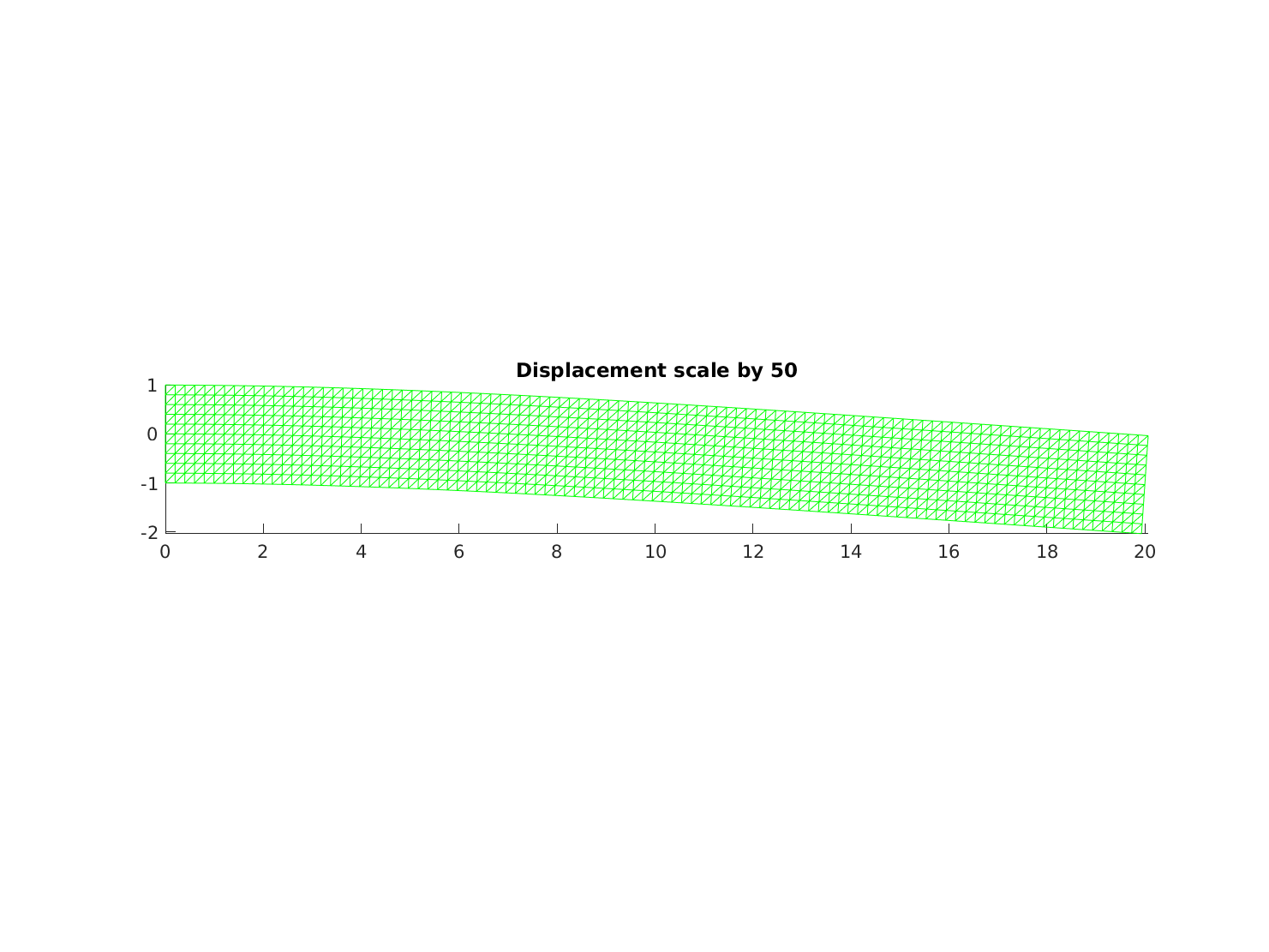

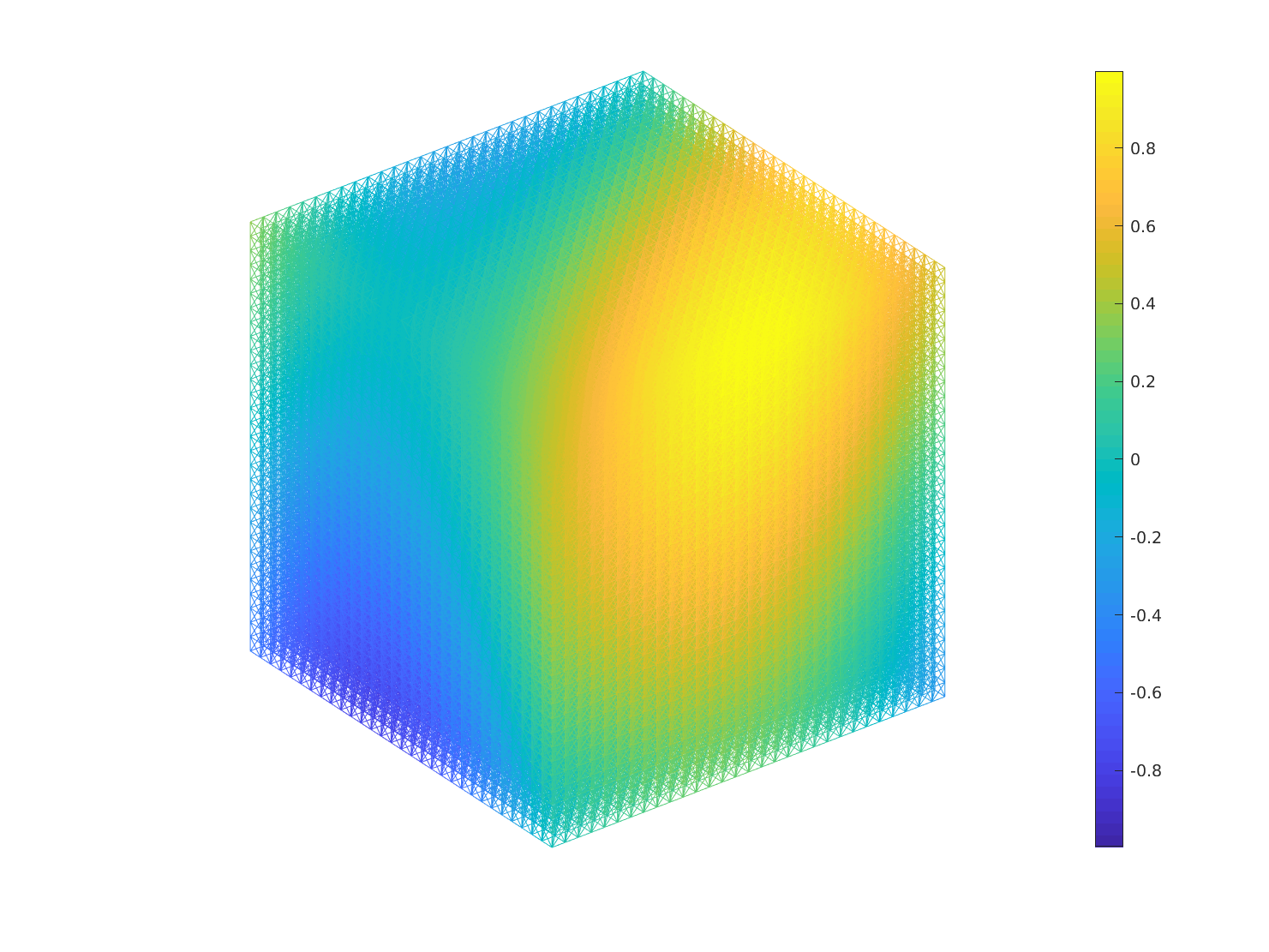

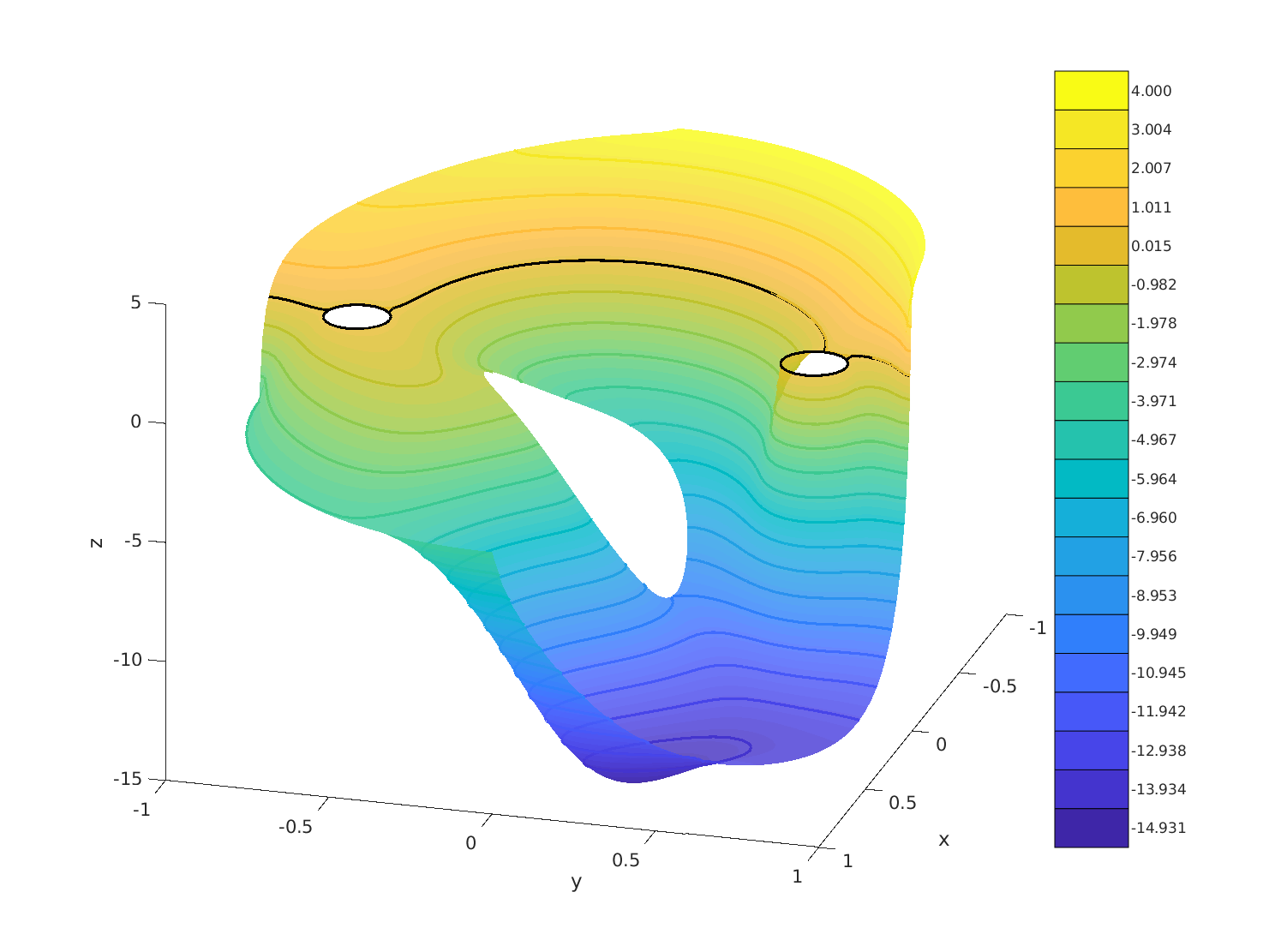

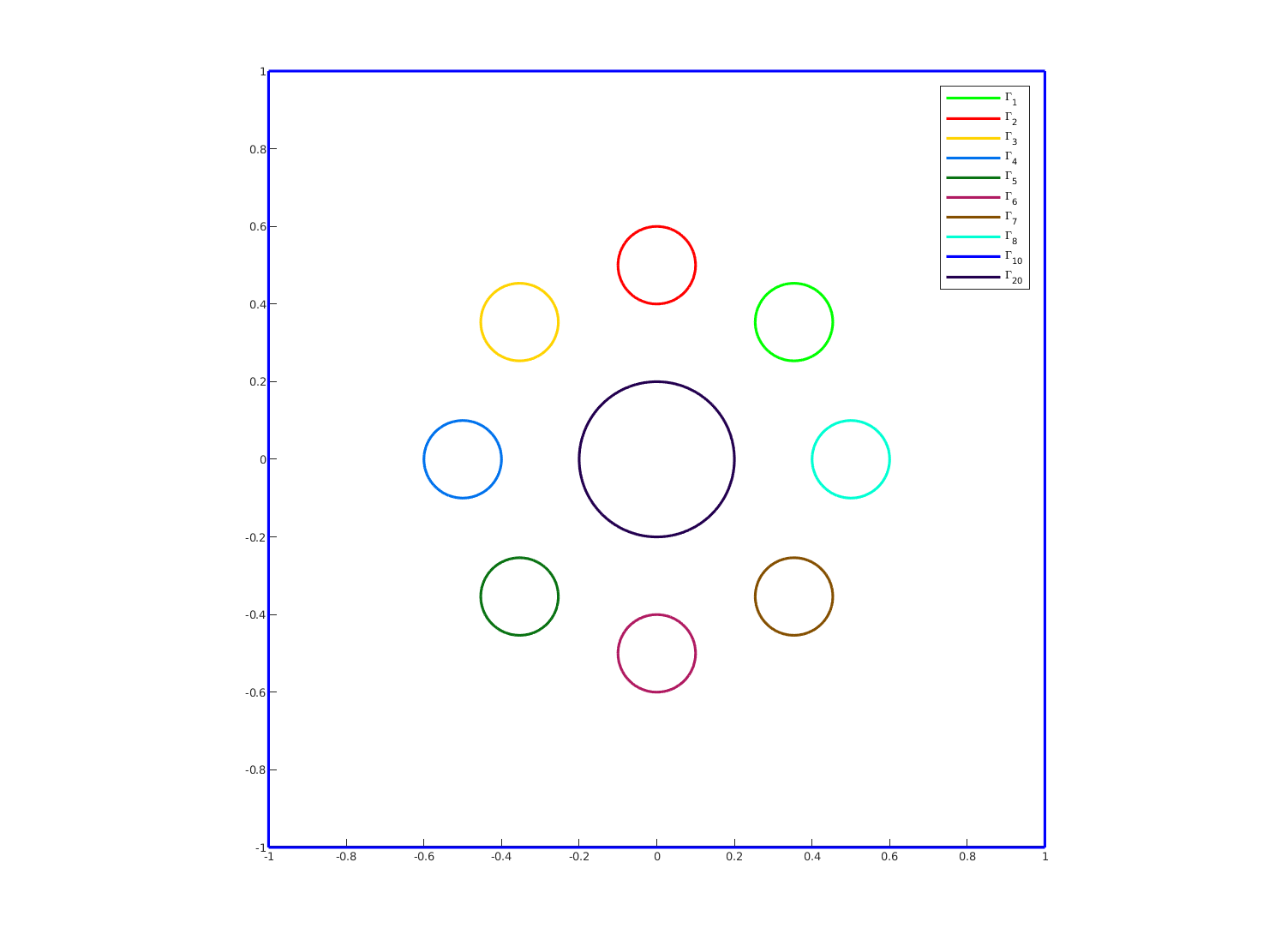

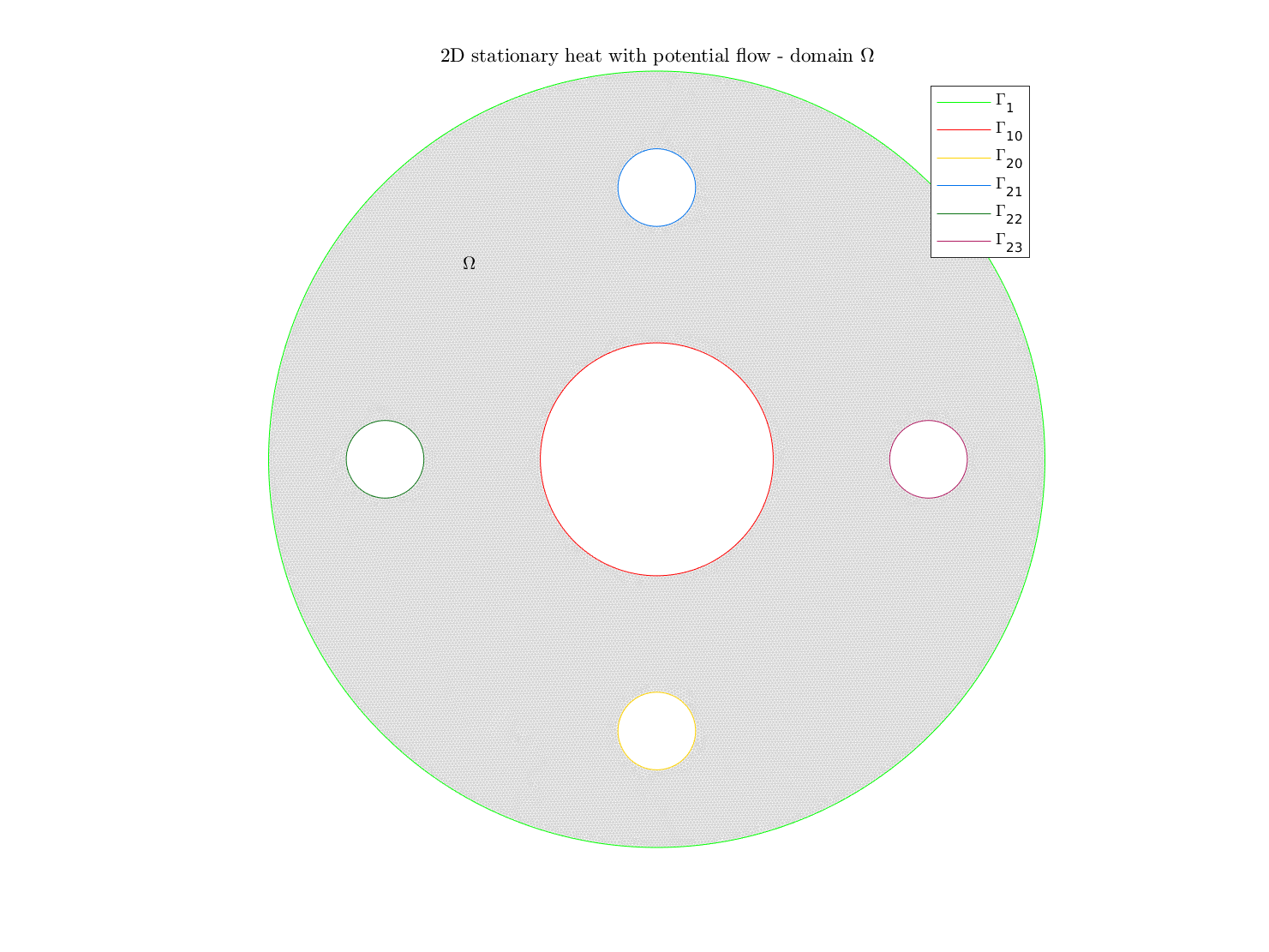

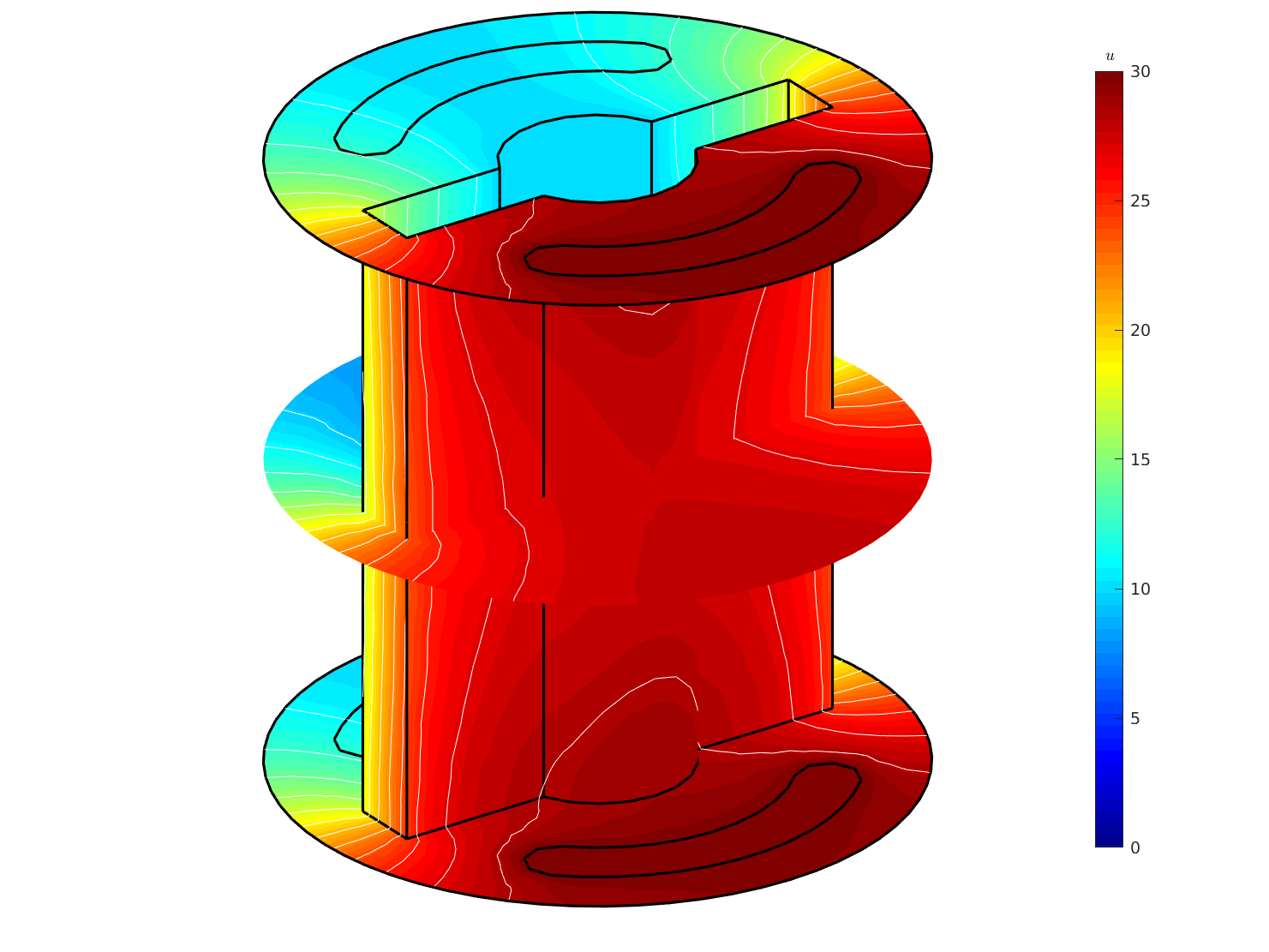

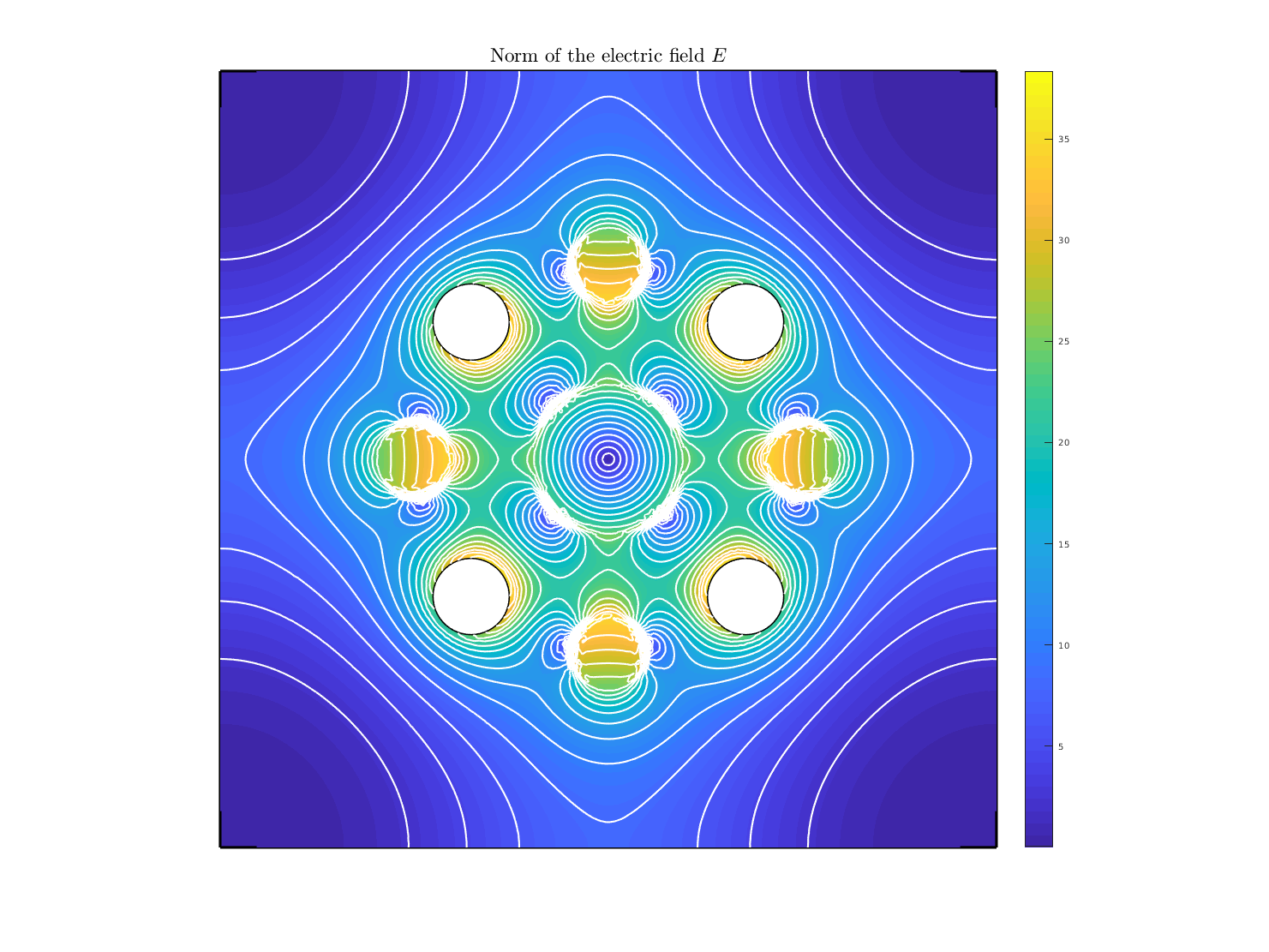

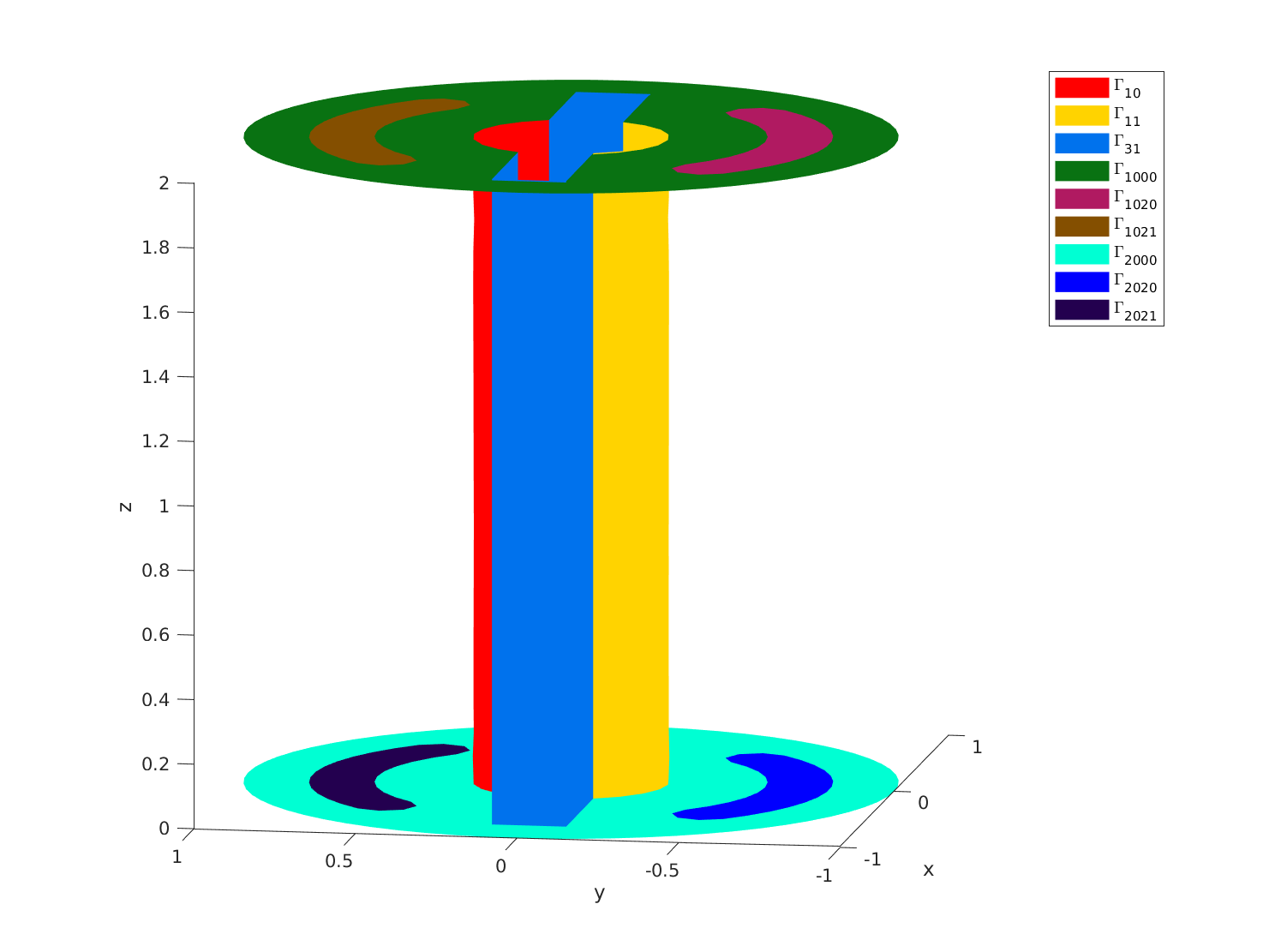

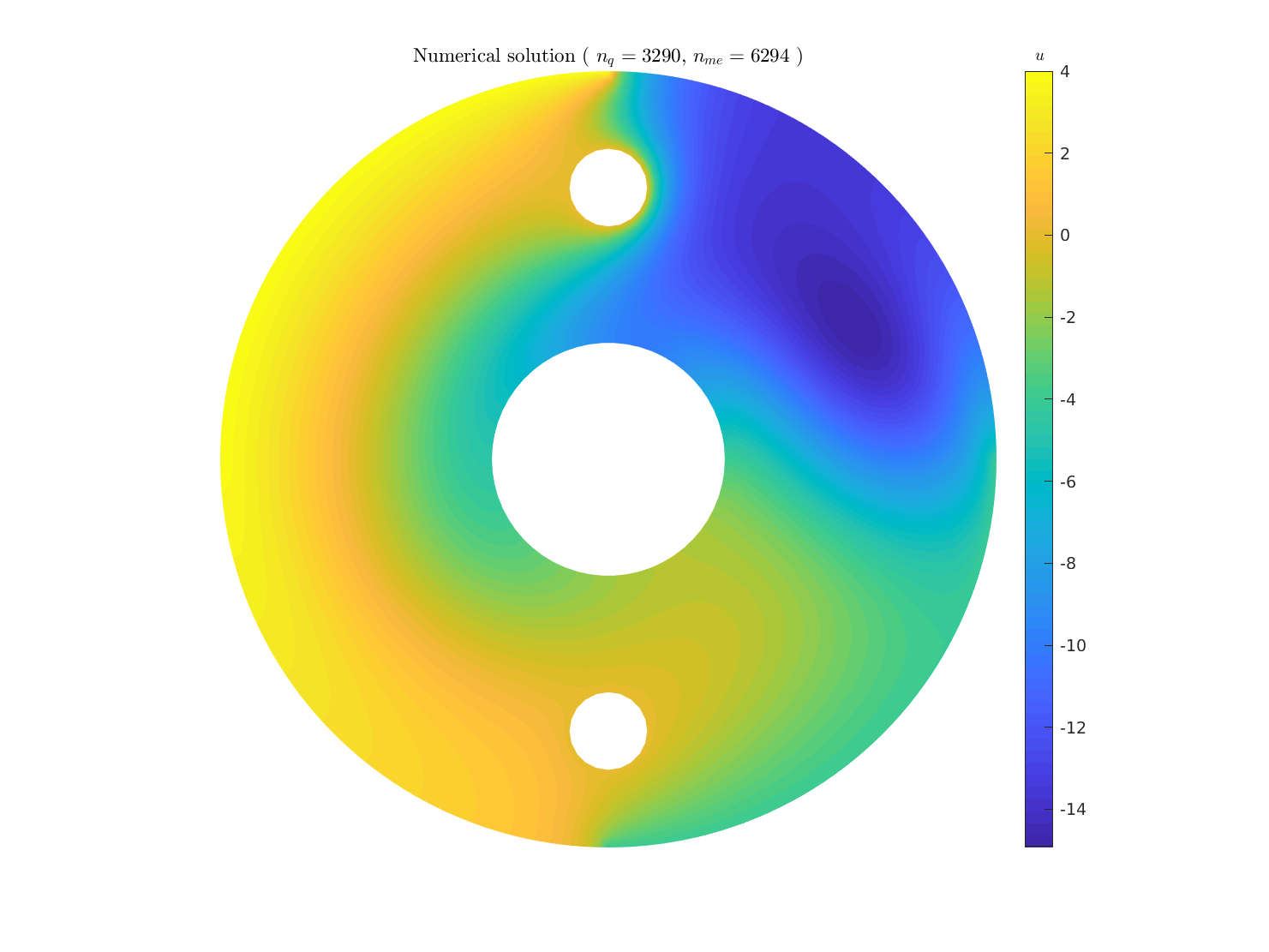

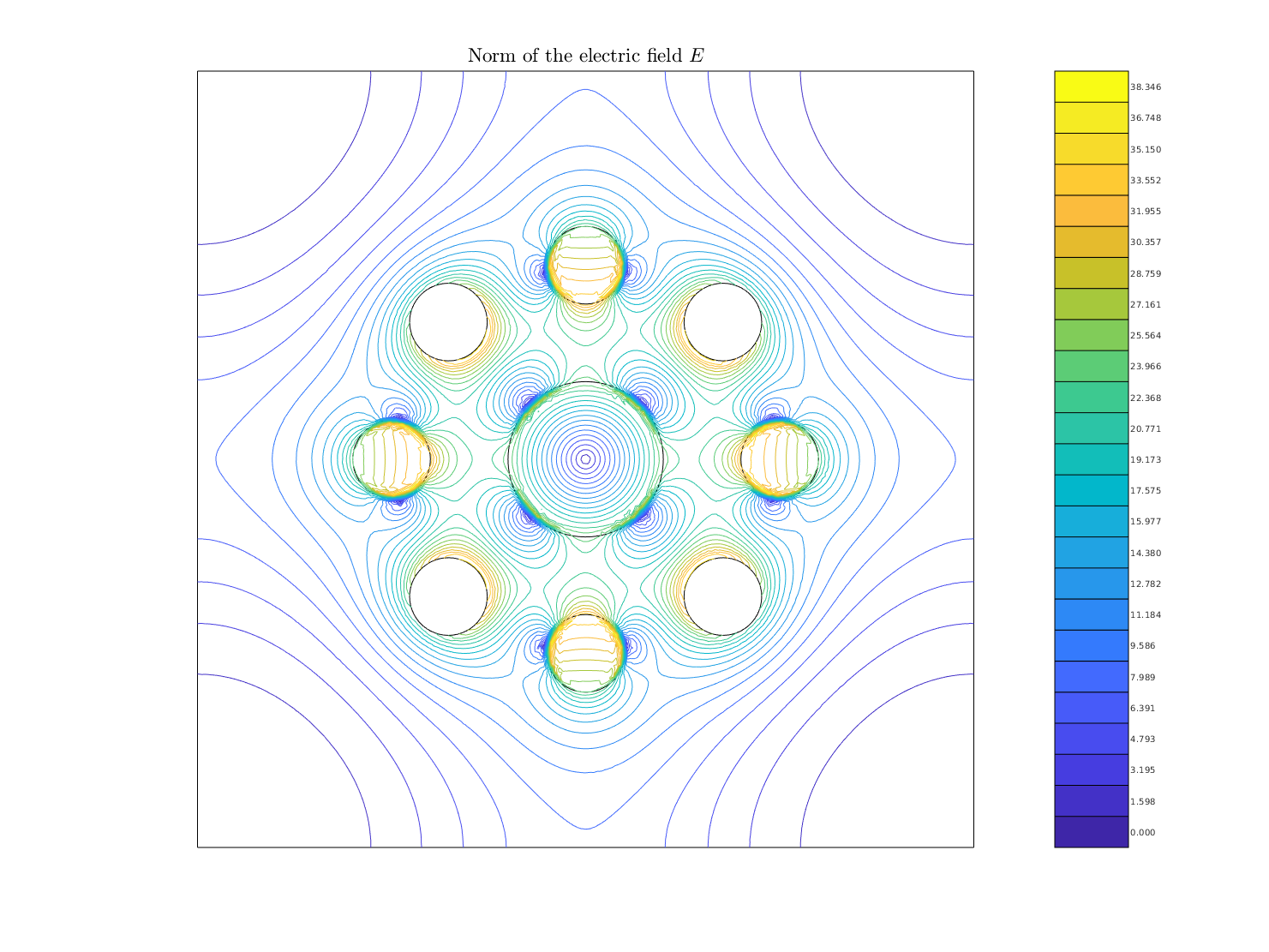

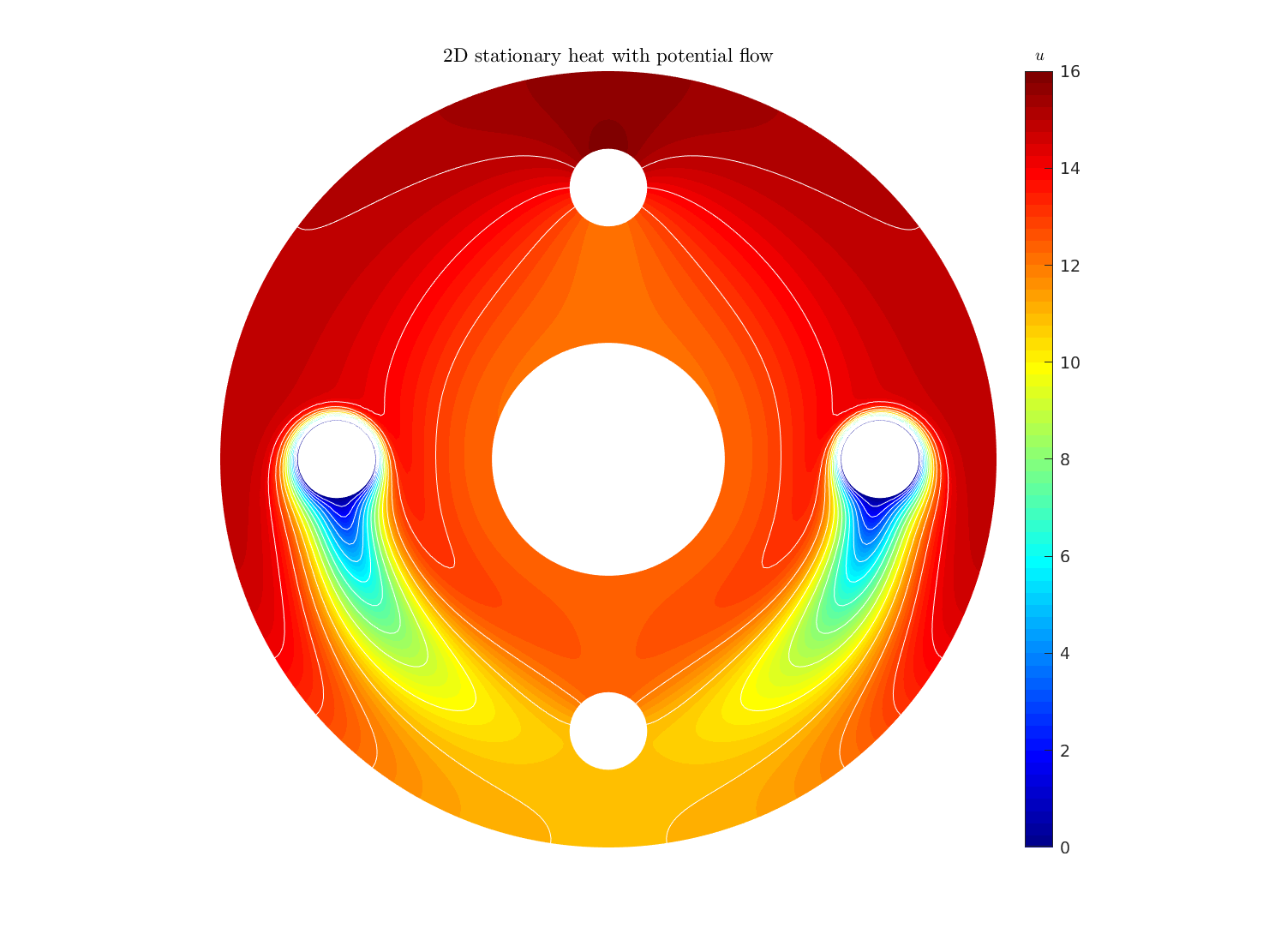

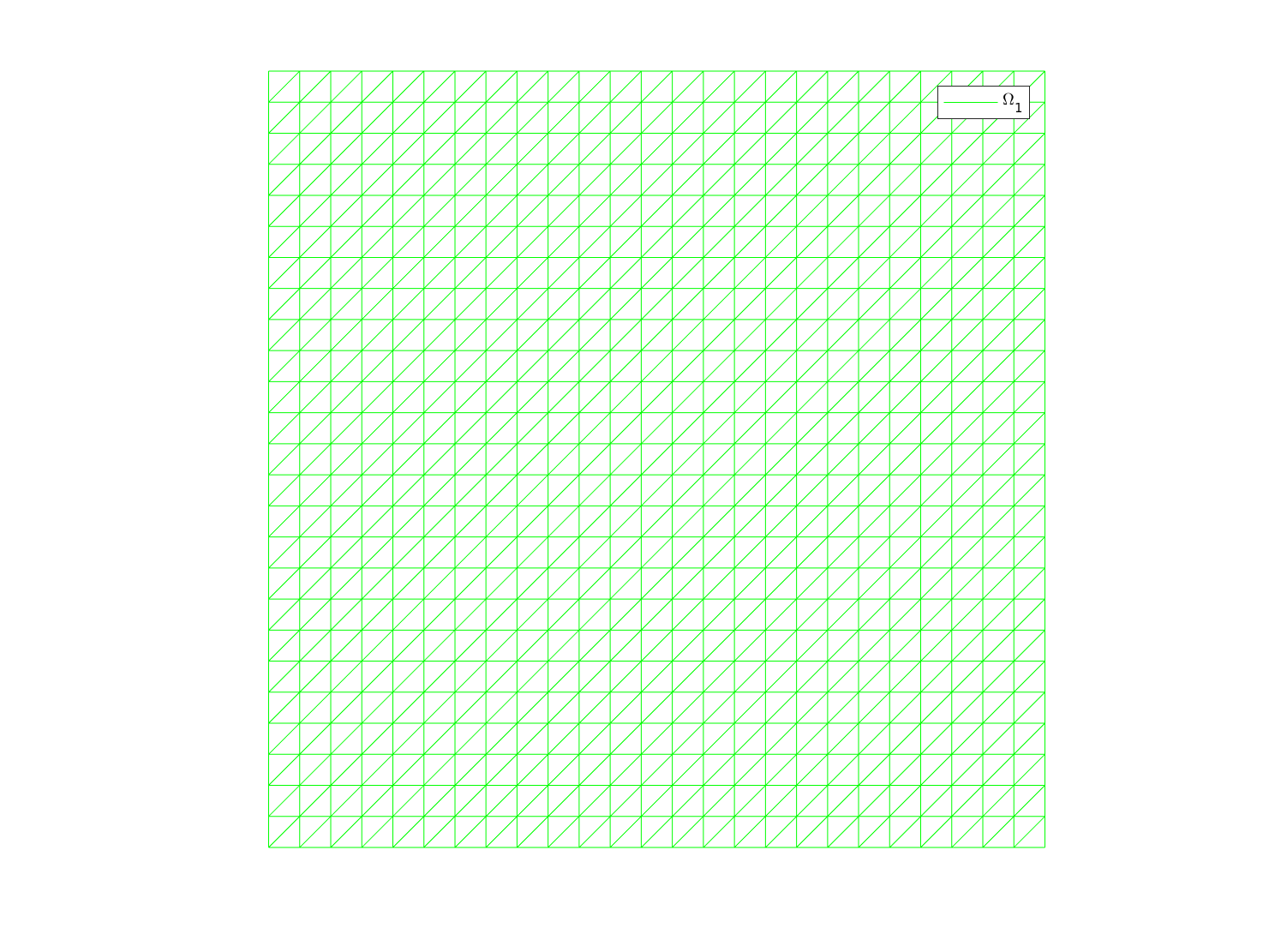

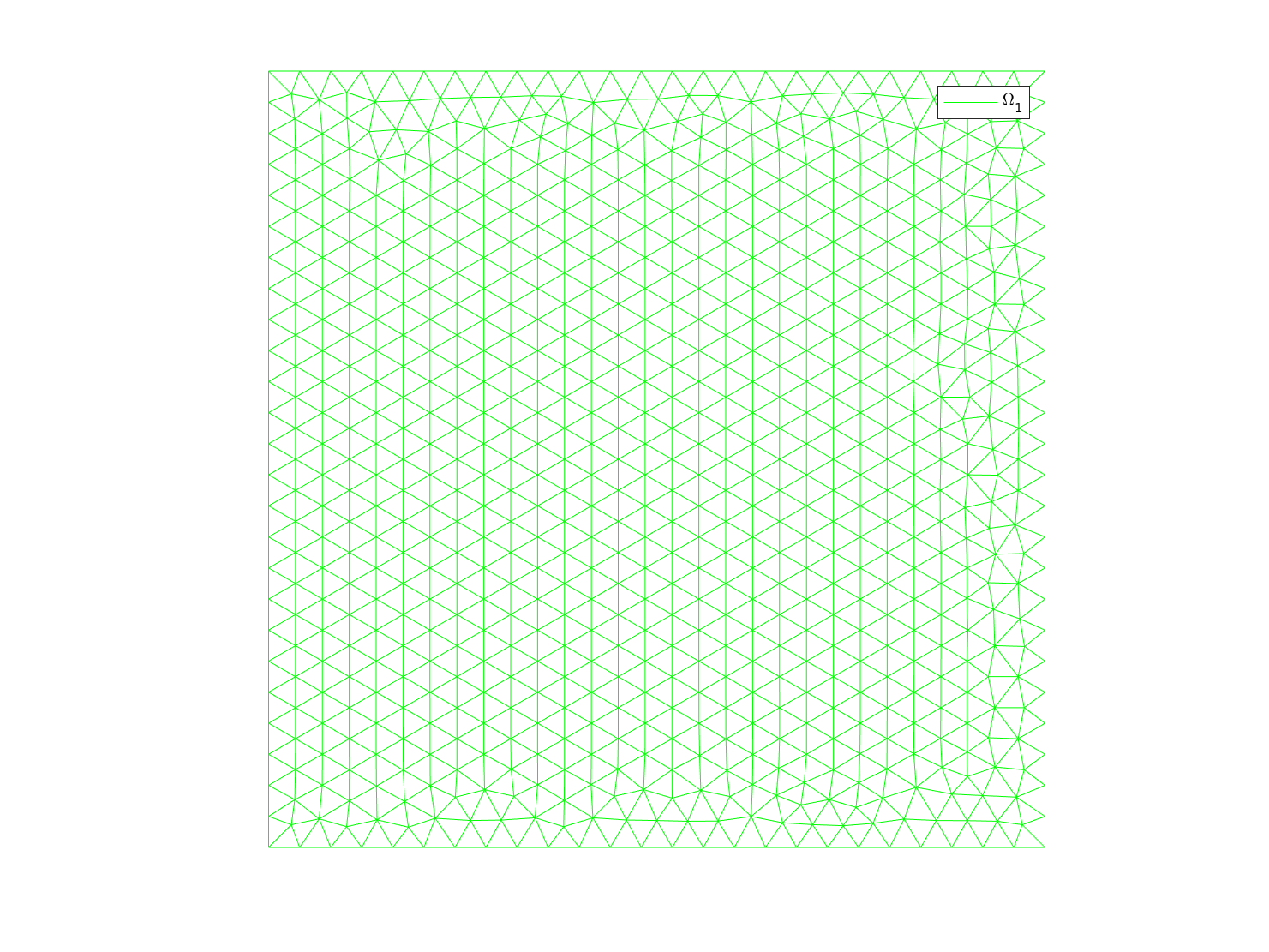

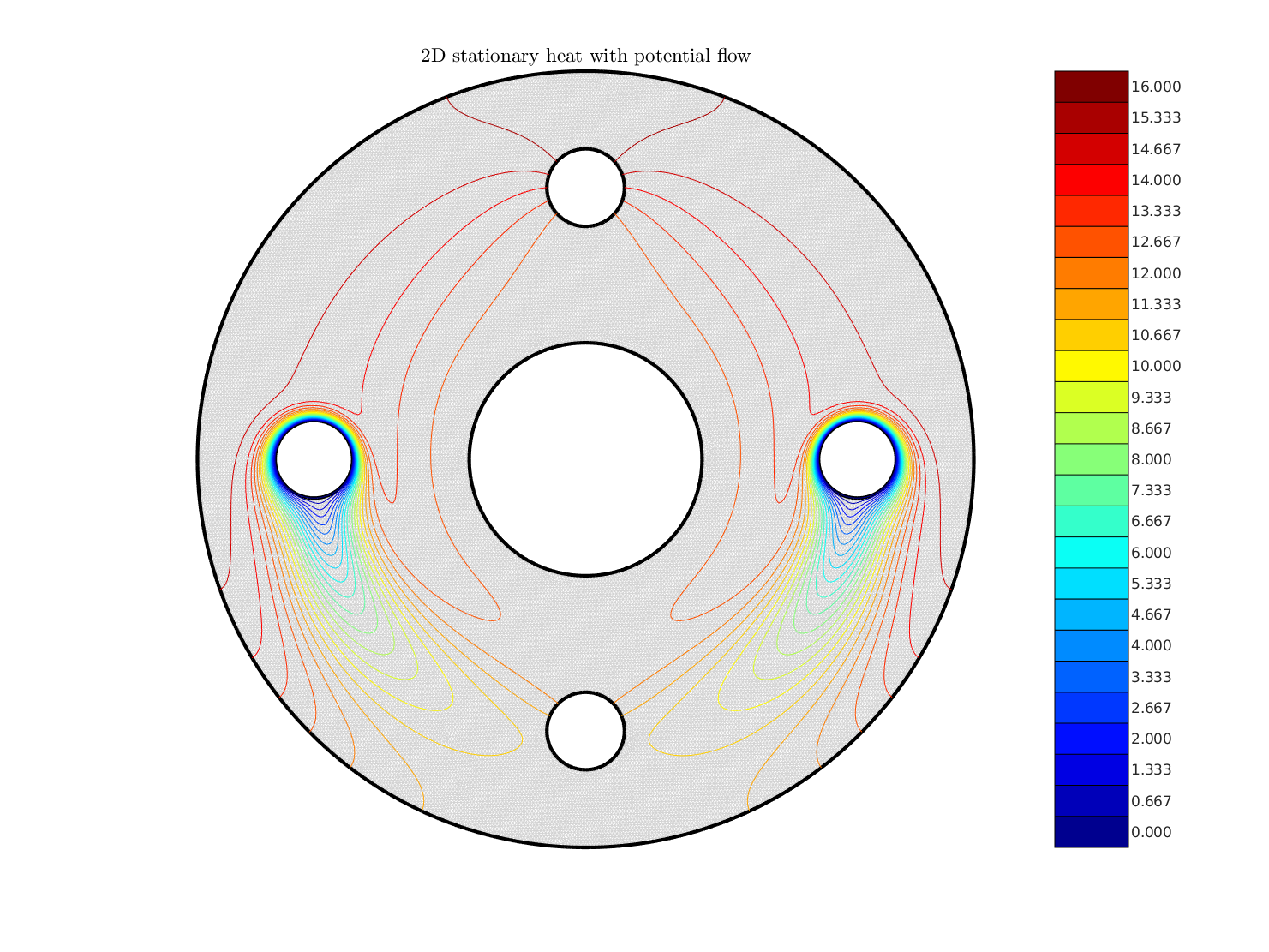

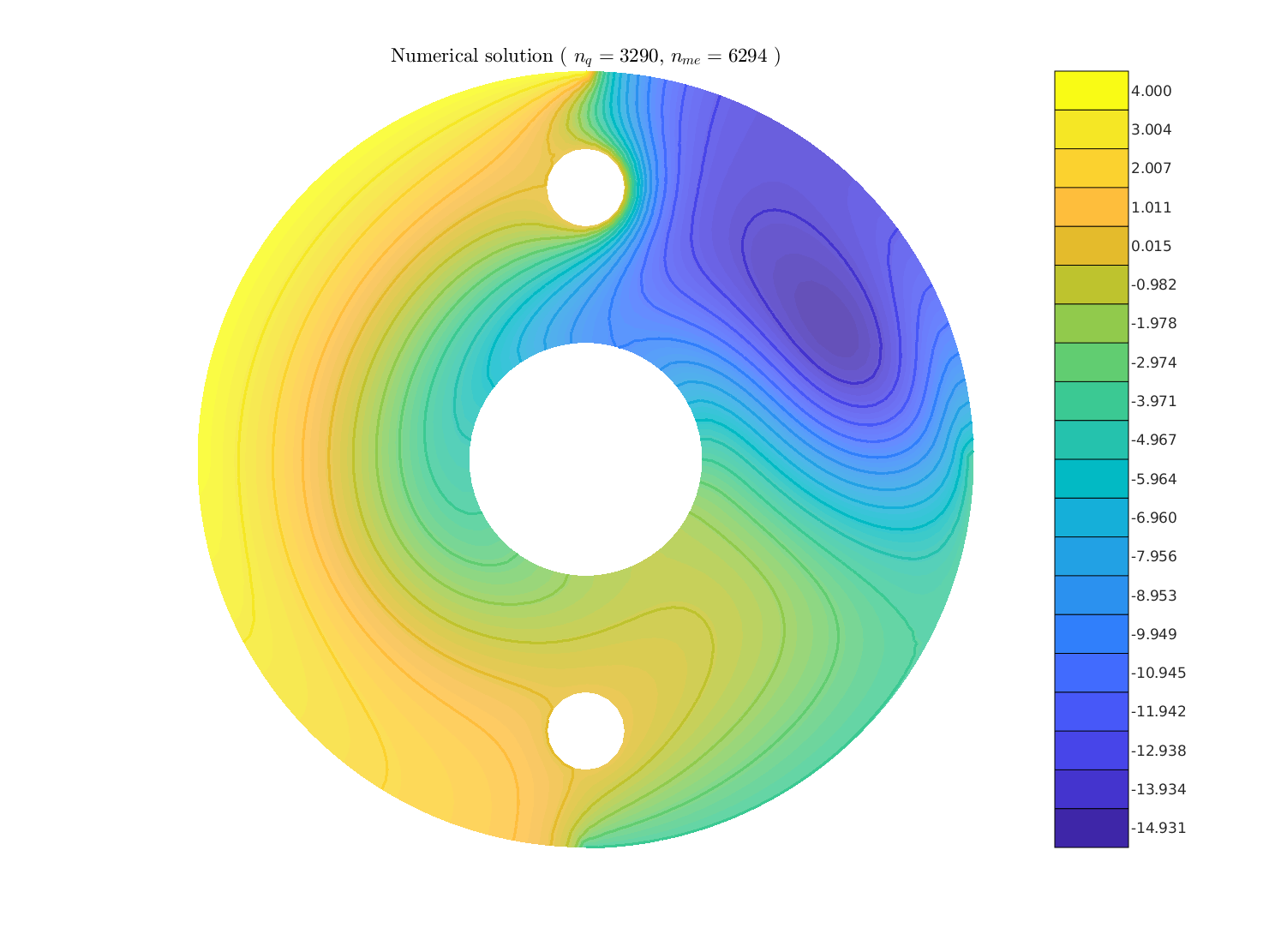

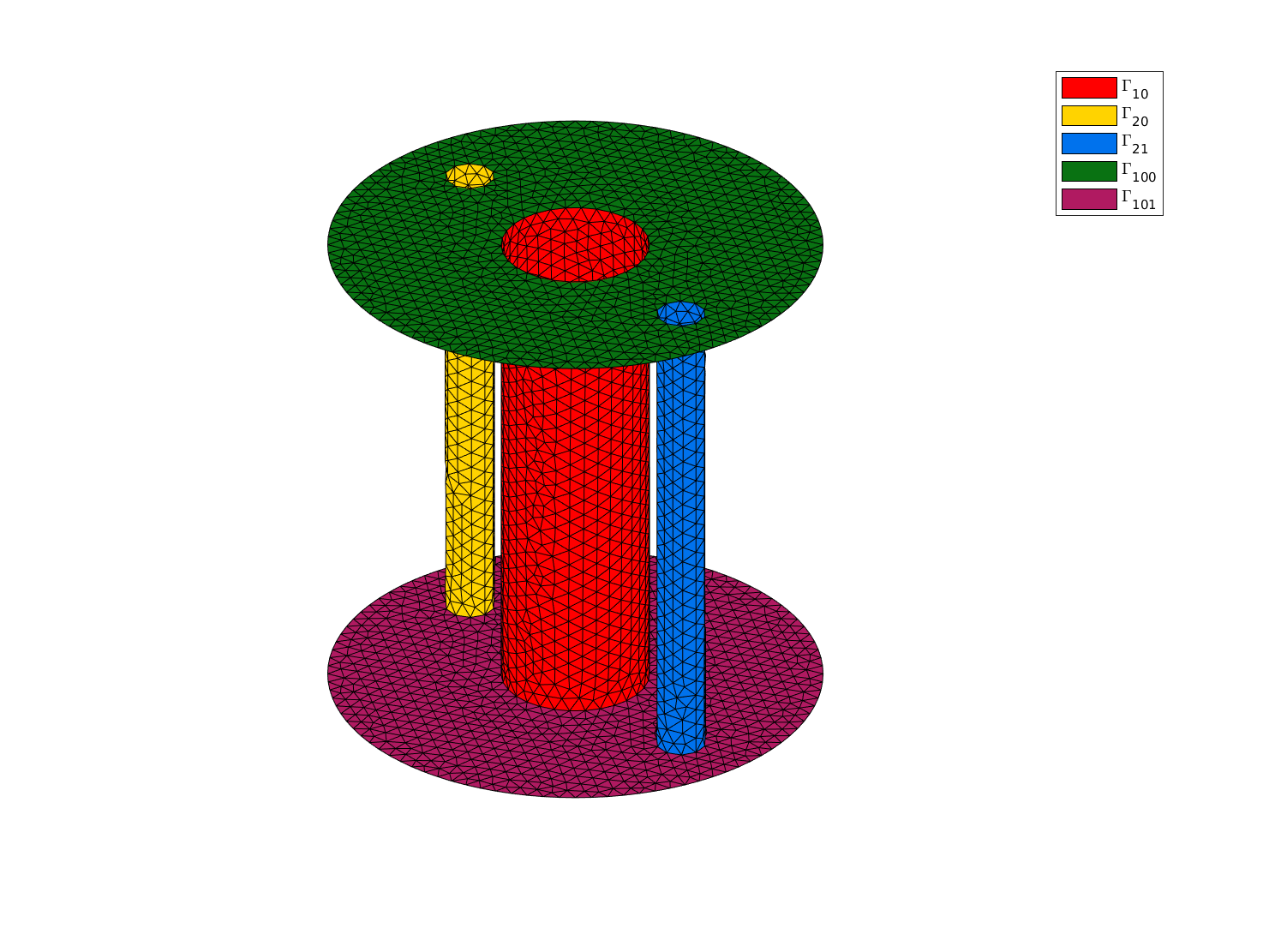

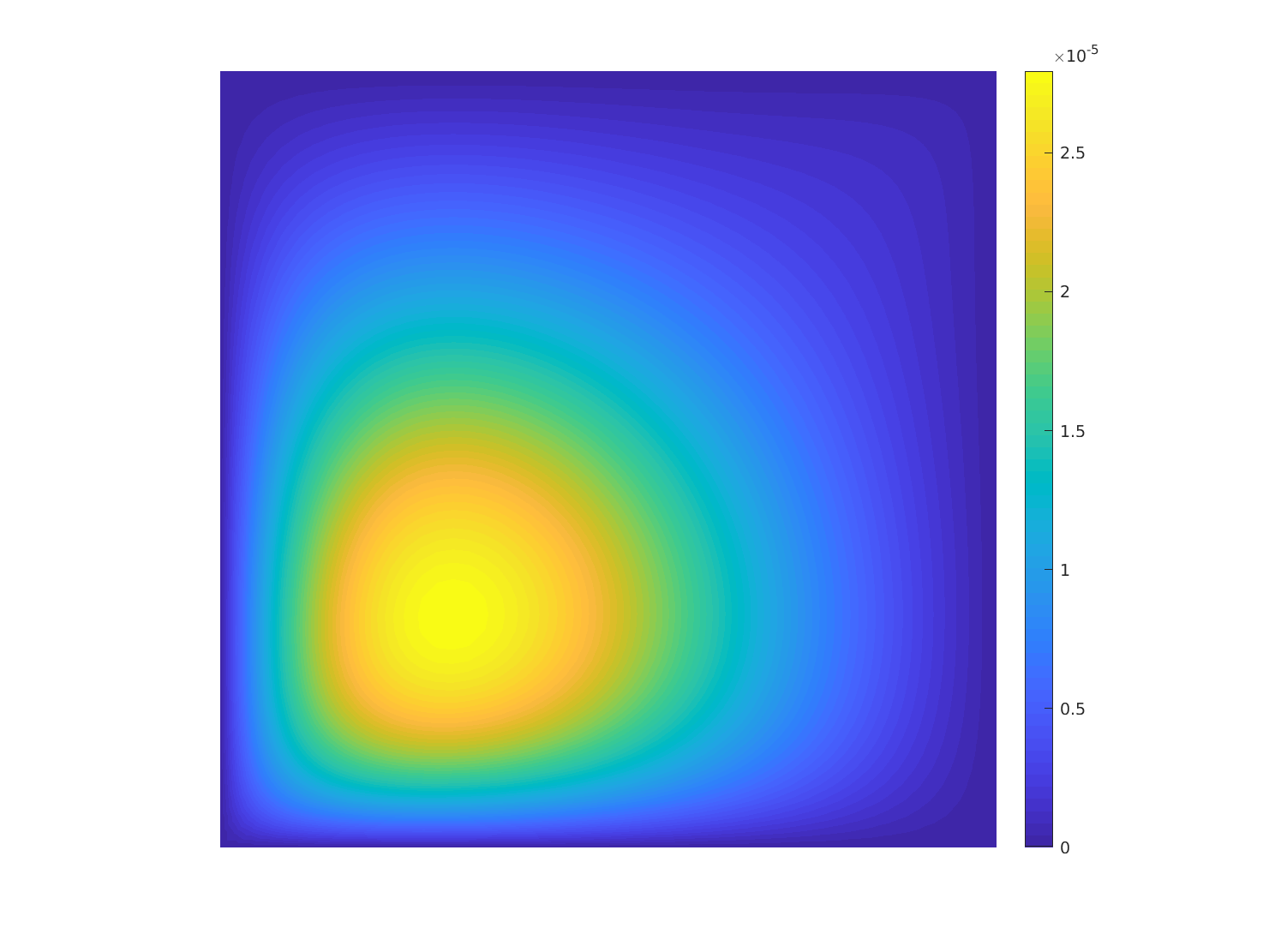

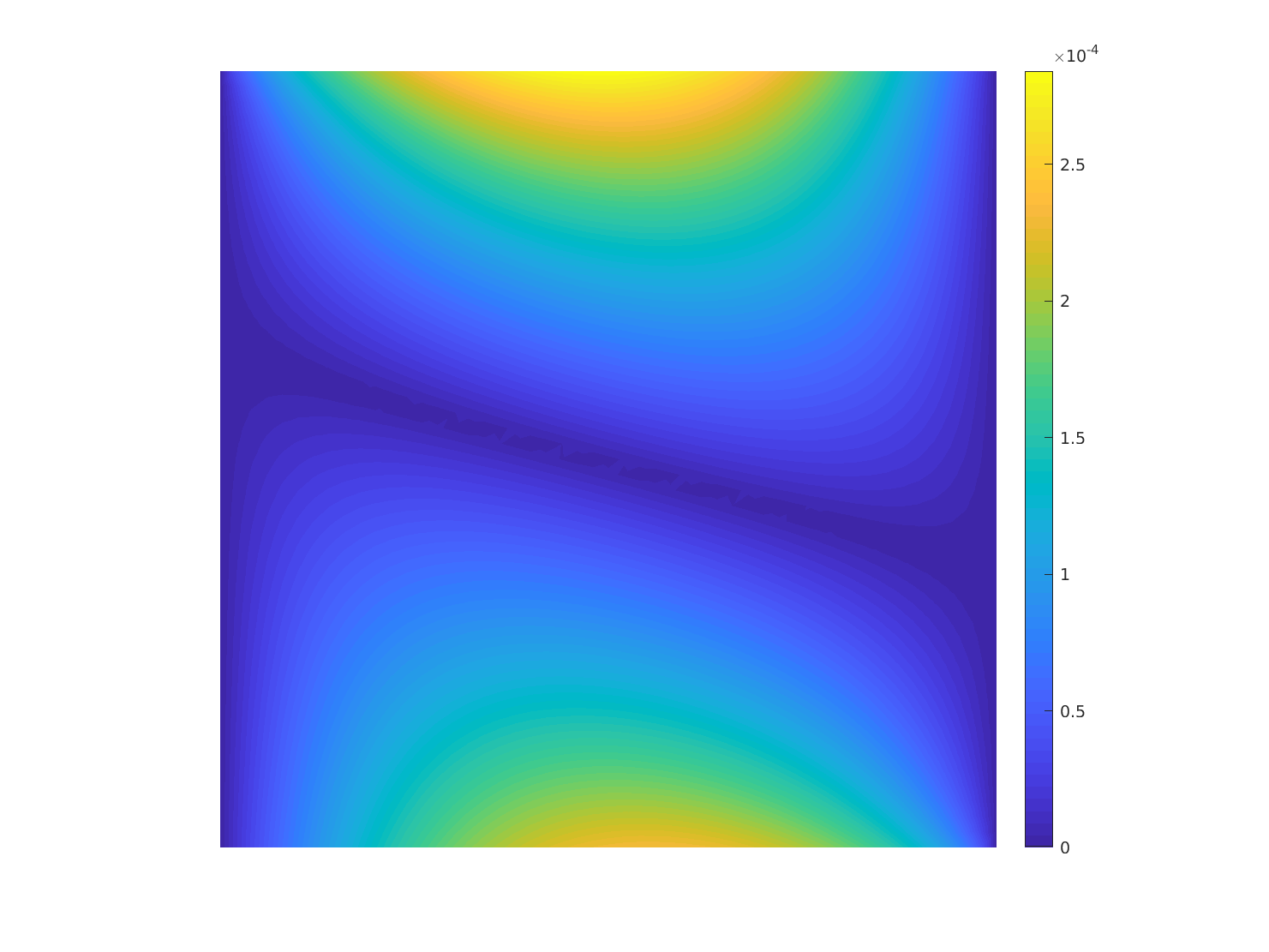

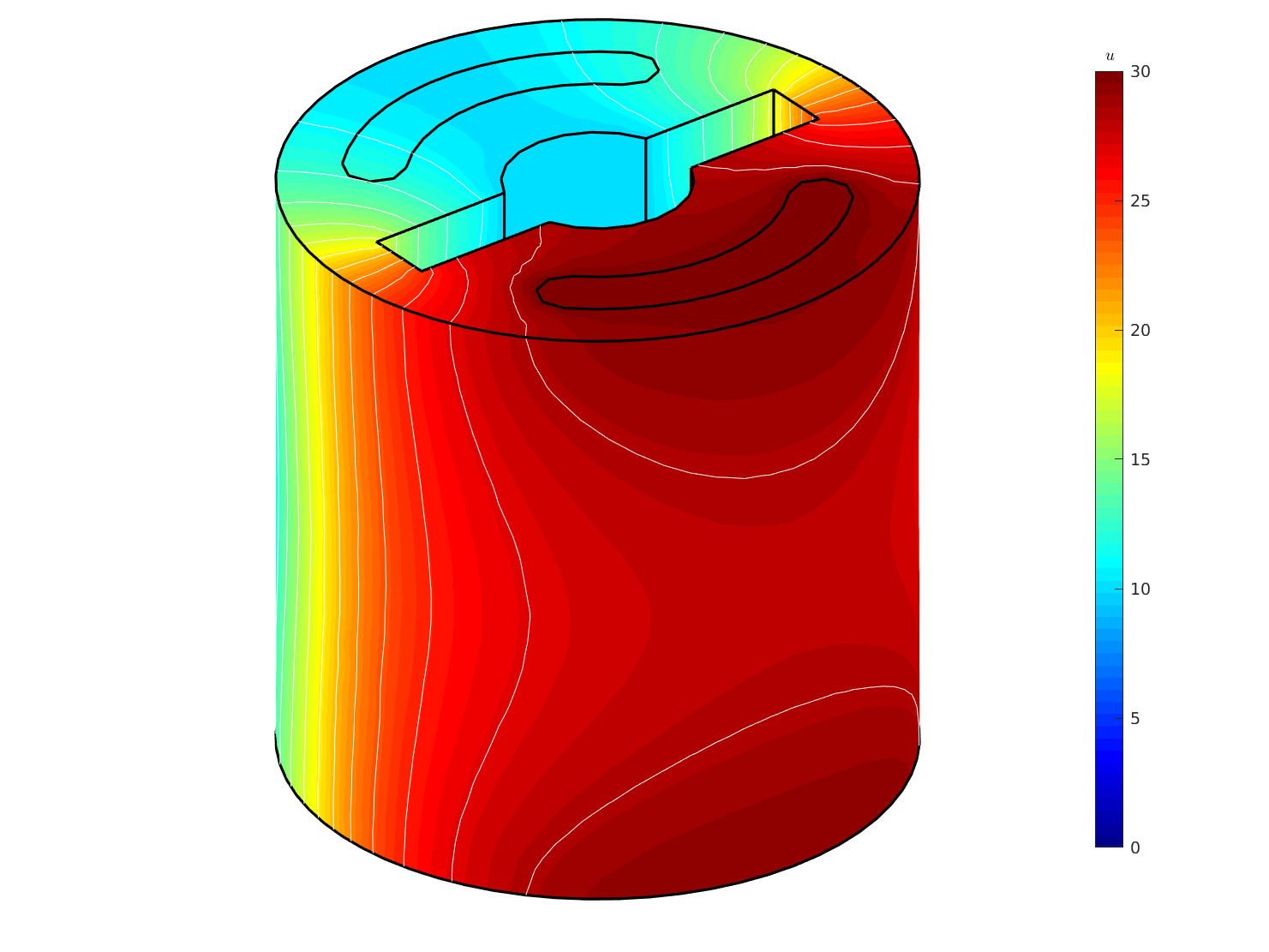

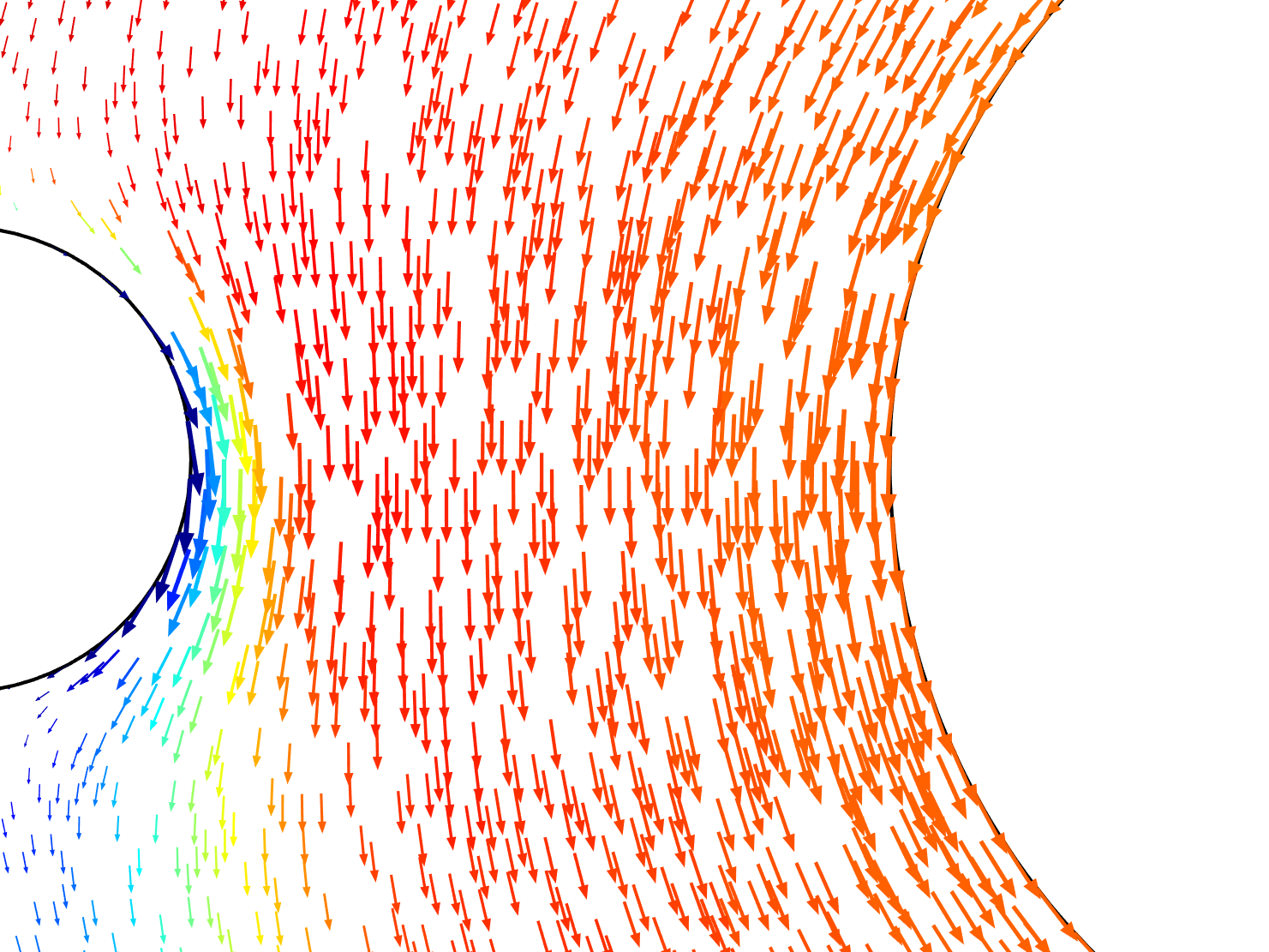

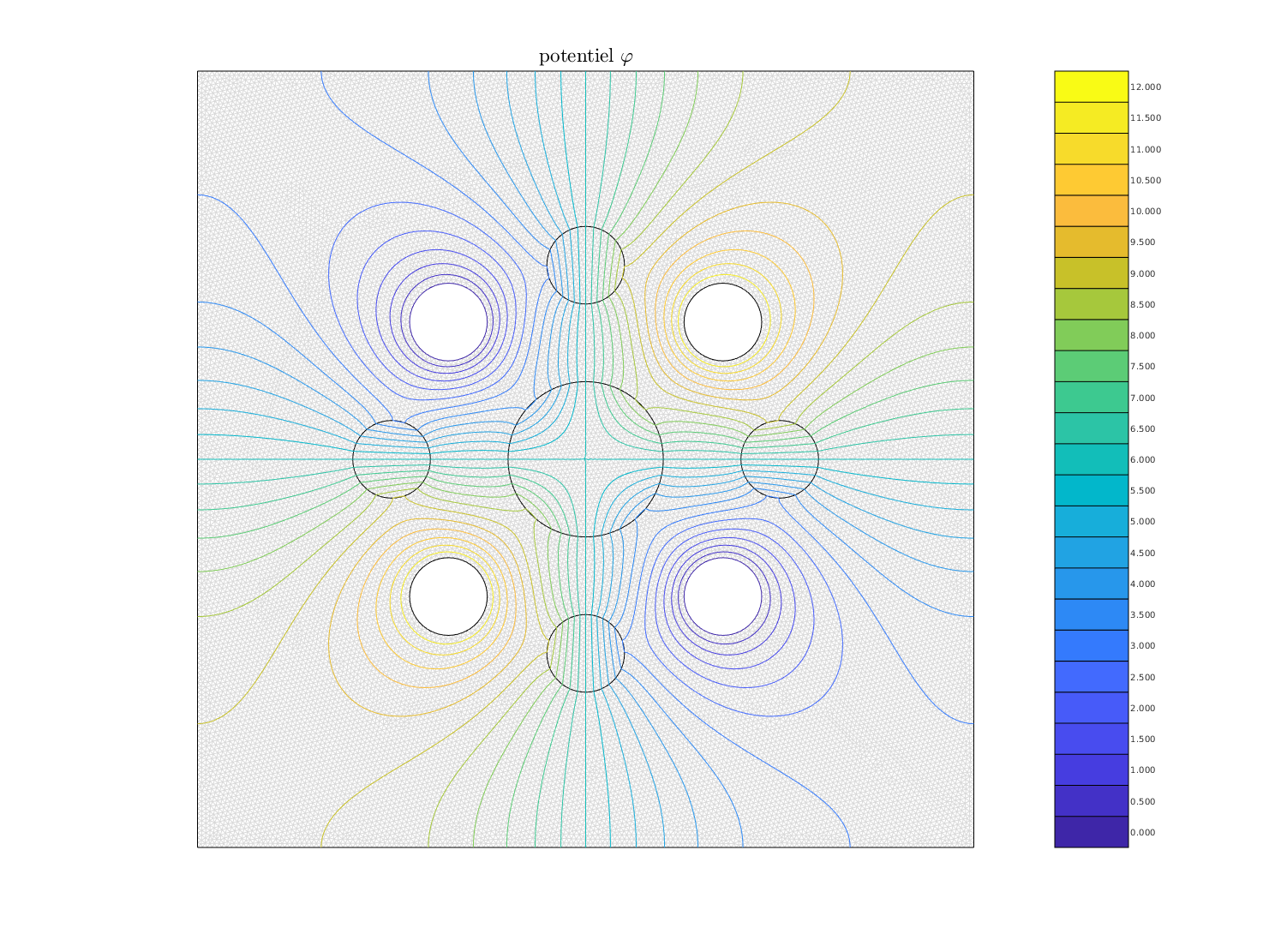

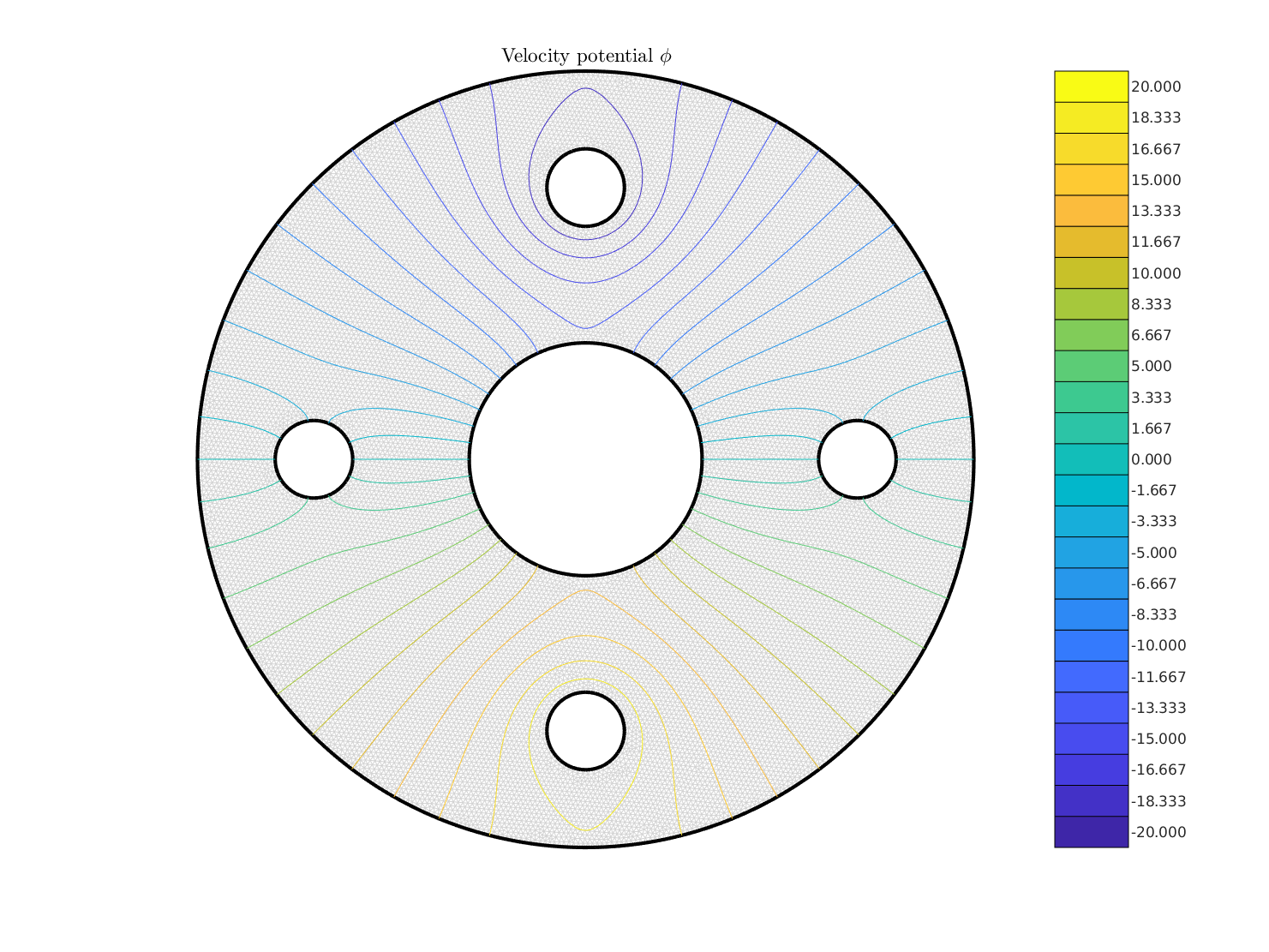

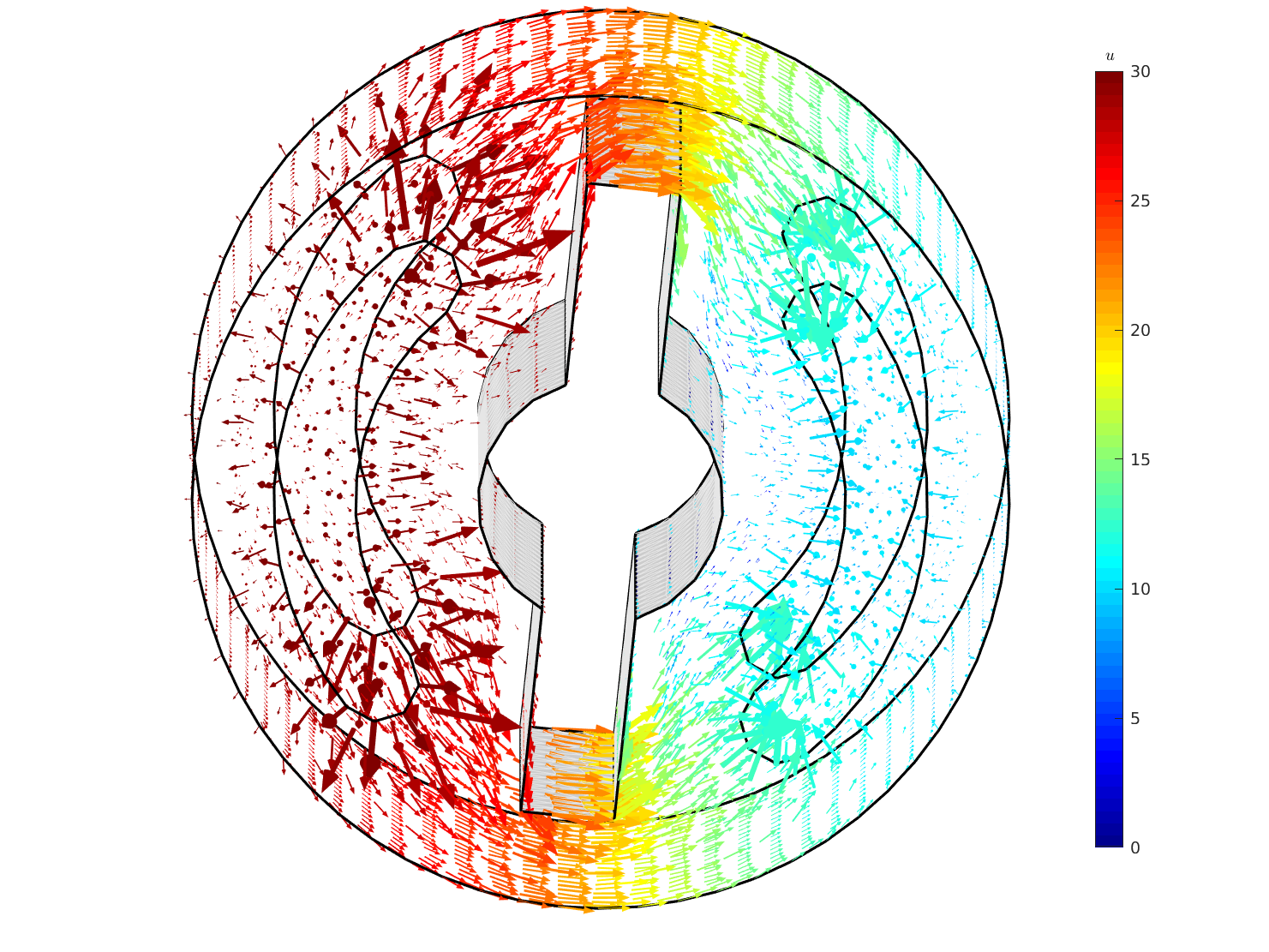

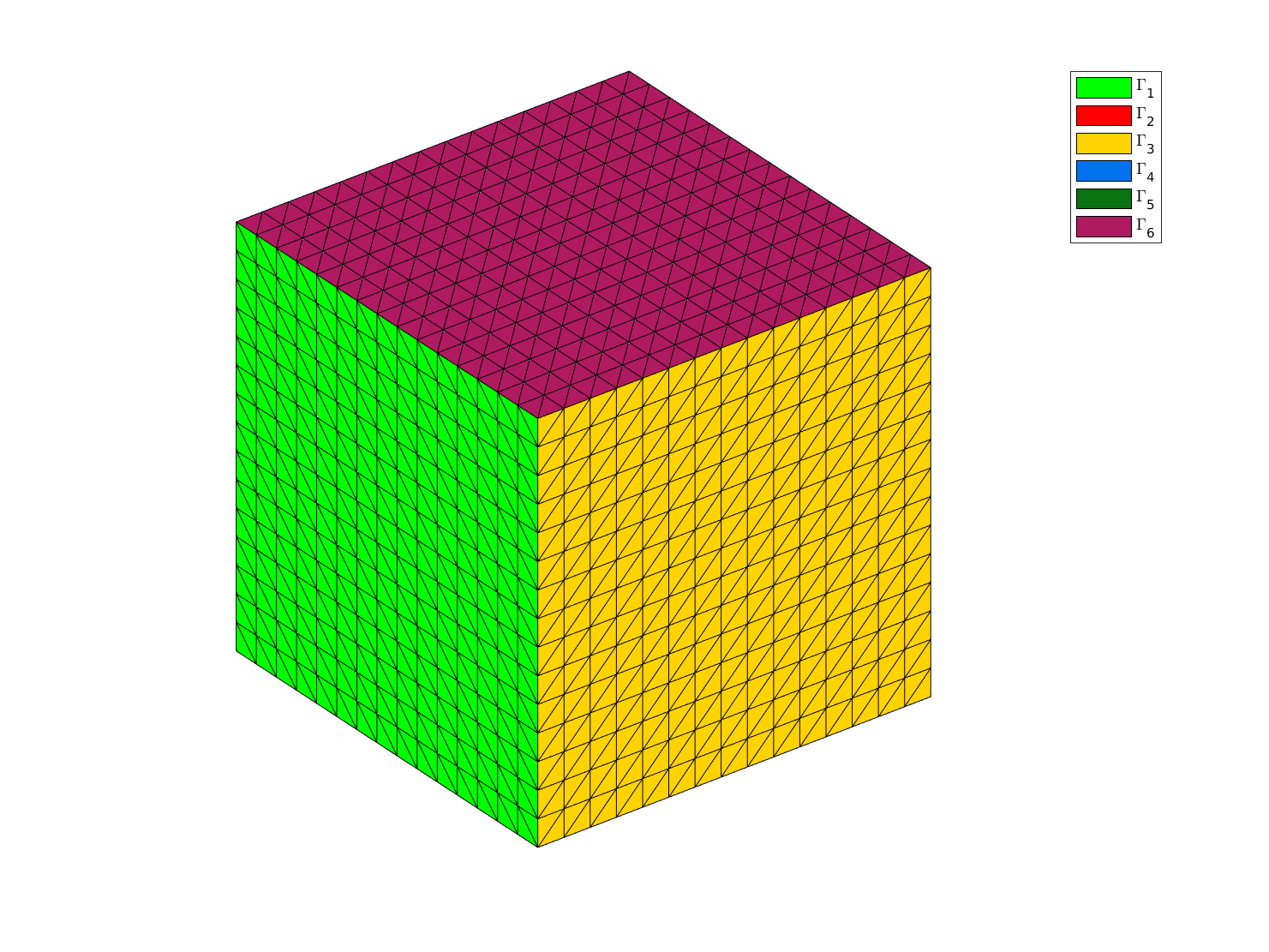

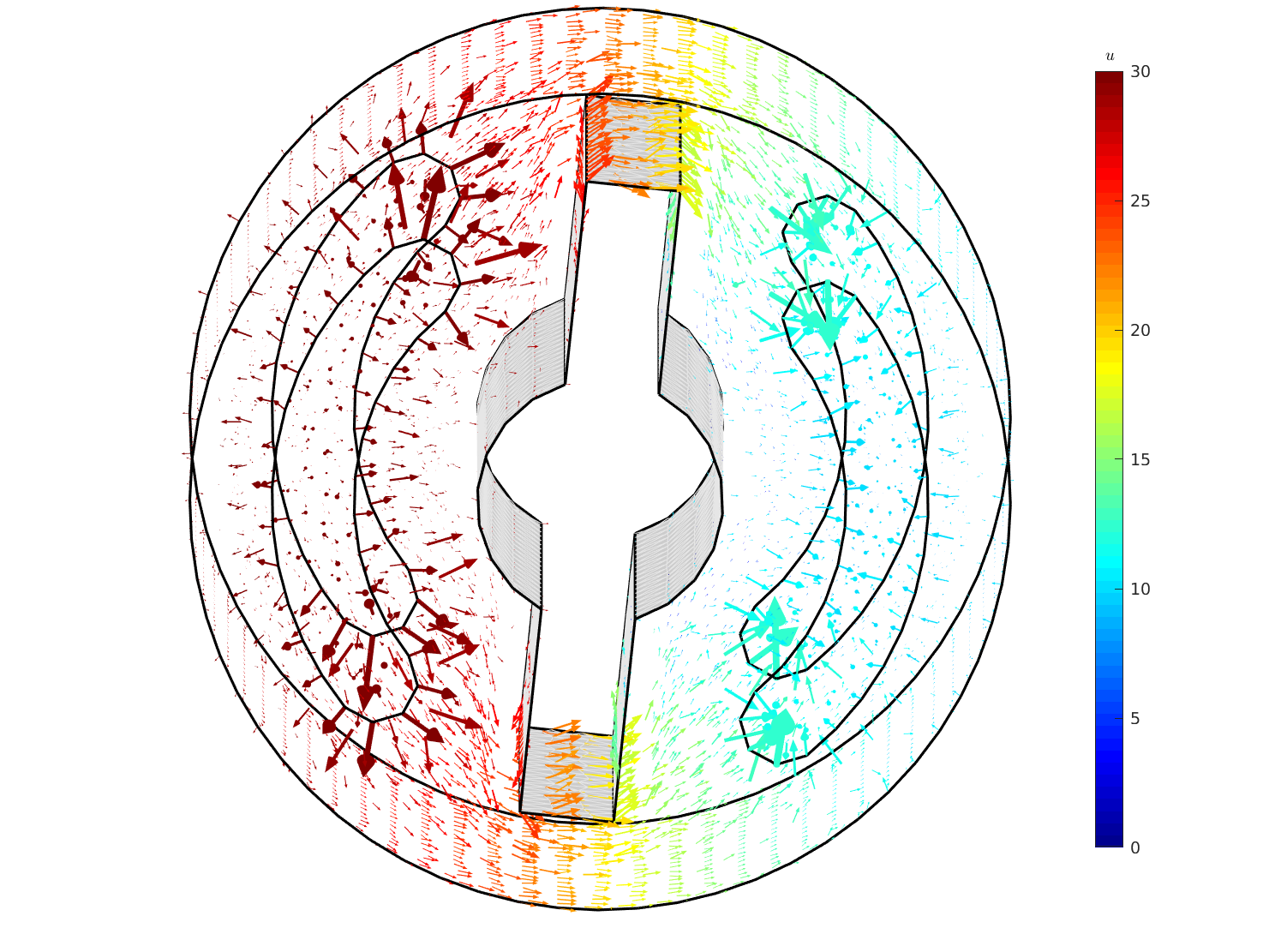

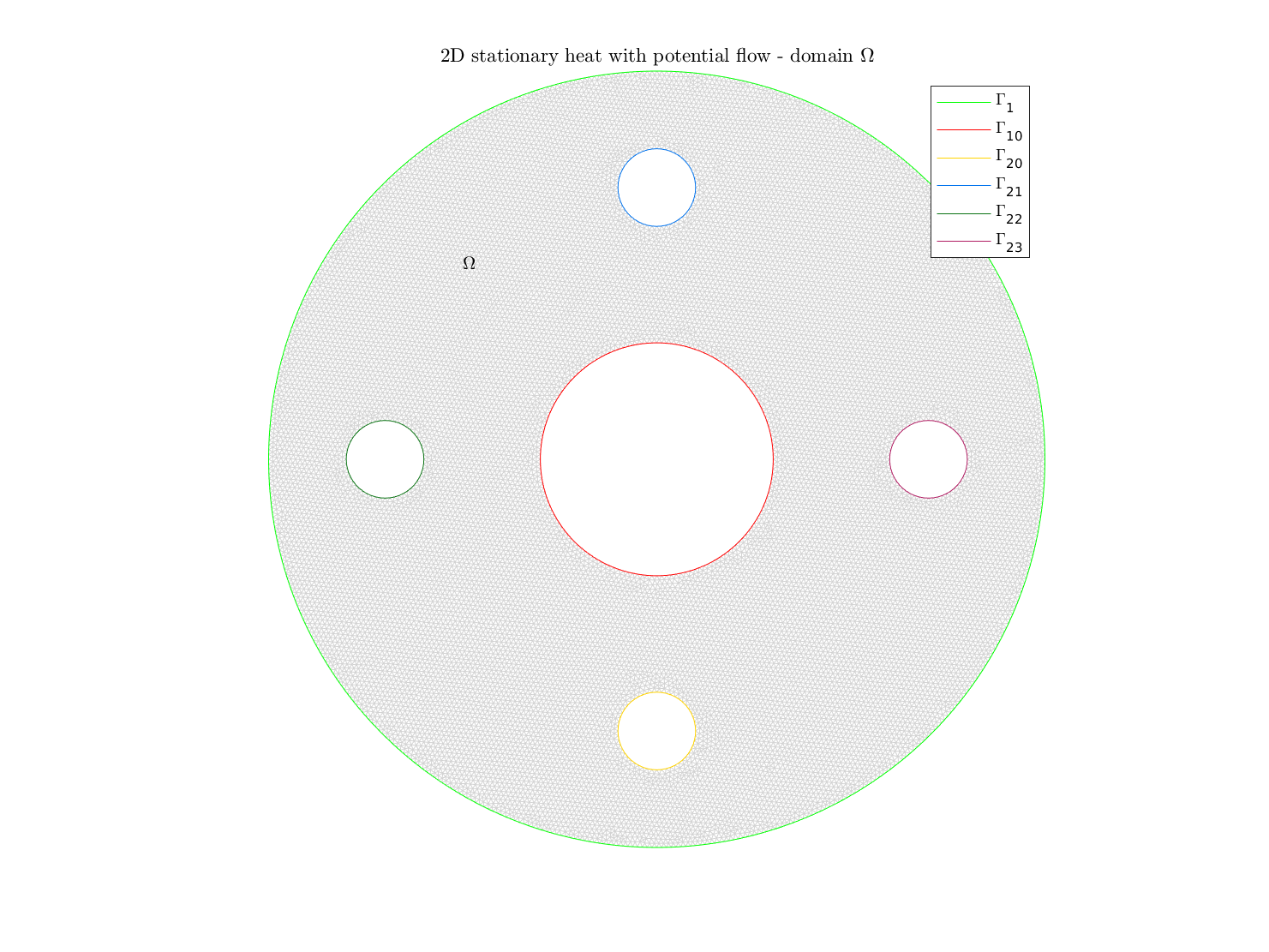

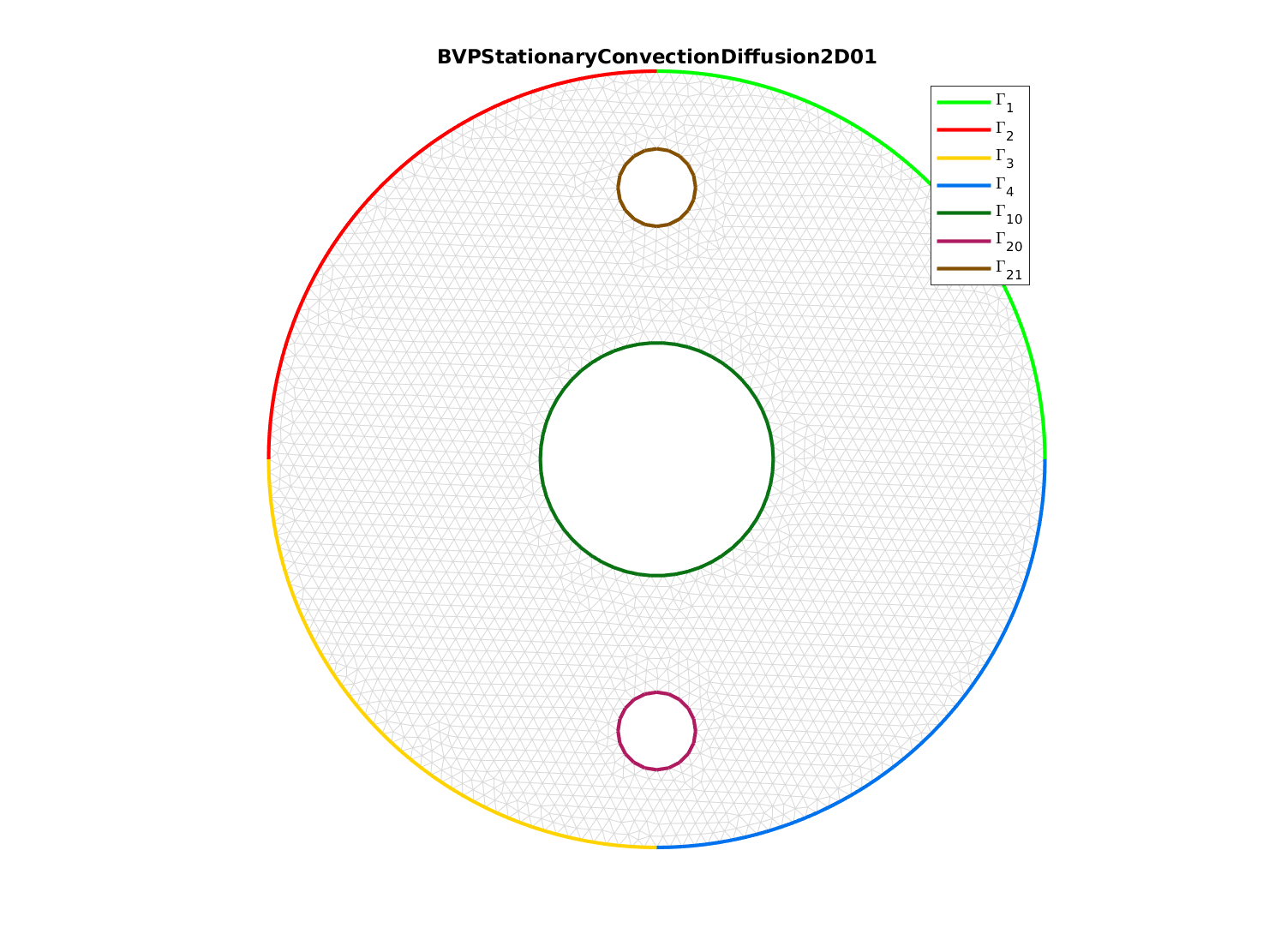

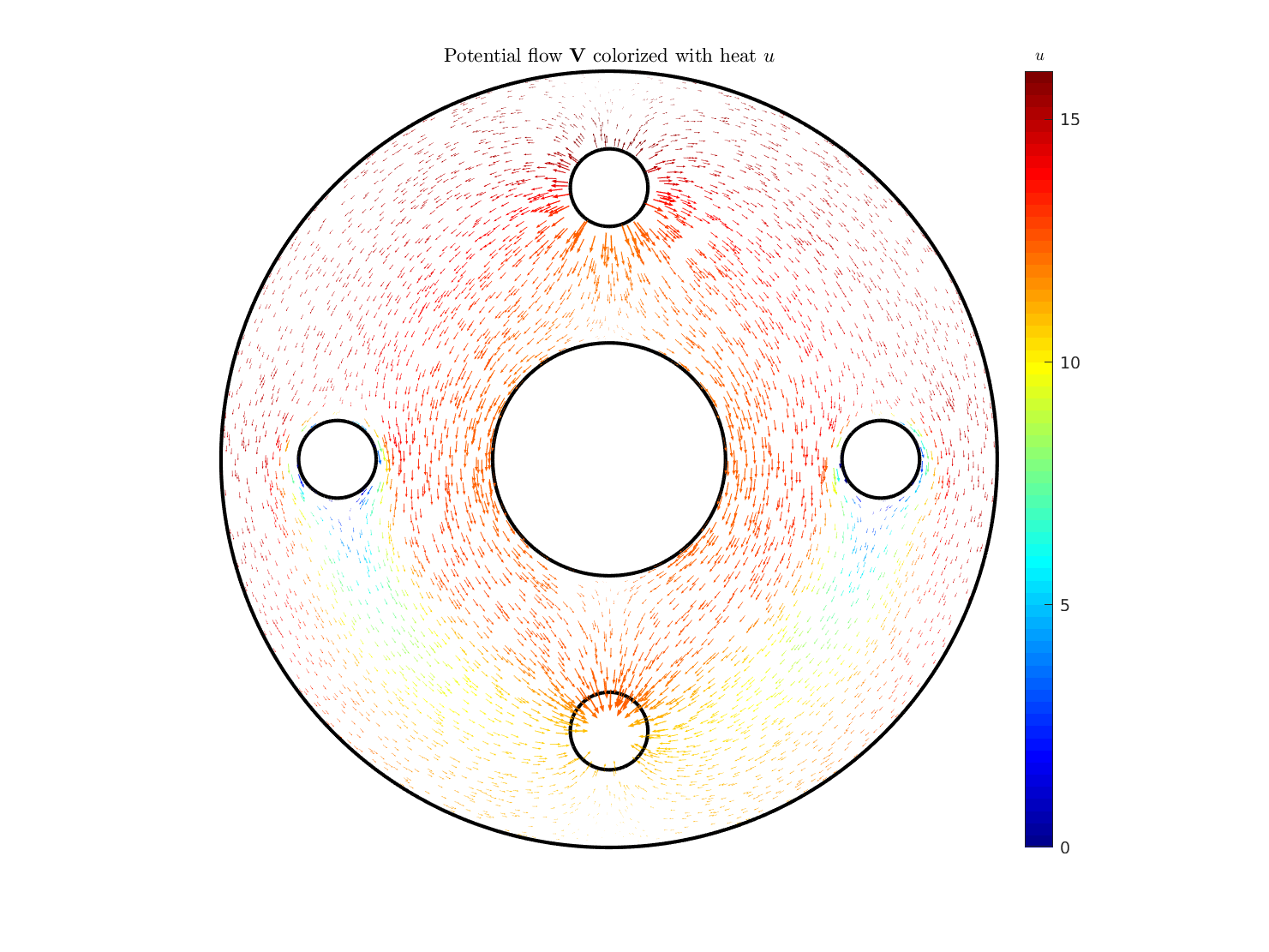

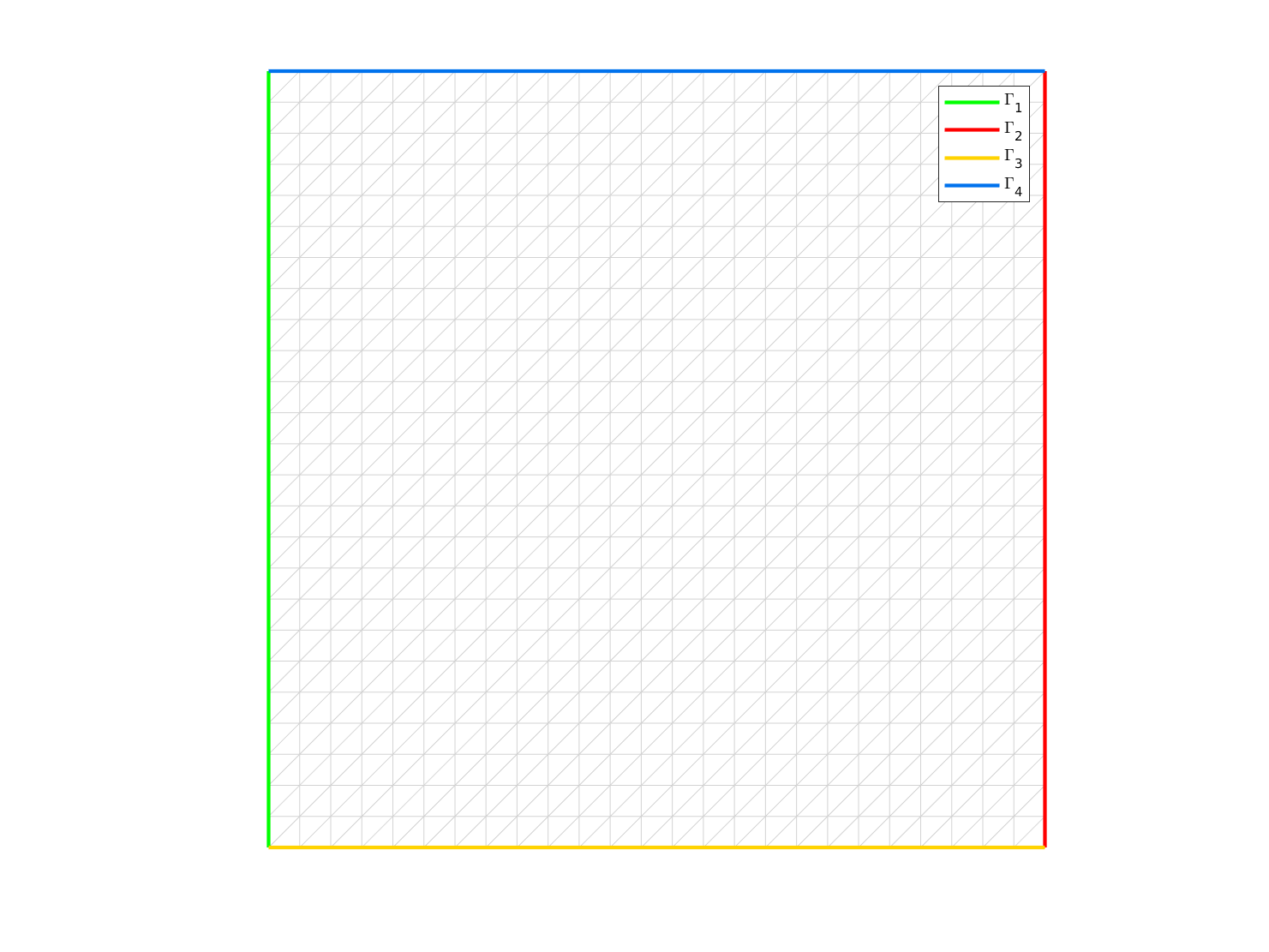

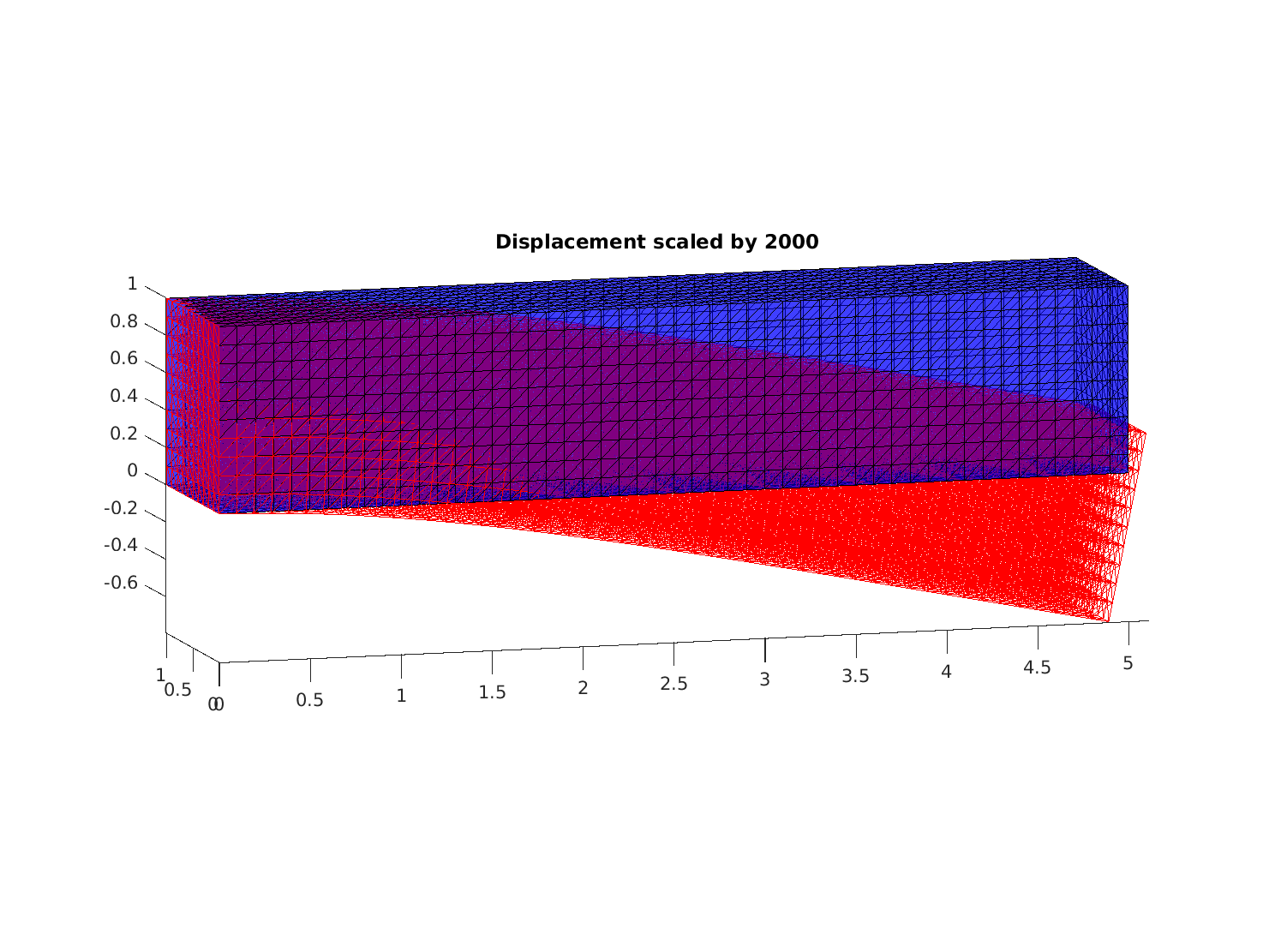

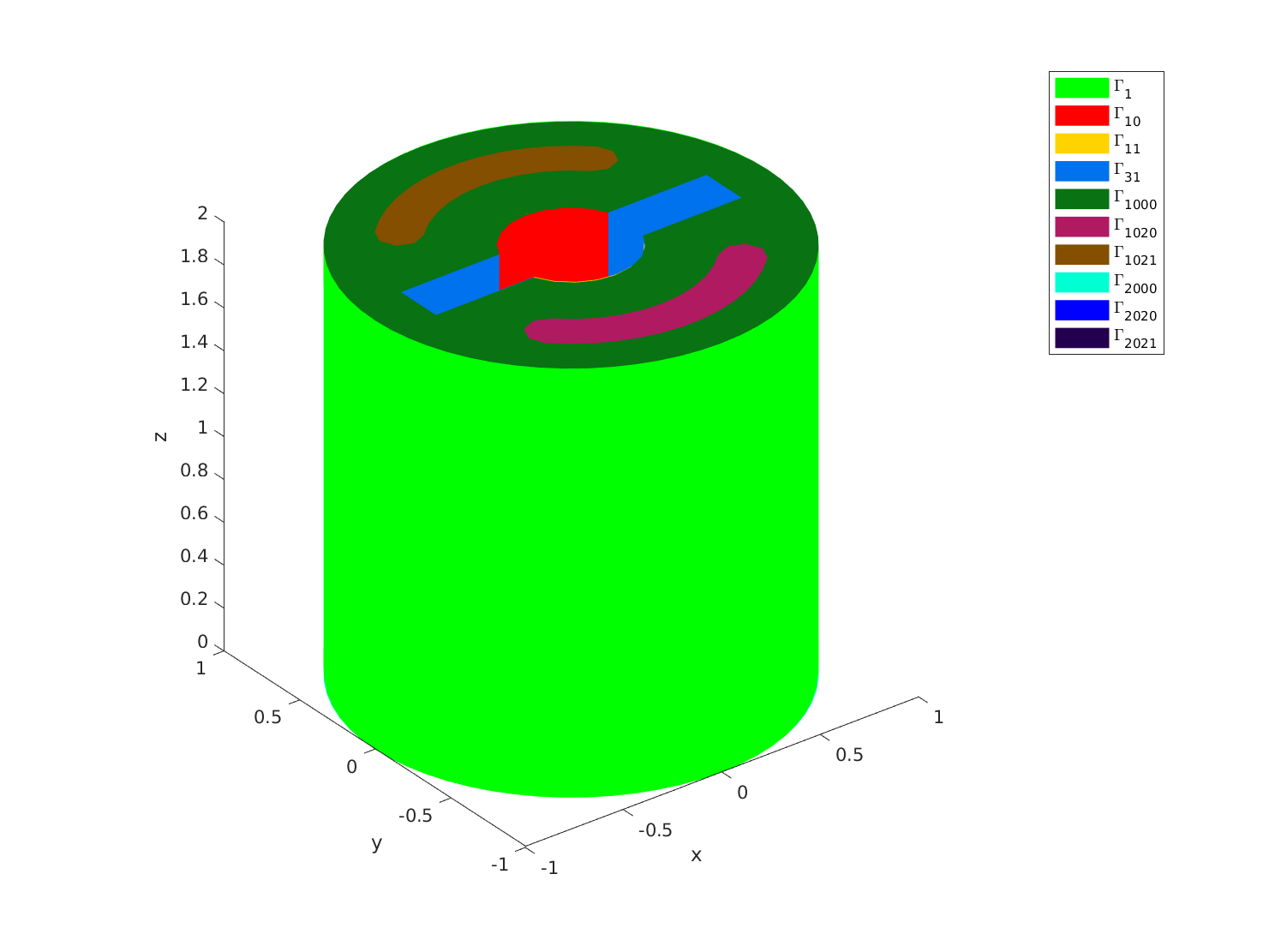

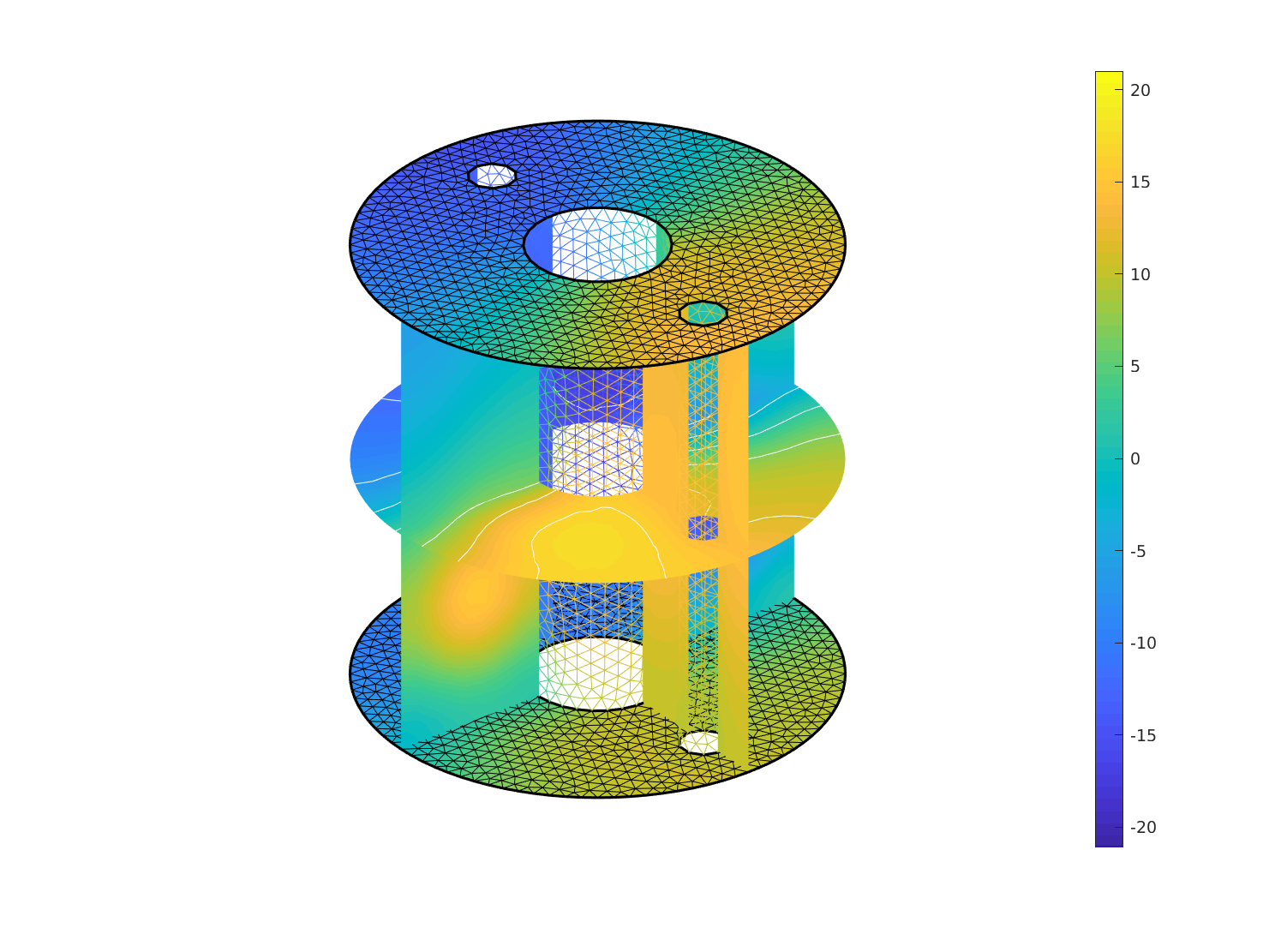

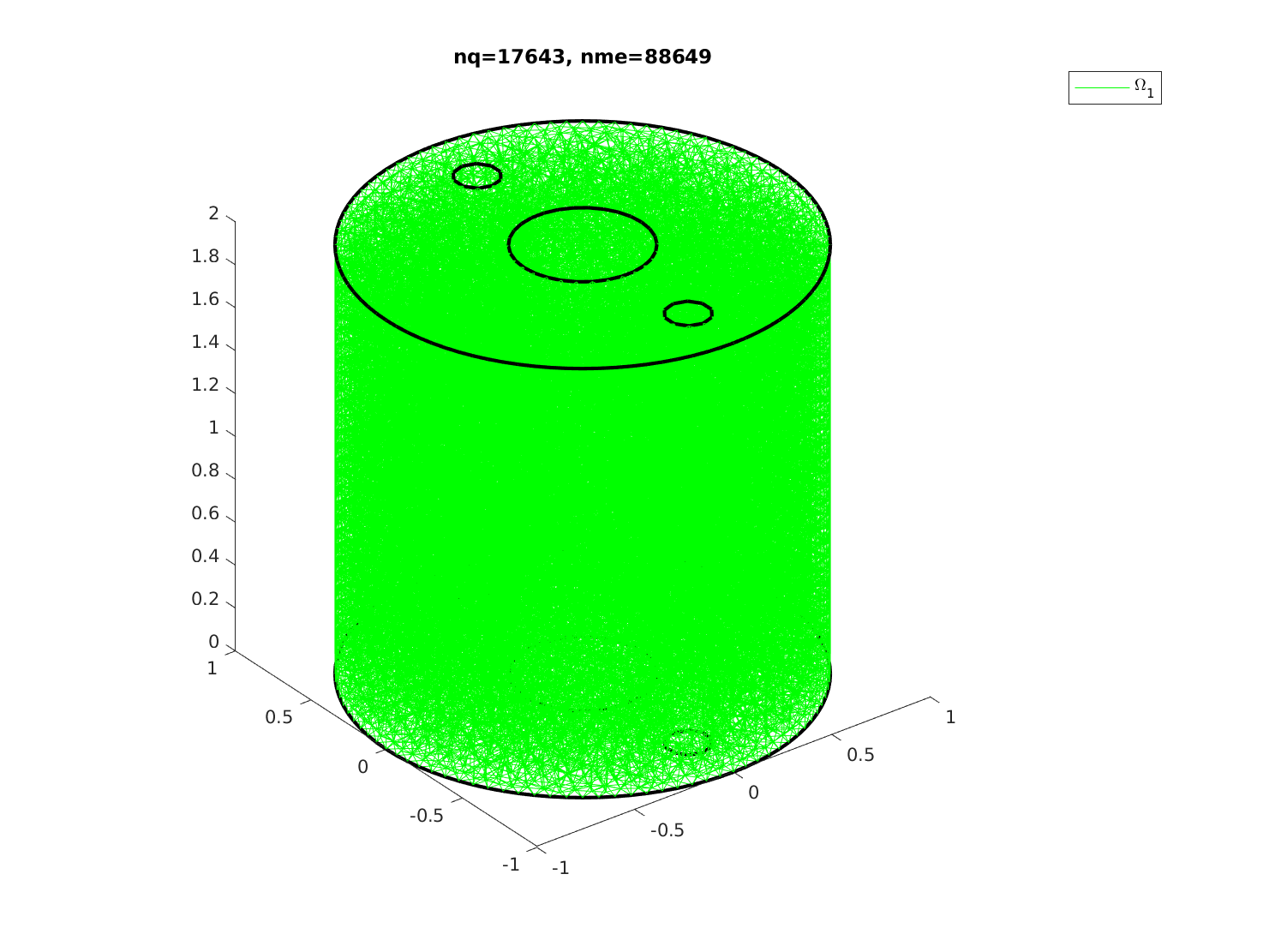

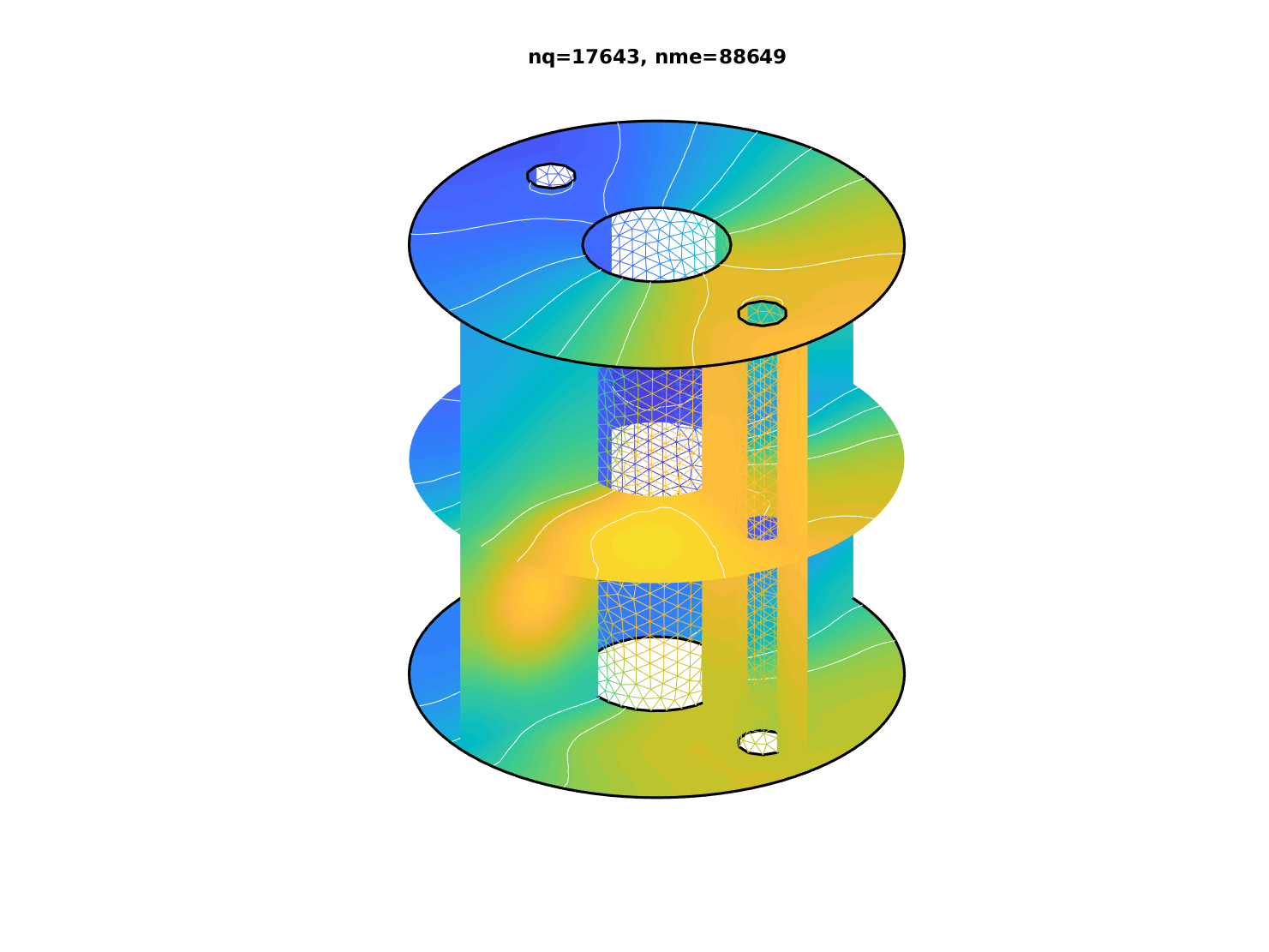

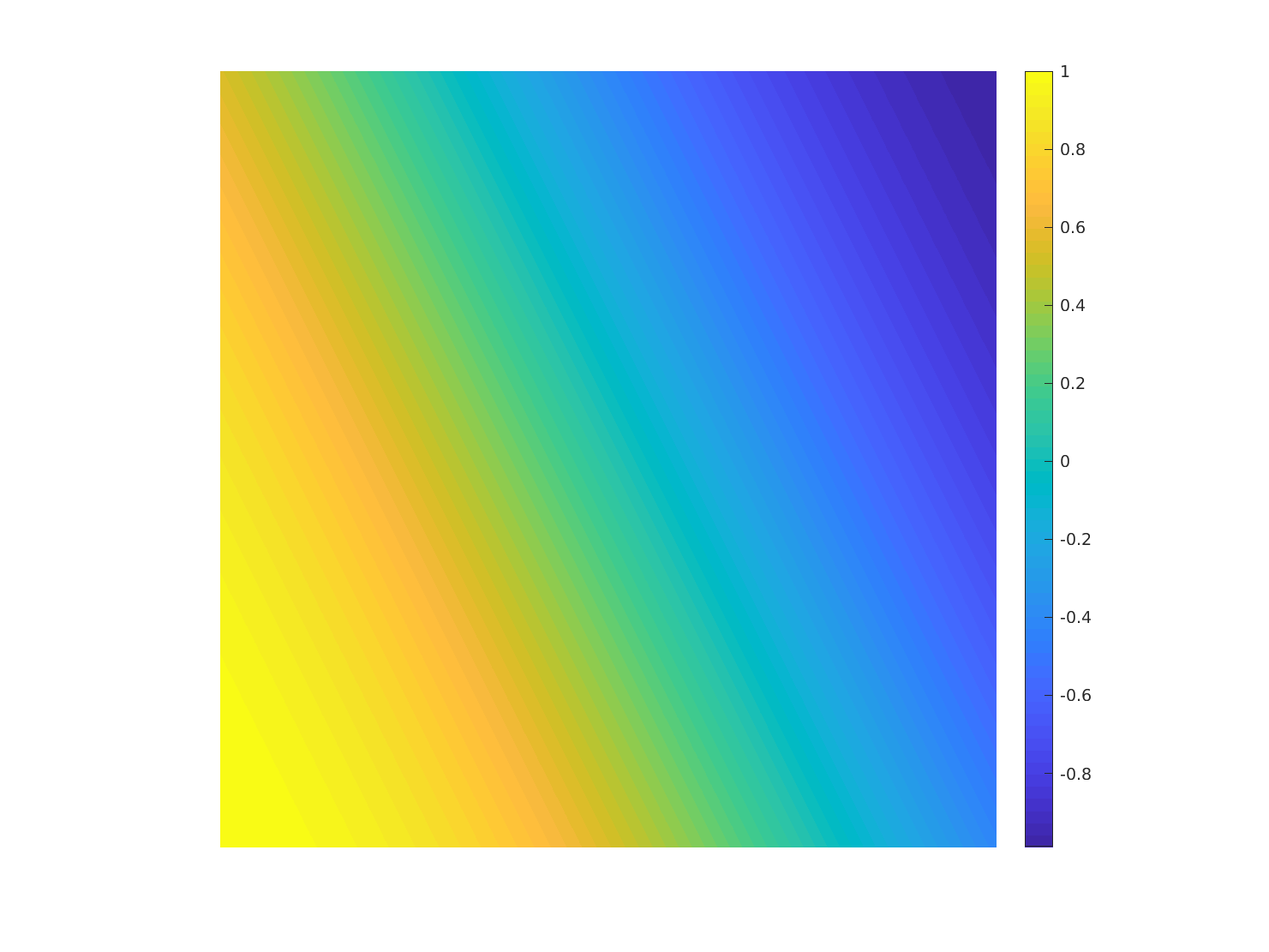

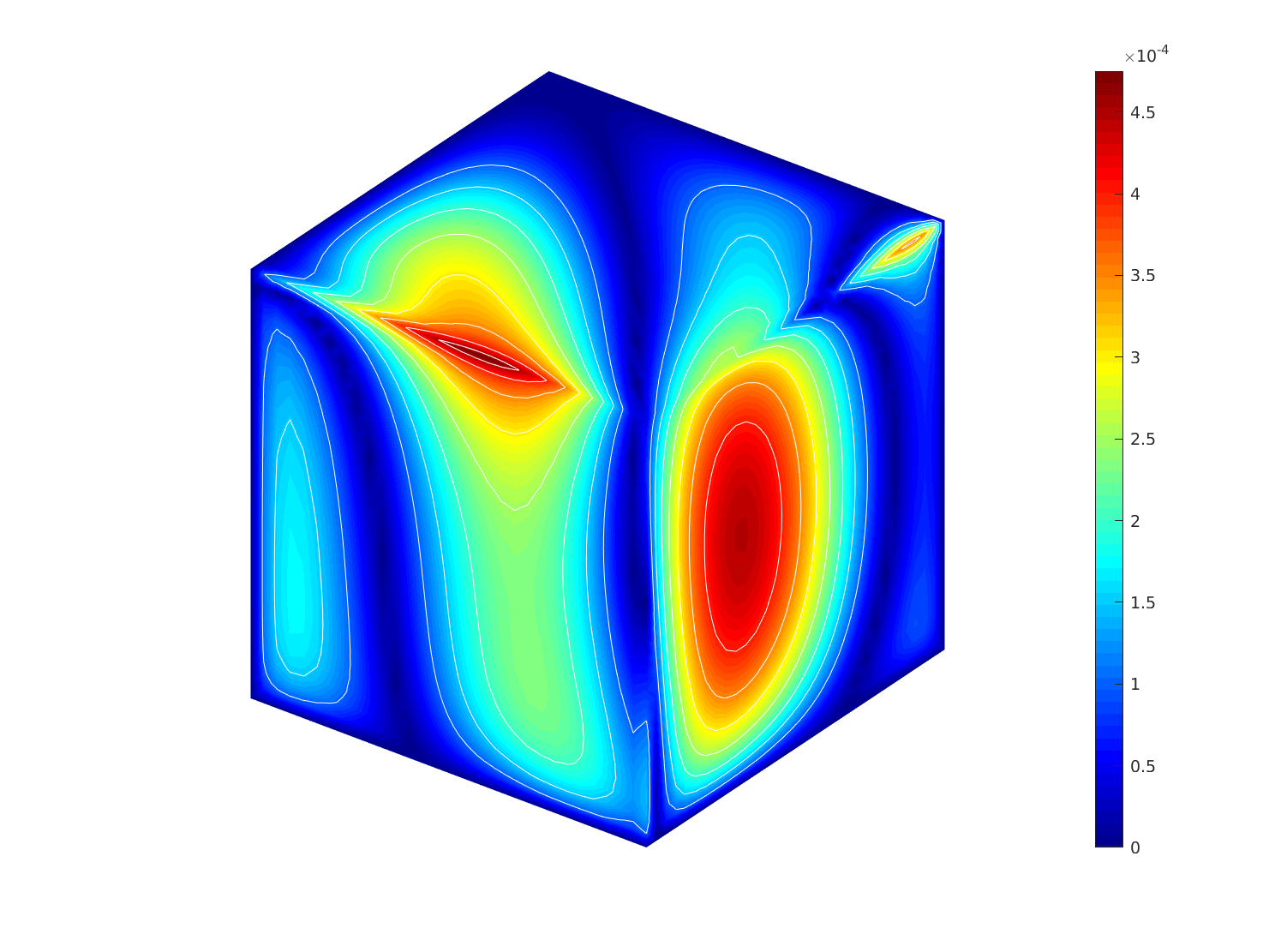

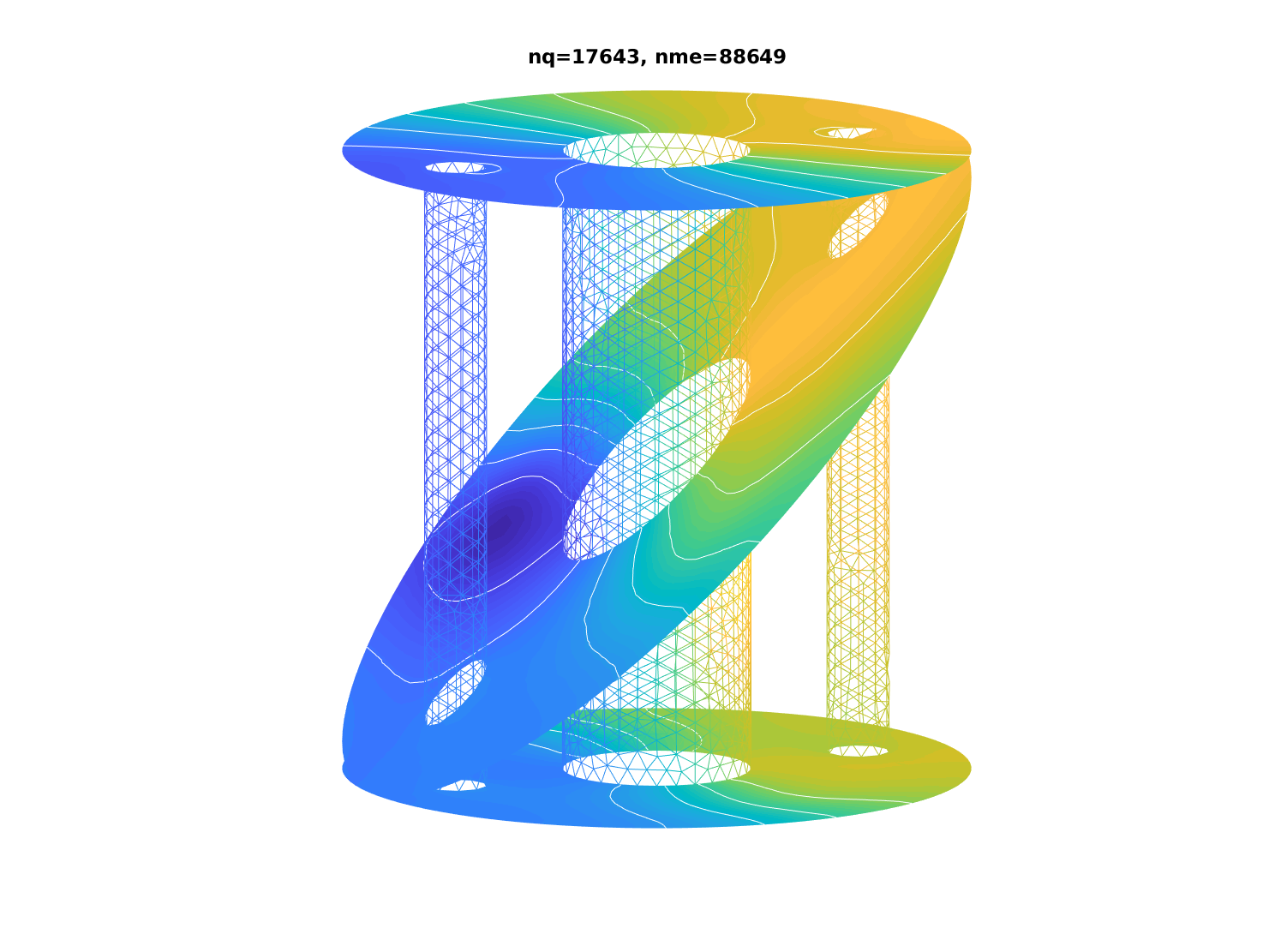

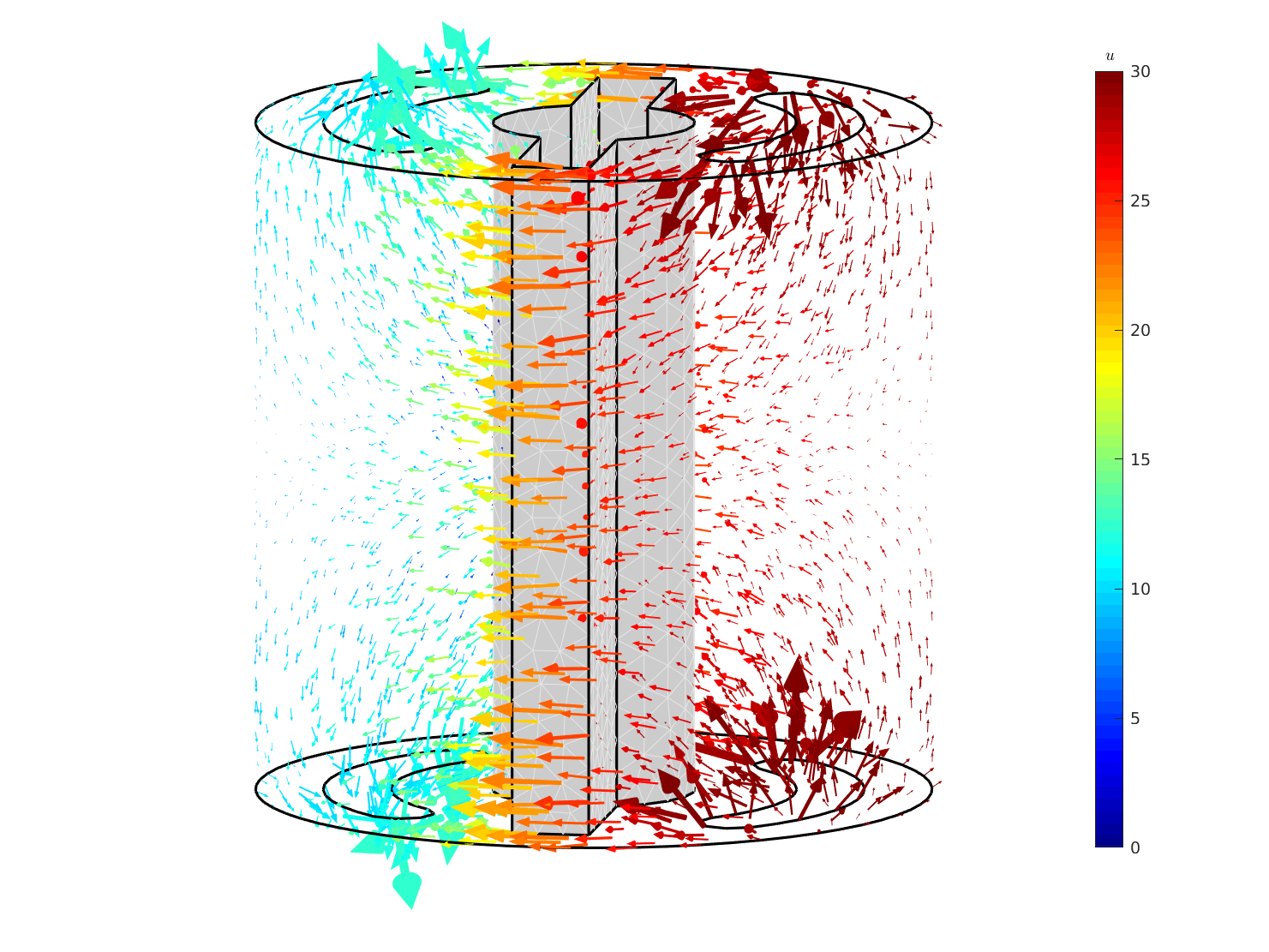

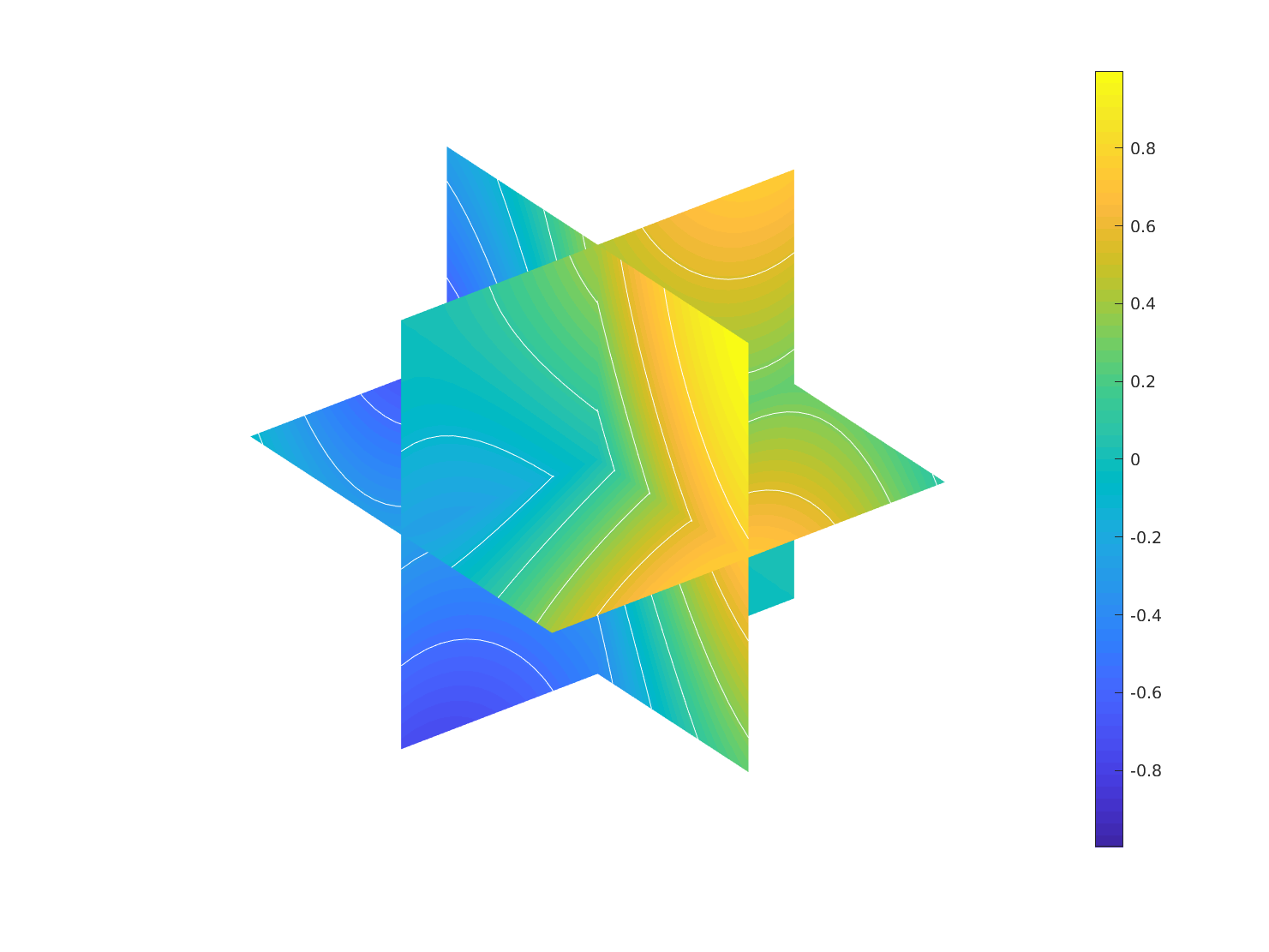

Matlab / FEM / fc_vfemp1/ Snapshots|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
||||||
|
| |||||||
Matlab / FEM / fc_vfemp1/ demos

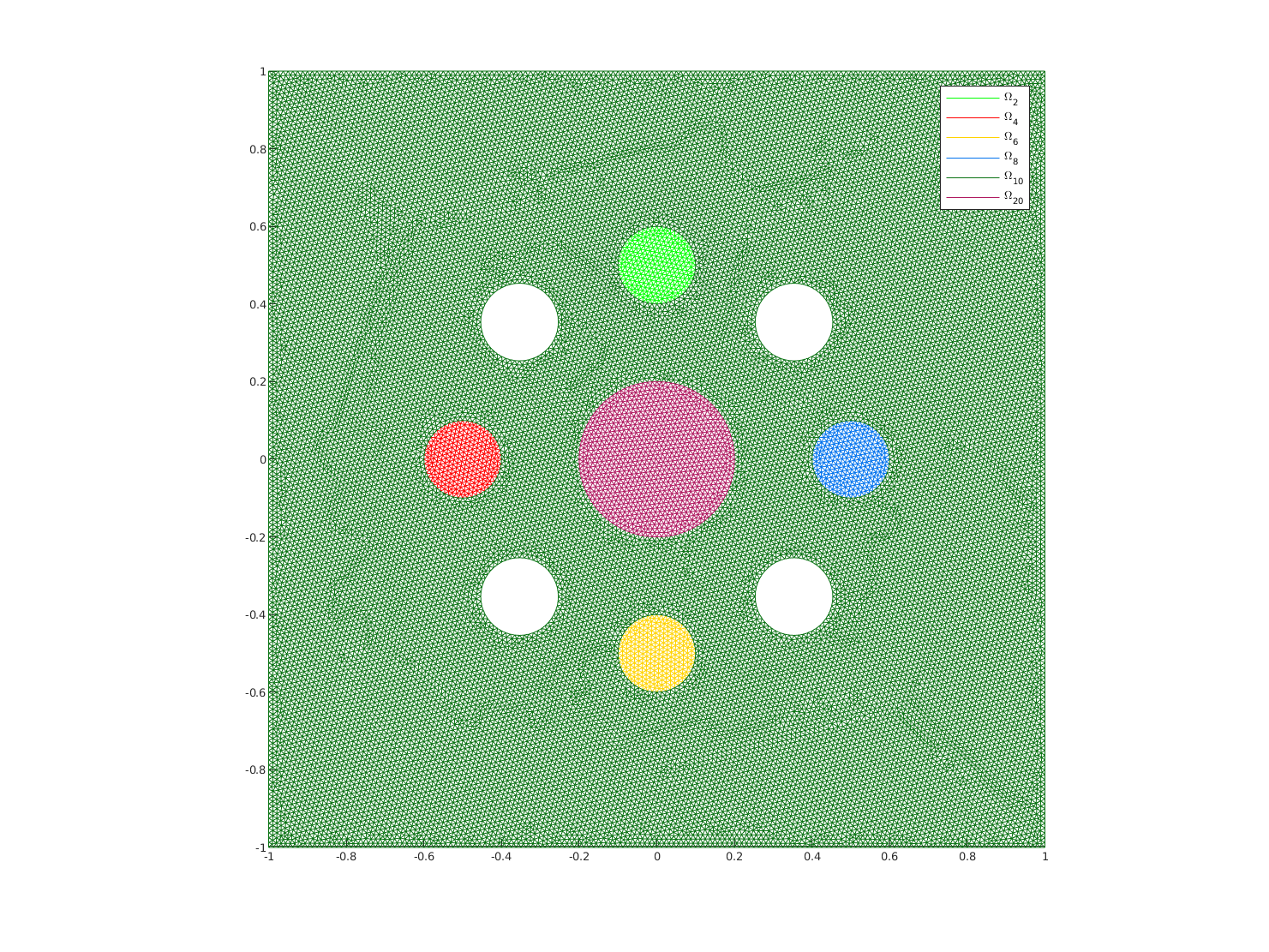

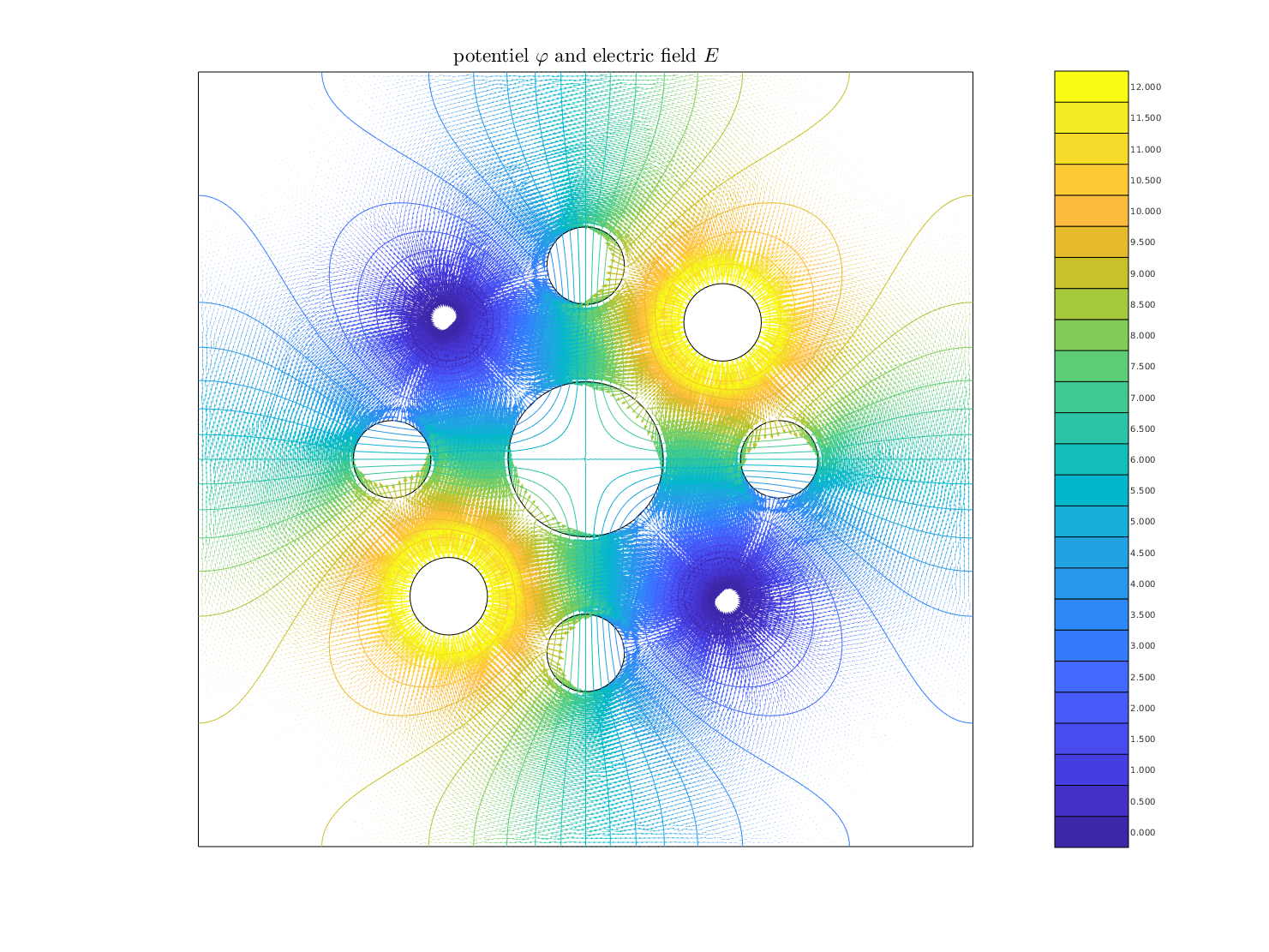

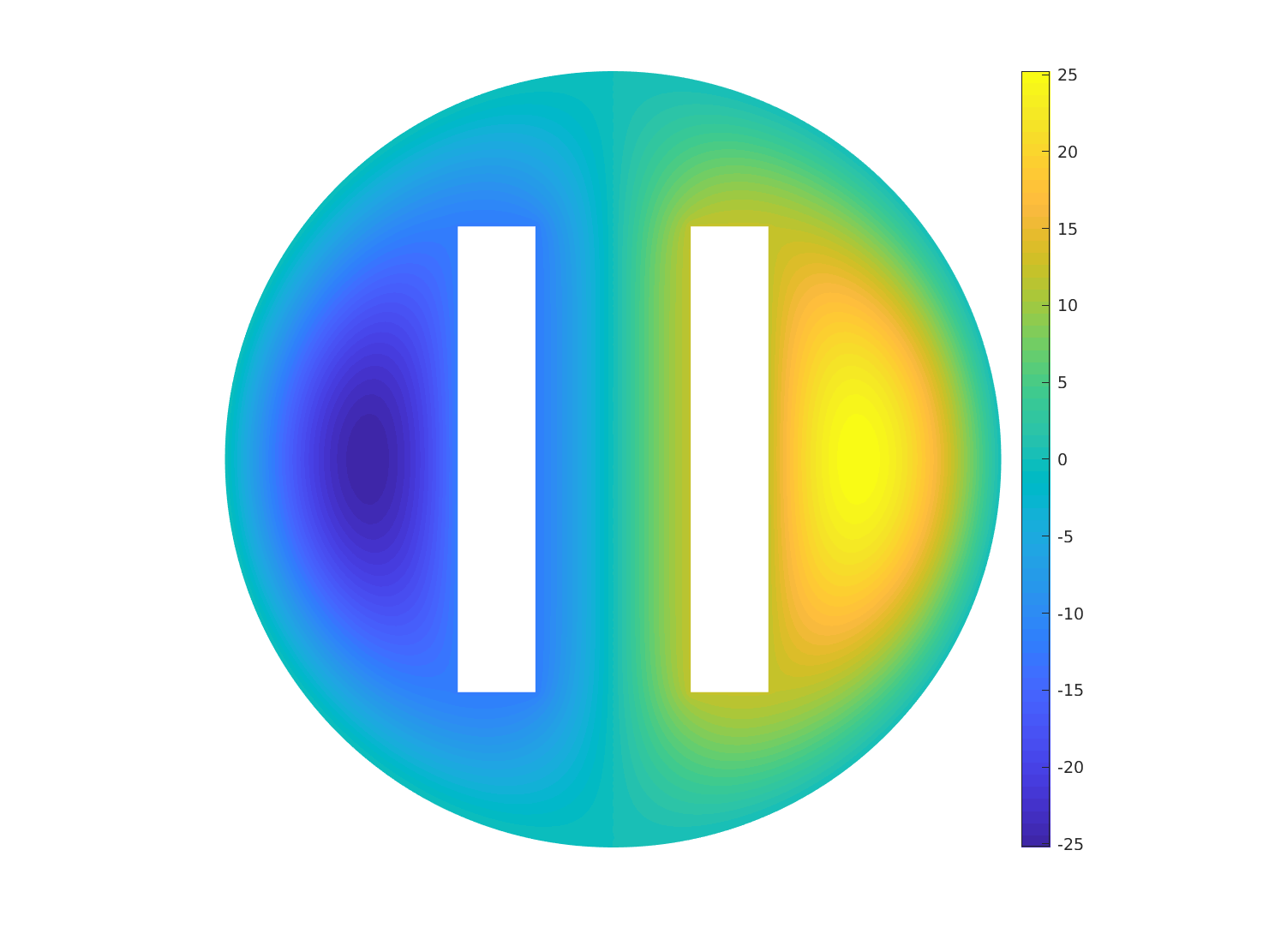

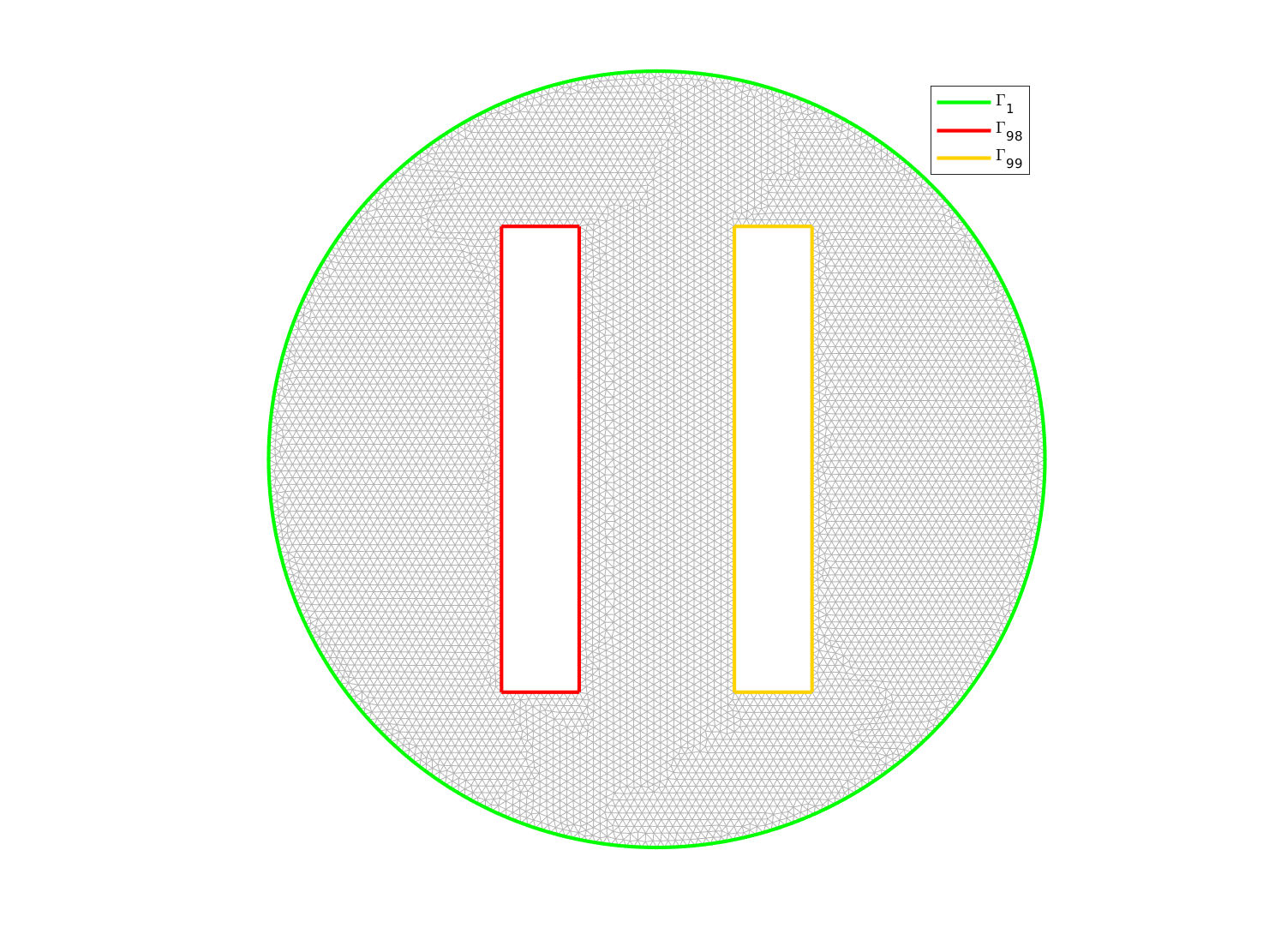

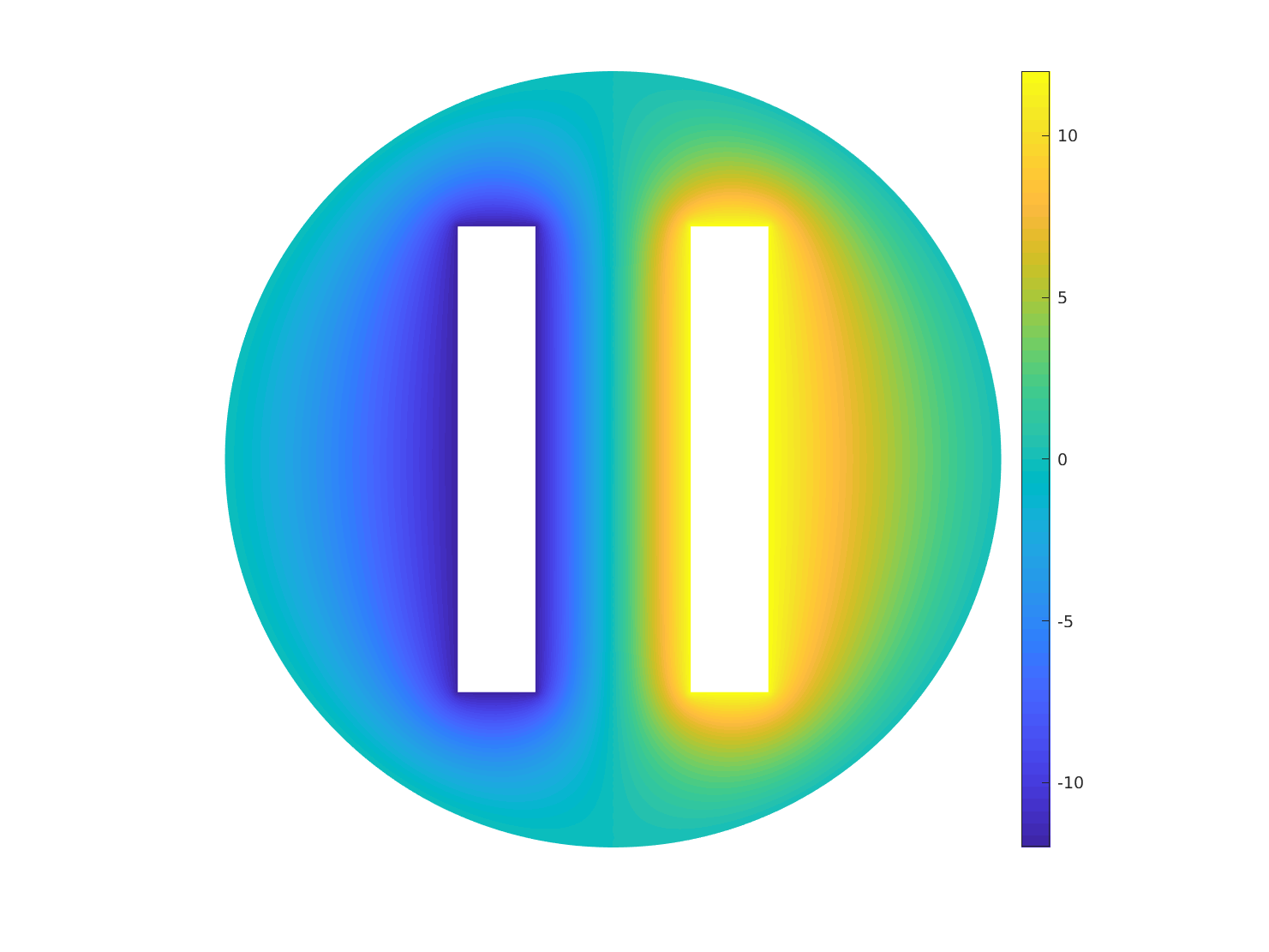

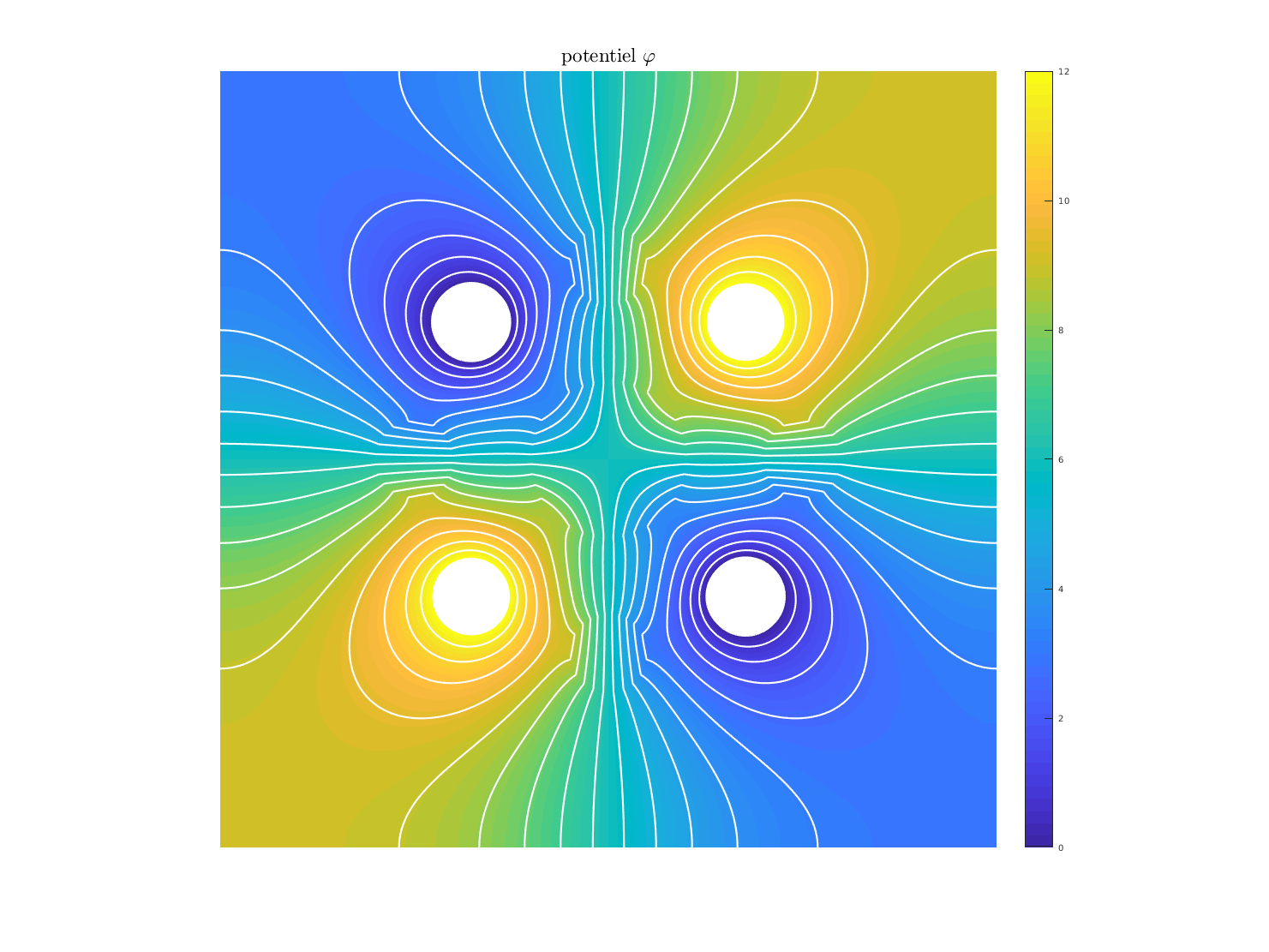

| BVPcondenser2D01 | BVPpotential2D01 | BVPelectrostatic2D01 | BVPfunny2D01 |
 | | | |

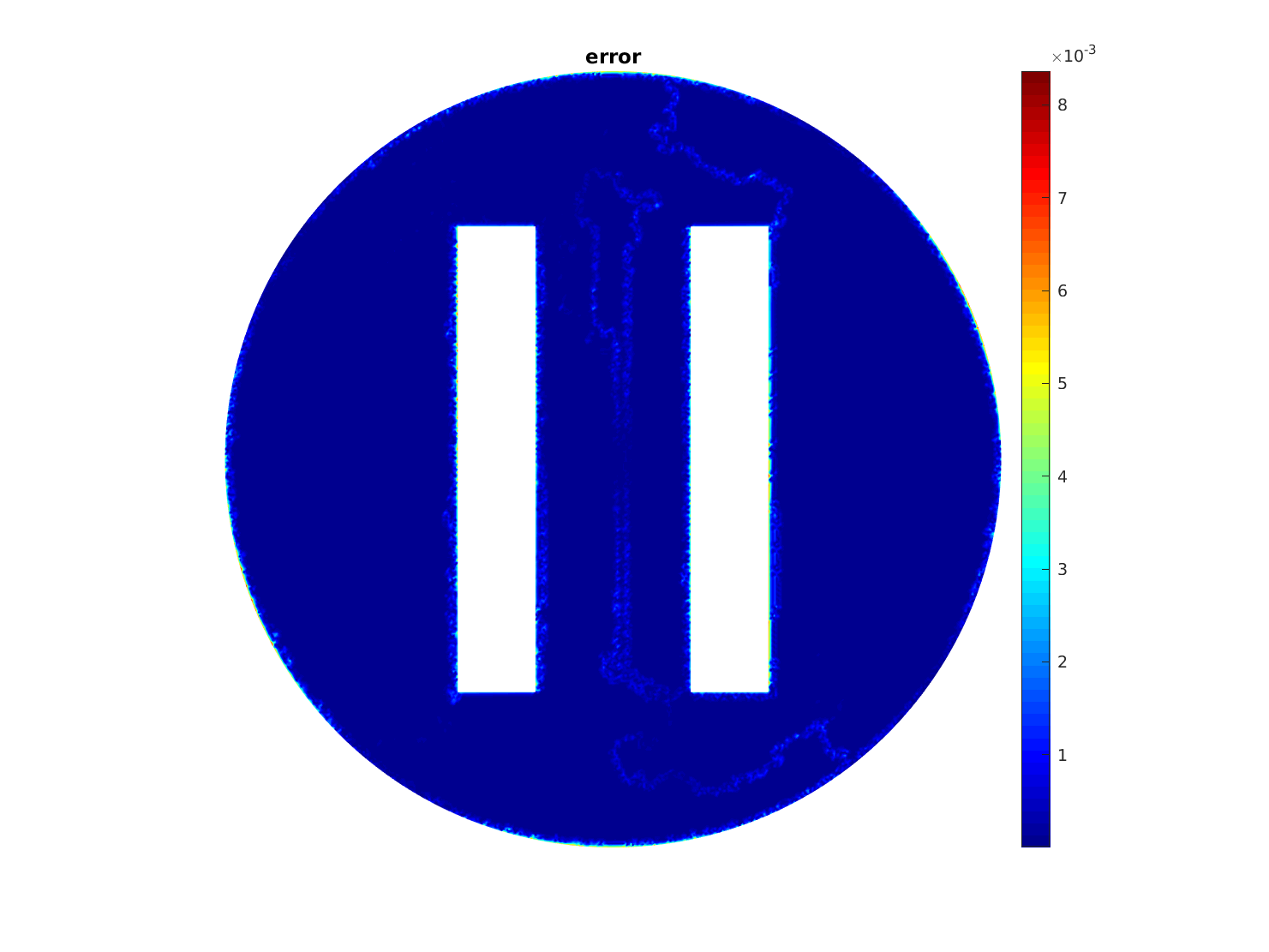

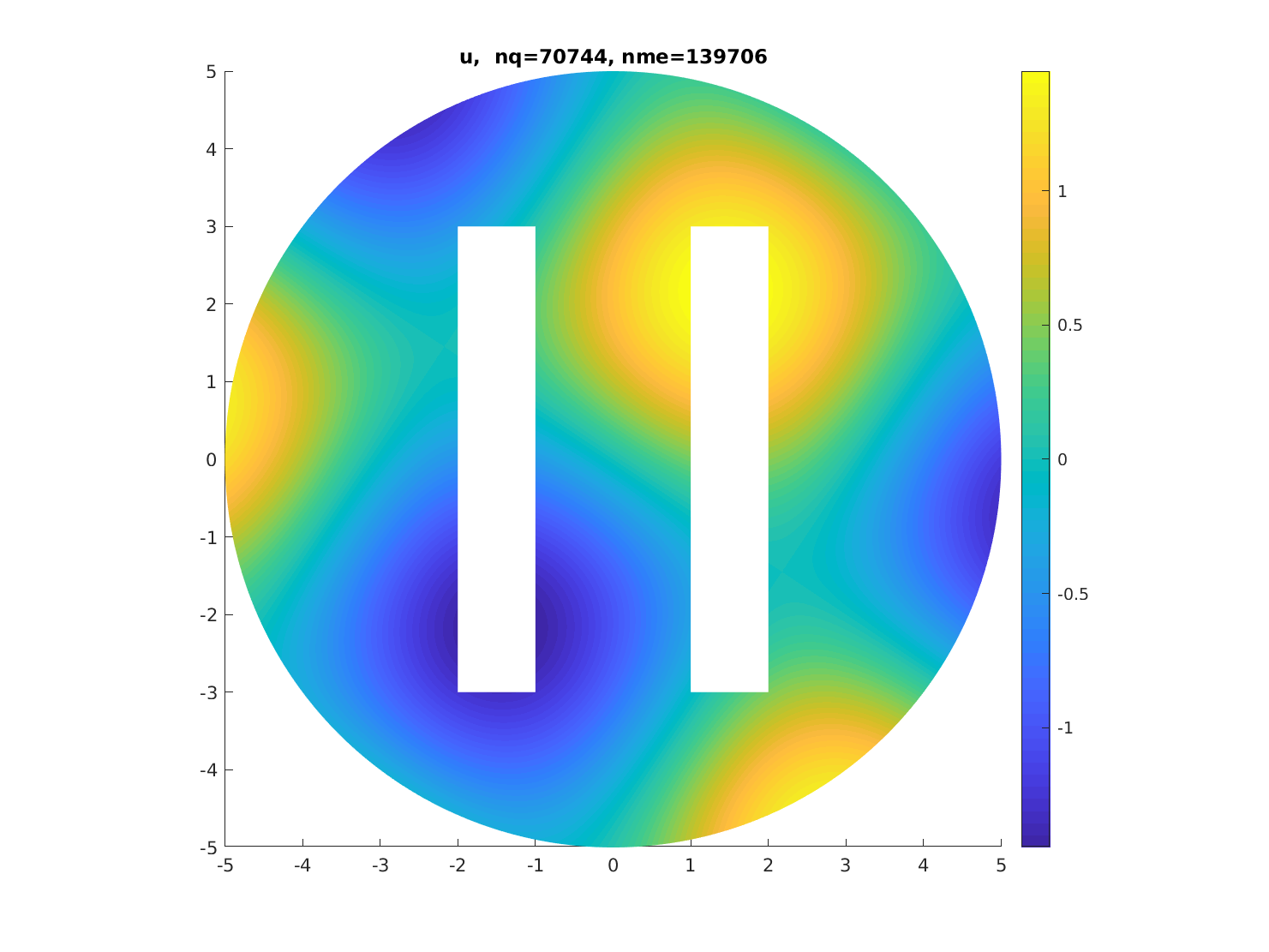

| apply2D01 | |||
| | |||
Matlab / FEM / fc_vfemp1/ Tested onThis toolbox was tested on various OS with Matlab releases :
| Operating system | 2017a | 2017b | 2018a | 2018b | 2019a |
| CentOS 7.7.1908 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Debian 9.11 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Fedora 29 | ✓ | ✓ | ✓ | ✓ | ✓ |
| OpenSUSE Leap 15.0 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Ubuntu 18.04.3 LTS | ✓ | ✓ | ✓ | ✓ | ✓ |
| MacOS High Sierra 10.13.6 | ✓ | ✓ | ✓ | ✓ | ✓ |
| MacOS Mojave 10.14.4 | ✓ | ✓ | ✓ | ✓ | ✓ |
| MacOS Catalina 10.15.2 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Windows 10 (1909) | ✓ | ✓ | ✓ | ✓ | ✓ |
It is not compatible with Matlab releases prior to R2015b.
Matlab / FEM / fc_vfemp1/ Current development release|
| |||||||
| Version | date | full archives | install | User guide |
|||
| 0.2.1 | March 20, 2020 |
|
|
|
|||
Matlab / FEM / fc_vfemp1/ InstallationOne just has to get/download the install file
mfc_vfemp1_install.m Thereafter, one run it under Matlab.
This command download, extract and configure the toolbox and all the required required toolboxes in the
current directory.
For example, to install this toolbox in ~/Matlab directory, one has to copy the file mfc_vfemp1_install.m in the ~/Matlab directory. Then in a Matlab terminal run the following commands
>> cd ~/Matlab
>> mfc_vfemp1_install()
There is the output of the mfc_vfemp1_install() command on a Linux computer :
Parts of the <fc-vfemp1> Matlab toolbox.
Copyright (C) 2017-2020 F. Cuvelier
1- Downloading and extracting the toolboxes
2- Setting the <fc-vfemp1> toolbox
Write in ~Matlab/fc-vfemp1-full/fc_vfemp1-0.2.1/configure_loc.m ...
3- Using toolboxes :
-> fc-tools : 0.0.31
-> fc-bench : 0.1.2
-> fc-hypermesh : 1.0.3
-> fc-amat : 0.1.2
-> fc-meshtools : 0.1.3
-> fc-graphics4mesh : 0.1.3
-> fc-oogmsh : 0.2.3
-> fc-siplt : 0.2.2
-> fc-simesh : 0.4.2
with fc-vfemp1 : 0.2.1
*** Using instructions
To use the <fc-vfemp1> toolbox:
addpath(’~Matlab/fc-vfemp1-full/fc_vfemp1-0.2.1’)
fc_vfemp1.init()
See ~Matlab/mfc_vfemp1_set.m
The complete toolbox (i.e. with all the other needed toolboxes) is stored in the directory
~/Matlab/fc-vfemp1-full
and, for each Matlab session, one have to set the toolbox by :
>> addpath(’~/Matlab/fc-vfemp1-full/fc-vfemp1-0.2.1’)
>> fc_vfemp1.init()
Try to use default parameters!
Use fc_tools.configure to configure.
Write in ~Matlab/fc-vfemp1-full/fc_tools-0.0.31/configure_loc.m ...
Try to use default parameters!
Use fc_bench.configure to configure.
Write in ~Matlab/fc-vfemp1-full/fc_bench-0.1.2/configure_loc.m ...
Try to use default parameters!
Use fc_hypermesh.configure to configure.
Write in ~Matlab/fc-vfemp1-full/fc_hypermesh-1.0.3/configure_loc.m ...
Try to use default parameters!
Use fc_amat.configure to configure.
Write in ~Matlab/fc-vfemp1-full/fc_amat-0.1.2/configure_loc.m ...
Try to use default parameters!
Use fc_meshtools.configure to configure.
Write in ~Matlab/fc-vfemp1-full/fc_meshtools-0.1.3/configure_loc.m ...
Try to use default parameters!
Use fc_graphics4mesh.configure to configure.
Write in ~Matlab/fc-vfemp1-full/fc_graphics4mesh-0.1.3/configure_loc.m ...
Try to use default parameters!
Use fc_oogmsh.configure to configure.
Write in ~Matlab/fc-vfemp1-full/fc_oogmsh-0.2.3/configure_loc.m ...
Configured to use gmsh 4.5.1 with default MSH file format version 4.1
Try to use default parameters!
Use fc_siplt.configure to configure.
Write in ~Matlab/fc-vfemp1-full/fc_siplt-0.2.2/configure_loc.m ...
Try to use default parameters!
Use fc_simesh.configure to configure.
Write in ~Matlab/fc-vfemp1-full/fc_simesh-0.4.2/configure_loc.m ...
Using fc_vfemp1[0.2.1] with fc_tools[0.0.31], fc_bench[0.1.2], fc_hypermesh[1.0.3], fc_amat[0.1.2],
fc_meshtools[0.1.3], fc_graphics4mesh[0.1.3], fc_oogmsh[0.2.3],
fc_siplt[0.2.2], fc_simesh[0.4.2].
Configured to use gmsh 4.5.1 with default MSH file format version 4.1
Using fc_vfemp1[0.2.1] with fc_tools[0.0.31], fc_bench[0.1.2], fc_hypermesh[1.0.3],
fc_amat[0.1.2], fc_meshtools[0.1.3], fc_graphics4mesh[0.1.3], fc_oogmsh[0.2.3],
fc_siplt[0.2.2], fc_simesh[0.4.2].
To quickly test this toolbox, one can run one of the script examples located in the directory
+fc_vfemp1/+examples. For example, runs
>> fc_vfemp1.examples.BVPCondenser2D01
>> fc_vfemp1.demos()
For uninstalling, one just have to delete directory
~/Matlab/fc-vfemp1-full
Matlab / FEM / fc_vfemp1/ Version history
Matlab / FEM / fc_vfemp1/ Old development releases|
| |||||||
| Version | date | archives | install | User’s Guide |
|||
| 0.2.0 | March 7, 2020 |
|
|
|
|||
| 0.0.6 | October 12, 2017 |
|
|
|
|||
| 0.0.5 | February 8, 2017 |
|
|
|
|||
| 0.0.4 | February 3, 2017 |
|
|
|
|||
| 0.0.3 | January 16, 2017 |
|
|
|
|||
| 0.0.2 | January 9, 2017 |
|
|
|
|||
