The  Octave package allows to display simplicial meshes or datas on simplicial meshes. A simplicial mesh must be given by two arrays : the vertices array and the connectivity array.

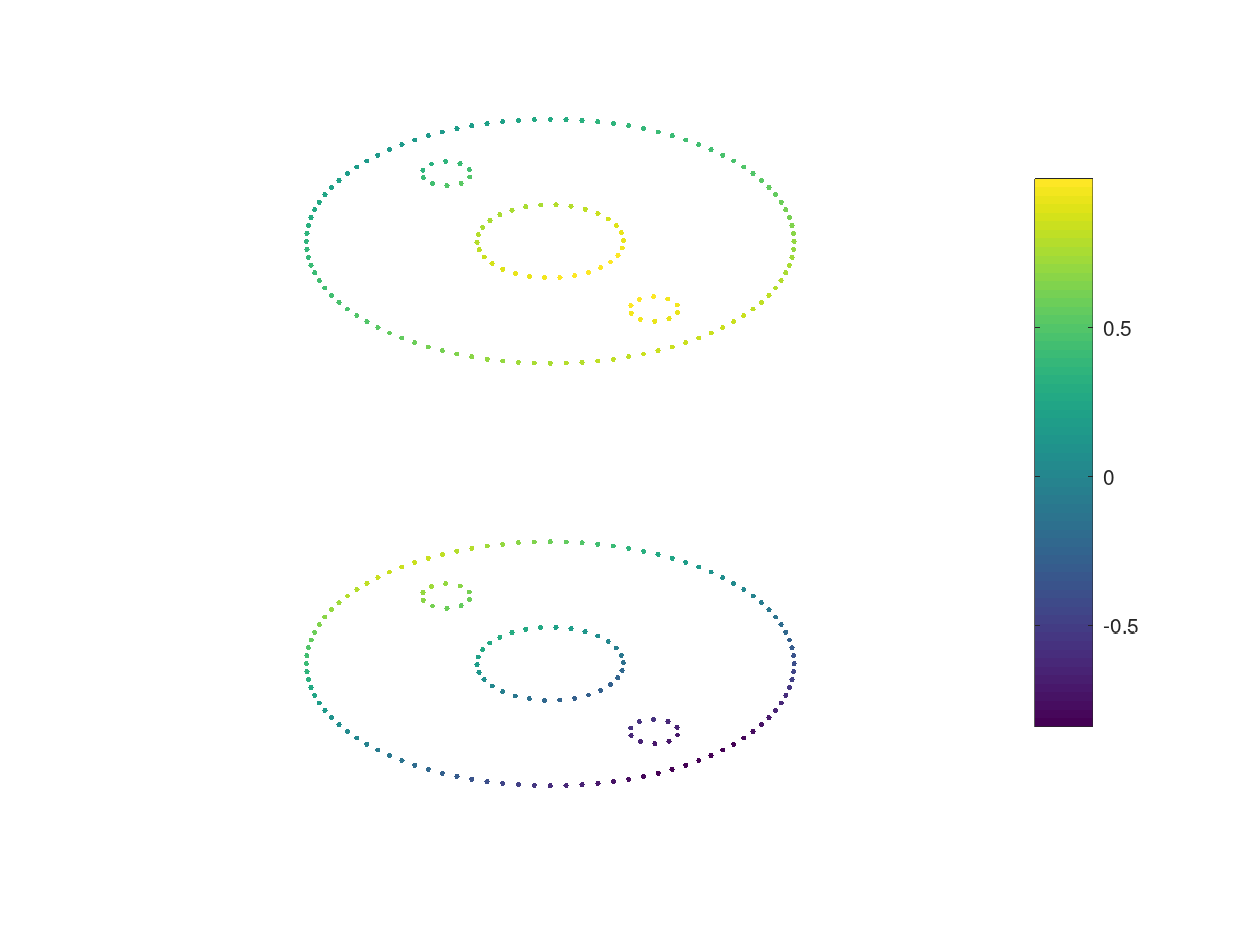

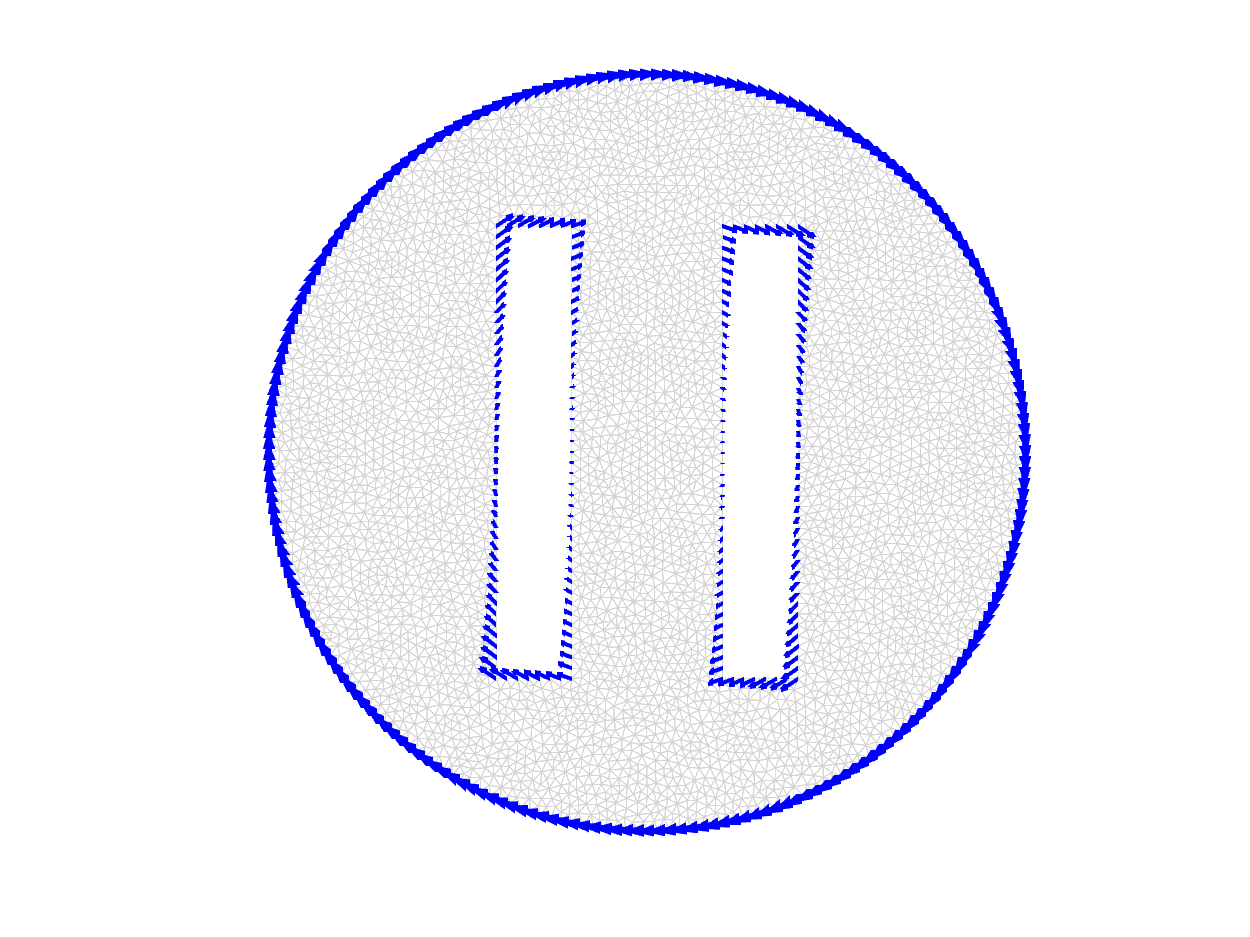

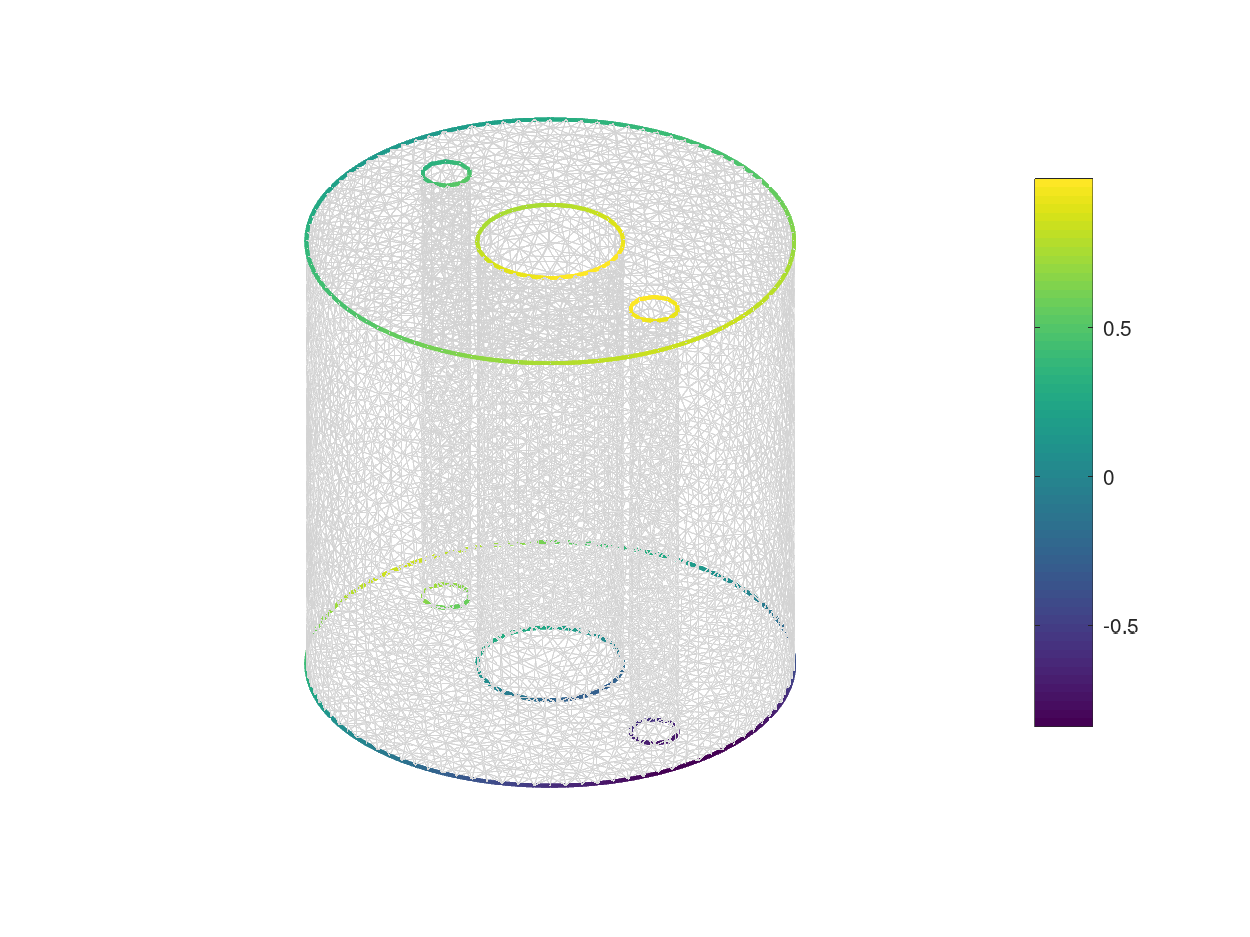

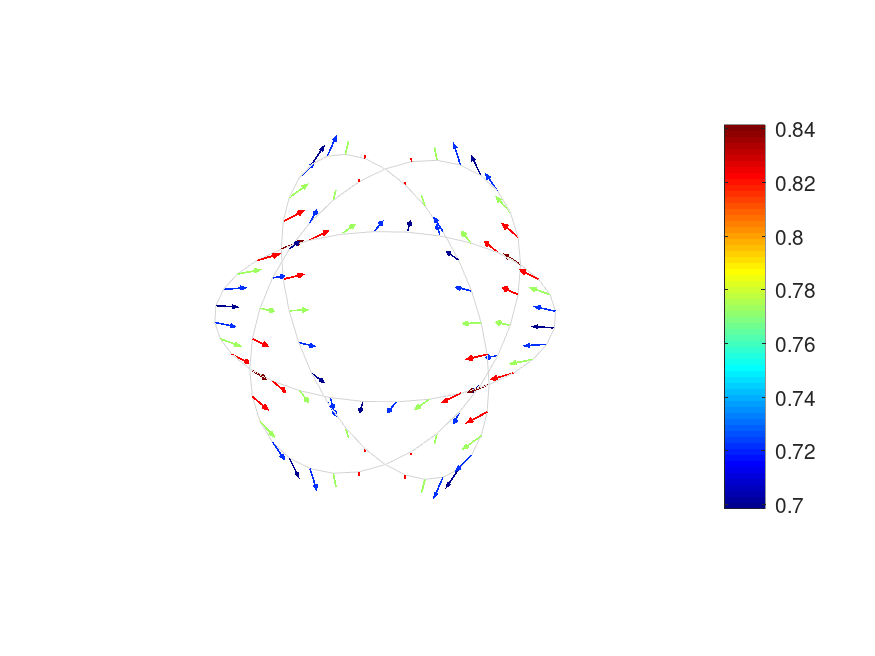

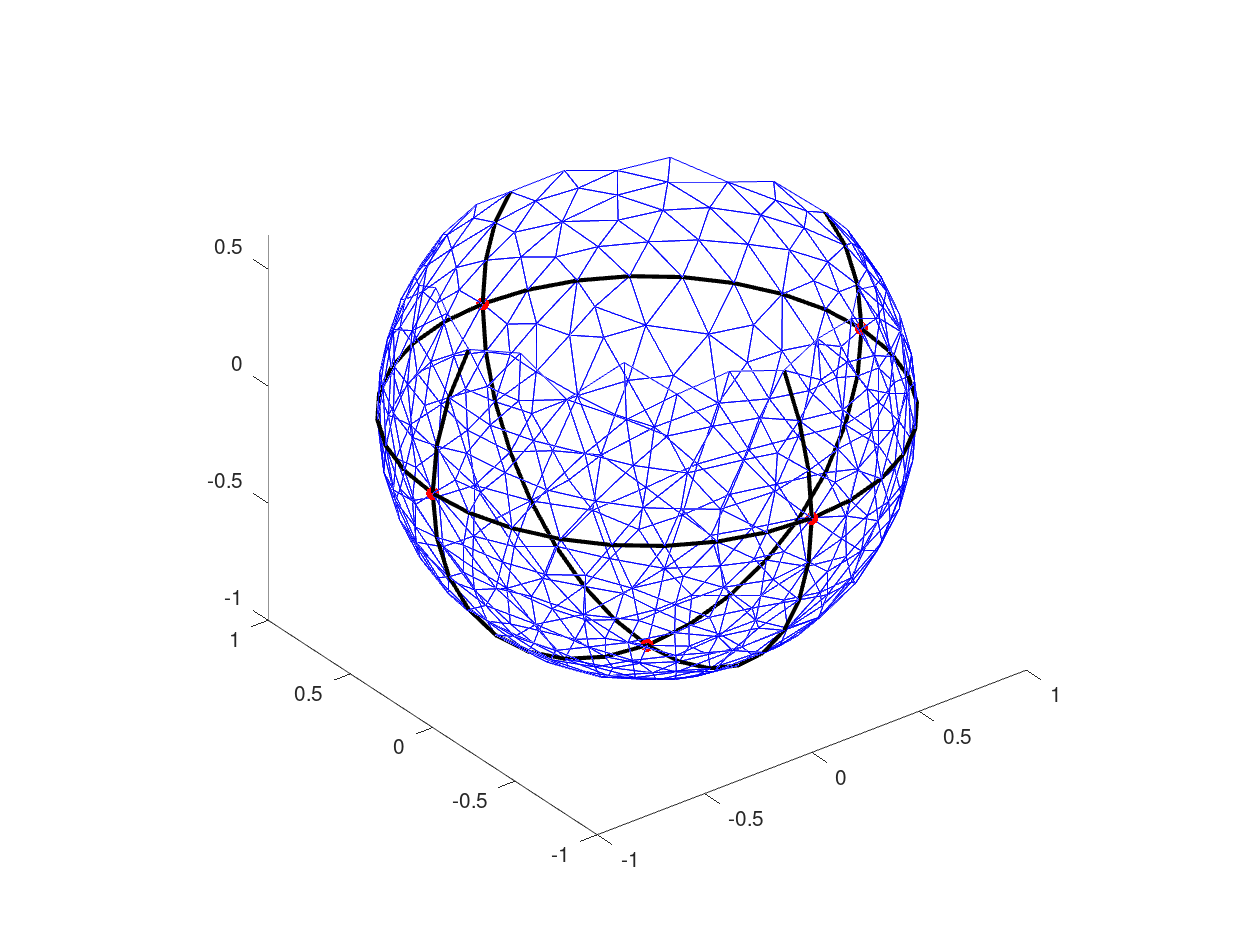

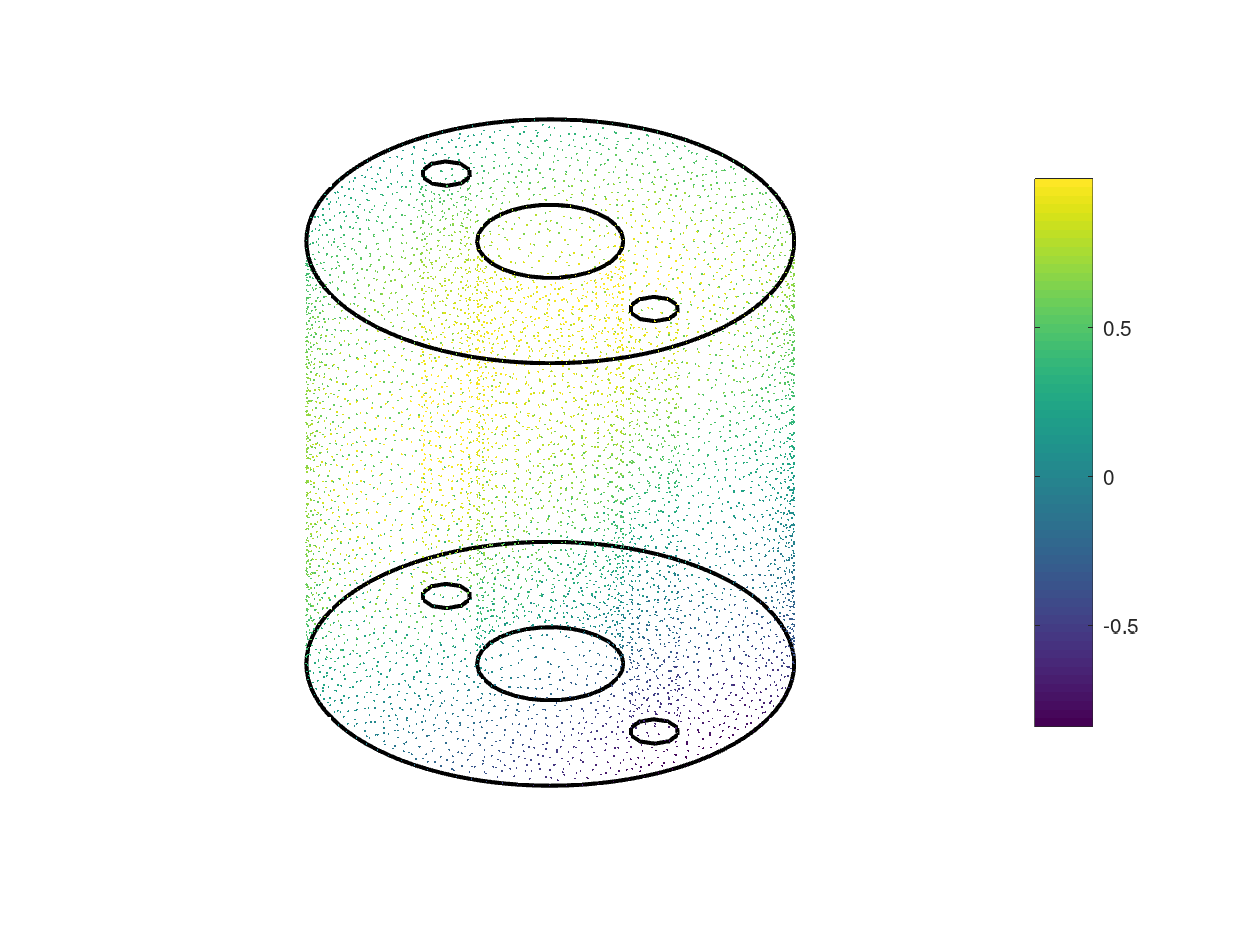

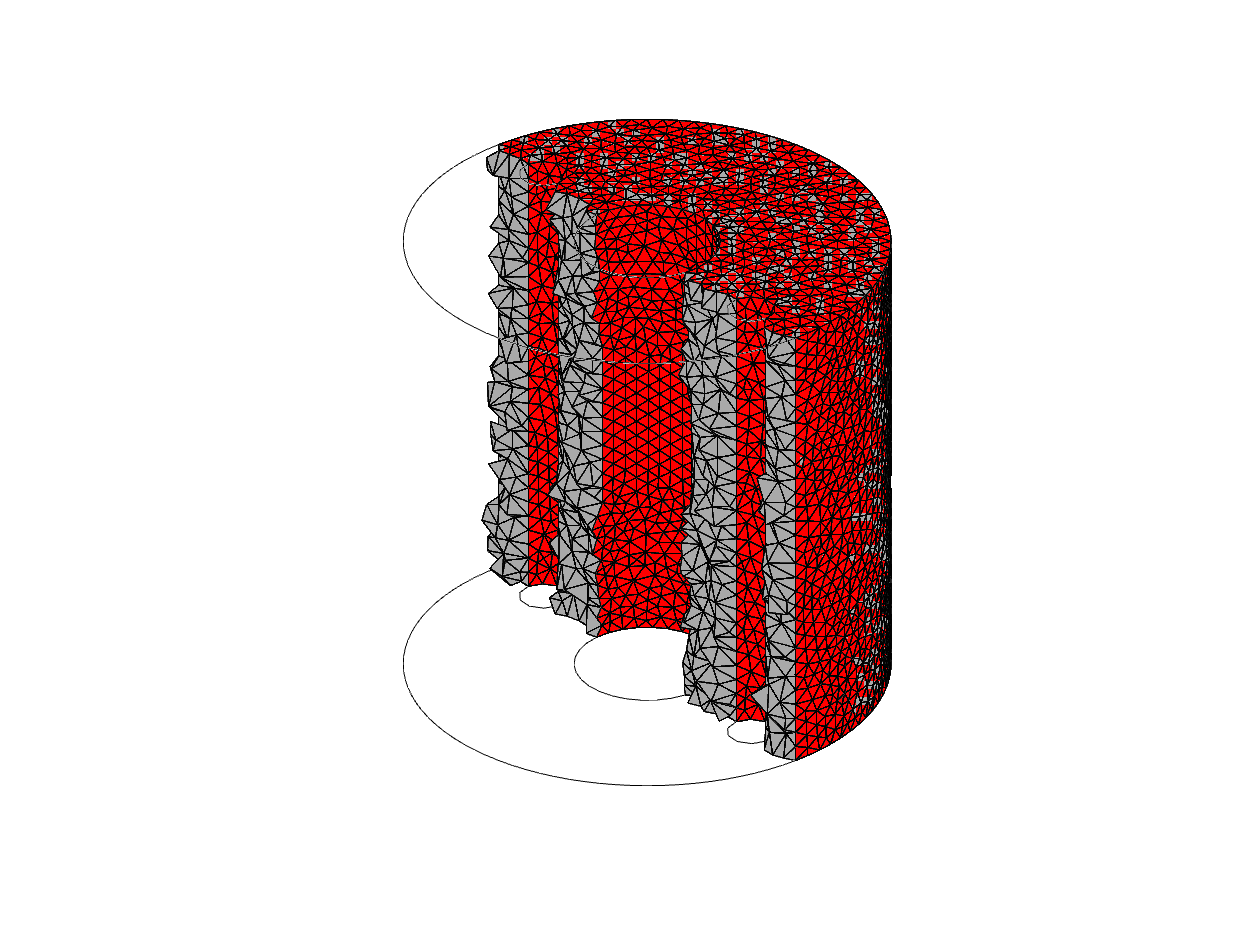

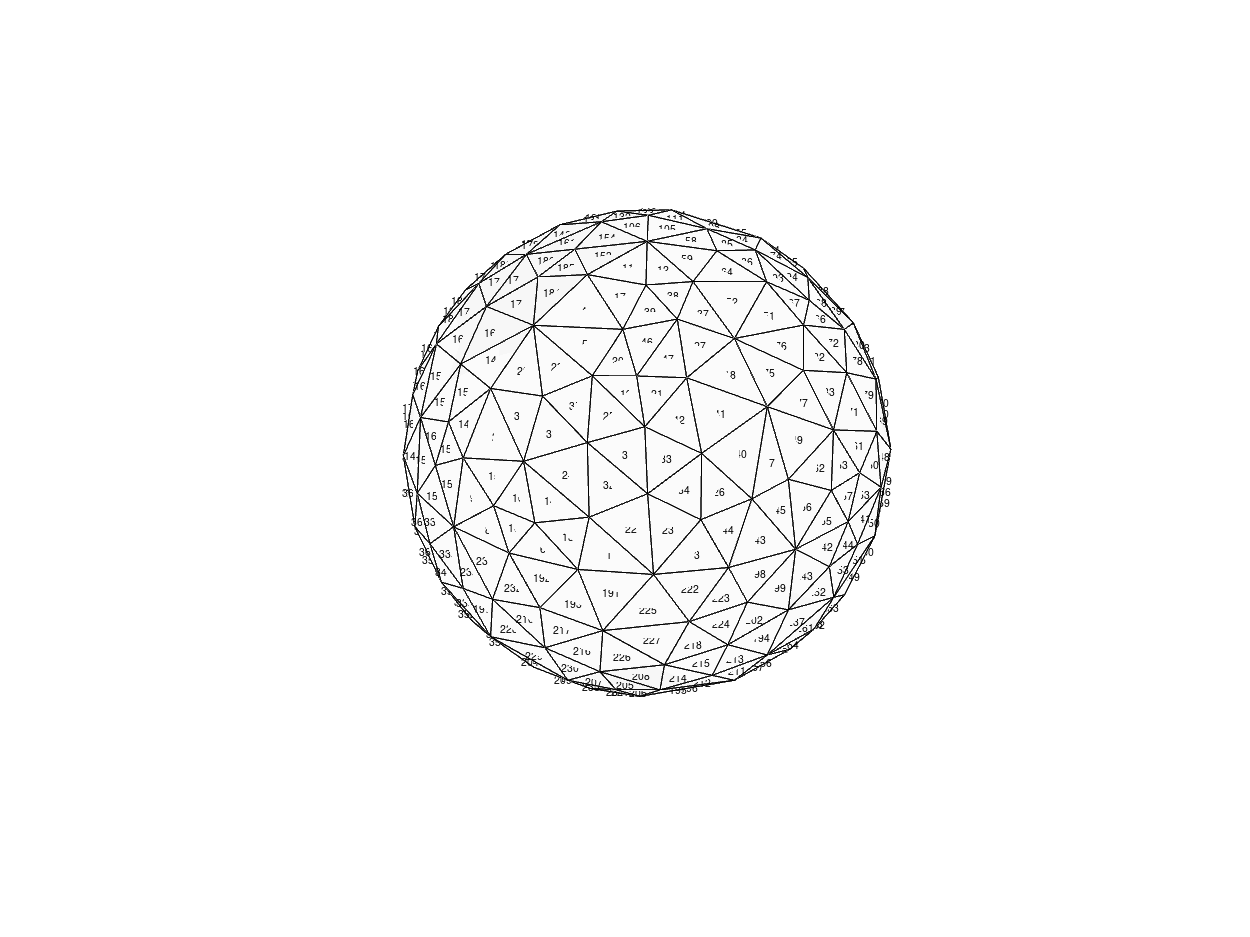

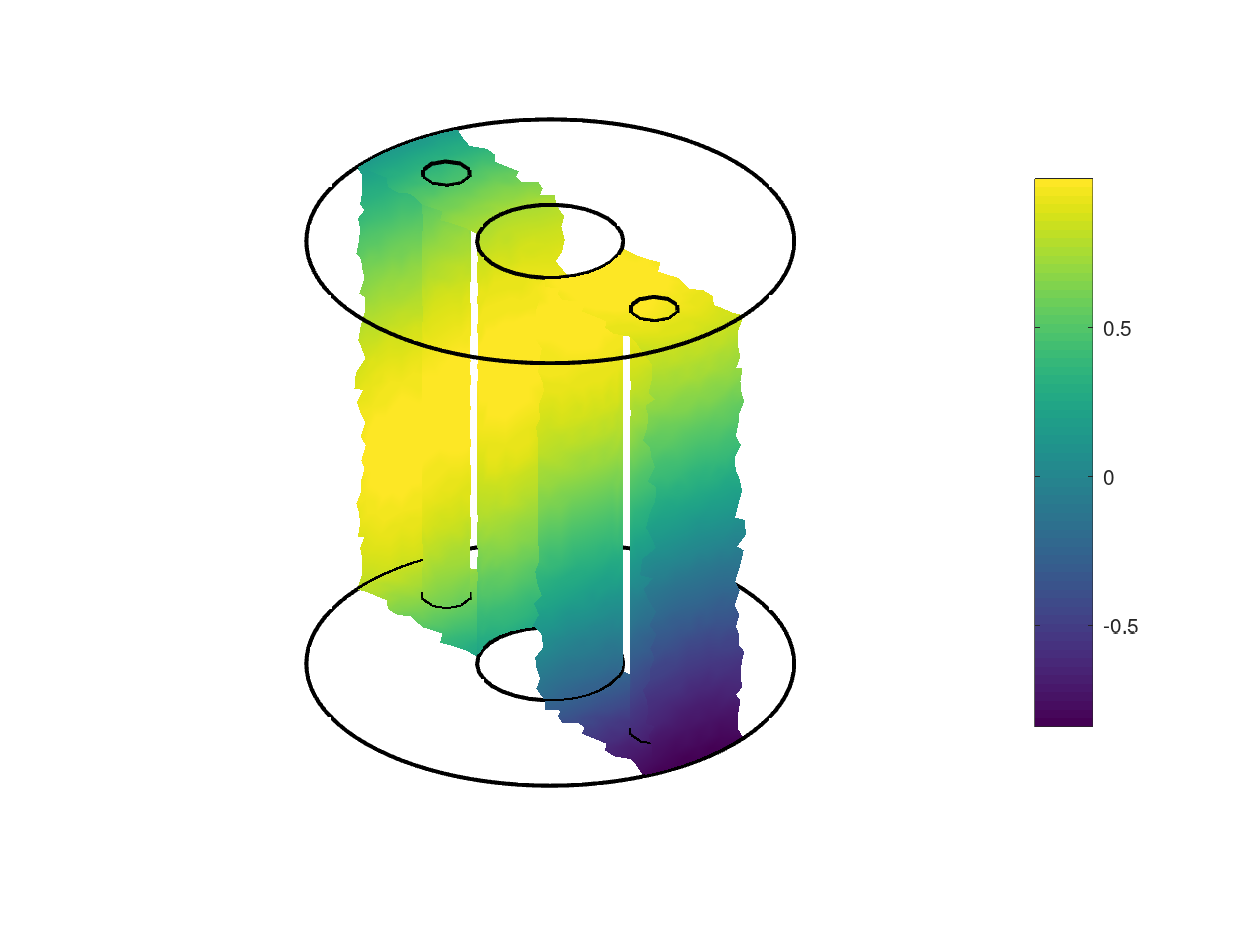

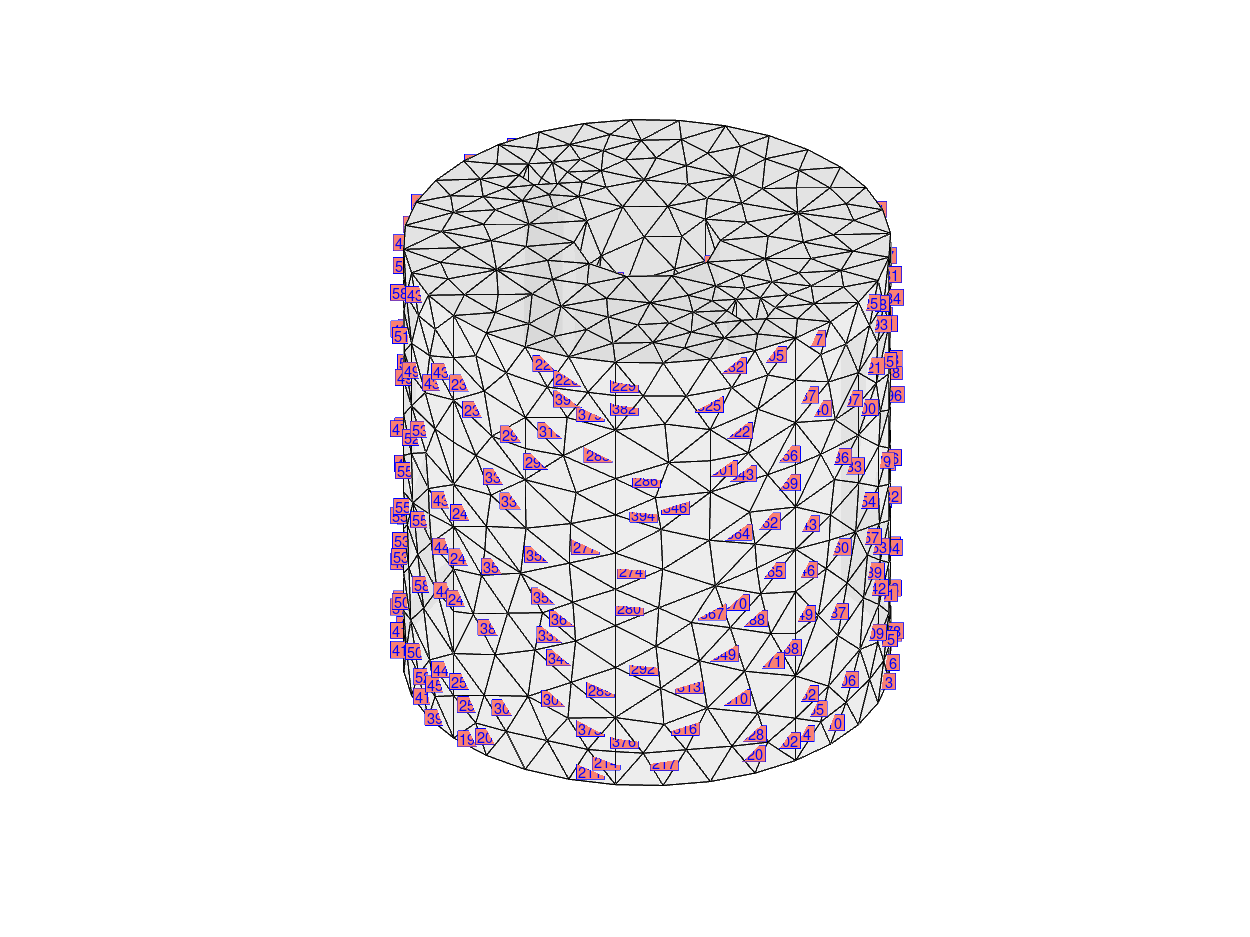

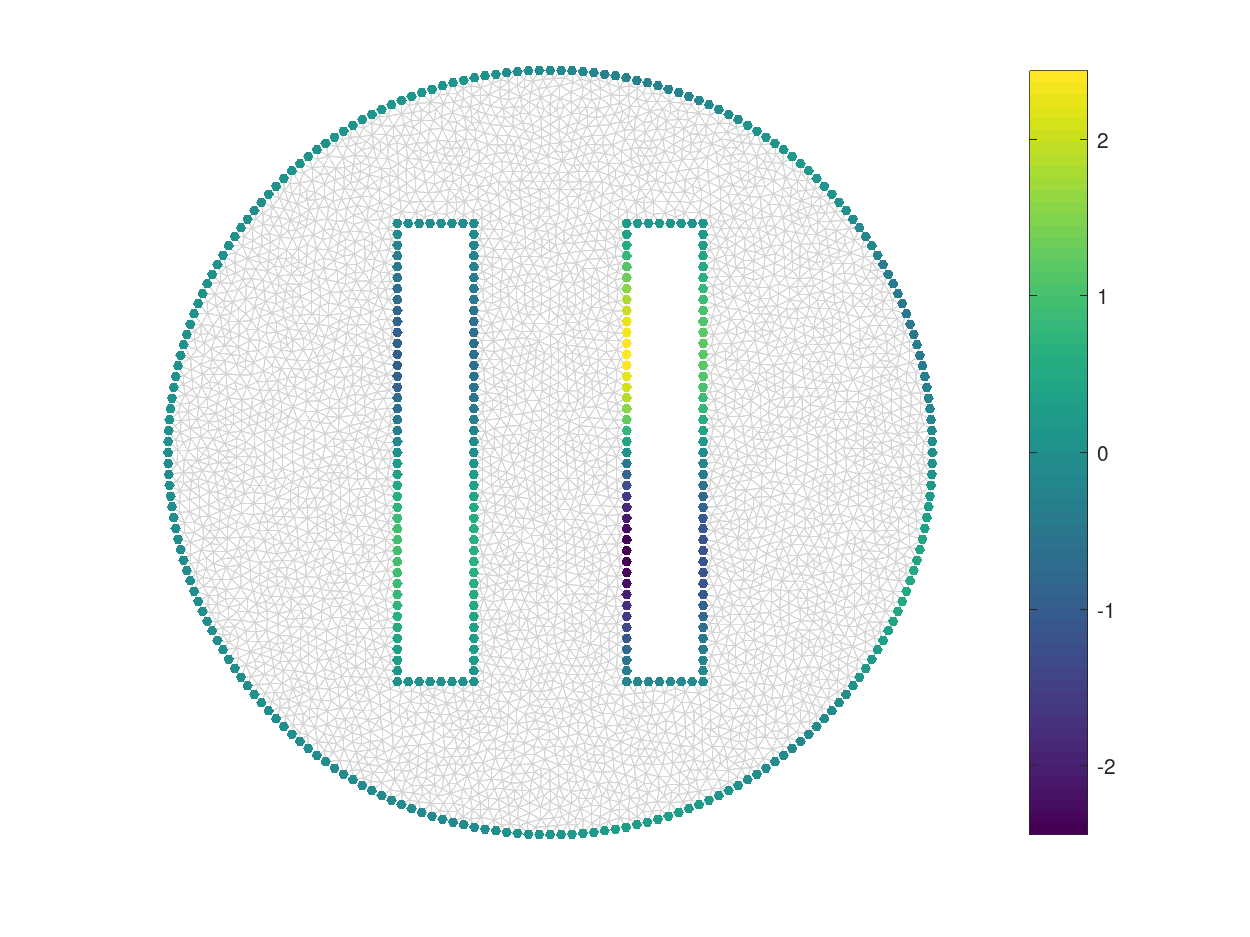

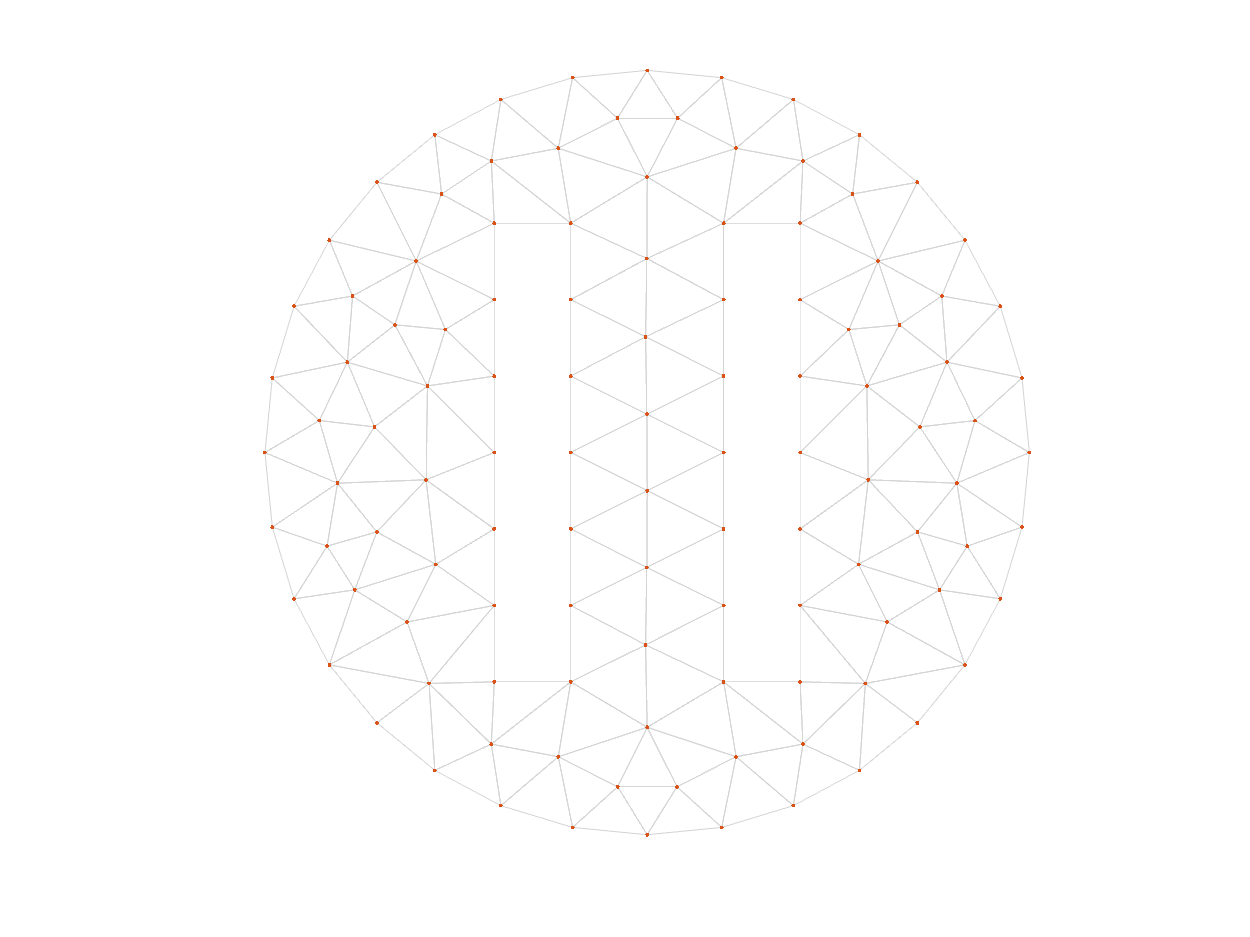

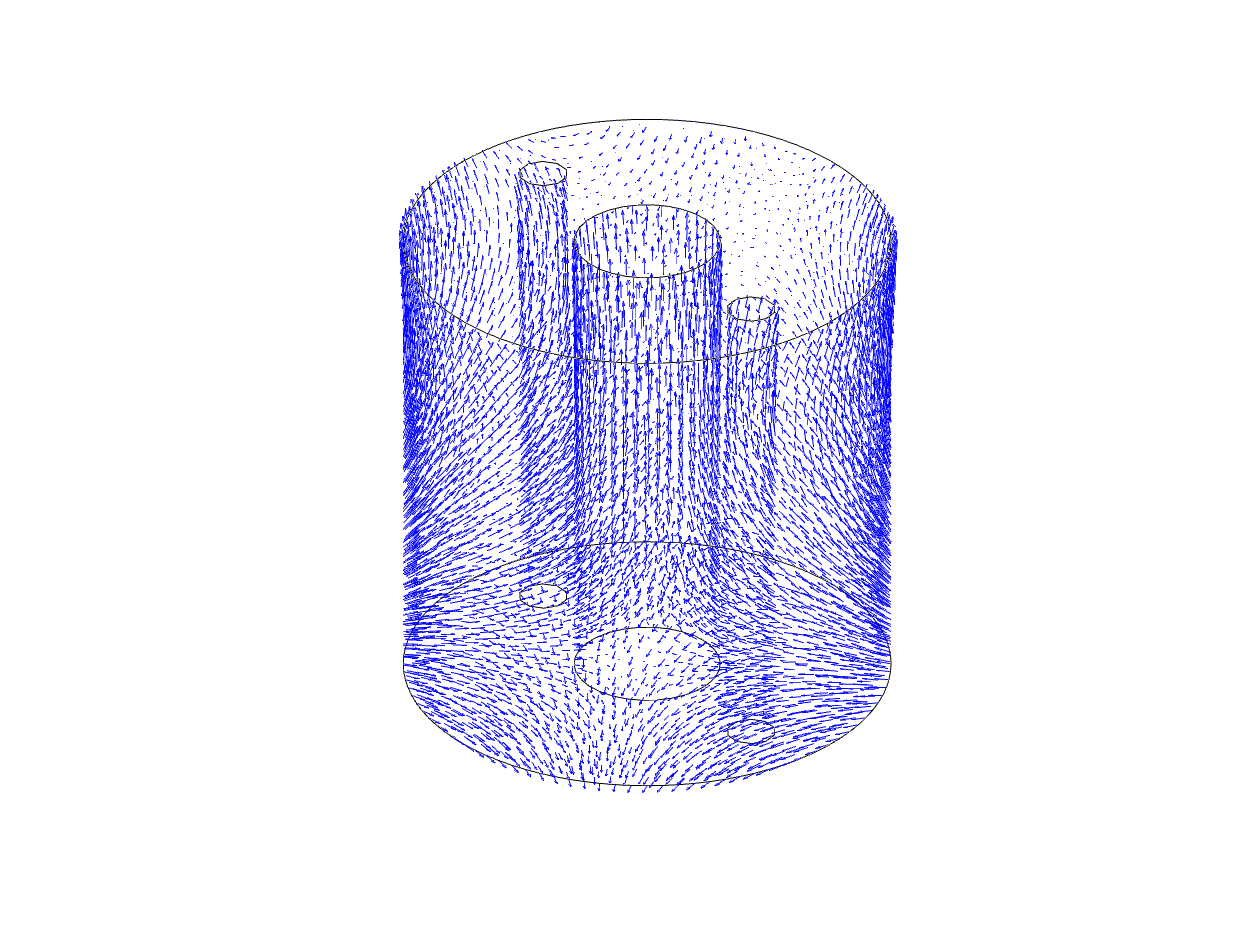

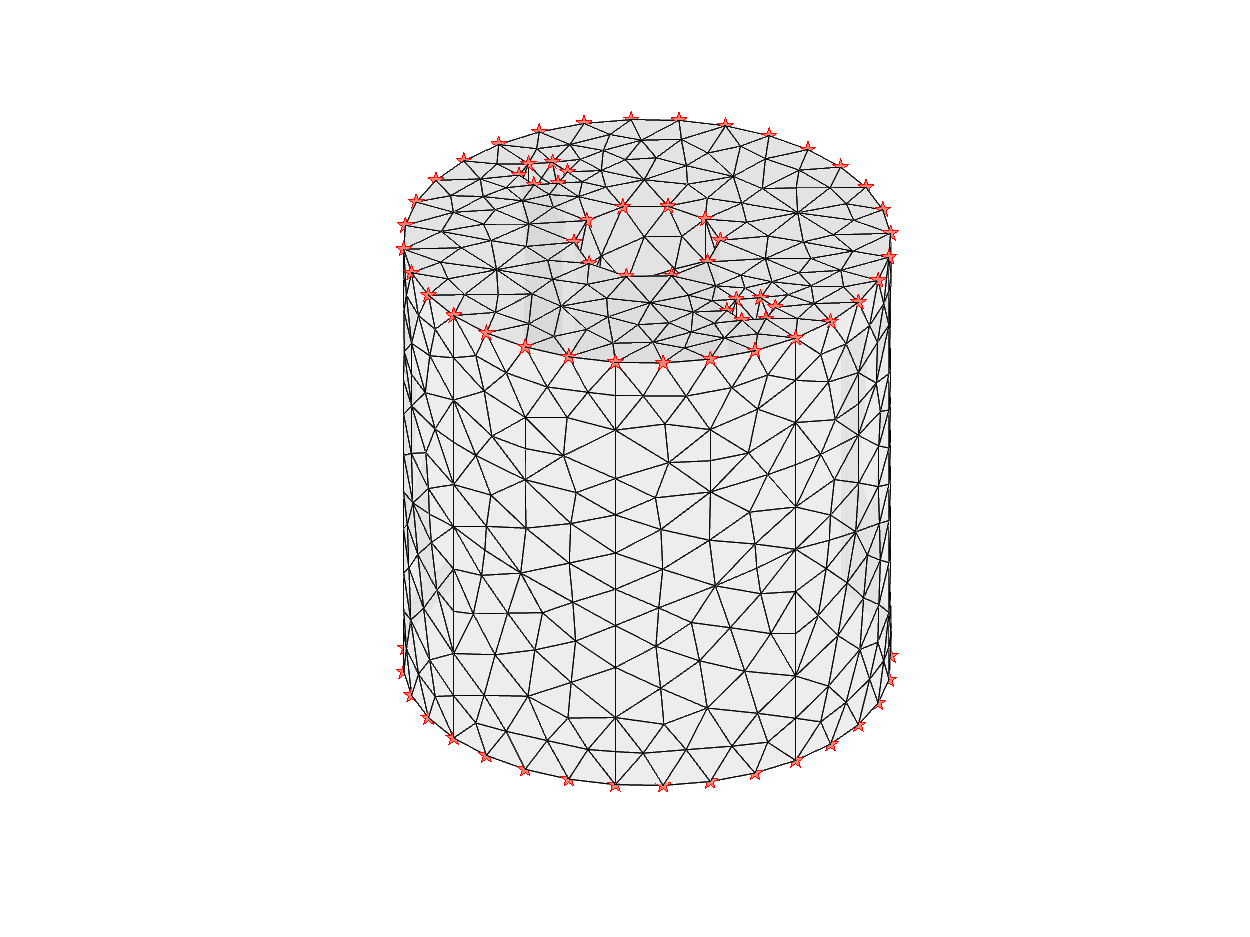

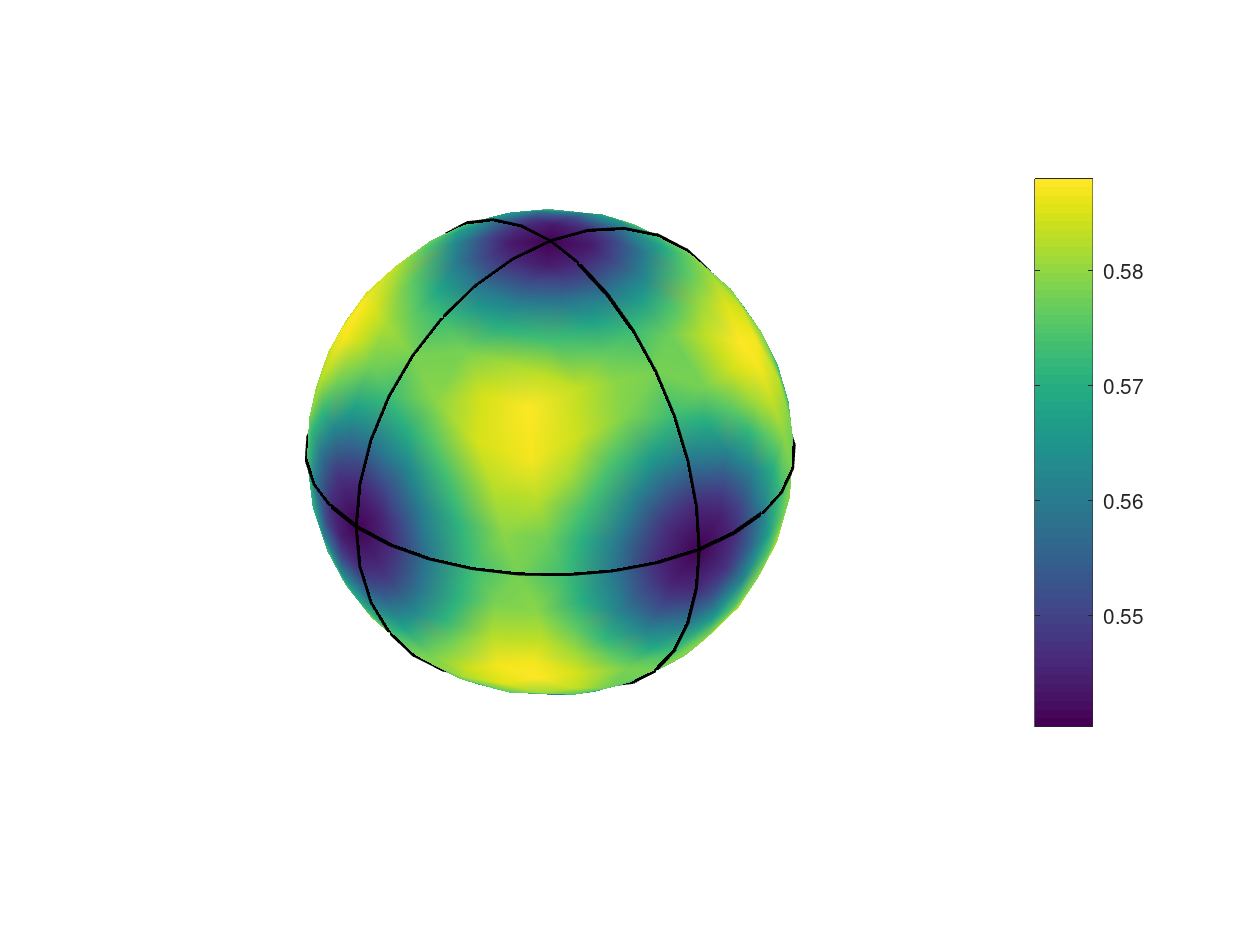

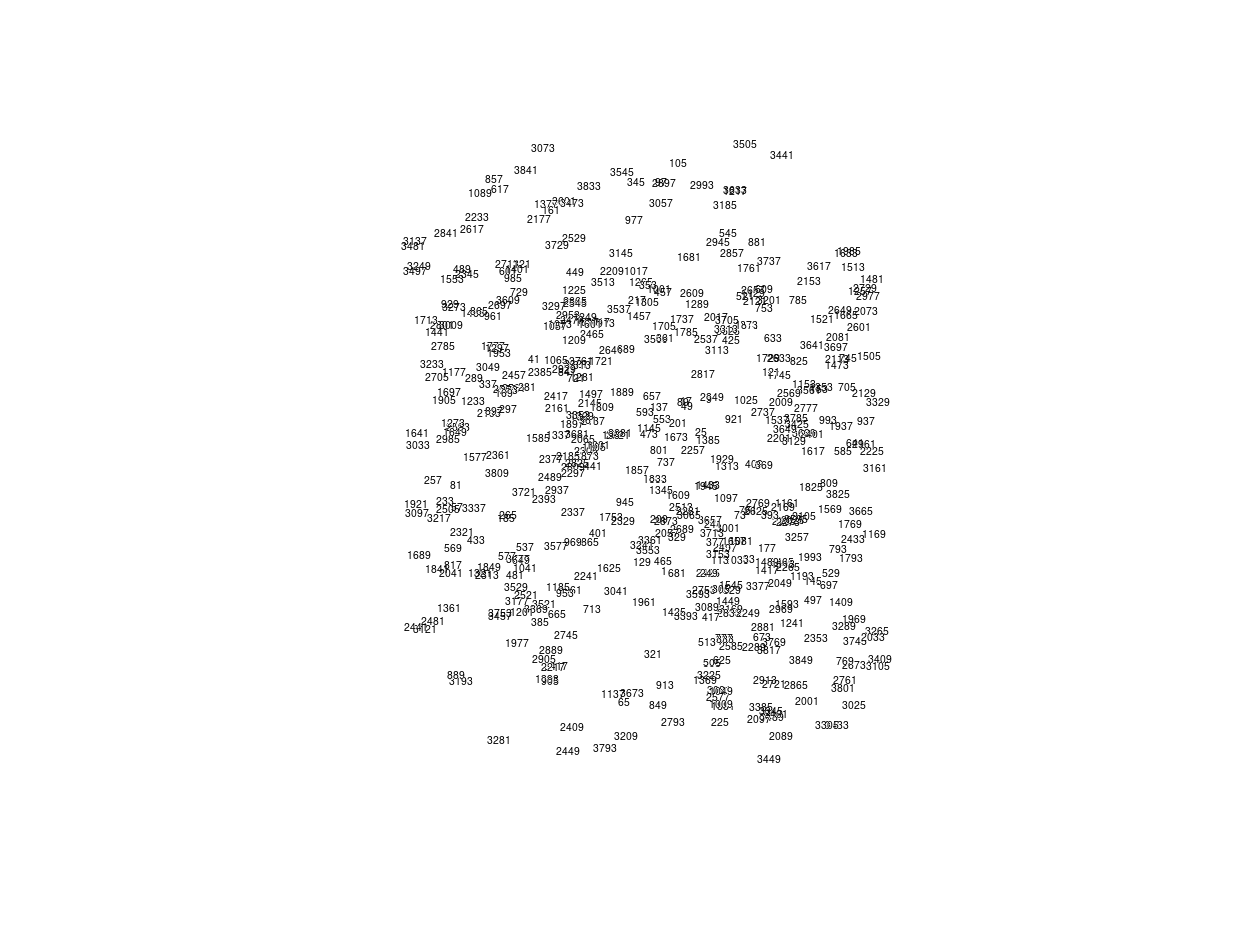

  Octave / Mesh / fc_graphics4mesh/ Snapshots

  Octave / Mesh / fc_graphics4mesh/ demos

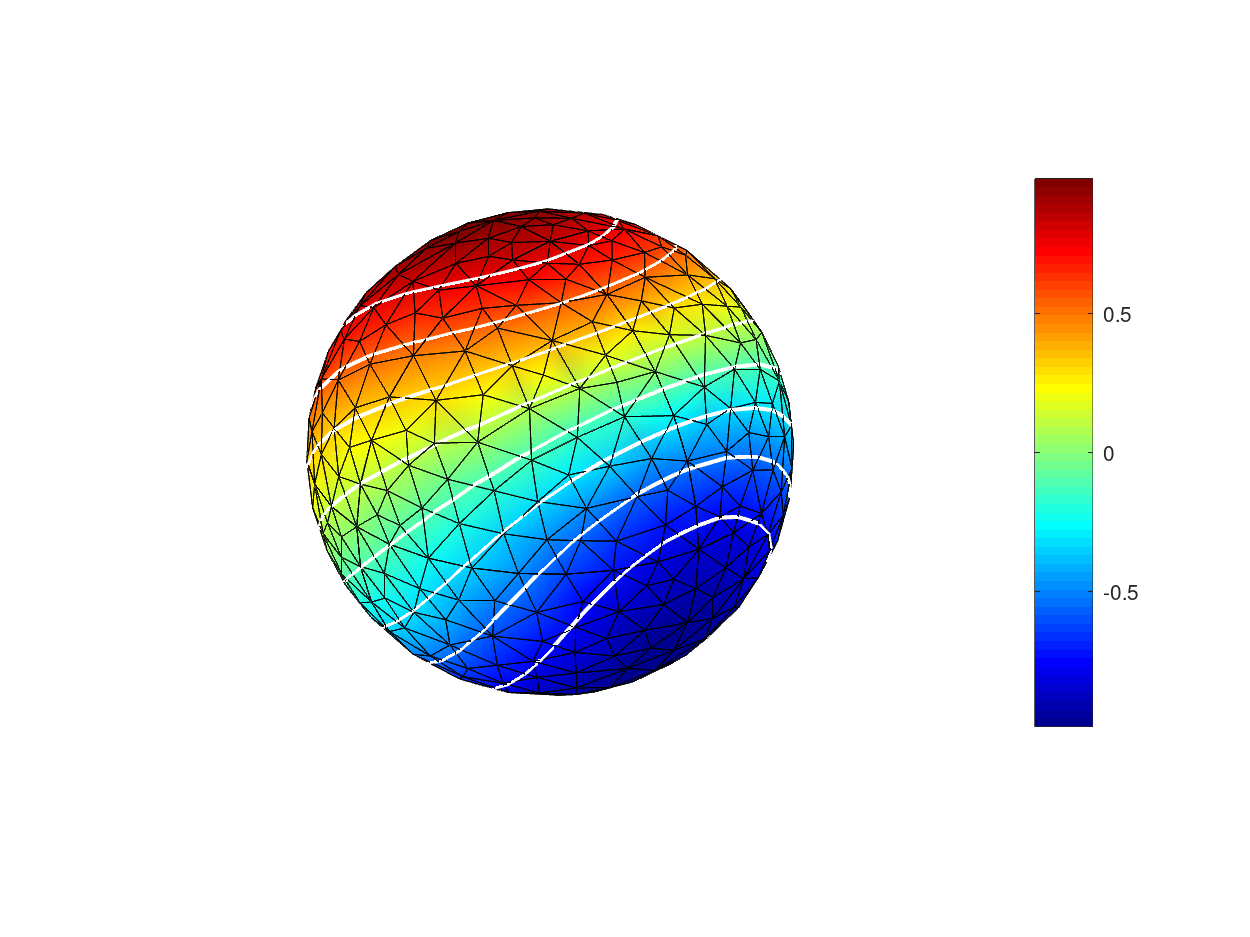

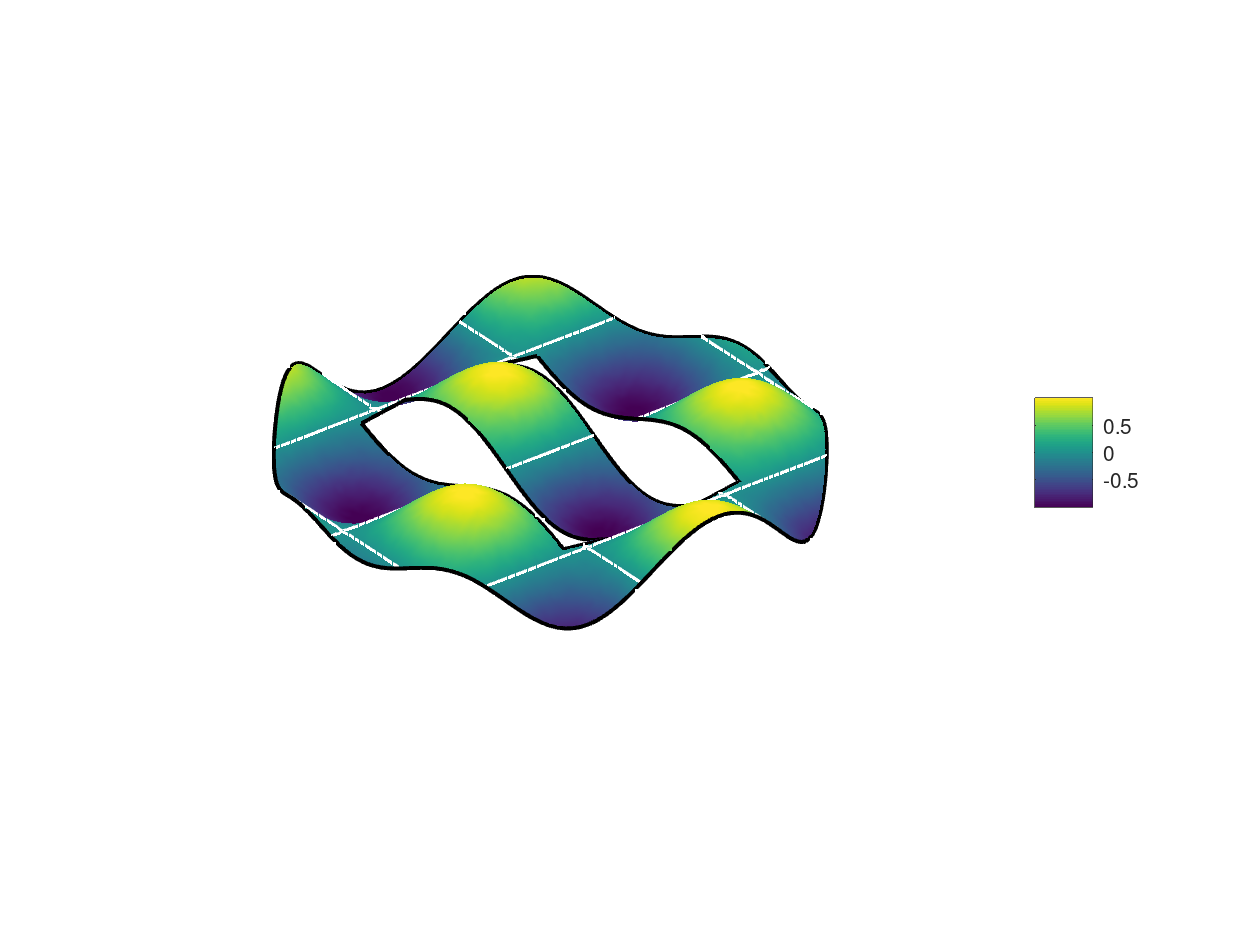

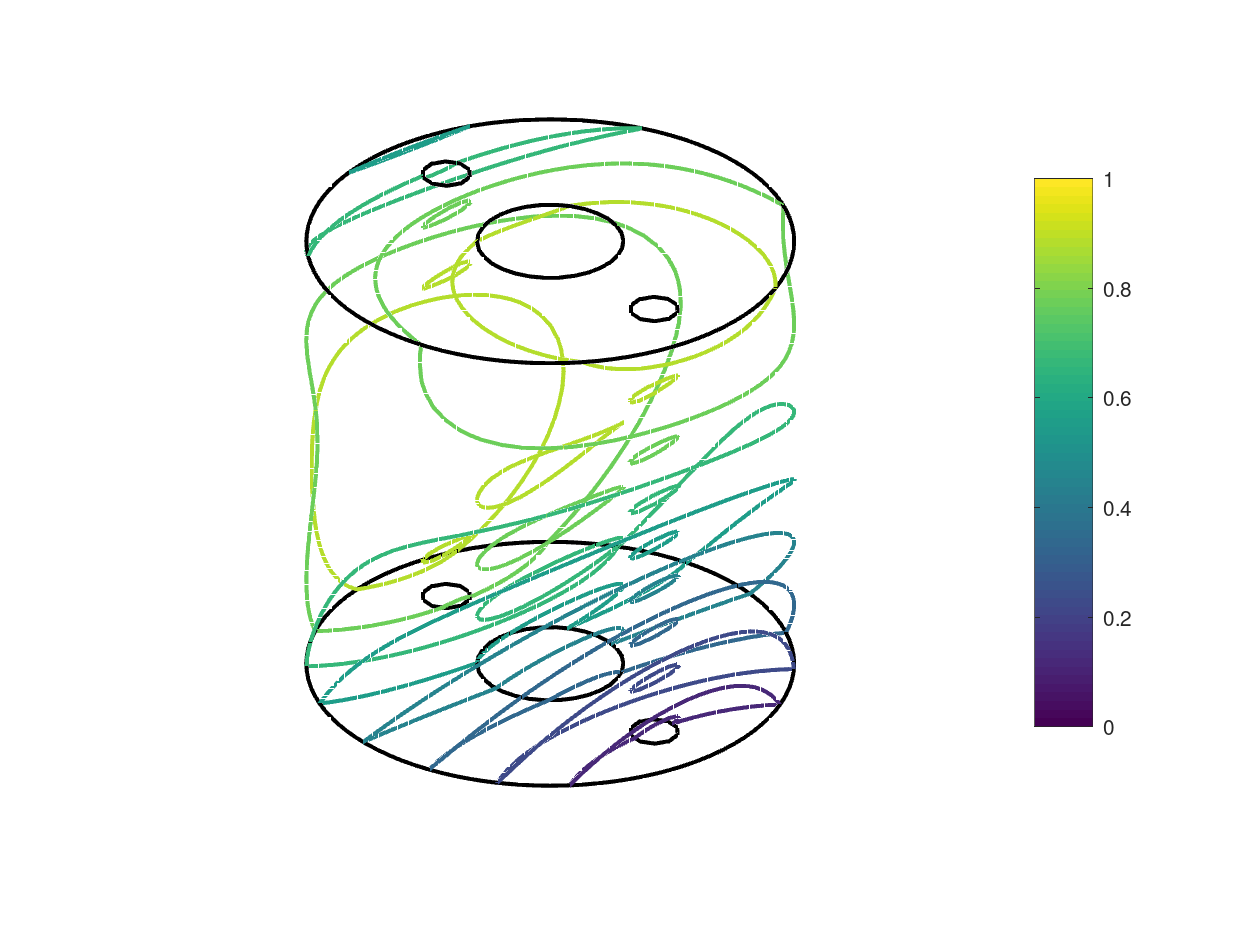

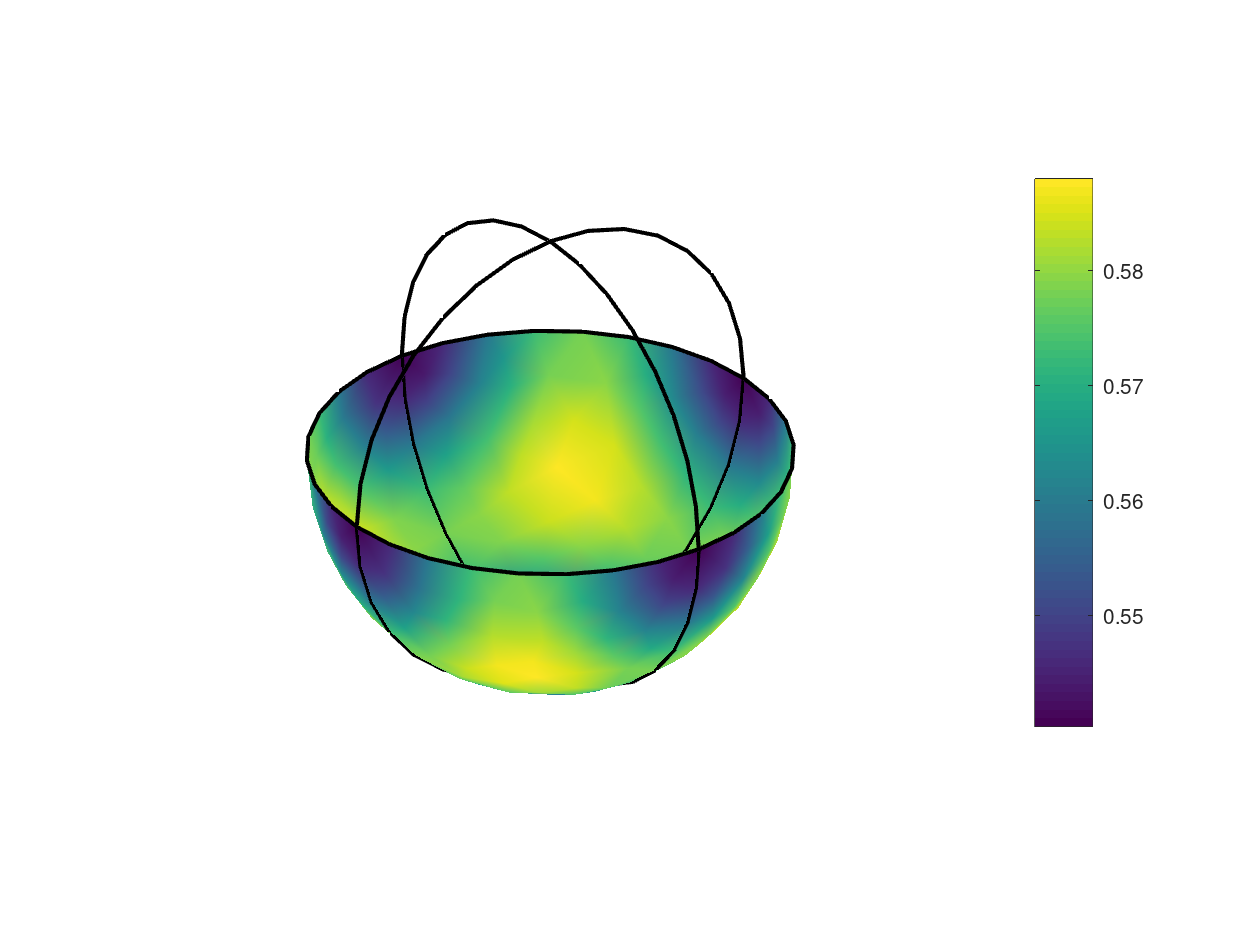

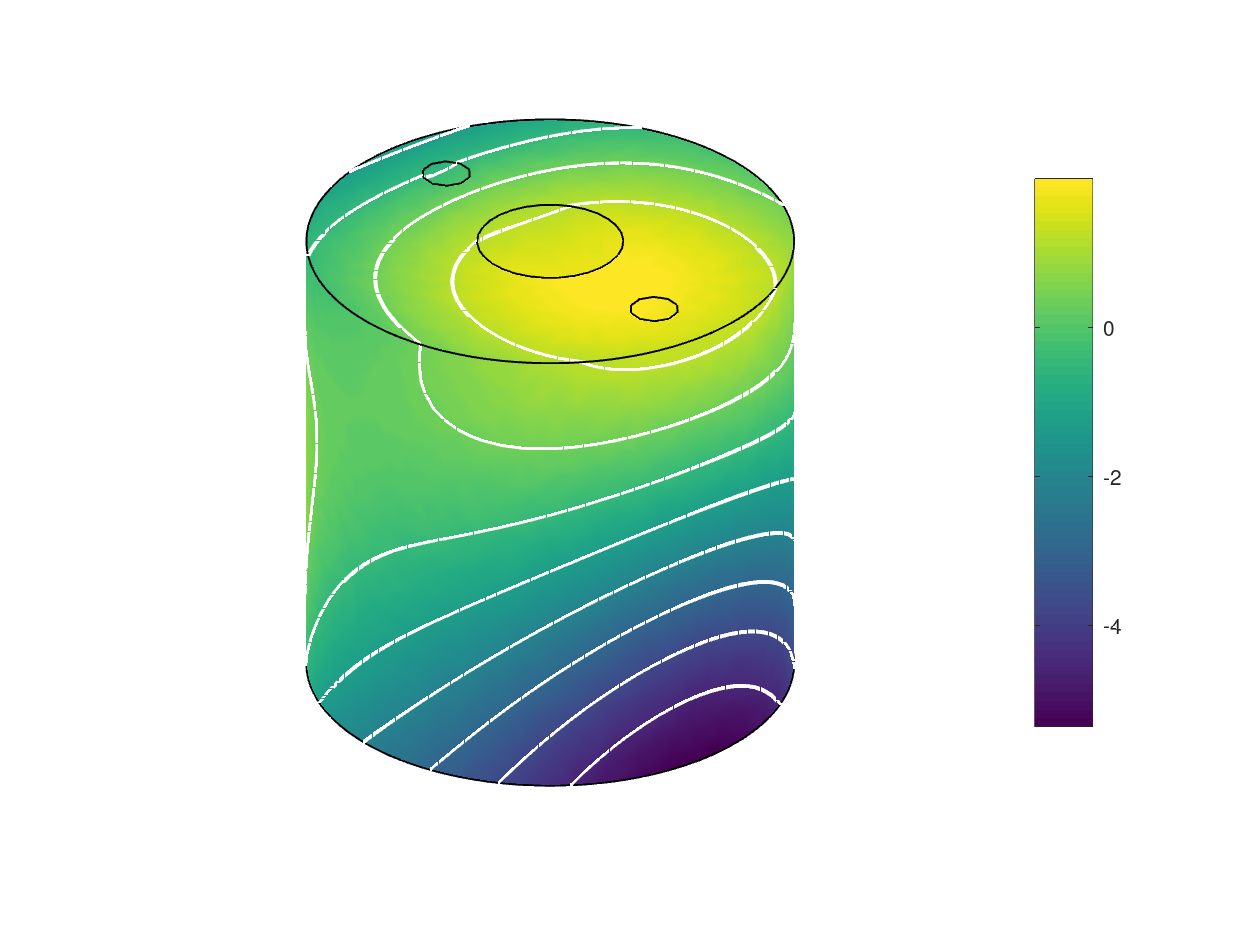

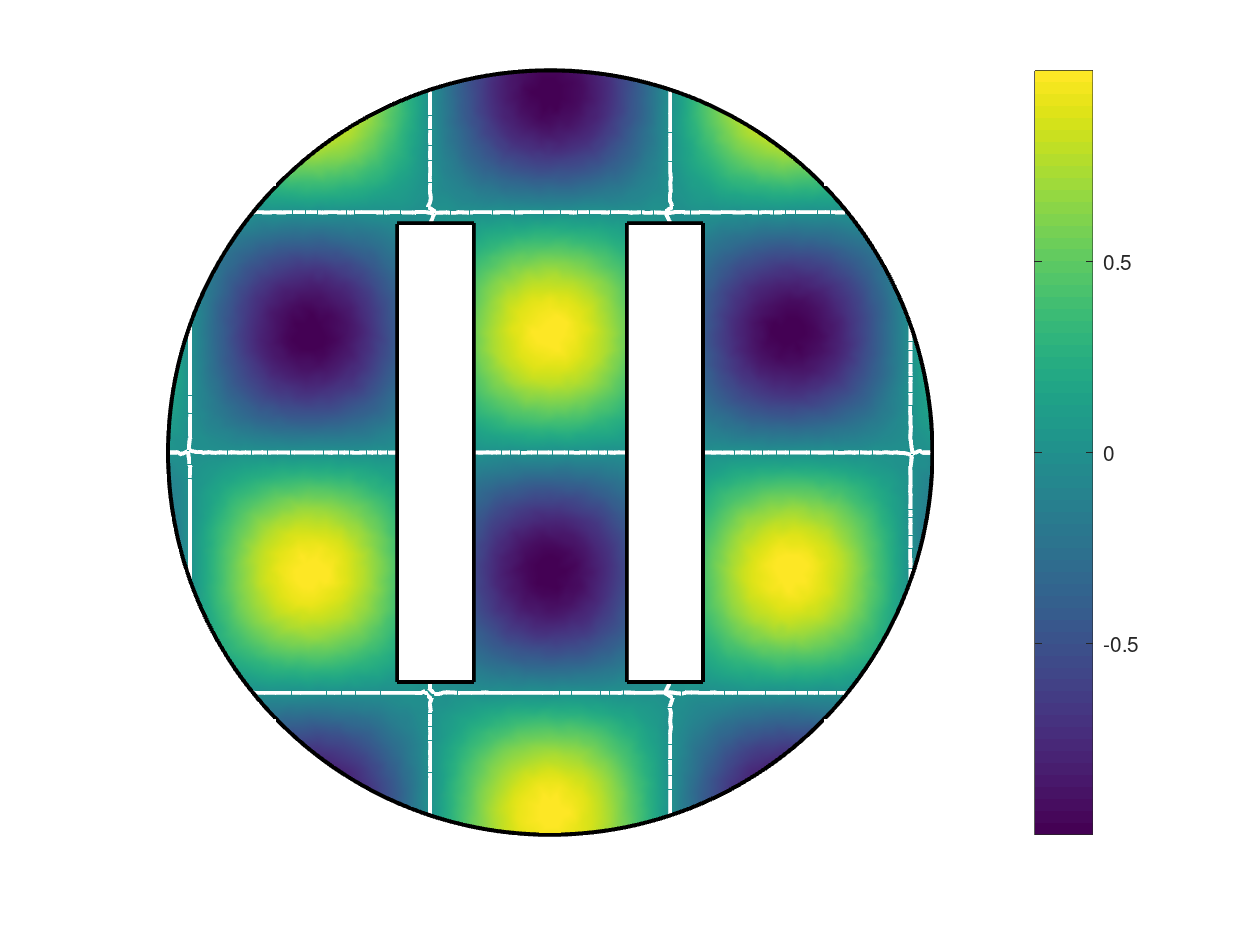

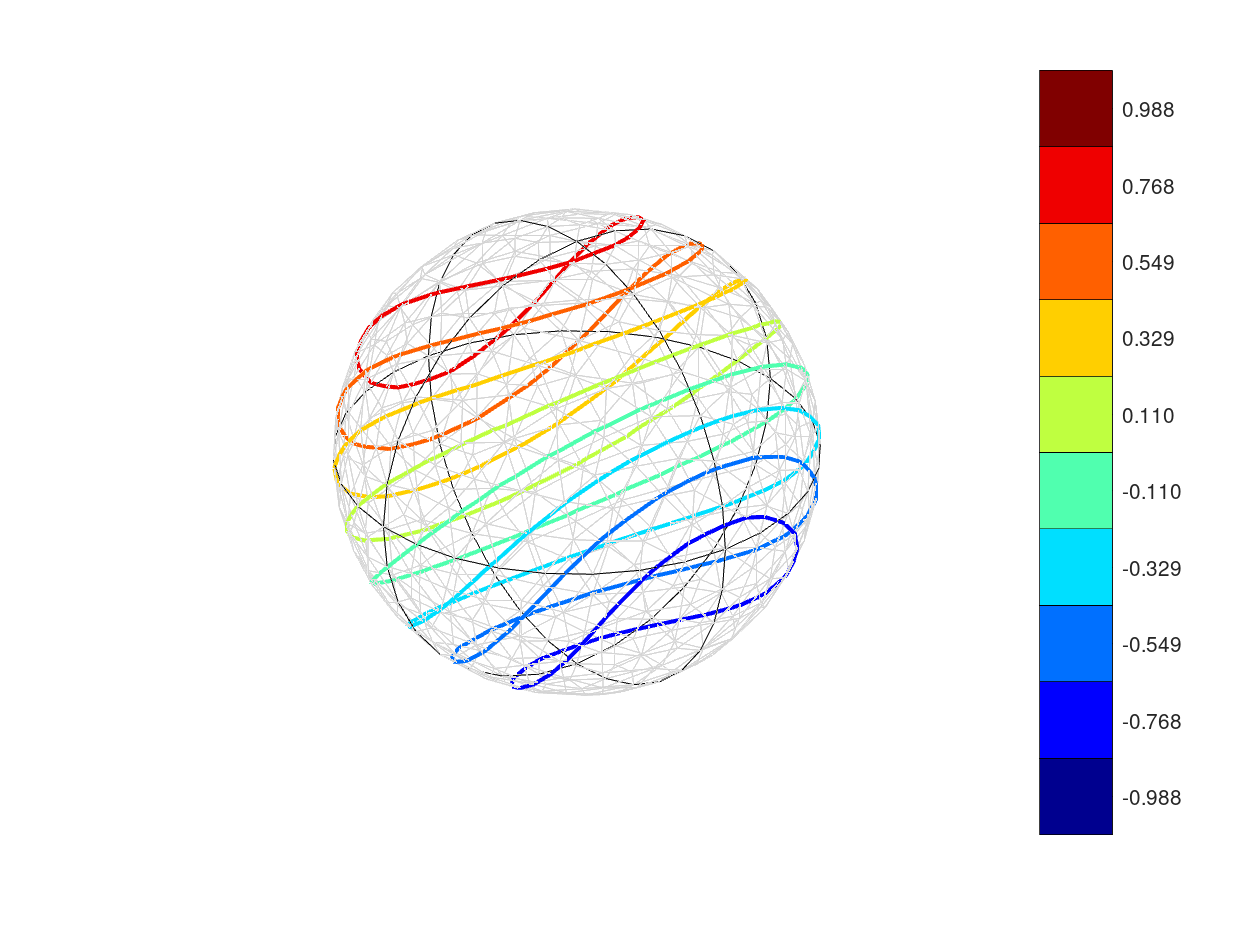

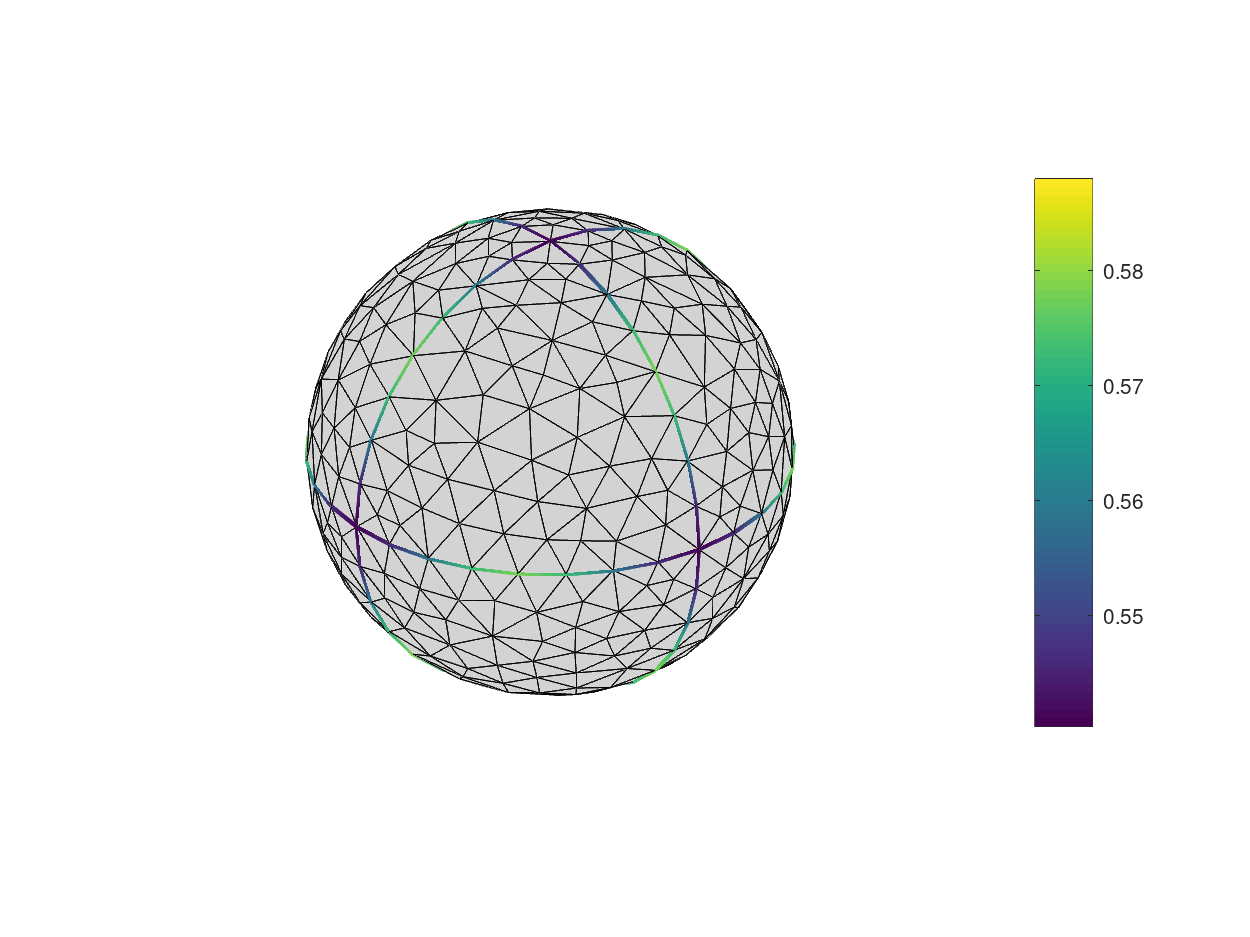

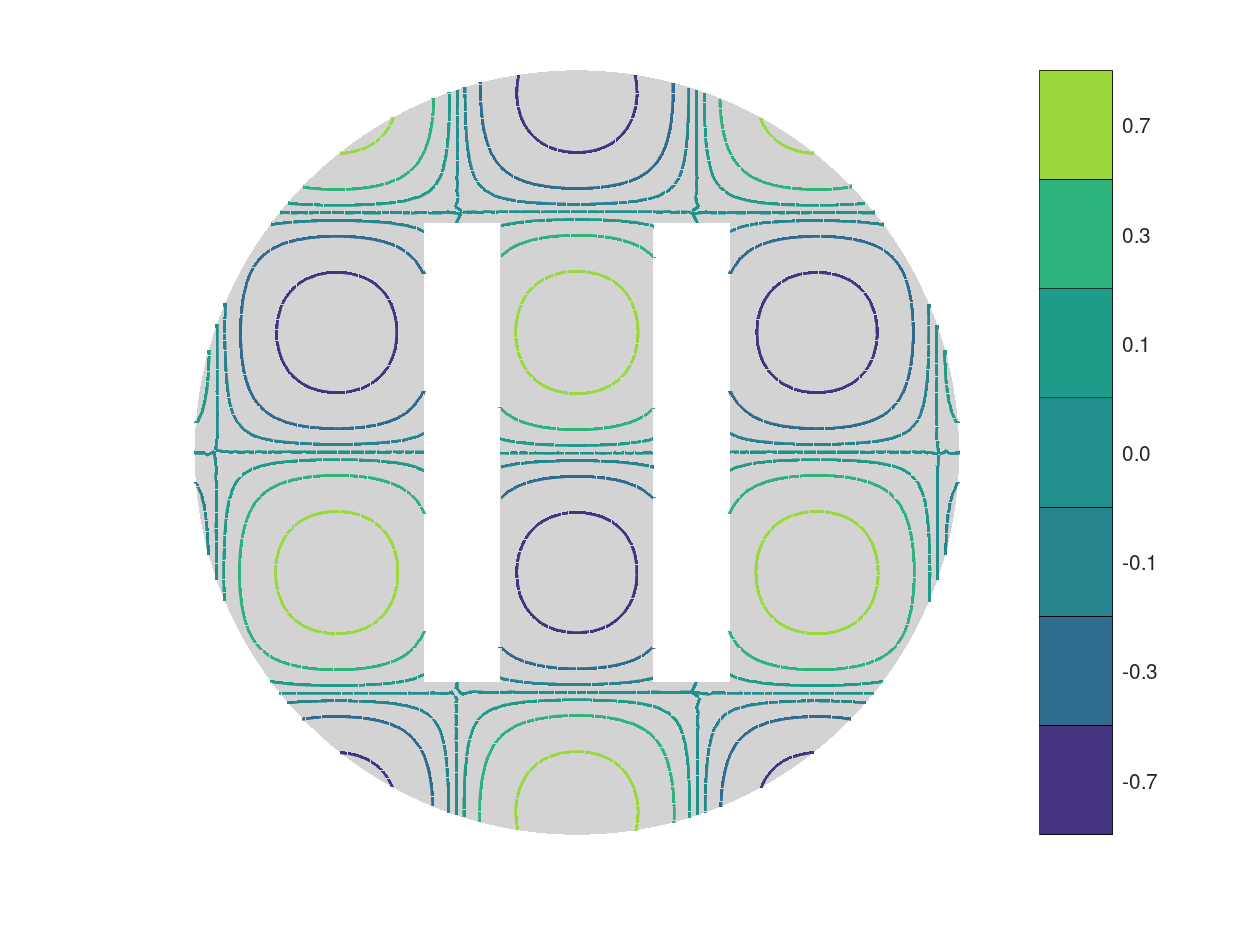

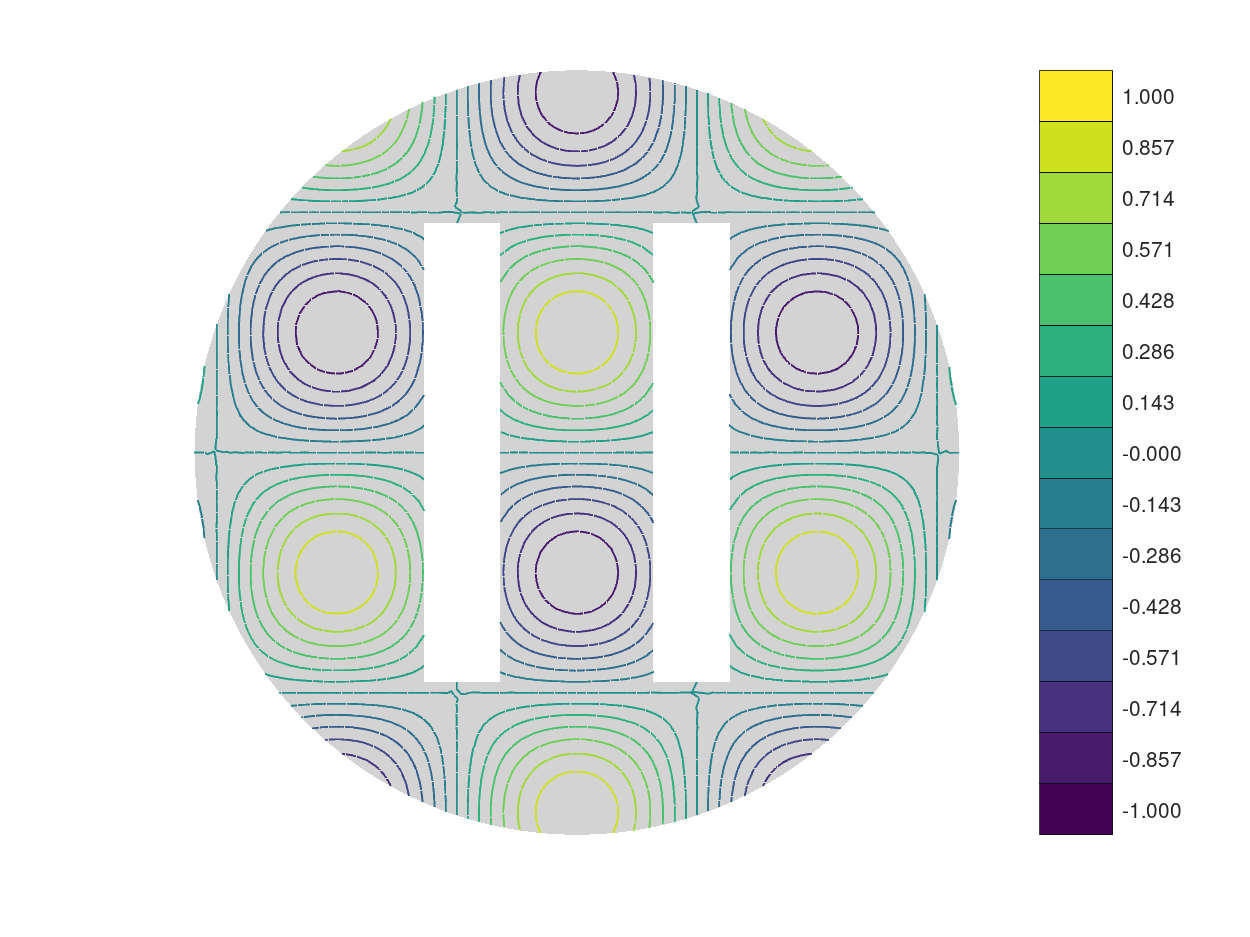

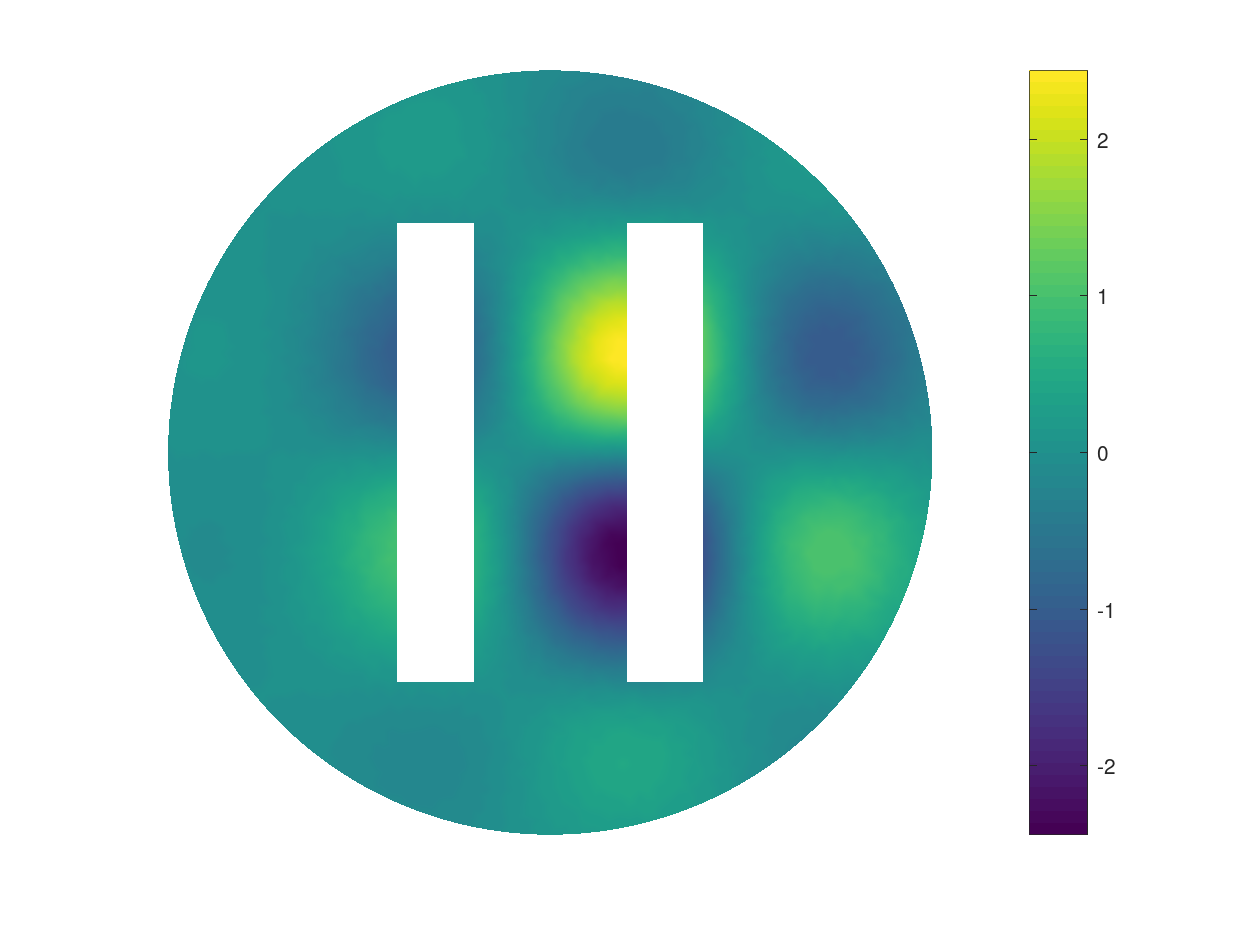

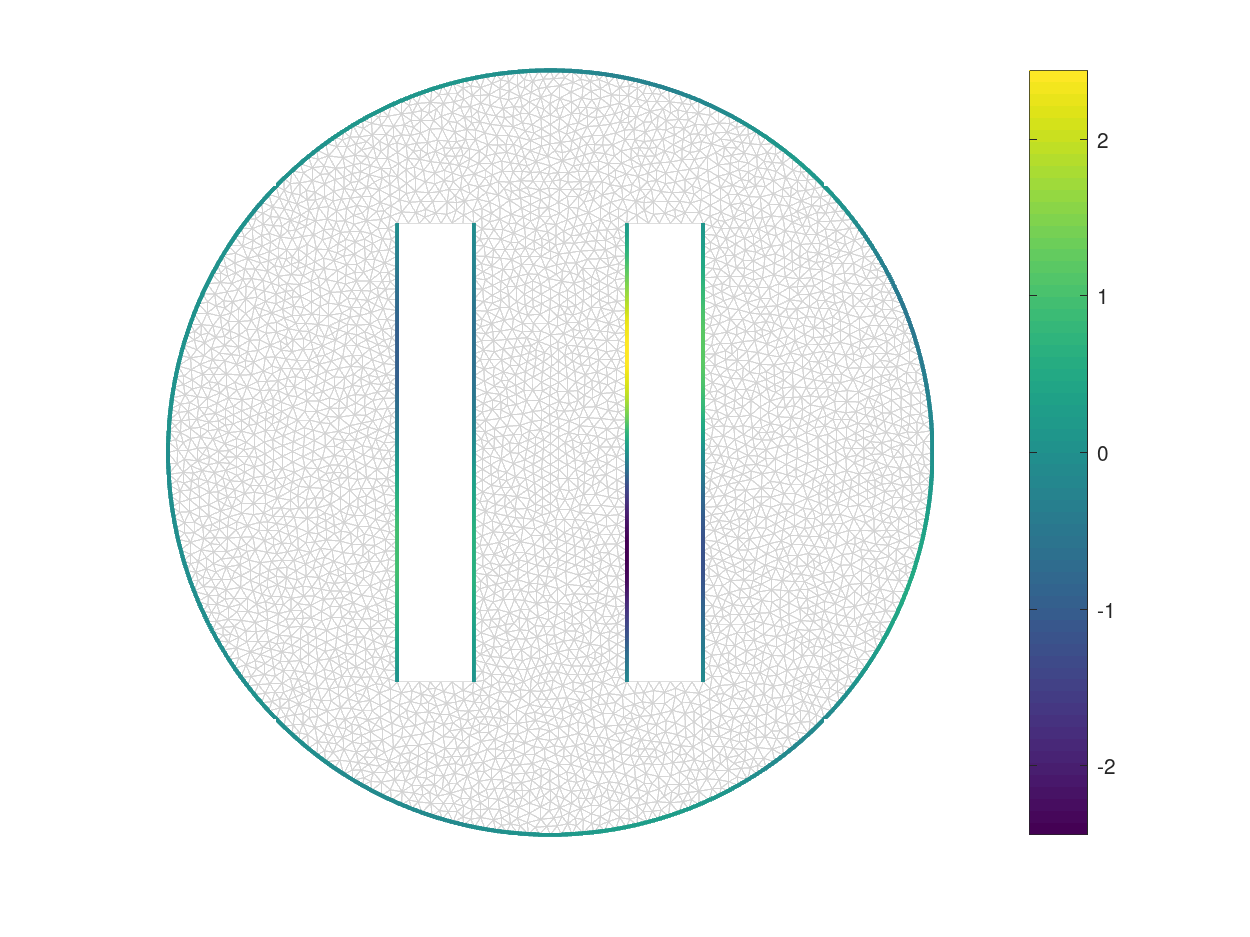

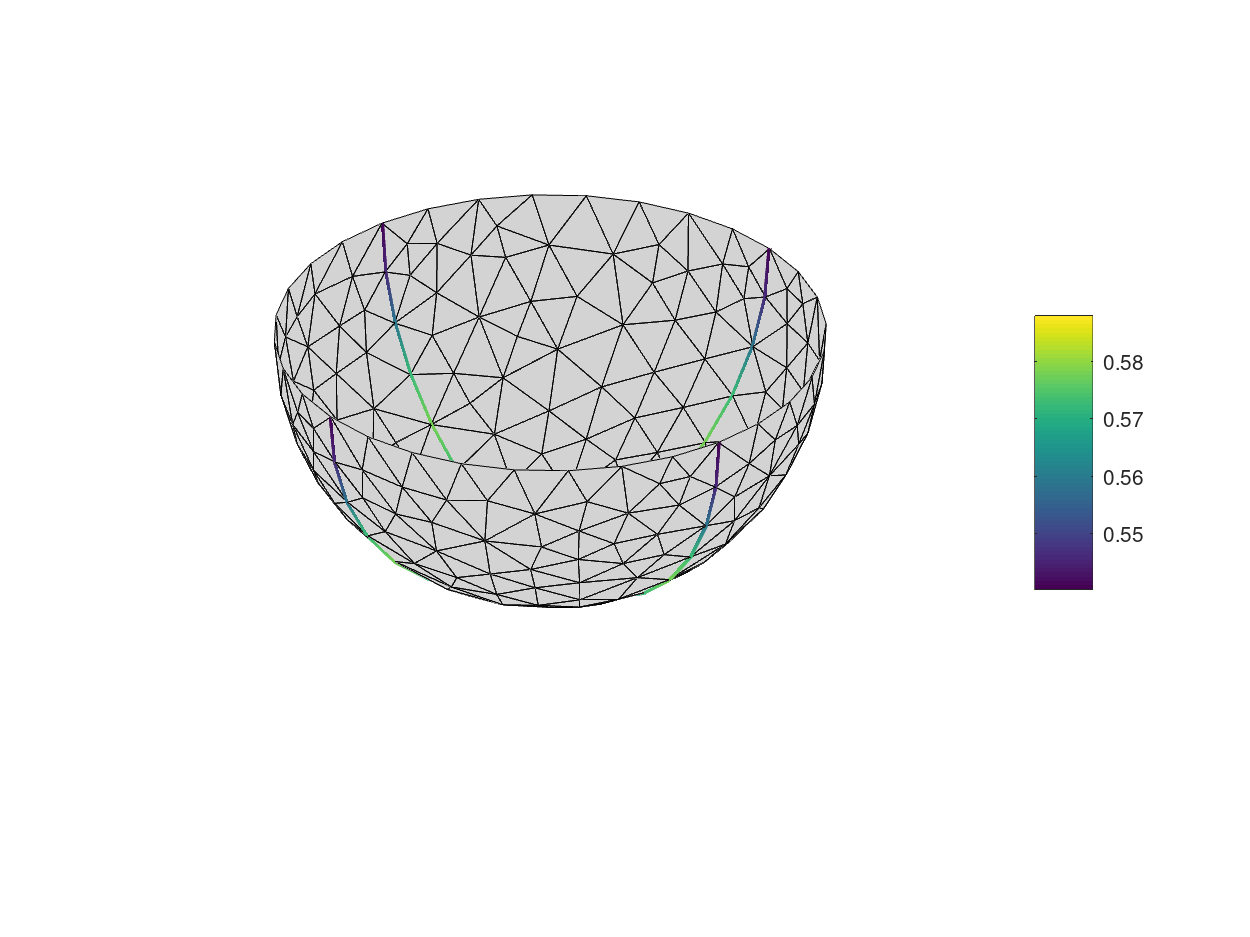

plot2D	plot3D	plot3Ds	plotiso2D	plotiso3D	plotiso3Ds

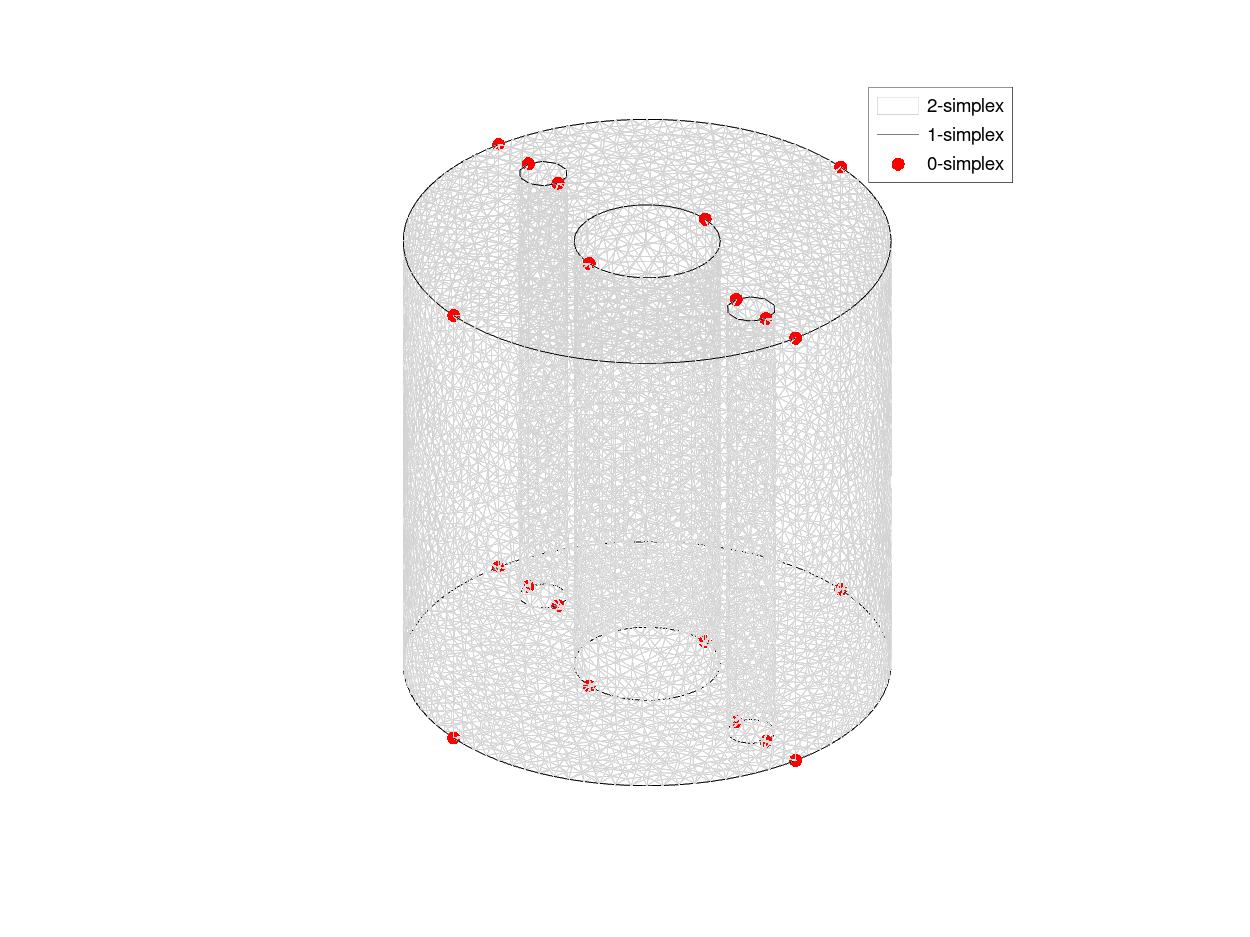

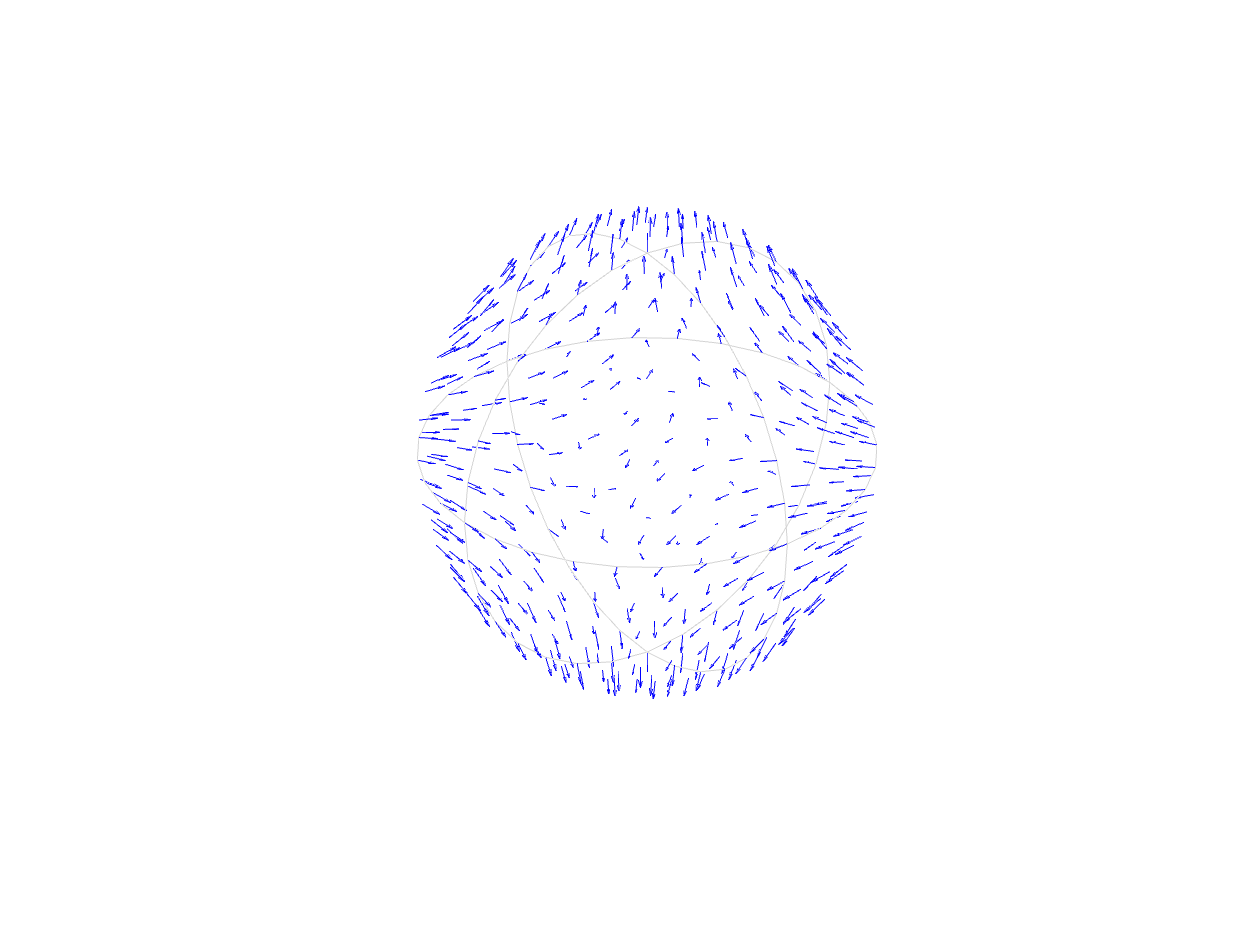

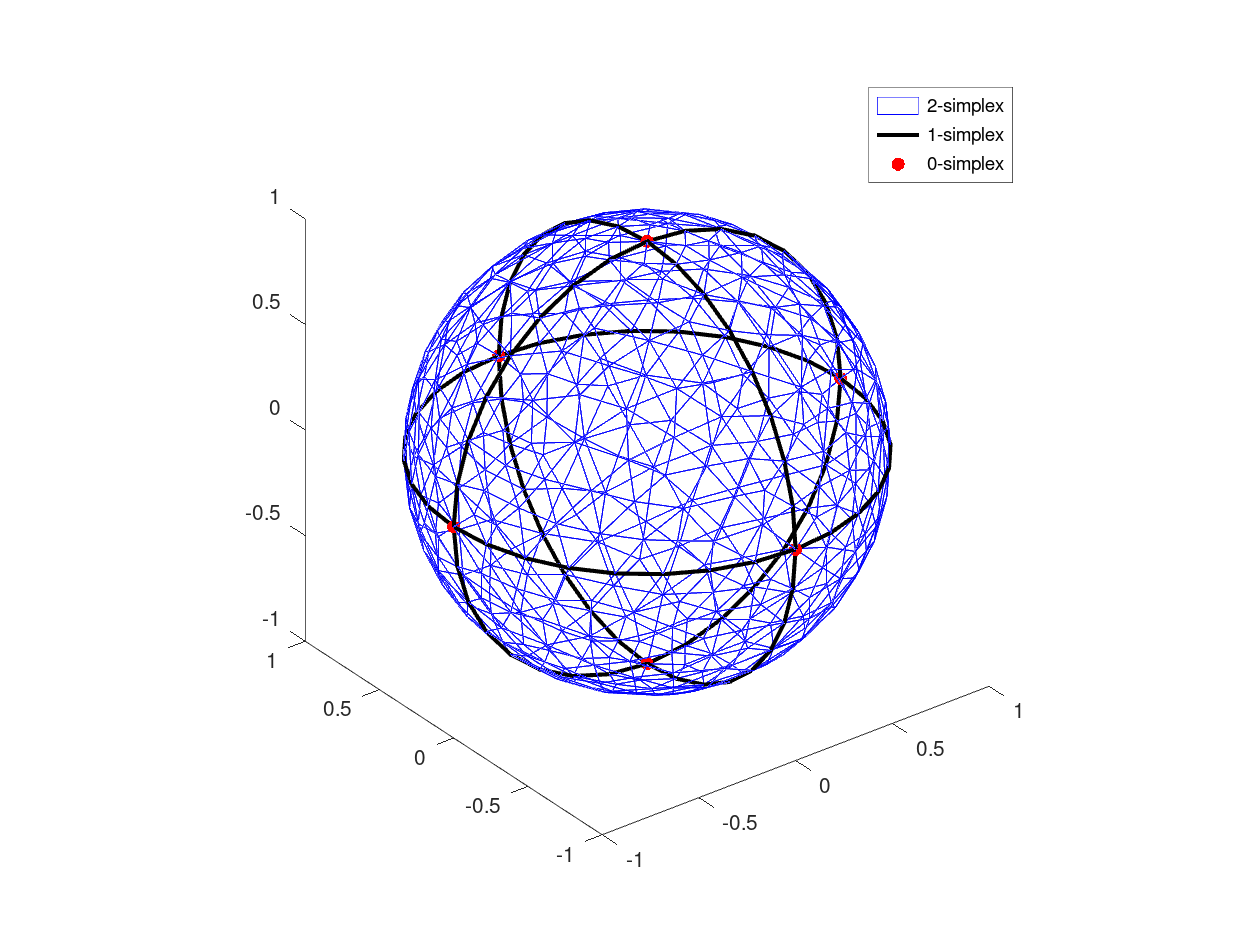

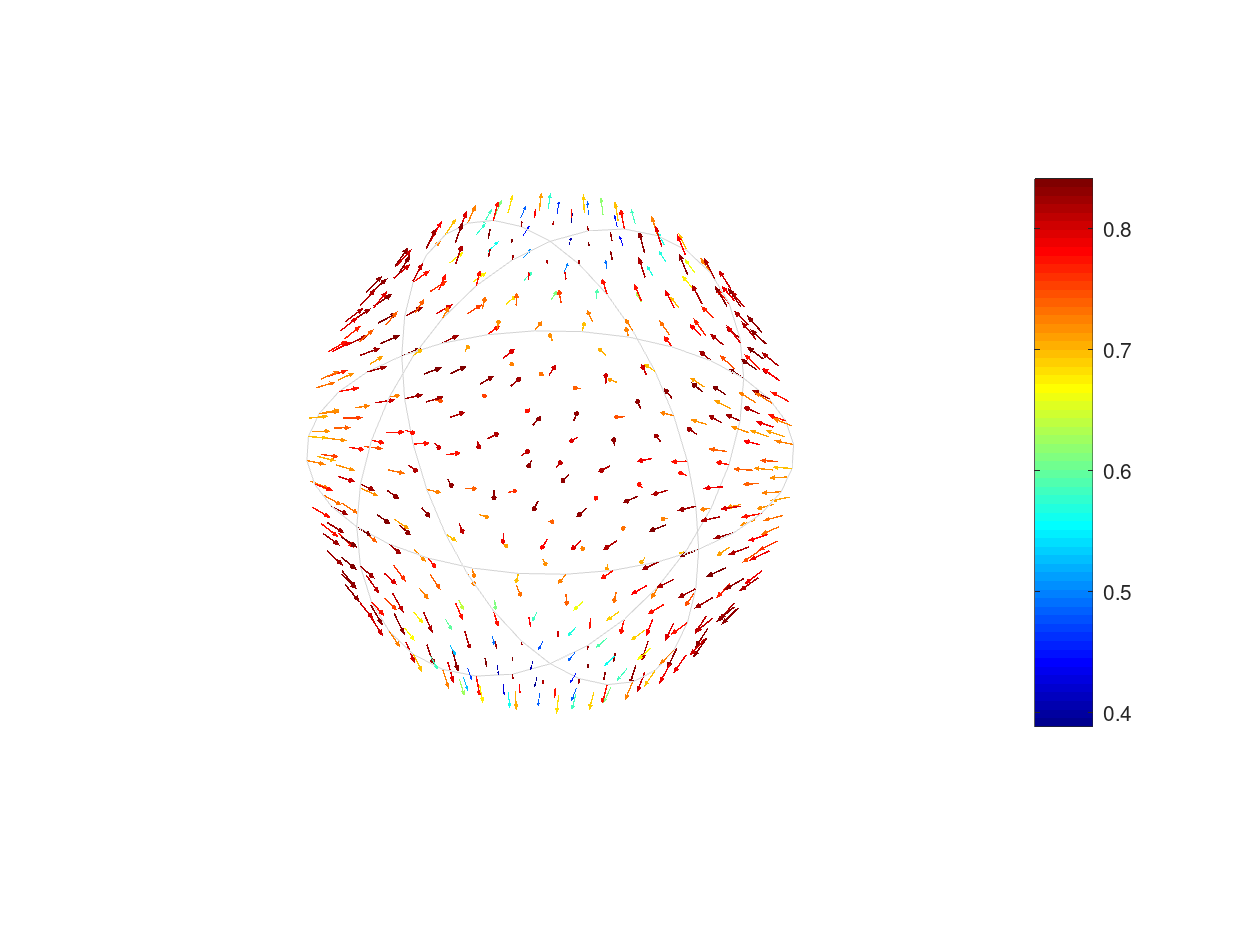

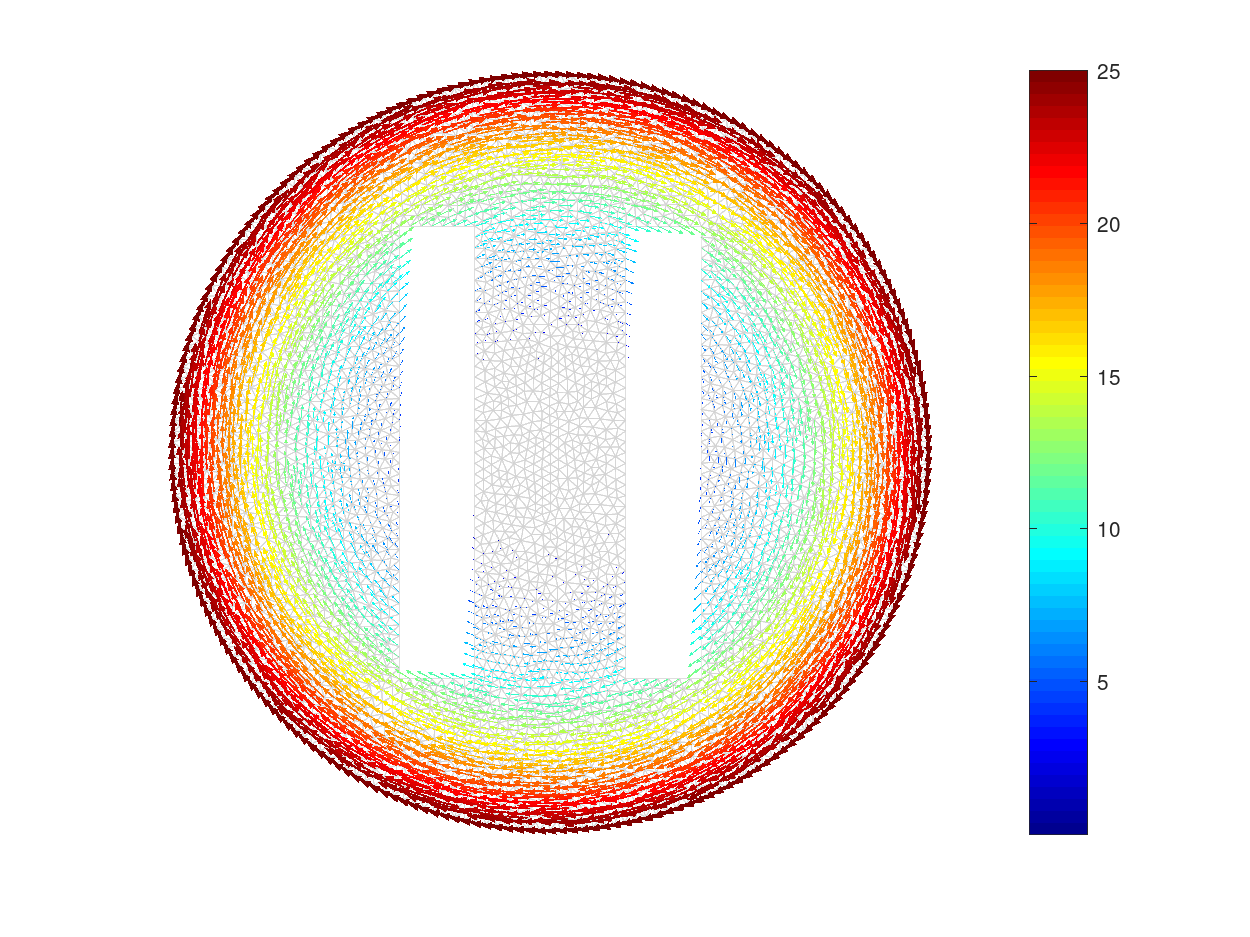

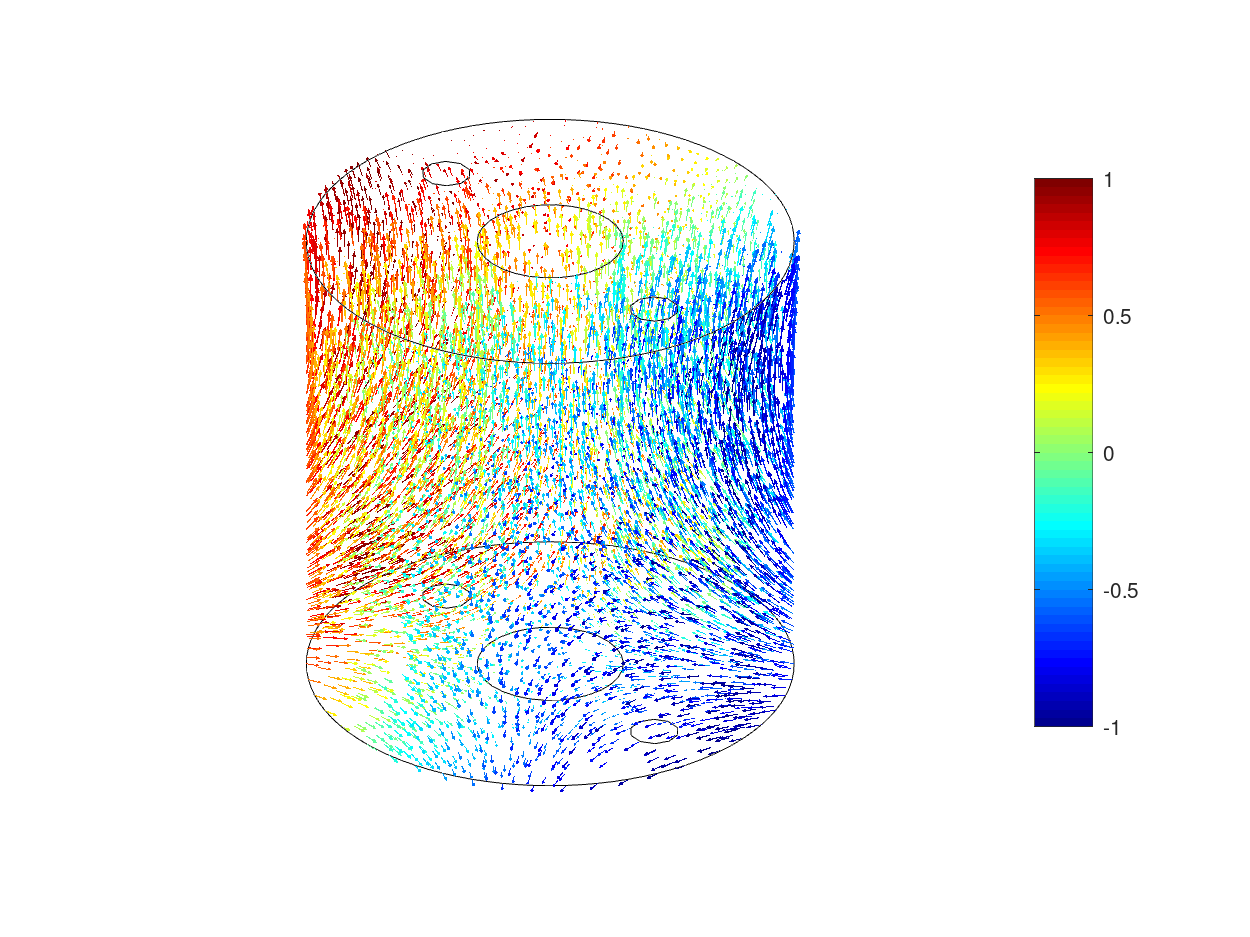

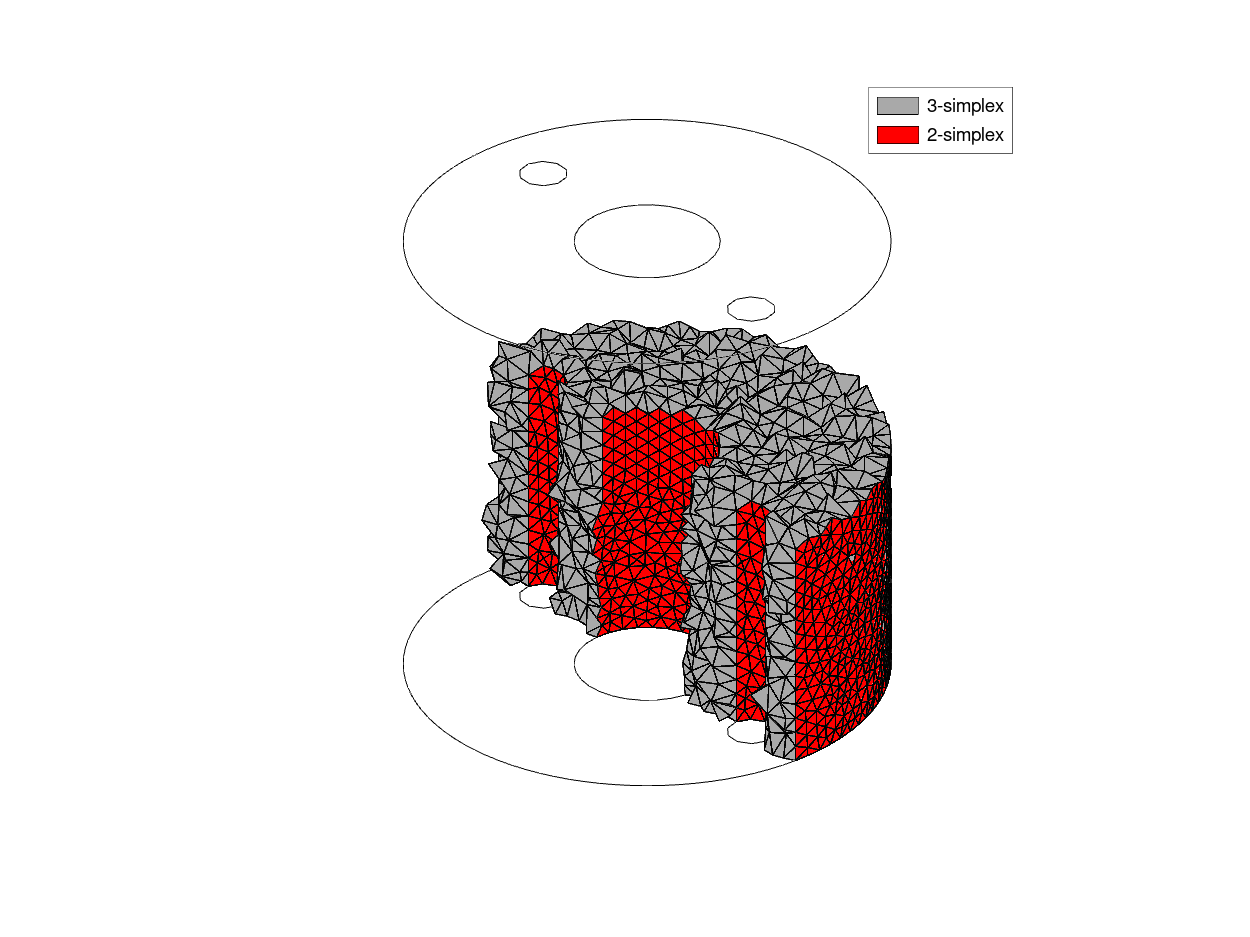

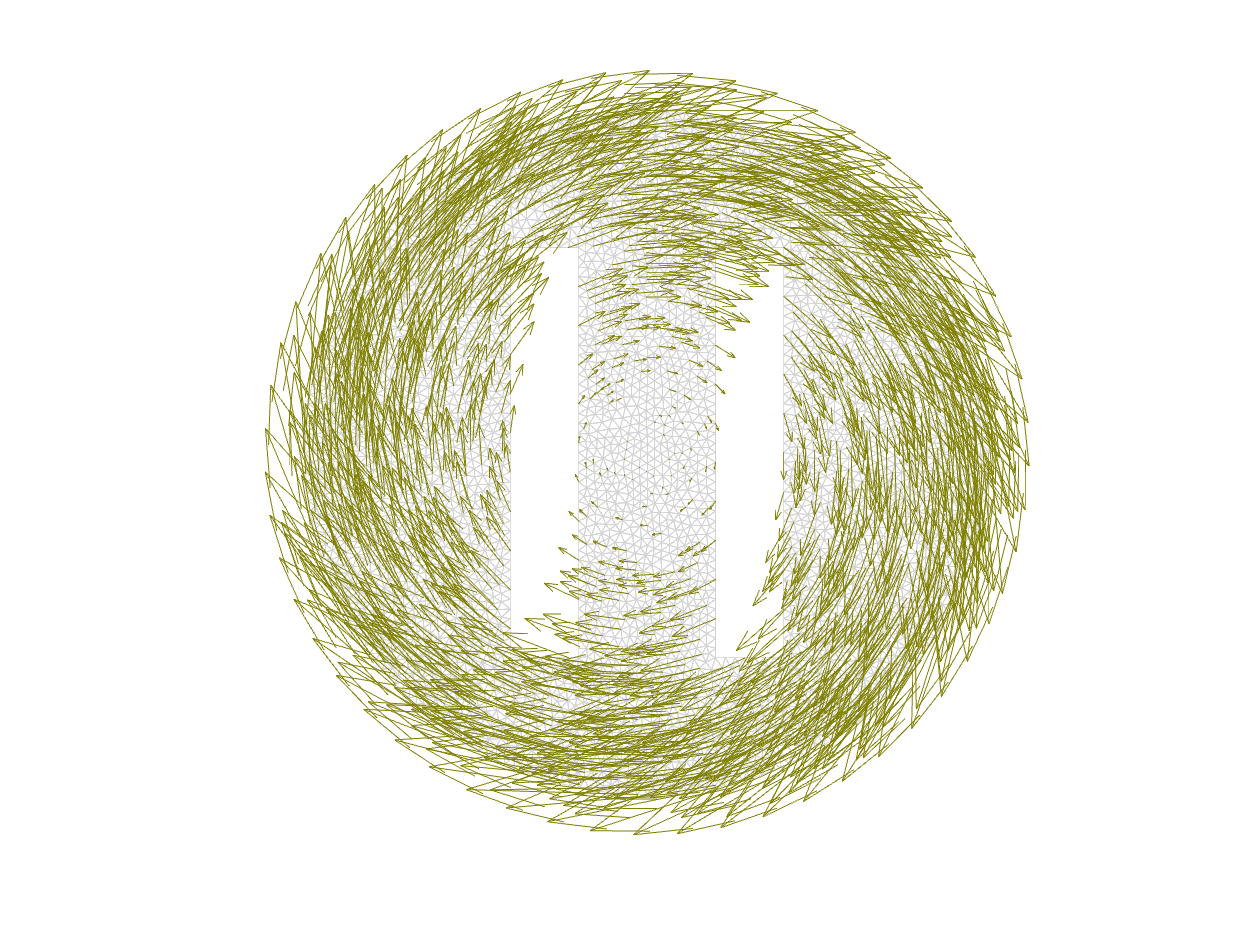

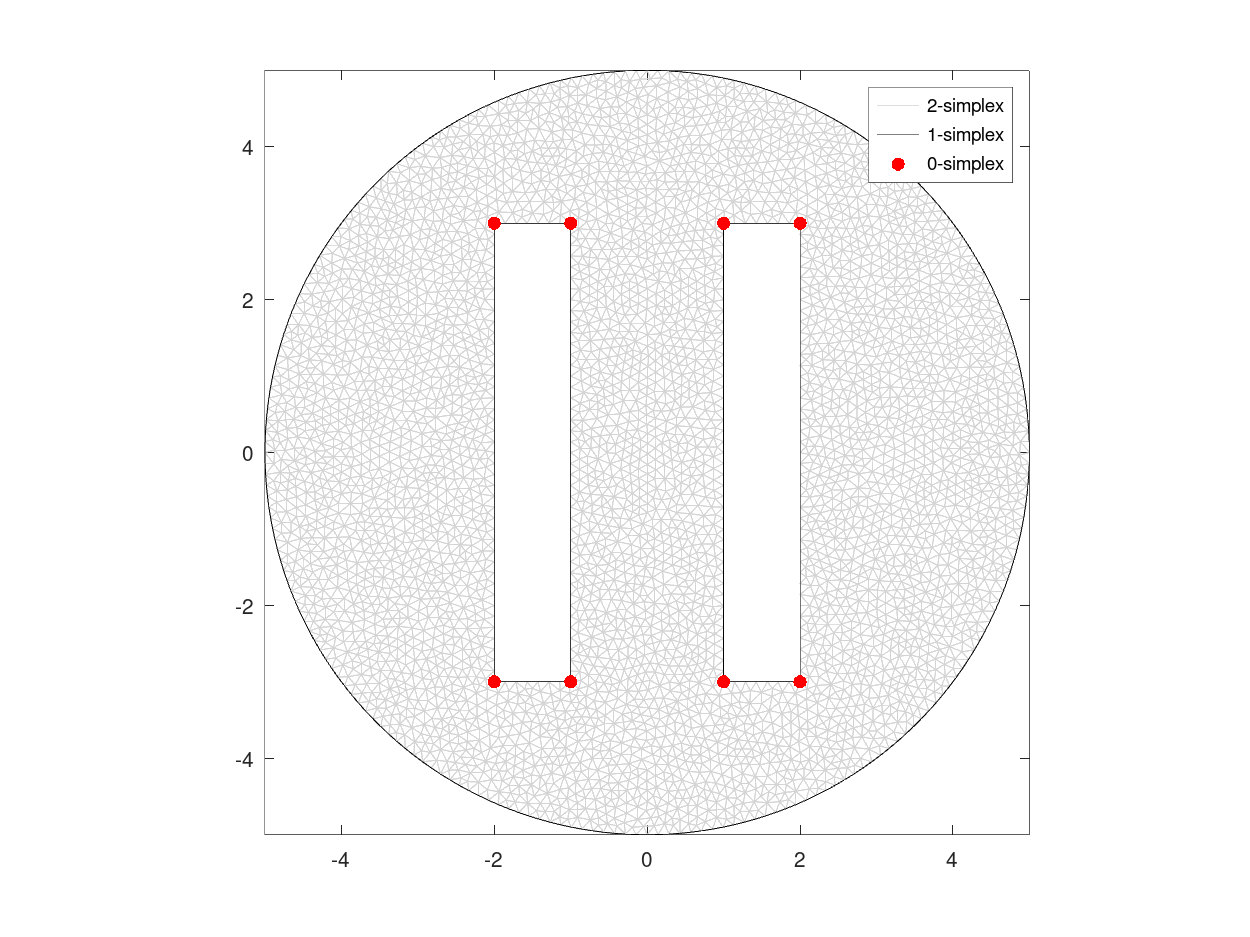

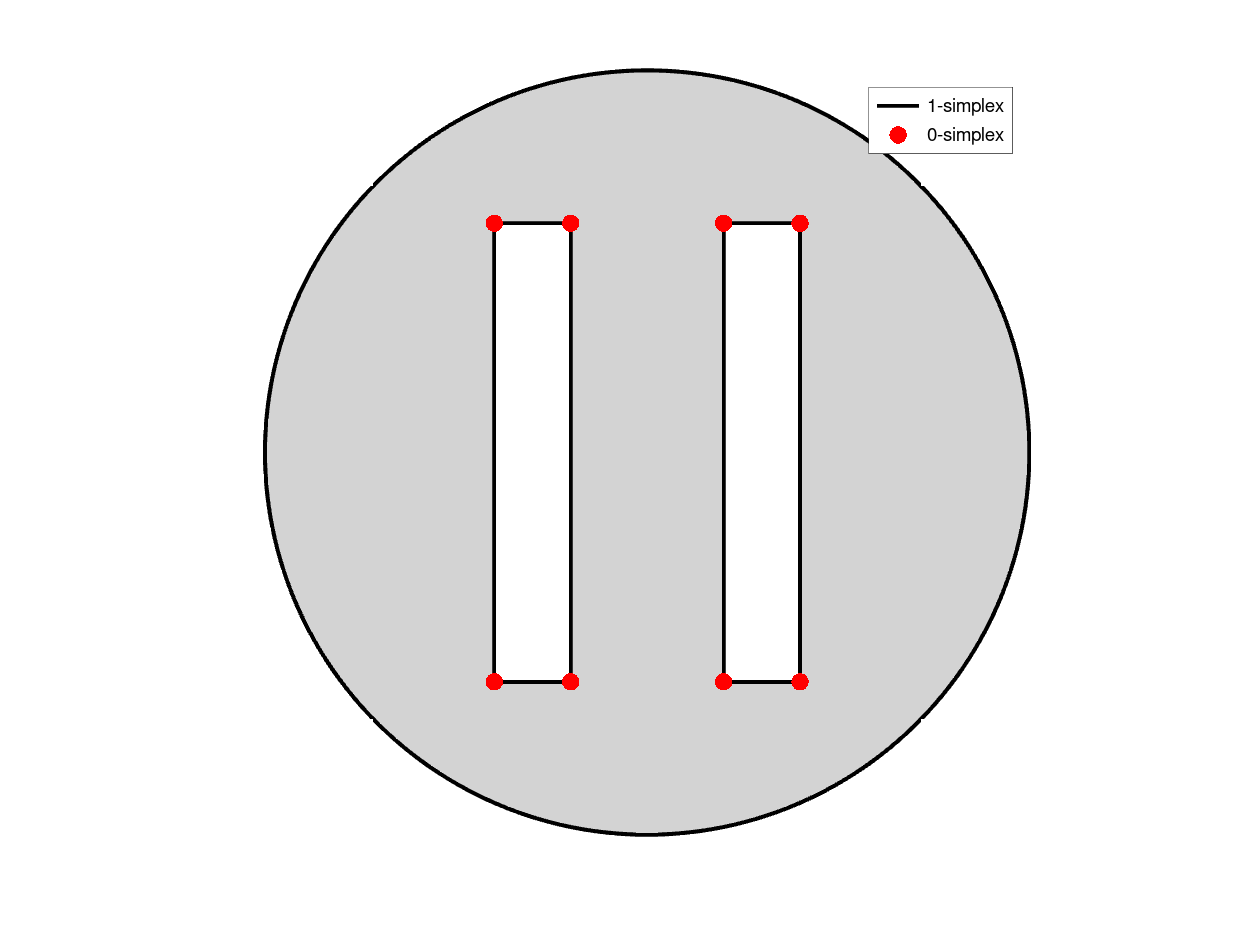

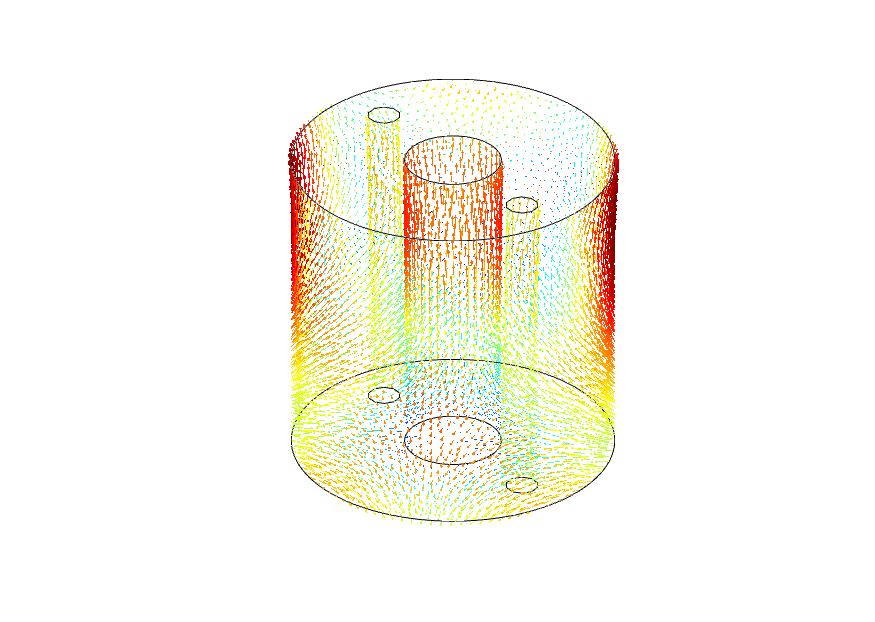

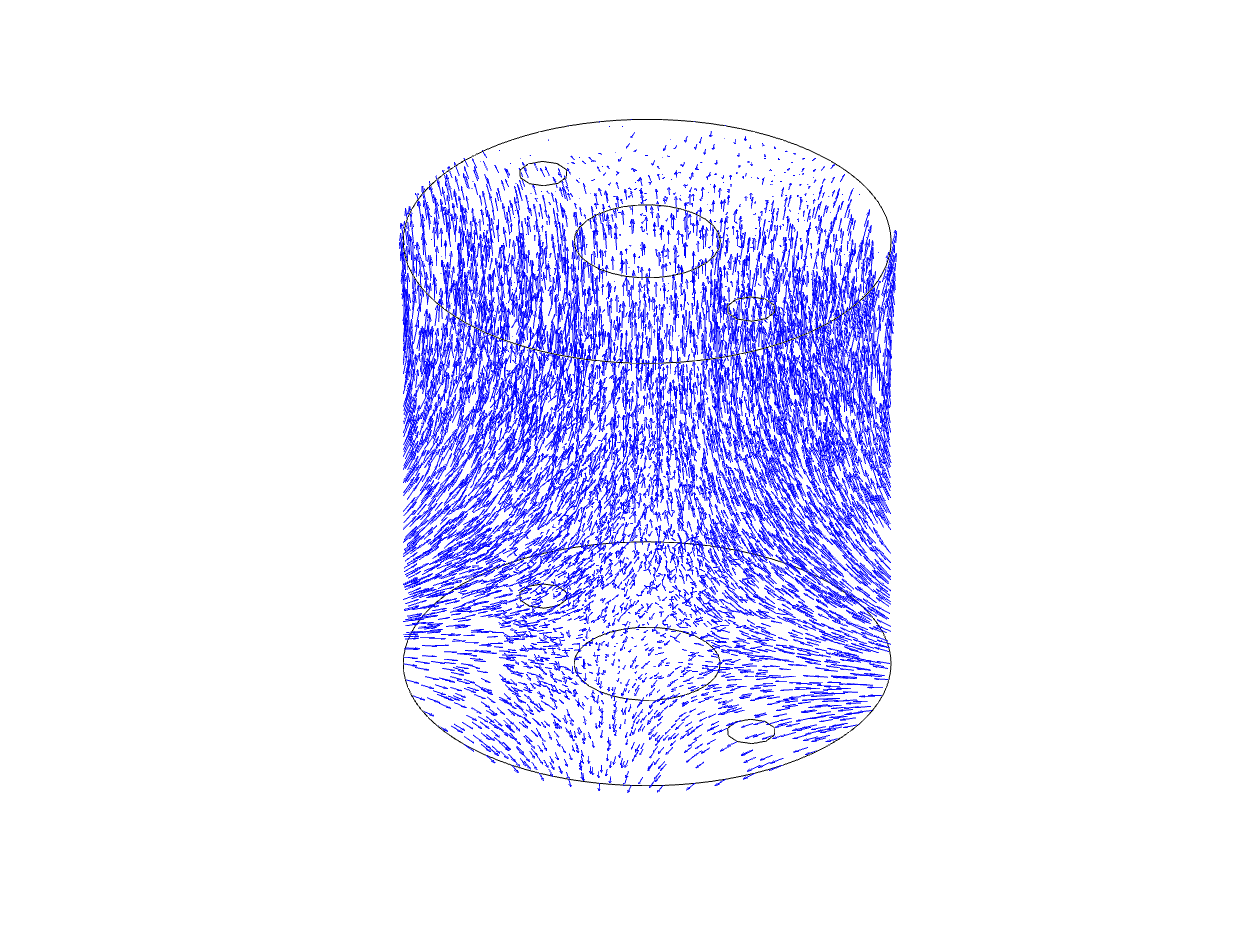

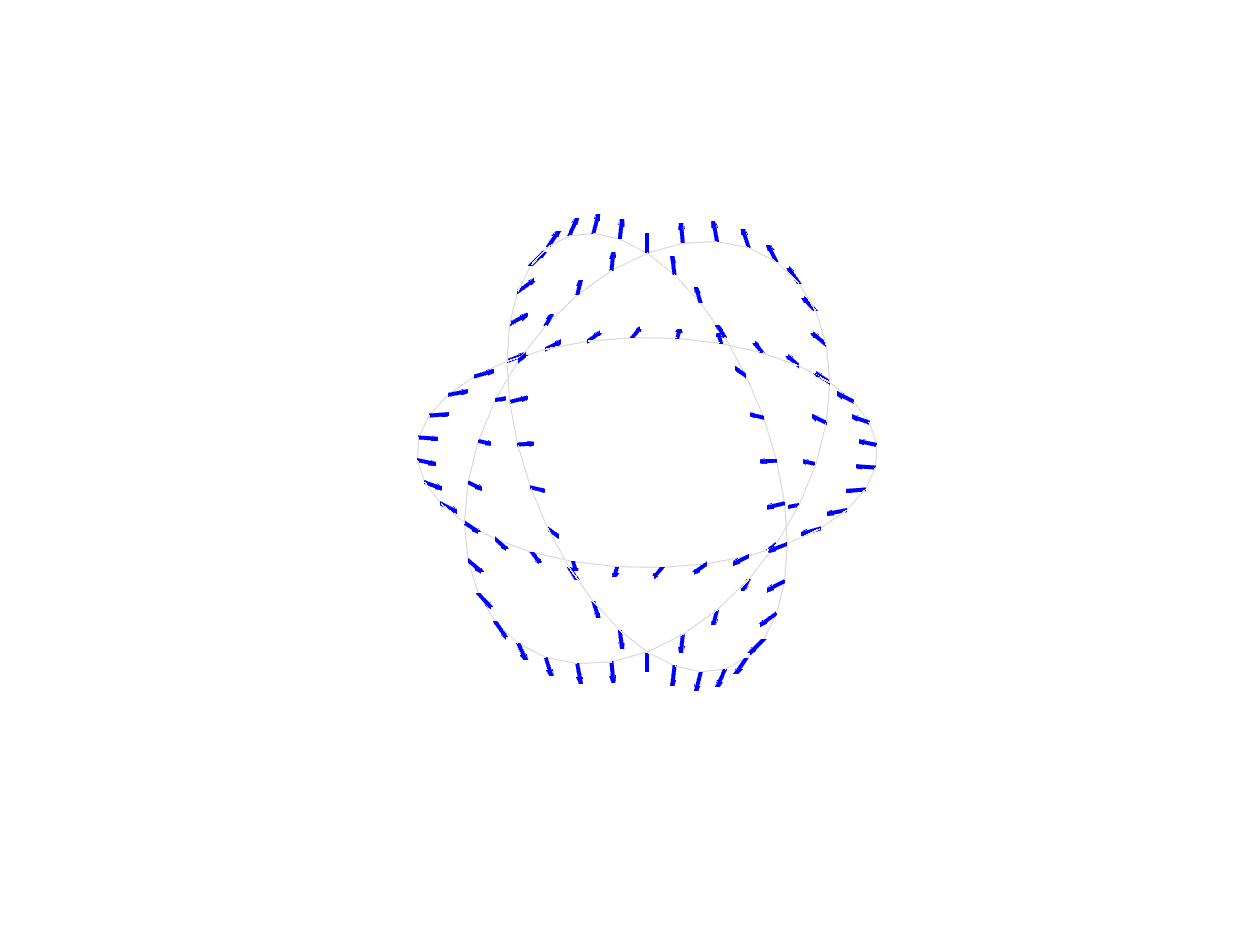

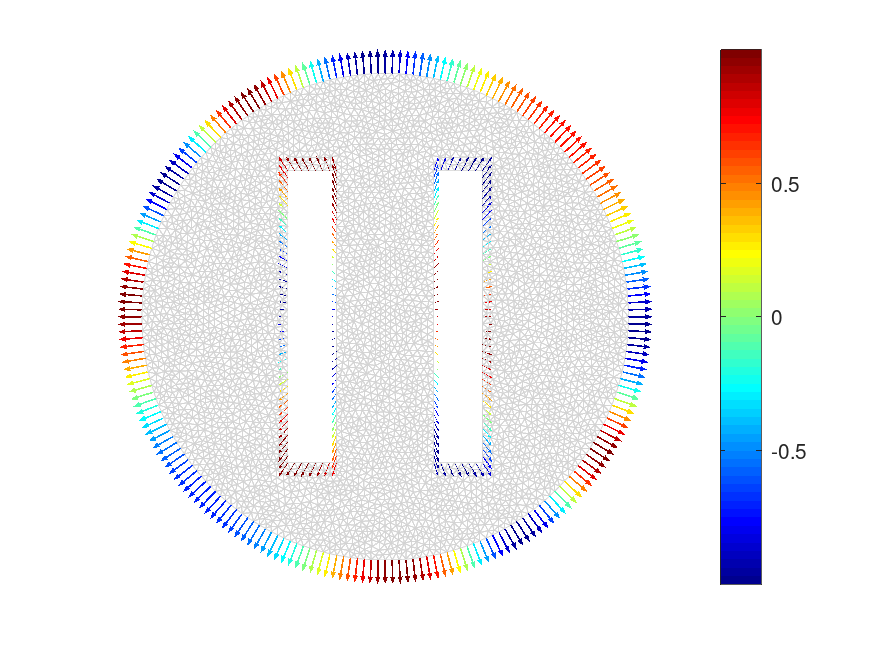

plotmesh2D	plotmesh3D	plotmesh3Ds	plotquiver2D	plotquiver3D	plotquiver3Ds

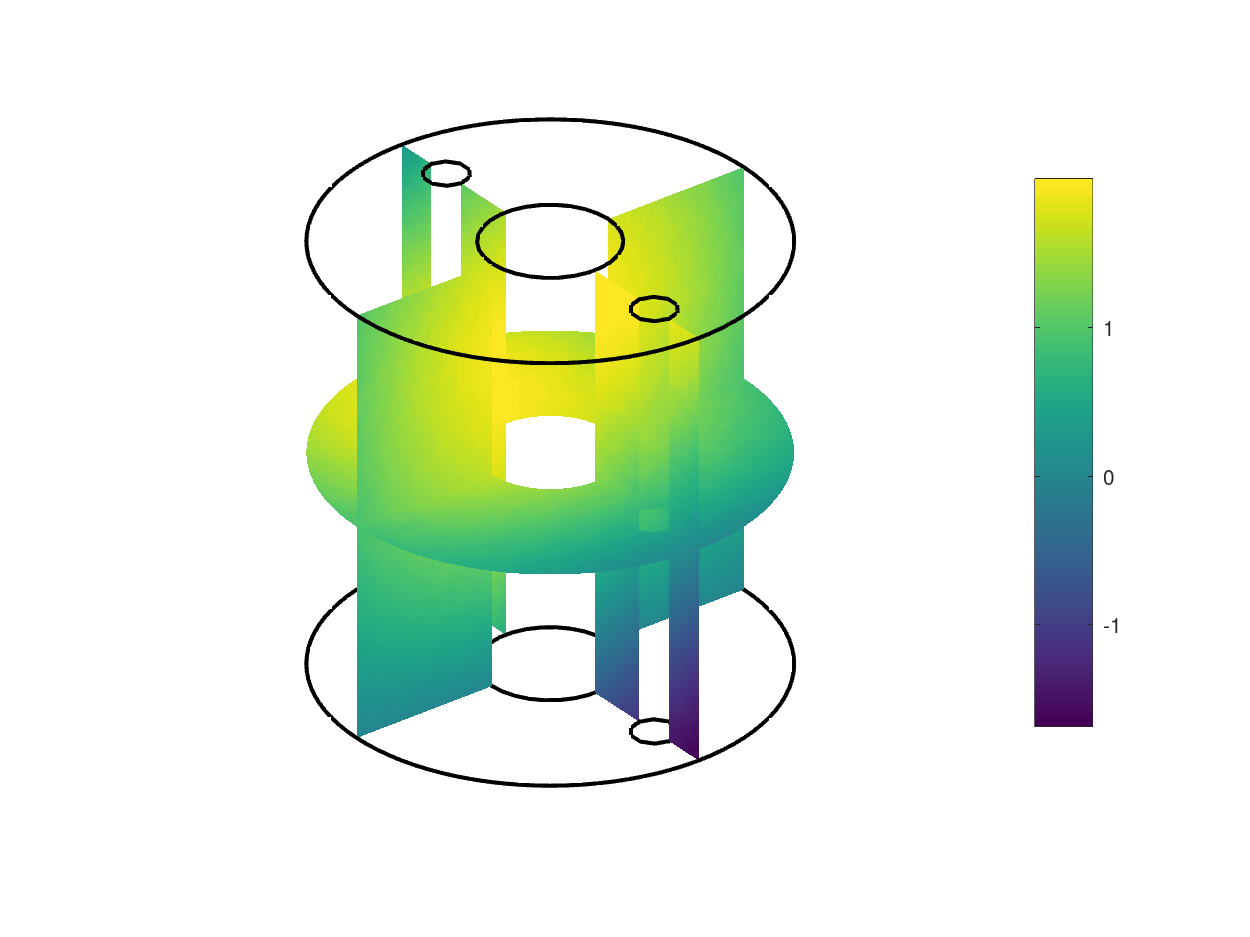

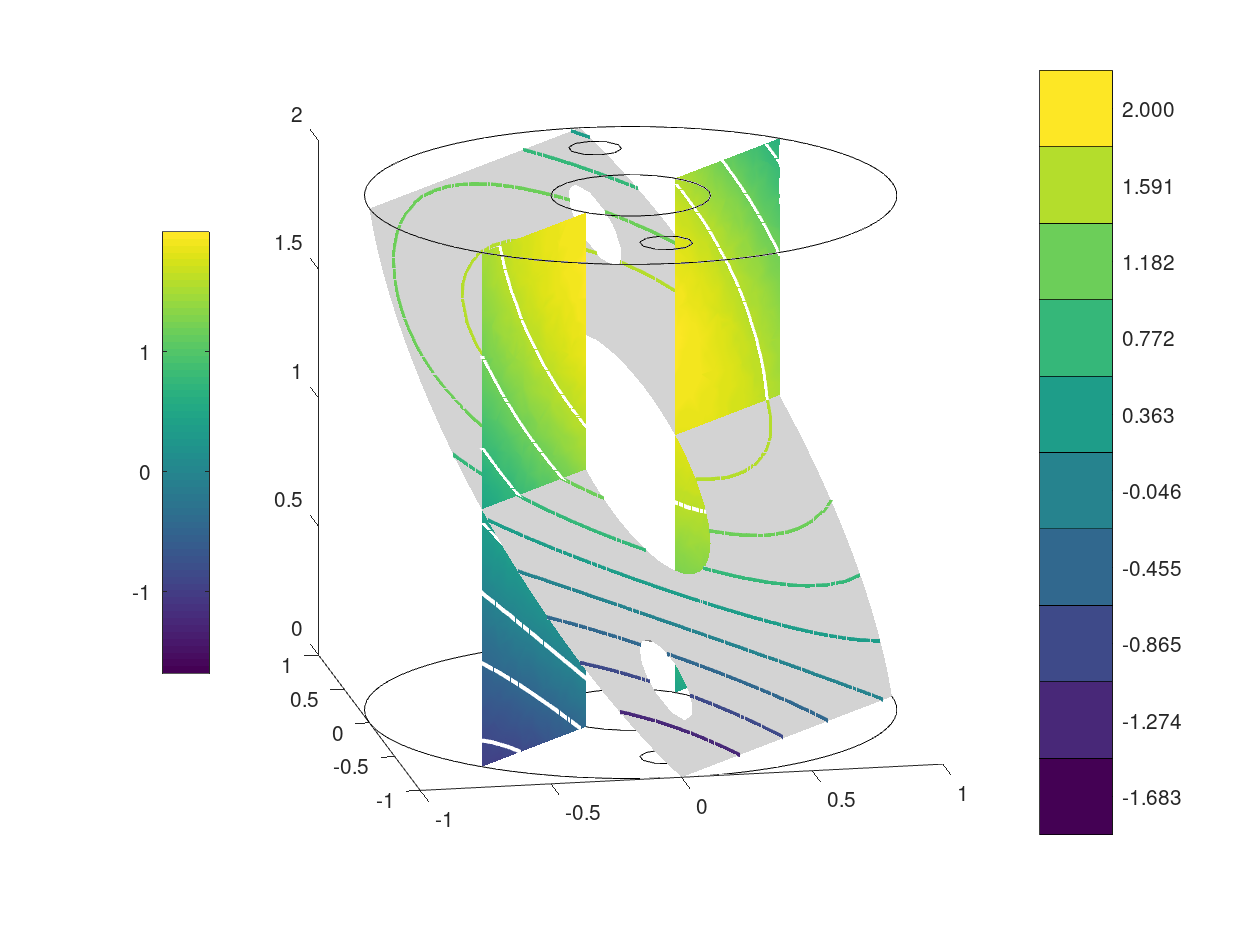

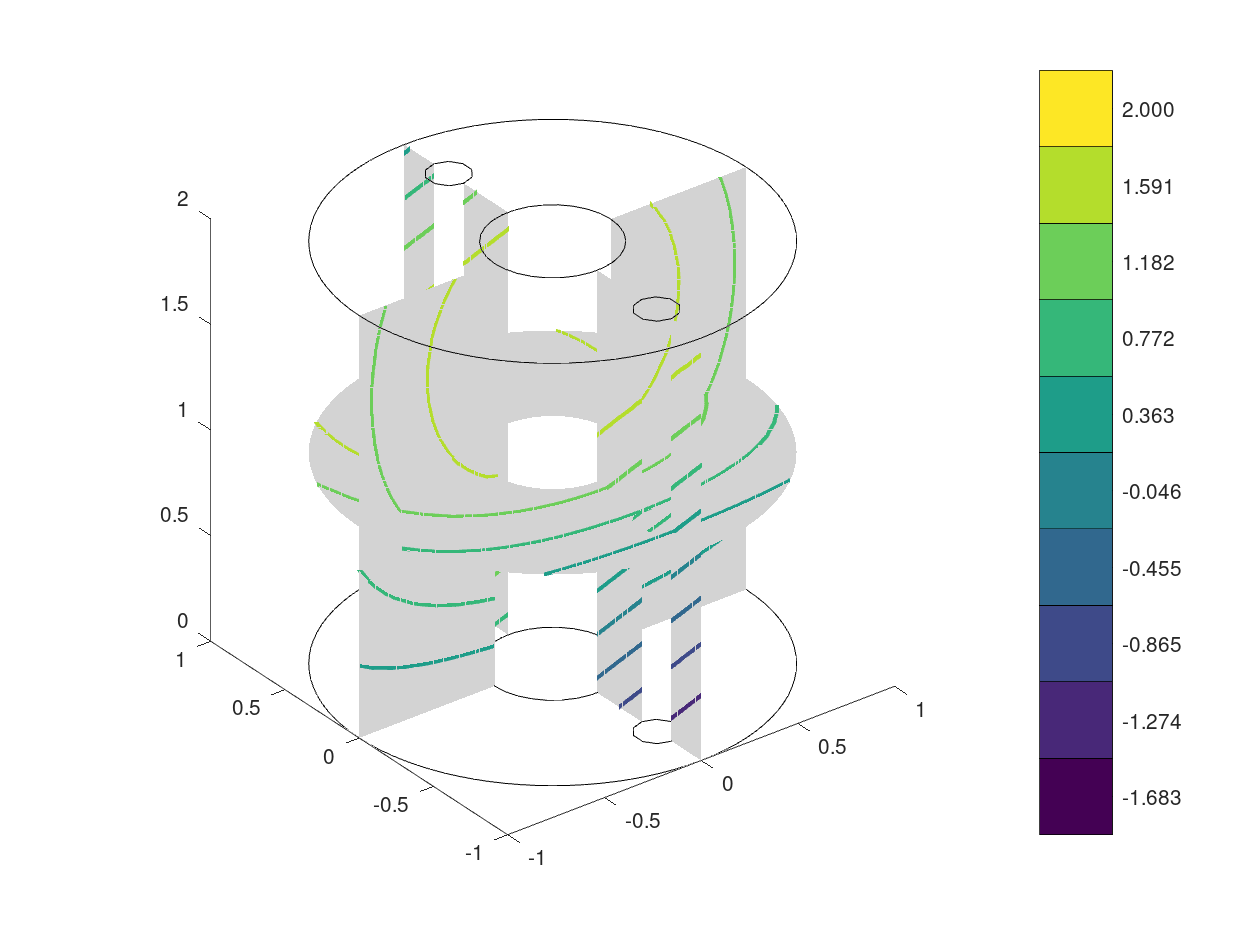

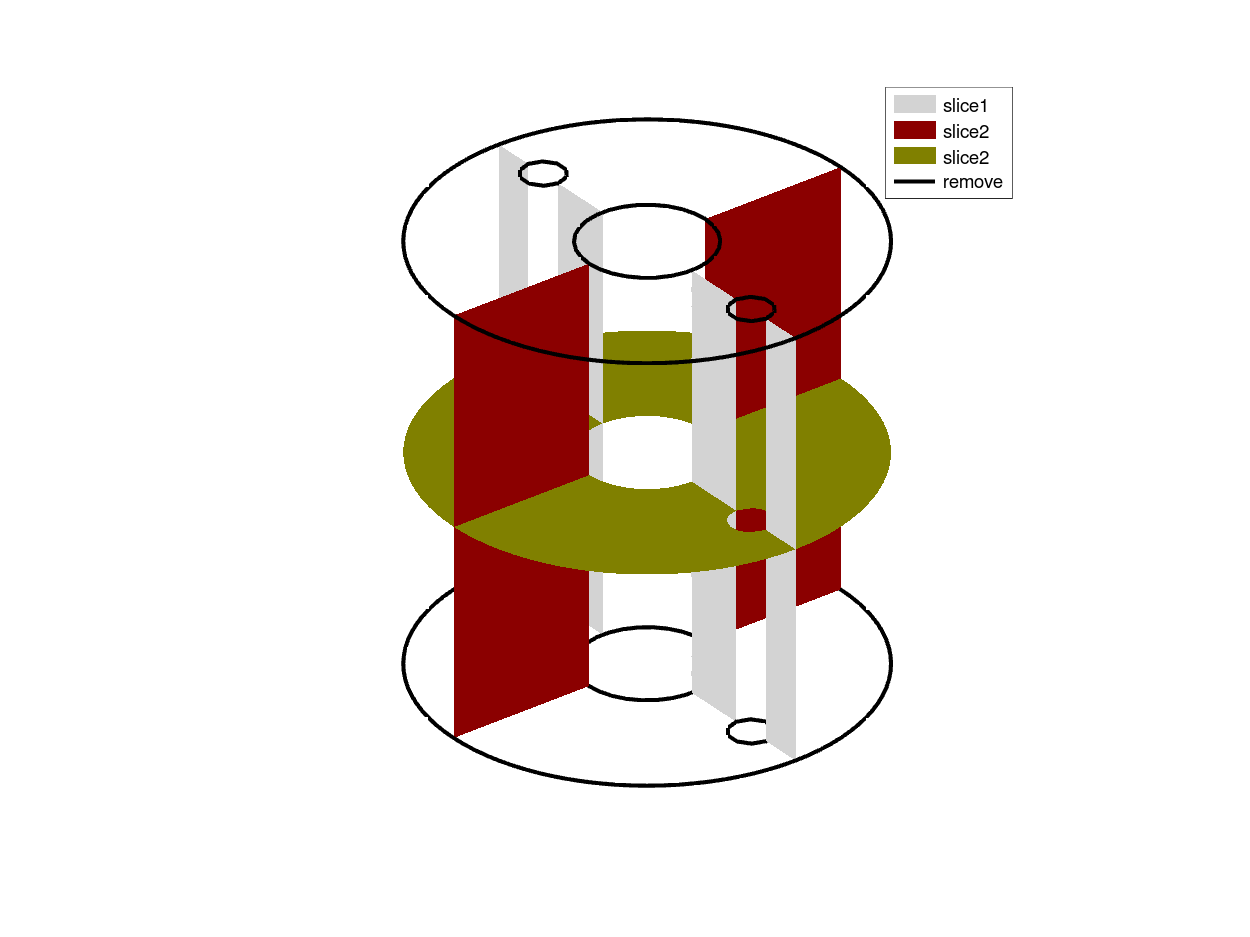

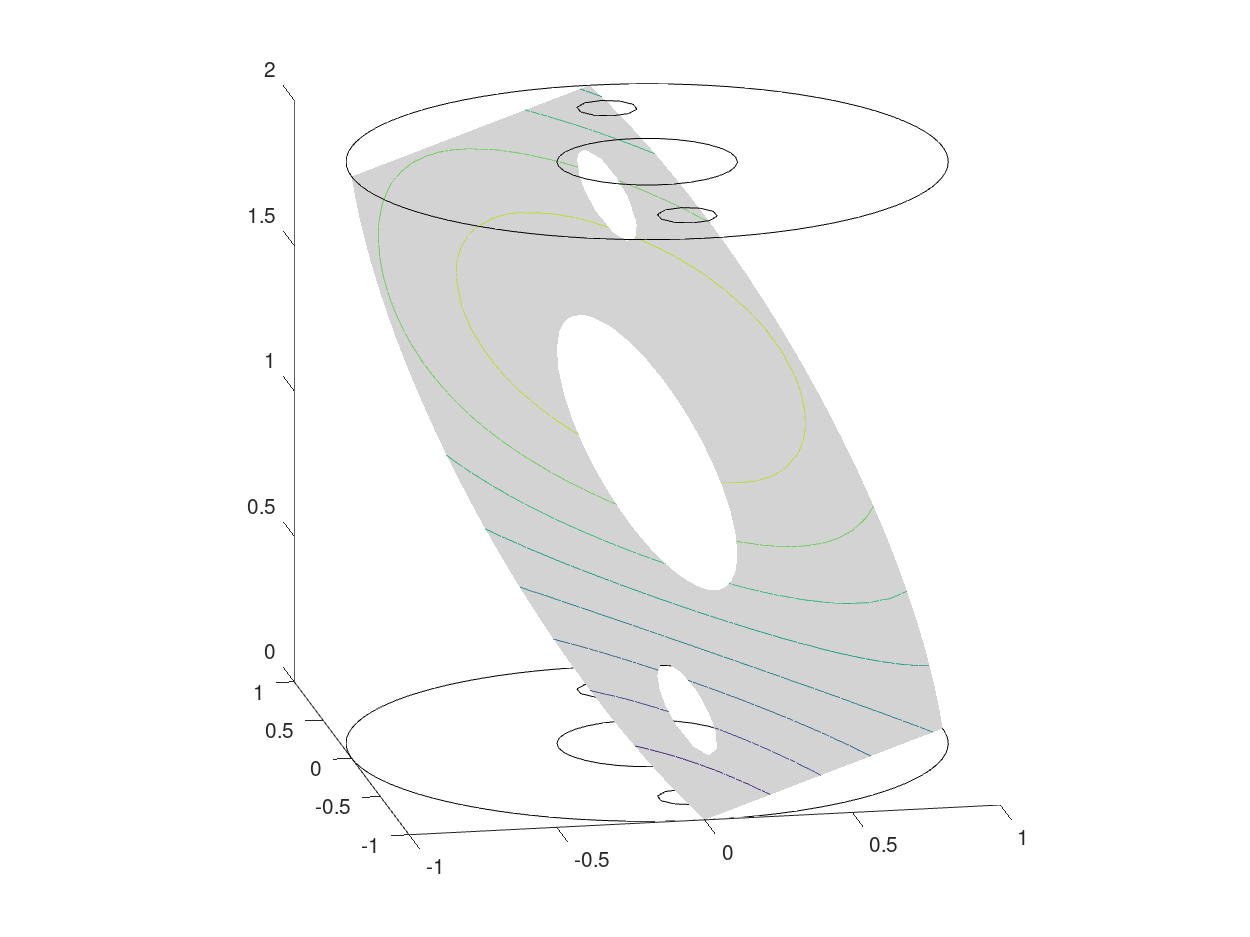

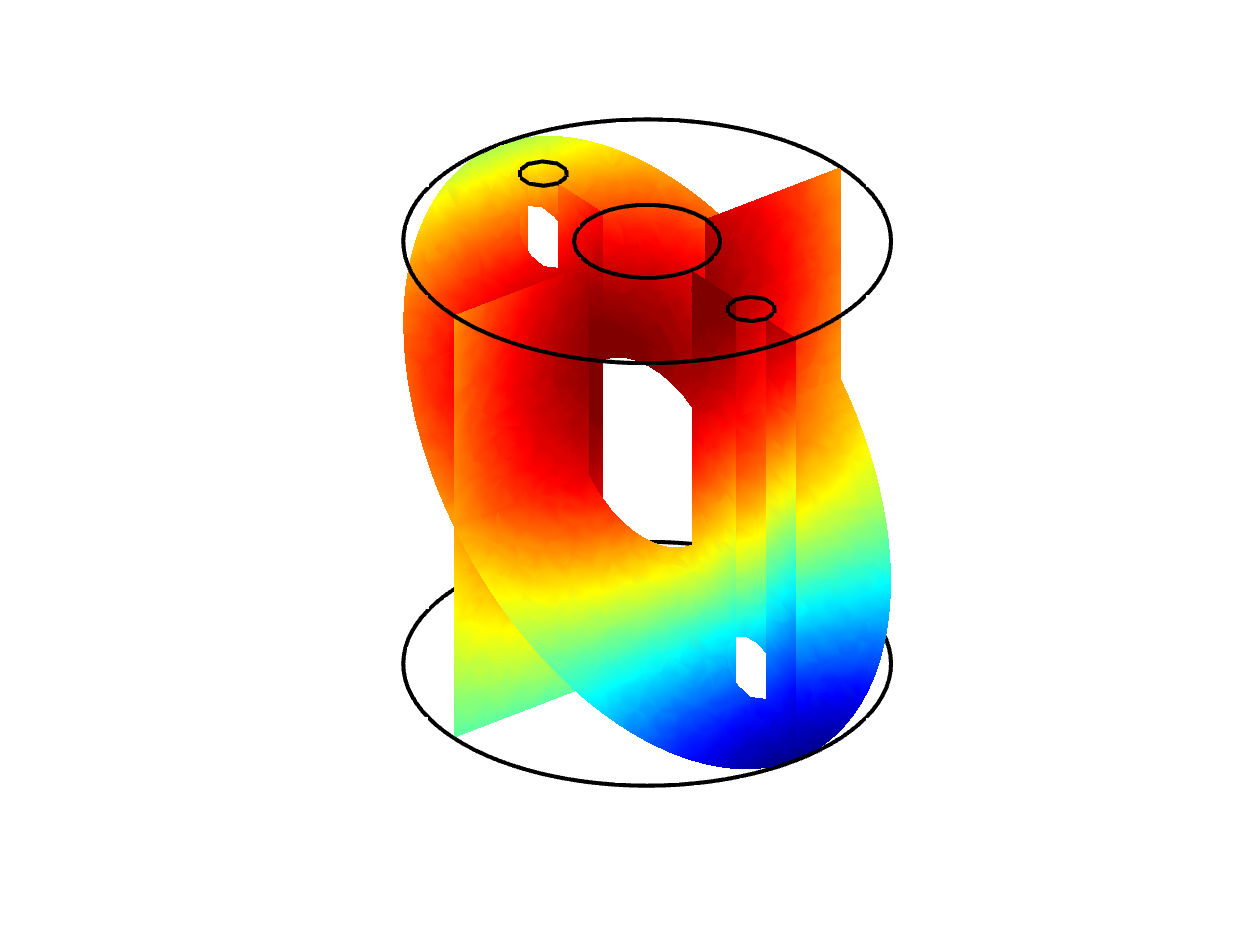

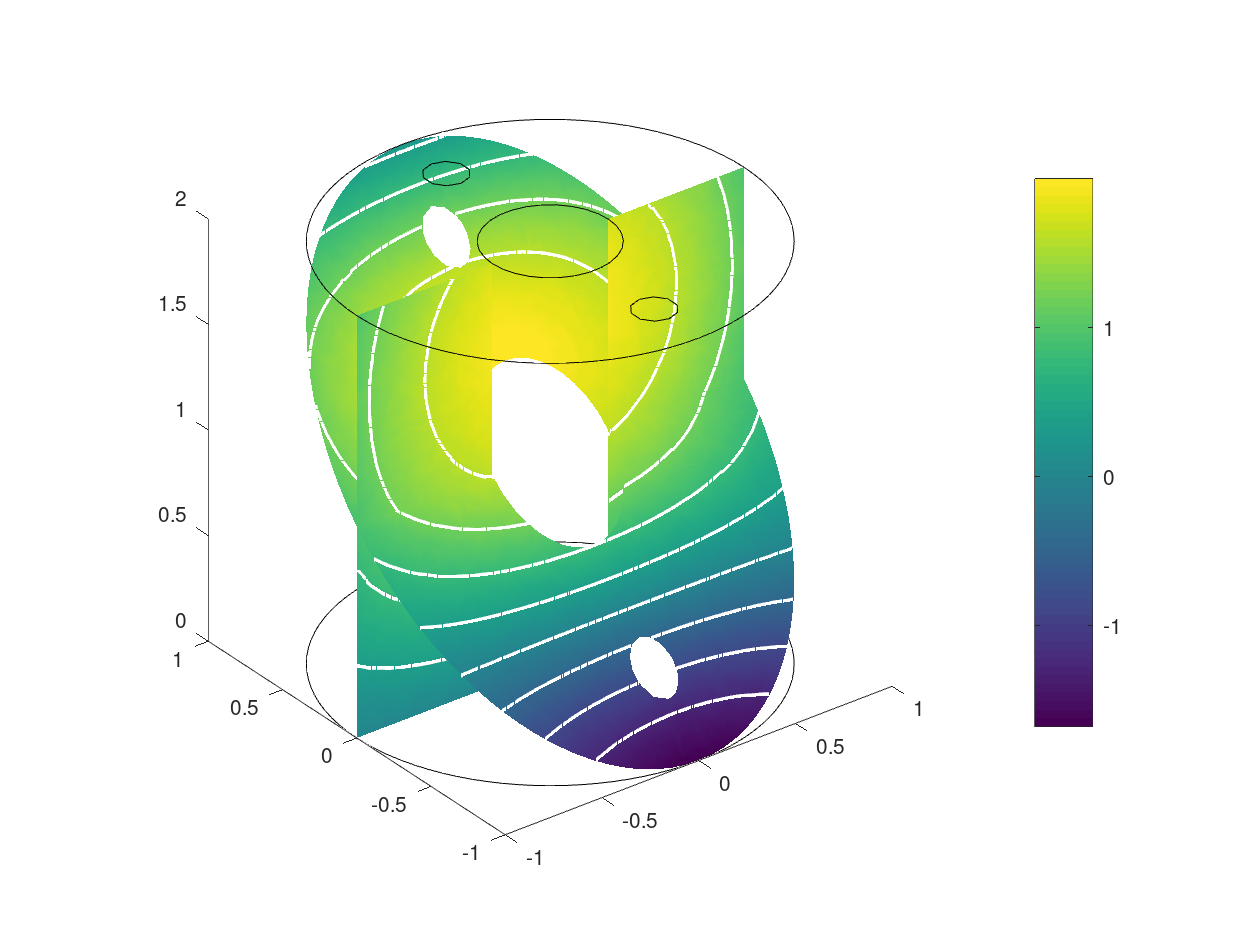

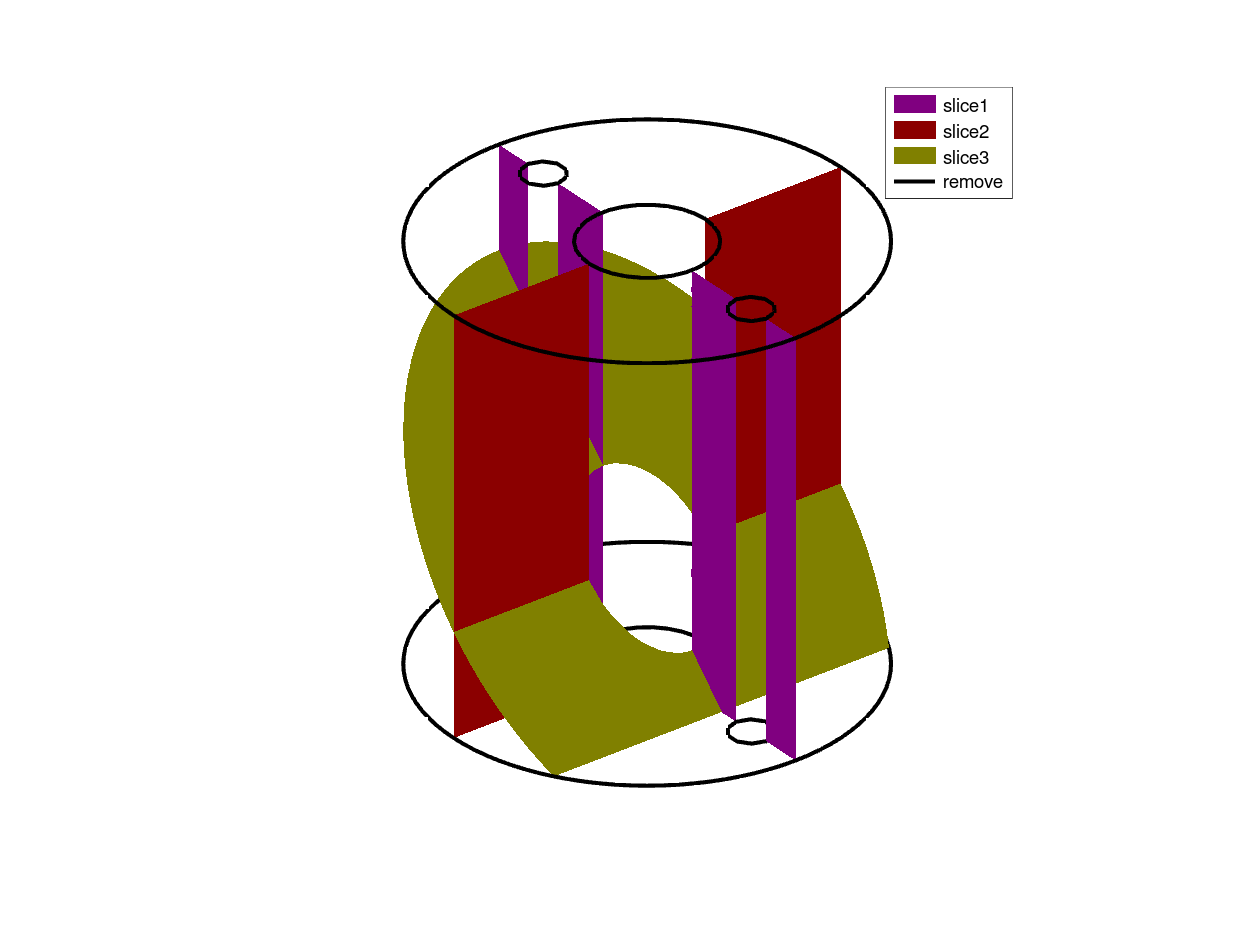

sliceiso3D	slice3D	slicemesh3D	plotGradBaCo2D	plotGradBaCo3Ds	plotGradBaCo3D

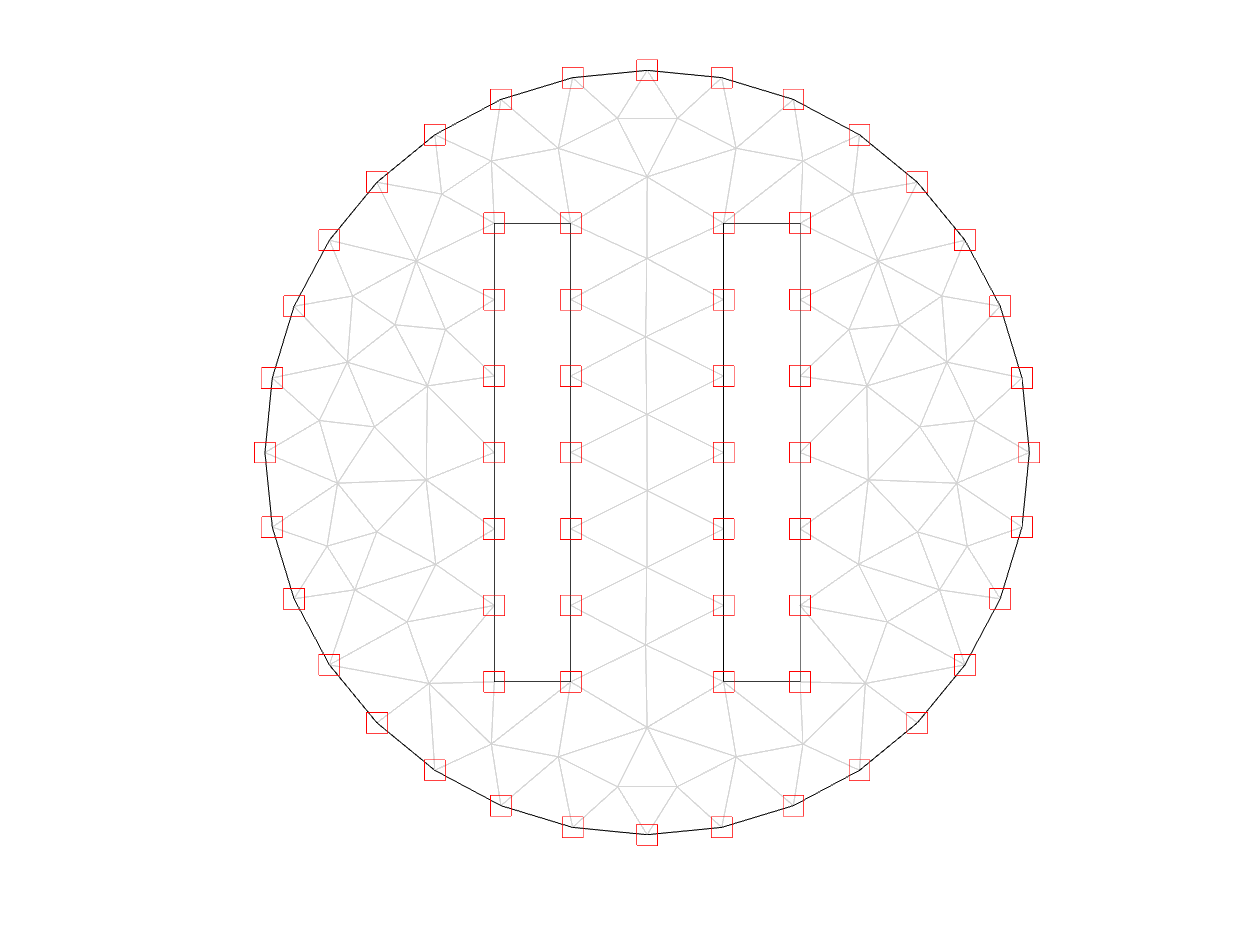

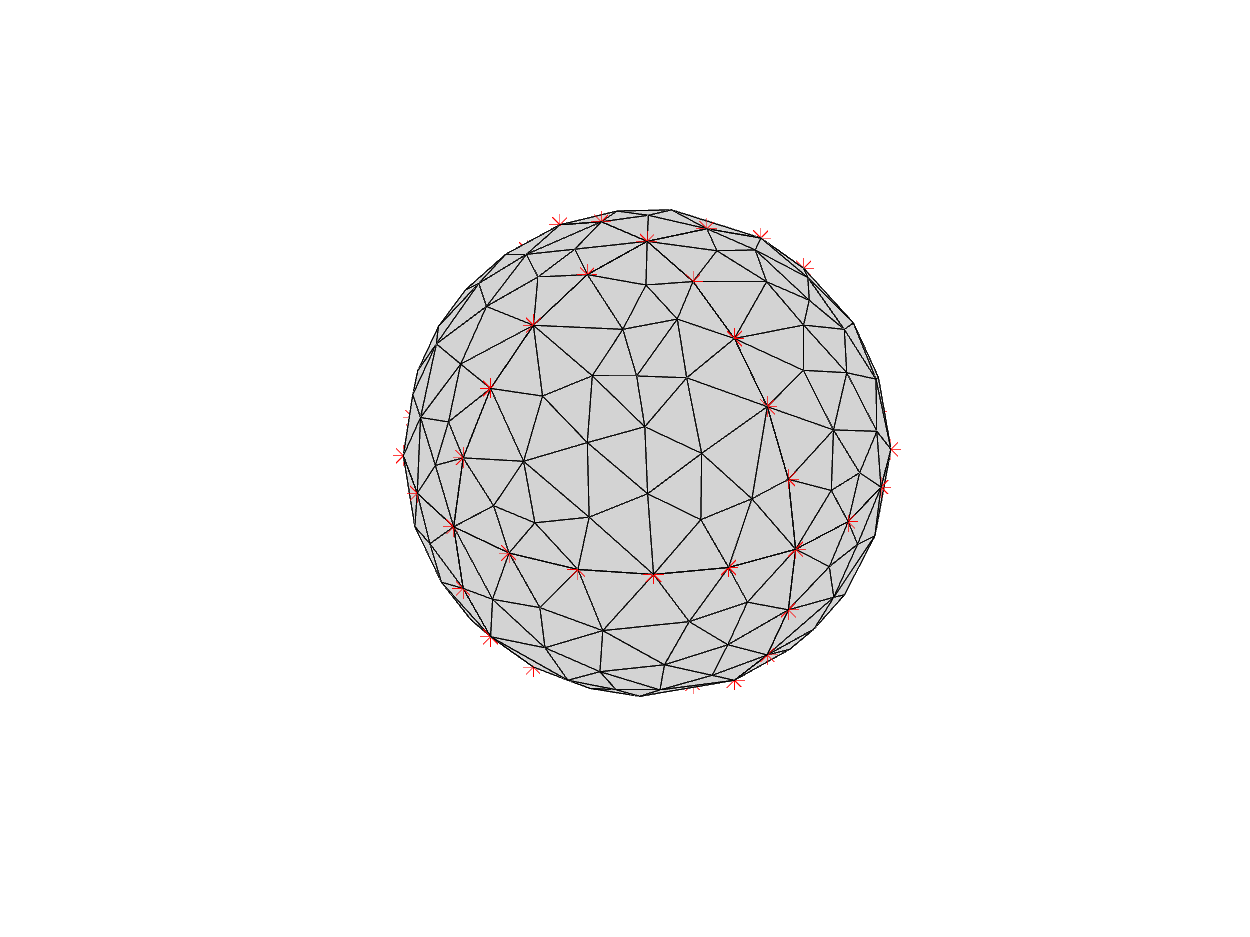

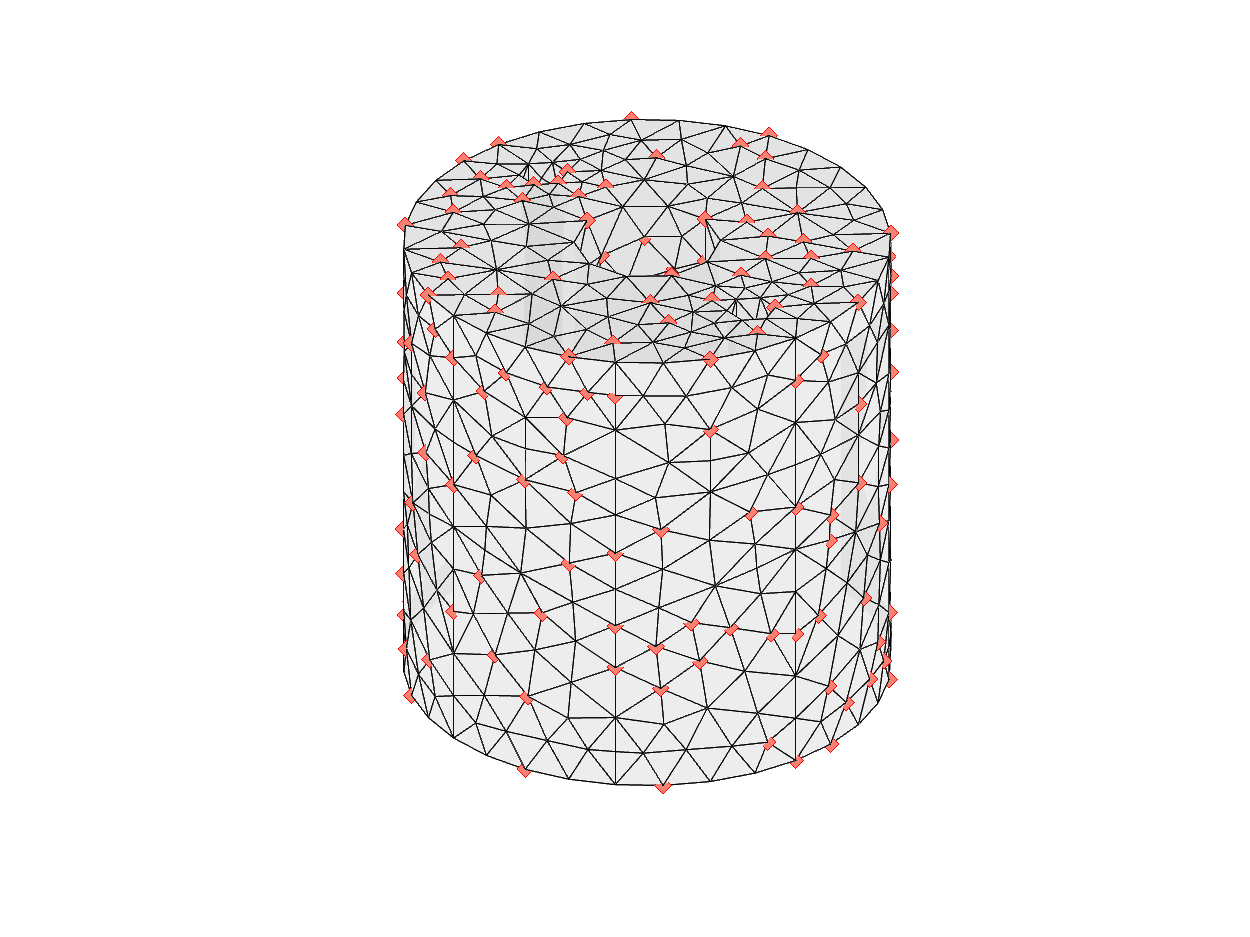

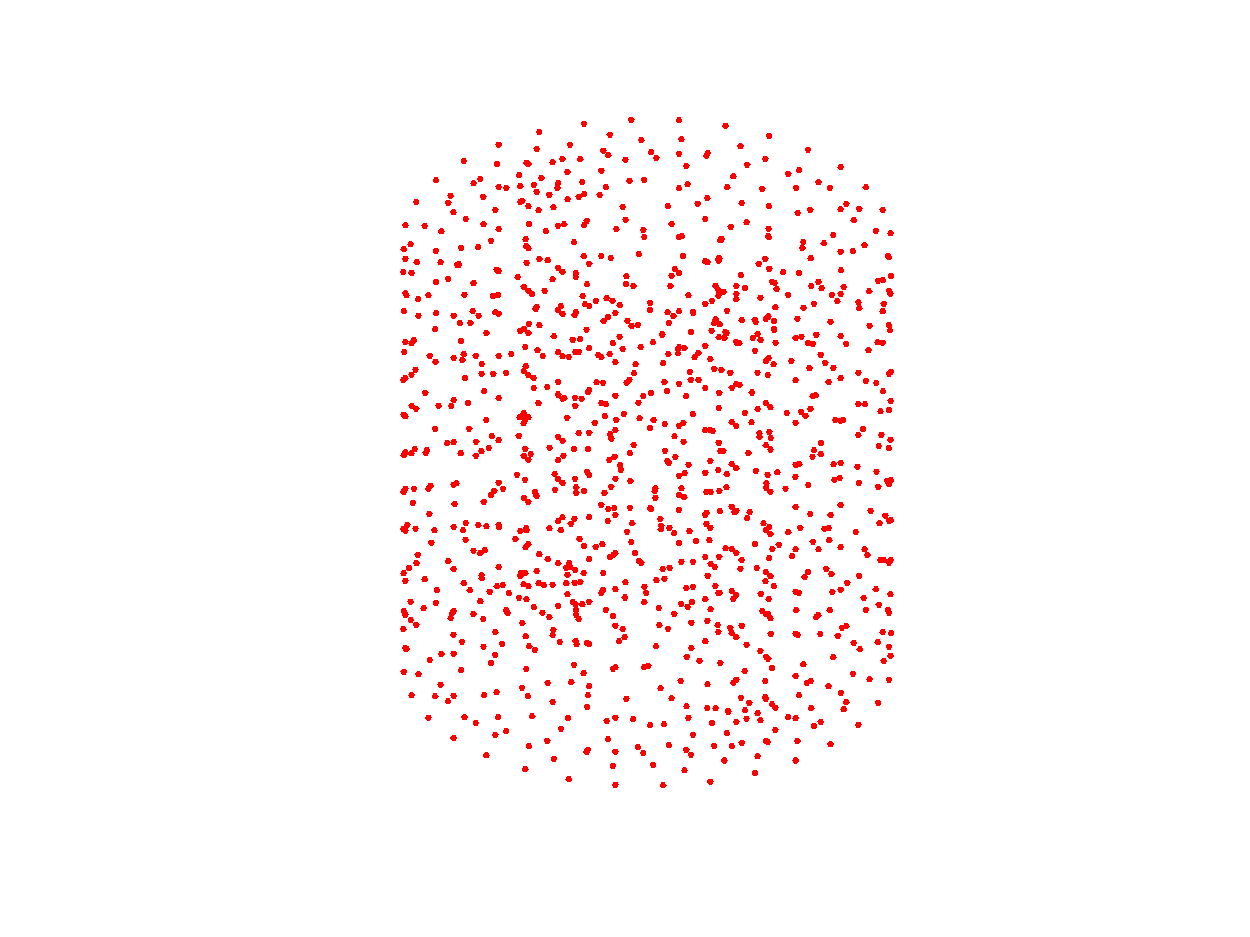

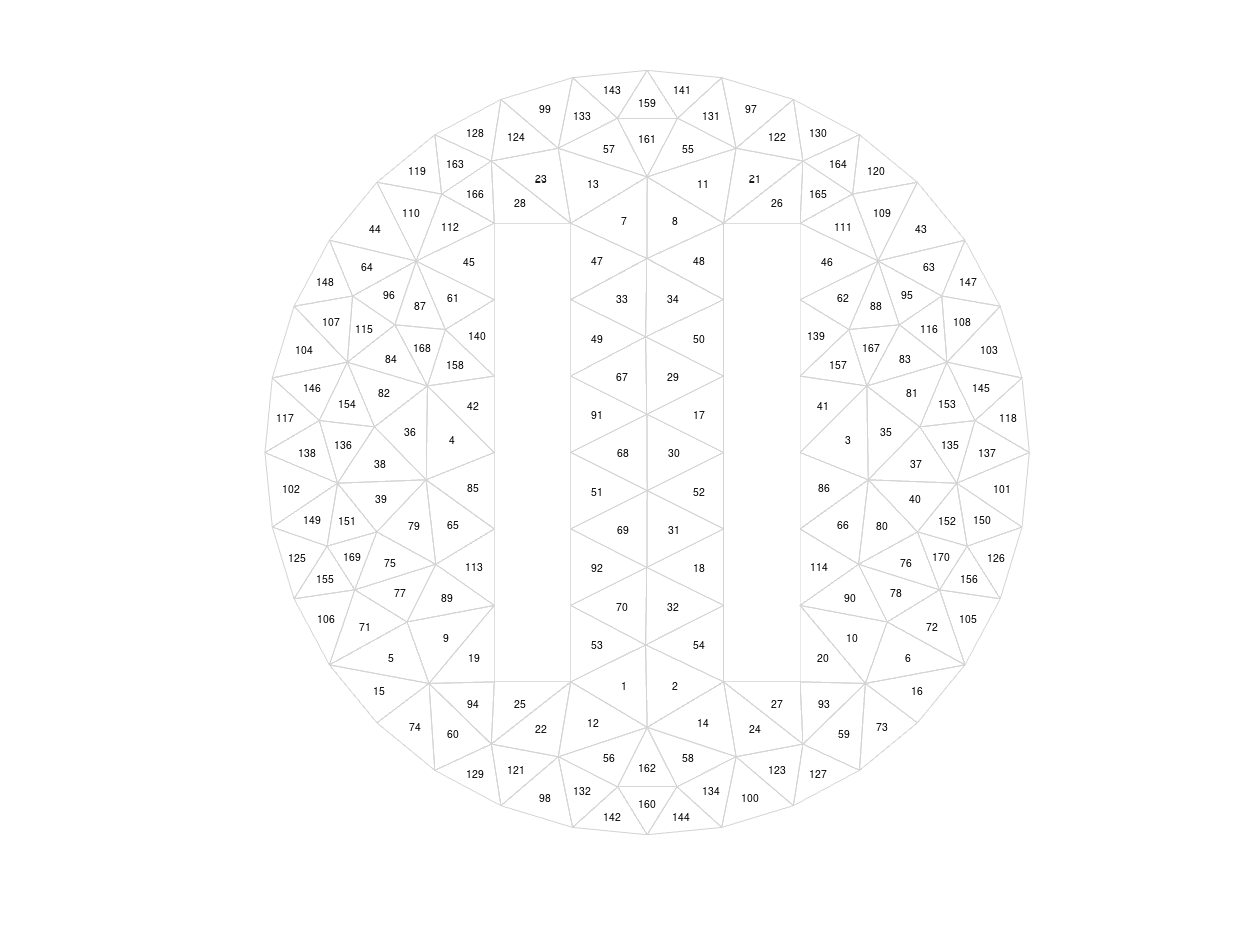

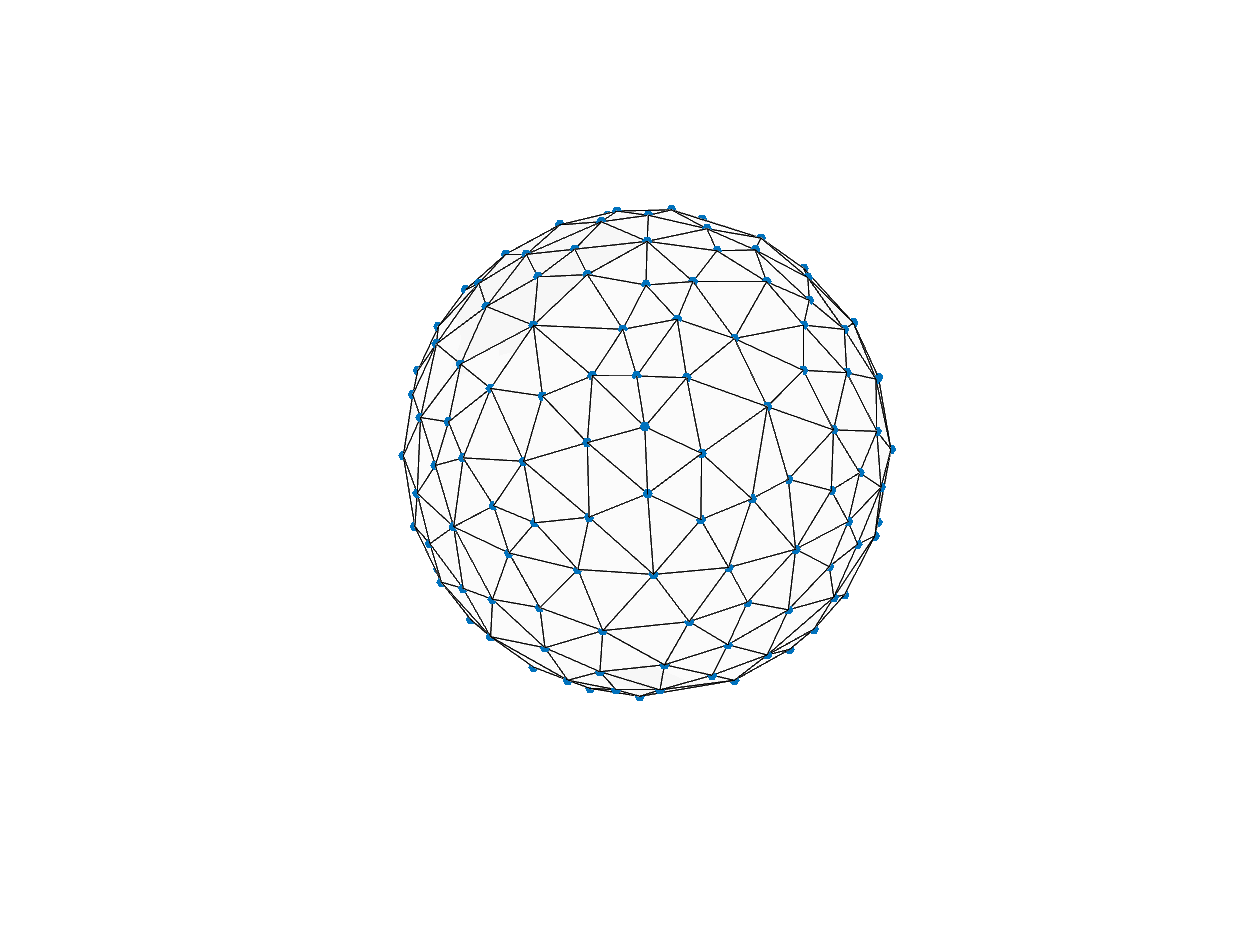

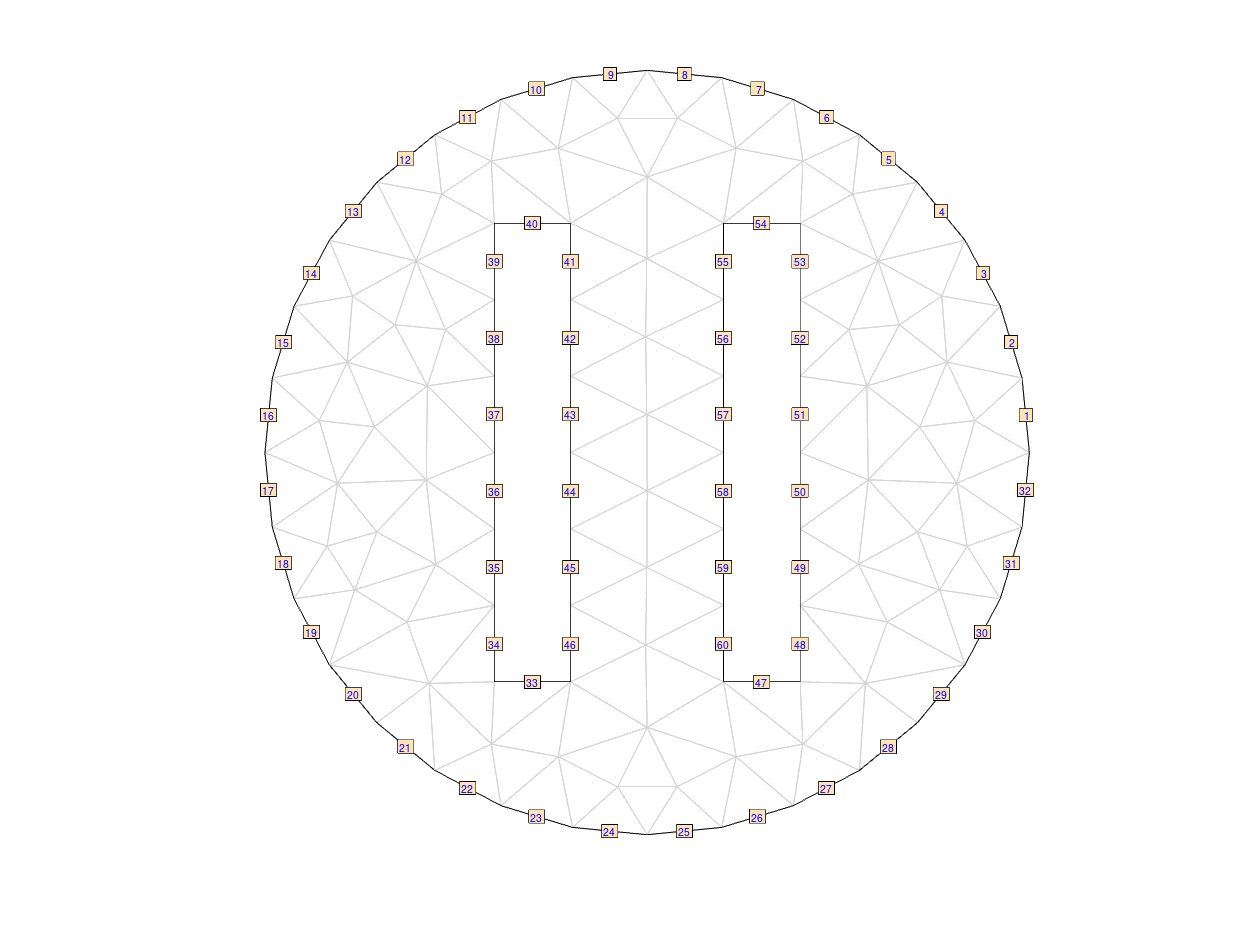

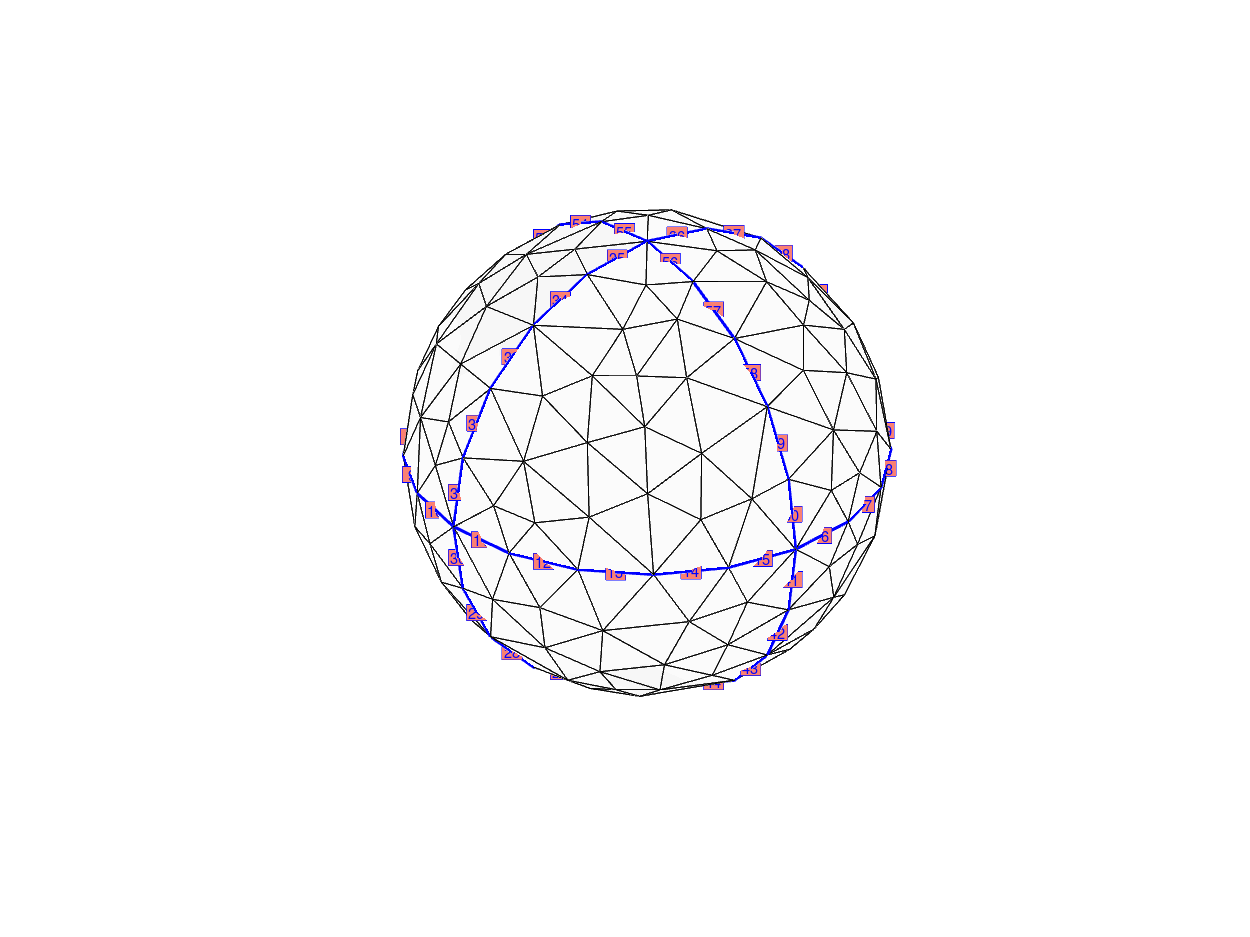

plotelementsidx2D	plotelementsidx3D	plotelementsidx3Ds	plotnodes2D	plotnodes3D	plotnodes3Ds

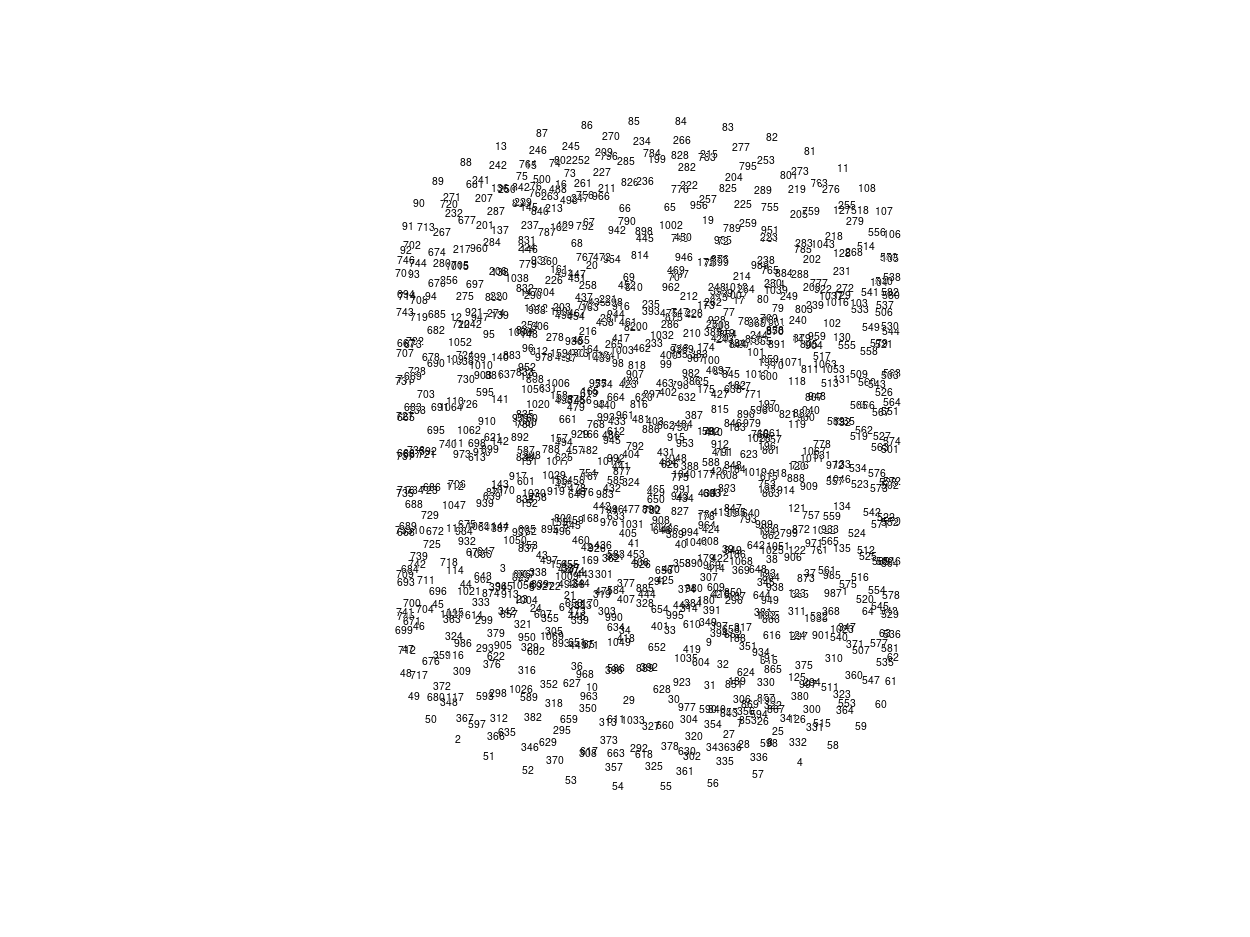

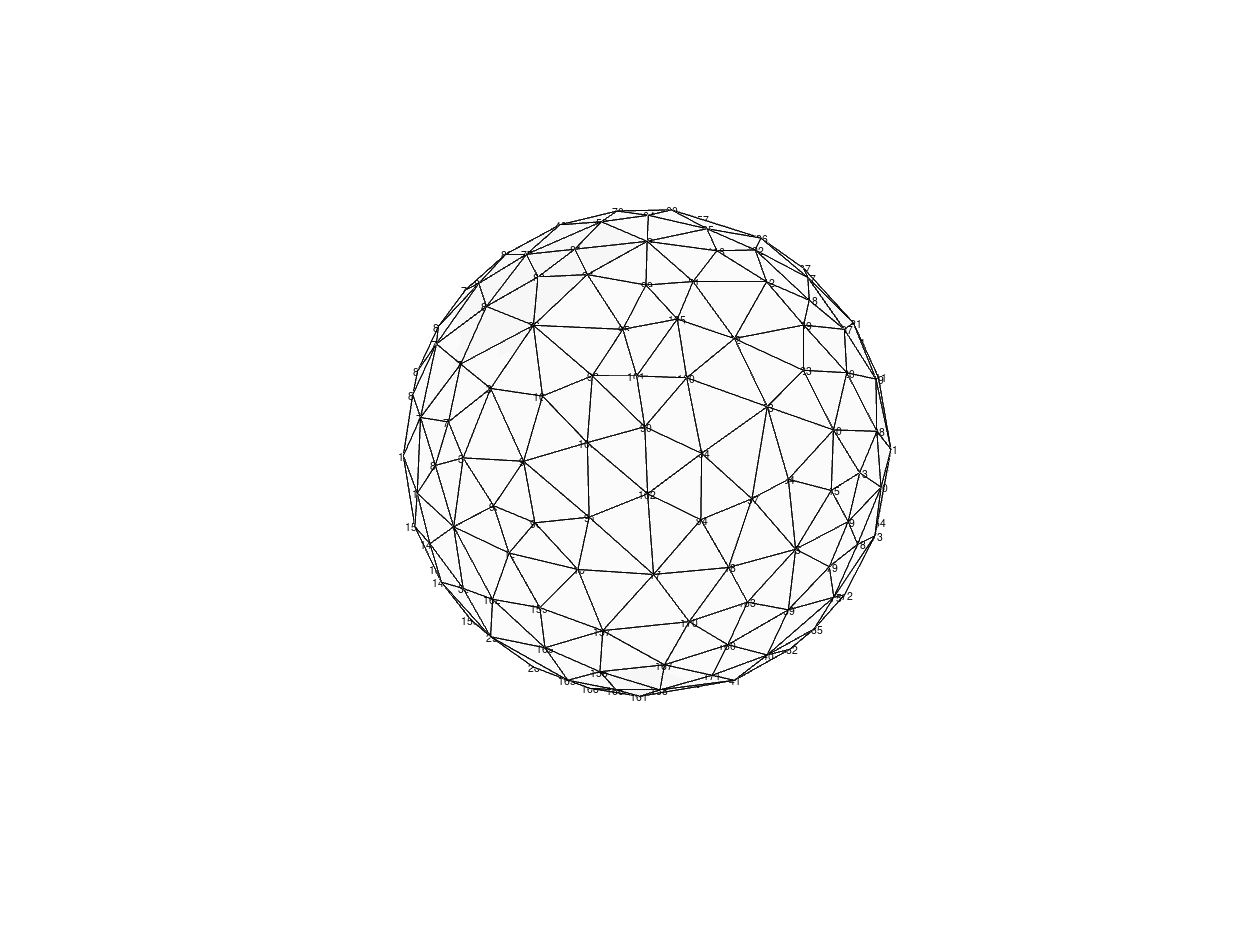

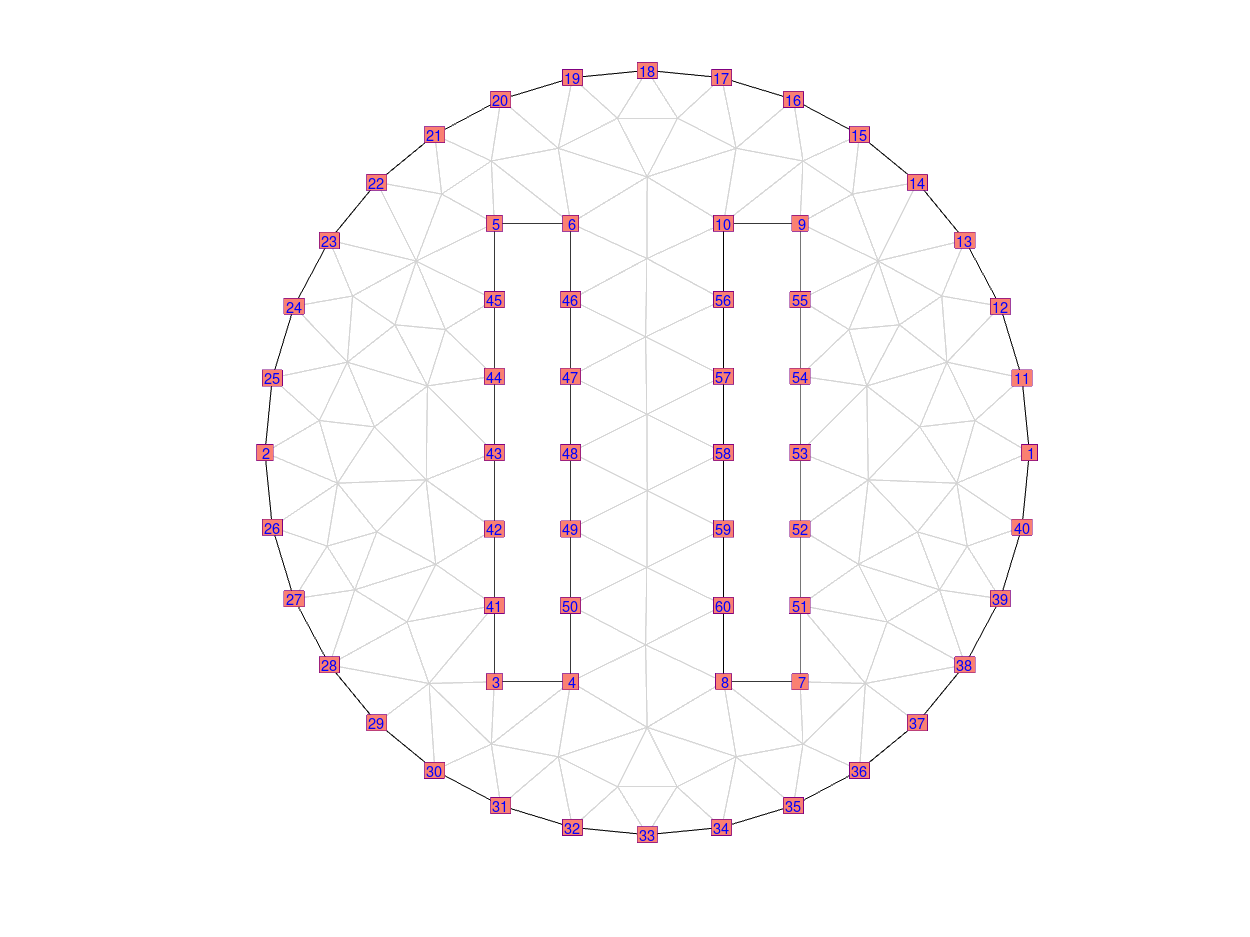

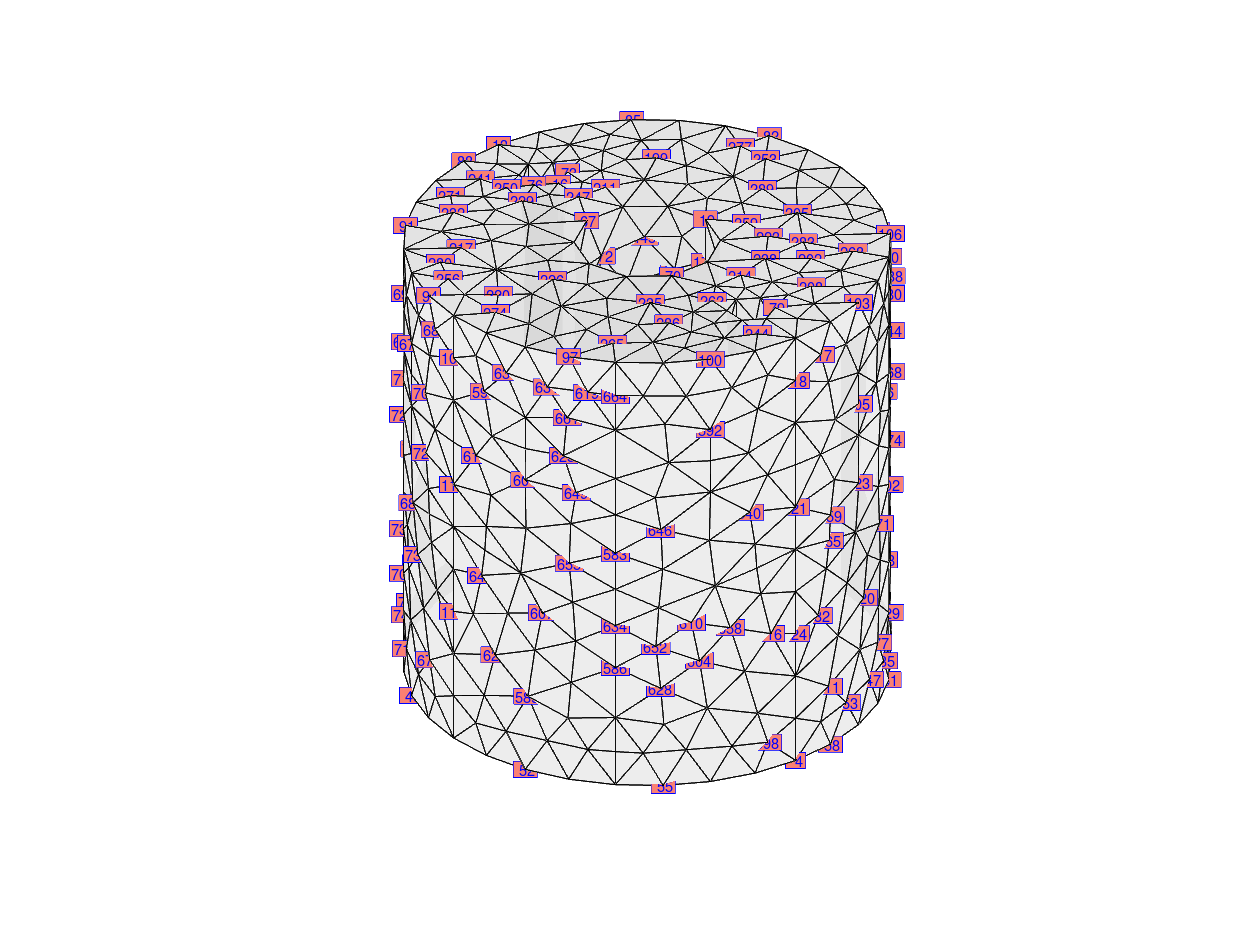

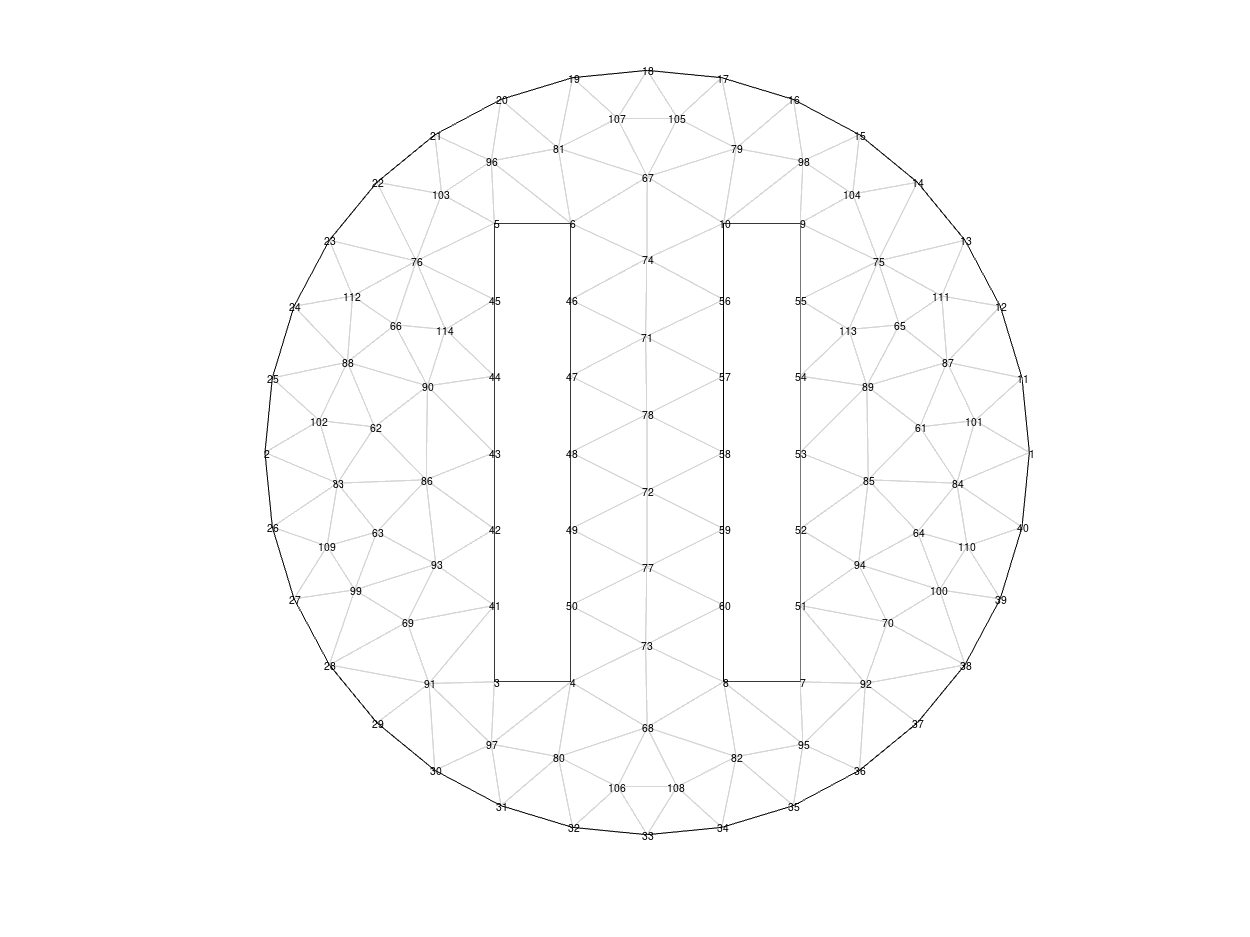

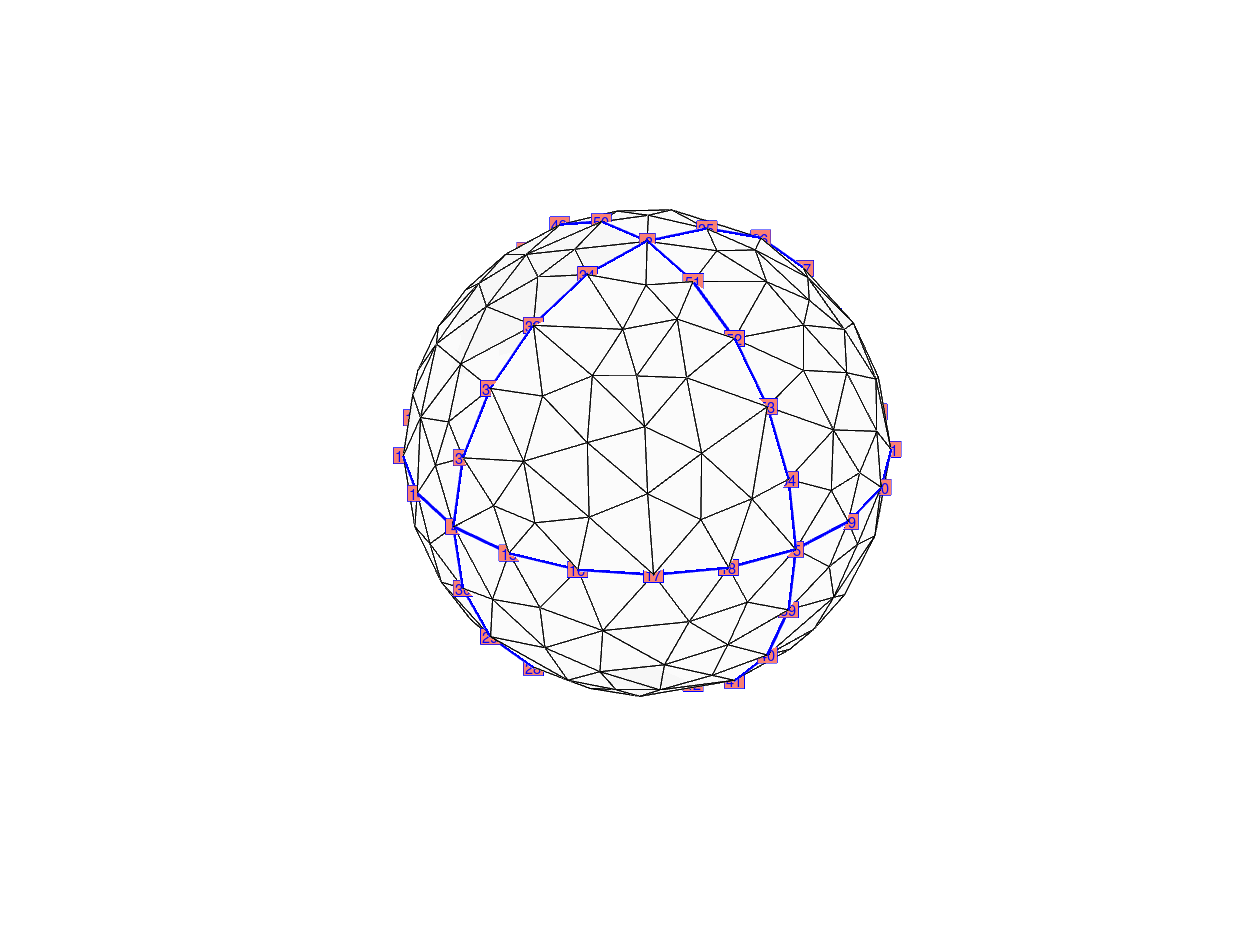

plotnodesidx2D	plotnodesidx3D	plotnodesidx3Ds

  Octave / Mesh / fc_graphics4mesh/ Current development release

Version	date	package	full archives	install	User guide
0.1.5	December 21, 2022	(28 Ko)	(1543 Ko) (1737 Ko) (1325 Ko)	(3 Ko)	(1000 Ko)

  Octave / Mesh / fc_graphics4mesh/ Tested on

This package was only tested on Ubuntu 22.04.1 with Octave 7.3.0.

  Octave / Mesh / fc_graphics4mesh/ Installation

For this method, one just have to get/download the install file ofc_graphics4mesh_install.m Thereafter, one run it under Octave. This command download, extract and configure the  package and all the required packages in the current directory.

For example, on a Linux computer, to install this package in directory ~/Octave one can do in a terminal:

mkdir -p ~/Octave
cd ~/Octave
HTTP=http://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave
wget $HTTP/fc-graphics4mesh/0.1.5/ofc_graphics4mesh_install.m

Then in a Octave terminal run the following commands

>> cd ~/Octave
>> ofc_graphics4mesh_install

Parts of the <fc-graphics4mesh> Octave package.
Copyright (C) 2017-2022 F. Cuvelier

1- Downloading and extracting the packages
2- Setting the <fc-graphics4mesh> package
Write in ~/Octave/fc-graphics4mesh-full/fc_graphics4mesh-0.1.5/configure_loc.m ...
3- Using packages :
   ->             fc-tools : 0.0.34
   ->             fc-bench : 0.1.3
   ->              fc-amat : 0.1.3
   ->         fc-meshtools : 0.1.4
 with     fc-graphics4mesh : 0.1.5
*** Using instructions
   To use the <fc-graphics4mesh> package:
   addpath(’~/Octave/fc-graphics4mesh-full/fc_graphics4mesh-0.1.5’)
   fc_graphics4mesh.init()

   See ~/Octave/ofc_graphics4mesh_set.m

The complete package (i.e. with all the other needed packages) is stored in the directory ~/Octave/fc-graphics4mesh-full and, for each Octave session, one have to set the package by:

>> addpath(’~/Octave/fc-graphics4mesh-full/ofc-graphics4mesh-0.1.5’)
>> fc_graphics4mesh.init()

Try to use default parameters!
 Use fc_tools.configure to configure.
Write in ~/Octave/fc-graphics4mesh-full/fc_tools-0.0.34/configure_loc.m ...
Try to use default parameters!
 Use fc_bench.configure to configure.
Write in ~/Octave/fc-graphics4mesh-full/fc_bench-0.1.3/configure_loc.m ...
Try to use default parameters!
 Use fc_amat.configure to configure.
Write in ~/Octave/fc-graphics4mesh-full/fc_amat-0.1.3/configure_loc.m ...
Try to use default parameters!
 Use fc_meshtools.configure to configure.
Write in ~/Octave/fc-graphics4mesh-full/fc_meshtools-0.1.4/configure_loc.m ...
Using fc_graphics4mesh[0.1.5] with fc_tools[0.0.34], fc_bench[0.1.3], fc_amat[0.1.3], fc_meshtools[0.1.4].

Using fc_graphics4mesh[0.1.5] with fc_tools[0.0.34], fc_bench[0.1.3], fc_amat[0.1.3], fc_meshtools[0.1.4].

For uninstalling, one just have to delete directory ~/Octave/fc-graphics4mesh-full

To quickly test this package , one can run one of the examples located in the directory +fc_graphics4mesh/+demos. For example, runs

>> fc_graphics4mesh.demos.plot2D()

>> fc_graphics4mesh.demos.alldemos()

  Octave / Mesh / fc_graphics4mesh/ Version history

• 0.1.5 (December 21, 2022): .

• 0.1.3 (March 20, 2020): Minor bugs fixed.

• 0.1.2 (March 8, 2020): Using of the fc-tools package version 0.0.31.

• 0.1.1 (February 17, 2020): minor change in configure function. Using of the fc-tools package version 0.0.30, the fc-meshtools package version 0.1.3, ...

• 0.1.0 (January 29, 2020): use of fc-tools package version 0.0.29 and the fc-meshtools package version 0.1.2. Some changes in demos functions.

• 0.0.4 (March 22, 2019): use of fc-tools package version 0.0.27 and the fc-meshtools package version 0.1.1

• 0.0.2 (December 13, 2017): use of fc-tools package version 0.0.19

• 0.0.1 (October 27, 2017): first version for Linux, Windows and Mac OS X.

  Octave / Mesh / fc_graphics4mesh/ Old development releases

Version	date	package	archives	install	User’s Guide
0.1.3	March 20, 2020	(27 Ko)	(1525 Ko) (1717 Ko) (1312 Ko)	(3 Ko)	(12740 Ko)
0.1.2	March 8, 2020	(27 Ko)	(1528 Ko) (1717 Ko) (1312 Ko)	(3 Ko)	(12753 Ko)
0.1.1	Februar 17, 2020	(27 Ko)	(1524 Ko) (1716 Ko) (1312 Ko)	(3 Ko)	(12753 Ko)
0.1.0	January 29, 2020	(26 Ko)	(1517 Ko) (1702 Ko) (1307 Ko)	(3 Ko)	(4717 Ko)
0.0.4	March 22, 2019	(25 Ko)	(1440 Ko) (1520 Ko) (1275 Ko)	(3 Ko)	(9625 Ko)
0.0.2	December 13, 2017	(1364 Ko)	(1364 Ko) (1393 Ko) (1252 Ko)	(2 Ko)
0.0.1	October 27, 2017	(1370 Ko)	(1368 Ko) (1393 Ko) (1251 Ko)	(2 Ko)
