[q3,me3,toGlobal3]=fc_meshtools.simplicial.getMeshArrays('3D',3,true);
  [q2,me2,toGlobal2]=fc_meshtools.simplicial.getMeshArrays('3D',2,true);
  [q1,me1,toGlobal1]=fc_meshtools.simplicial.getMeshArrays('3D',1,true);

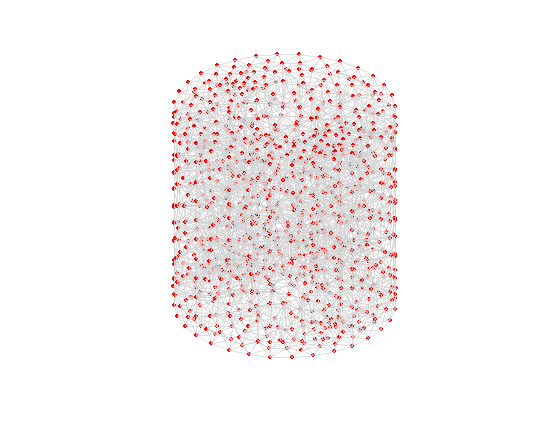

  figure(1)
  fc_graphics4mesh.plotmesh(q3,me3,'EdgeColor','LightGray','EdgeAlpha',0.7, 'FaceColor','None')
  hold on
  fc_graphics4mesh.plotnodes(q3,'Color','r','MarkerSize',10)
  view(3);axis image;axis off

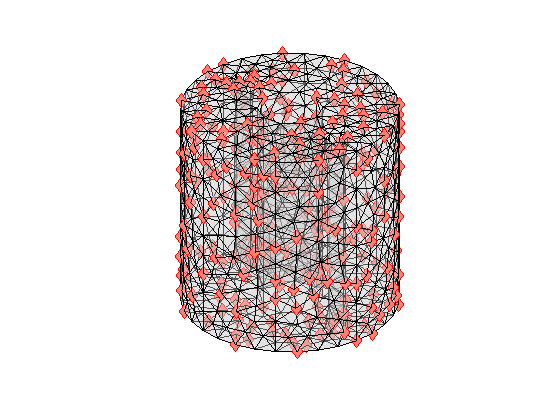

  figure(2)
  fc_graphics4mesh.plotmesh(q2,me2,'FaceColor','LightGray','FaceAlpha',0.4)
  hold on
  idx=1:3:size(q2,2);
  fc_graphics4mesh.plotnodes(q2,'idx',idx,'MarkerSize',8,'Marker','d', 'MarkerEdgeColor', 'red','MarkerFaceColor','Salmon')
  view(3);axis image;axis off

  figure(3)
  fc_graphics4mesh.plotmesh(q2,me2,'FaceColor','LightGray','FaceAlpha',0.4)
  hold on
  fc_graphics4mesh.plotnodes(q1,'MarkerSize',8,'Marker','p', 'MarkerEdgeColor', 'red','MarkerFaceColor','Salmon')
  view(3);axis image;axis off

Published with MATLAB® R2022a
