geofile=fc_simesh.get_geo(2,2,'condenser11');
  meshfile=fc_oogmsh.gmsh.buildmesh2d(geofile,25,'verbose',0);
  Th=fc_simesh.siMesh(meshfile);
  u=Th.eval(@(x,y) 5*exp(-3*(x.^2+y.^2)).*cos(x).*sin(y));

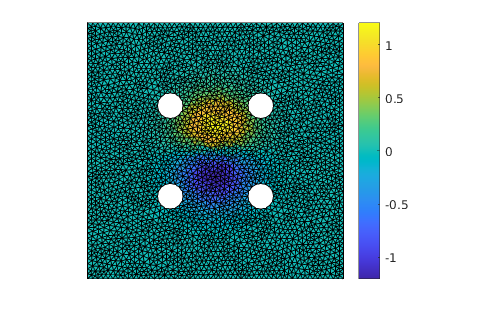

  figure(1)
  Th.plot(u)
  axis off;axis image;colorbar

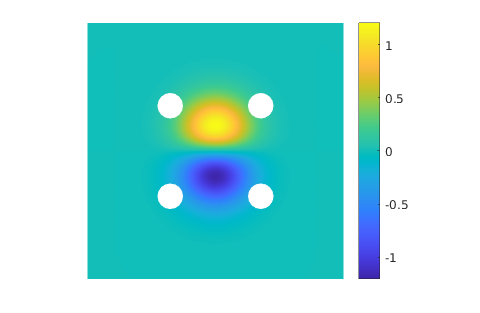

  figure(2)
  Th.plot(u)
  axis off;axis image;shading interp;colorbar

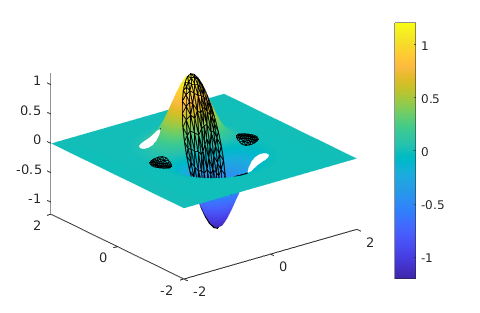

  figure(3)
  Th.plot(u,'labels',[2:2:8,20],'FaceColor','interp')
  view(3);hold on;colorbar
  Th.plot(u,'labels',10,'FaceColor','interp','EdgeColor','none')

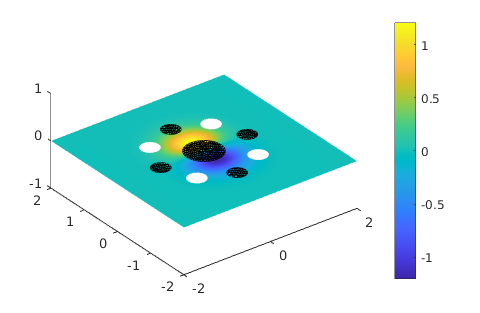

  figure(4)
  Th.plot(u,'labels',[2:2:8,20], 'plane',true ,'FaceColor','interp')
  view(3);hold on;axis image;colorbar
  Th.plot(u,'labels',10, 'plane',true, 'FaceColor','interp','EdgeColor','none')
  colorbar
  fc_tools.graphics.monitors.autoGrid()

Published with MATLAB® R2022a
