meshfile=fc_oogmsh.gmsh.buildmesh2d('condenser11',20);
  Th=fc_simesh.siMesh(meshfile);
  fc_tools.graphics.monitors.onGrid(2,2);

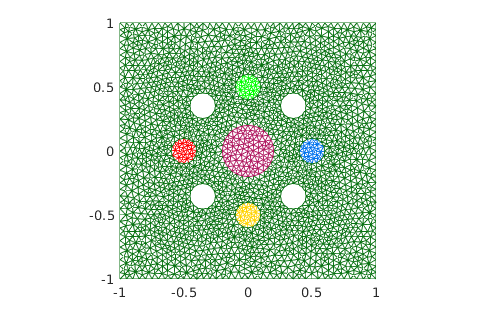

  figure(1)
  Th.plotmesh();
  axis image

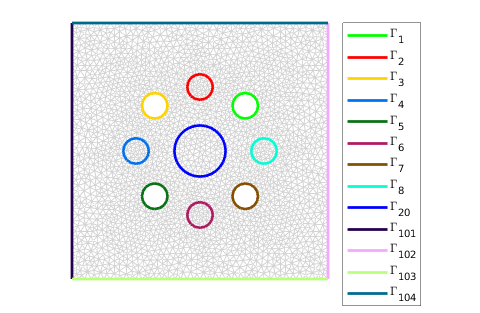

  figure(2)
  Th.plotmesh('color','LightGray')
  hold on;axis image;axis off
  Th.plotmesh('d',1,'Linewidth',2,'inlegend',true);
  fc_graphics4mesh.legend('Location','eastoutside')

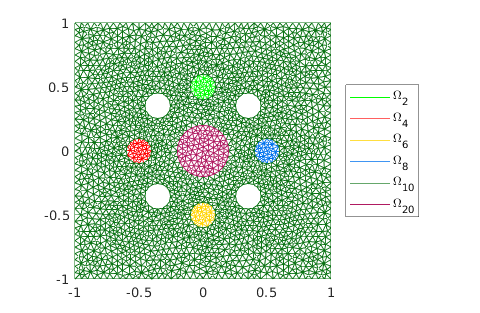

  figure(3)
  Th.plotmesh('inlegend',true);
  axis image
  fc_graphics4mesh.legend('Location','eastoutside')

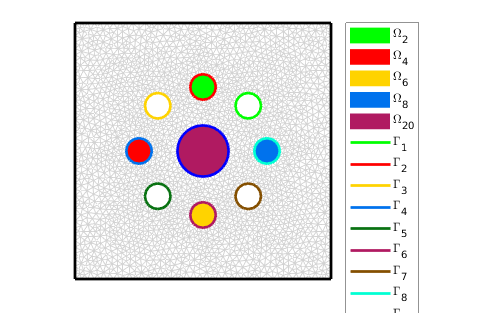

  figure(4)
  Th.plotmesh('color','LightGray','labels',10)
  hold on;axis image;axis off
  Th.plotmesh('fill',true,'labels',[2:2:8,20],'inlegend',true)
  Th.plotmesh('d',1,'Linewidth',2,'inlegend',true,'labels',[1:8,20]);
  Th.plotmesh('d',1,'Linewidth',2,'color','k','labels',[101:104]);
  fc_graphics4mesh.legend('Location','eastoutside')
  fc_tools.graphics.monitors.autoGrid()

[fc-oogmsh] Input file : <fc-oogmsh>/geodir/2d/condenser11.geo
[fc-oogmsh] Mesh file <fc-oogmsh>/meshes/condenser11-20.msh [version 4.1] already exists.
  -> Use "force" flag to rebuild if needed.

Published with MATLAB® R2022a
