meshfile=fc_oogmsh.gmsh.buildmesh3d('cylinder3holes',10);
  Th=fc_simesh.siMesh(meshfile);
  fc_tools.graphics.monitors.onGrid(3,3,'figures',1:7);
  figure(1)

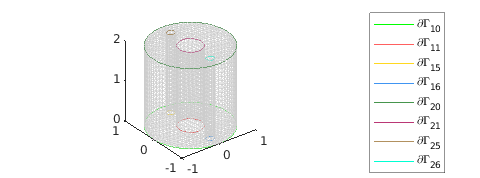

  Th.plotmesh('inlegend',true)
  axis image
  fc_graphics4mesh.legend('Location','EastOutside')

  figure(2)

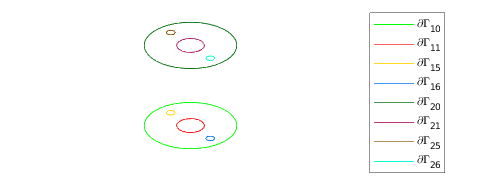

  Th.plotmesh('d',2,'inlegend',true);
  axis image;axis off
  fc_graphics4mesh.legend('Location','EastOutside')

  figure(3)

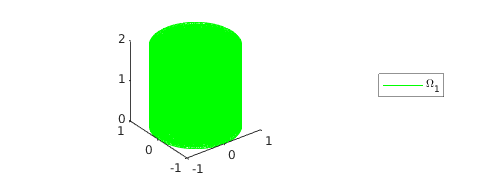

  Th.plotmesh('d',1,'inlegend',true);
  axis image;axis off
  fc_graphics4mesh.legend('Location','EastOutside')

  figure(4)

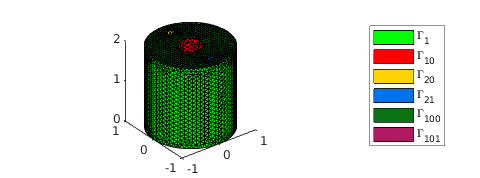

  Th.plotmesh('inlegend',true)
  hold on

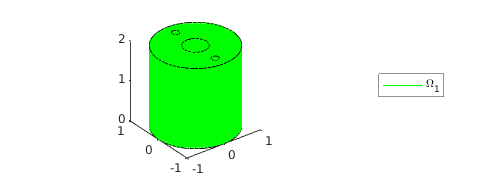

  Th.plotmesh('d',1,'color','k');
  axis image
  fc_graphics4mesh.legend('Location','EastOutside')

  figure(5)

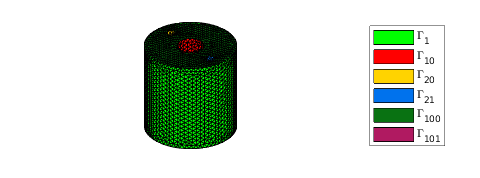

  Th.plotmesh('d',2,'inlegend',true);
  axis image
  fc_graphics4mesh.legend('Location','EastOutside')

  figure(6)
  Th.plotmesh('d',2,'edgecolor',0.8*[1 1 1],'facecolor','None','edgealpha',0.5)
  hold on;axis image
  Th.plotmesh('d',1,'inlegend',true);
  fc_graphics4mesh.legend('Location','EastOutside')

  figure(7)
  P=[fc_tools.graphics.PlaneCoefs([0 0 1],[0 0 1]); fc_tools.graphics.PlaneCoefs([0 0 1],[-1 0 0])];
  Th.plotmesh('cutPlane',P,'Color','DarkGrey')
  hold on;axis image

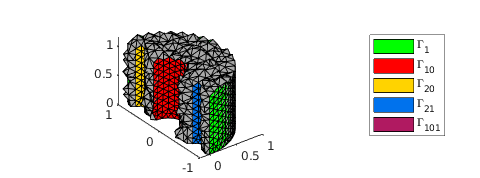

  Th.plotmesh('d',2,'cutPlane',P,'inlegend',true);
  fc_graphics4mesh.legend('Location','EastOutside')

[fc-oogmsh] Input file : <fc-oogmsh>/geodir/3d/cylinder3holes.geo
[fc-oogmsh] Mesh file <fc-oogmsh>/meshes/cylinder3holes-10.msh [version 4.1] already exists.
  -> Use "force" flag to rebuild if needed.
  Mesh cylinder3holes-10.msh is a 3-dimensional mesh
    Force dimension to 3
