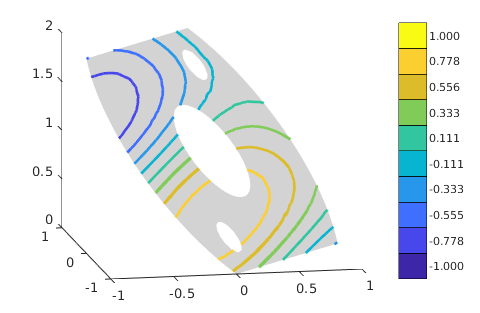

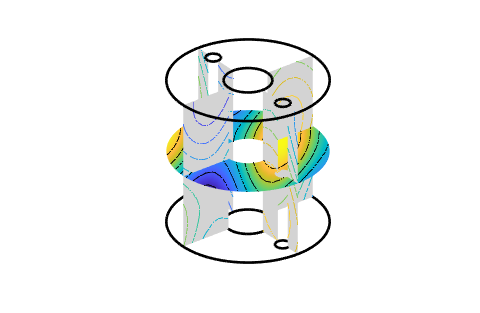

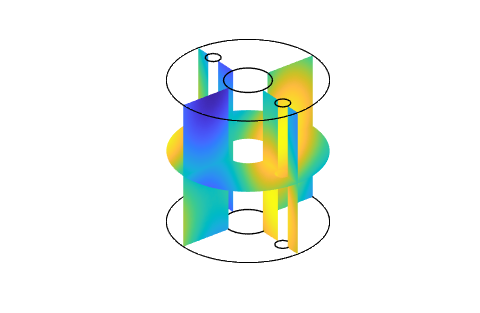

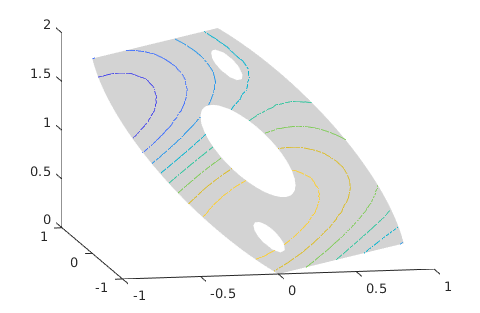

meshfile=fc_oogmsh.buildmesh3d('cylinder3holes',15); Th=fc_simesh.siMesh(meshfile); u=@(x,y,z) cos(2*x-y-z).*sin(x-2*y+z); U=Th.eval(u); fc_tools.graphics.monitors.onGrid(2,3,'figures',1:5); figure(1) P=fc_tools.graphics.PlaneCoefs([0 0 1],[1 -1 1]); fc_siplt.slicemesh(Th,P) hold on fc_siplt.sliceiso(Th,U,P) view(-11,15) figure(2) P=fc_tools.graphics.PlaneCoefs([0 0 1],[1 -1 1]); fc_siplt.slicemesh(Th,P) hold on [~,~,cax,h]=fc_siplt.sliceiso(Th,U,P,'isocolorbar',true); fc_siplt.sliceiso(Th,U,P,'isorange',0,'color','w','Linewidth',2); view(-11,15) I=~isnan(h); set(h(I),'LineWidth',2) set(cax,'FontSize',8) figure(3) P=fc_tools.graphics.PlaneCoefs([0 0 1],[1 -1 1]); fc_siplt.slicemesh(Th,P) hold on fc_siplt.sliceiso(Th,U,P,'isocolorbar',true,'LineWidth',2,'format','%.3f'); view(-11,15) figure(4) P=[fc_tools.graphics.PlaneCoefs([0 0 1],[1 0 0]); ... fc_tools.graphics.PlaneCoefs([0 0 1],[0 1 0]); ... fc_tools.graphics.PlaneCoefs([0 0 1],[0 0 1])]; fc_siplt.plotmesh(Th,'d',1,'LineWidth',1,'color','k'); hold on;axis off;axis image; fc_siplt.slice(Th,u,P,'Facecolor','interp') figure(5) fc_siplt.plotmesh(Th,'d',1,'LineWidth',2,'color','k'); hold on;axis off;axis image; fc_siplt.slicemesh(Th,P(1:2,:)) fc_siplt.sliceiso(Th,U,P(1:2,:)) fc_siplt.slice(Th,U,P(3,:),'Facecolor','interp') fc_siplt.sliceiso(Th,U,P(3,:),'color','white')
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/3d/cylinder3holes.geo [fc-oogmsh] Mesh file <fc-oogmsh>/meshes/cylinder3holes-15.msh [version 2.2] already exists. -> Use "force" flag to rebuild if needed. Mesh cylinder3holes-15.msh is a 3-dimensional mesh Force dimension to 3
