demo14
Contents
type='orthotope';order=3;
fprintf('--------------- fc_hypermesh.demos.demo14\n')
fprintf('2D Hyperrectangle [-1,1]x[0,1] - mesh with %d-order %s elements\n',order,type);
fprintf('---------------\n')
Oh=fc_hypermesh.OrthMesh([10,7],'box',[-1,1;0,1],'type',type,'order',order);
close all
fc_tools.graphics.monitors.onGrid(2,3,'figures',1:5,'covers',0.9)

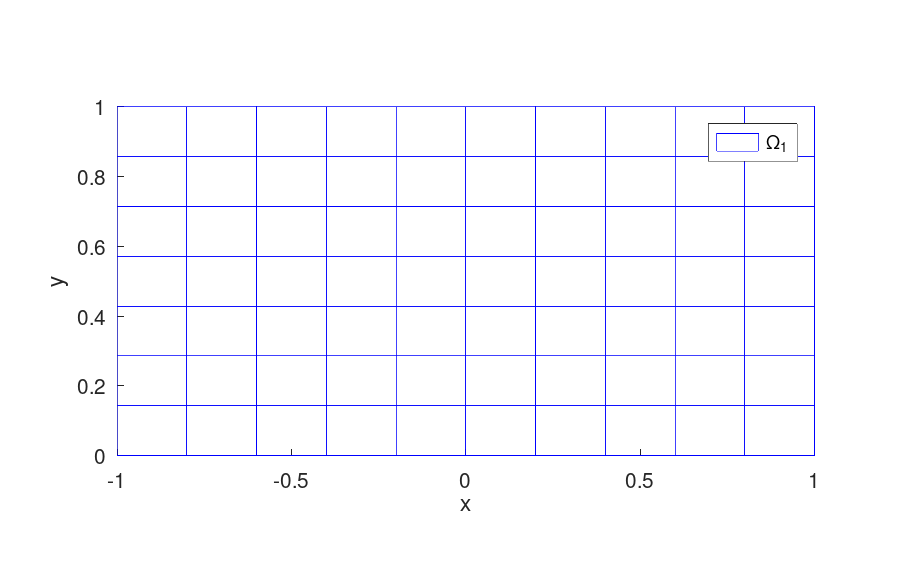

figure(1)
Oh.plotmesh('legend',true)

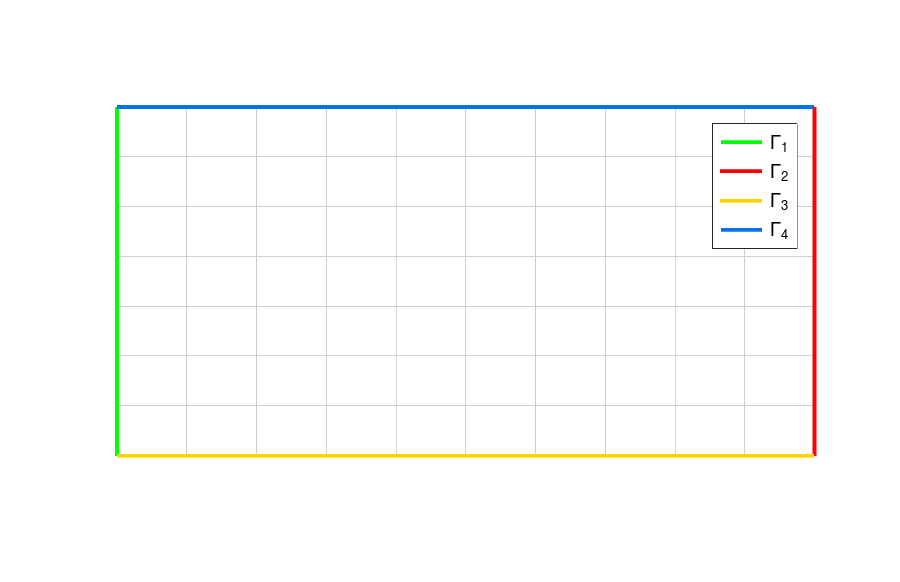

figure(2)
Oh.plotmesh('color',[0.8,0.8,0.8])
hold on
Oh.plotmesh('m',1,'Linewidth',2,'legend',true)
axis off

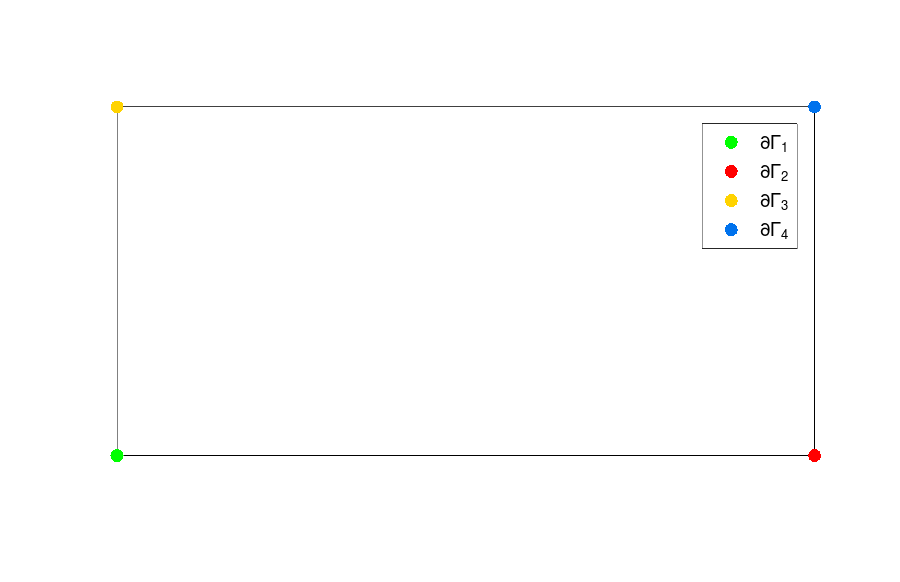

figure(3)
Oh.plotmesh('m',1,'color','k')
hold on
Oh.plotmesh('m',0,'legend',true)
axis off

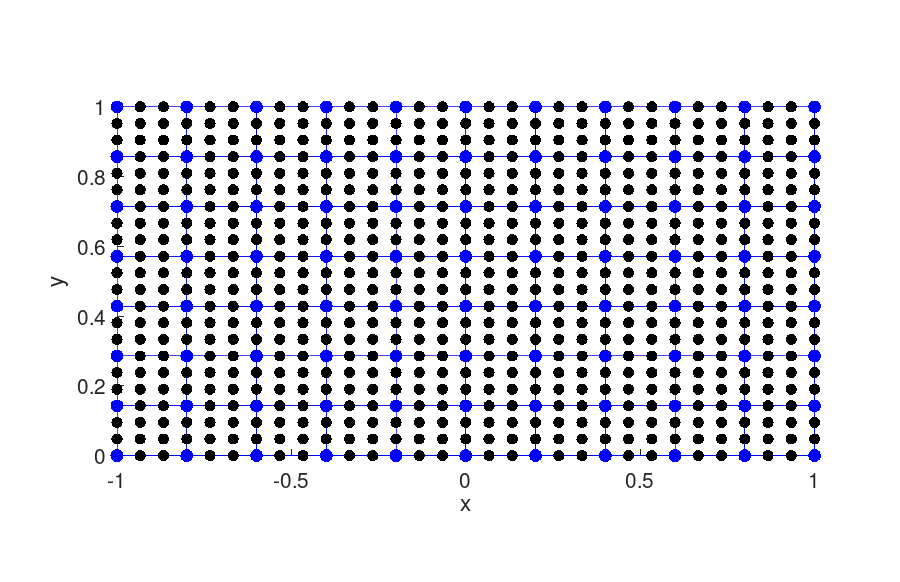

figure(4)
Oh.plotmesh()
hold on
Oh.plotnodes()

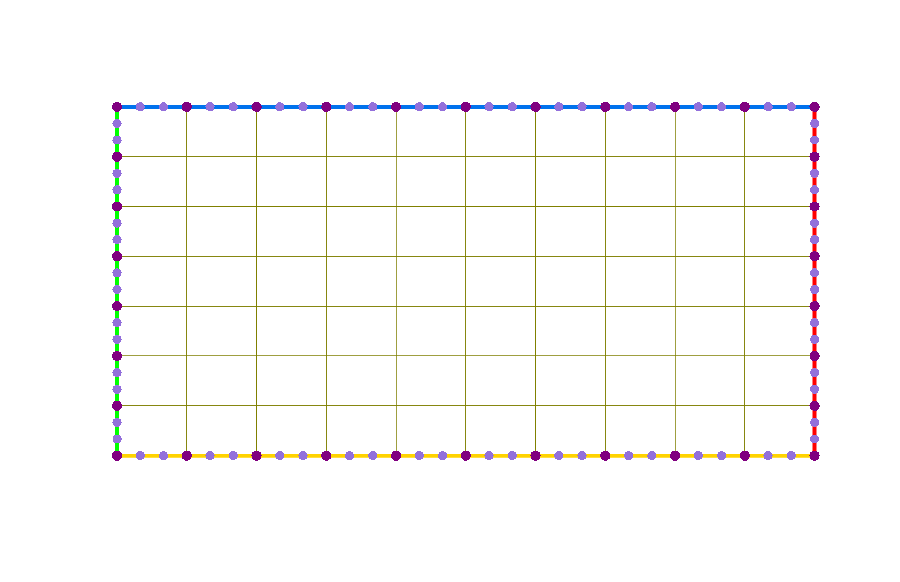

figure(5)
Oh.plotmesh('color','Olive')
hold on
Oh.plotmesh('m',1,'Linewidth',2)
Oh.plotnodes('m',1,'vsize',25,'vcolor','Purple','nsize',20,'ncolor','MediumPurple')
axis off
--------------- fc_hypermesh.demos.demo14
2D Hyperrectangle [-1,1]x[0,1] - mesh with 3-order orthotope elements
---------------
