demo23

MshFileVersion='4.1';
fprintf('--------------- demo23\n')
fprintf('2D meshing with gmsh.buildpartrectangle function using ''MshFileVersion''=''%s''(default)\n',MshFileVersion);
fprintf('---------------\n')
fprintf('1. Using gmsh.buildpartrectangle function :\n')
meshfile=fc_oogmsh.gmsh.buildpartrectangle(1,2,2,3,10,'verbose',4,'force',true,'MshFileVersion',MshFileVersion);
fprintf('   -> msh file : %s\n',fc_oogmsh.pathrep(meshfile));
fprintf('2. Reading mesh file\n')
Gh=fc_oogmsh.ooGmsh4(meshfile)

if fc_oogmsh.isgraphics()

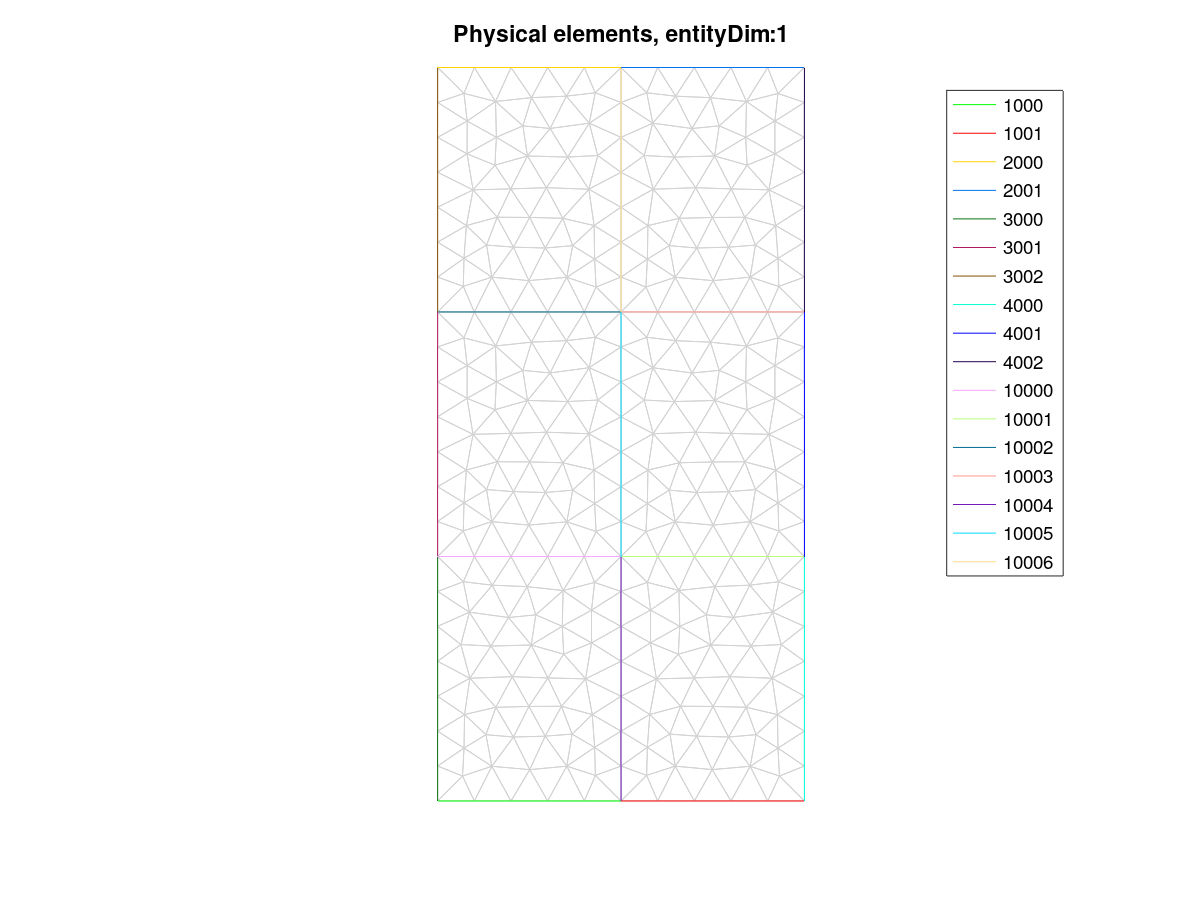

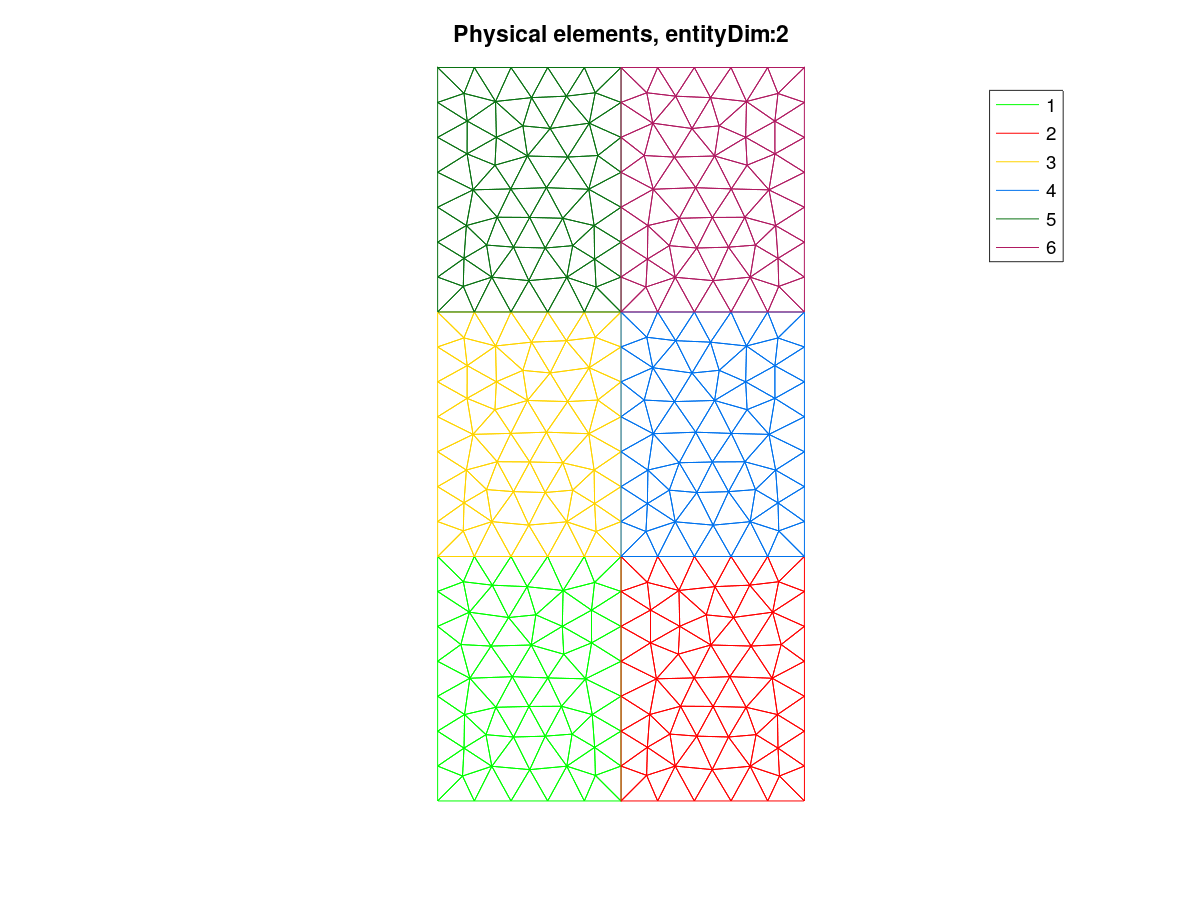

  Gh.plotPhysicalElements()

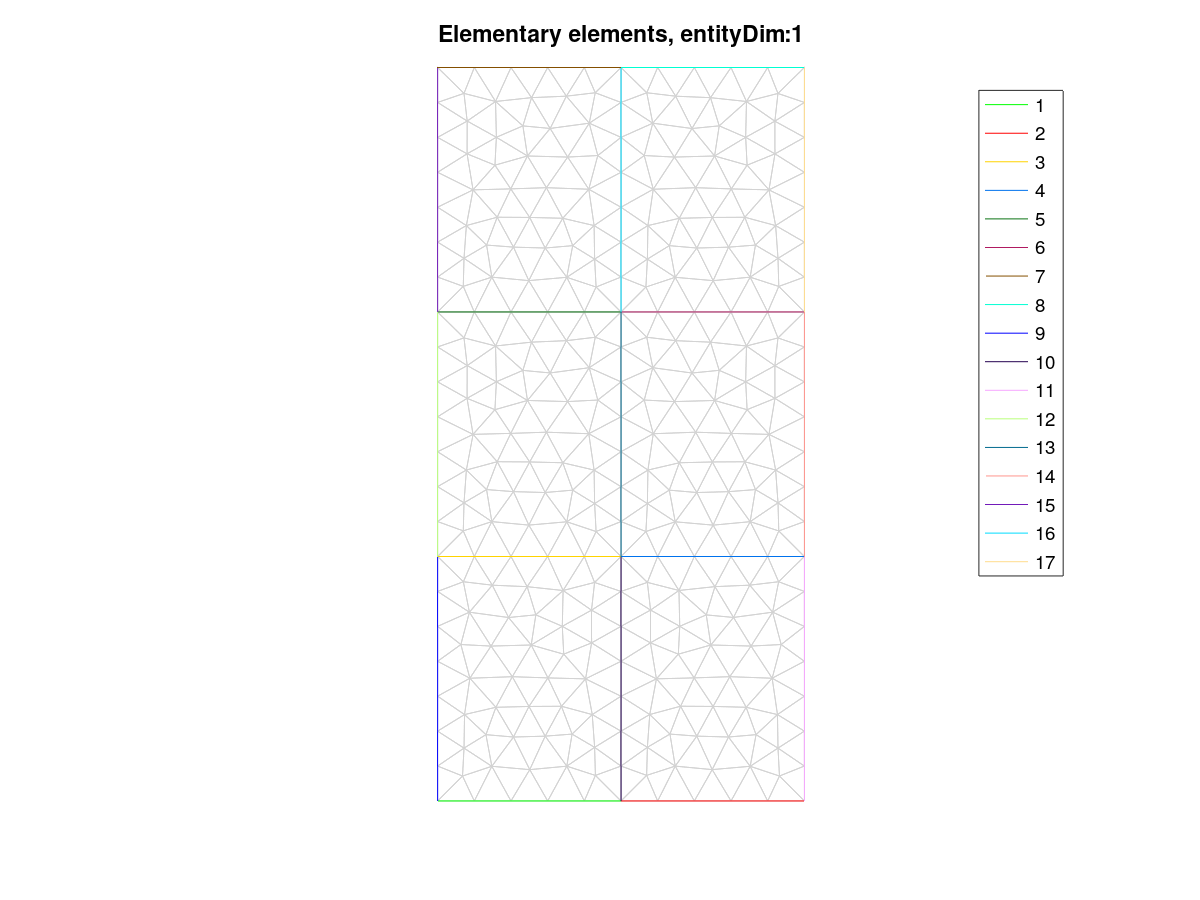

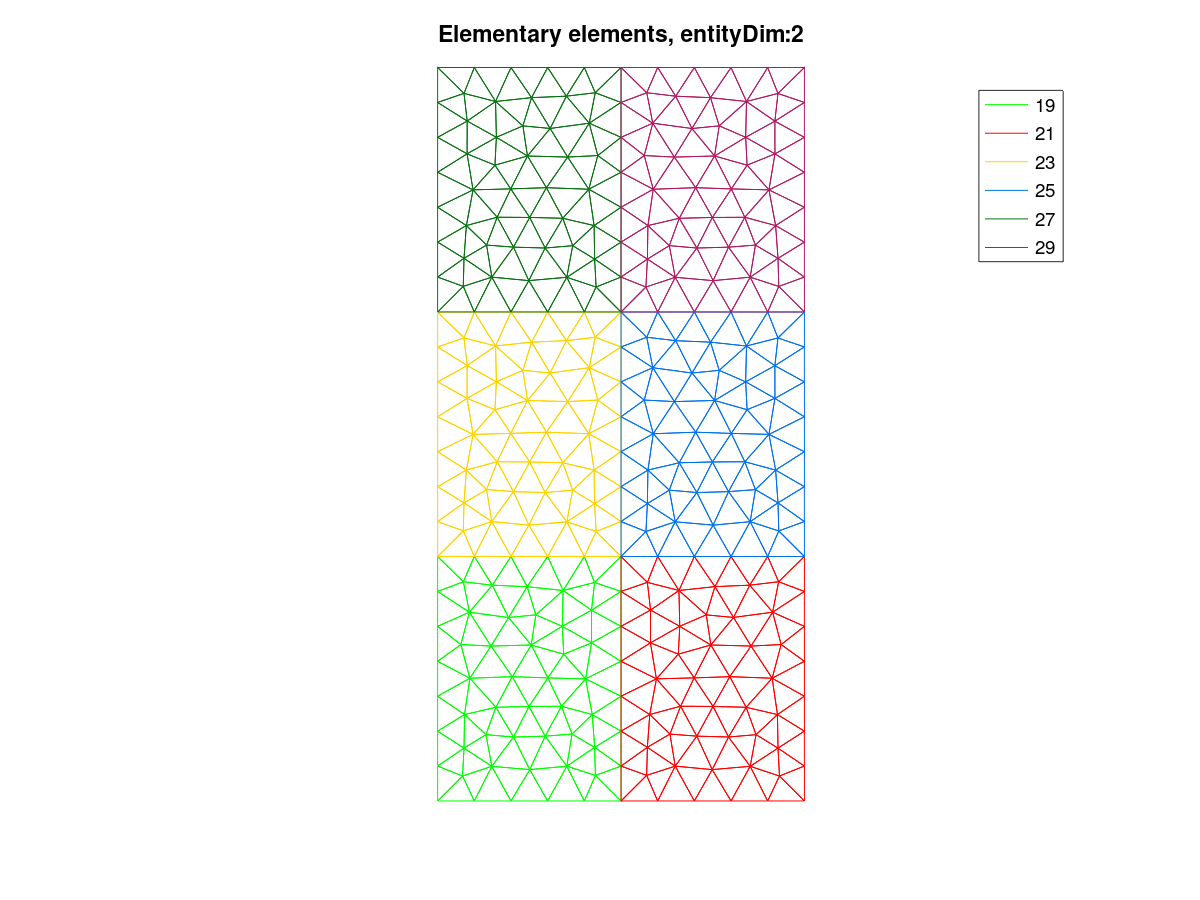

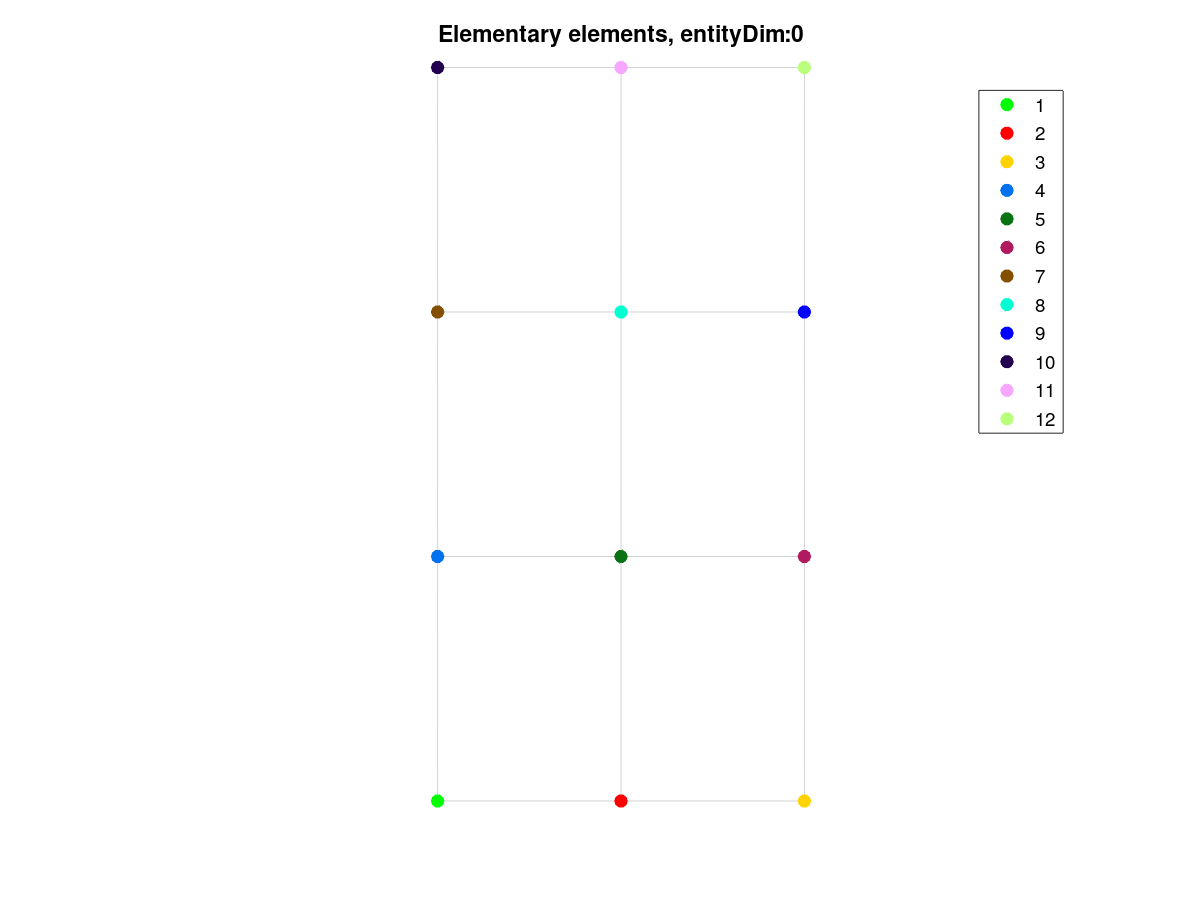

  Gh.plotElementaryElements()
end

--------------- demo23
2D meshing with gmsh.buildpartrectangle function using 'MshFileVersion'='4.1'(default)
---------------
1. Using gmsh.buildpartrectangle function :
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/2d/rectanglepart.geo
[fc-oogmsh] Overwritting mesh file <fc-oogmsh>/meshes/rectanglepart-Lx1.000-Ly2.000-Nx2-Ny3-N10.msh
[fc-oogmsh] Starting building mesh <fc-oogmsh>/meshes/rectanglepart-Lx1.000-Ly2.000-Nx2-Ny3-N10.msh with gmsh 4.5.1
[fc-oogmsh]  Using command : gmsh -2  -string "Mesh.MshFileVersion=4.1;"   -setnumber N 10  -setnumber NX 2  -setnumber NY 3  -setnumber LX 1  -setnumber LY 2  <fc-oogmsh>/geodir/2d/rectanglepart.geo -o <fc-oogmsh>/meshes/rectanglepart-Lx1.000-Ly2.000-Nx2-Ny3-N10.msh
 Be patient...
[fc-oogmsh] gmsh output :
Info    : Running '/fcopt/GMSH/64bit/4.5.1/bin/gmsh -2 -string Mesh.MshFileVersion=4.1; -setnumber N 10 -setnumber NX 2 -setnumber NY 3 -setnumber LX 1 -setnumber LY 2 <fc-oogmsh>/geodir/2d/rectanglepart.geo -o <fc-oogmsh>/meshes/rectanglepart-Lx1.000-Ly2.000-Nx2-Ny3-N10.msh' [Gmsh 4.5.1, 1 node, max. 1 thread]
Info    : Started on Sun Jan 26 10:05:08 2020
Info    : Reading '<fc-oogmsh>/geodir/2d/rectanglepart.geo'...
Info    : Reading '<fc-oogmsh>/geodir/2d/partitions01_data.geo'...
Info    : Done reading '<fc-oogmsh>/geodir/2d/partitions01_data.geo'
Info    : Reading '<fc-oogmsh>/geodir/2d/partitions_shape.geo'...
Info    : Done reading '<fc-oogmsh>/geodir/2d/partitions_shape.geo'
Info    : Done reading '<fc-oogmsh>/geodir/2d/rectanglepart.geo'
Info    : Meshing 1D...
Info    : [  0 %] Meshing curve 1 (Line)
Info    : [ 10 %] Meshing curve 2 (Line)
Info    : [ 20 %] Meshing curve 3 (Line)
Info    : [ 20 %] Meshing curve 4 (Line)
Info    : [ 30 %] Meshing curve 5 (Line)
Info    : [ 30 %] Meshing curve 6 (Line)
Info    : [ 40 %] Meshing curve 7 (Line)
Info    : [ 50 %] Meshing curve 8 (Line)
Info    : [ 50 %] Meshing curve 9 (Line)
Info    : [ 60 %] Meshing curve 10 (Line)
Info    : [ 60 %] Meshing curve 11 (Line)
Info    : [ 70 %] Meshing curve 12 (Line)
Info    : [ 80 %] Meshing curve 13 (Line)
Info    : [ 80 %] Meshing curve 14 (Line)
Info    : [ 90 %] Meshing curve 15 (Line)
Info    : [ 90 %] Meshing curve 16 (Line)
Info    : [100 %] Meshing curve 17 (Line)
Info    : Done meshing 1D (0.009571 s)
Info    : Meshing 2D...
Info    : [  0 %] Meshing surface 19 (Plane, Frontal)
Info    : [ 20 %] Meshing surface 21 (Plane, Frontal)
Info    : [ 40 %] Meshing surface 23 (Plane, Frontal)
Info    : [ 50 %] Meshing surface 25 (Plane, Frontal)
Info    : [ 70 %] Meshing surface 27 (Plane, Frontal)
Info    : [ 90 %] Meshing surface 29 (Plane, Frontal)
Info    : Done meshing 2D (0.050826 s)
Info    : 308 nodes 667 elements
Info    : Writing '<fc-oogmsh>/meshes/rectanglepart-Lx1.000-Ly2.000-Nx2-Ny3-N10.msh'...
Info    : Done writing '<fc-oogmsh>/meshes/rectanglepart-Lx1.000-Ly2.000-Nx2-Ny3-N10.msh'
Info    : Stopped on Sun Jan 26 10:05:08 2020

[fc-oogmsh] Using gmsh 4.5.1 to write MSH file format version 4.1 in <fc-oogmsh>/meshes/rectanglepart-Lx1.000-Ly2.000-Nx2-Ny3-N10.msh
   -> msh file : <fc-oogmsh>/meshes/rectanglepart-Lx1.000-Ly2.000-Nx2-Ny3-N10.msh
2. Reading mesh file
Gh =

  fc_oogmsh.ooGmsh4 with properties:
               Elements: (1x1 struct)
               Entities: (1x1 struct)
                   Info: (1x1 struct)
             MeshFormat: (1x1 struct)
                  Nodes: (1x1 struct)
    PartitionedEntities: []
          PeriodicLinks: []
          PhysicalNames: []
                      d: 2 double
                    dim: 2 double
               meshfile: (1x101 char)
                     nq: 308 double
                 orders: 1 double
       partitionnedfile: 0 logical
                      q: (2x308 double)
               toGlobal: (1x308 double)
