demo01

fprintf('--------------- %s\n',mfilename())
fprintf('2D meshing: mesh using ''MshFileVersion''=''2.2''\n')
fprintf('---------------\n')
geofile='condenser.geo';
np=5; % number of partitions
fprintf('1. Building a mesh file by using :\n')
fprintf('   -> gmsh version %s\n',fc_oogmsh.gmsh.version())
fprintf('   -> geo file : %s\n',geofile);
meshfile=fc_oogmsh.gmsh.buildmesh(geofile,20,'verbose',2,'force',true,'MshFileVersion','2.2');
fprintf('   -> msh file : %s\n',fc_oogmsh.pathrep(meshfile));
fprintf('2. Reading the mesh file\n')
Gh=fc_oogmsh.ooGmsh2(meshfile)

if fc_oogmsh.isgraphics()

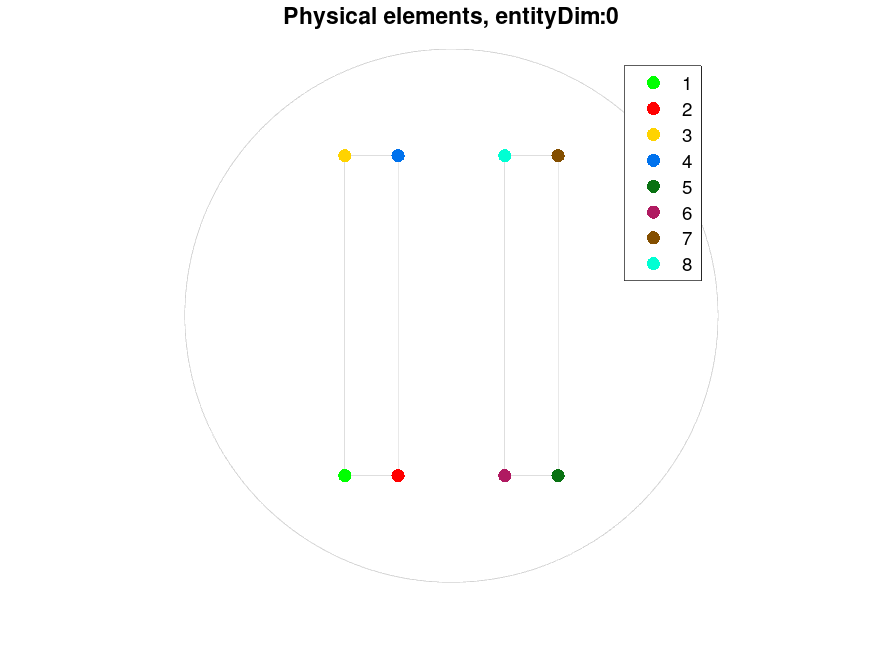

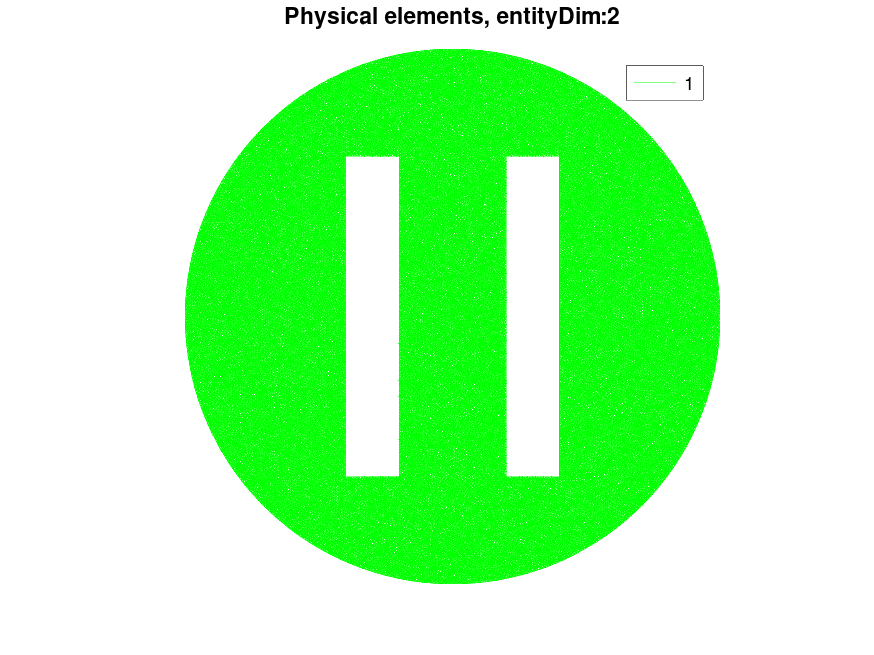

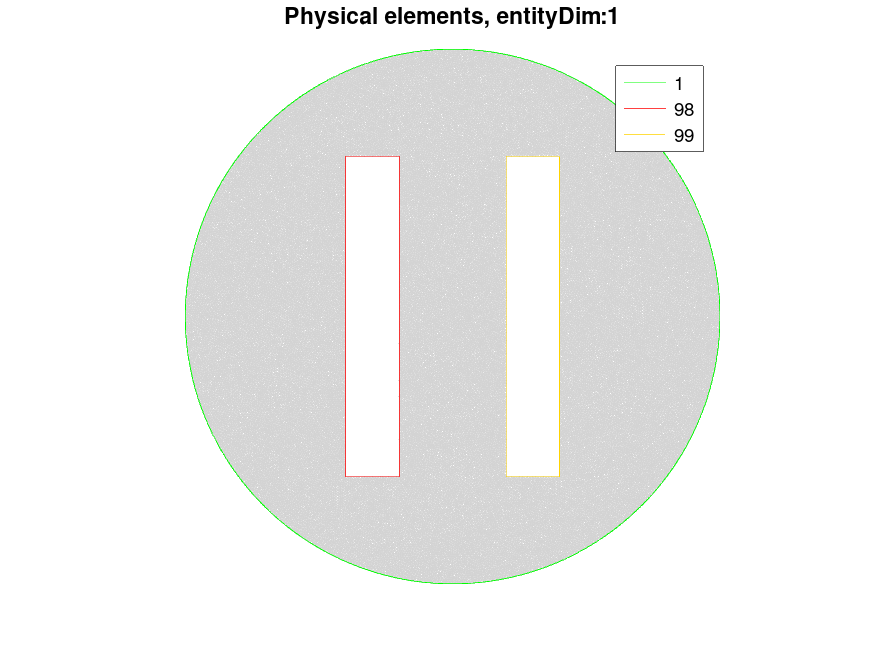

  Gh.plotPhysicalElements()

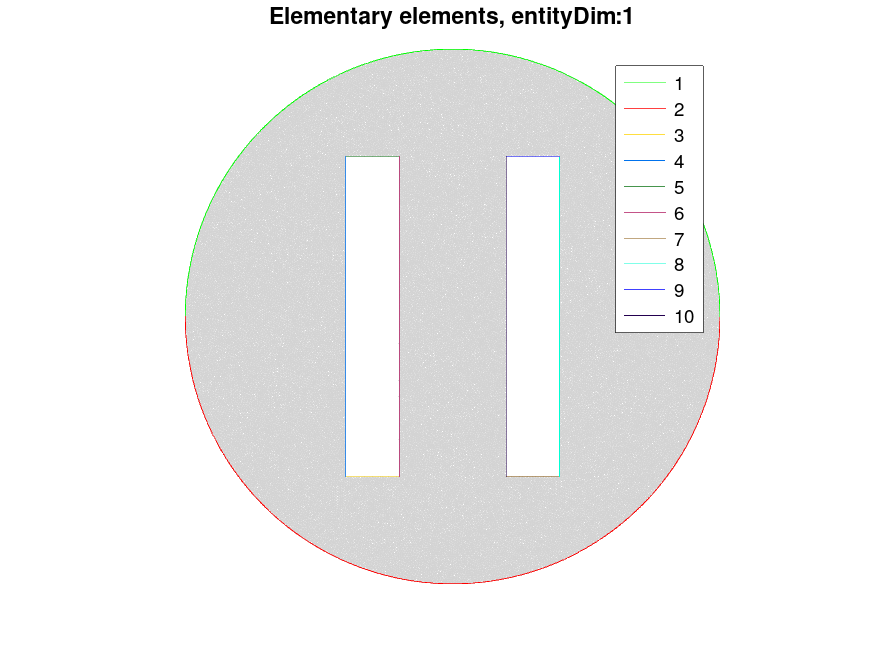

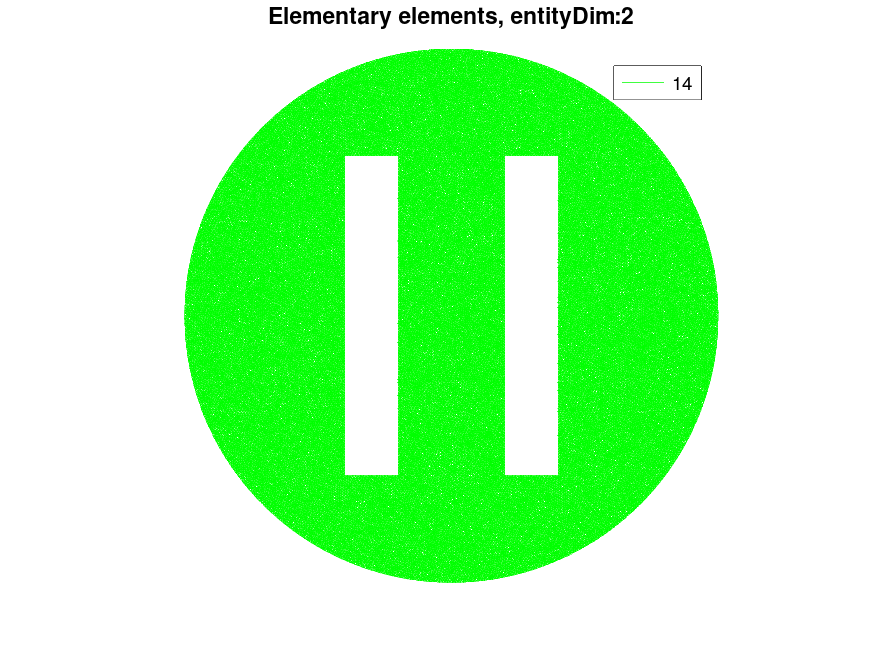

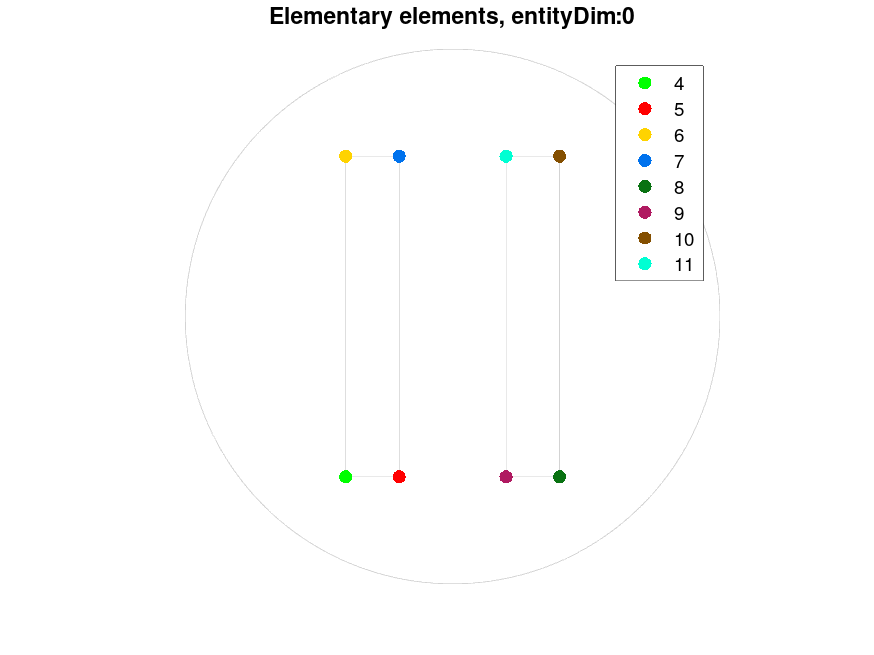

  Gh.plotElementaryElements()
end

--------------- publish
2D meshing: mesh using 'MshFileVersion'='2.2'
---------------
1. Building a mesh file by using :
   -> gmsh version 2.16.0
   -> geo file : condenser.geo
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/2d/condenser.geo
[fc-oogmsh] Overwritting mesh file <fc-oogmsh>/meshes/condenser-20.msh
[fc-oogmsh] Starting building mesh <fc-oogmsh>/meshes/condenser-20.msh with gmsh 2.16.0
[fc-oogmsh]  Using command : gmsh -2 -setnumber N 20 -string "Mesh.MshFileVersion=2.2;"   <fc-oogmsh>/geodir/2d/condenser.geo -o <fc-oogmsh>/meshes/condenser-20.msh
 Be patient...
[fc-oogmsh] Using gmsh 2.16.0 to write MSH file format version 2.2 in <fc-oogmsh>/meshes/condenser-20.msh
   -> msh file : <fc-oogmsh>/meshes/condenser-20.msh
2. Reading the mesh file
Gh =

  fc_oogmsh.ooGmsh2 with properties:
                Info: (1x1 struct)
          MeshFormat: (1x1 struct)
                   d: 2 double
               debug: (1x1 struct)
                 dim: 2 double
            meshfile: (1x72 char)
                  nq: 35906 double
              orders: 1 double
    partitionnedfile: 0 logical
                   q: (2x35906 double)
               sElts: (3x1 struct)
            toGlobal: (1x35906 double)
               types: [ 1 2 15 ] (1x3 double)
