demo03

fprintf('--------------- %s\n',mfilename())
fprintf('2D meshing with gmsh.buildpartrectangle function using ''MshFileVersion''=''2.2''\n')
fprintf('---------------\n')
fprintf('1. Using gmsh.buildpartrectangle function :\n')
meshfile=fc_oogmsh.gmsh.buildpartrectangle(2,1,3,2,10,'verbose',4,'force',true,'MshFileVersion','2.2');
fprintf('   -> msh file : %s\n',fc_oogmsh.pathrep(meshfile));
fprintf('2. Reading mesh file\n')
Gh=fc_oogmsh.ooGmsh2(meshfile)

if fc_oogmsh.isgraphics()

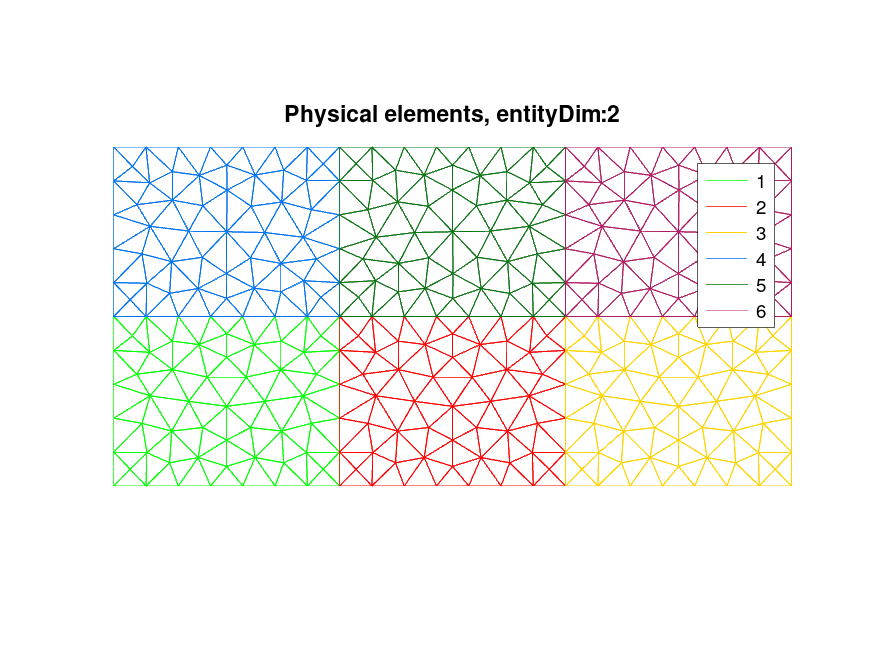

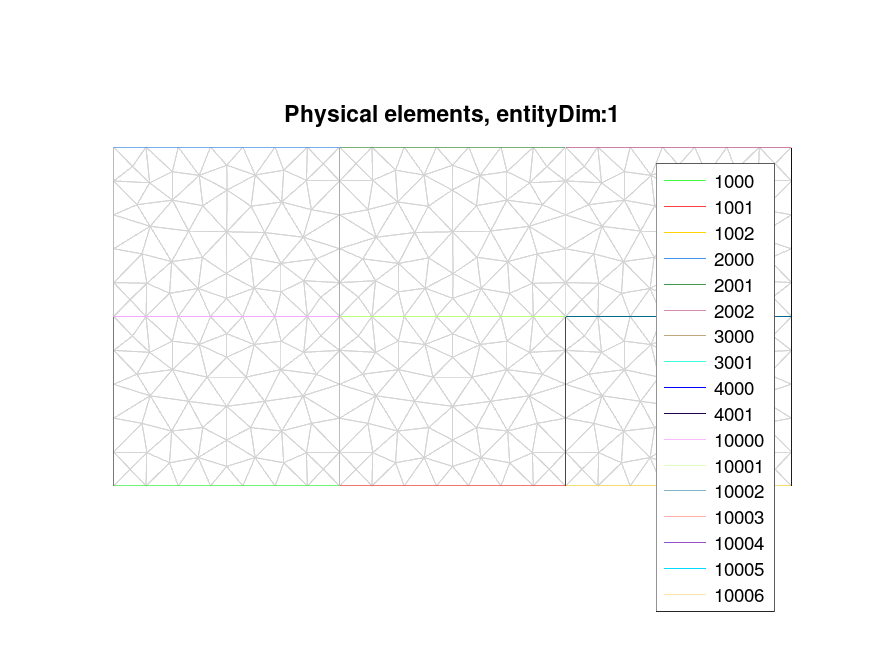

  Gh.plotPhysicalElements()

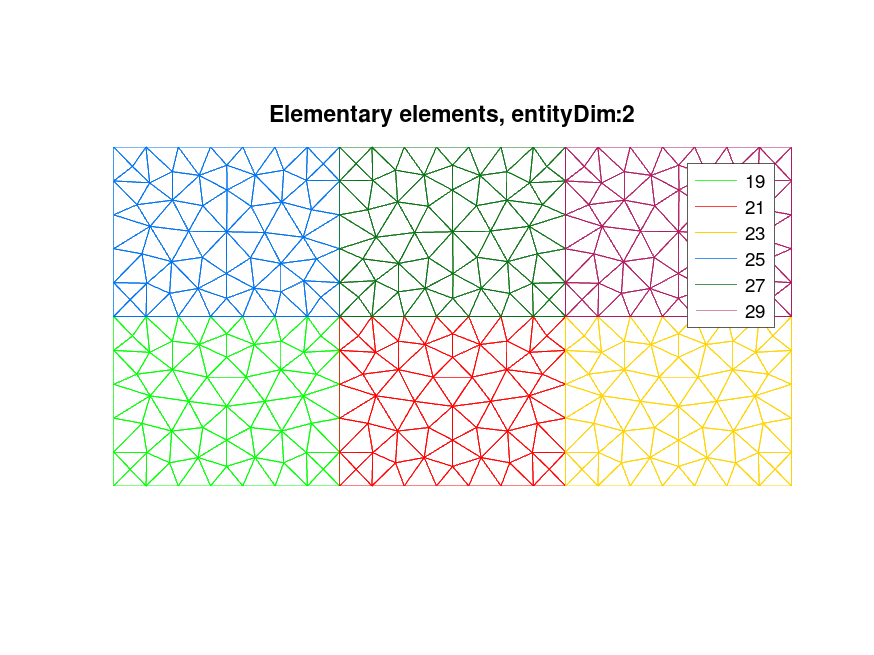

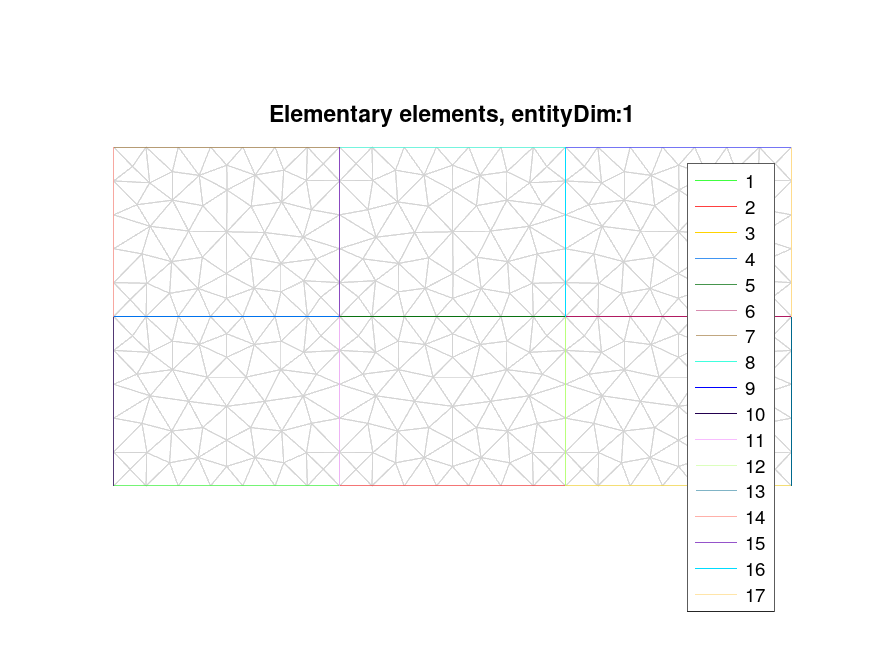

  Gh.plotElementaryElements()
end

--------------- publish
2D meshing with gmsh.buildpartrectangle function using 'MshFileVersion'='2.2'
---------------
1. Using gmsh.buildpartrectangle function :
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/2d/rectanglepart.geo
[fc-oogmsh] Overwritting mesh file <fc-oogmsh>/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh
[fc-oogmsh] Starting building mesh <fc-oogmsh>/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh with gmsh 2.16.0
[fc-oogmsh]  Using command : '/fcopt/GMSH/64bit/2.16.0/bin/gmsh' -2  -string "Mesh.MshFileVersion=2.2;"   -setnumber N 10  -setnumber NX 3  -setnumber NY 2  -setnumber LX 2  -setnumber LY 1  '/home/cuvelier/Travail/Recherch/Matlab/fc-oogmsh/geodir/2d/rectanglepart.geo' -o '/home/cuvelier/Travail/Recherch/Matlab/fc-oogmsh/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh'
 Be patient...
[fc-oogmsh] Starting building mesh <fc-oogmsh>/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh with gmsh 2.16.0
[fc-oogmsh]  Using command : gmsh -2  -string "Mesh.MshFileVersion=2.2;"   -setnumber N 10  -setnumber NX 3  -setnumber NY 2  -setnumber LX 2  -setnumber LY 1  <fc-oogmsh>/geodir/2d/rectanglepart.geo -o <fc-oogmsh>/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh
 Be patient...
[fc-oogmsh] gmsh output :
Info    : Running '/fcopt/GMSH/64bit/2.16.0/bin/gmsh -2 -string Mesh.MshFileVersion=2.2; -setnumber N 10 -setnumber NX 3 -setnumber NY 2 -setnumber LX 2 -setnumber LY 1 <fc-oogmsh>/geodir/2d/rectanglepart.geo -o <fc-oogmsh>/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh' [Gmsh 2.16.0, 1 node, max. 1 thread]
Info    : Started on Wed Dec 21 08:03:03 2022
Info    : Reading '<fc-oogmsh>/geodir/2d/rectanglepart.geo'...
Info    : Reading '<fc-oogmsh>/geodir/2d/partitions01_data.geo'...
Info    : Done reading '<fc-oogmsh>/geodir/2d/partitions01_data.geo'
Info    : Reading '<fc-oogmsh>/geodir/2d/partitions_shape.geo'...
Info    : Done reading '<fc-oogmsh>/geodir/2d/partitions_shape.geo'
Info    : Done reading '<fc-oogmsh>/geodir/2d/rectanglepart.geo'
Info    : Finalized high order topology of periodic connections
Info    : Meshing 1D...
Info    : Meshing curve 1 (Line)
Info    : Meshing curve 2 (Line)
Info    : Meshing curve 3 (Line)
Info    : Meshing curve 4 (Line)
Info    : Meshing curve 5 (Line)
Info    : Meshing curve 6 (Line)
Info    : Meshing curve 7 (Line)
Info    : Meshing curve 8 (Line)
Info    : Meshing curve 9 (Line)
Info    : Meshing curve 10 (Line)
Info    : Meshing curve 11 (Line)
Info    : Meshing curve 12 (Line)
Info    : Meshing curve 13 (Line)
Info    : Meshing curve 14 (Line)
Info    : Meshing curve 15 (Line)
Info    : Meshing curve 16 (Line)
Info    : Meshing curve 17 (Line)
Info    : Done meshing 1D (0.002234 s)
Info    : Meshing 2D...
Info    : Meshing surface 19 (Plane, Delaunay)
Info    : Meshing surface 21 (Plane, Delaunay)
Info    : Meshing surface 23 (Plane, Delaunay)
Info    : Meshing surface 25 (Plane, Delaunay)
Info    : Meshing surface 27 (Plane, Delaunay)
Info    : Meshing surface 29 (Plane, Delaunay)
Info    : Done meshing 2D (0.0120542 s)
Info    : 320 vertices 691 elements
Info    : Writing '<fc-oogmsh>/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh'...
Info    : Done writing '<fc-oogmsh>/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh'
Info    : Stopped on Wed Dec 21 08:03:03 2022

[fc-oogmsh] Using gmsh 2.16.0 to write MSH file format version 2.2 in <fc-oogmsh>/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh
   -> msh file : <fc-oogmsh>/meshes/rectanglepart-Lx2.000-Ly1.000-Nx3-Ny2-N10.msh
2. Reading mesh file
Gh =

  fc_oogmsh.ooGmsh2 with properties:
                Info: (1x1 struct)
          MeshFormat: (1x1 struct)
                   d: 2 double
               debug: (1x1 struct)
                 dim: 2 double
            meshfile: (1x101 char)
                  nq: 320 double
              orders: 1 double
    partitionnedfile: 0 logical
                   q: (2x320 double)
               sElts: (2x1 struct)
            toGlobal: (1x320 double)
               types: [ 1 2 ] (1x2 double)
