demo05
fprintf('--------------- %s\n',mfilename())
fprintf('3D partitioned mesh from geofile using ''MshFileVersion''=''2.2''\n')
fprintf('---------------\n')
geofile='cylinderkey';np=5;
fprintf('1. Building partitioned mesh file\n')
fprintf(' -> geofile : %s\n',geofile)
fprintf(' -> number of partitions : %d\n',np);
pmfile=fc_oogmsh.gmsh.buildpartmesh(geofile,np,'verbose',2,'force',true,'MshFileVersion','2.2');
fprintf(' -> partitioned msh file : %s\n',fc_oogmsh.pathrep(pmfile));
fprintf('2. Reading the partitioned mesh file\n')
pGh=fc_oogmsh.ooGmsh2(pmfile)
if fc_oogmsh.isgraphics()
pGh.plotPhysicalElements()

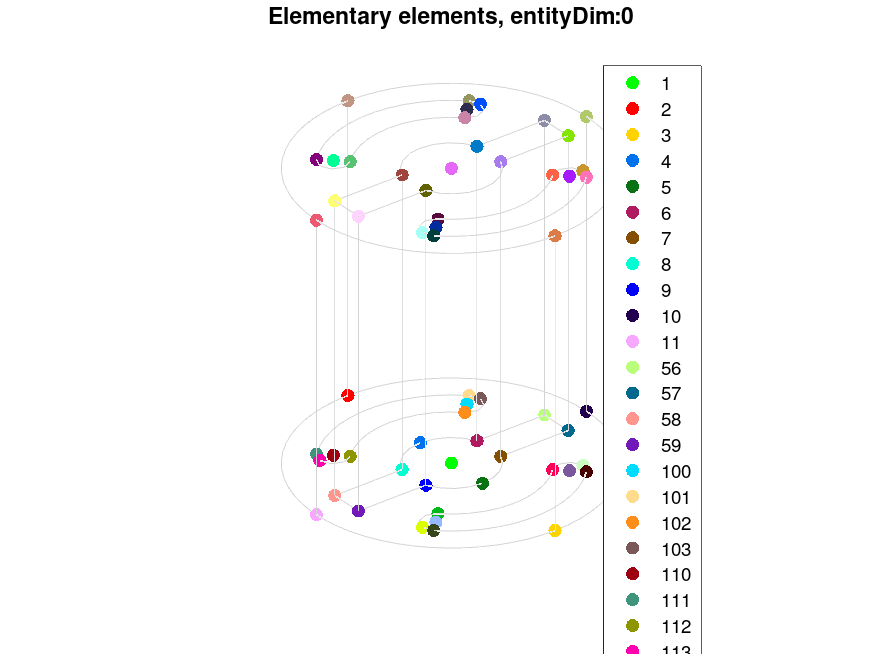

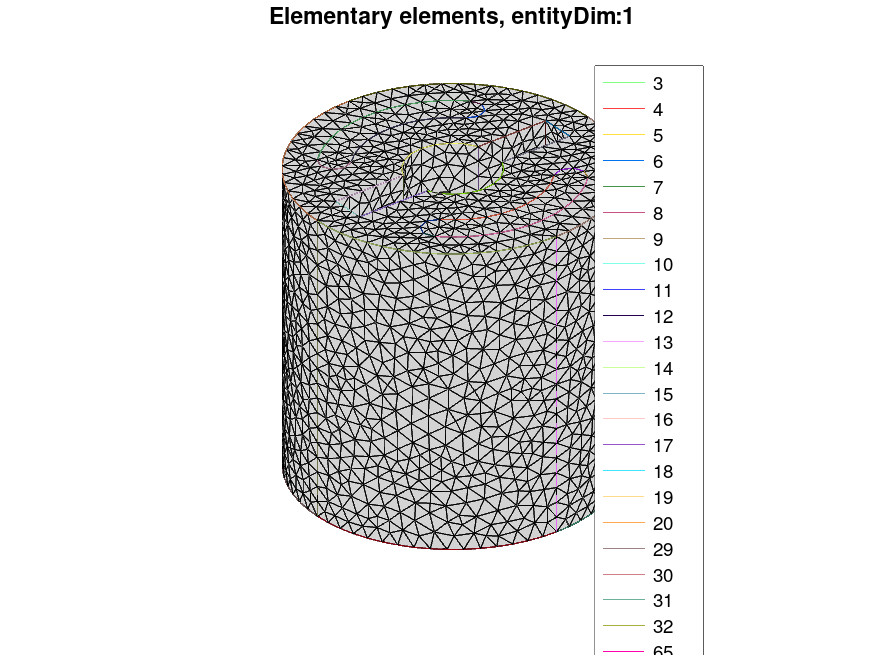

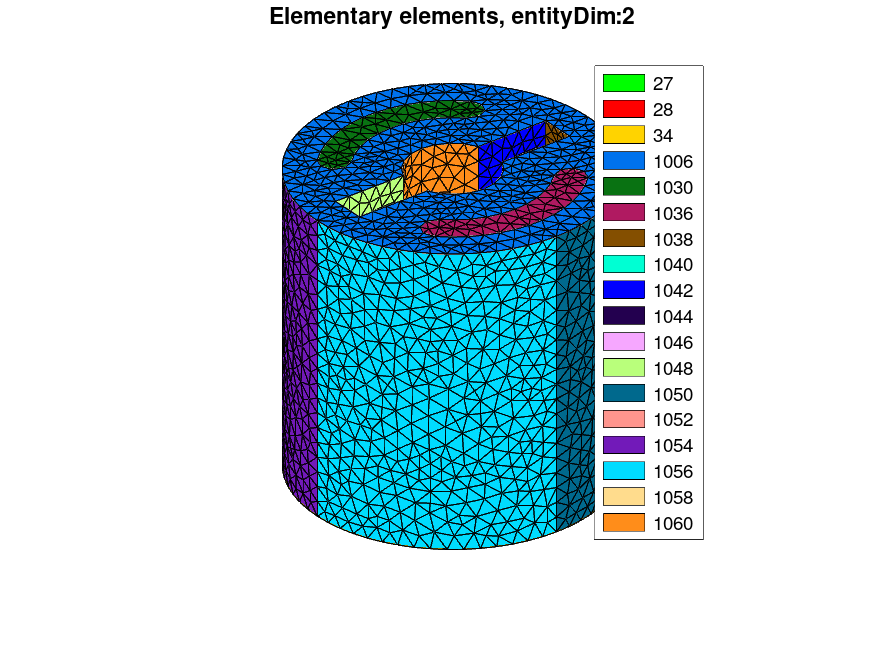

pGh.plotElementaryElements()

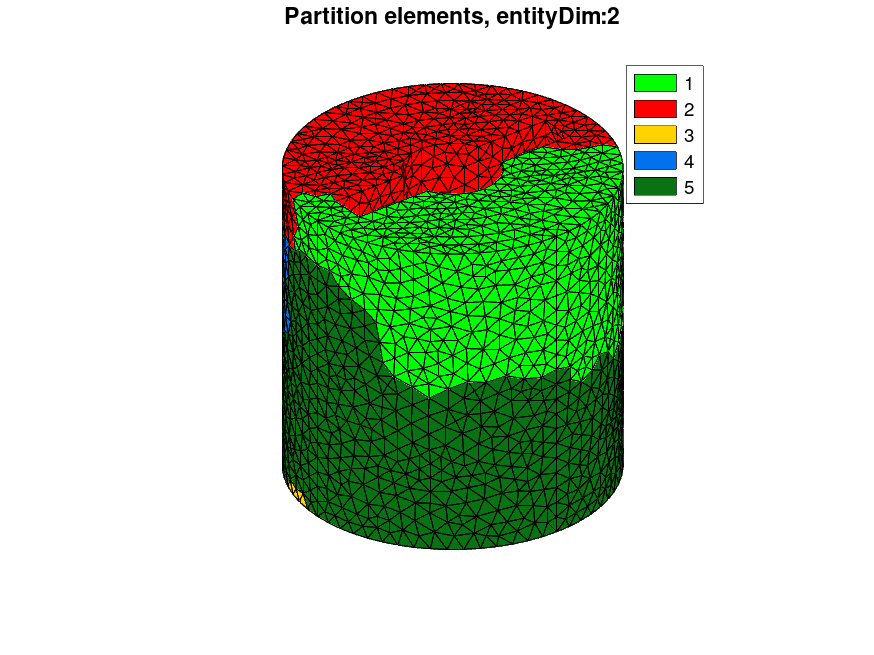

pGh.plotPartitionElements()

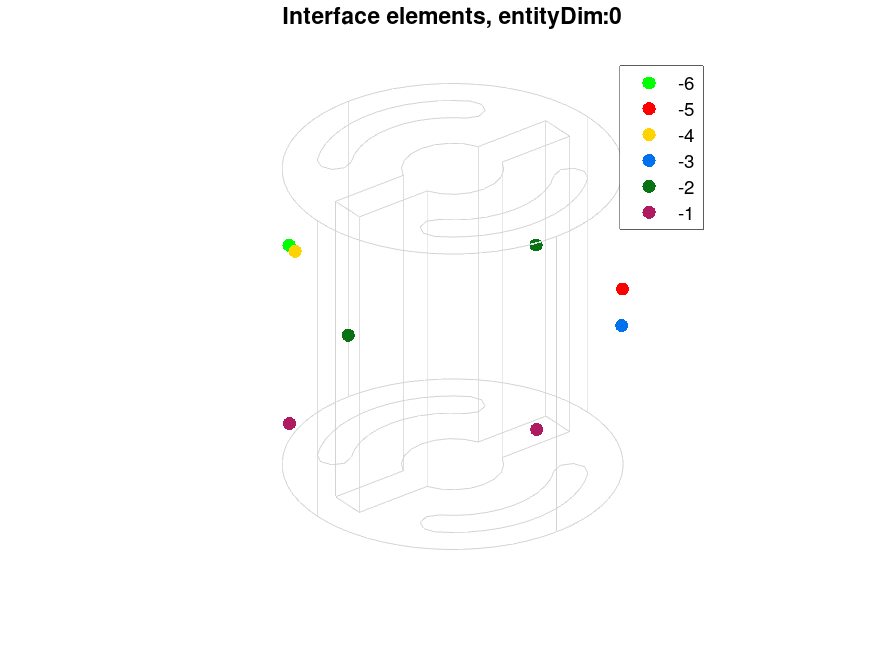

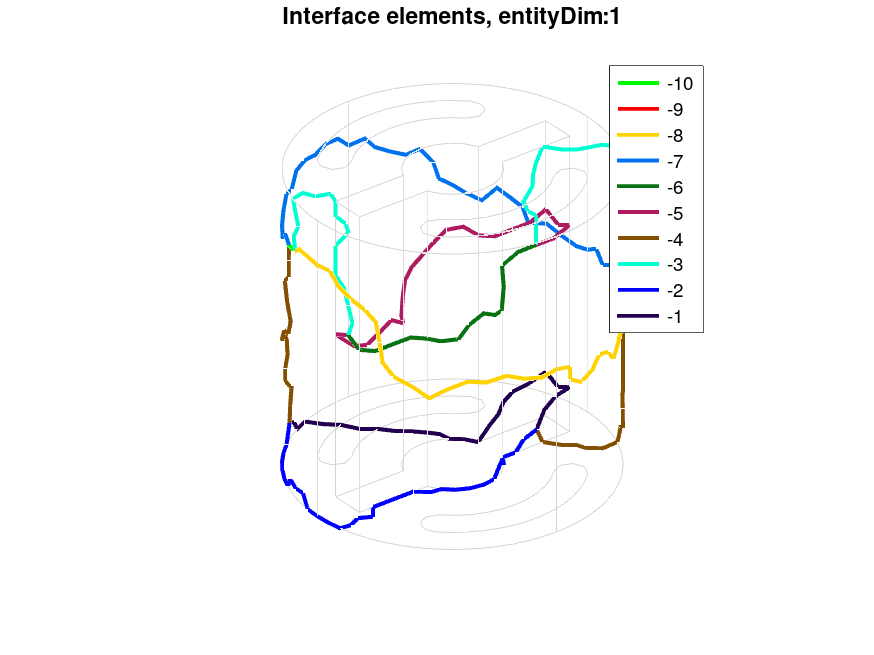

pGh.plotInterfaceElements()
end
--------------- publish
3D partitioned mesh from geofile using 'MshFileVersion'='2.2'
---------------
1. Building partitioned mesh file
-> geofile : cylinderkey
-> number of partitions : 5
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/3d/cylinderkey.geo
[fc-oogmsh] Overwritting mesh file <fc-oogmsh>/meshes/cylinderkey-10-part5.msh
[fc-oogmsh] Starting building mesh <fc-oogmsh>/meshes/cylinderkey-10-part5.msh with gmsh 2.16.0
[fc-oogmsh] Using command : gmsh -2 -part 5 -setnumber N 10 -string "Mesh.MshFileVersion=2.2;" -saveall <fc-oogmsh>/geodir/3d/cylinderkey.geo -o <fc-oogmsh>/meshes/cylinderkey-10-part5.msh
Be patient...
[fc-oogmsh] Using gmsh 2.16.0 to write MSH file format version 2.2 in <fc-oogmsh>/meshes/cylinderkey-10-part5.msh
-> partitioned msh file : <fc-oogmsh>/meshes/cylinderkey-10-part5.msh
2. Reading the partitioned mesh file
pGh =
fc_oogmsh.ooGmsh2 with properties:
Info: (1x1 struct)
MeshFormat: (1x1 struct)
d: 2 double
debug: (1x1 struct)
dim: 3 double
meshfile: (1x80 char)
nq: 3269 double
orders: 1 double
partitionnedfile: 1 logical
q: (3x3269 double)
sElts: (3x1 struct)
toGlobal: (1x3269 double)
types: [ 1 2 15 ] (1x3 double)
