demo11

fprintf('--------------- %s\n',mfilename())
fprintf('2D meshing: mesh using ''MshFileVersion''=''4.1''\n')
fprintf('---------------\n')
geofile='condenser.geo';
np=5; % number of partitions
fprintf('1. Building a mesh file by using :\n')
fprintf('   -> gmsh version %s\n',fc_oogmsh.gmsh.version())
fprintf('   -> geo file : %s\n',geofile);
meshfile=fc_oogmsh.gmsh.buildmesh(geofile,20,'verbose',2,'force',true,'MshFileVersion','4.1');
fprintf('   -> msh file : %s\n',fc_oogmsh.pathrep(meshfile));
fprintf('2. Reading the mesh file\n')
Gh=fc_oogmsh.ooGmsh4(meshfile)

if fc_oogmsh.isgraphics()

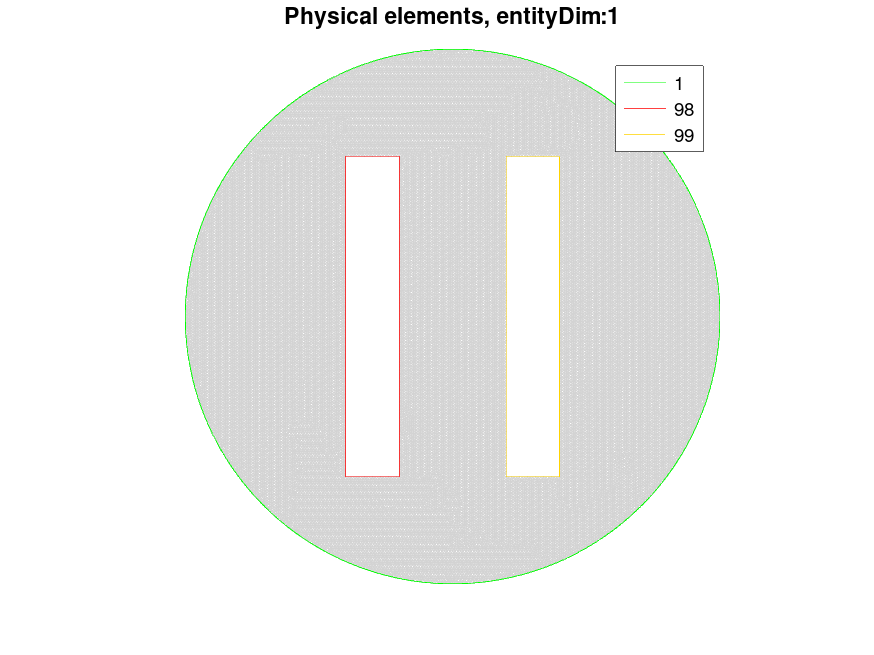

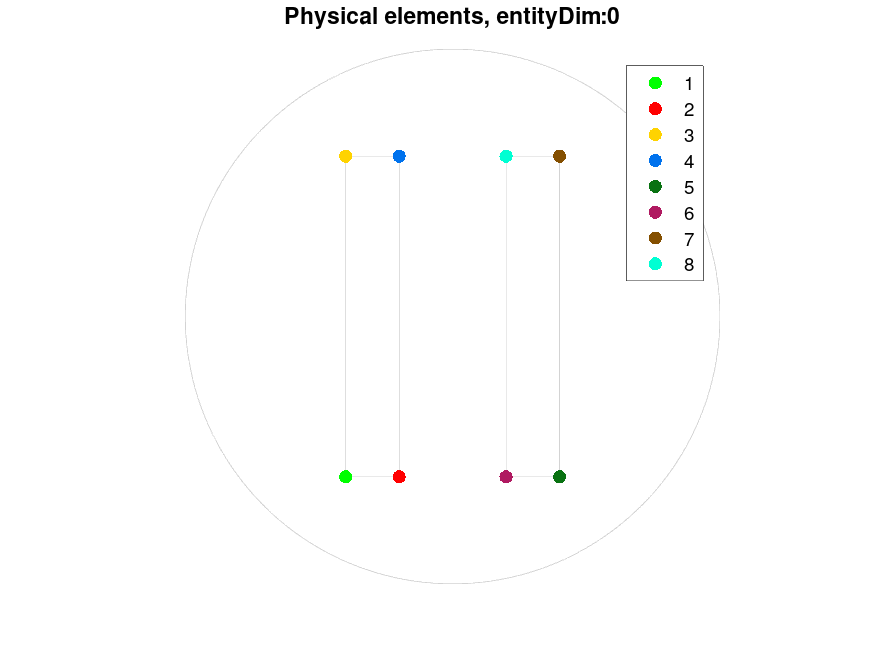

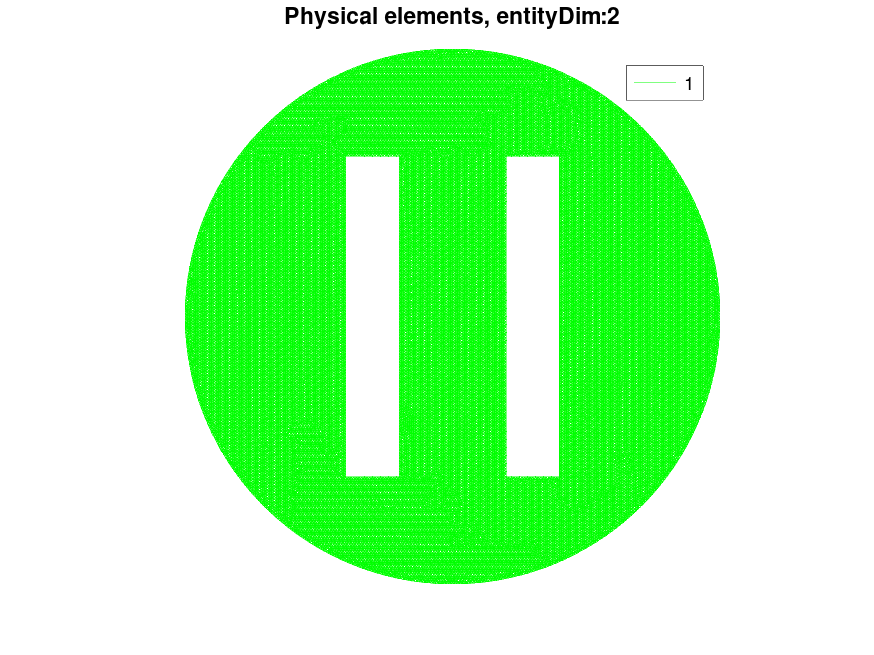

  Gh.plotPhysicalElements()

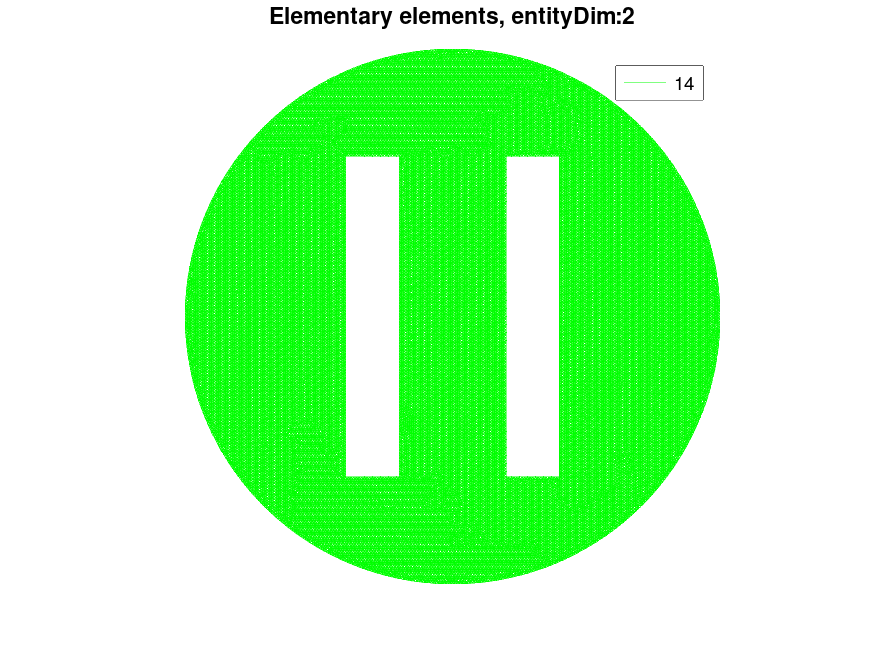

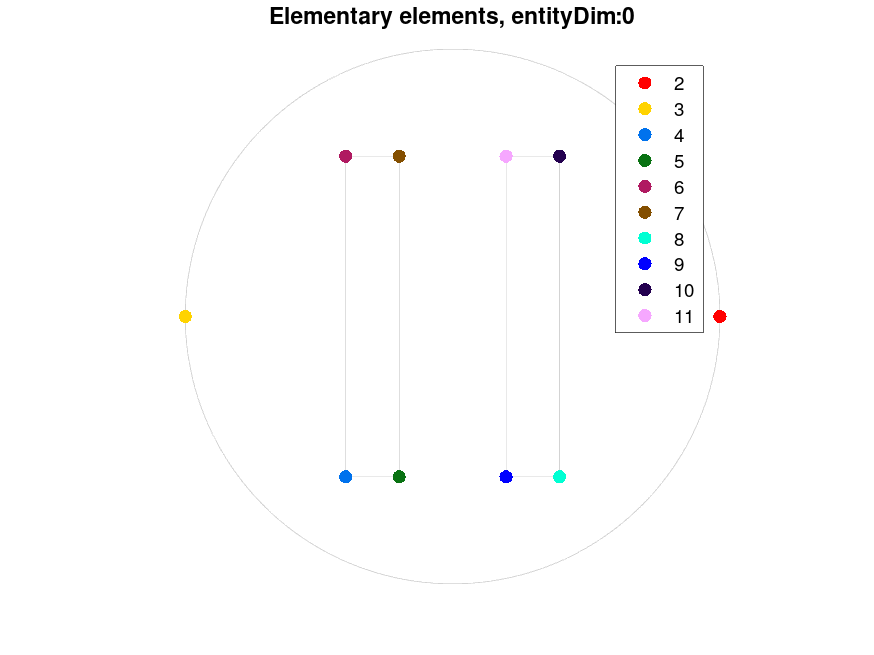

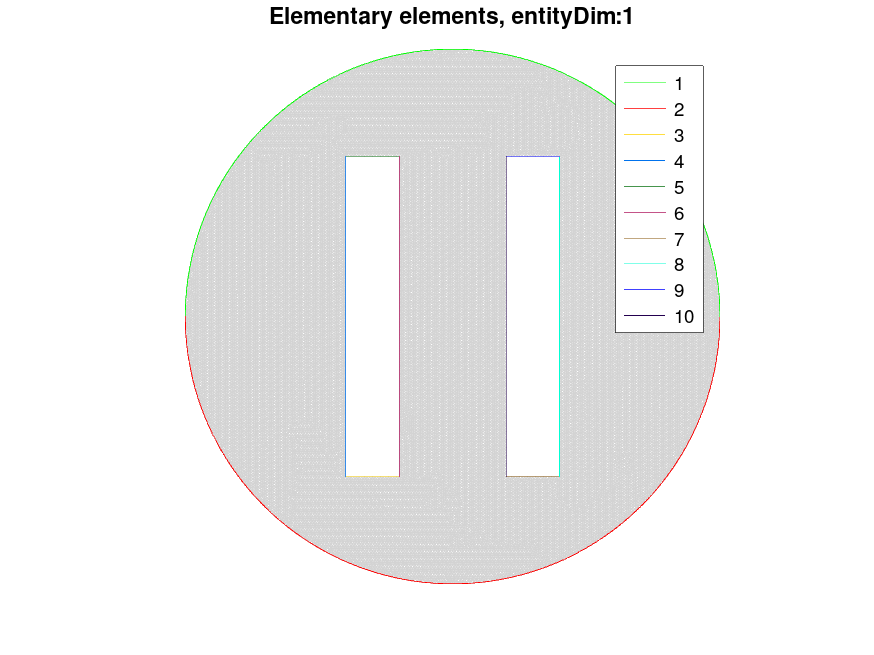

  Gh.plotElementaryElements()
end

--------------- publish
2D meshing: mesh using 'MshFileVersion'='4.1'
---------------
1. Building a mesh file by using :
   -> gmsh version 4.11.0
   -> geo file : condenser.geo
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/2d/condenser.geo
[fc-oogmsh] Overwritting mesh file <fc-oogmsh>/meshes/condenser-20.msh
[fc-oogmsh] Starting building mesh <fc-oogmsh>/meshes/condenser-20.msh with gmsh 4.11.0
[fc-oogmsh]  Using command : gmsh -2 -setnumber N 20 -string "Mesh.MshFileVersion=4.1;"   <fc-oogmsh>/geodir/2d/condenser.geo -o <fc-oogmsh>/meshes/condenser-20.msh
 Be patient...
[fc-oogmsh] Using gmsh 4.11.0 to write MSH file format version 4.1 in <fc-oogmsh>/meshes/condenser-20.msh
   -> msh file : <fc-oogmsh>/meshes/condenser-20.msh
2. Reading the mesh file
Gh =

  fc_oogmsh.ooGmsh4 with properties:
               Elements: (1x1 struct)
               Entities: (1x1 struct)
                   Info: (1x1 struct)
             MeshFormat: (1x1 struct)
                  Nodes: (1x1 struct)
    PartitionedEntities: []
          PeriodicLinks: []
          PhysicalNames: []
                      d: 2 double
                    dim: 2 double
               meshfile: (1x72 char)
                     nq: 31646 double
                 orders: 1 double
       partitionnedfile: 0 logical
                      q: (2x31646 double)
               toGlobal: (1x31646 double)
