plot2D
meshfile=fc_oogmsh.gmsh.buildmesh2d('condenser11',40);
Th=fc_simesh.siMesh(meshfile);
u=@(x,y) 0.3*cos(5*(2*x-y)).*sin(5*(x-2*y));
U=Th.eval(u);
fc_tools.graphics.monitors.onGrid(2,2);

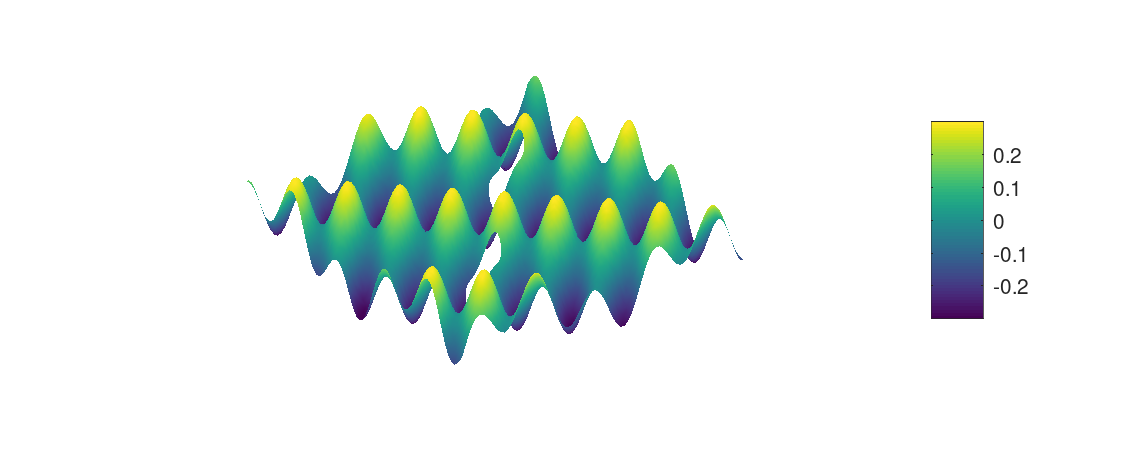

figure(1)
fc_siplt.plot(Th,U);
axis image;axis off;view(3)
colorbar
shading interp

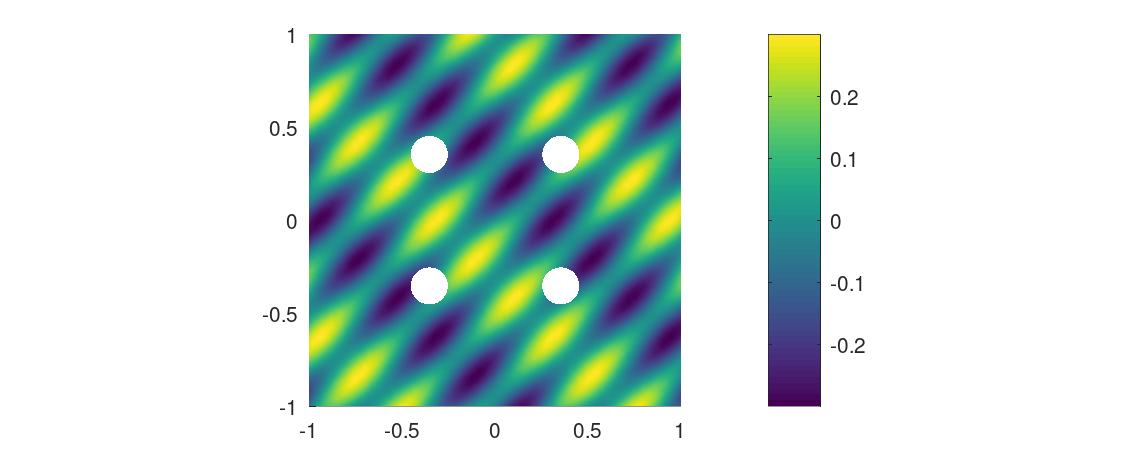

figure(2)
fc_siplt.plot(Th,U,'plane',true);
axis image
colorbar
shading interp

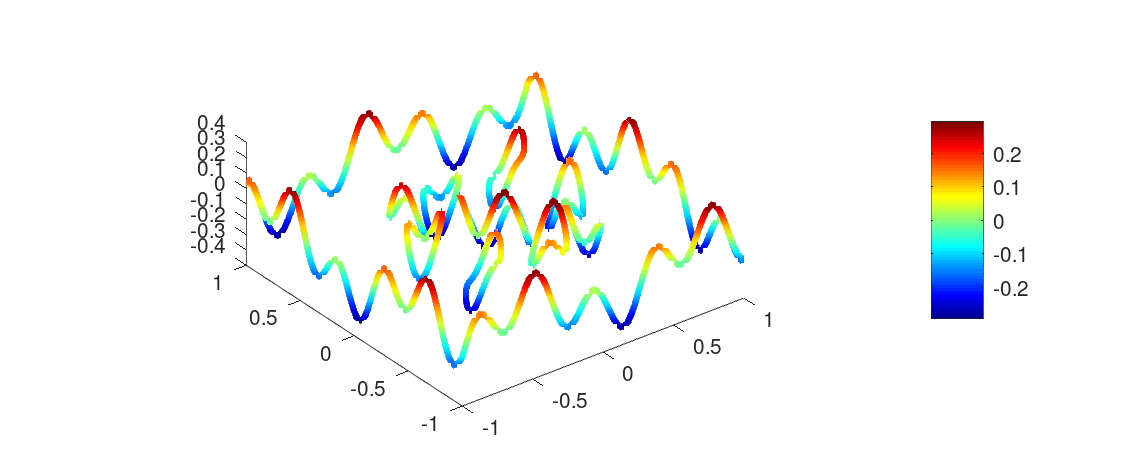

figure(3)
fc_siplt.plot(Th,U,'d',1,'Linewidth',3);
axis image
colormap('jet')
view(3)
colorbar

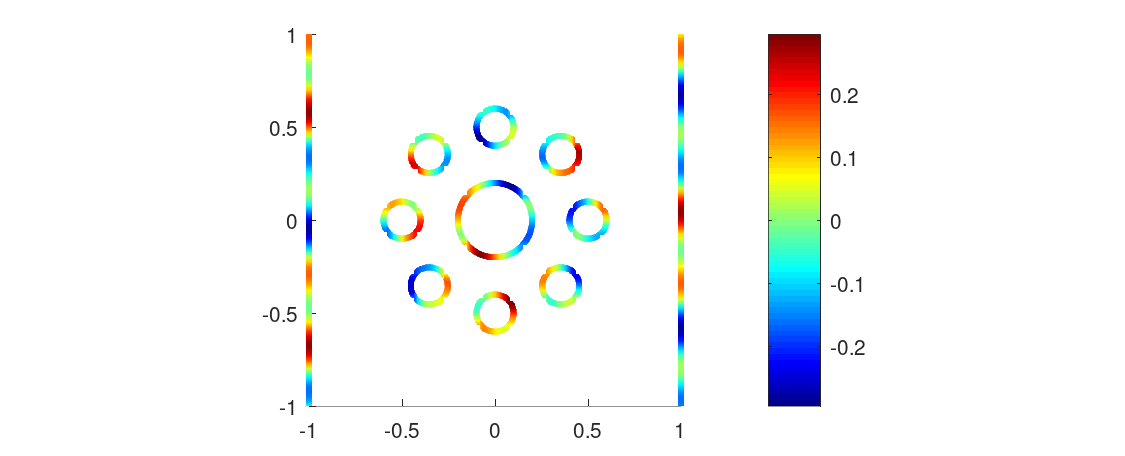

figure(4)
fc_siplt.plot(Th,U,'d',1,'Linewidth',3,'plane',true);
axis image
colormap('jet')
colorbar
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/2d/condenser11.geo
[fc-oogmsh] Mesh file <fc-oogmsh>/meshes/condenser11-40.msh [version 4] already exists.
-> Use "force" flag to rebuild if needed.
