plotiso2D
meshfile=fc_oogmsh.gmsh.buildmesh2d('condenser11',25);
Th=fc_simesh.siMesh(meshfile);
u=Th.eval(@(x,y) 5*exp(-3*(x.^2+y.^2)).*cos(x).*sin(y));
fc_tools.graphics.monitors.onGrid(2,2);

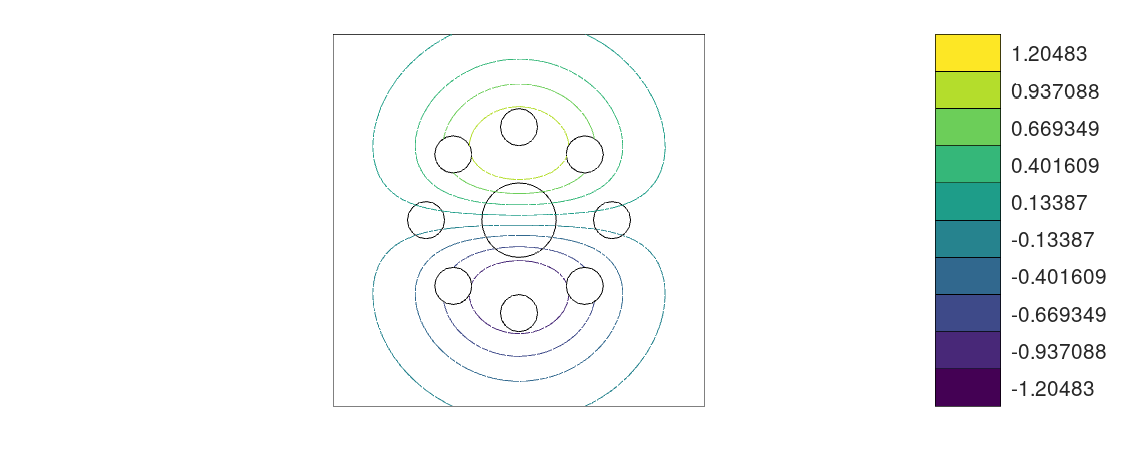

figure(1)
fc_siplt.plotmesh(Th,'d',1,'color','k')
hold on;axis off;axis image;
fc_siplt.plotiso(Th,u,'isocolorbar',true)

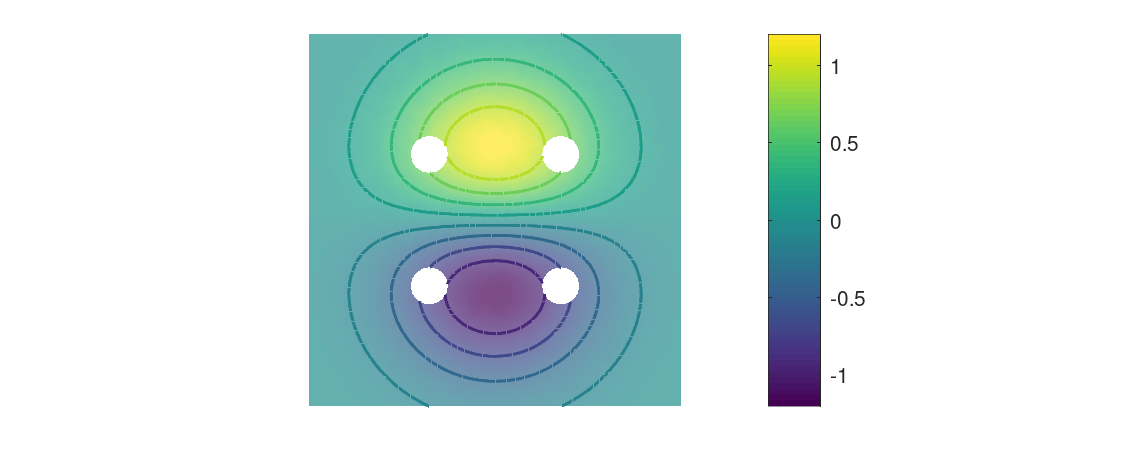

figure(2)
fc_siplt.plot(Th,u,'plane',true,'FaceAlpha',0.7)
hold on;axis off;axis image;shading interp;
fc_siplt.plotiso(Th,u,'plane',true,'LineWidth',1.5)
colorbar

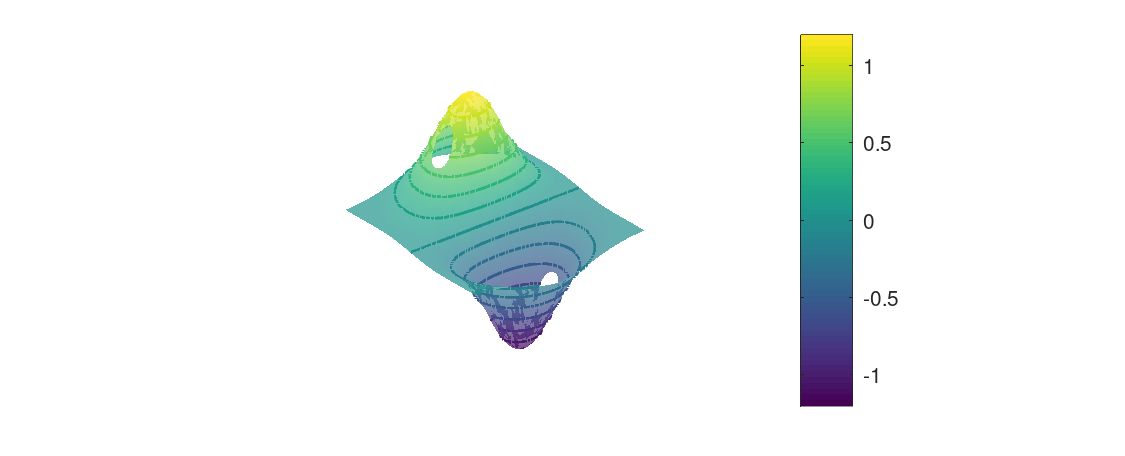

figure(3)
fc_siplt.plot(Th,u,'FaceAlpha',0.7)
view(3)
shading interp;hold on;axis off;axis image;
fc_siplt.plotiso(Th,u,'niso',15,'LineWidth',1.5)
colorbar

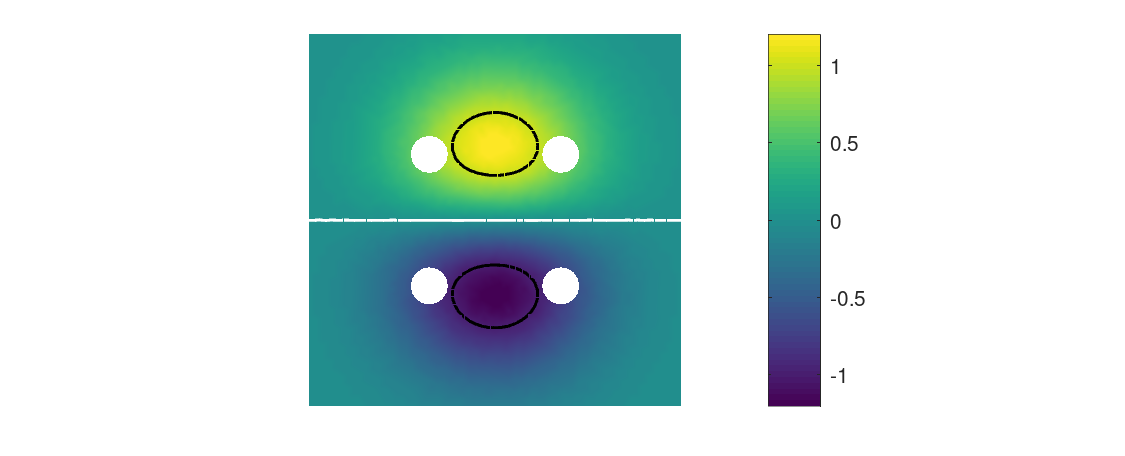

figure(4)
fc_siplt.plot(Th,u,'plane',true)
shading interp;hold on;axis off;axis image;
fc_siplt.plotiso(Th,u,'isorange',0, 'LineWidth',1.5, 'color','w')
fc_siplt.plotiso(Th,u,'isorange',[-1,1], 'LineWidth',1.5, 'color','k','plane',true)
axis off;axis image;colorbar
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/2d/condenser11.geo
[fc-oogmsh] Mesh file <fc-oogmsh>/meshes/condenser11-25.msh [version 4.1] already exists.
-> Use "force" flag to rebuild if needed.
