plotmesh3D
meshfile=fc_oogmsh.gmsh.buildmesh3d('cylinder3holes',10);
Th=fc_simesh.siMesh(meshfile);
fc_tools.graphics.monitors.onGrid(3,3,'figures',1:7);

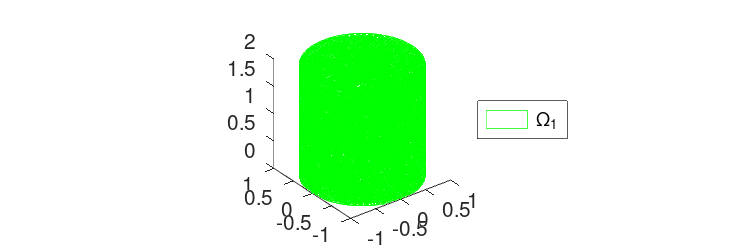

figure(1)
fc_siplt.plotmesh(Th,'inlegend',true)
axis image
fc_graphics4mesh.legend('Location','eastoutside')

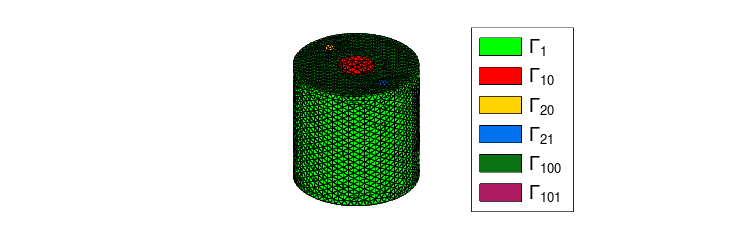

figure(2)
fc_siplt.plotmesh(Th,'d',2,'inlegend',true);
axis image;axis off
fc_graphics4mesh.legend('Location','eastoutside')

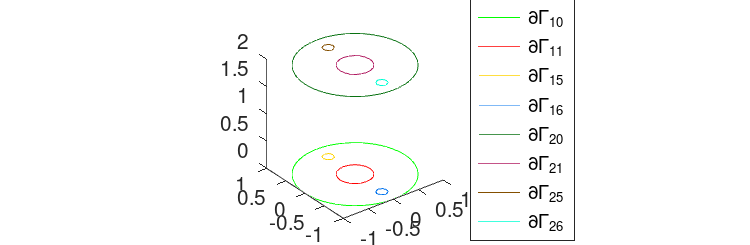

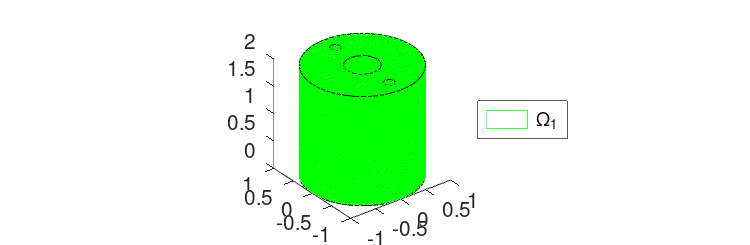

figure(3)
fc_siplt.plotmesh(Th,'d',1,'inlegend',true);
axis image;axis off
fc_graphics4mesh.legend('Location','eastoutside')

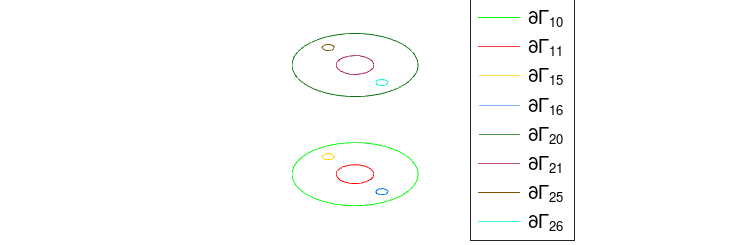

figure(4)
fc_siplt.plotmesh(Th,'inlegend',true)
hold on
fc_siplt.plotmesh(Th,'d',1,'color','k');
axis image
fc_graphics4mesh.legend('Location','eastoutside')

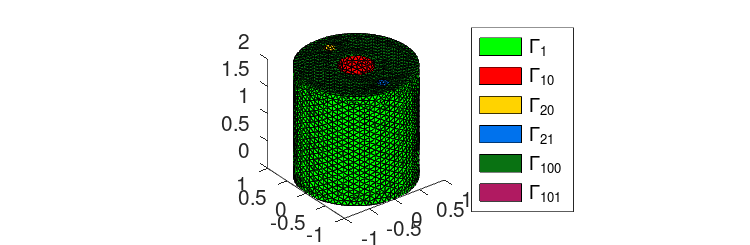

figure(5)
fc_siplt.plotmesh(Th,'d',2,'inlegend',true);
axis image
fc_graphics4mesh.legend('Location','eastoutside')
figure(6)
fc_siplt.plotmesh(Th,'d',2,'edgecolor',0.8*[1 1 1],'facecolor','None','edgealpha',0.5)
hold on;axis image
fc_siplt.plotmesh(Th,'d',1,'inlegend',true);
fc_graphics4mesh.legend('Location','eastoutside')

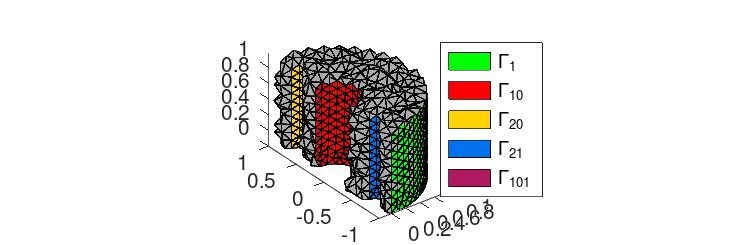

figure(7)
P=[fc_tools.graphics.PlaneCoefs([0 0 1],[0 0 1]); fc_tools.graphics.PlaneCoefs([0 0 1],[-1 0 0])];
fc_siplt.plotmesh(Th,'cutPlane',P,'Color','DarkGrey')
hold on;axis image
fc_siplt.plotmesh(Th,'d',2,'cutPlane',P,'inlegend',true);
fc_graphics4mesh.legend('Location','eastoutside')
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/3d/cylinder3holes.geo
[fc-oogmsh] Mesh file <fc-oogmsh>/meshes/cylinder3holes-10.msh [version 4.1] already exists.
-> Use "force" flag to rebuild if needed.
Mesh cylinder3holes-10.msh is a 3-dimensional mesh
Force dimension to 3
