plotquiver2D
geofile=fc_simesh.get_geo(2,2,'condenser11');
meshfile=fc_oogmsh.buildmesh2d(geofile,25);
Th=fc_simesh.siMesh(meshfile);
u=@(x,y) cos(pi*x.^2).*cos(pi*y.^2);
U=Th.eval(u);
w={@(x,y) y.*cos(-(x.^2+y.^2)/10),@(x,y) -x.*cos(-(x.^2+y.^2)/10)};
W=Th.eval(w);
fc_tools.graphics.monitors.onGrid(2,2);
figure(1)

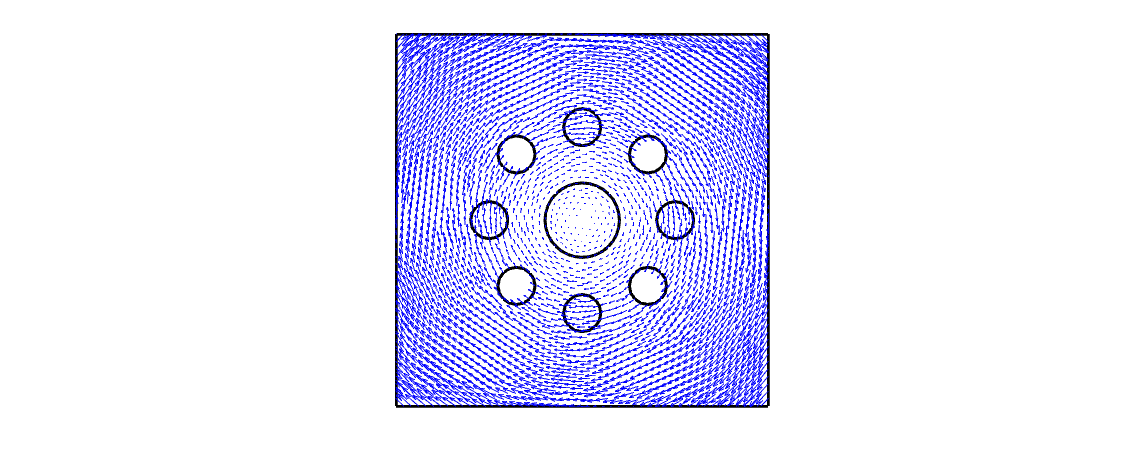

fc_siplt.plotmesh(Th,'d',1,'color','k', 'LineWidth',1.5)
hold on;axis off;axis image
fc_siplt.plotquiver(Th,W)

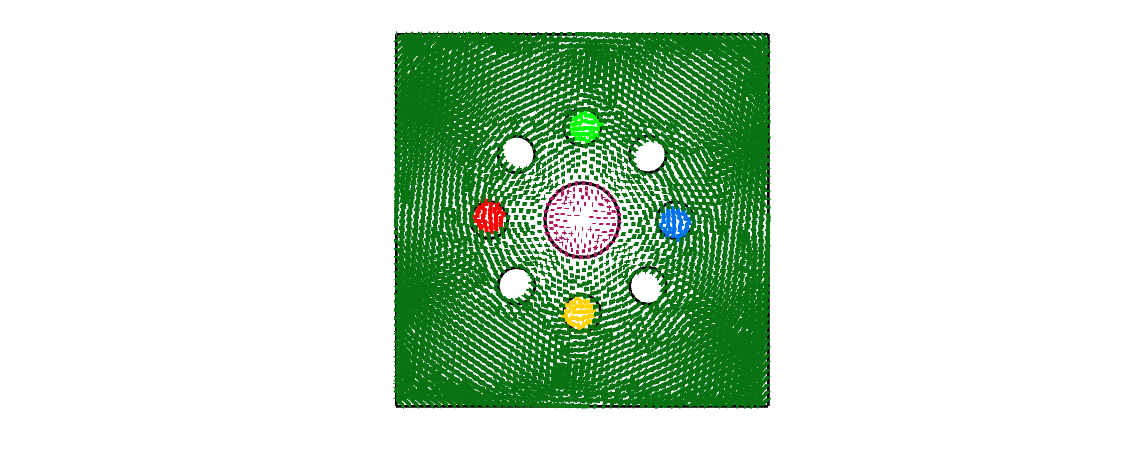

figure(2)
fc_siplt.plotmesh(Th,'d',1,'color','k', 'LineWidth',1.5)
hold on;axis off;axis image
fc_siplt.plotquiver(Th,W,'LineWidth',2,'merge',false)

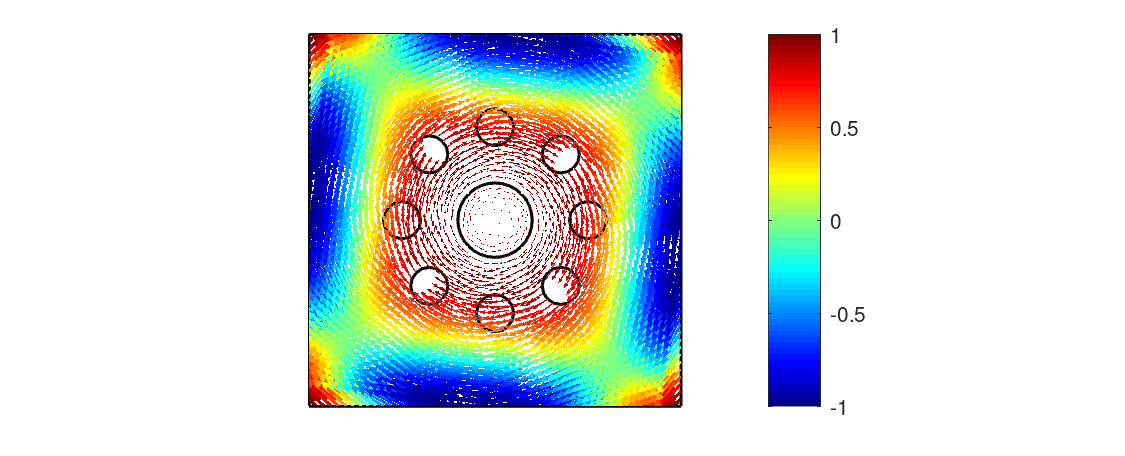

figure(3)
fc_siplt.plotmesh(Th,'d',1,'color','k', 'LineWidth',1.5)
hold on;axis off;axis image
fc_siplt.plotquiver(Th,W,'colordata',U,'labels',[2:2:8,20])
caxis([min(U) max(U)])
colormap('jet');colorbar

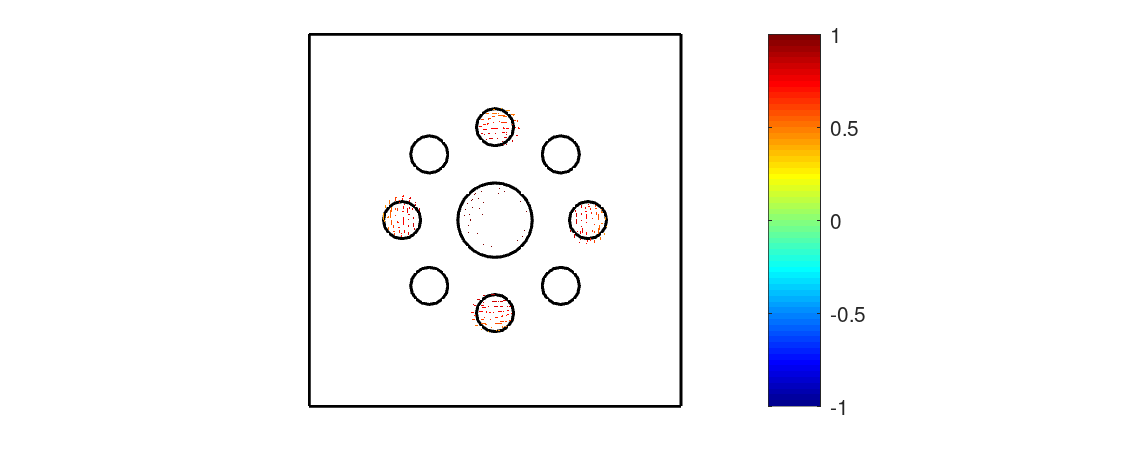

figure(4)
fc_siplt.plotmesh(Th,'d',1,'color','k', 'LineWidth',1.5)
hold on;axis off;axis image
fc_siplt.plotquiver(Th,W,'colordata',U, 'scale',0.2)
colormap('jet');colorbar
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/2d/condenser11.geo
[fc-oogmsh] Mesh file <fc-oogmsh>/meshes/condenser11-25.msh [version 4.1] already exists.
-> Use "force" flag to rebuild if needed.
