sliceiso
meshfile=fc_oogmsh.buildmesh3d('cylinder3holes',15);
Th=fc_simesh.siMesh(meshfile);
u=@(x,y,z) cos(2*x-y-z).*sin(x-2*y+z);
U=Th.eval(u);
fc_tools.graphics.monitors.onGrid(2,3,'figures',1:5);

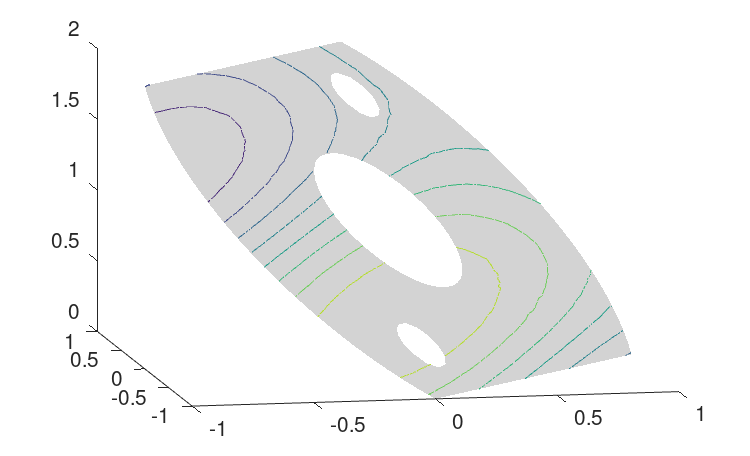

figure(1)
P=fc_tools.graphics.PlaneCoefs([0 0 1],[1 -1 1]);
fc_siplt.slicemesh(Th,P)
hold on
fc_siplt.sliceiso(Th,U,P)
view(-11,15)

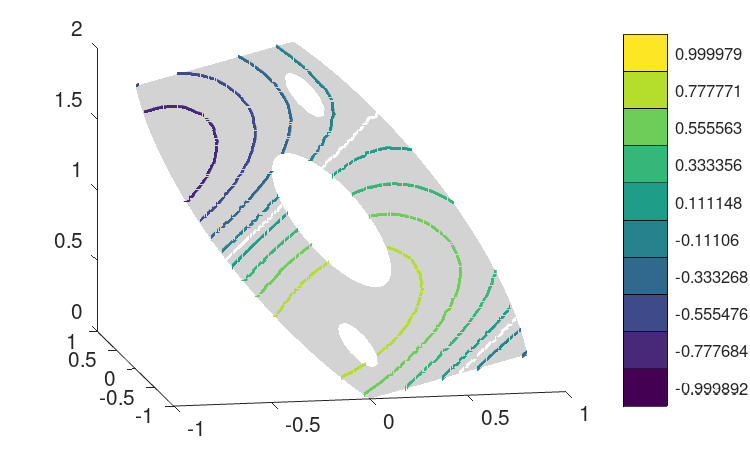

figure(2)
P=fc_tools.graphics.PlaneCoefs([0 0 1],[1 -1 1]);
fc_siplt.slicemesh(Th,P)
hold on
[~,~,cax,h]=fc_siplt.sliceiso(Th,U,P,'isocolorbar',true);
fc_siplt.sliceiso(Th,U,P,'isorange',0,'color','w','Linewidth',2);
view(-11,15)
I=~isnan(h);
set(h(I),'LineWidth',2)
set(cax,'FontSize',8)

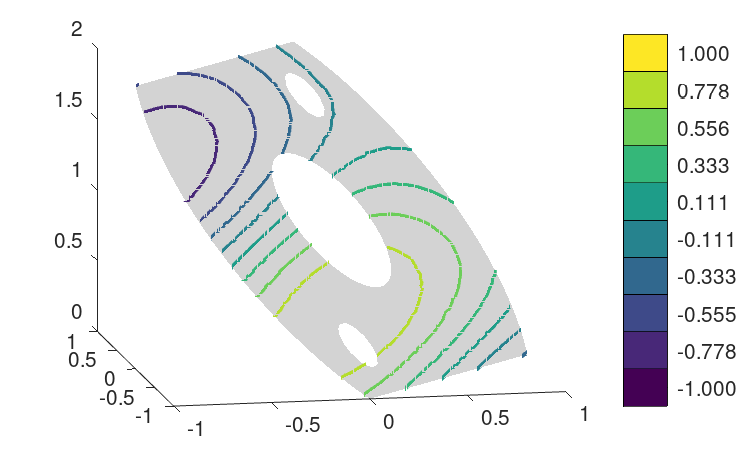

figure(3)
P=fc_tools.graphics.PlaneCoefs([0 0 1],[1 -1 1]);
fc_siplt.slicemesh(Th,P)
hold on
fc_siplt.sliceiso(Th,U,P,'isocolorbar',true,'LineWidth',2,'format','%.3f');
view(-11,15)

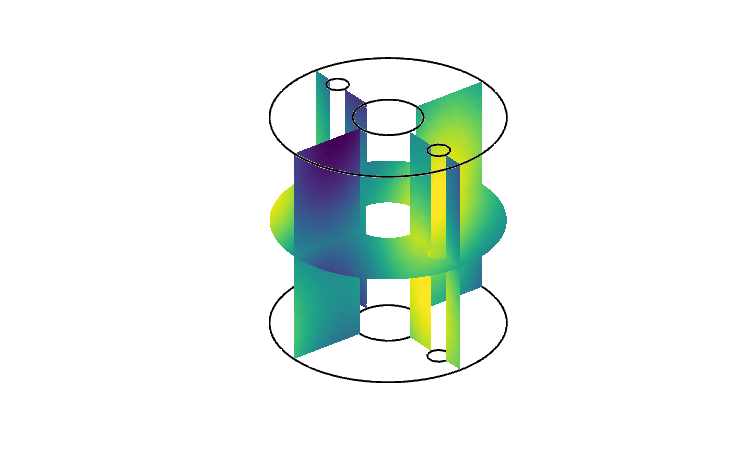

figure(4)
P=[fc_tools.graphics.PlaneCoefs([0 0 1],[1 0 0]); ...
fc_tools.graphics.PlaneCoefs([0 0 1],[0 1 0]); ...
fc_tools.graphics.PlaneCoefs([0 0 1],[0 0 1])];
fc_siplt.plotmesh(Th,'d',1,'LineWidth',1,'color','k');
hold on;axis off;axis image;
fc_siplt.slice(Th,u,P,'Facecolor','interp')

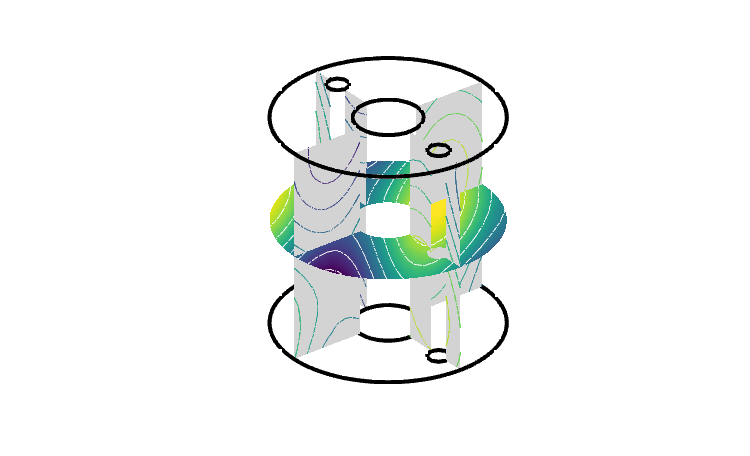

figure(5)
fc_siplt.plotmesh(Th,'d',1,'LineWidth',2,'color','k');
hold on;axis off;axis image;
fc_siplt.slicemesh(Th,P(1:2,:))
fc_siplt.sliceiso(Th,U,P(1:2,:))
fc_siplt.slice(Th,U,P(3,:),'Facecolor','interp')
fc_siplt.sliceiso(Th,U,P(3,:),'color','white')
[fc-oogmsh] Input file : <fc-oogmsh>/geodir/3d/cylinder3holes.geo
[fc-oogmsh] Mesh file <fc-oogmsh>/meshes/cylinder3holes-15.msh [version 2.2] already exists.
-> Use "force" flag to rebuild if needed.
Mesh cylinder3holes-15.msh is a 3-dimensional mesh
Force dimension to 3
