Matlab / Mesh / fc_hypermesh toolbox
fc-hypermesh is a Matlab toolbox which allows to mesh any
d-orthotope (hyperrectangle in dimension
d)
and their
m-faces by simplices or orthotopes. It was created to show the implementation of the algorithm of the
report
Vectorized algorithms for regular tessellations of d-orthotopes and their faces
.
This toolbox uses Matlab objects and is provided with meshes visualisation tools for dimension less than or
equal to
3.

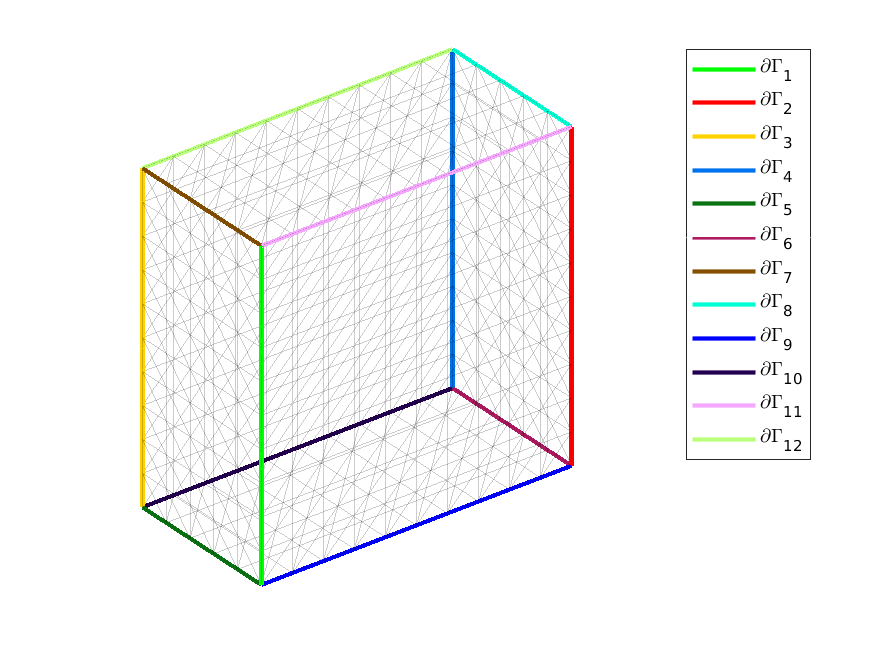

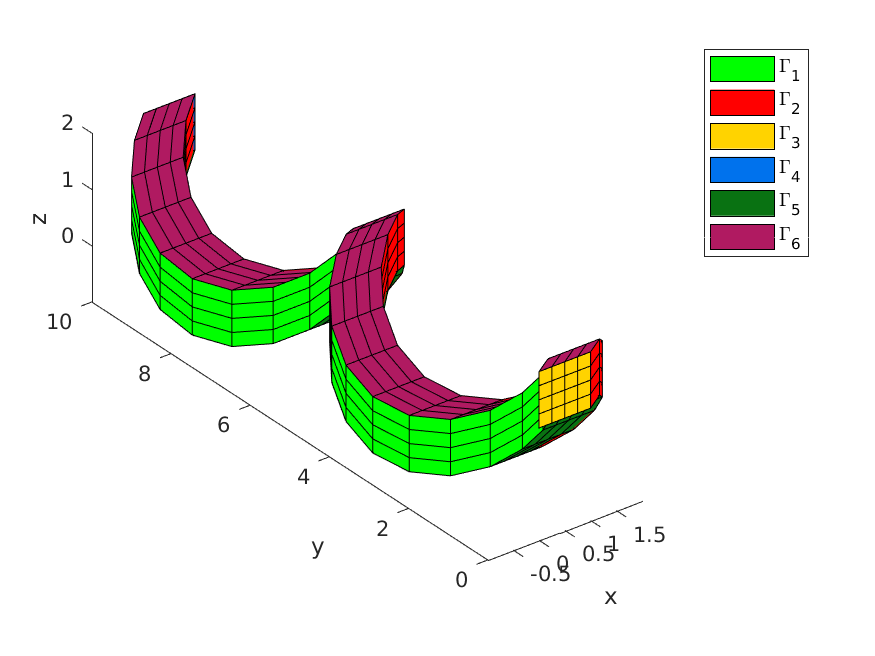

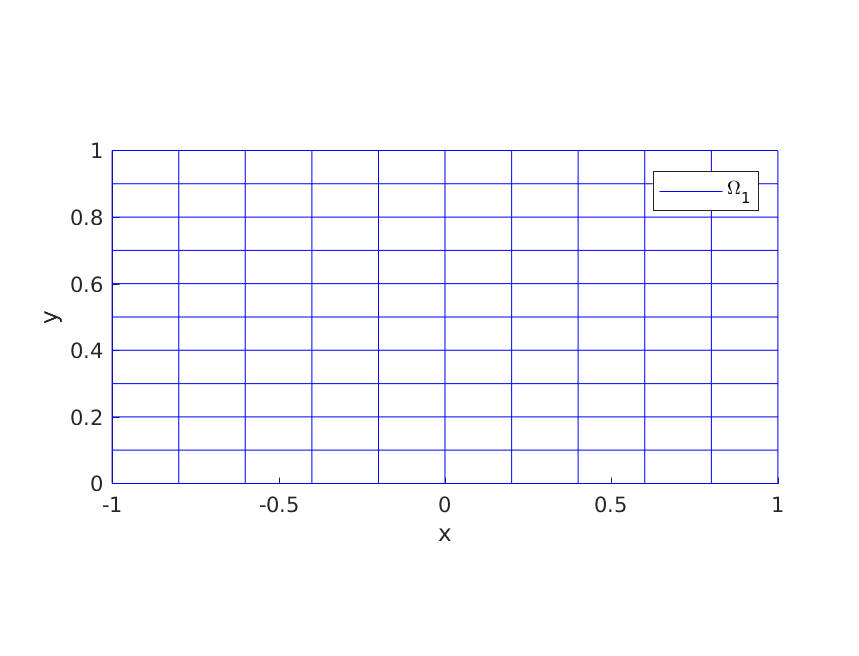

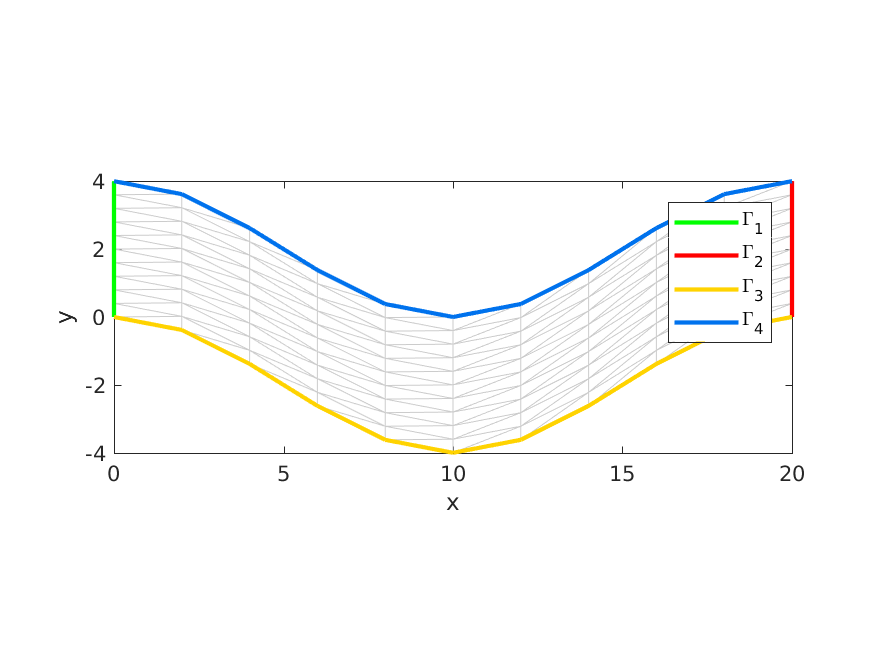

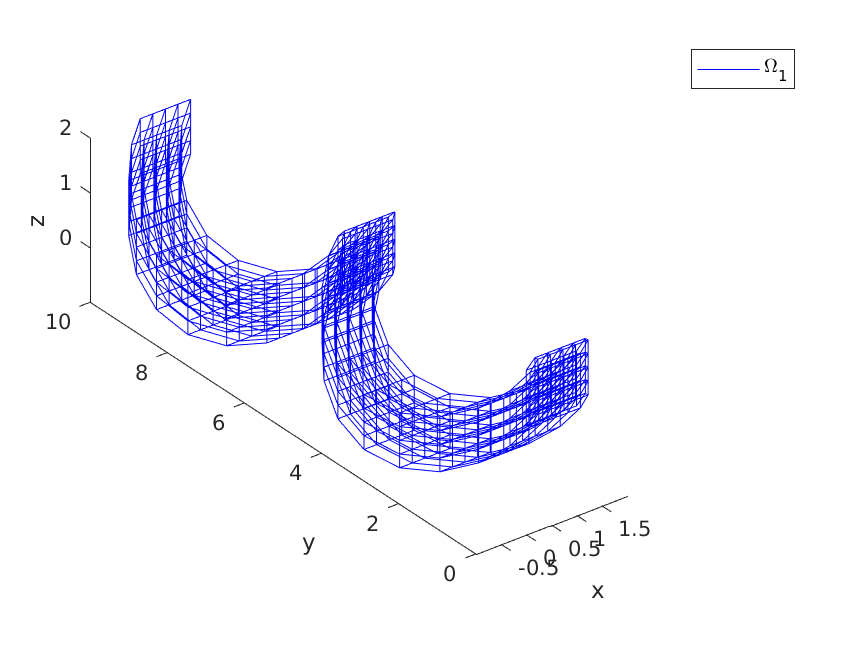

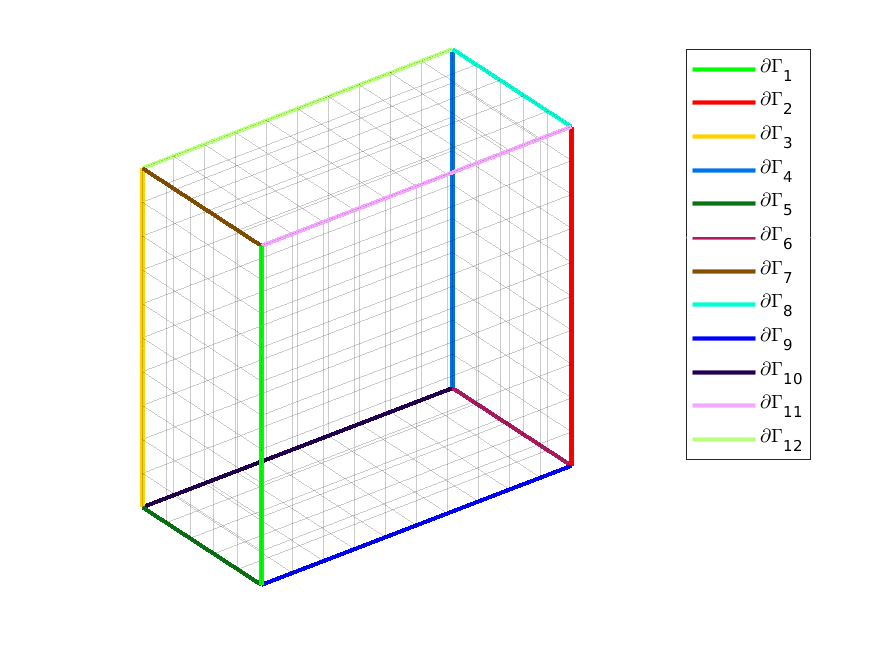

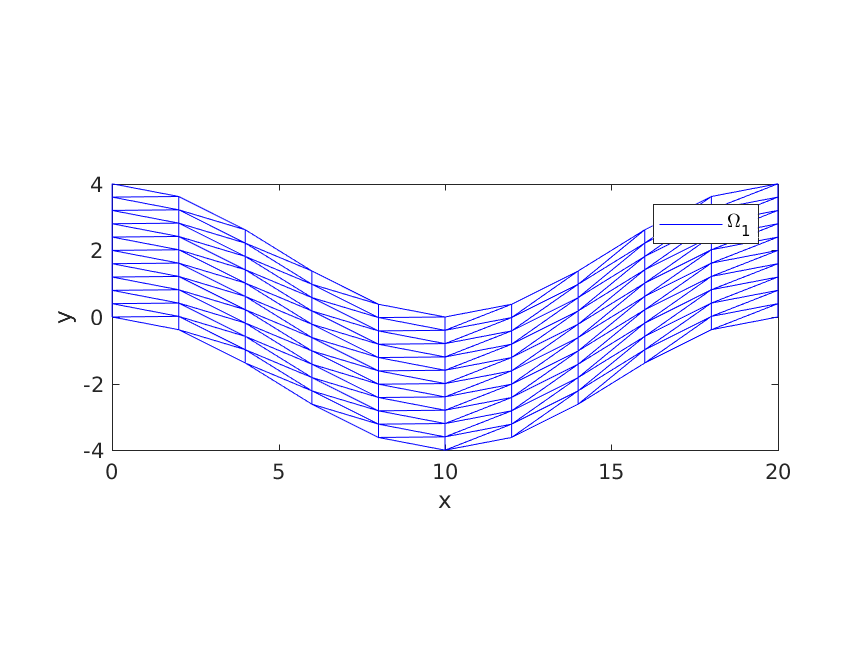

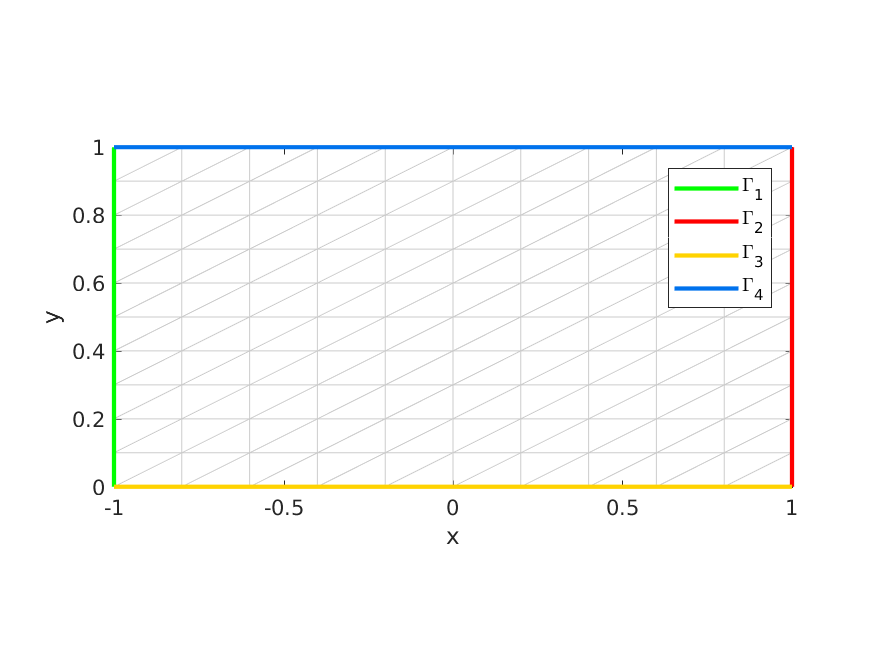

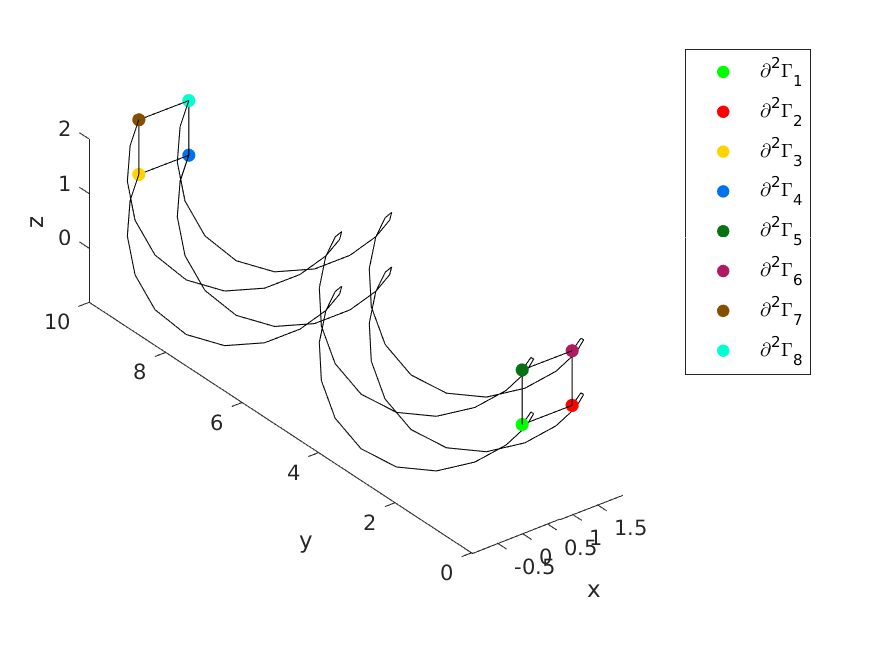

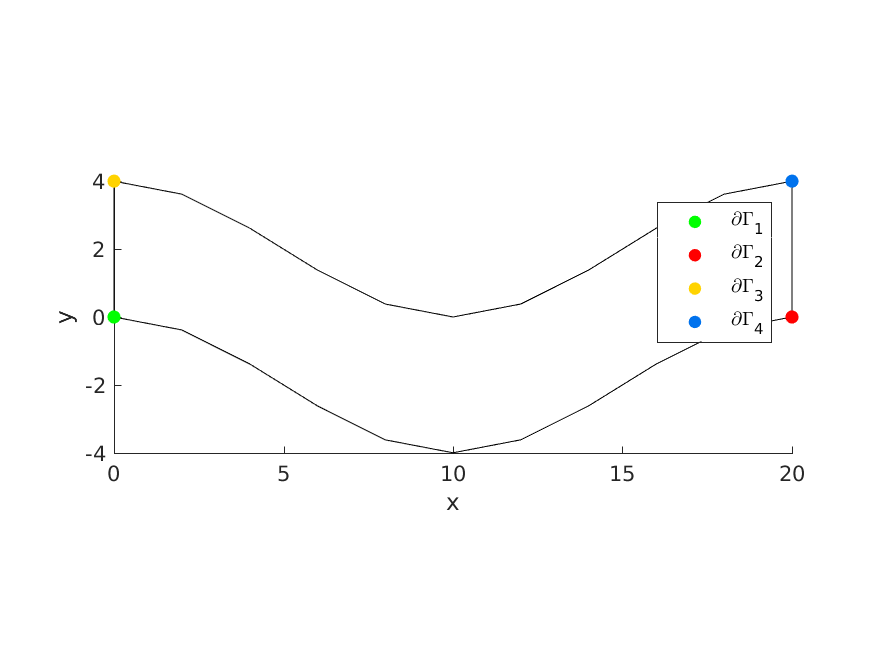

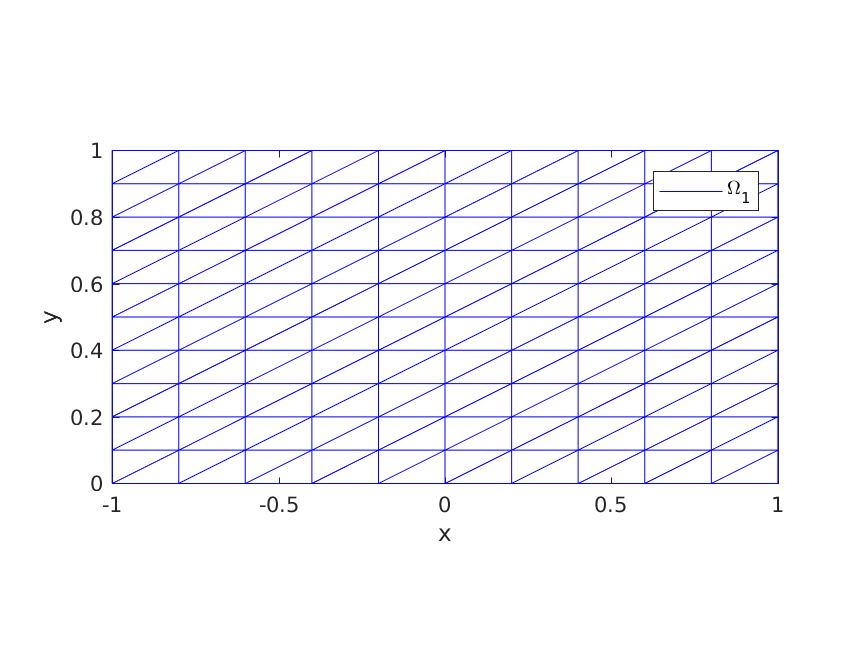

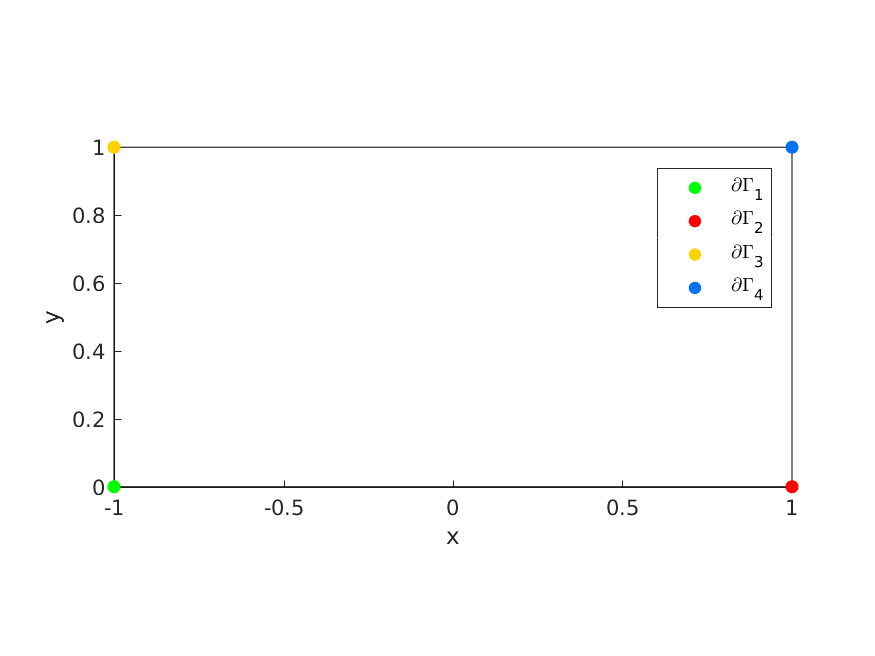

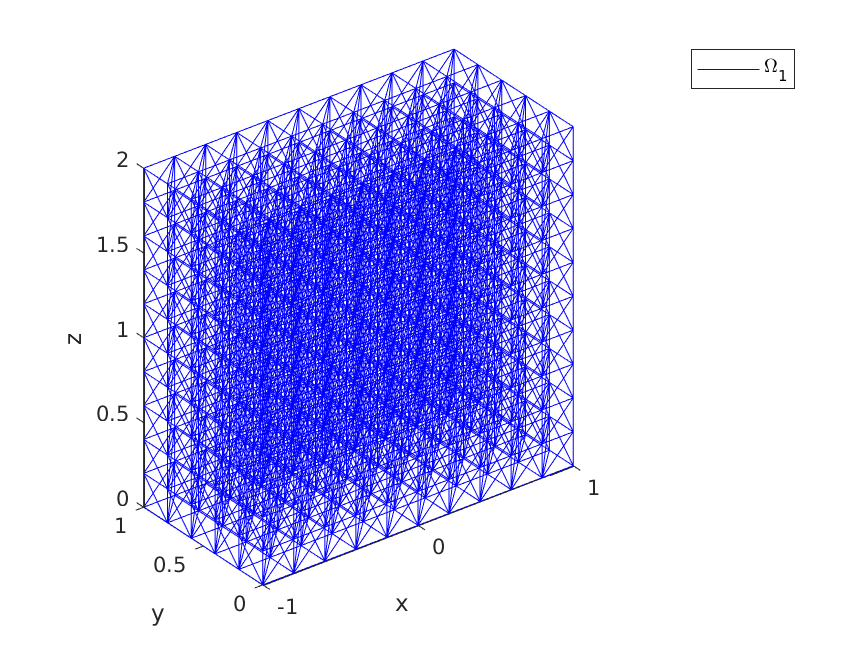

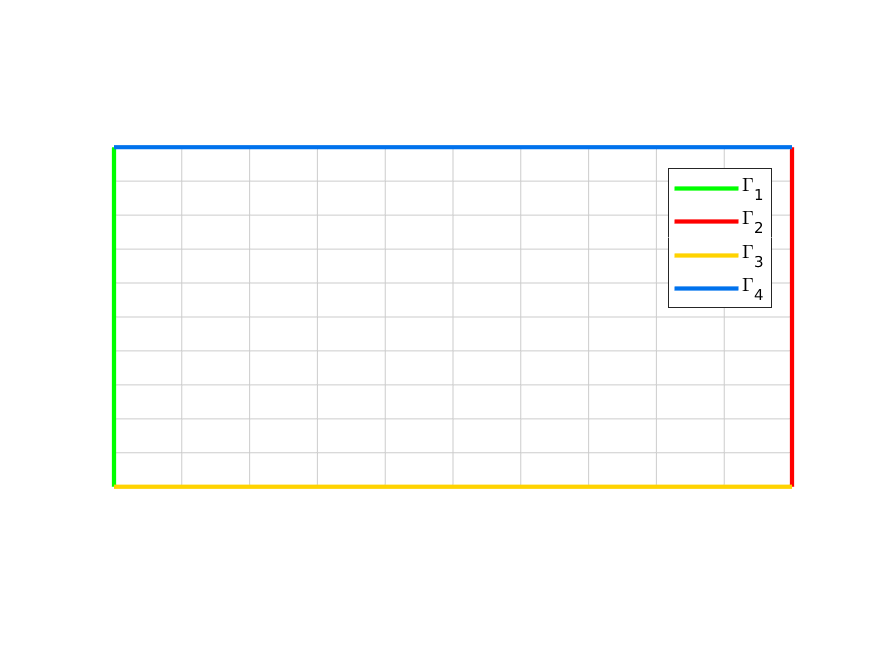

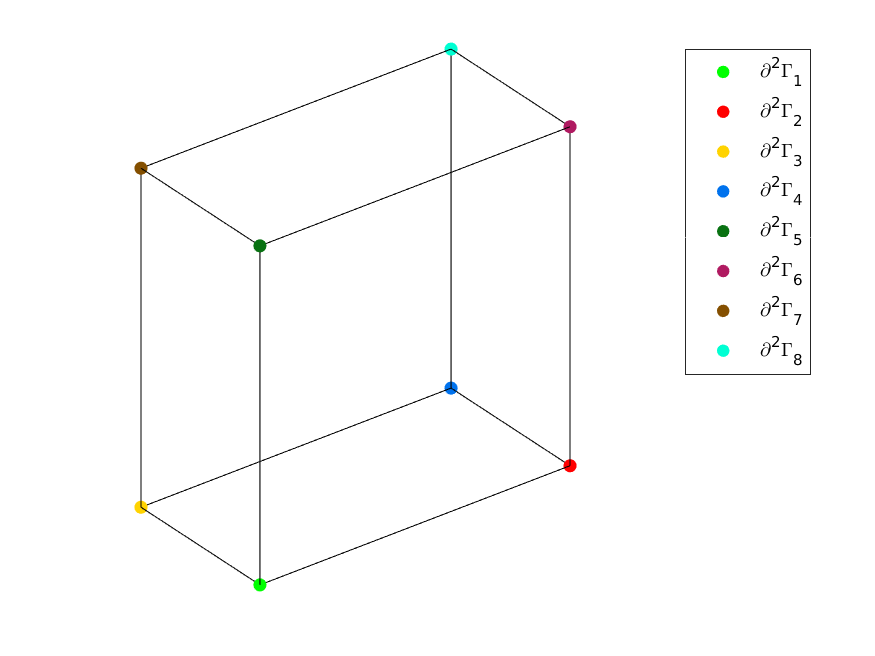

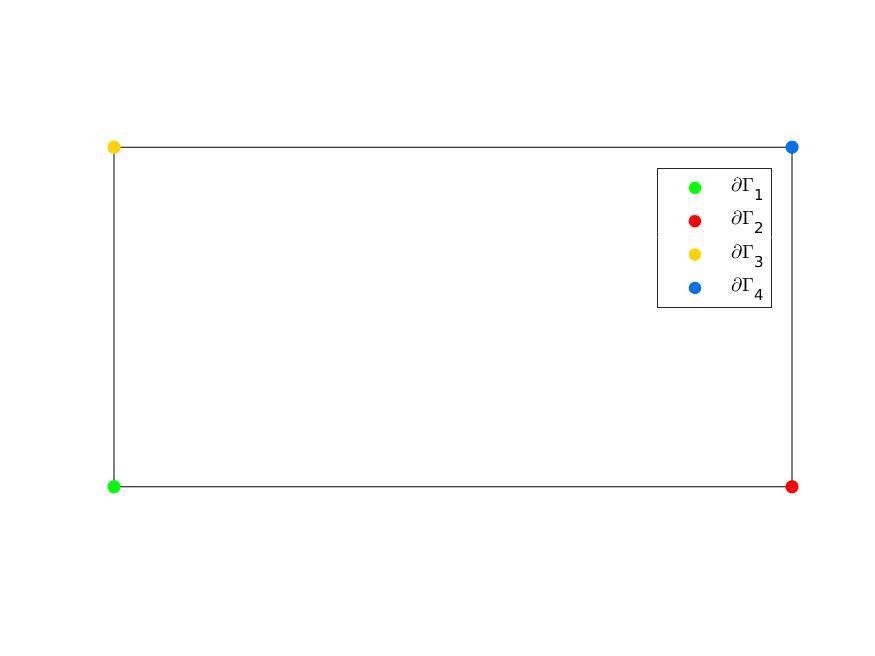

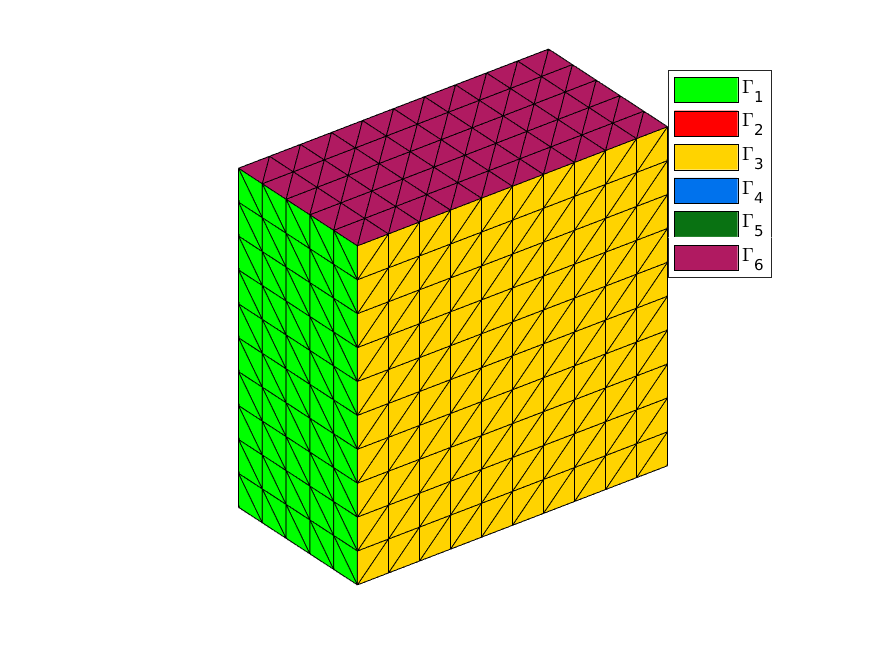

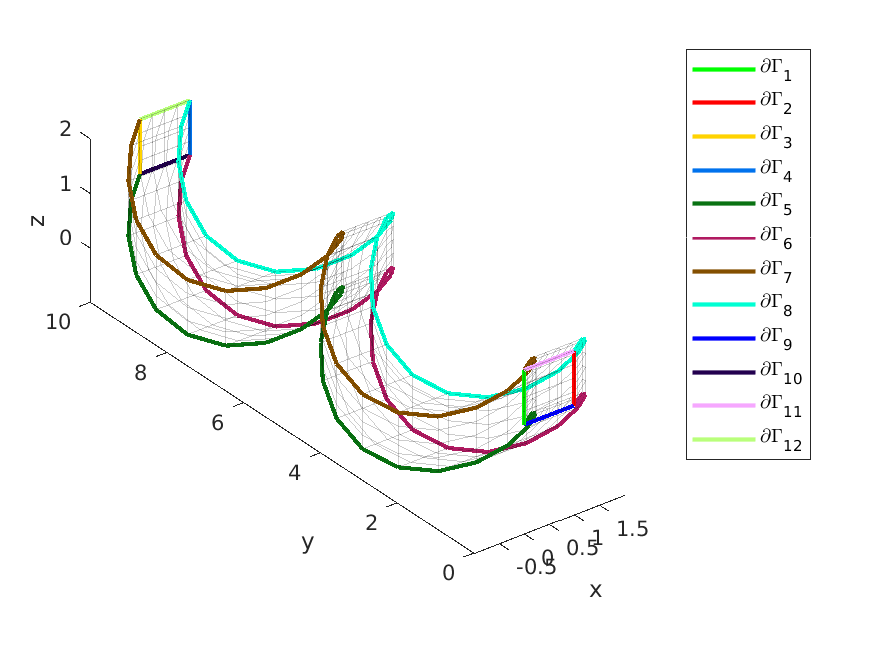

Snapshots
This toolbox was tested under
-
Windows 10.0.16299 :
- with Matlab R2015b to R2017b (opengl hardware on NVIDIA Quadro K600
with nvidia-376 driver)
-
Mac OS X 10.12.6 :
- with Matlab R2015b to R2017b (opengl hardware on Intel HD Graphics 3000
with 2.1 INTEL-10.2.37 driver)
-
Mac OS X 10.13.3 :
- with Matlab R2015b to R2017b (opengl hardware on Intel HD Graphics 3000
with 2.1 INTEL-10.4.14 driver)
-
Ubuntu 14.04.5 LTS :
- with Matlab R2015b to R2017b (opengl hardware on NVIDIA Quadro K1100M
with nvidia-340 driver)
-
Ubuntu 16.04.3 LTS :
- with Matlab R2015b to R2017b (opengl hardware on NVIDIA GeForce GTX
1070 with nvidia-384 driver)
-
Ubuntu 17.10 :
- with Matlab R2015b to R2017b (opengl hardware on NVIDIA GeForce GTX 1080 Ti
with nvidia-384 driver)
-
Fedora 27 :
- with Matlab R2015b to R2017b (opengl hardware on NVIDIA GeForce GTX 1070 with
nvidia-384 driver)
-
OpenSUSE Leap 42.3 :
- with Matlab R2015b to R2017b (opengl hardware on NVIDIA GeForce GTX
1070 with nvidia-390.25 driver)
Current development release
|
|
|
|
|
|
|
Version | date | archives | install | User guide | preprint |
|
|
|
|
|
|
0.0.6 | December 8, 2017 | | (2 Ko)
| (1085 Ko)
| |
|
|
|
|
|
|
|
Installation automatic, all in one (recommended)
For this method, one just has to get/download the install file
(2 Ko) mfc_hypermesh_install.m
Thereafter, it should be run under Matlab. This command downloads, extracts and configures the fc-hypermesh
and the required fc-tools toolboxes in the current directory.
For example, to install this toolbox in ~/Matlab/toolboxes directory, one has to copy the file
mfc_hypermesh_install.m in the ~/Matlab/toolboxes directory. Then in a Matlab terminal run the following
commands
Matlab Console
>> cd ~/Matlab/toolboxes
>> mfc_hypermesh_install
This is the output of the mfc_hypermesh_install command on a Linux computer : Matlab Ouput
1- Downloading and extracting the toolboxes
-> <fc-tools>[0.0.20] ... OK
-> <fc-hypermesh>[0.0.6] ... OK
2- Setting the <fc-hypermesh> toolbox
Write in ~/Matlab/toolboxes/fc-hypermesh-full/fc_hypermesh-0.0.6/configure_loc.m ...
-> done
3- Using the <fc-hypermesh> toolbox
Under Matlab:
addpath(’~/Matlab/toolboxes/fc-hypermesh-full/fc_hypermesh-0.0.6’)
fc_hypermesh.init()
See ~/Matlab/toolboxes/mfc_hypermesh_set.m
The complete toolbox (i.e. with all the other needed toolboxes) is stored in the directory
~/Matlab/toolboxes/fc-hypermesh-full and, for each Matlab session, one has to set the toolbox by :
Matlab Console
>> addpath(’~/Matlab/toolboxes/fc-hypermesh-full/mfc-hypermesh-0.0.6’)
>> fc_hypermesh.init()
To uninstall, one just has to delete directory
~/Matlab/toolboxes/fc-hypermesh-full
Manual installation
This package uses the fc_tools toolbox. So one has to install it as explain in the dedicated web
page.
Thereafter, one has to download one of the fc_hypermesh toolbox archive ( zip, 7z or tar.gz
format).
- Downloads an archive and extracts it on a folder, for example ~/Matlab/toolboxes. The toolbox
path is ~/Matlab/toolboxes/mfc-hypermesh-0.0.6
- Adds the toolbox path in Matlab with addpath command.
- Verifies that the the fc_tools toolbox is in the Matlab path. Otherwise, adds it...
Old development releases
|
|
|
|
|
|
Version | date | archives | install | pdf |
|
|
|
|
|
0.0.5 | November 3, 2017 | | (2 Ko)
| (1254 Ko)
|
|
|
|
|
|
0.0.4 | October 6, 2017 | | (2 Ko)
| (1064 Ko)
|
|
|
|
|
|
0.0.1 | December 18, 2016 | | (2 Ko)
|
|
|
|
|
|
|
|
