runValids.m File Reference

Run validation tests for Mass (validMass2DP1), MassW (validMassW2DP1), Stiff (validStiff2DP1) and StiffElas (validStiffElas2DP1) matrices. For each assembly matrix, we make 3 tests. More...

Go to the source code of this file.

Functions
function	runValids (varargin)
	Run validation tests for Mass (validMass2DP1), MassW (validMassW2DP1), Stiff (validStiff2DP1) and StiffElas (validStiffElas2DP1) matrices. For each assembly matrix, we make 3 tests.

---

Detailed Description

Run validation tests for Mass (validMass2DP1), MassW (validMassW2DP1), Stiff (validStiff2DP1) and StiffElas (validStiffElas2DP1) matrices. For each assembly matrix, we make 3 tests.

• Test 1 : computation of the assembly Matrix using all the versions giving errors and computation times.
• Test 2 : comparison of the associated integral and its -Lagrange approximation.
• Test 3 : retrieving of numerical order for -Lagrange approximation.

Definition in file runValids.m.

---

Function Documentation

function runValids

(

varargin

)

Run validation tests for Mass (validMass2DP1), MassW (validMassW2DP1), Stiff (validStiff2DP1) and StiffElas (validStiffElas2DP1) matrices. For each assembly matrix, we make 3 tests.

• Test 1 : computation of the assembly Matrix using all the versions giving errors and computation times.
• Test 2 : comparison of the associated integral and its -Lagrange approximation.
• Test 3 : retrieving of numerical order for -Lagrange approximation.

Example

         runValids('save',true,'percent',50)

Results under Matlab R2012b

Here are the figures for Test 3 obtained on our reference machine.

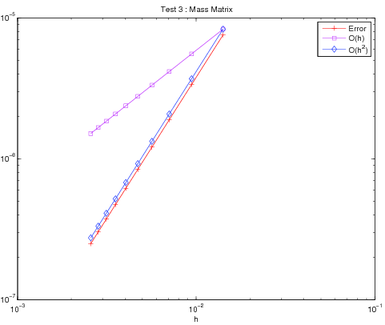

• validMassP1() figure


  figure : Mass Matrix order validation

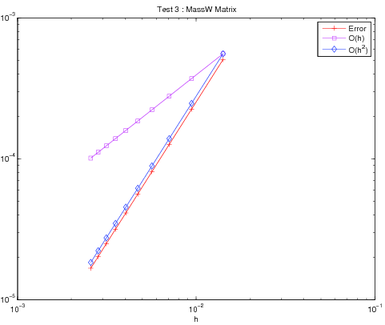

• validMassWP1() figure


  figure : MassW Matrix order validation

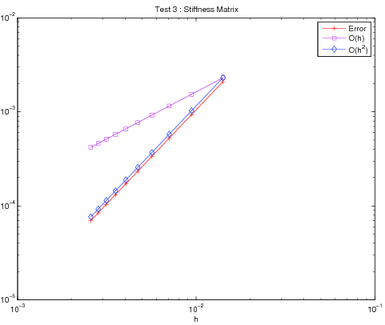

• validStiffP1() figure


  figure : Stiff Matrix order validation

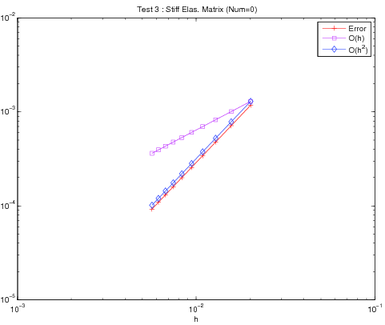

• validStiffElasP1() figure


  figure : StiffElas Matrix order validation

See also:

validMass2DP1, validMassW2DP1, validStiff2DP1, validStiffElas2DP1, SaveFigure, #InitOptFEM2DP1

Copyright

See License issues

Parameters:

varargin

runValids ( [ "save", save_value ] [, "percent", percent_value ] ) Named Parameters for varargin: save set to true to save figures in image directory. ( Default: false ) percent value for resizing the figure (only png format). See SaveFigure ( Default: 50 )

Definition at line 17 of file runValids.m.
