MultiPlotMesh.m File Reference

Plot List of Meshes. More...

Go to the source code of this file.

Functions
function RGBcolors =	MultiPlotMesh (varargin)
	Plot List of Meshes.

Detailed Description

Plot List of Meshes.

Definition in file MultiPlotMesh.m.

Function Documentation

function RGBcolors = MultiPlotMesh

(

varargin

)

Plot List of Meshes.

Example

   MultiPlotMesh(LoM,'colormap','jet','Label',true)

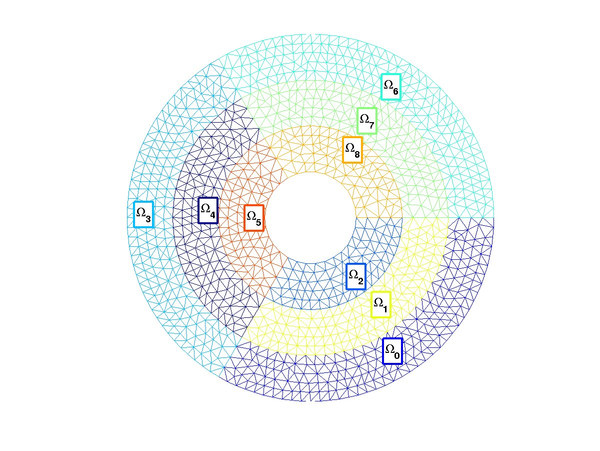

figure : MultiPlotMesh(LoM,'colormap','jet','Label',true)

See Also

LoM_demo1

Parameters

varargin

MultiPlotMesh ( LoM, Legend, "RGBcolors", RGBcolors_value ] [, "colormap", colormap_value ] [, "MeshLineWidth", MeshLineWidth_value ] [, "LabelLineWidth", LabelLineWidth_value ] [, "FontSize", FontSize_value ] [, "Label", Label_value ] ) Required Parameters for varargin: LoM array of Meshes Legend set legend visible at true or false Named Parameters for varargin: RGBcolors set boundaries colors ( Default: [] ) colormap set colormap value to 'Jet', 'HSV', 'Gray', 'colorcube','Cool','Spring','Summer',... ( Default: HSV ) MeshLineWidth set mesh lines width ( Default: 0.5 ) LabelLineWidth set label box lines width ( Default: 2.0 ) FontSize set label font size ( Default: 12 ) Label set mesh label visible, true or false ( Default: false )

Definition at line 17 of file MultiPlotMesh.m.
