RefineMesh.m File Reference

refines the mesh Th by a factor of 4 More...

Go to the source code of this file.

Functions
function [ RefTh , MatProj ] =	RefineMesh (varargin)
	refines the mesh Th by a factor of 4

Detailed Description

refines the mesh Th by a factor of 4

Definition in file RefineMesh.m.

Function Documentation

function [ RefTh , MatProj ] = RefineMesh

(

varargin

)

refines the mesh Th by a factor of 4

Example

• Original mesh (Th)

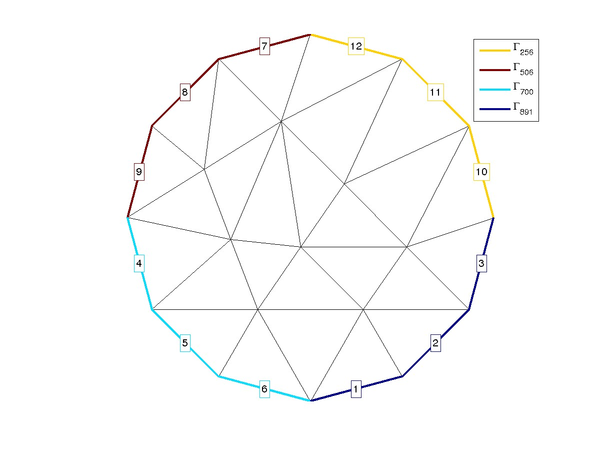

  figure : Mesh before refinement
• Refine mesh (Thr1)

     Thr1=RefineMesh(Th);

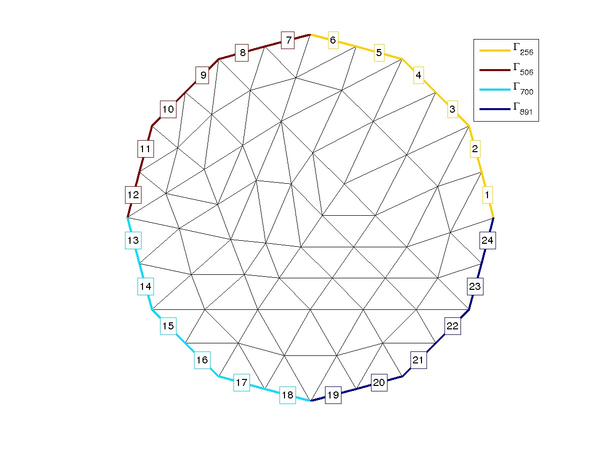

  figure : Mesh after refinement : sort=false
• Refine mesh with sort boundaries (Thr2)

     Thr2=RefineMesh(Th,'sort',true);

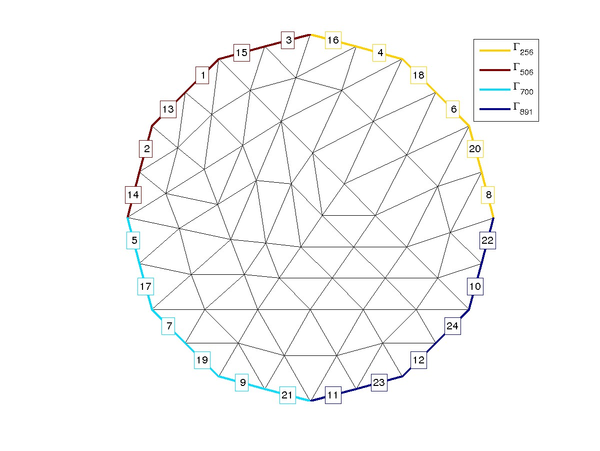

  figure : Mesh after refinement : sort=true

Parameters

varargin

RefineMesh ( Th, "sort", sort_value ] ) Required Parameters for varargin: Th mesh structure Named Parameters for varargin: sort set to true if sort boundaries ( Default: false )

Definition at line 17 of file RefineMesh.m.
