refine_valid1.m File Reference

validation function using refine mesh tools and mesh plot command. More...

Go to the source code of this file.

Functions

function  refine_valid1 (varargin)
 validation function using refine mesh tools and mesh plot command.


Detailed Description

validation function using refine mesh tools and mesh plot command.

Definition in file refine_valid1.m.

Function Documentation

function refine_valid1 (   varargin)

validation function using refine mesh tools and mesh plot command.

Examples
  • Mesh file : 'disque4-1-3'

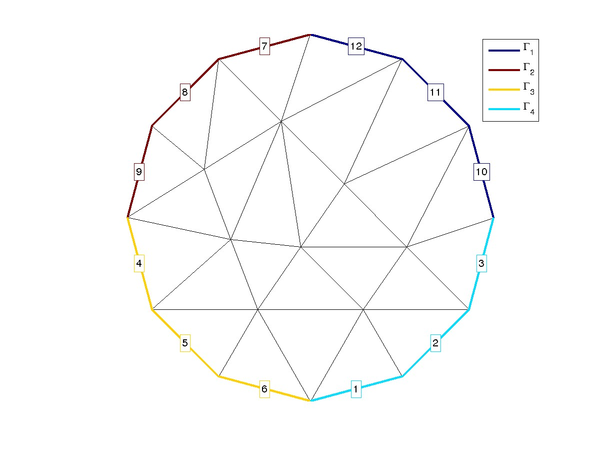

    figure : Mesh before refinement

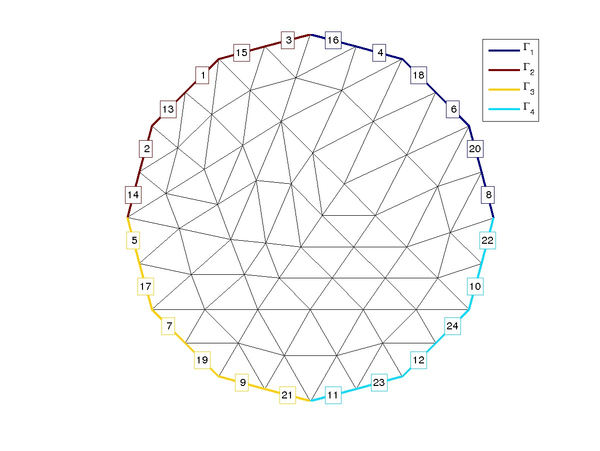

    figure : Mesh after refinement : sort=false

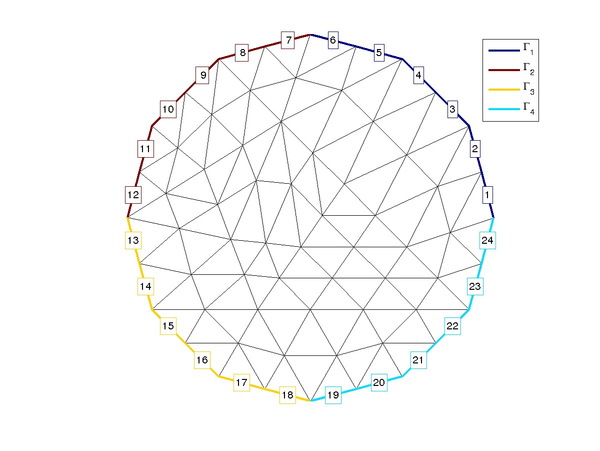

    figure : Mesh after refinement : sort=true
  • Mesh file : 'disk_hole2'

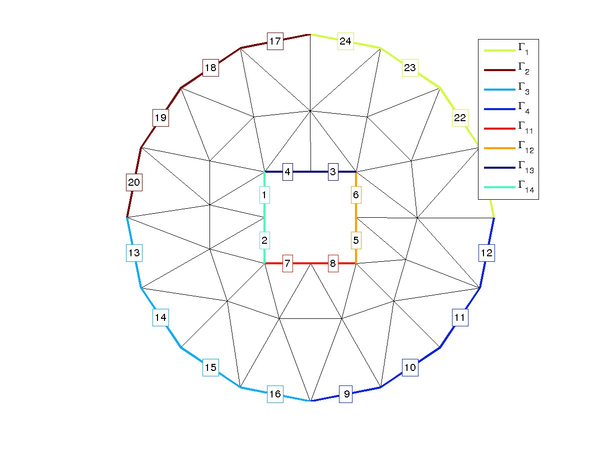

    figure : Mesh before refinement

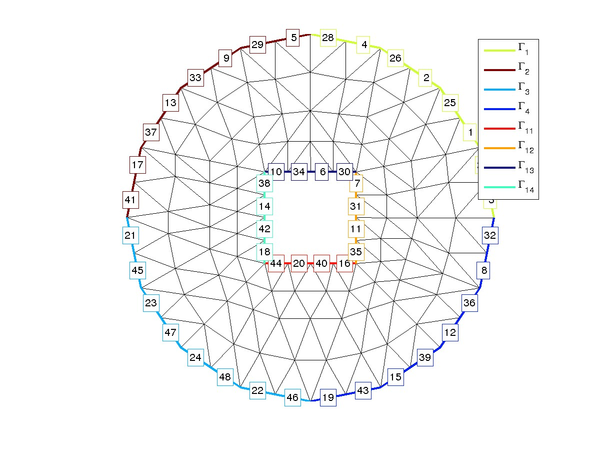

    figure : Mesh after refinement : sort=false

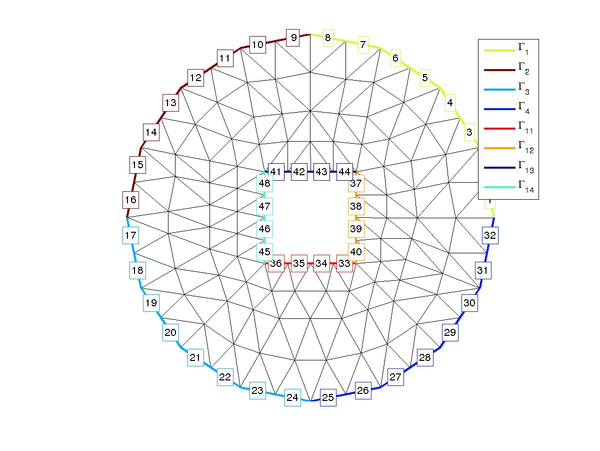

    figure : Mesh after refinement : sort=true
  • Mesh file : 'disk_hole_A2'

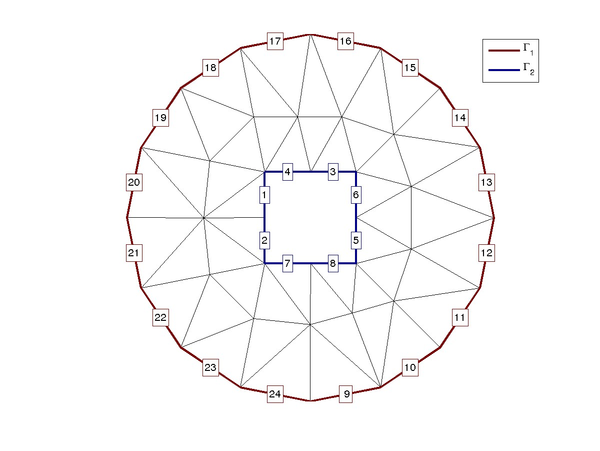

    figure : Mesh before refinement

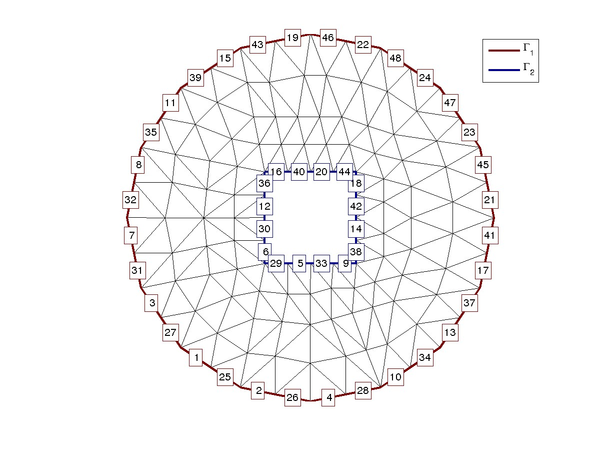

    figure : Mesh after refinement : sort=false

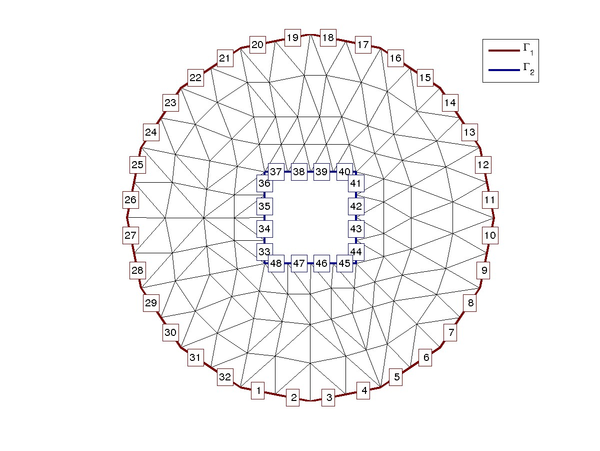

    figure : Mesh after refinement : sort=true
  • Mesh file : 'disk_hole_B2'

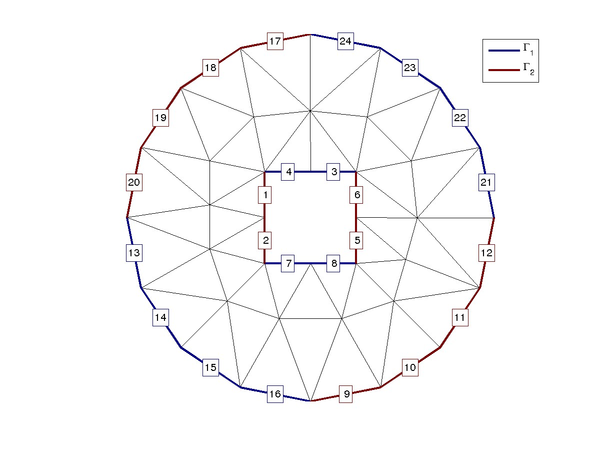

    figure : Mesh before refinement

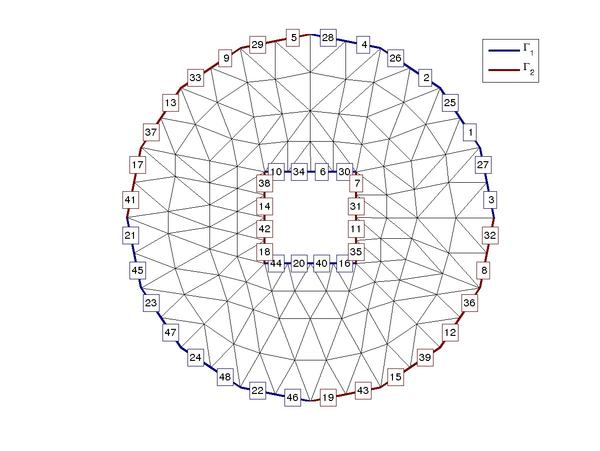

    figure : Mesh after refinement : sort=false

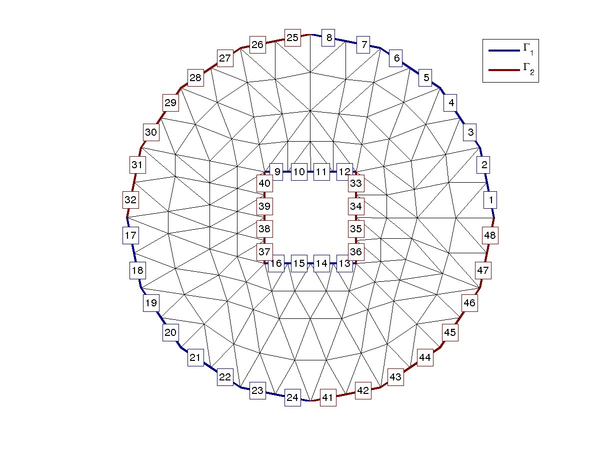

    figure : Mesh after refinement : sort=true
  • Mesh file : 'disk_hole_C1'

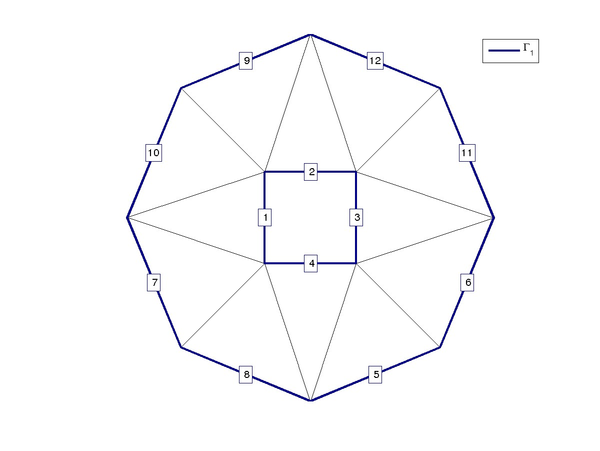

    figure : Mesh before refinement

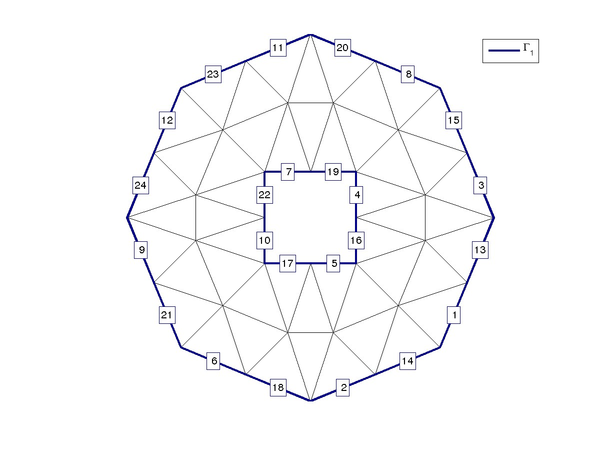

    figure : Mesh after refinement : sort=false

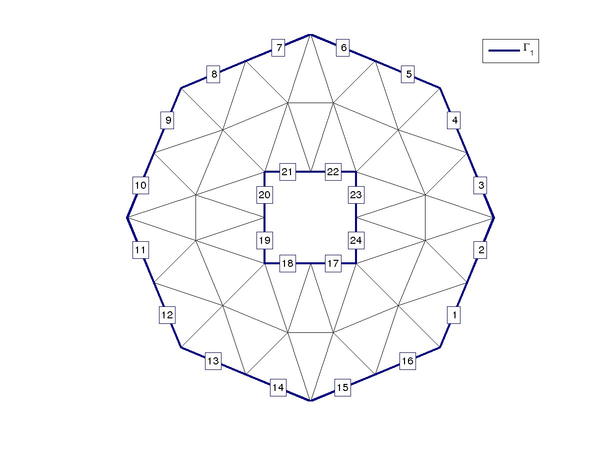

    figure : Mesh after refinement : sort=true
See Also
refine_demo1
Parameters
varargin
refine_valid1 ( [ "save", save_value ] [, "percent", percent_value ] )
Named Parameters for varargin:
  • save set to true to save figures in image directory. ( Default: false )
  • percent set resize percent png images ( Default: 50 )

Definition at line 17 of file refine_valid1.m.
