The pict Matlab toolbox allows to display simplicial meshes or datas on simplicial meshes. A simplicial mesh must be given by two arrays : the vertices array and the connectivity array.

*  Matlab / Mesh / fc_graphics4mesh/ Snapshots

























































































*  Matlab / Mesh / fc_graphics4mesh/ demos

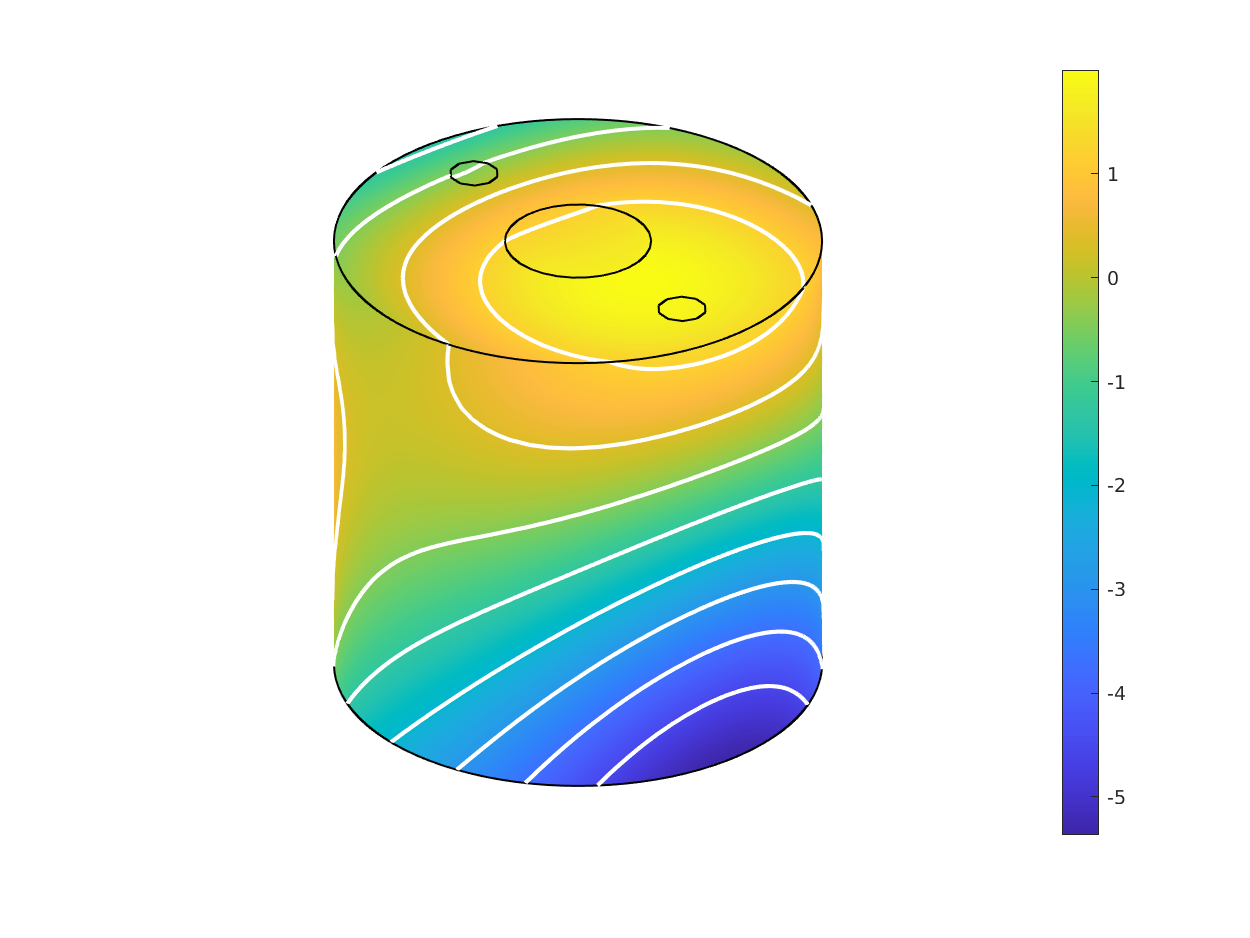

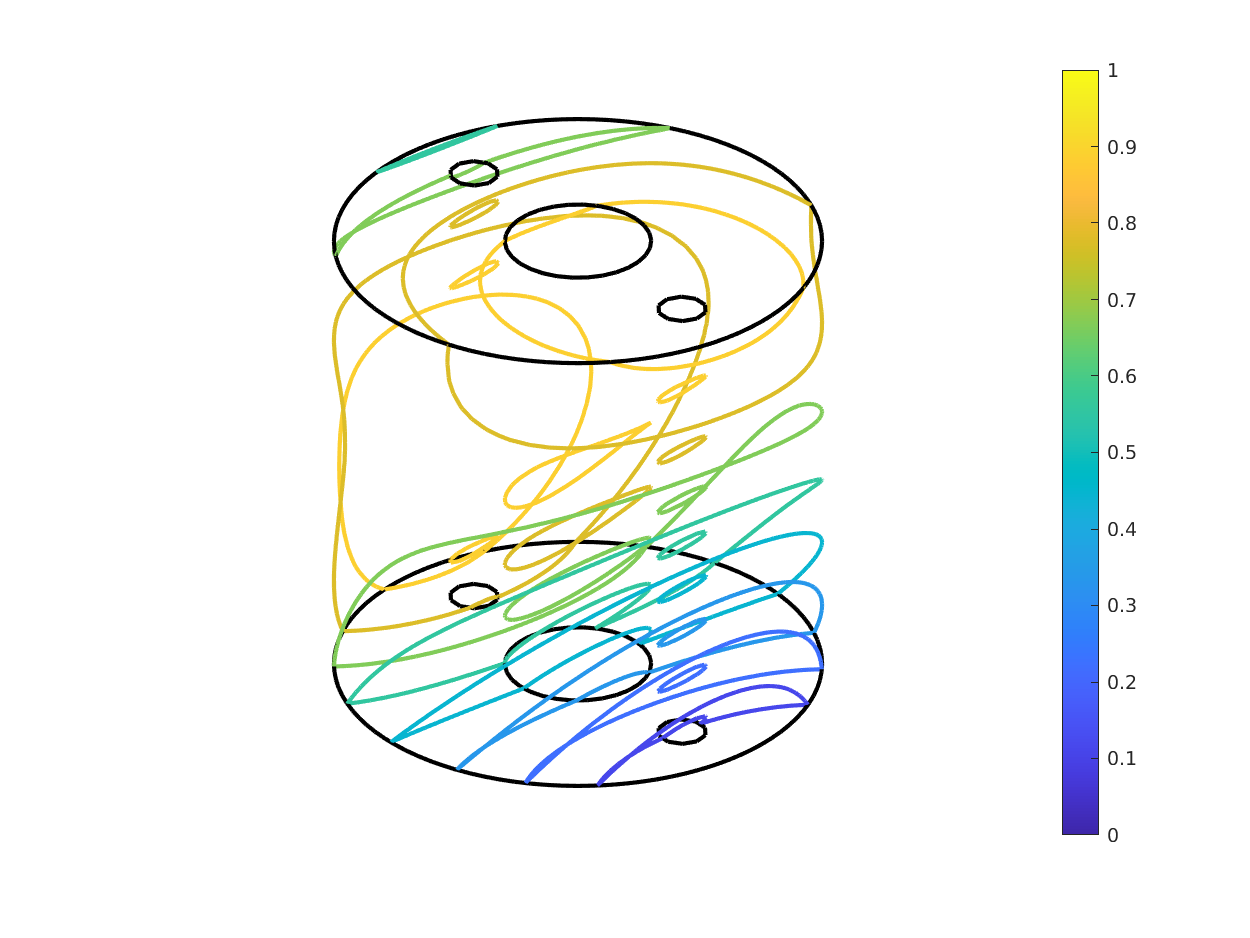

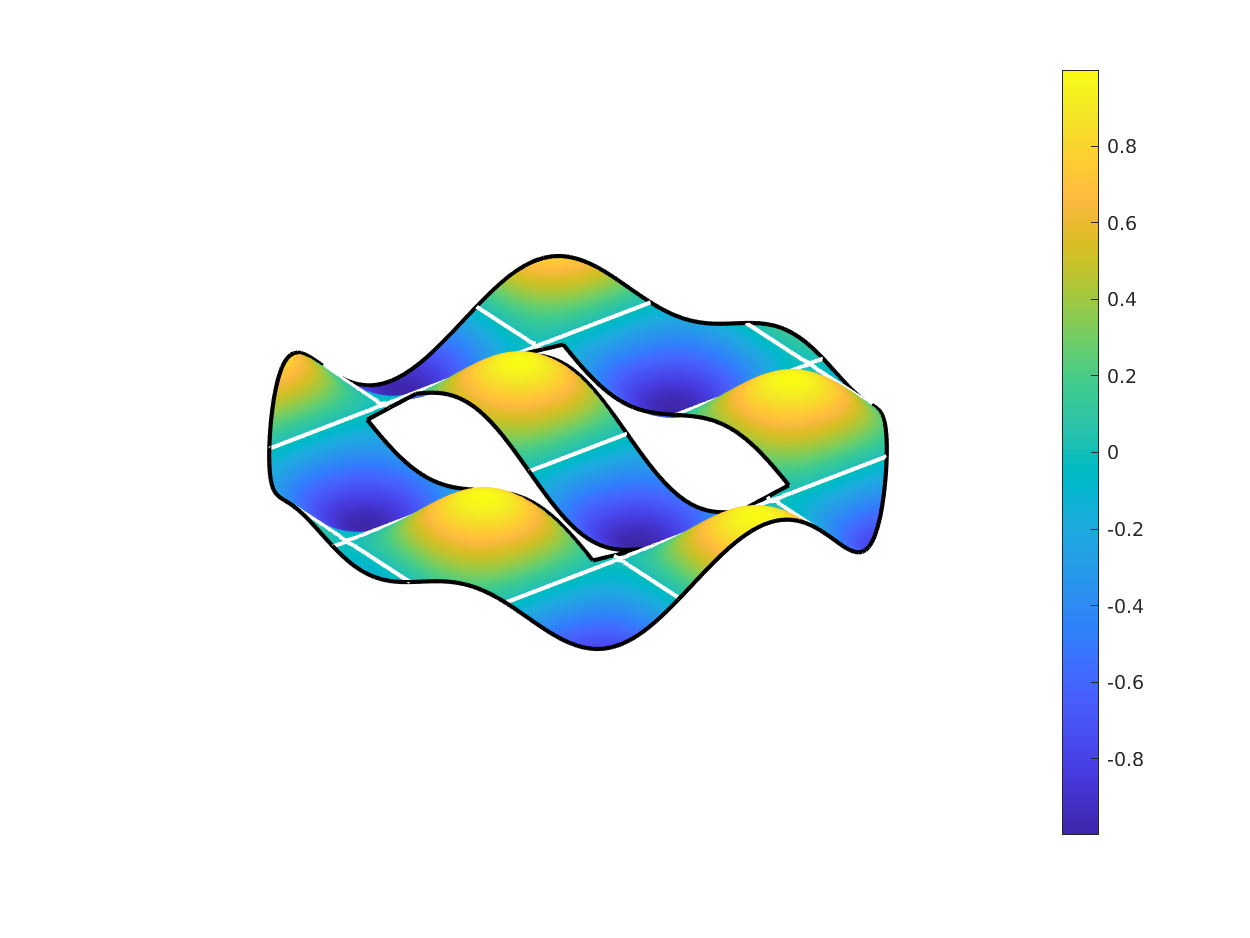

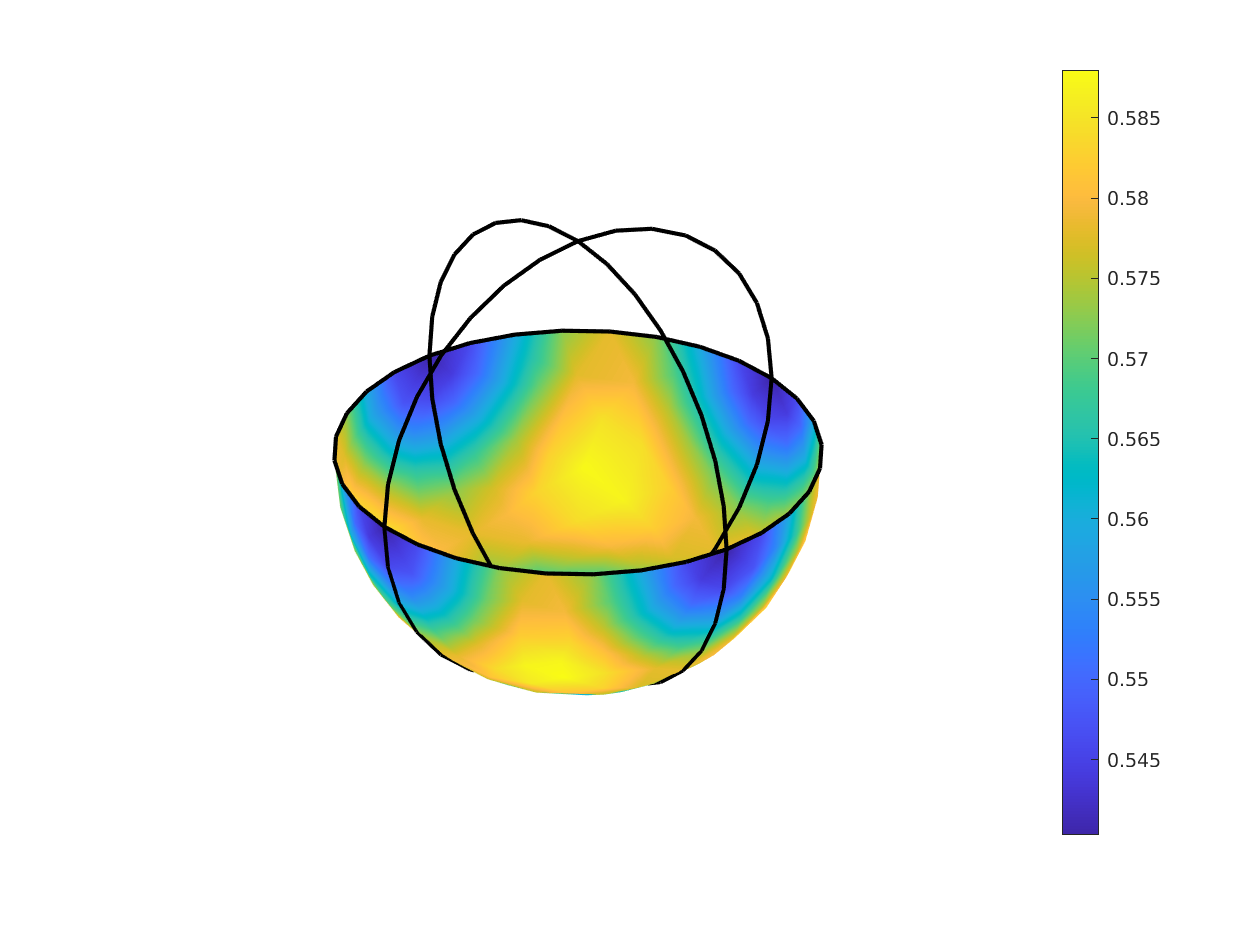

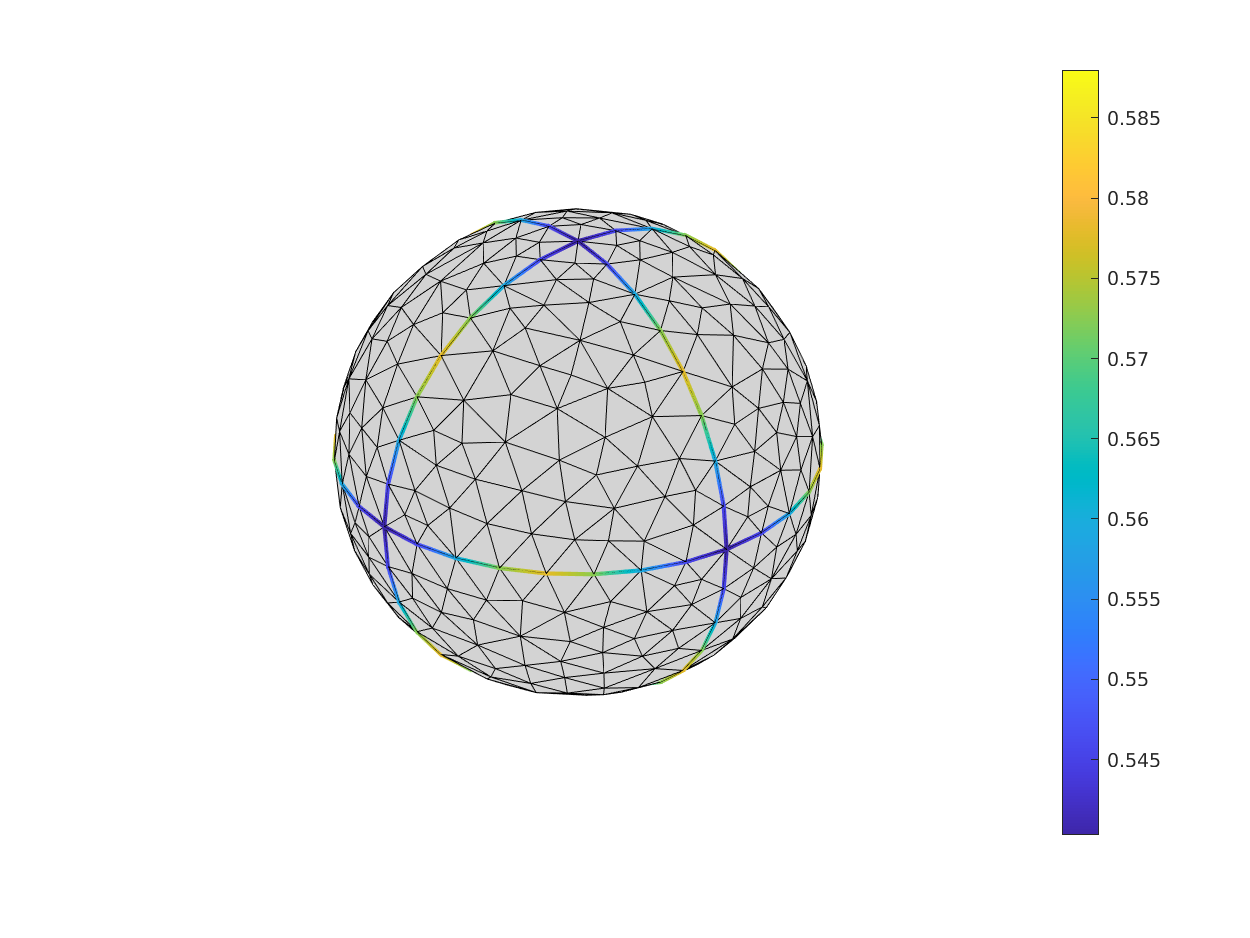

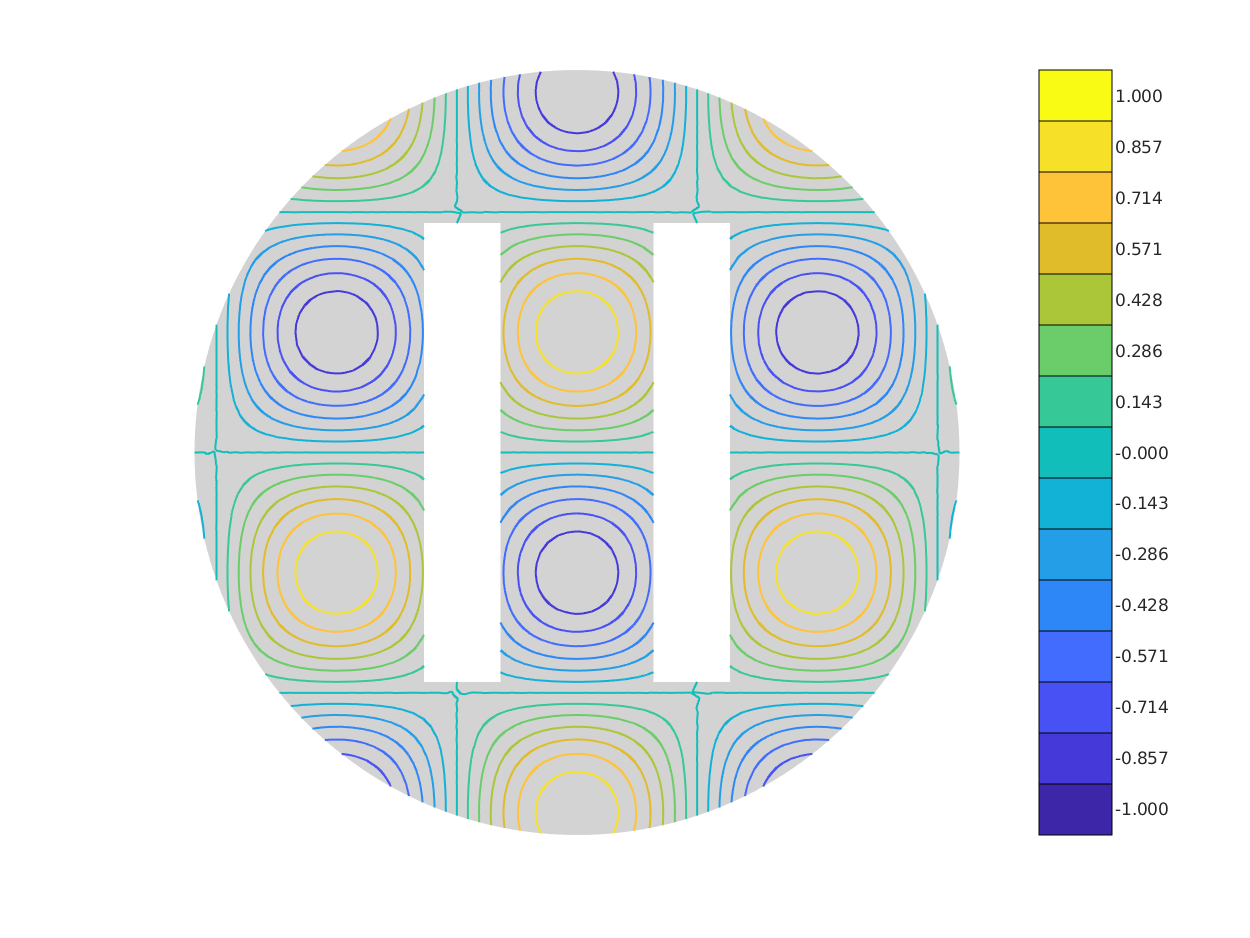

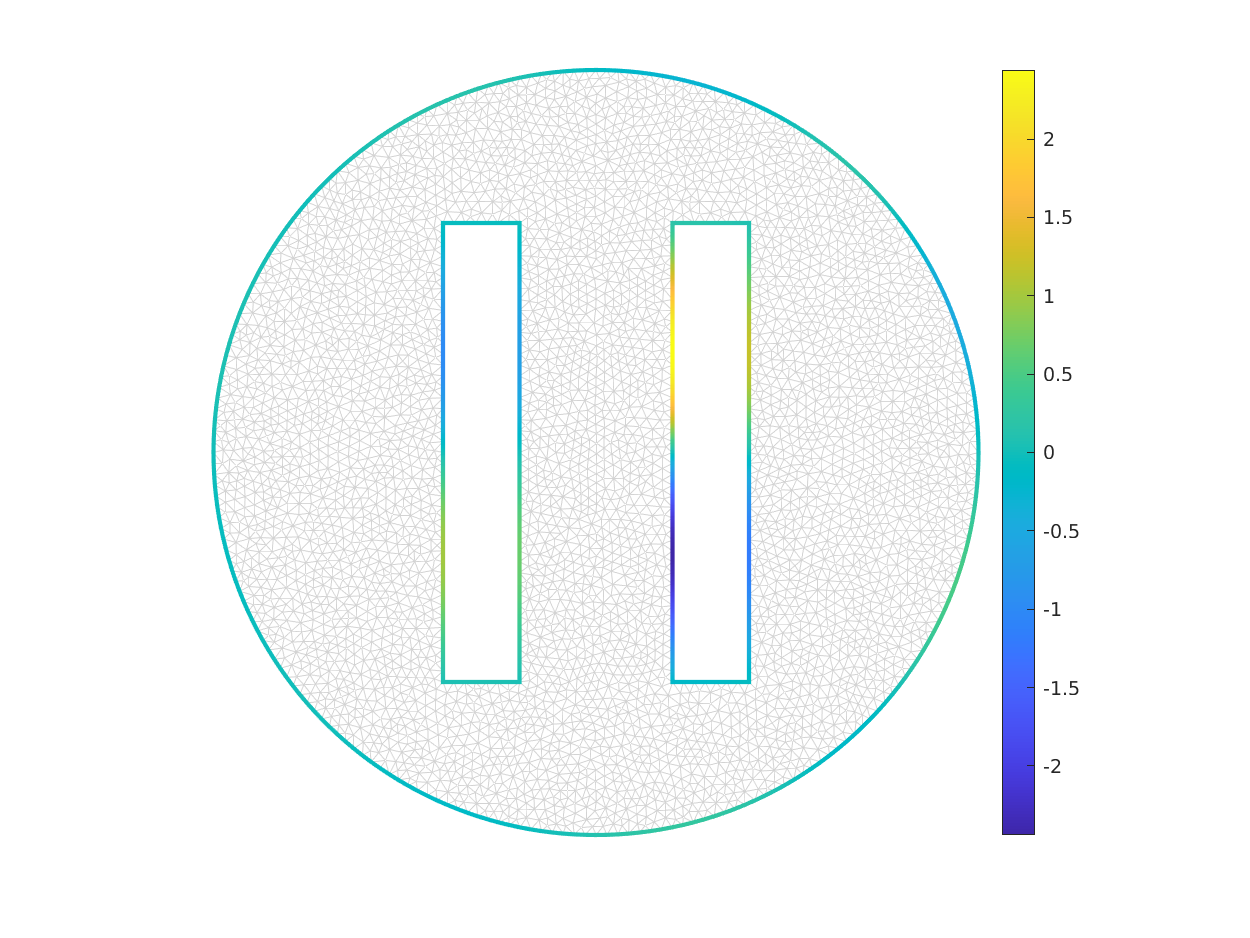

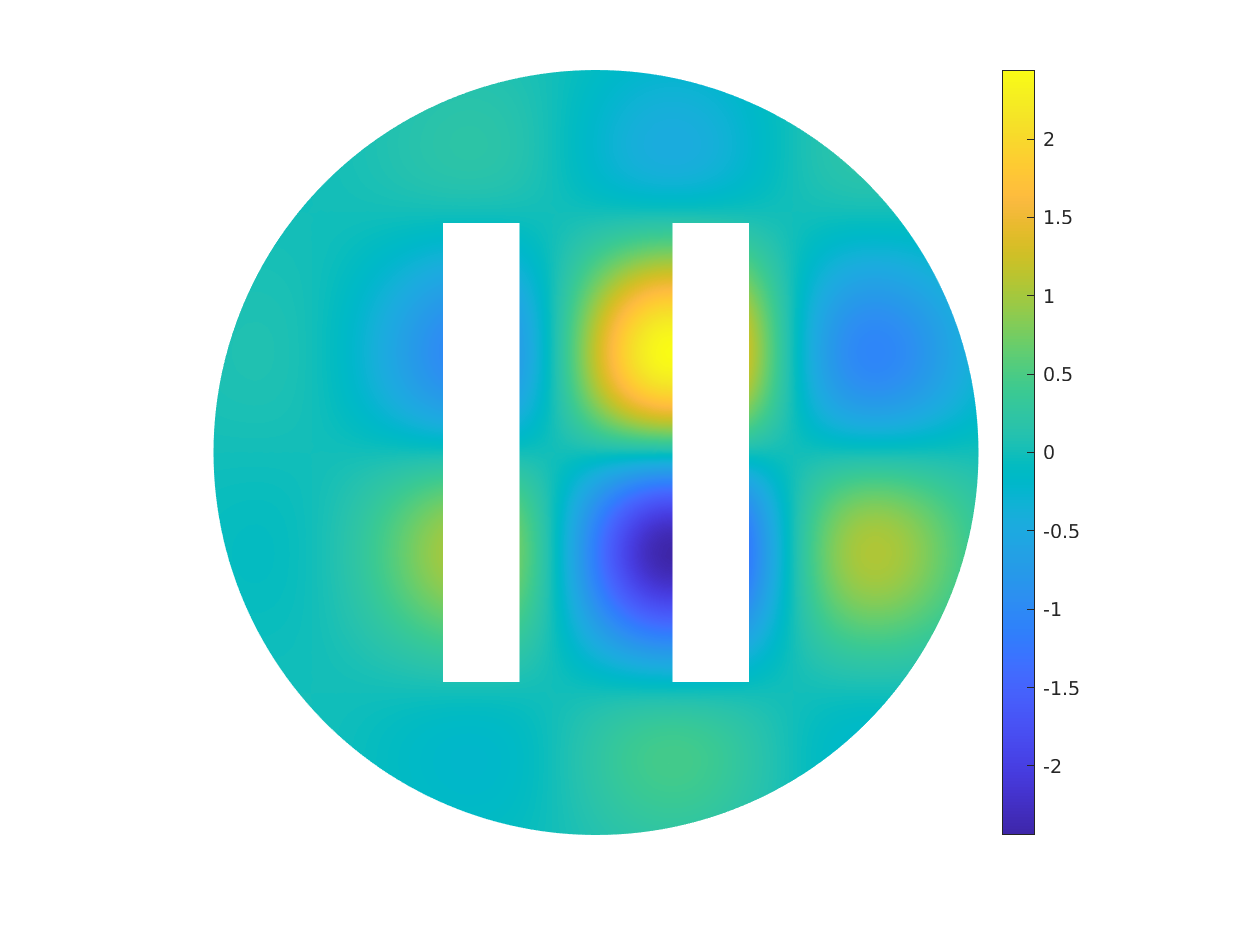

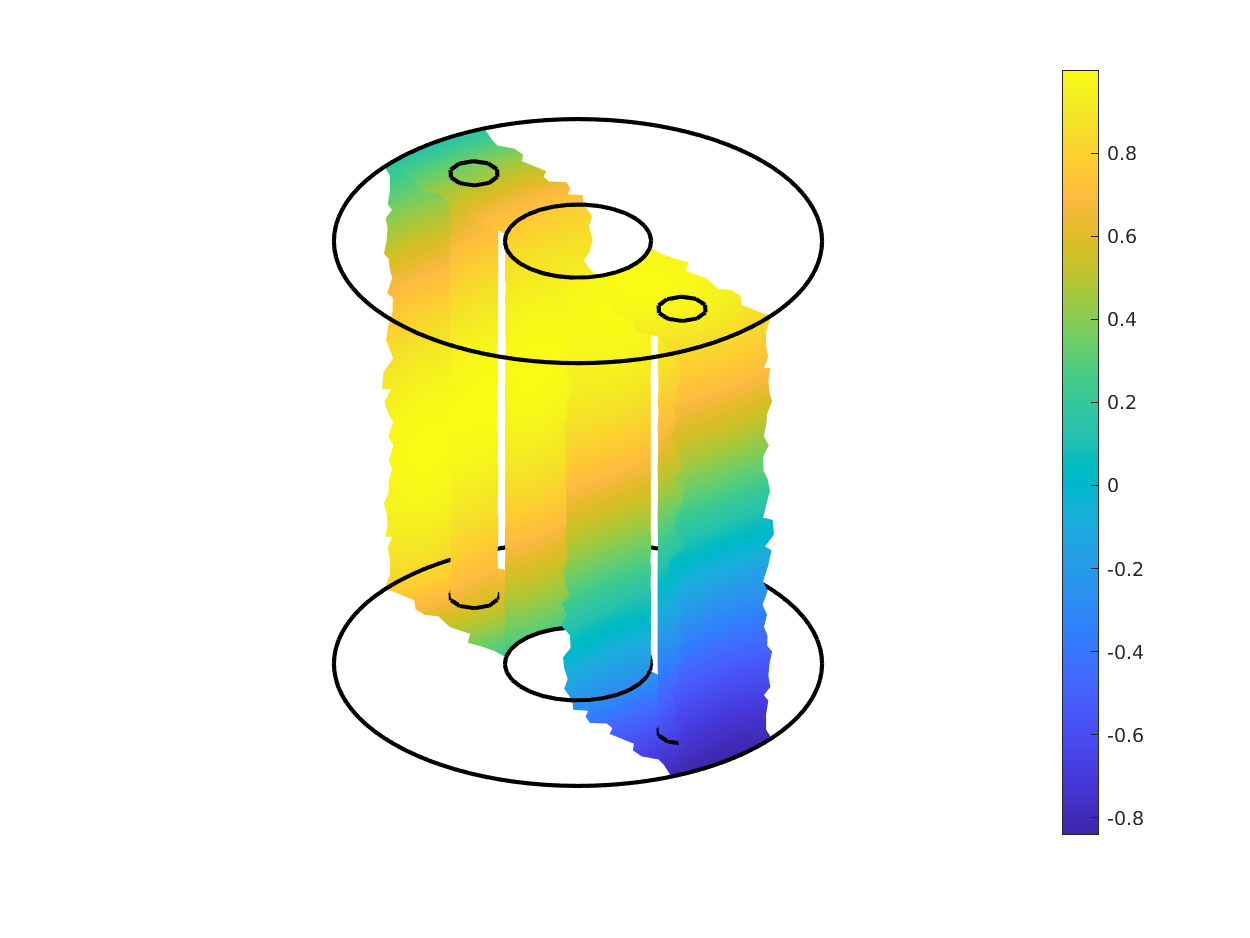

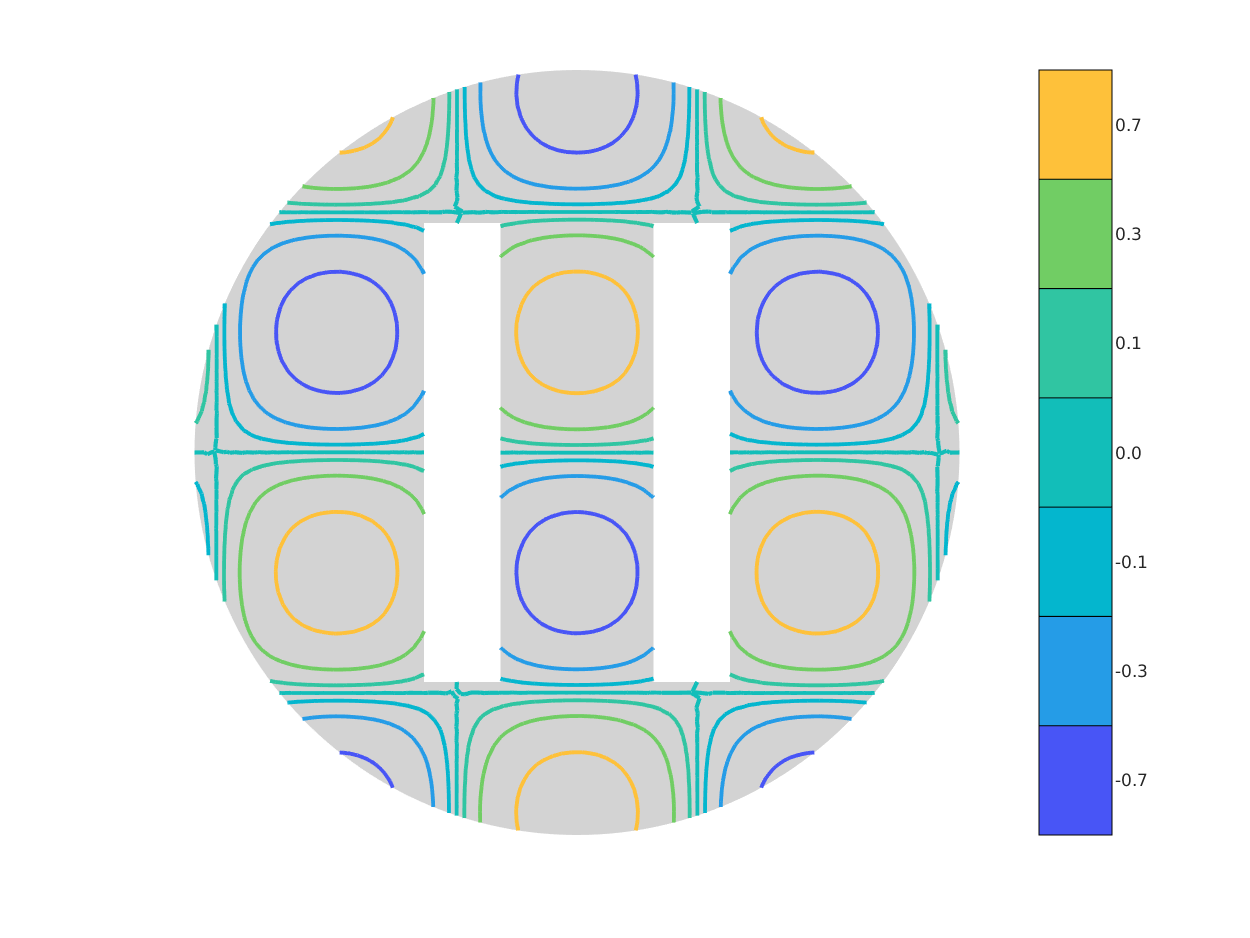

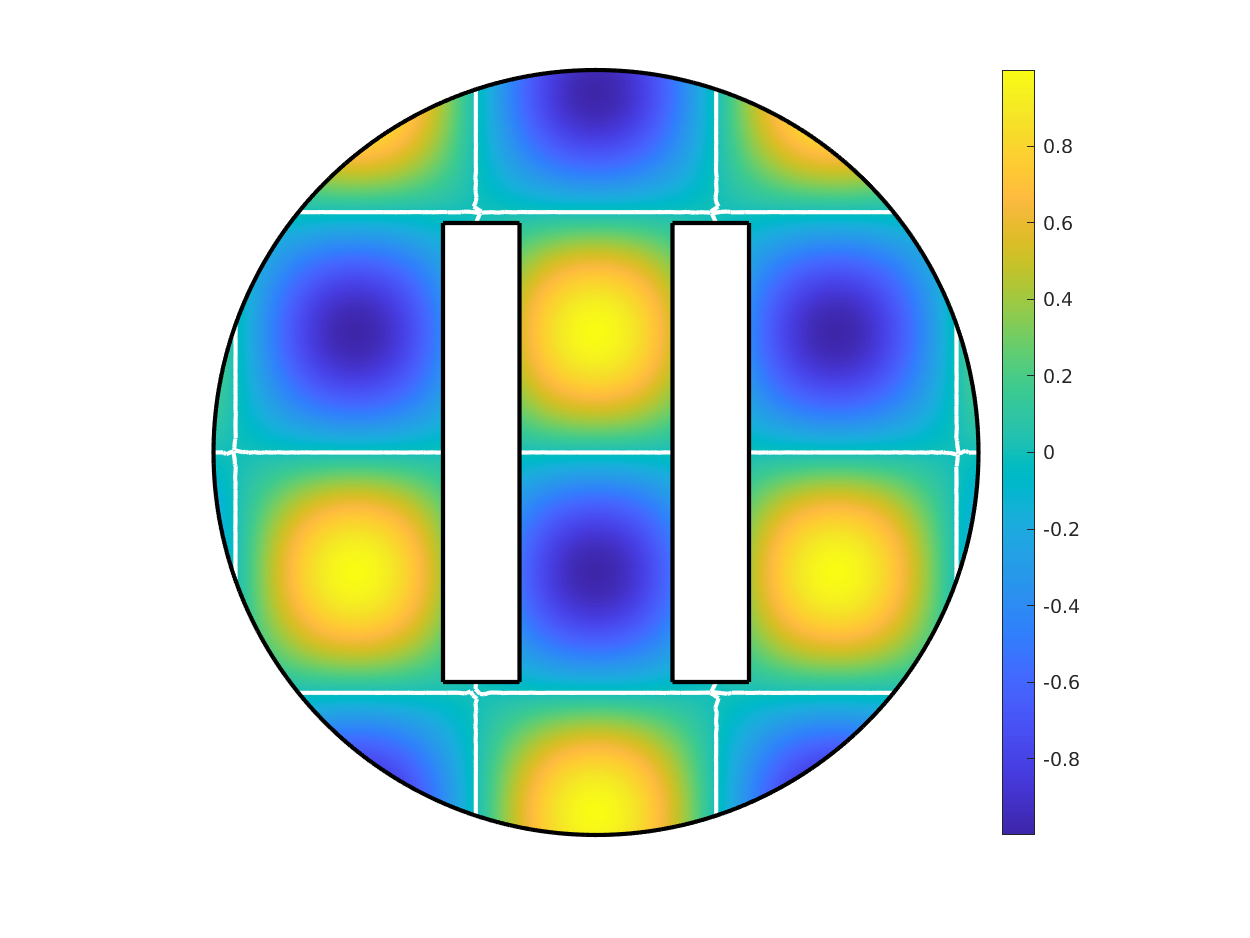

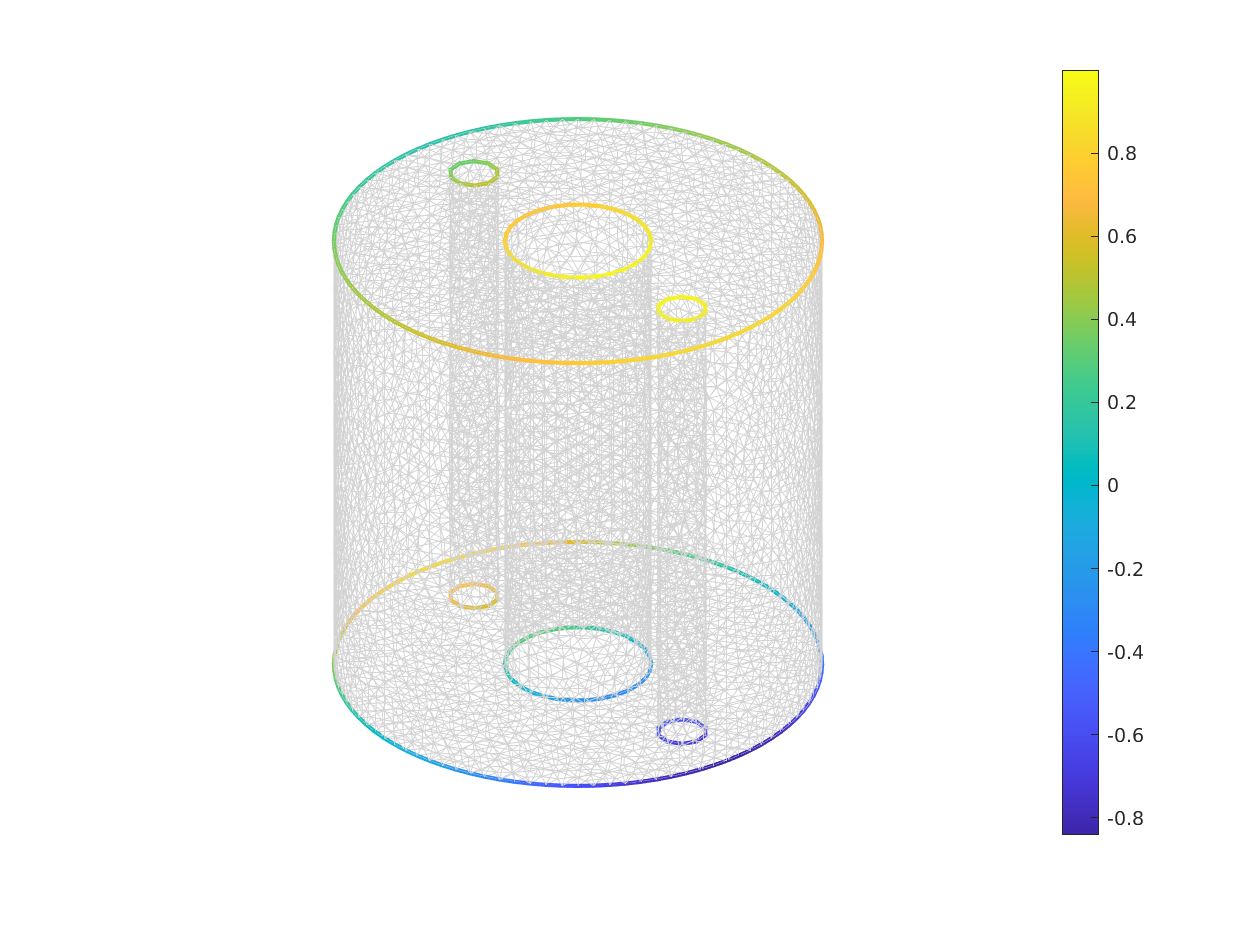

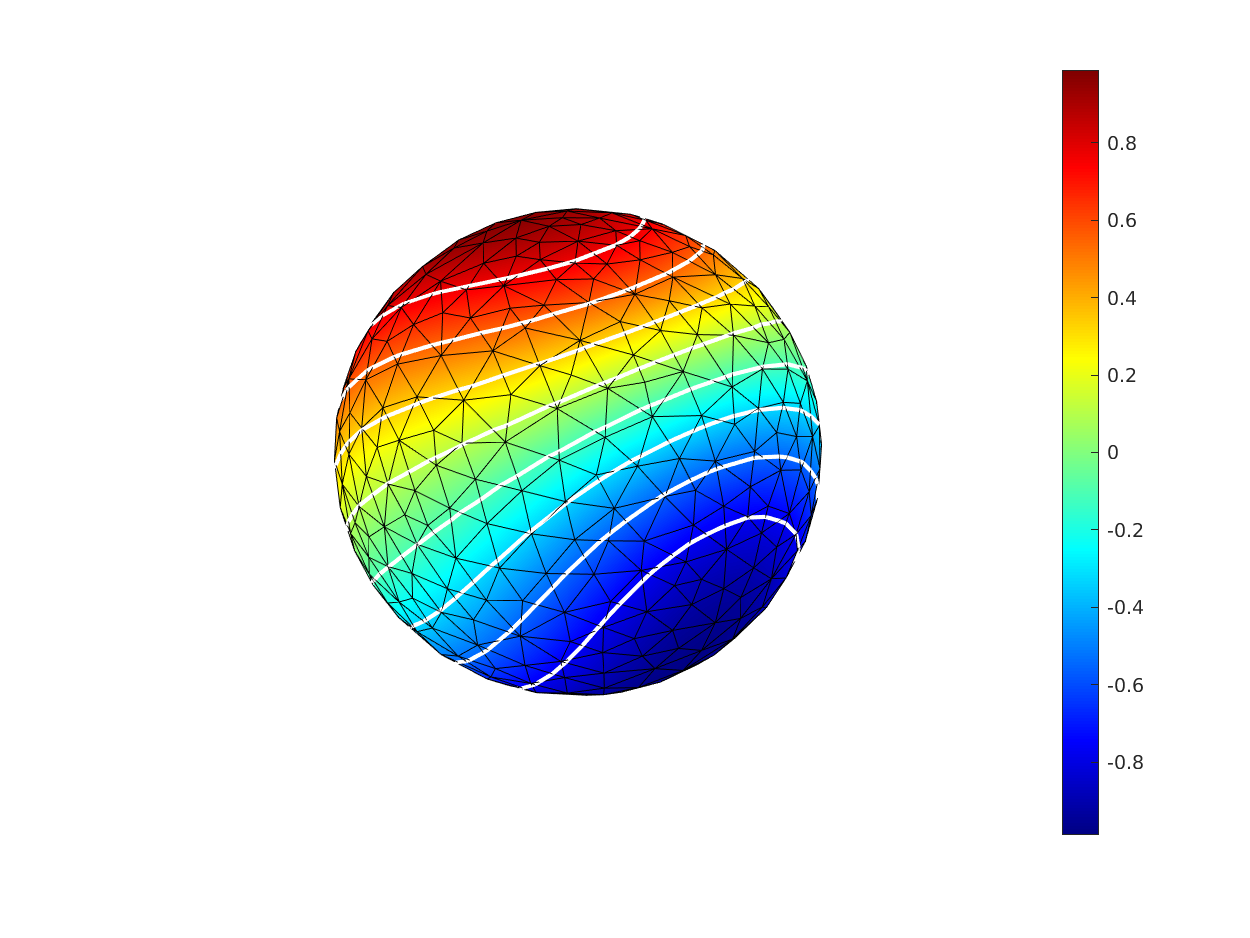

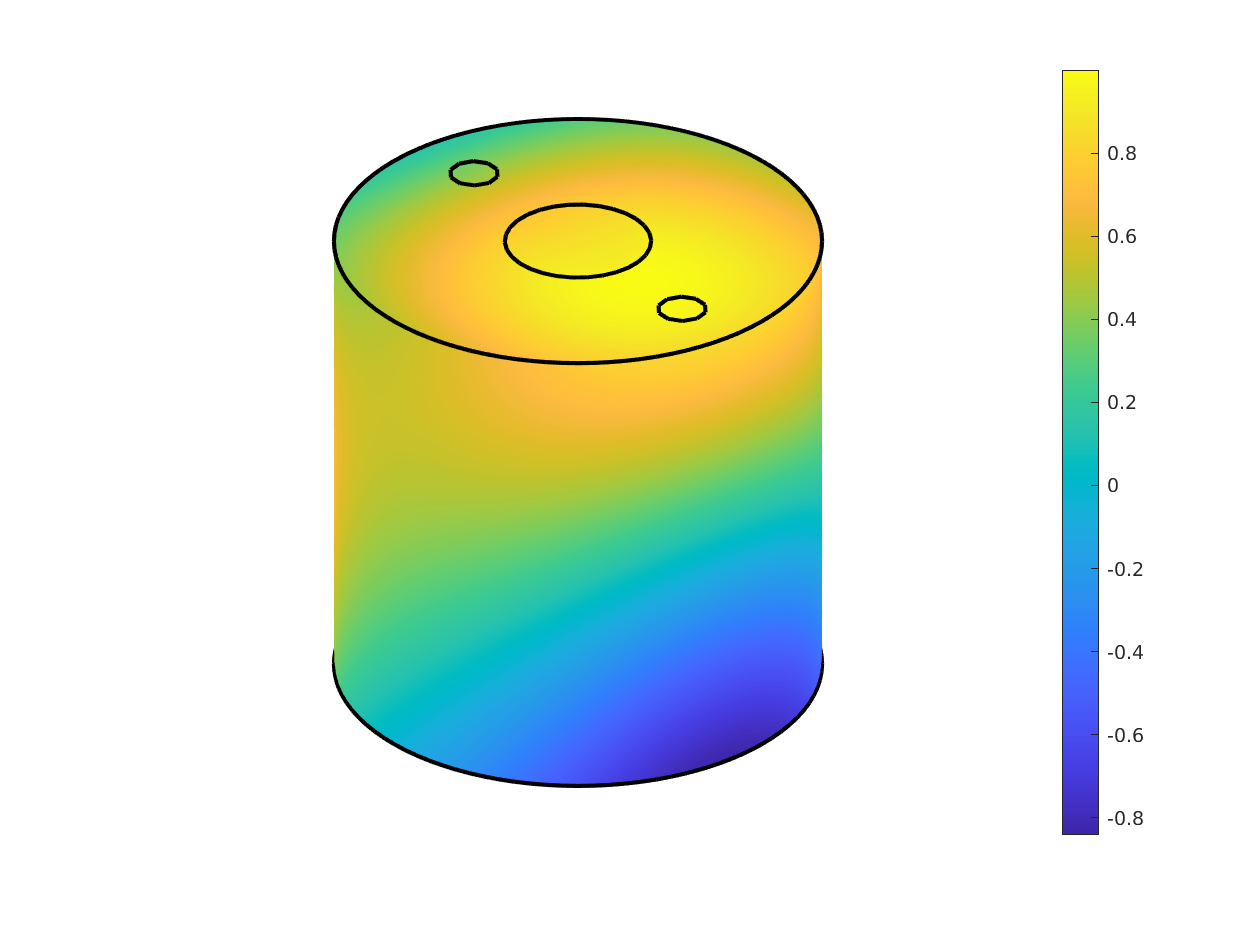

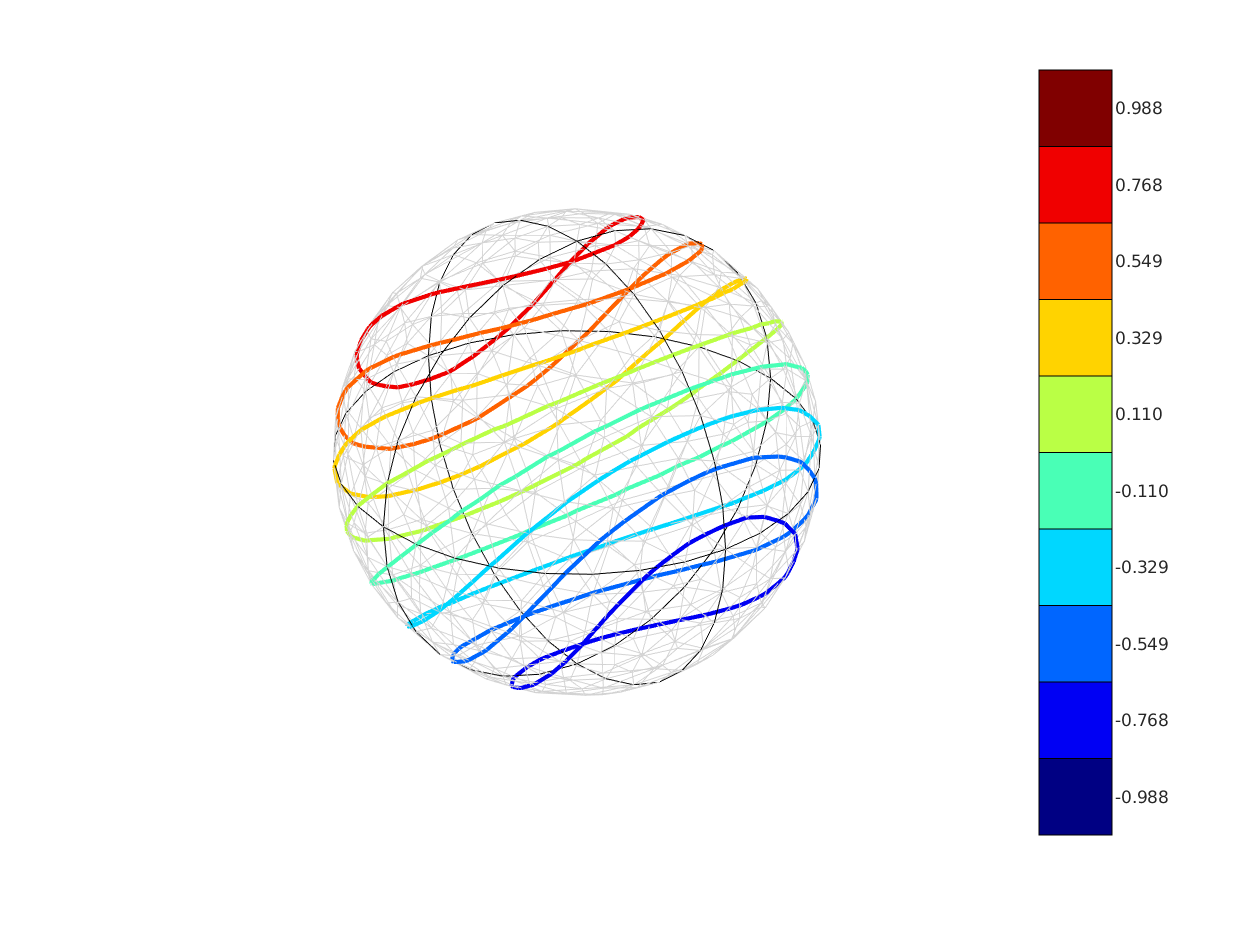

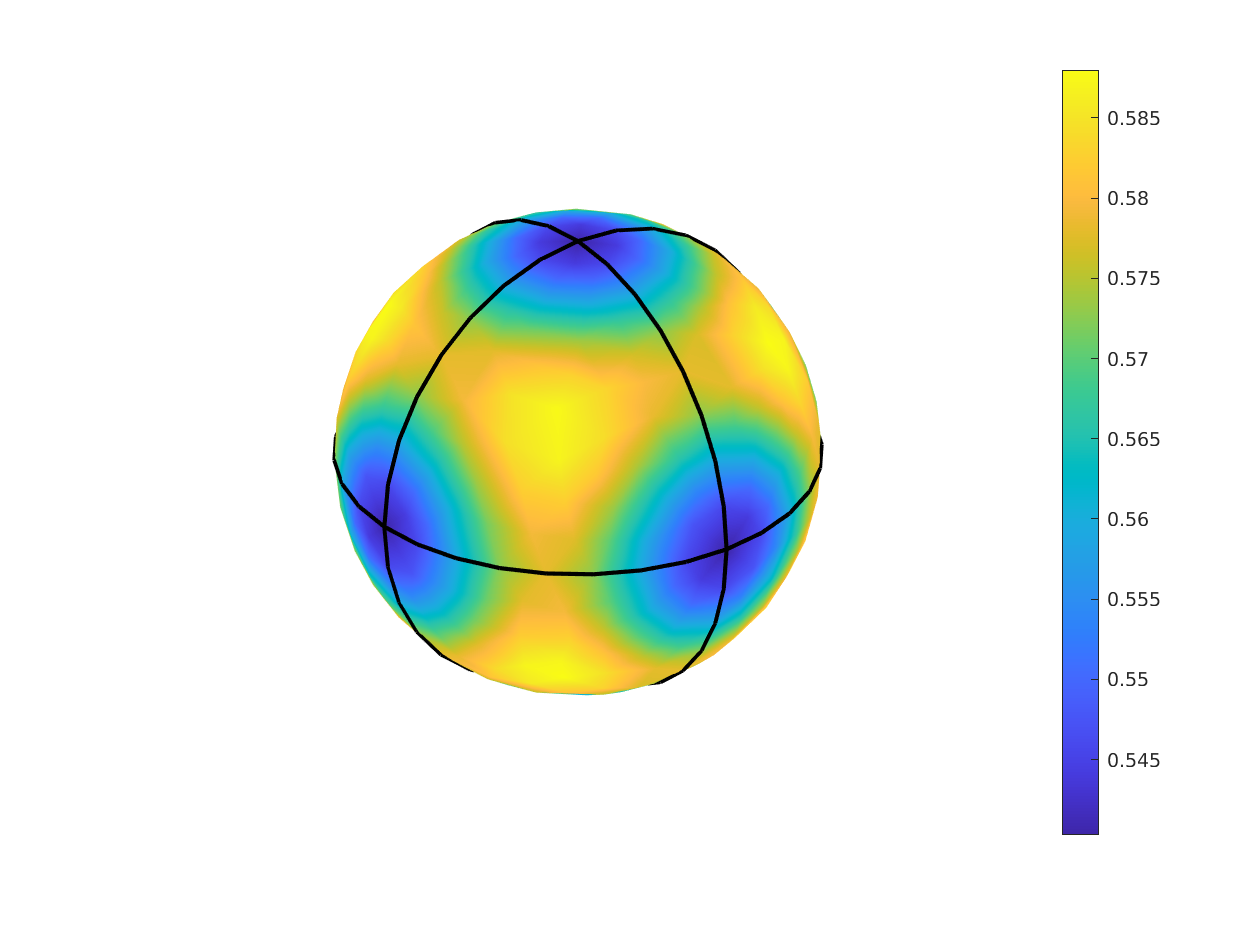

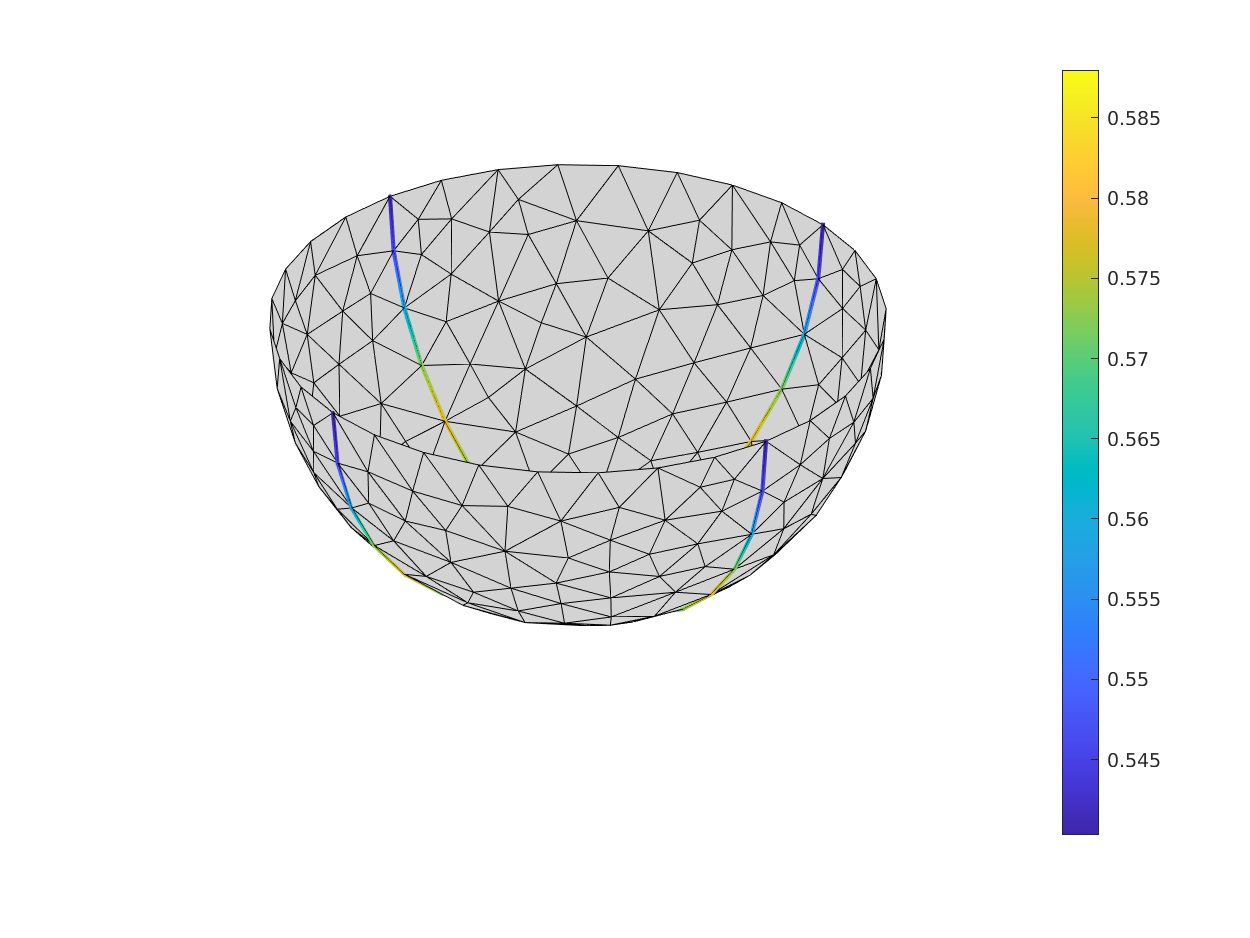

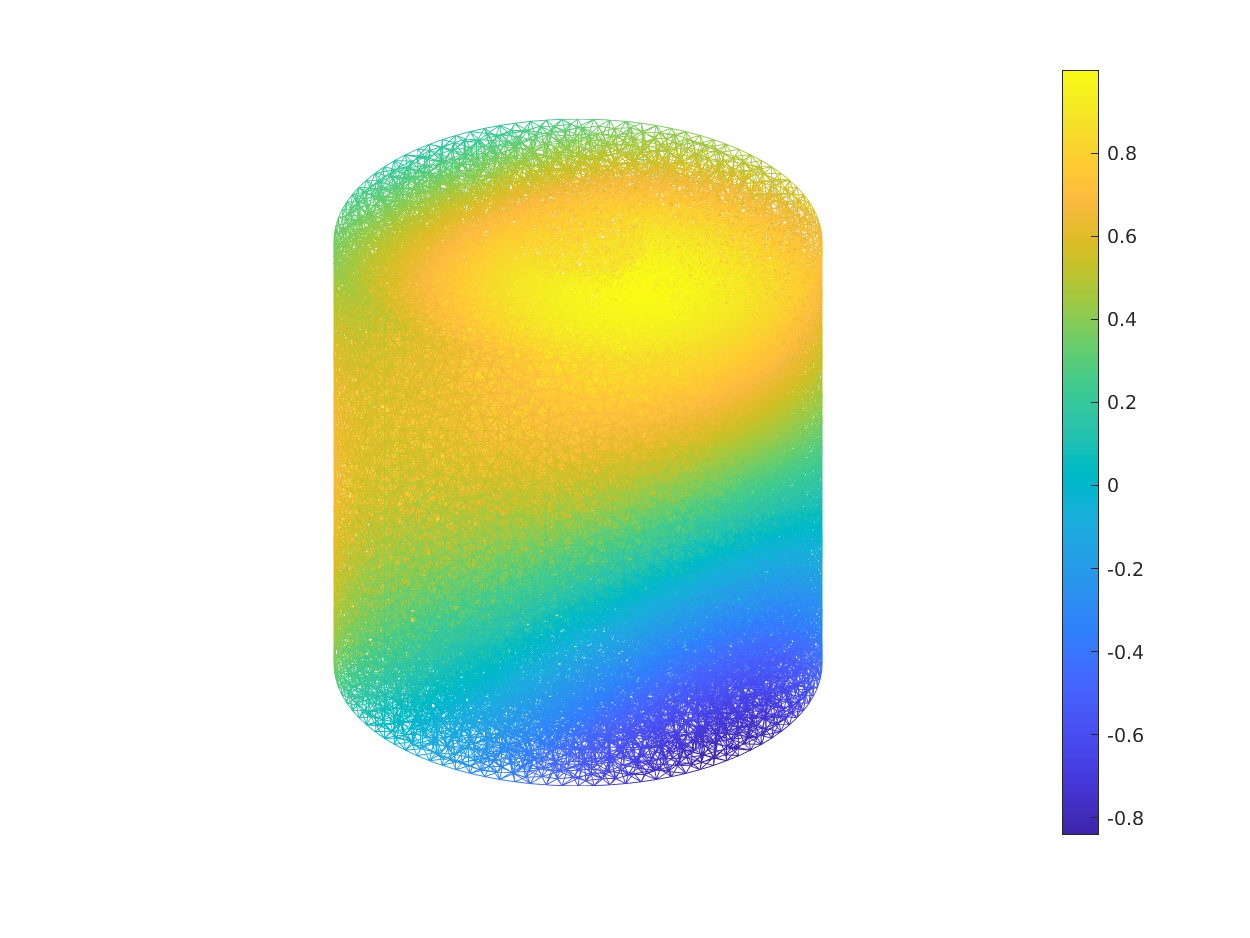

plot2D plot3D plot3Ds plotiso2D plotiso3D plotiso3Ds

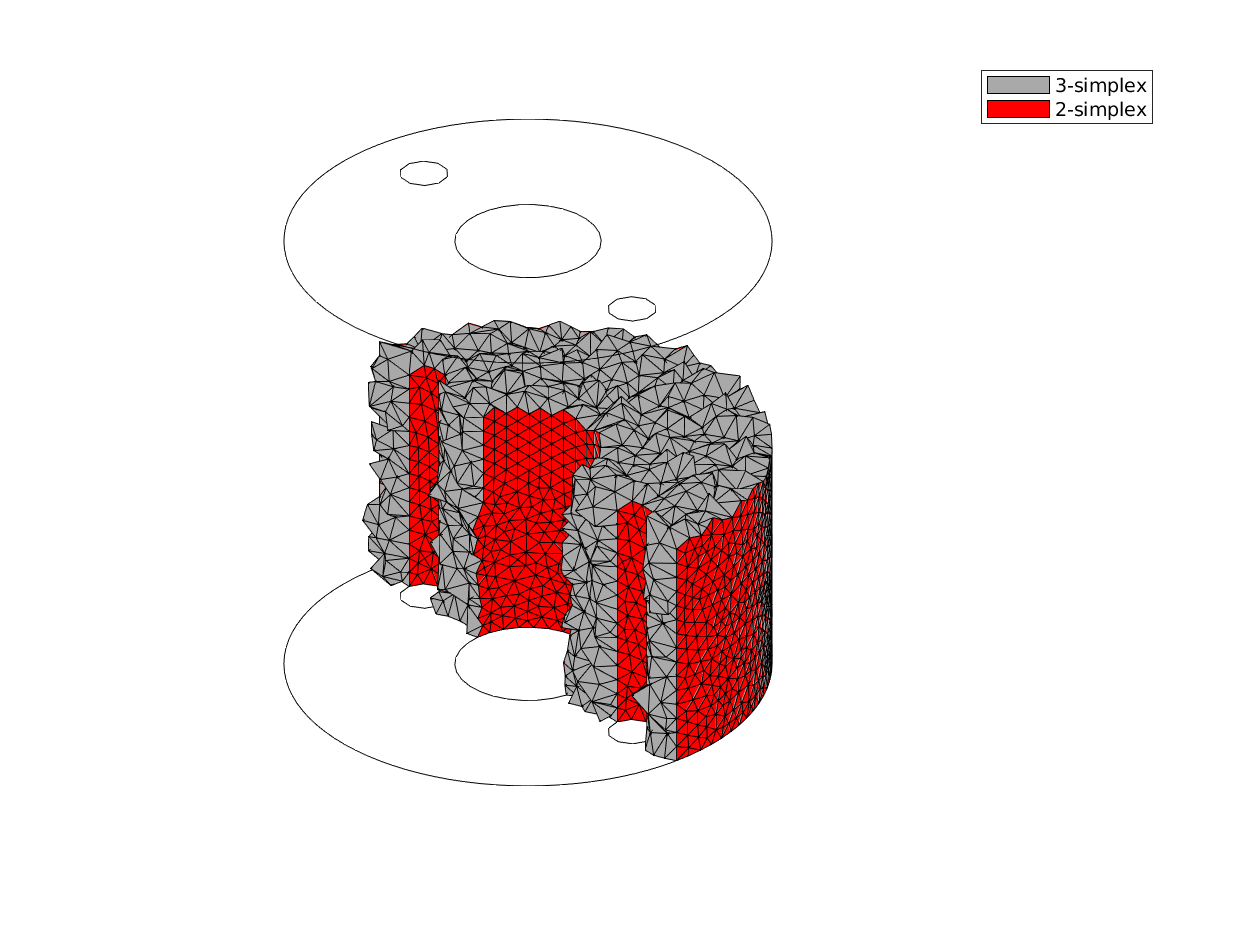

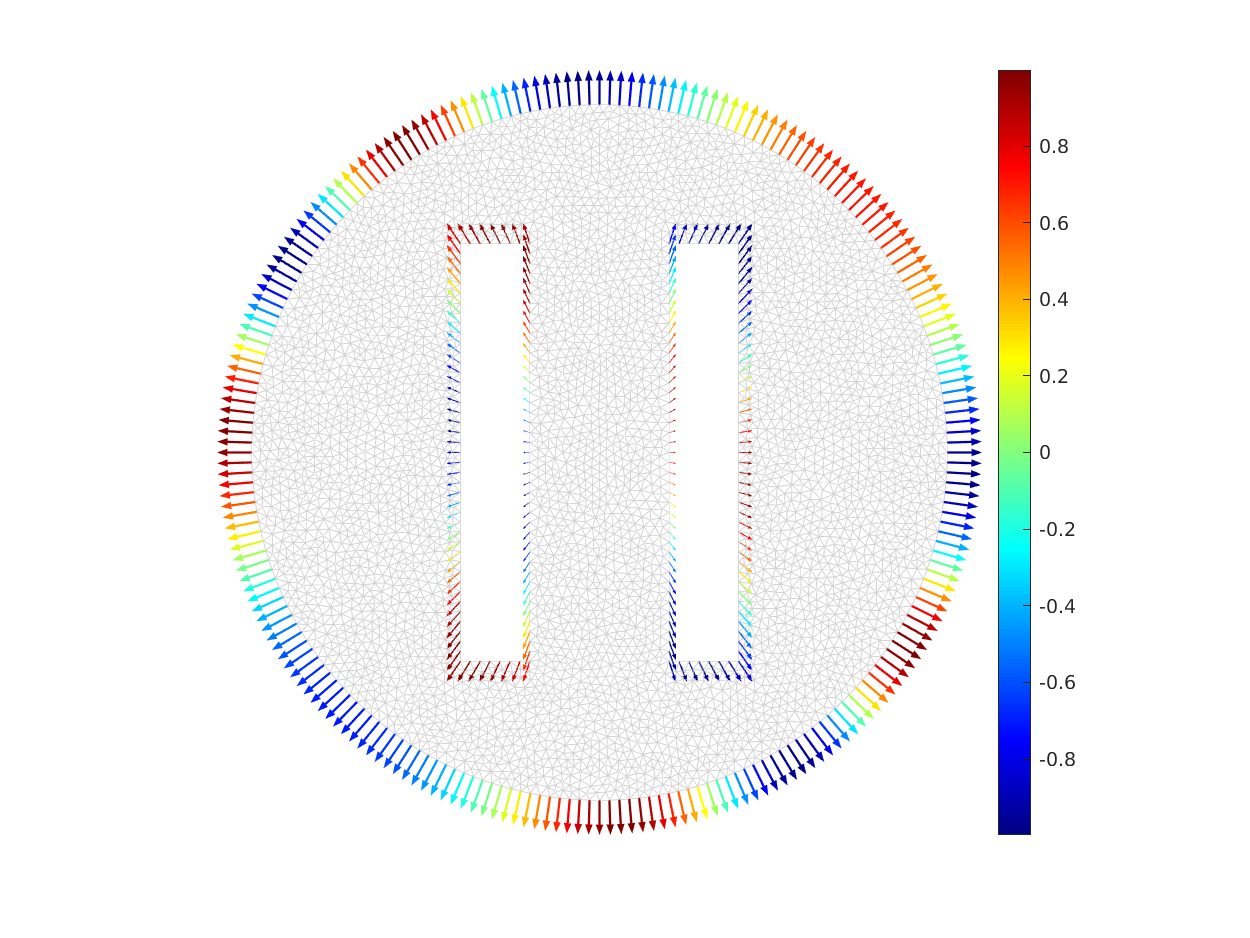

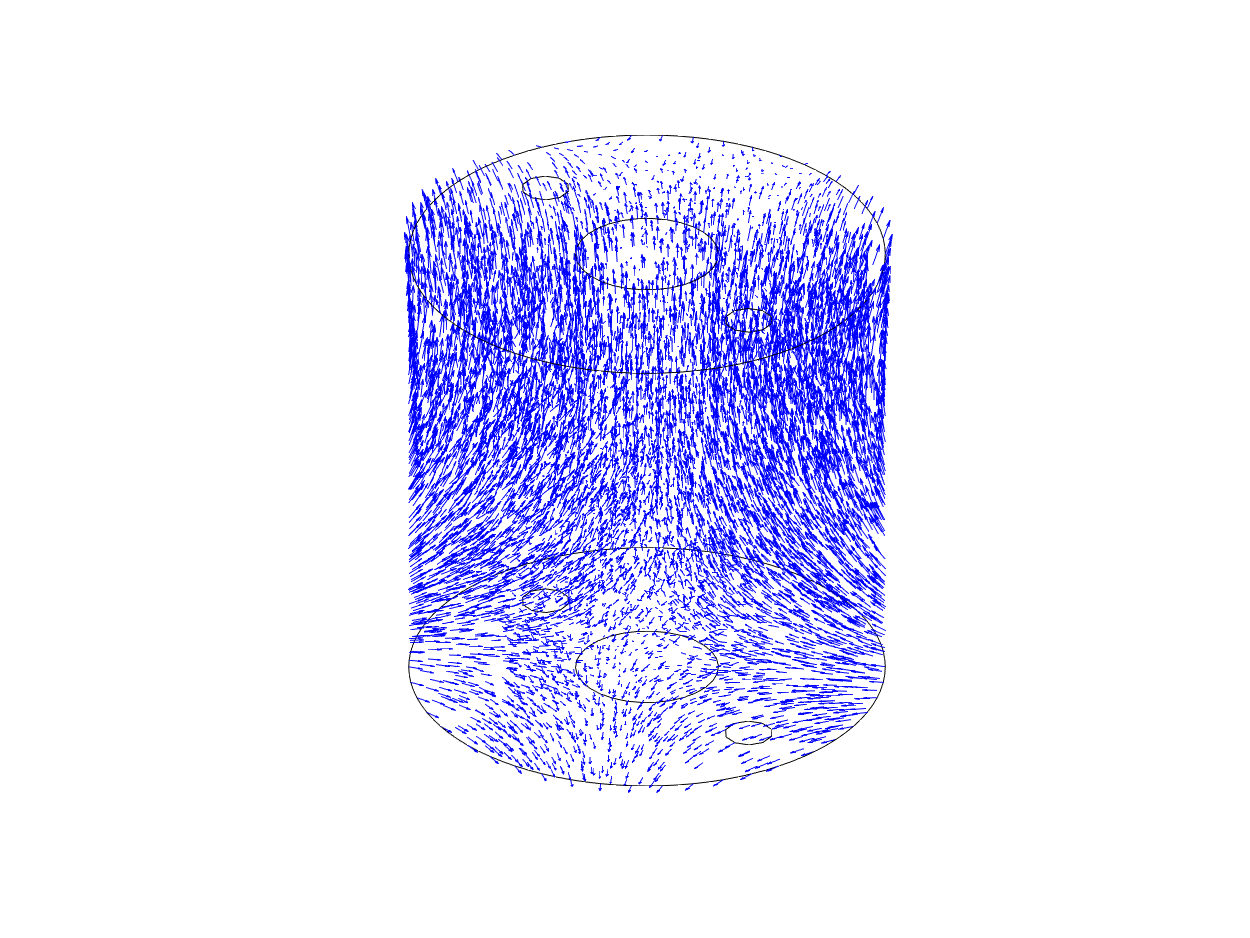

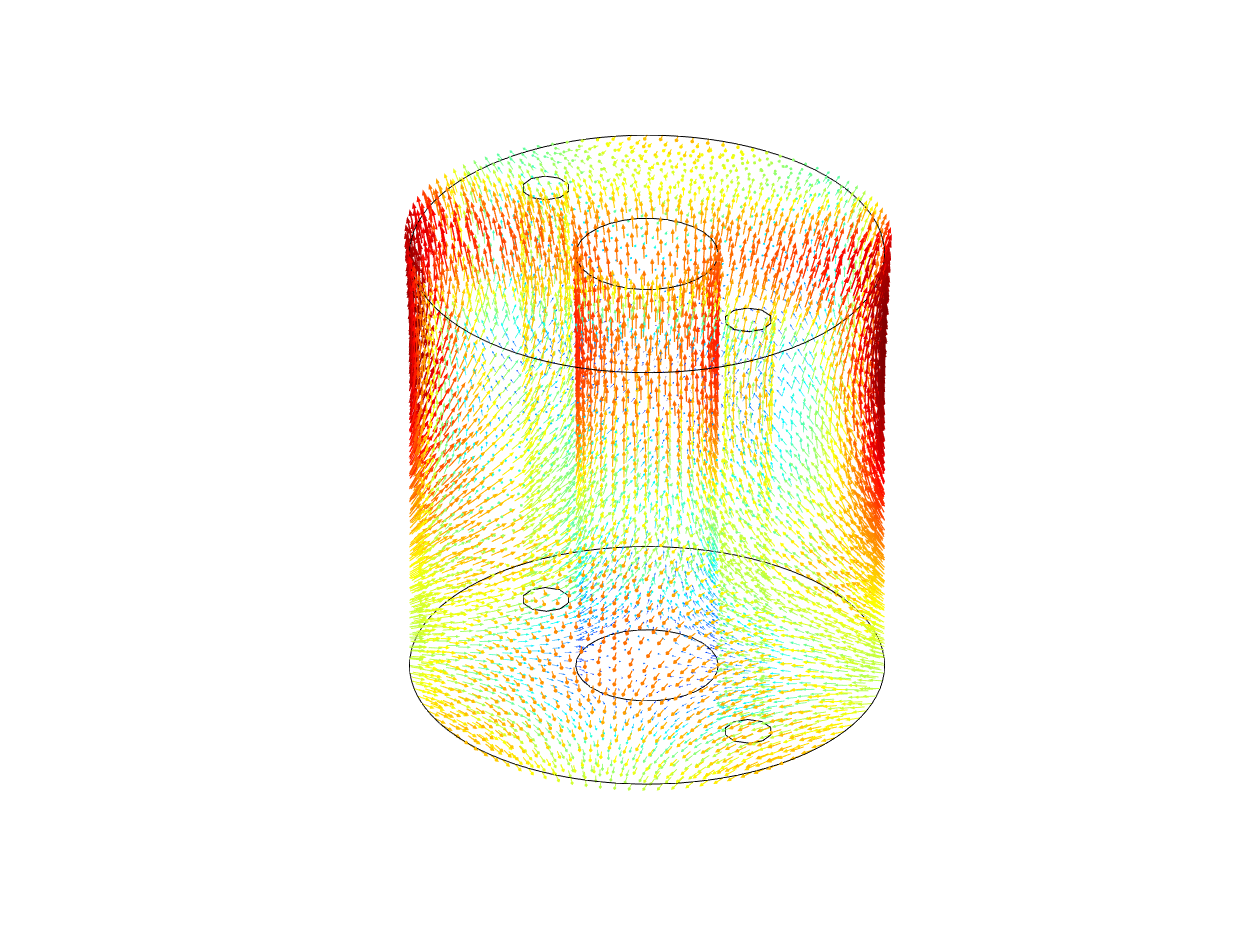

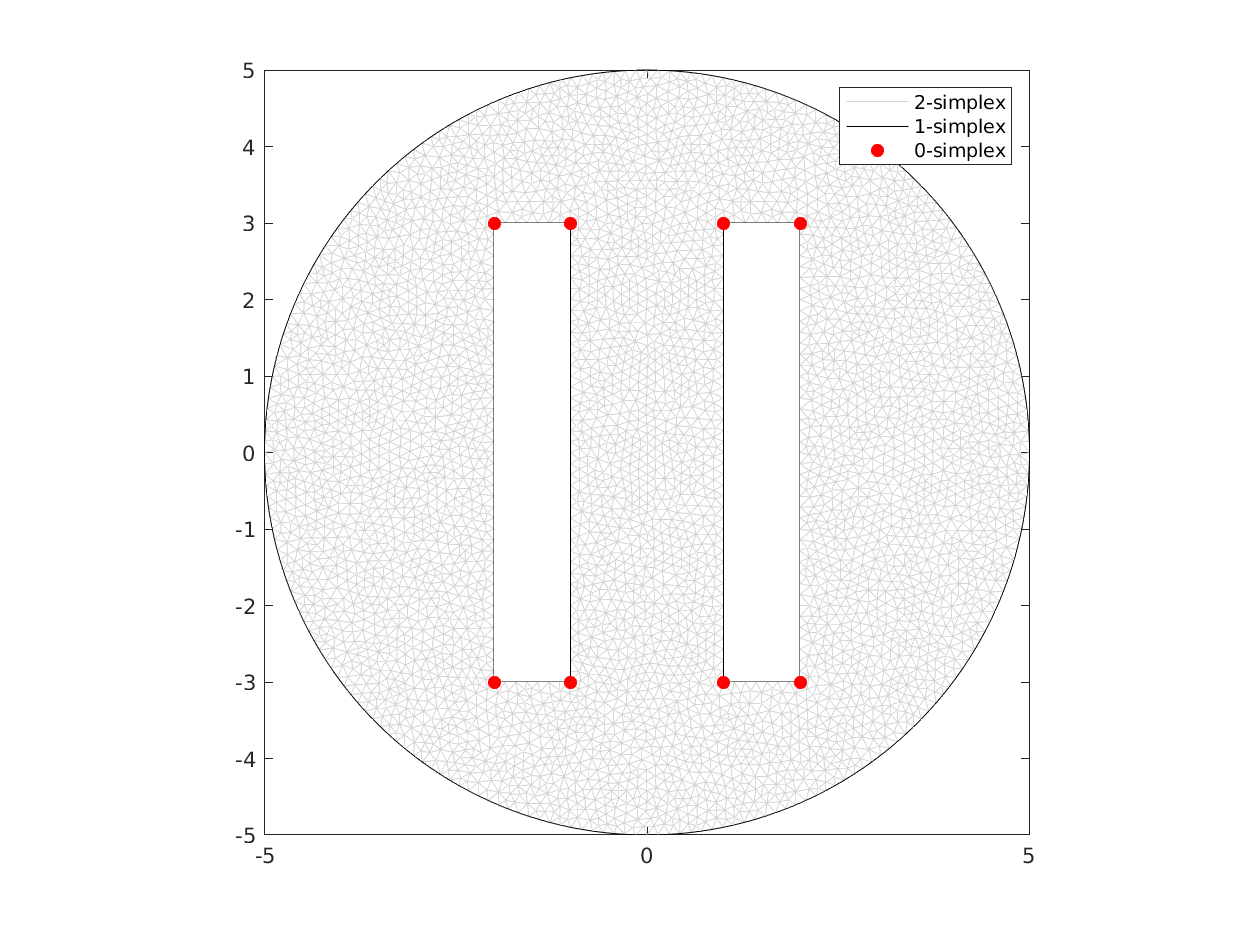

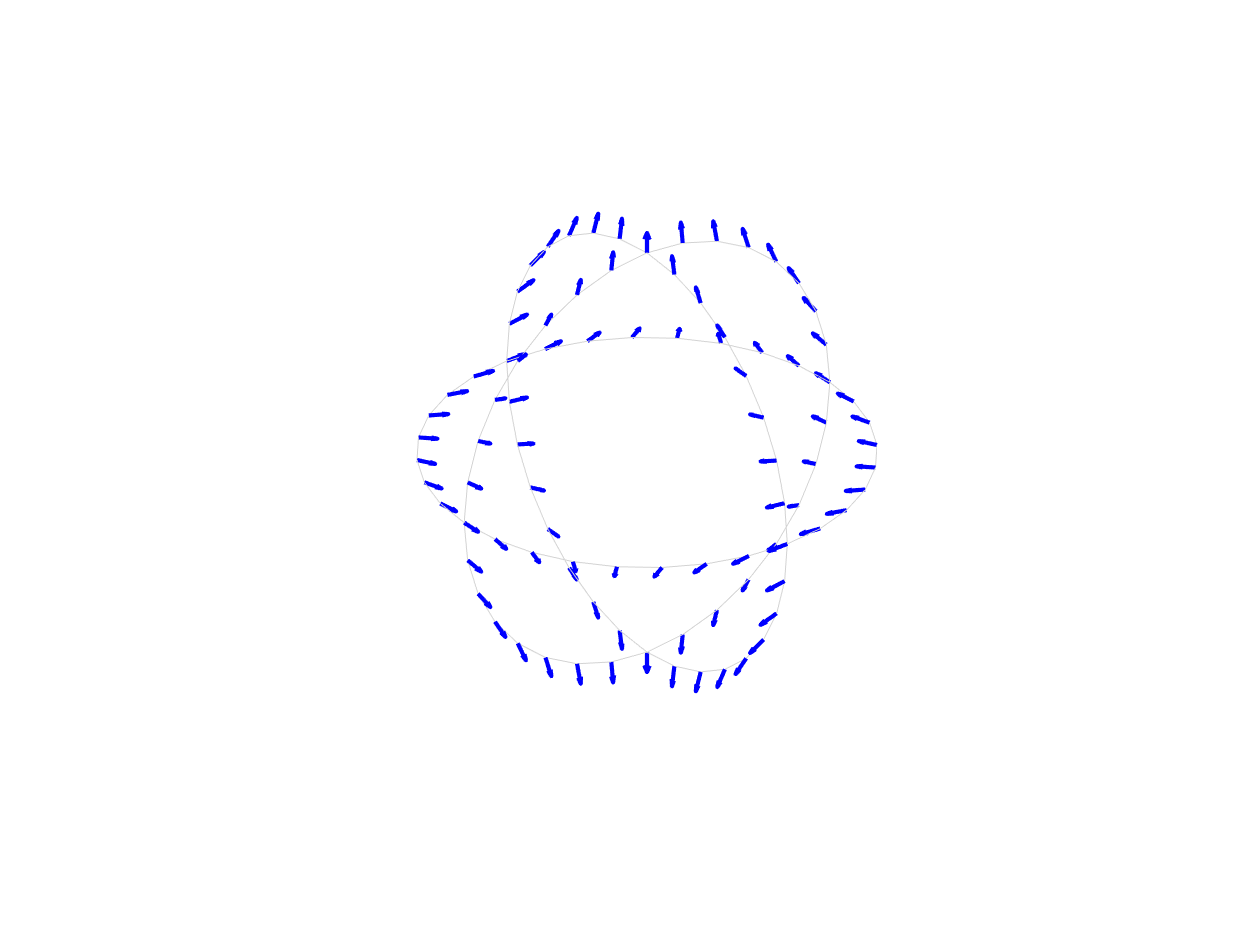

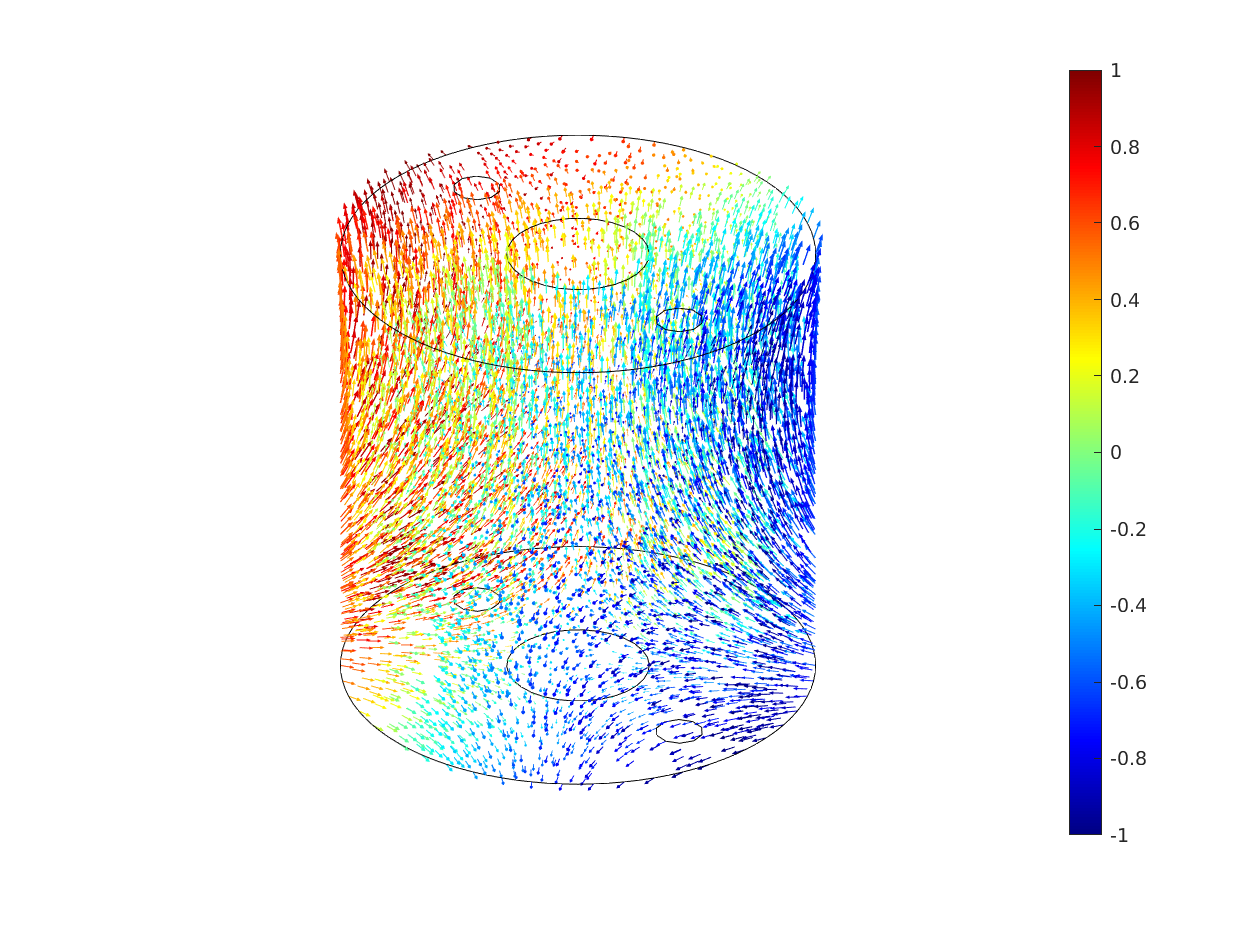

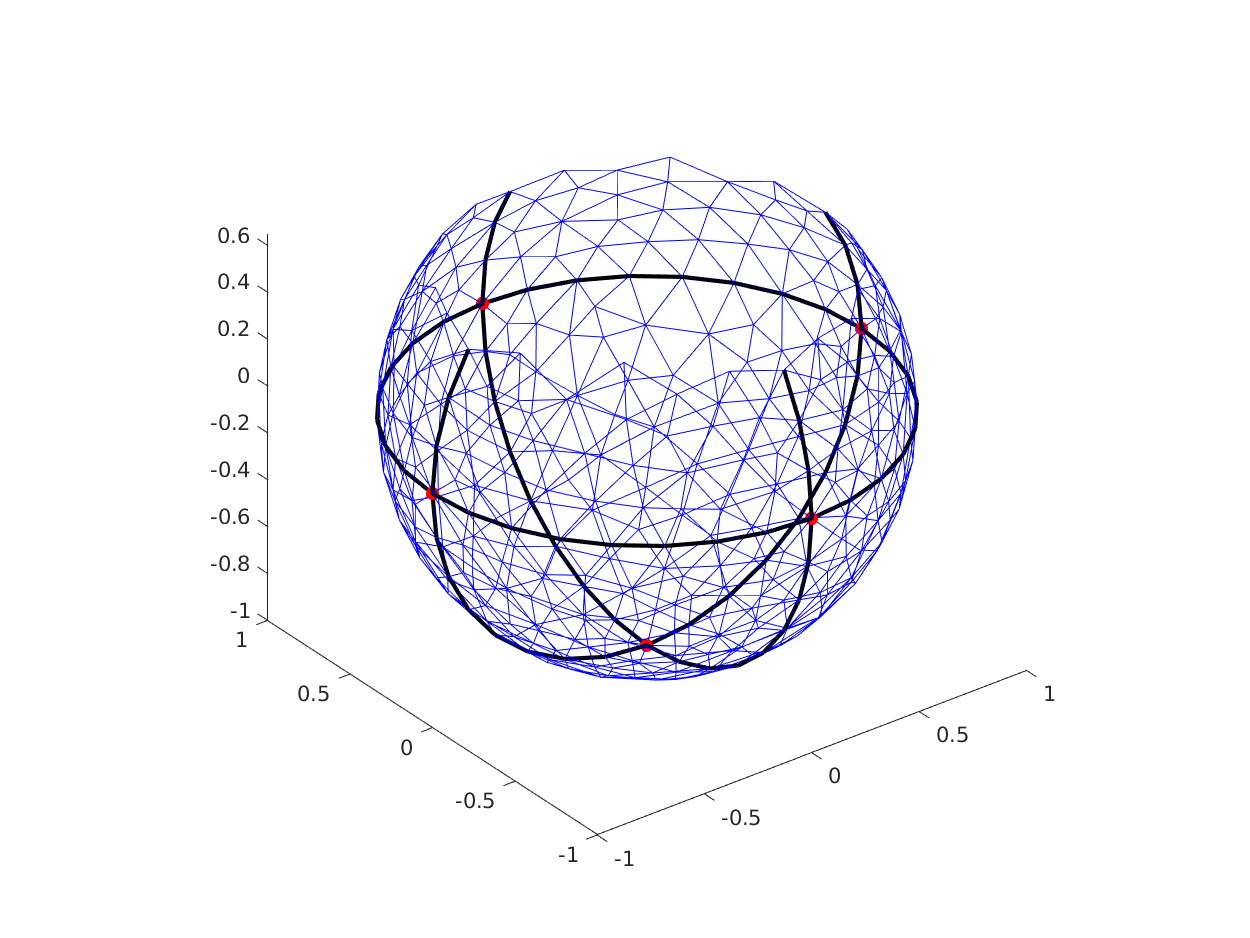

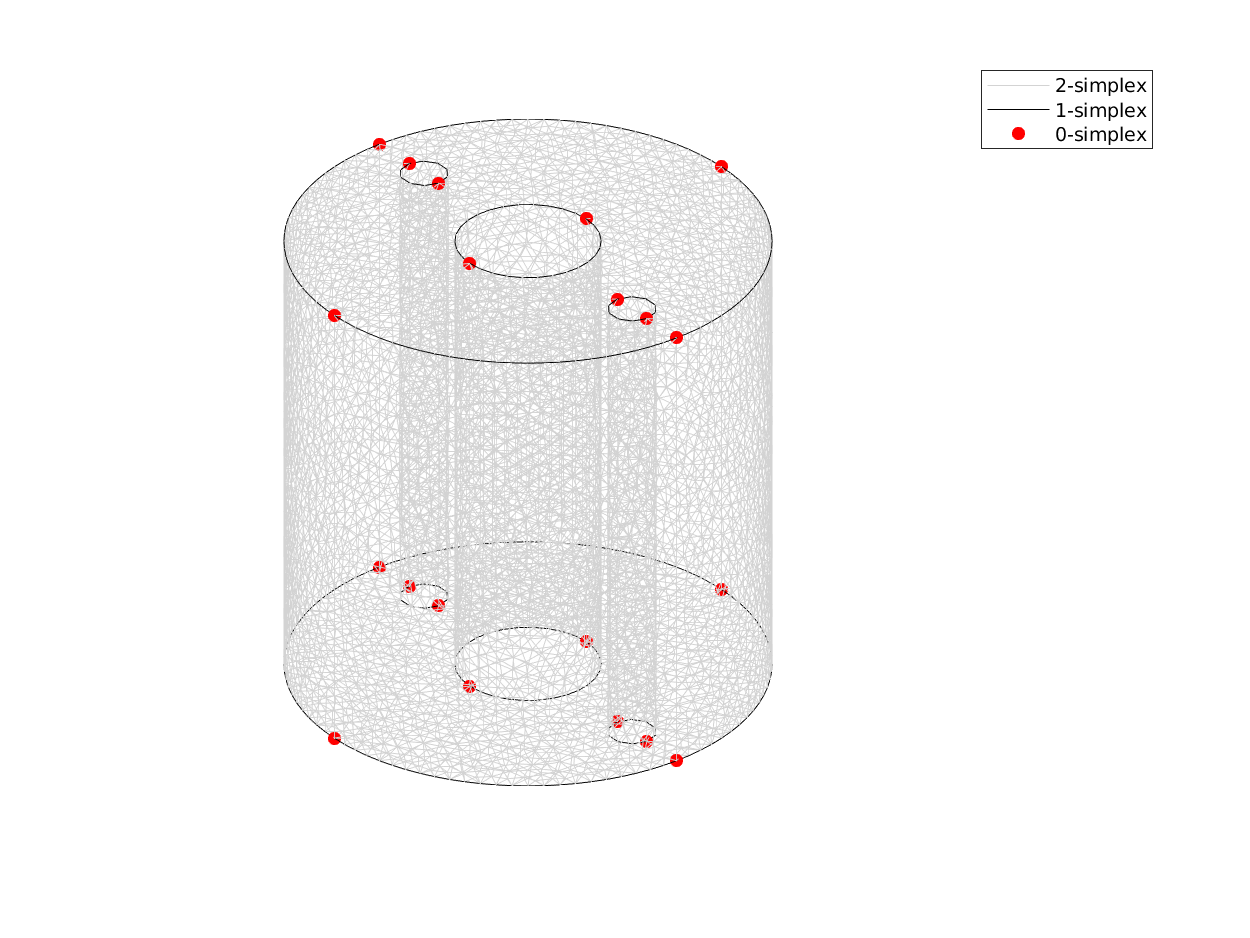

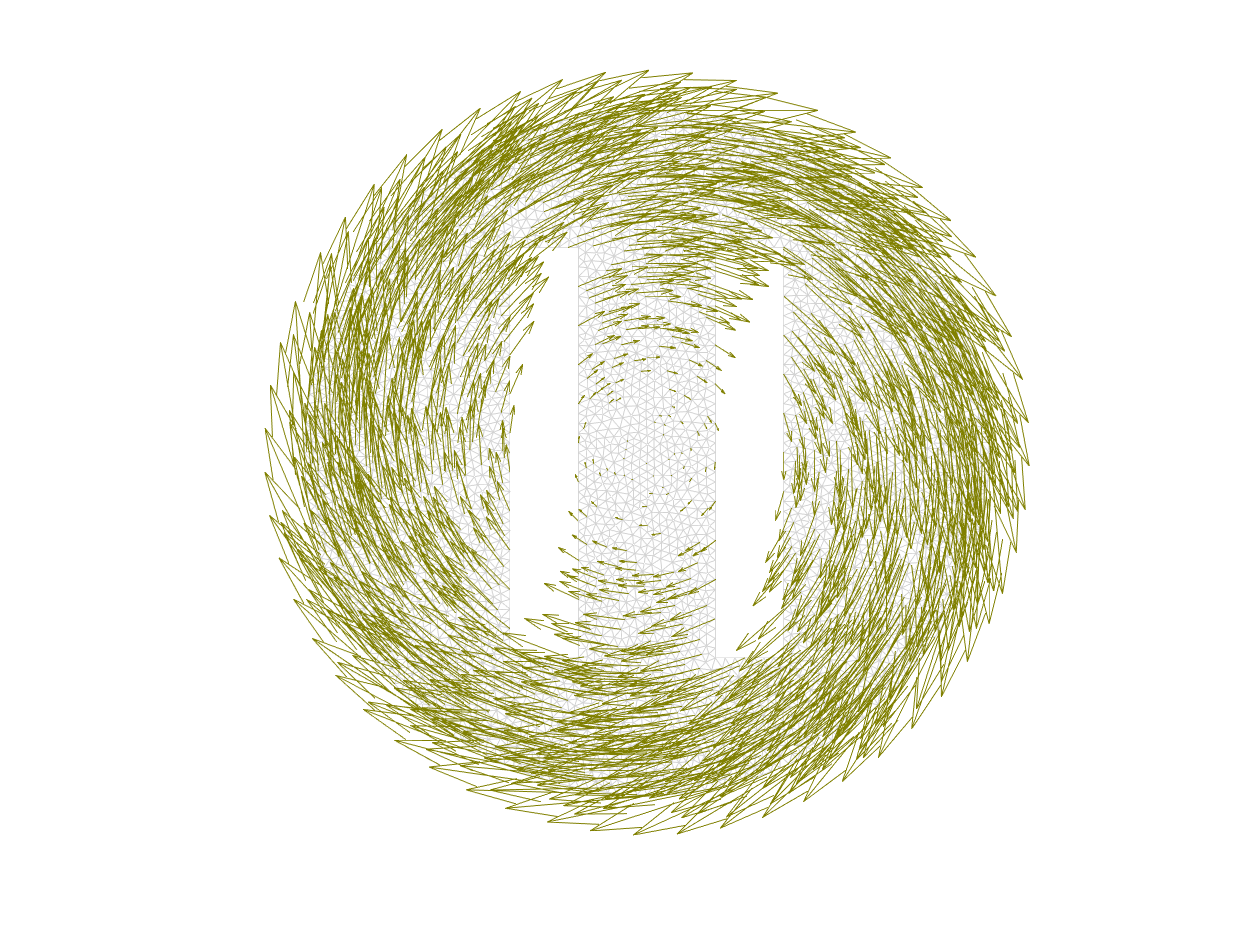

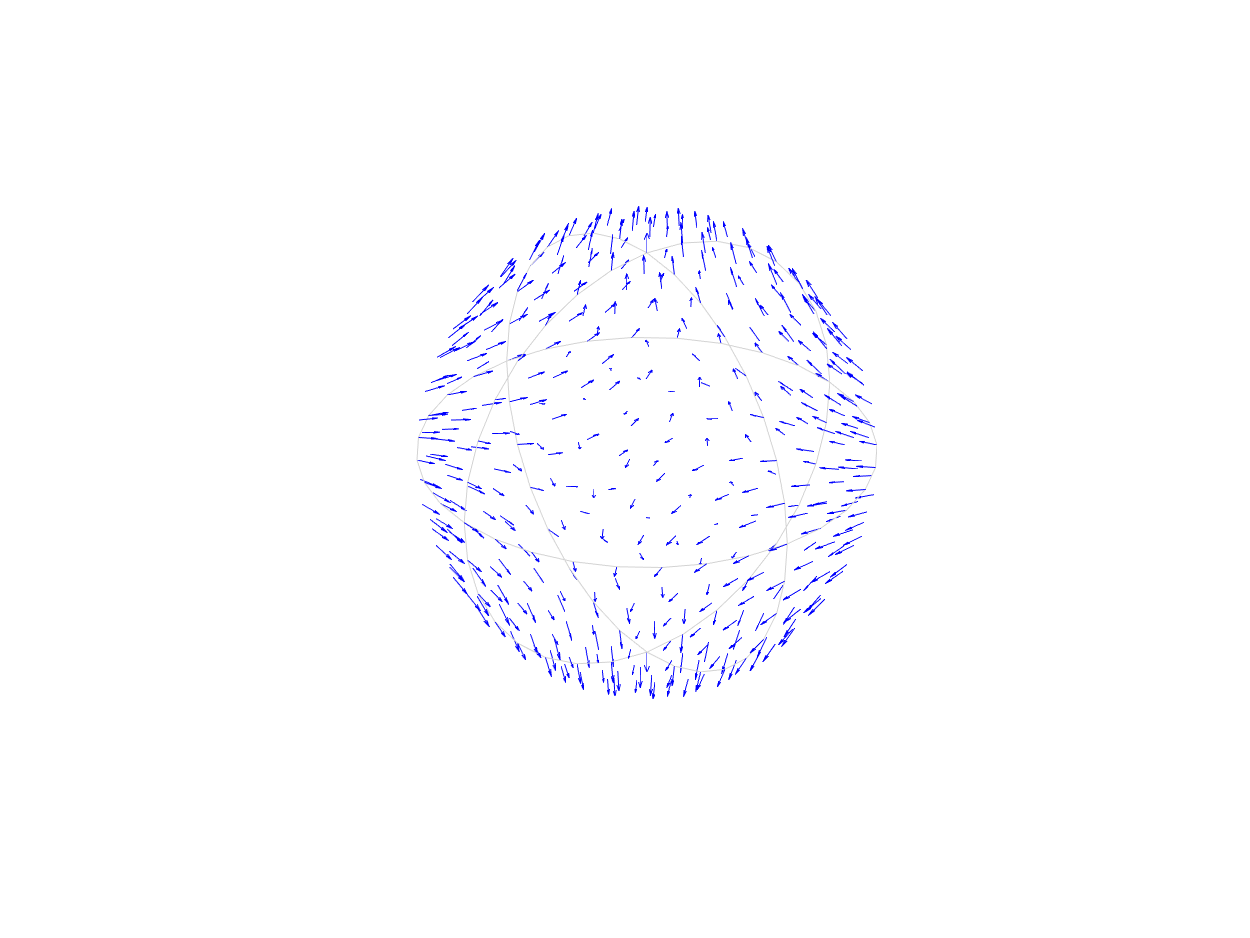

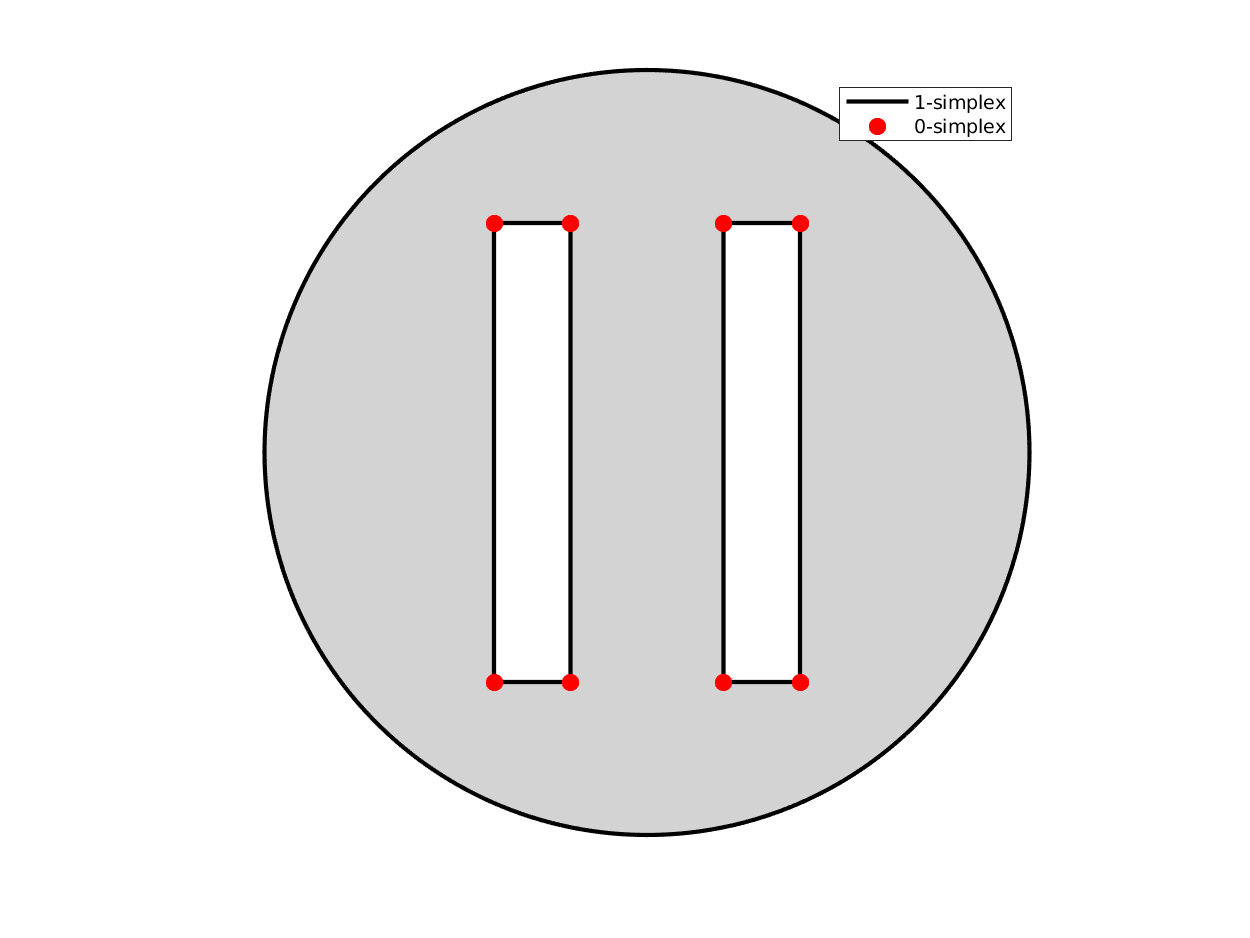

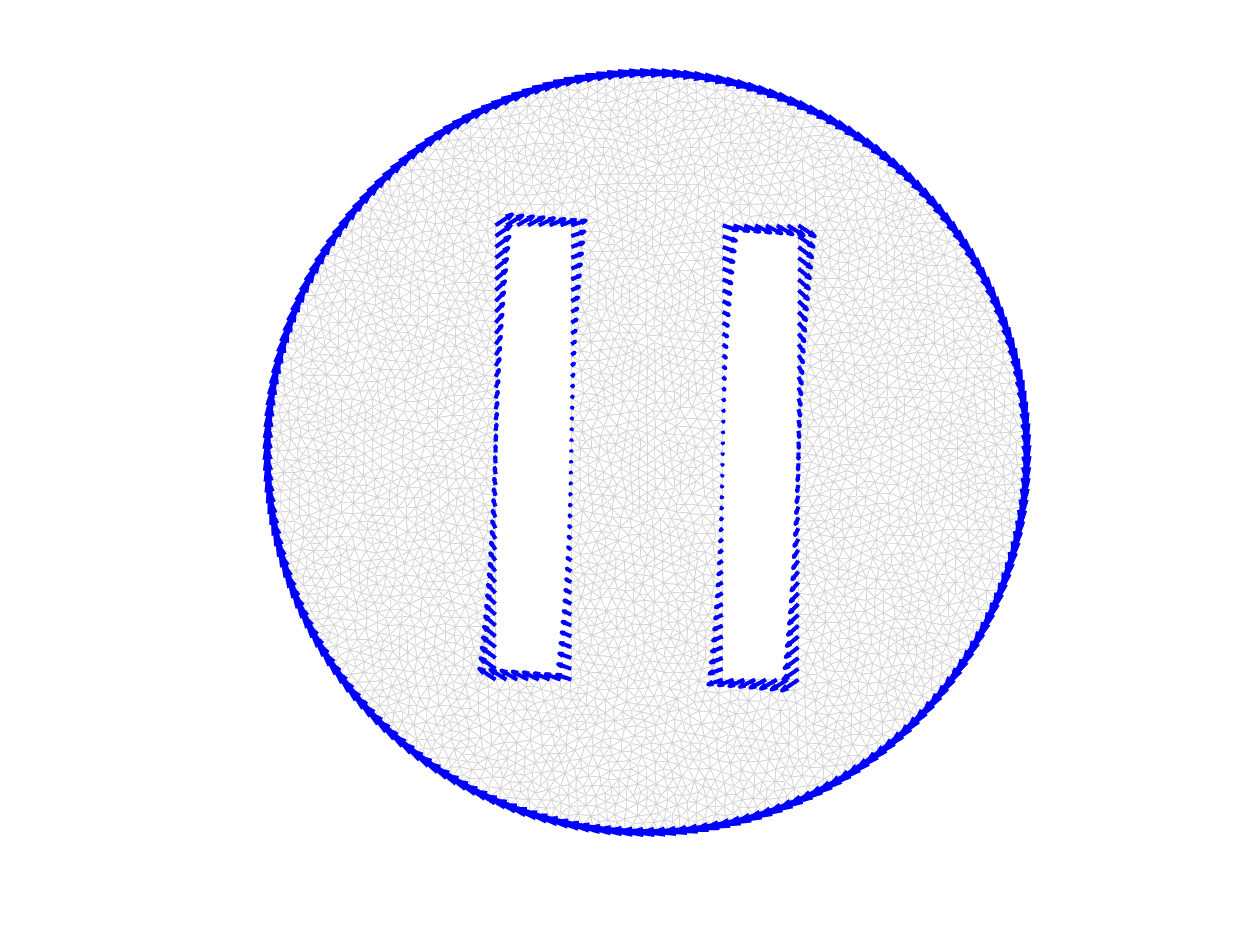

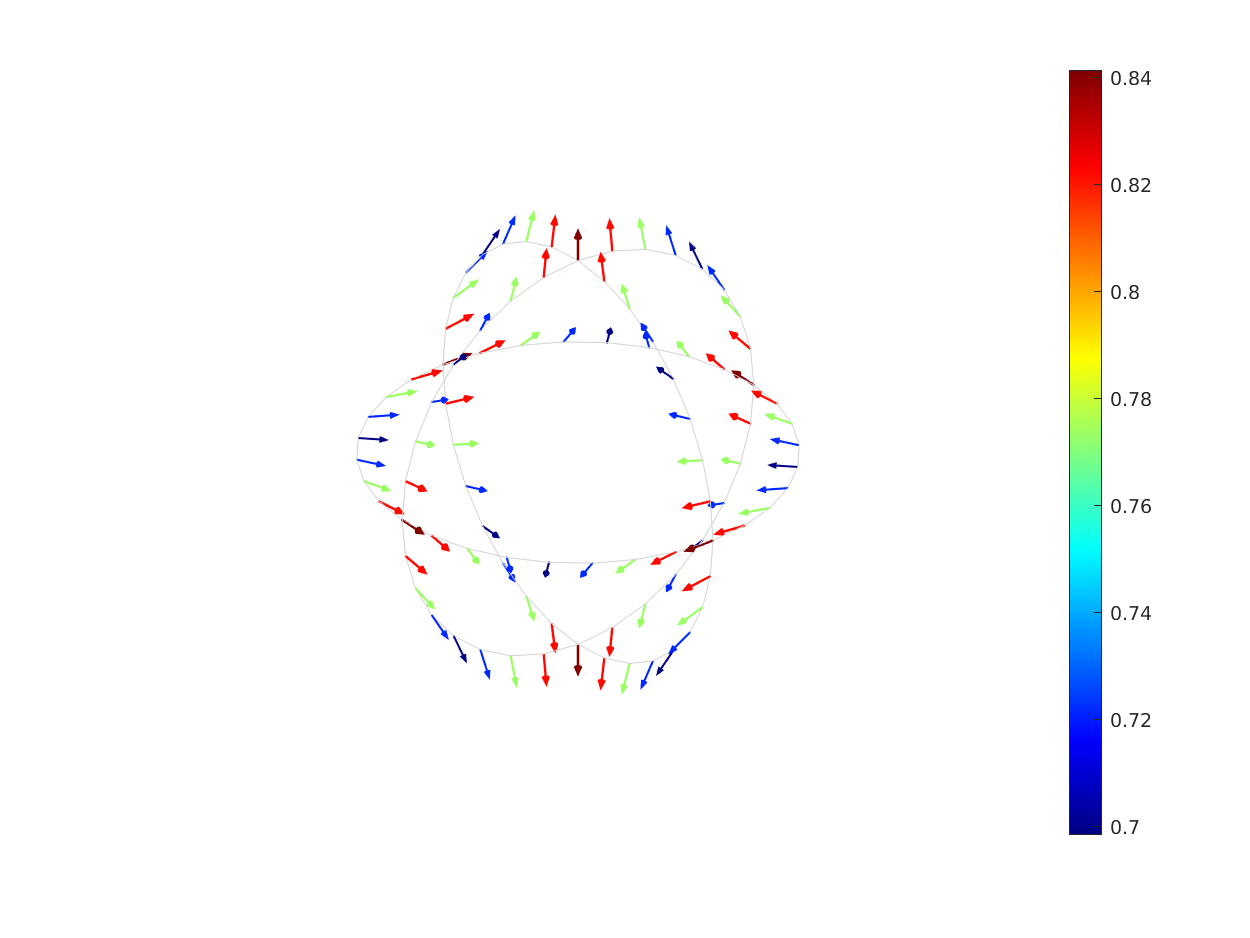

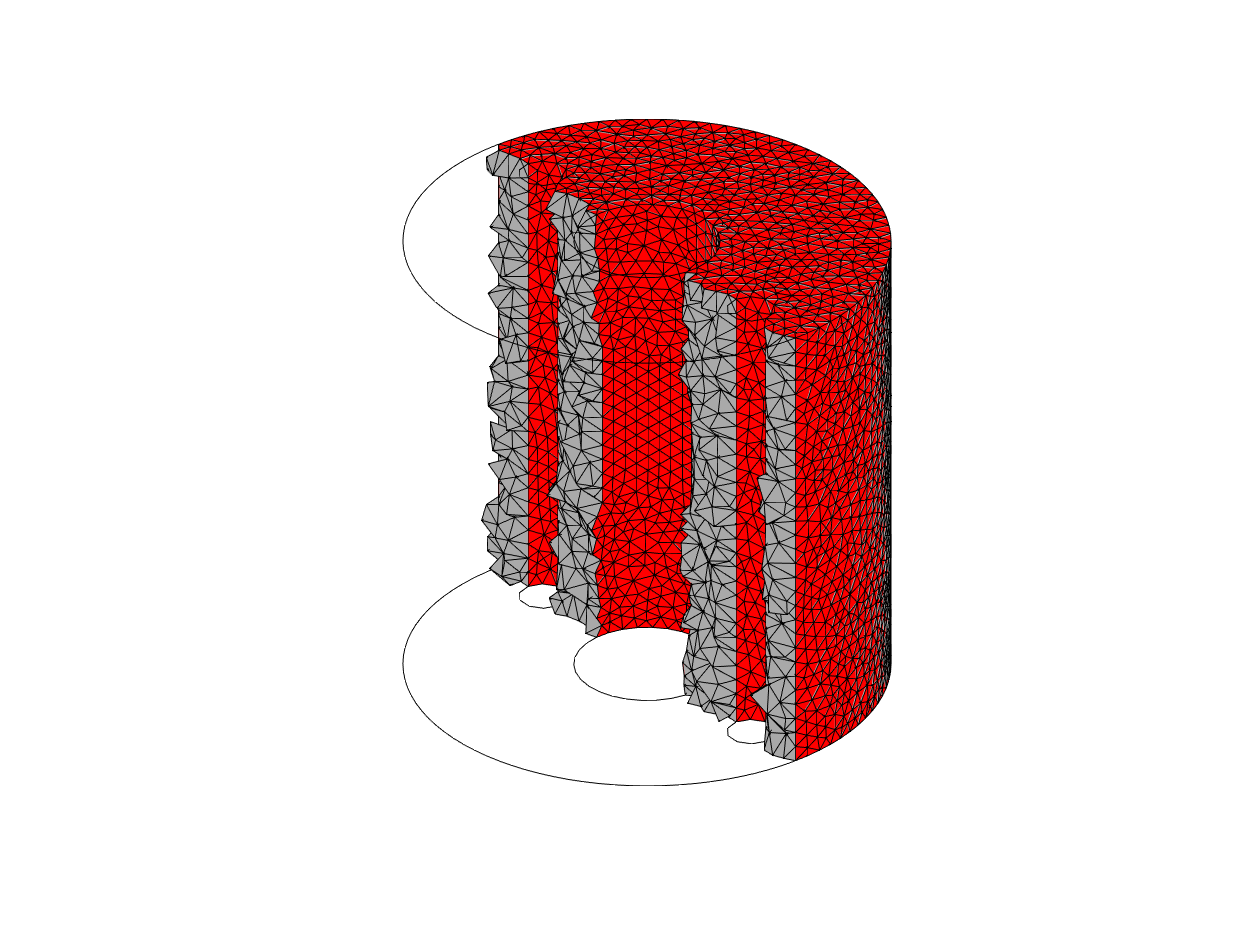

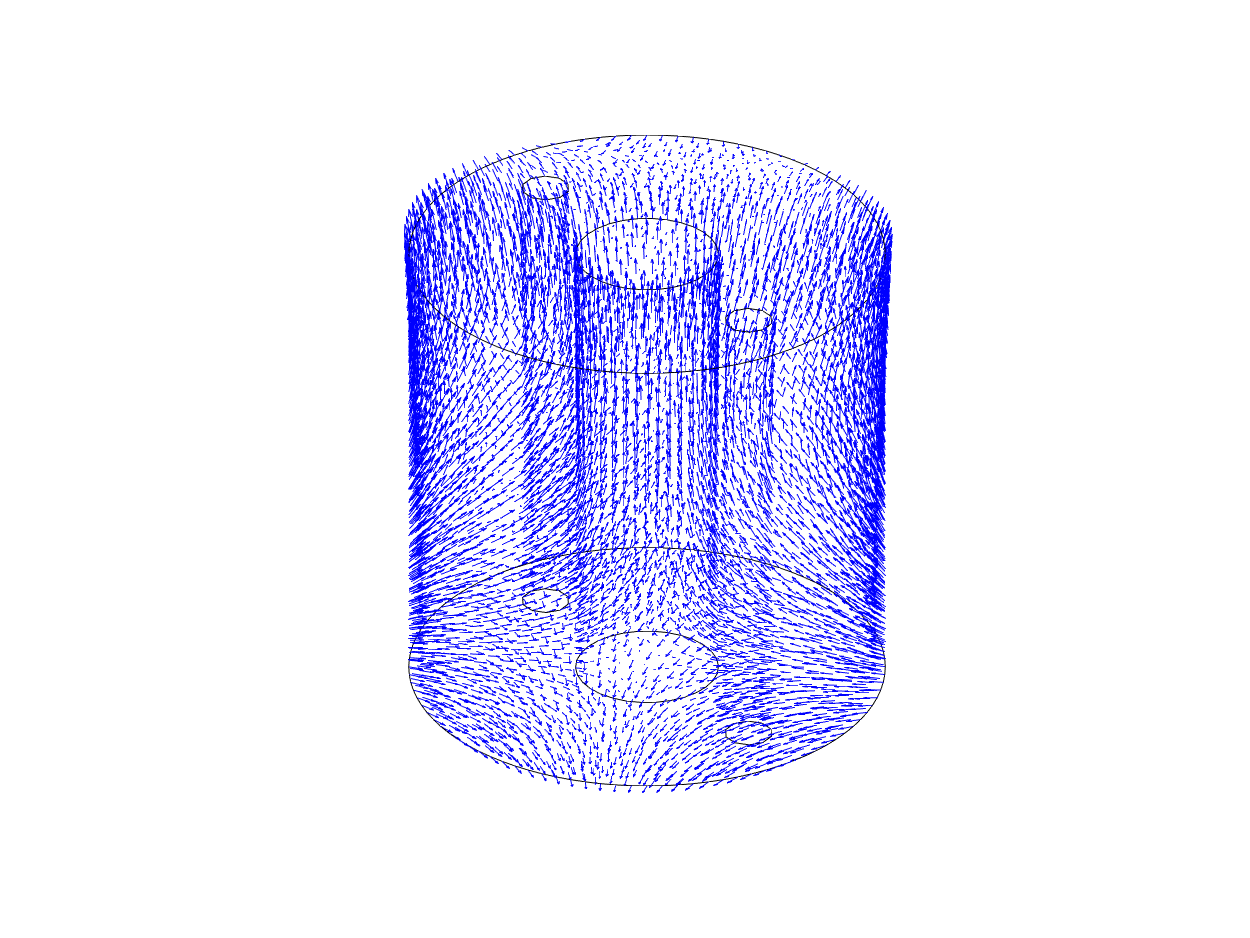

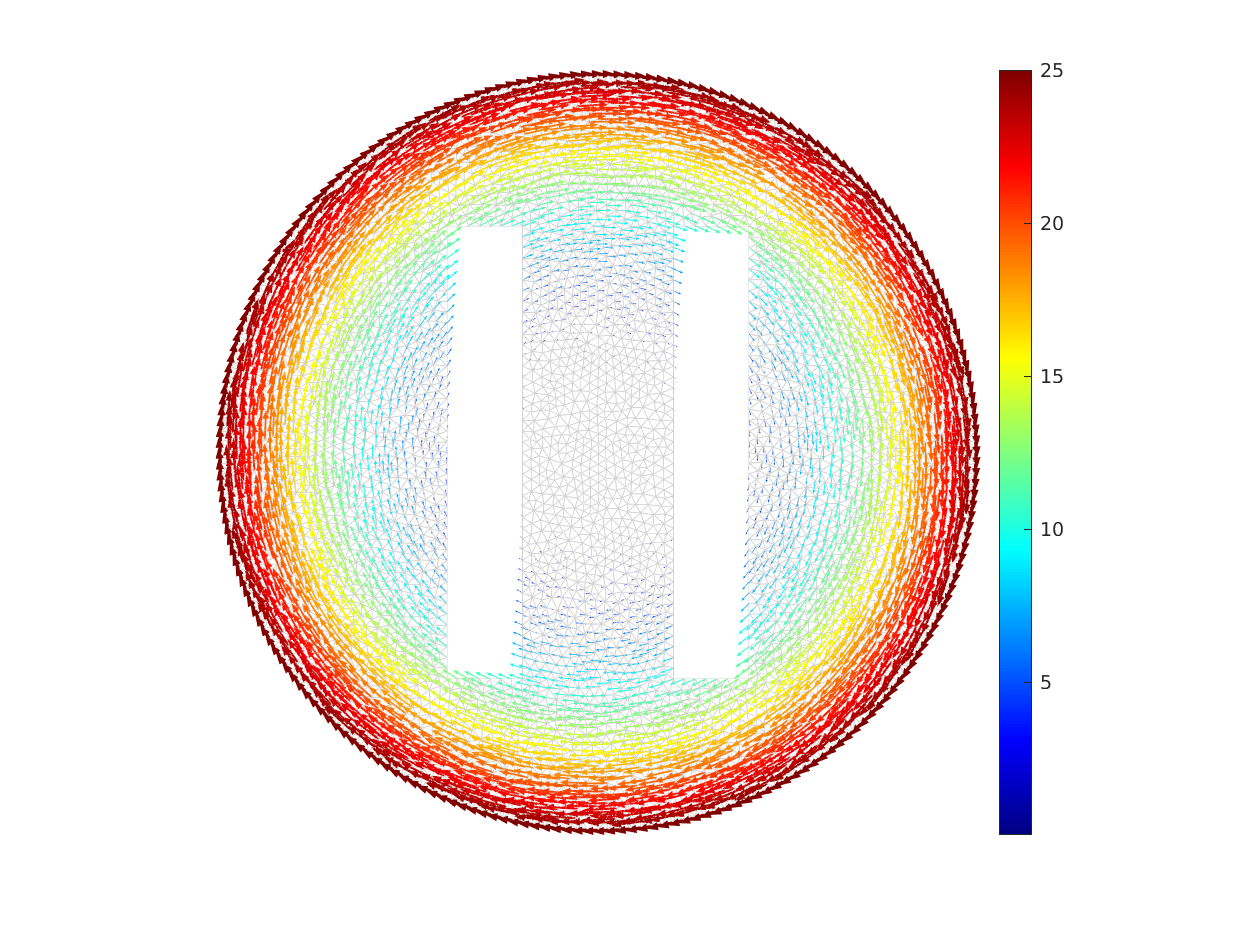

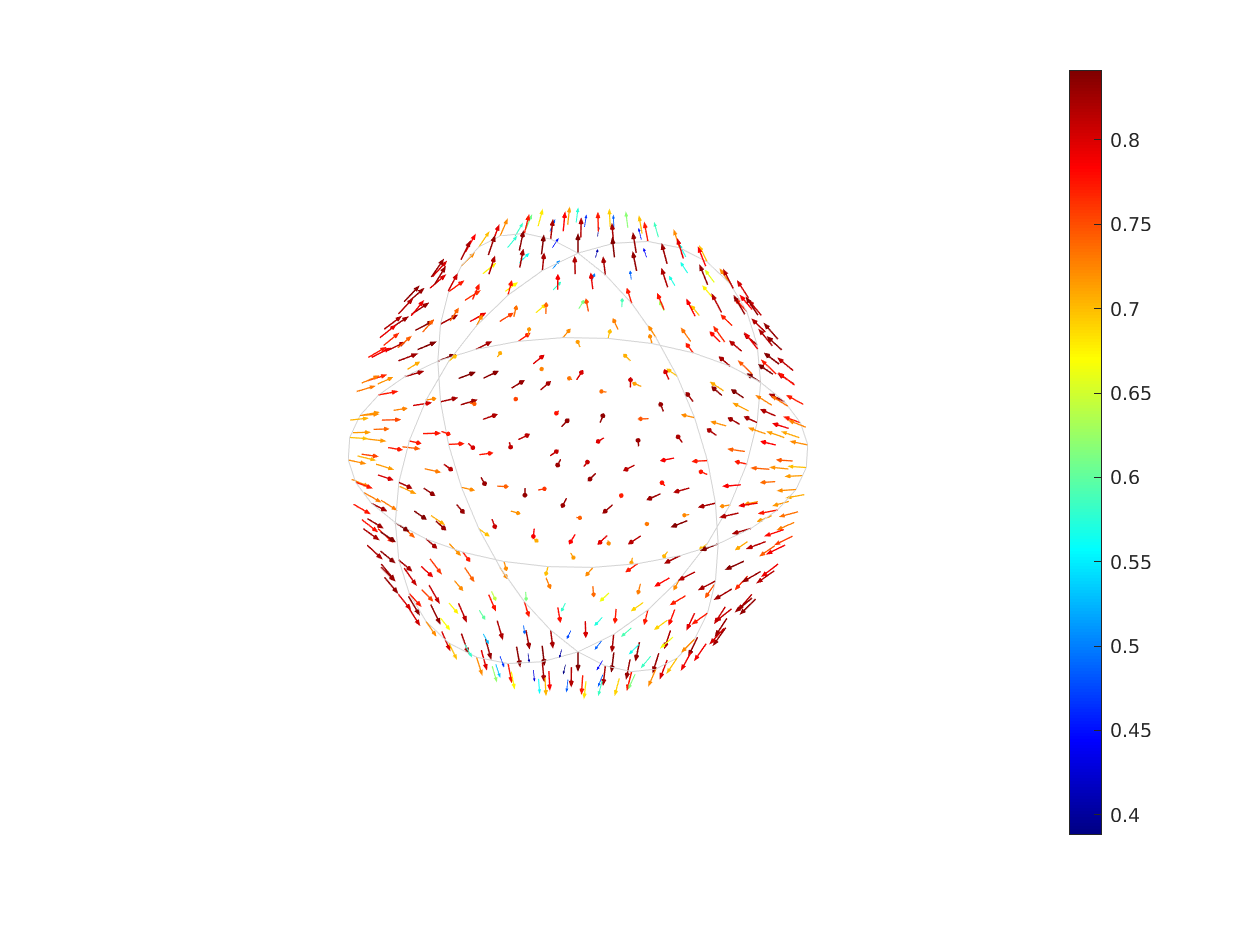

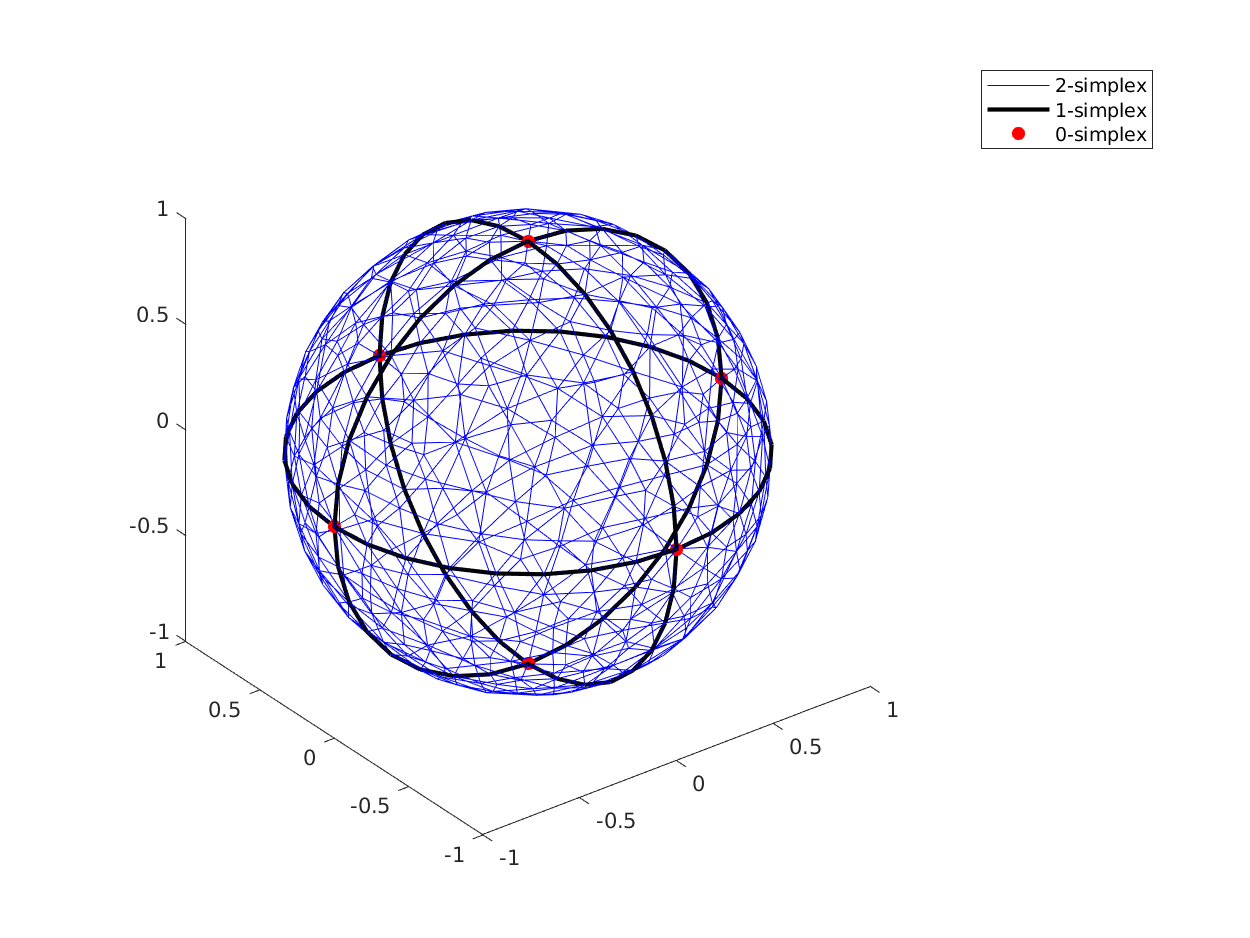

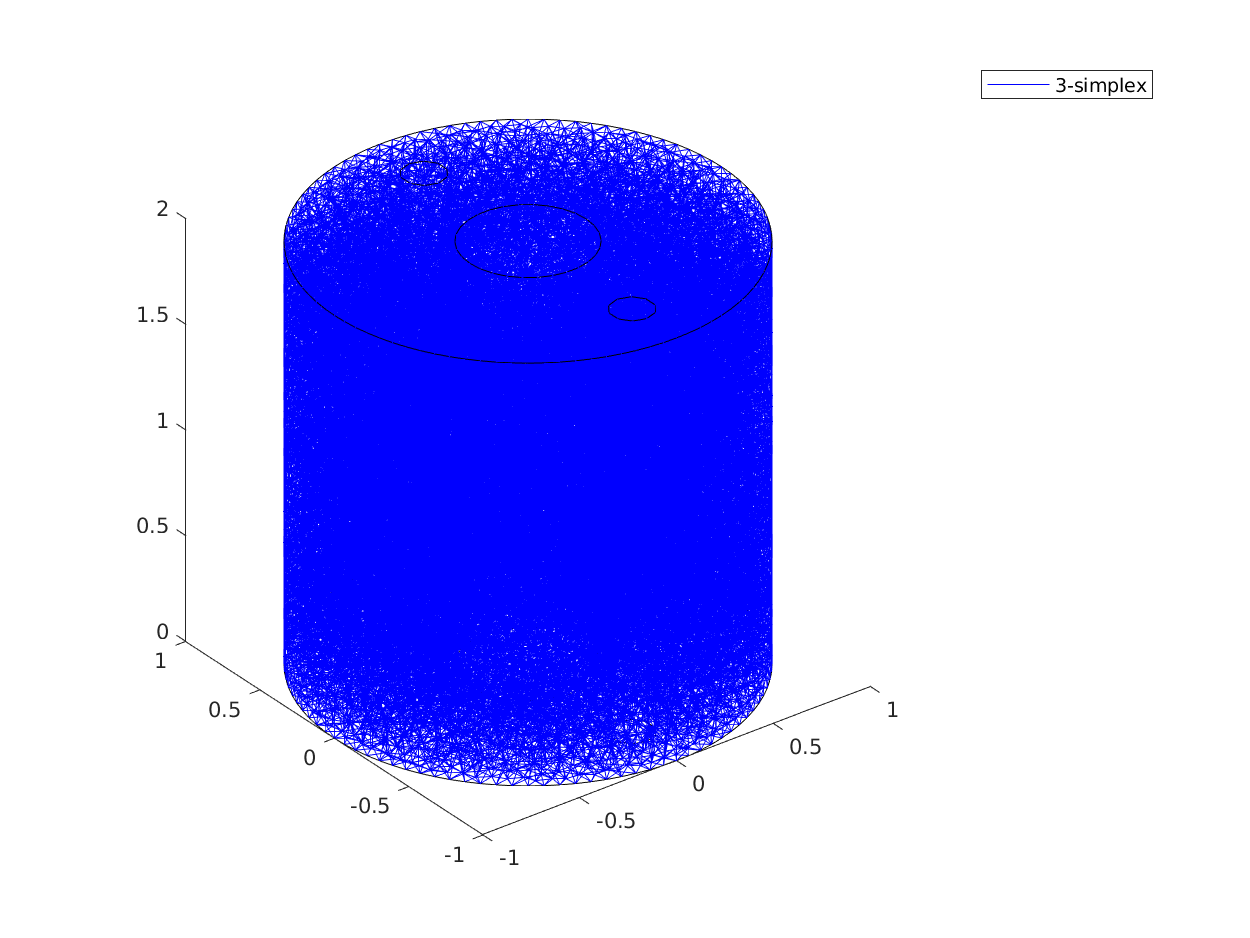

plotmesh2D plotmesh3D plotmesh3Ds plotquiver2D plotquiver3D plotquiver3Ds

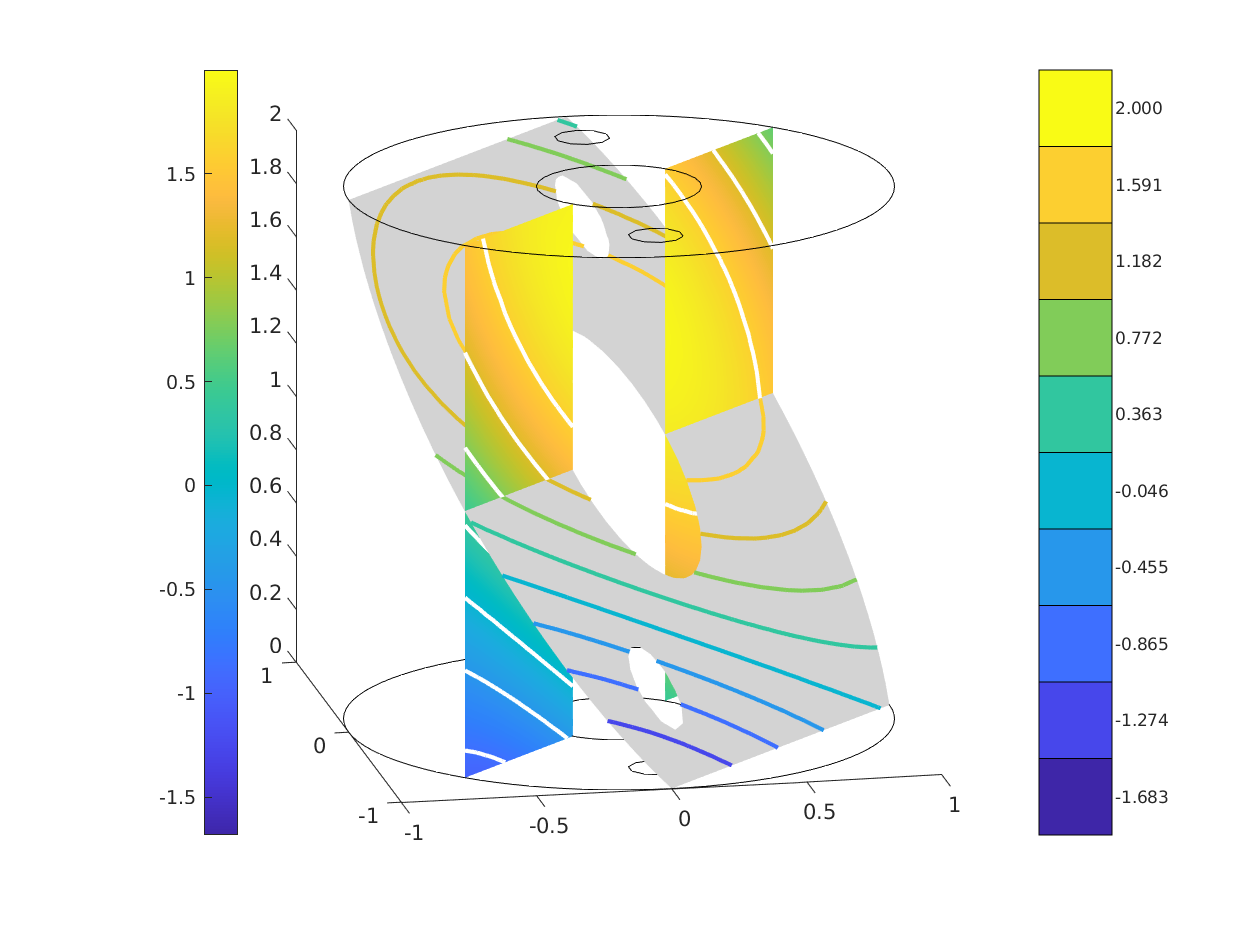

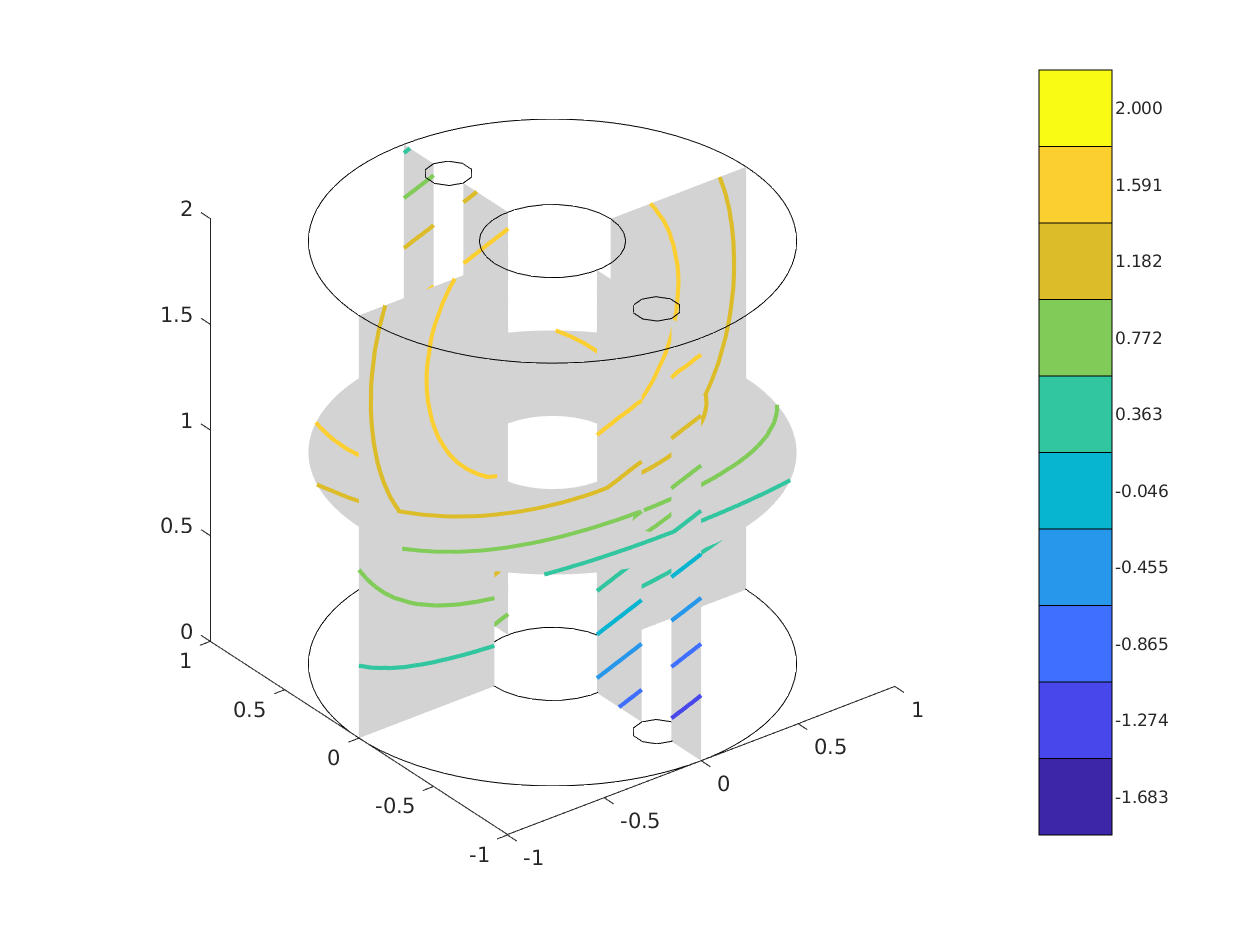

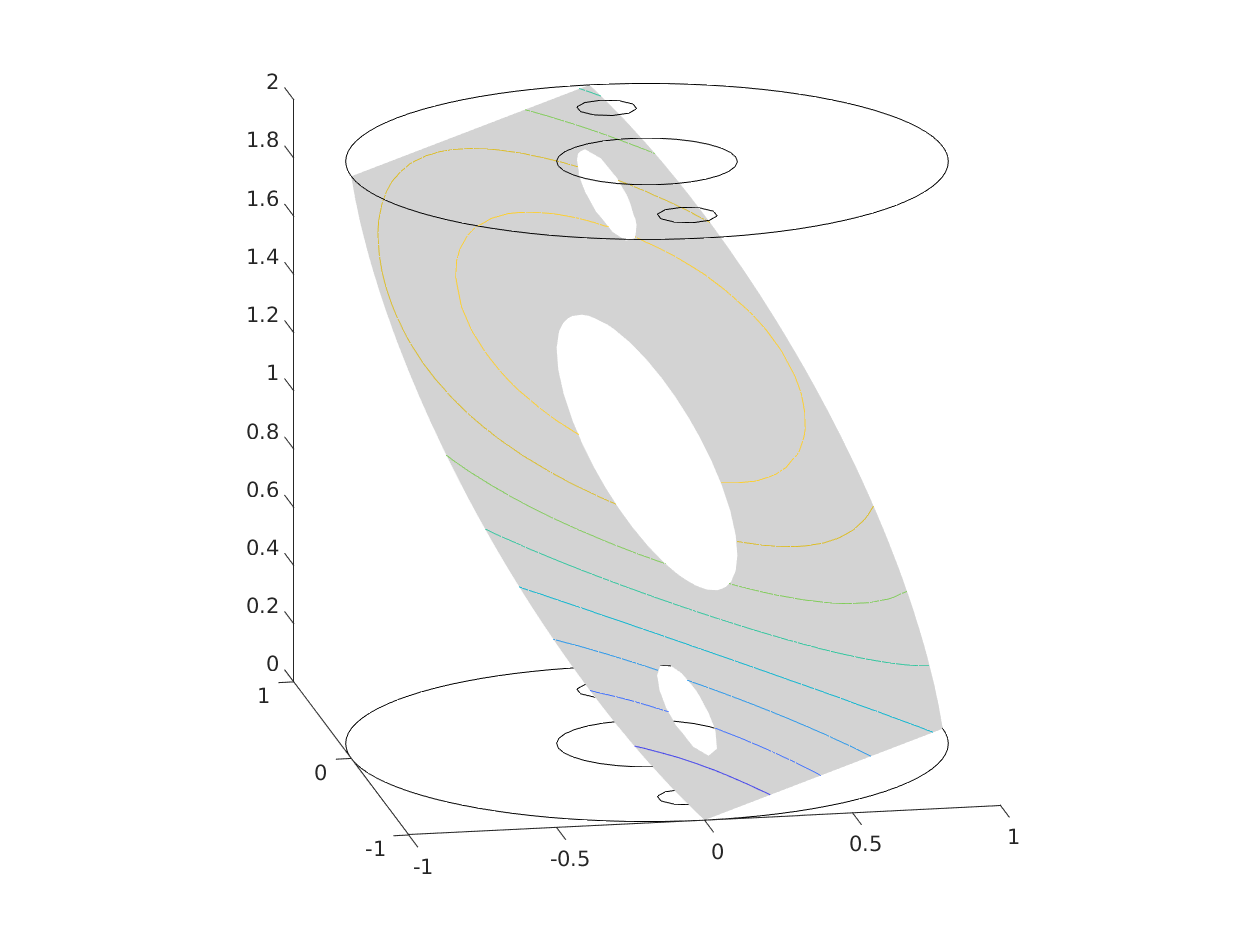

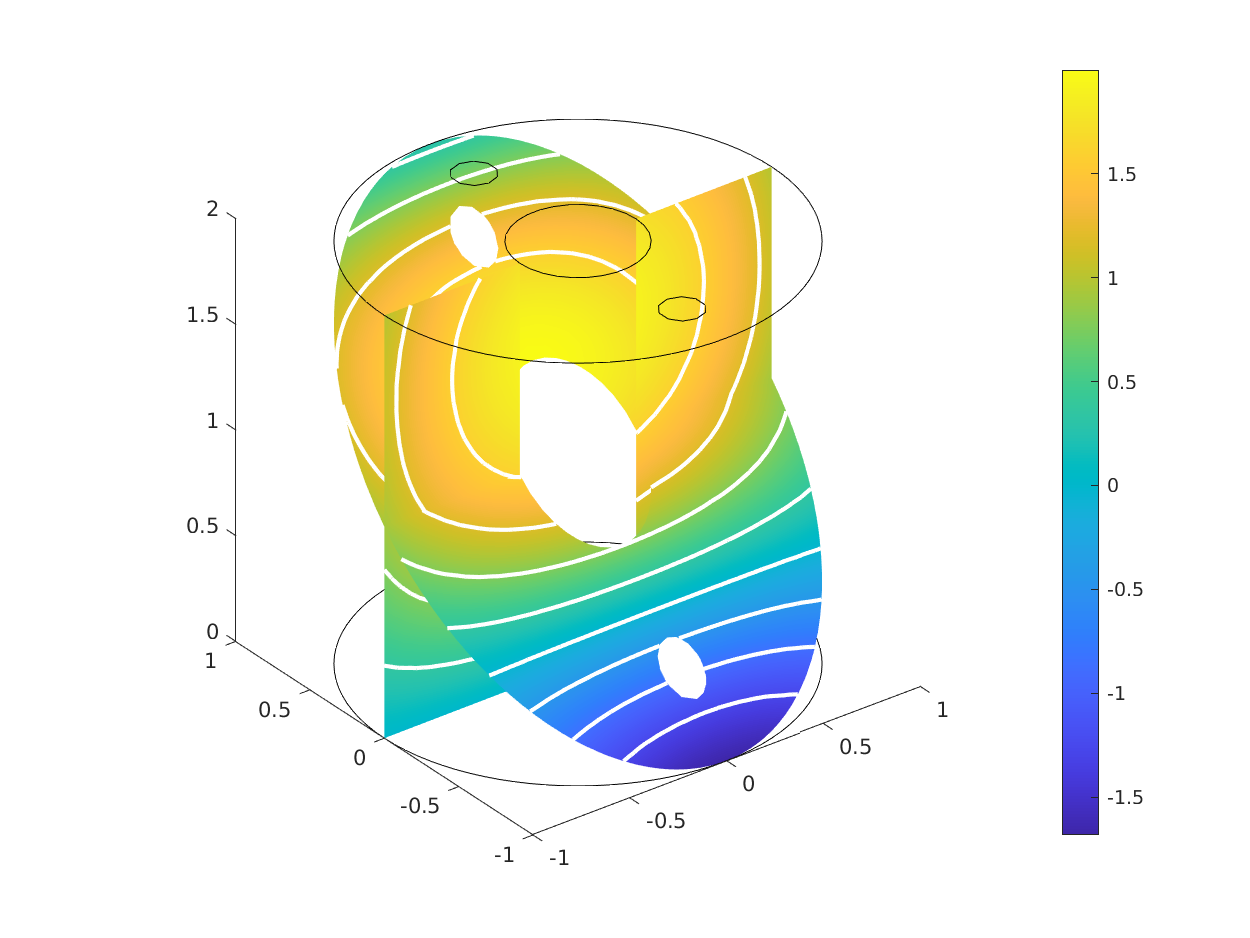

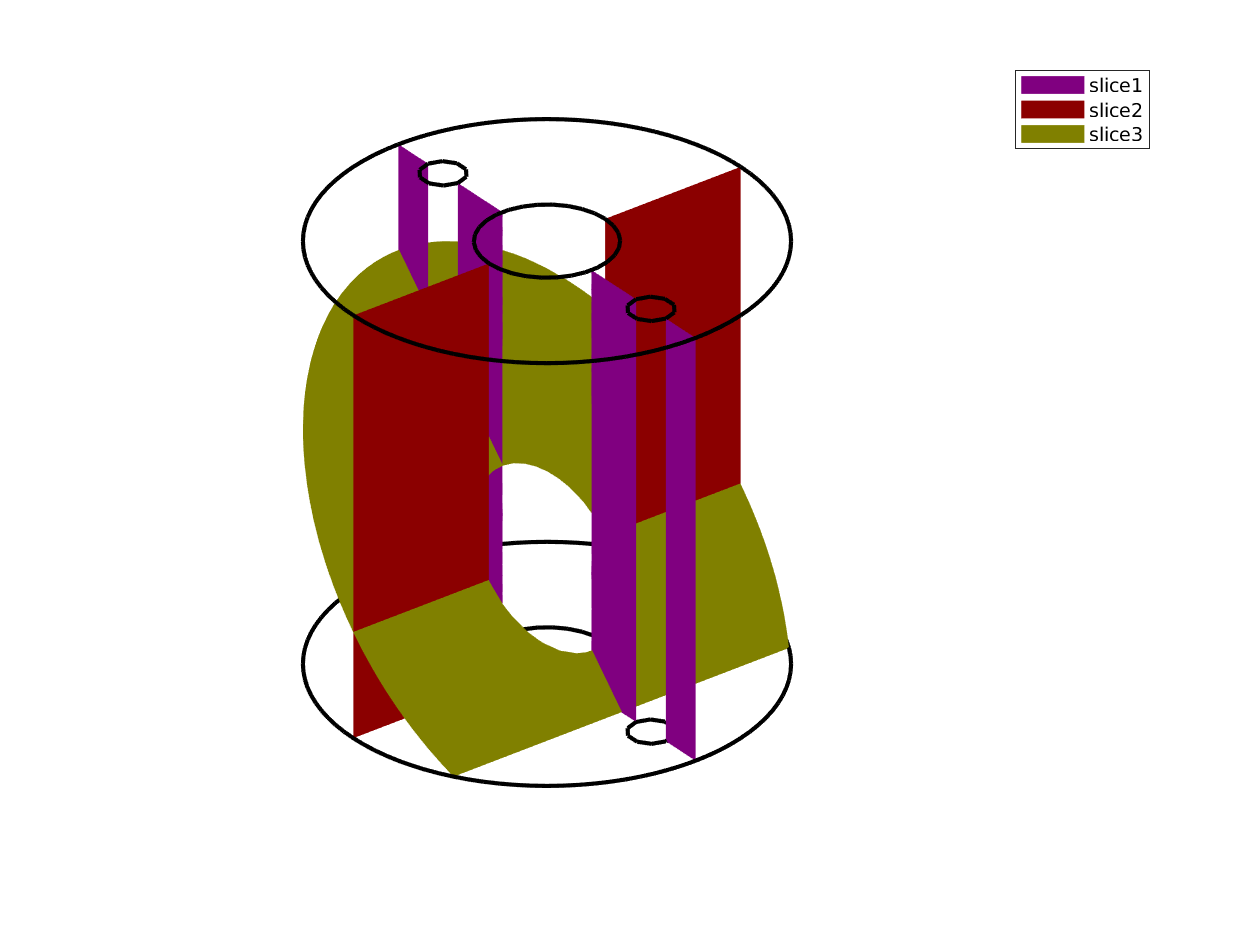

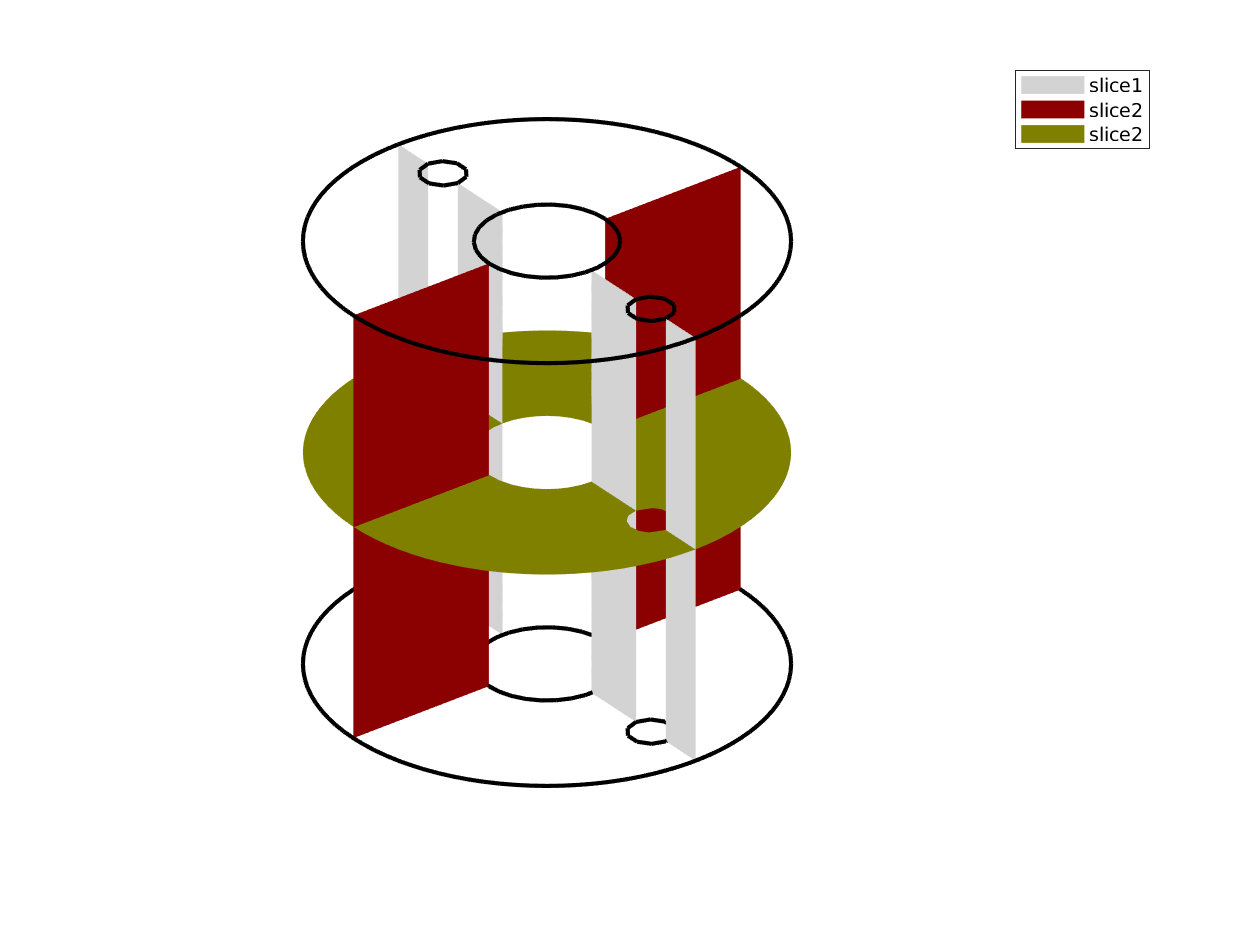

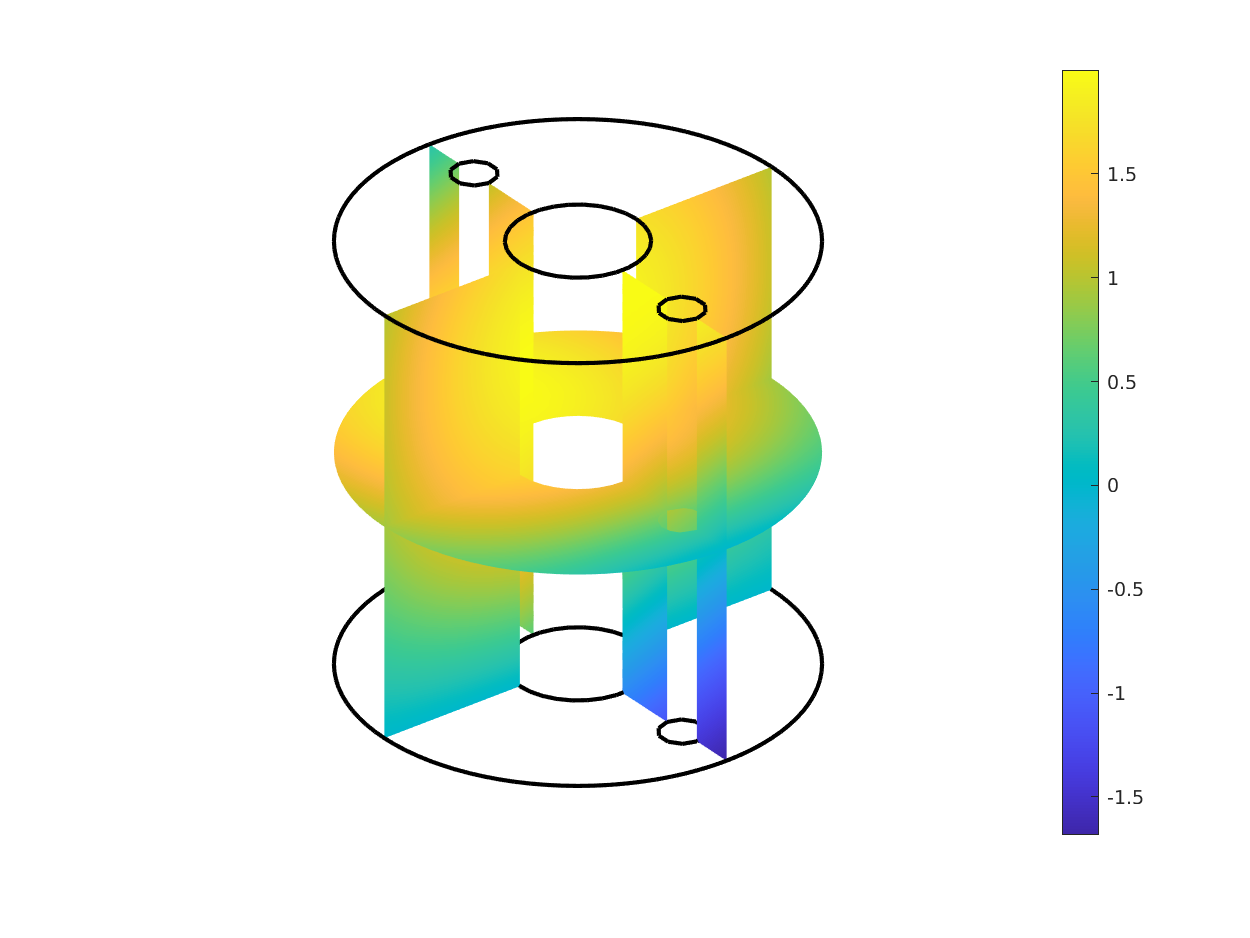

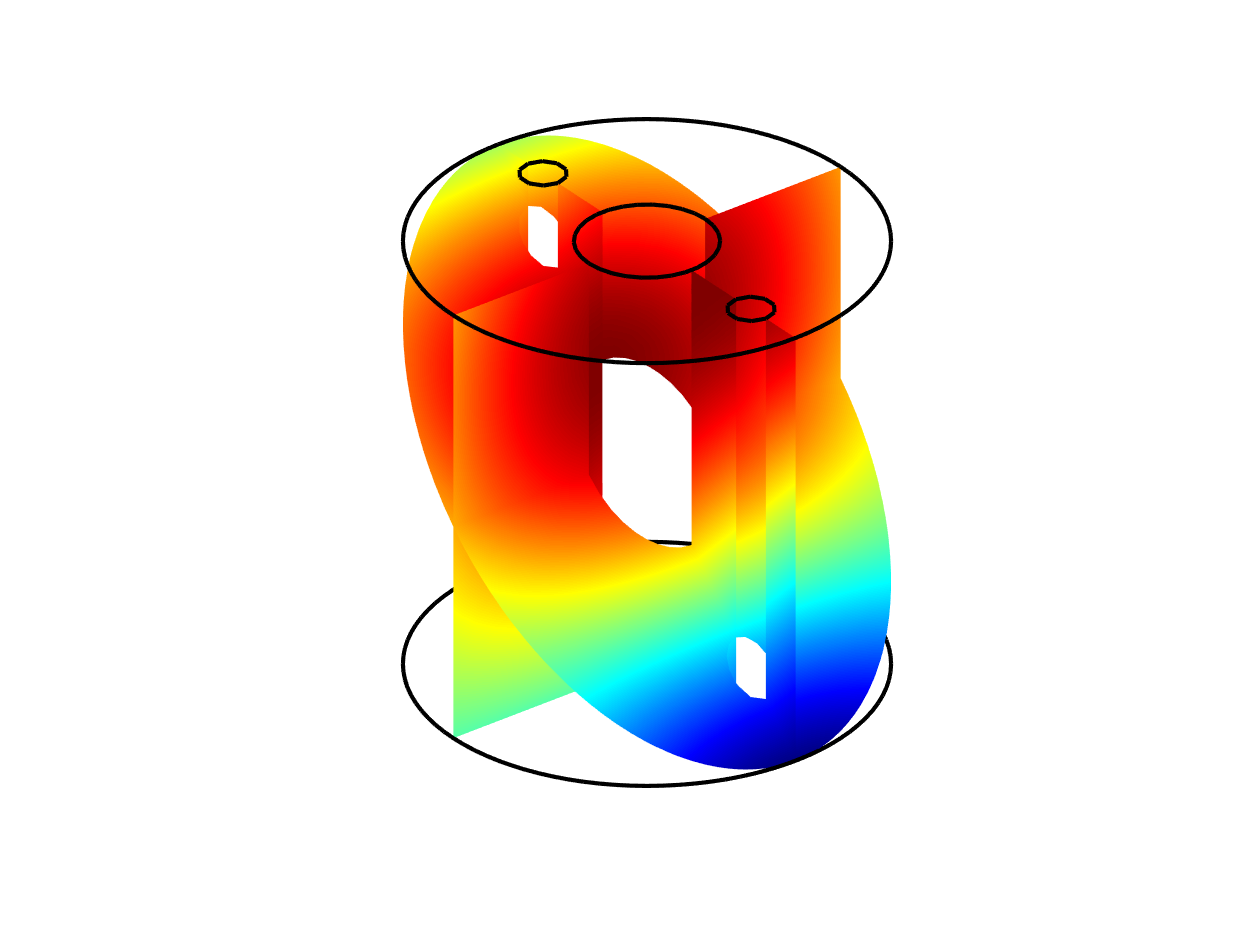

sliceiso3D slice3D slicemesh3D plotGradBaCo2D plotGradBaCo3Ds plotGradBaCo3D

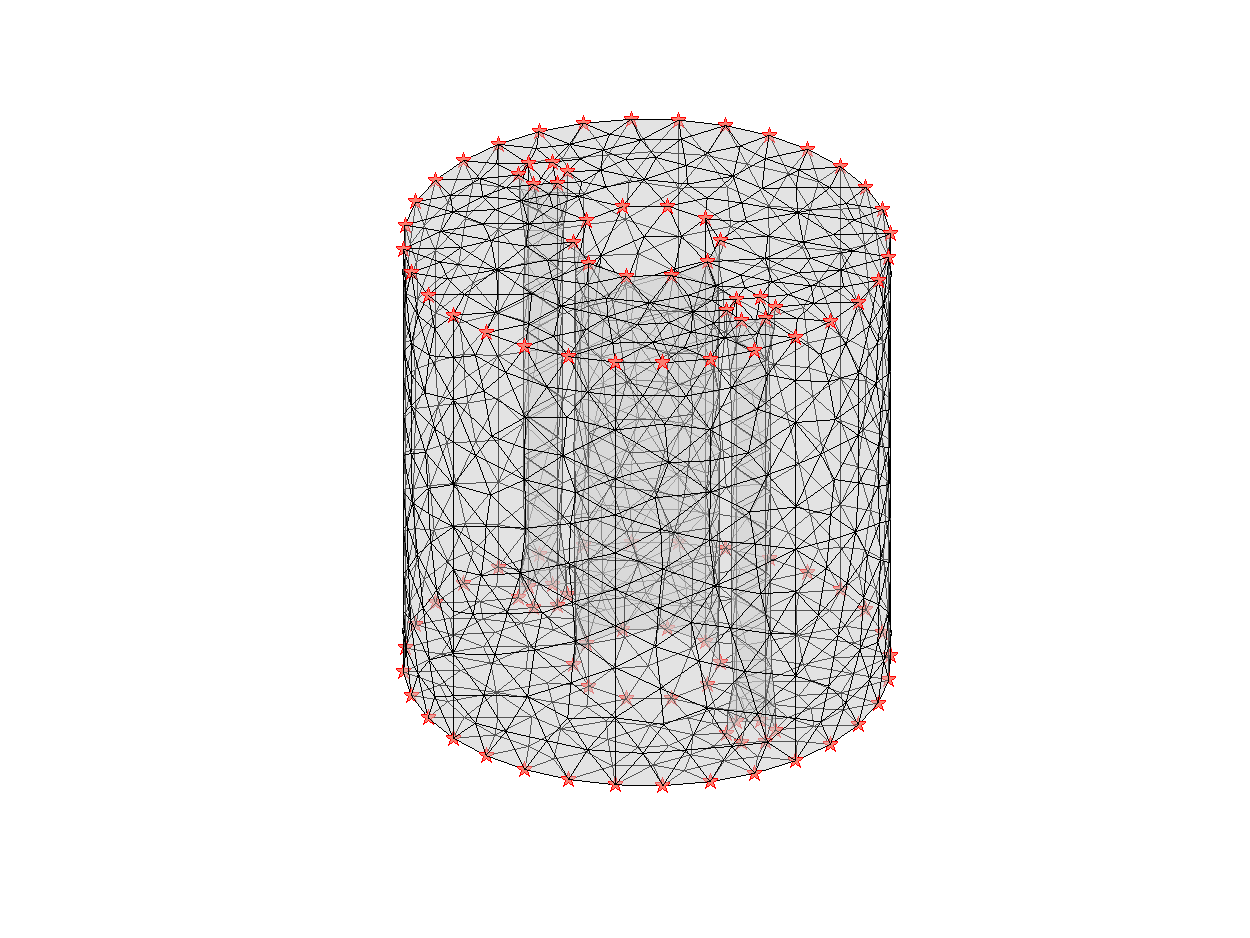

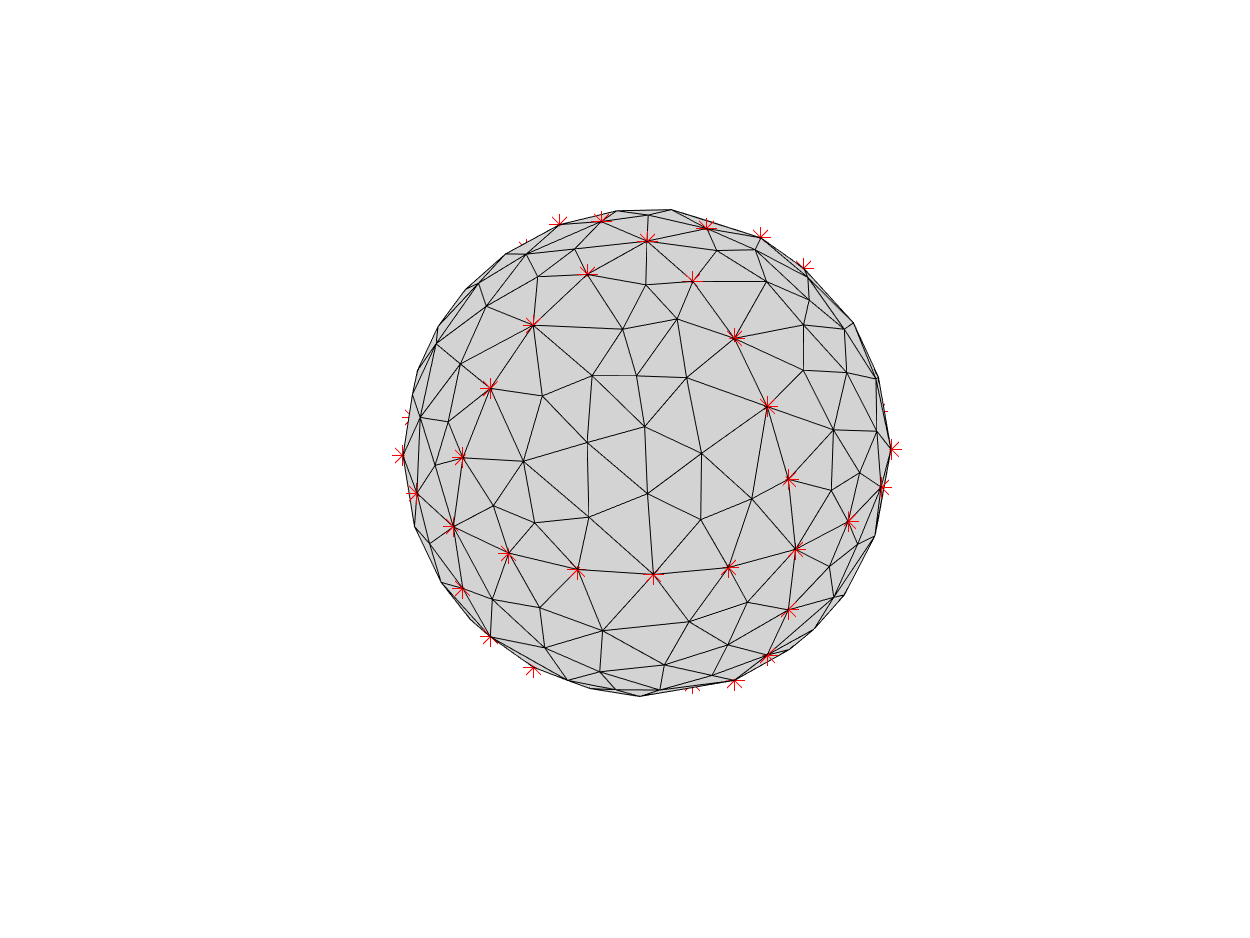

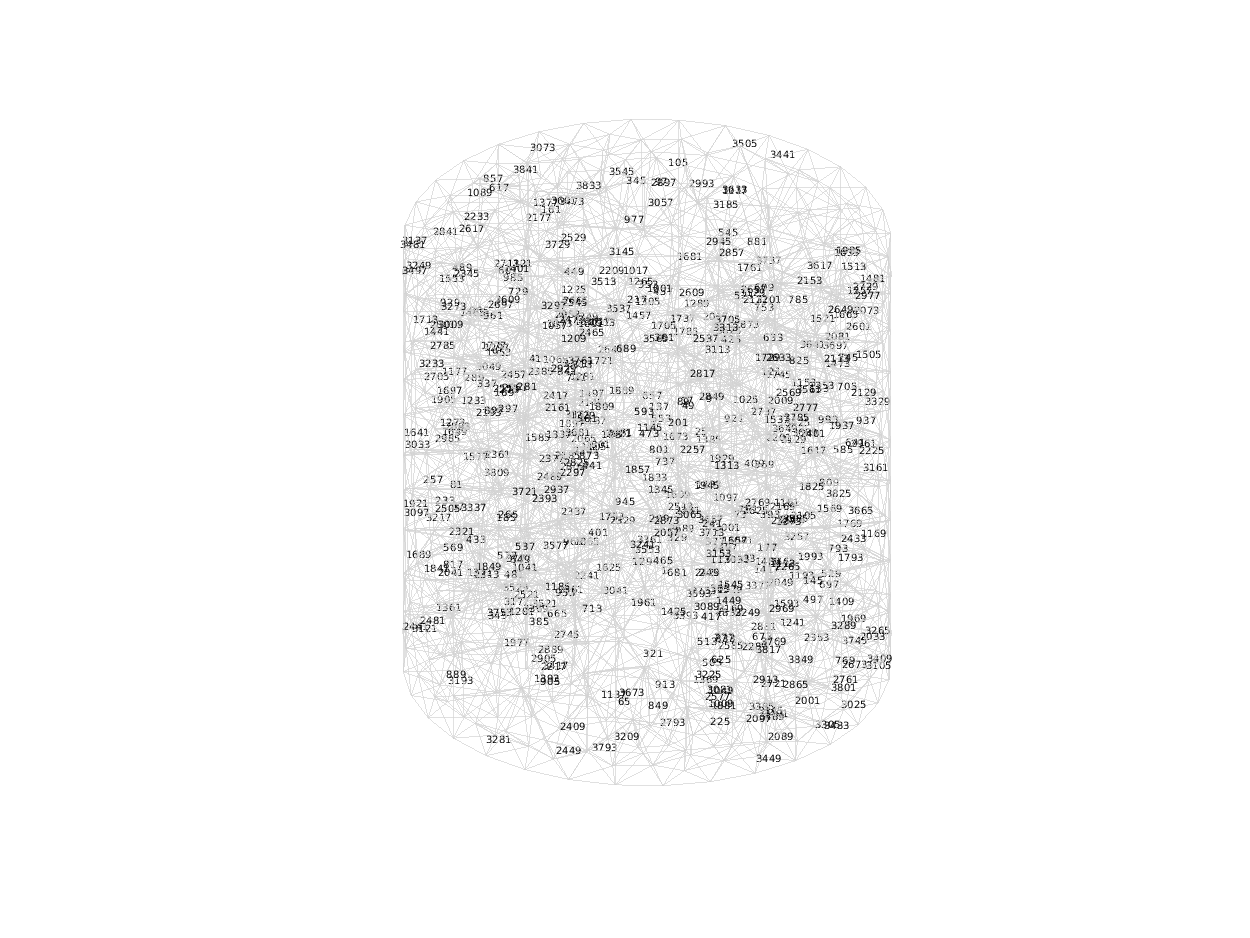

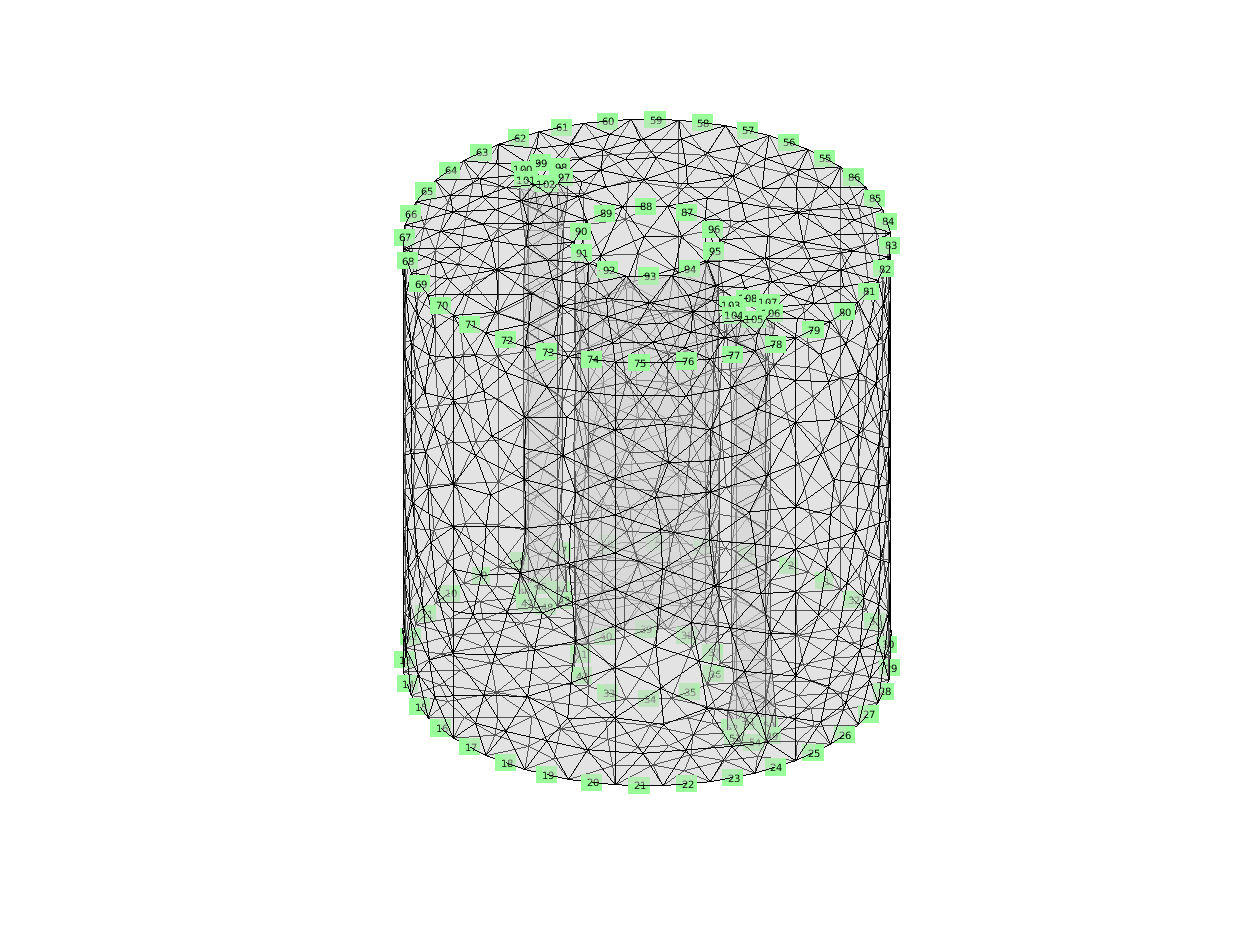

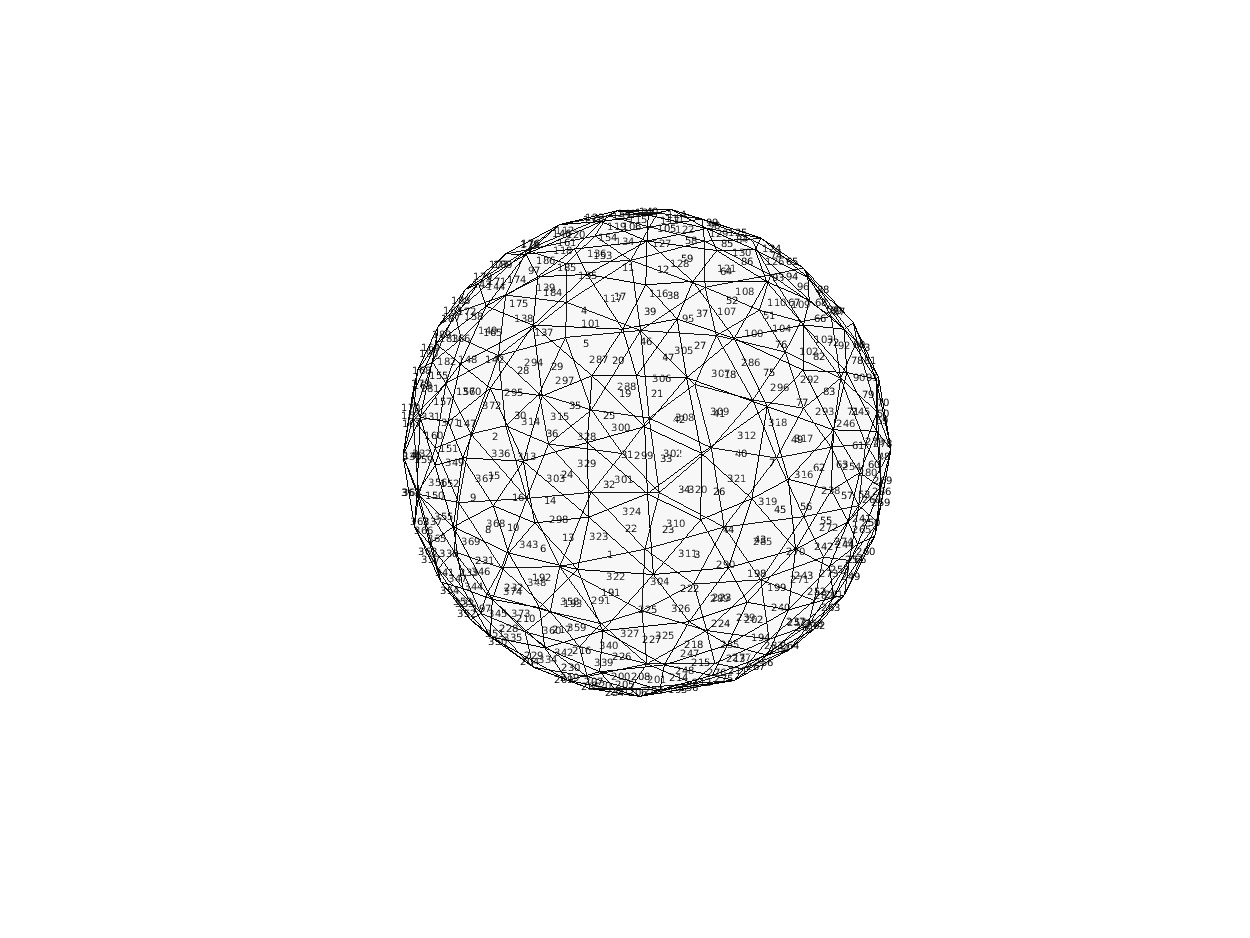

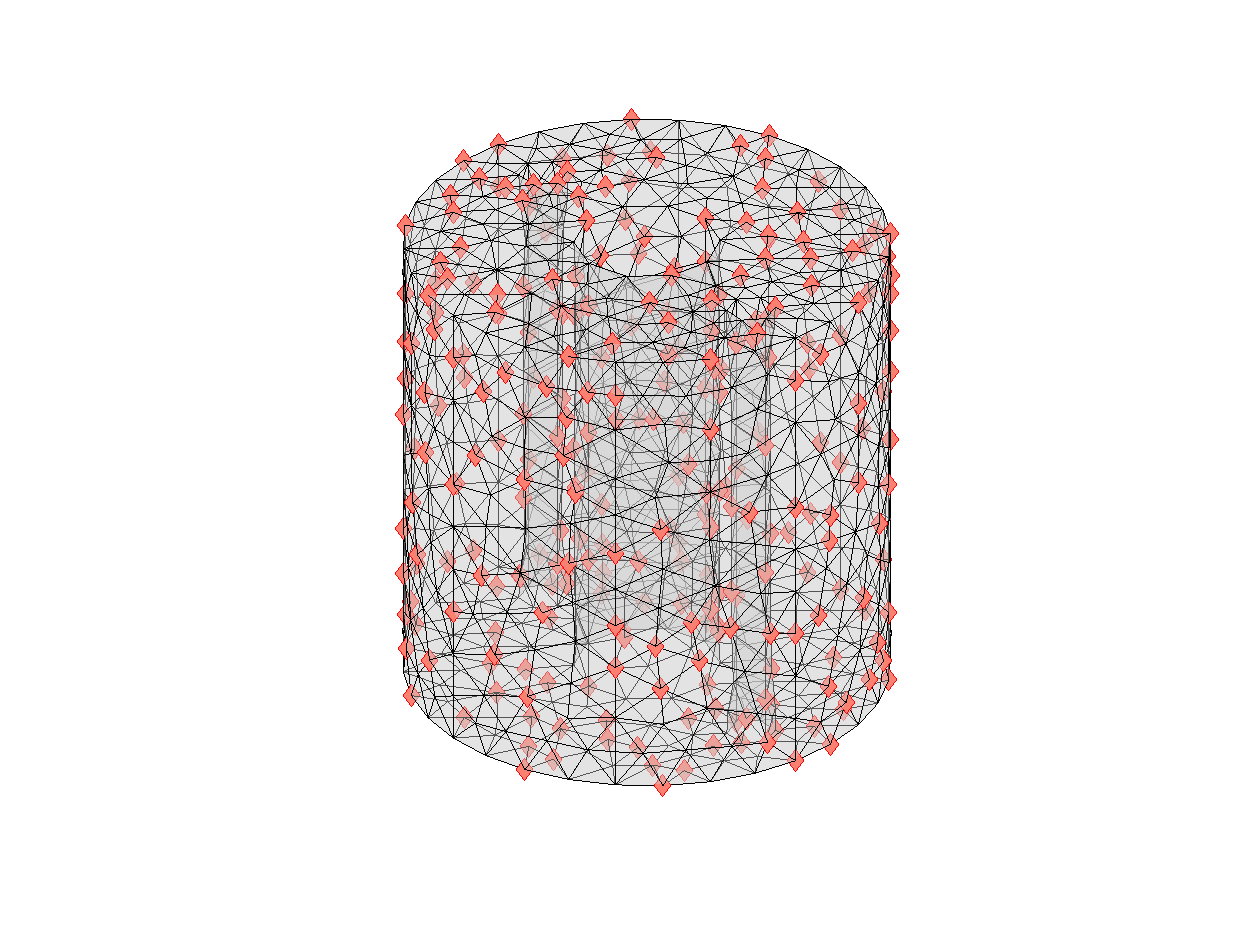

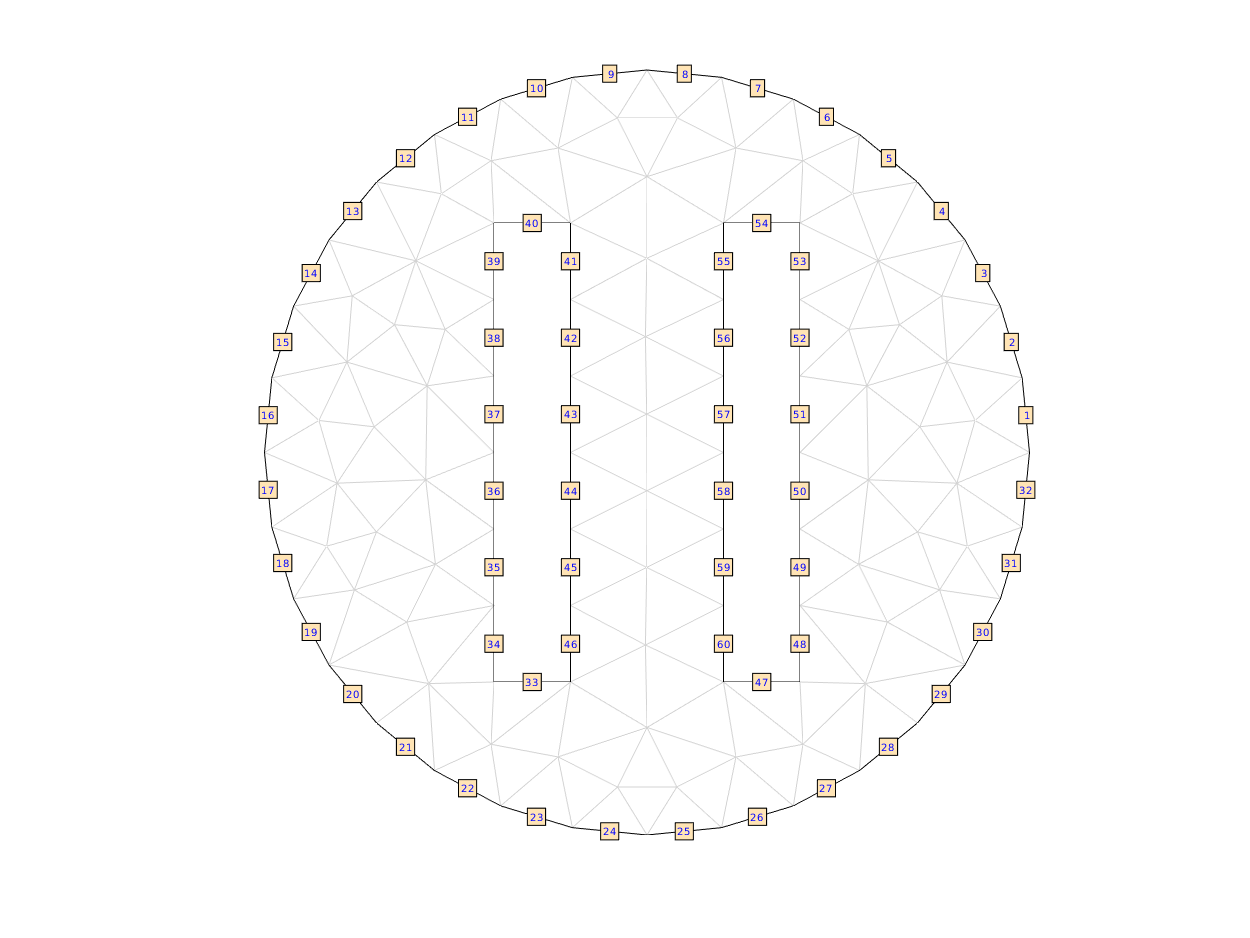

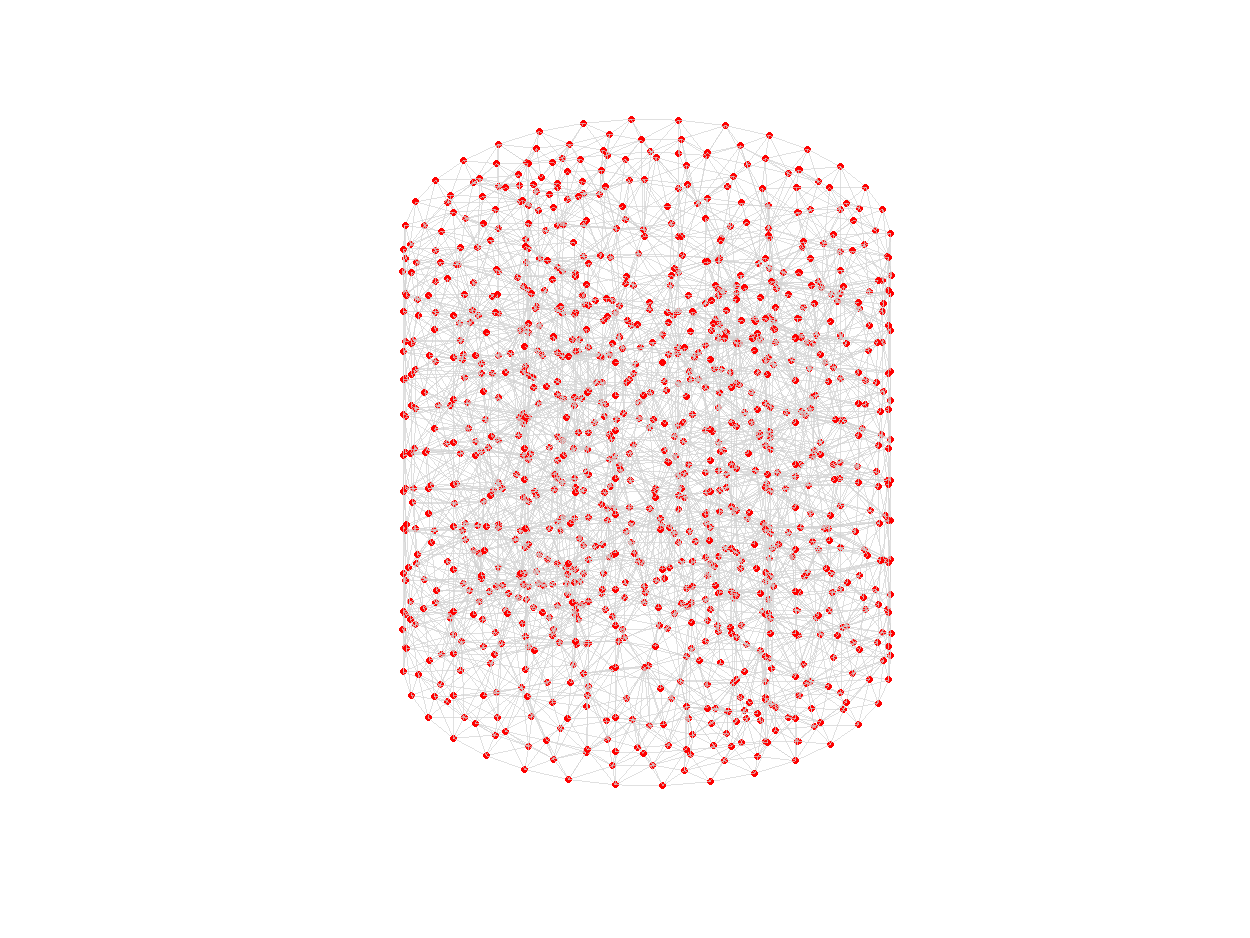

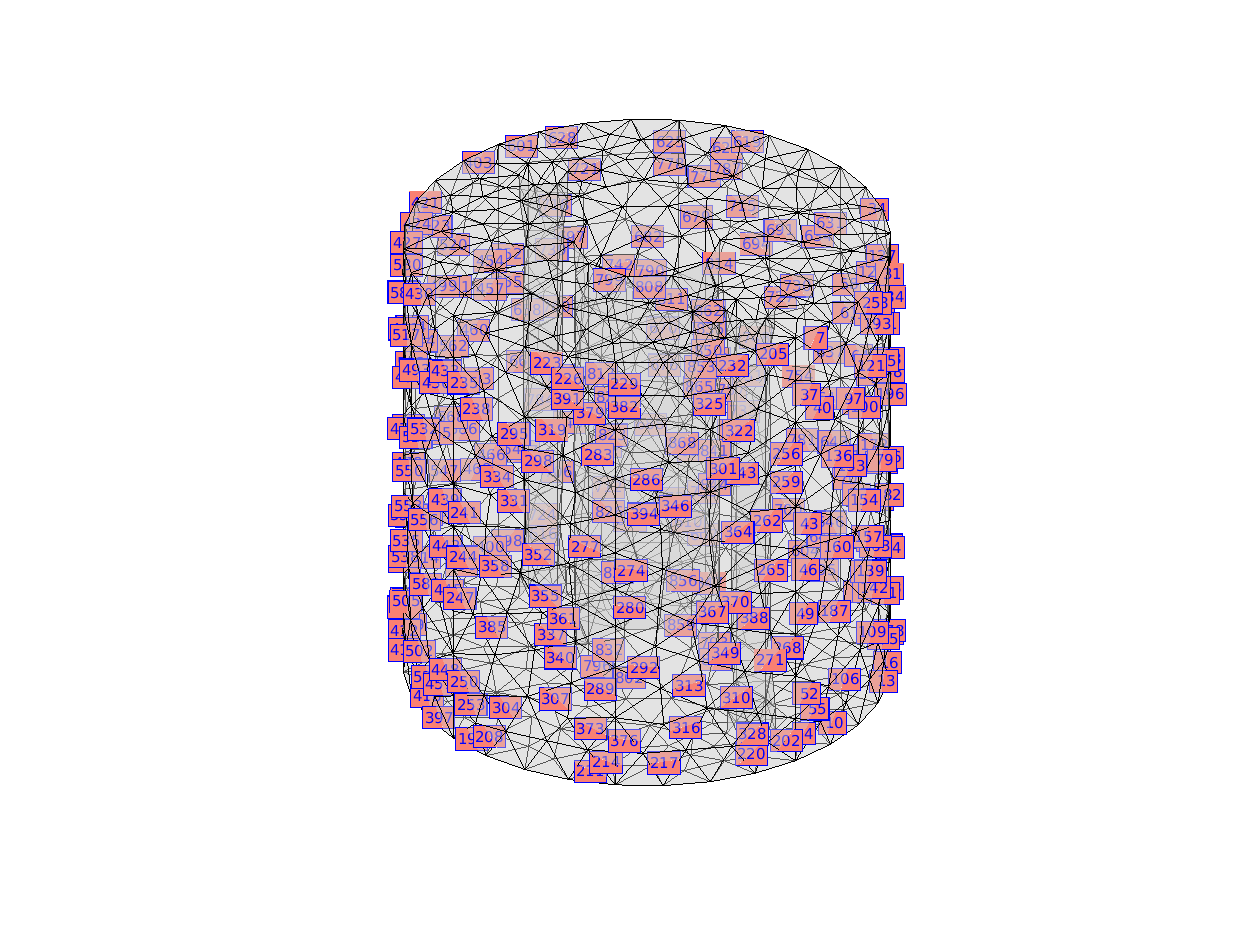

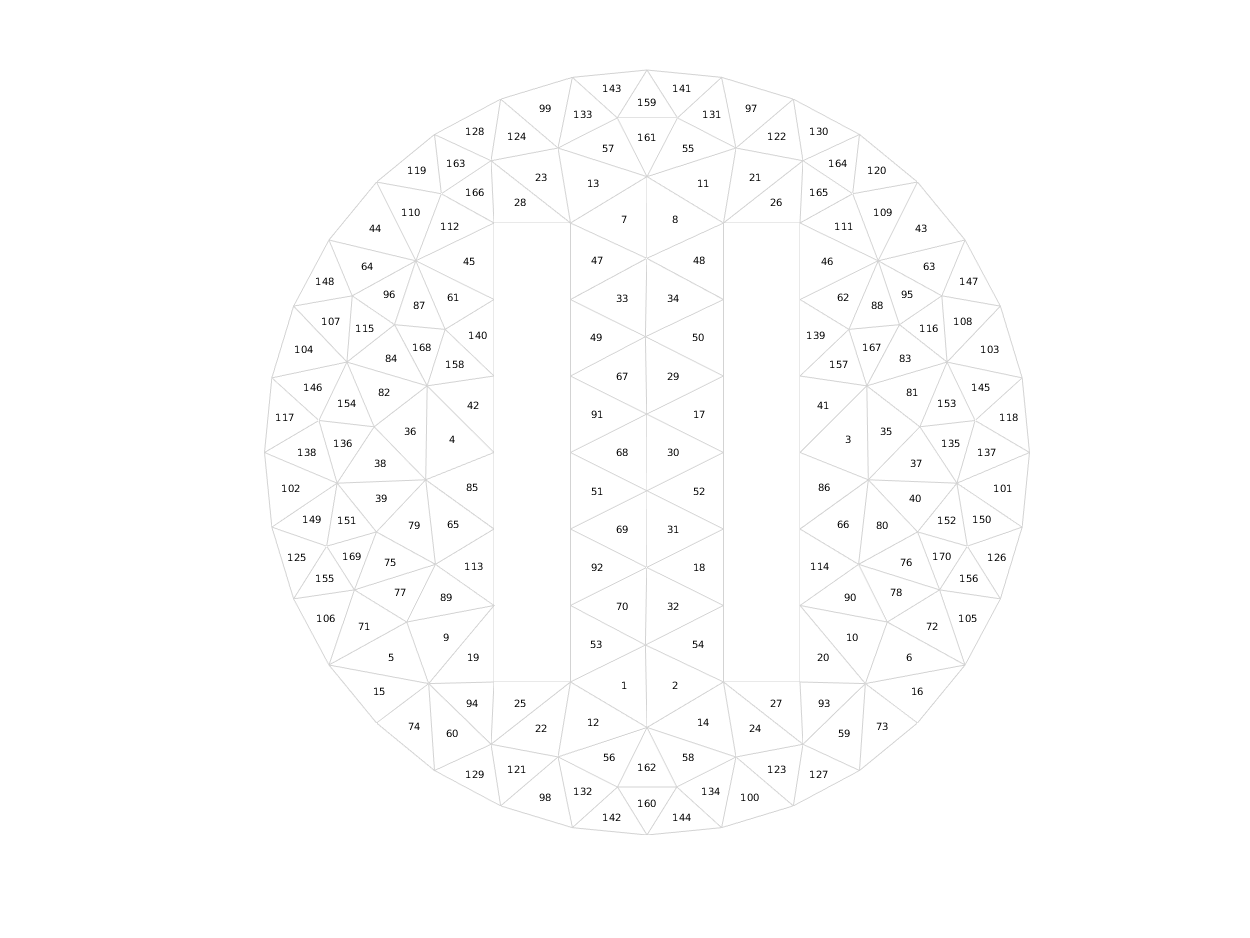

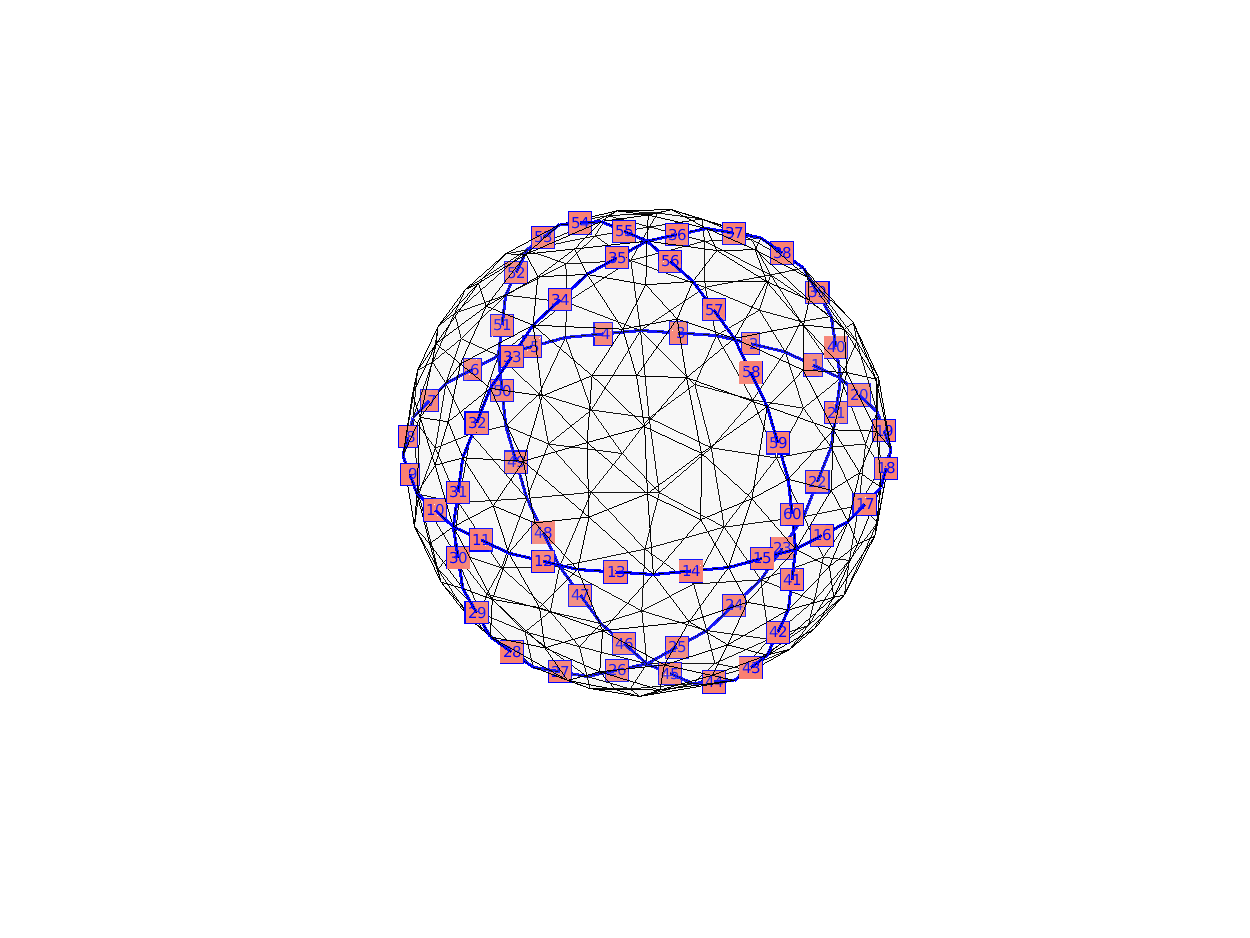

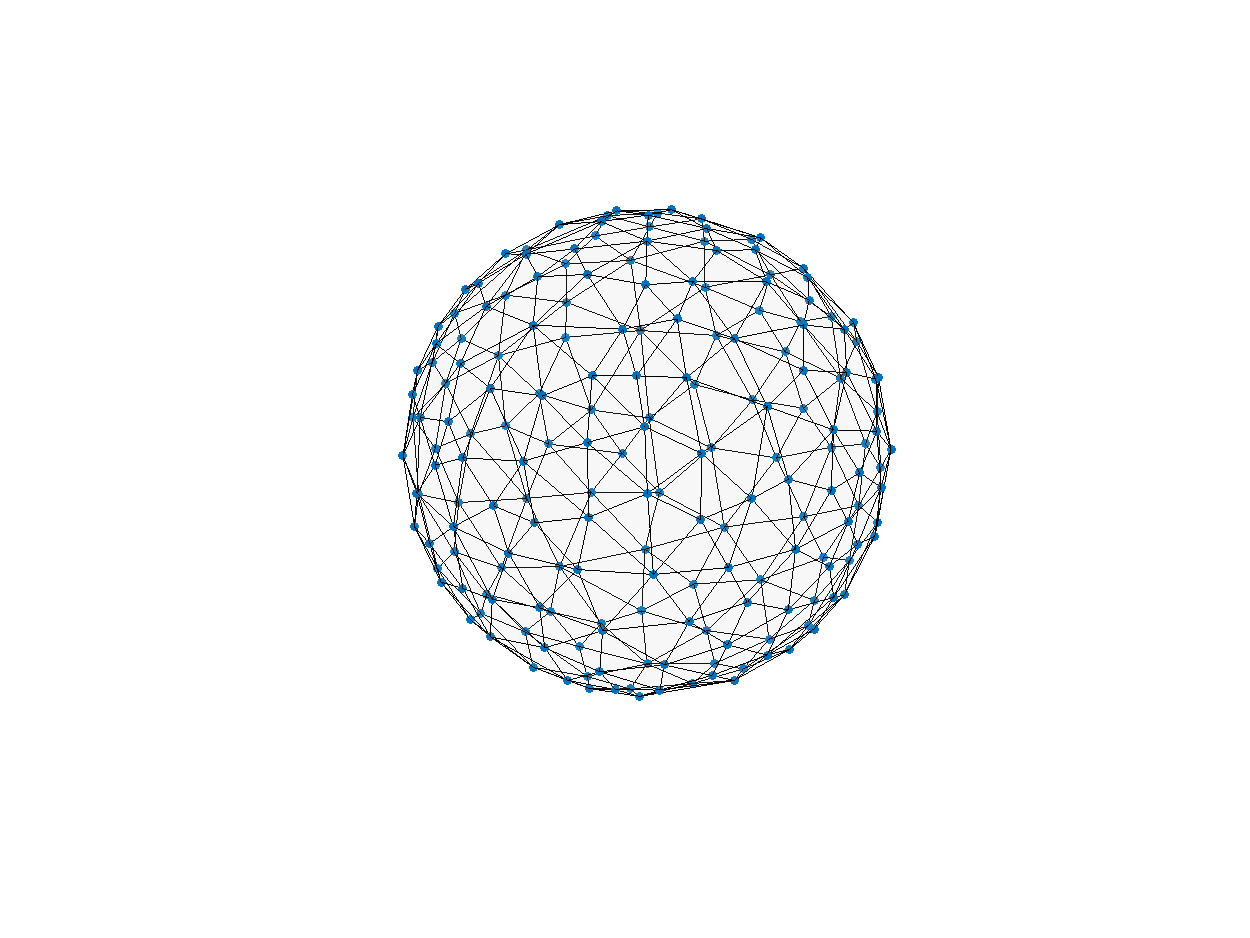

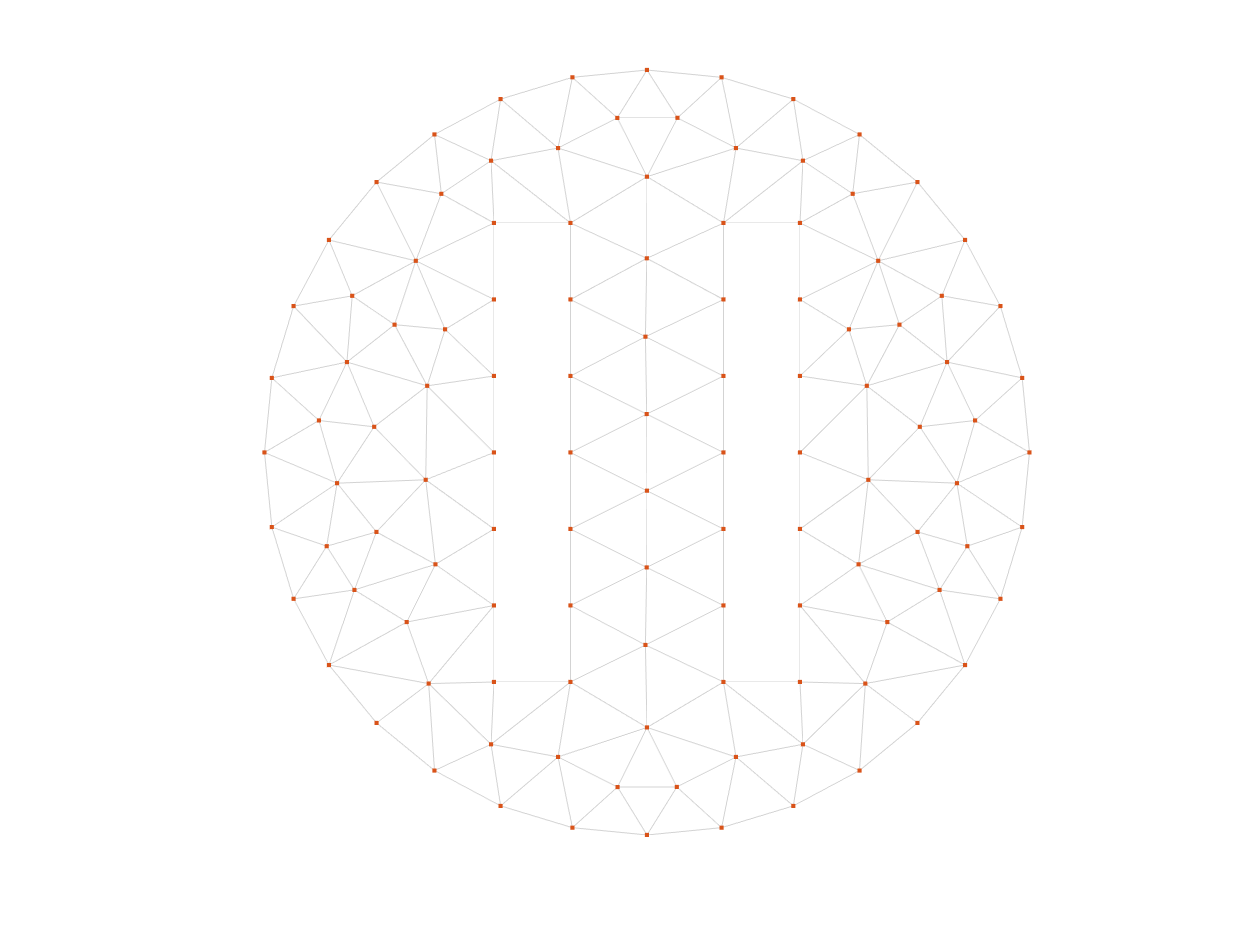

plotelementsidx2D plotelementsidx3D plotelementsidx3Ds plotnodes2D plotnodes3D plotnodes3Ds

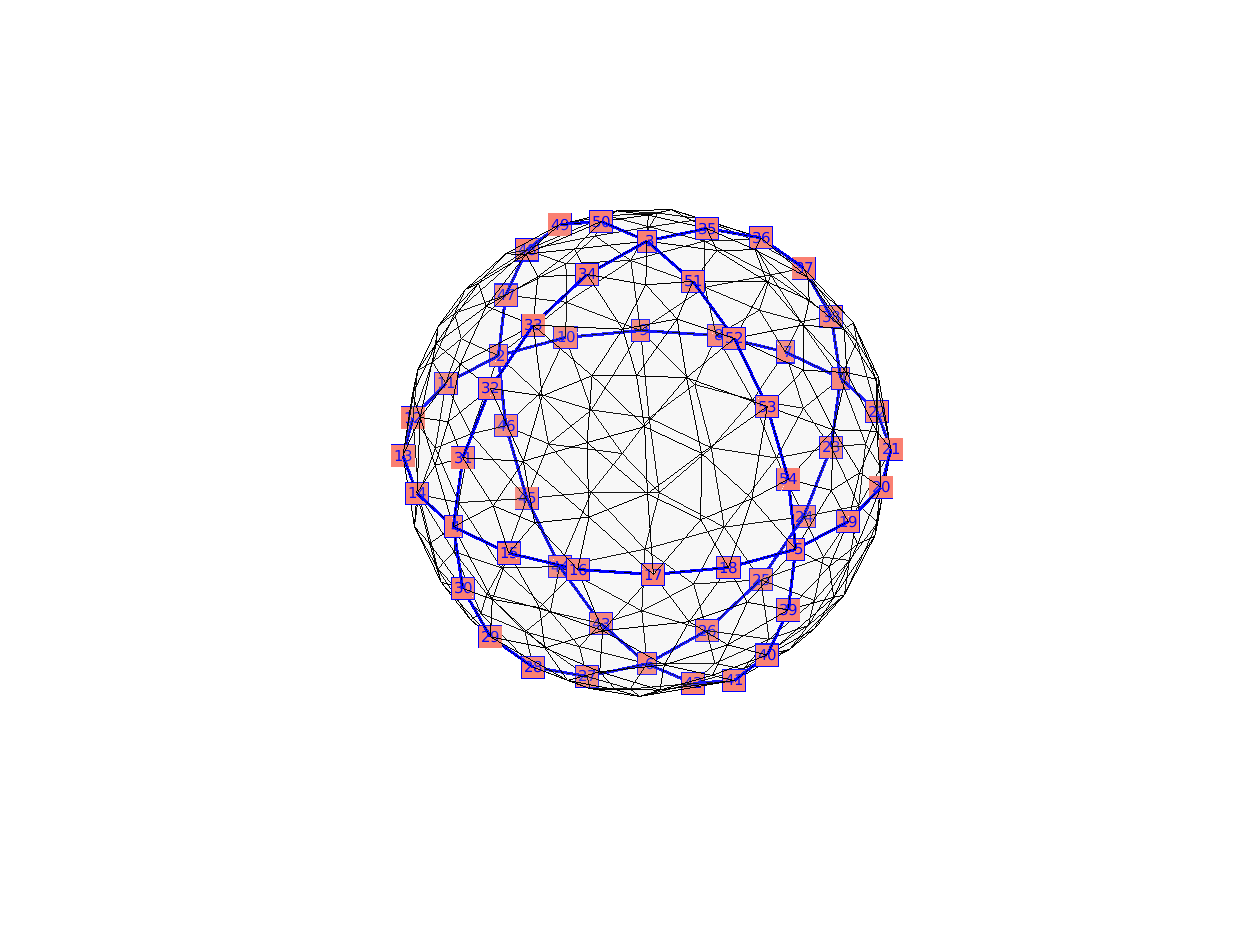

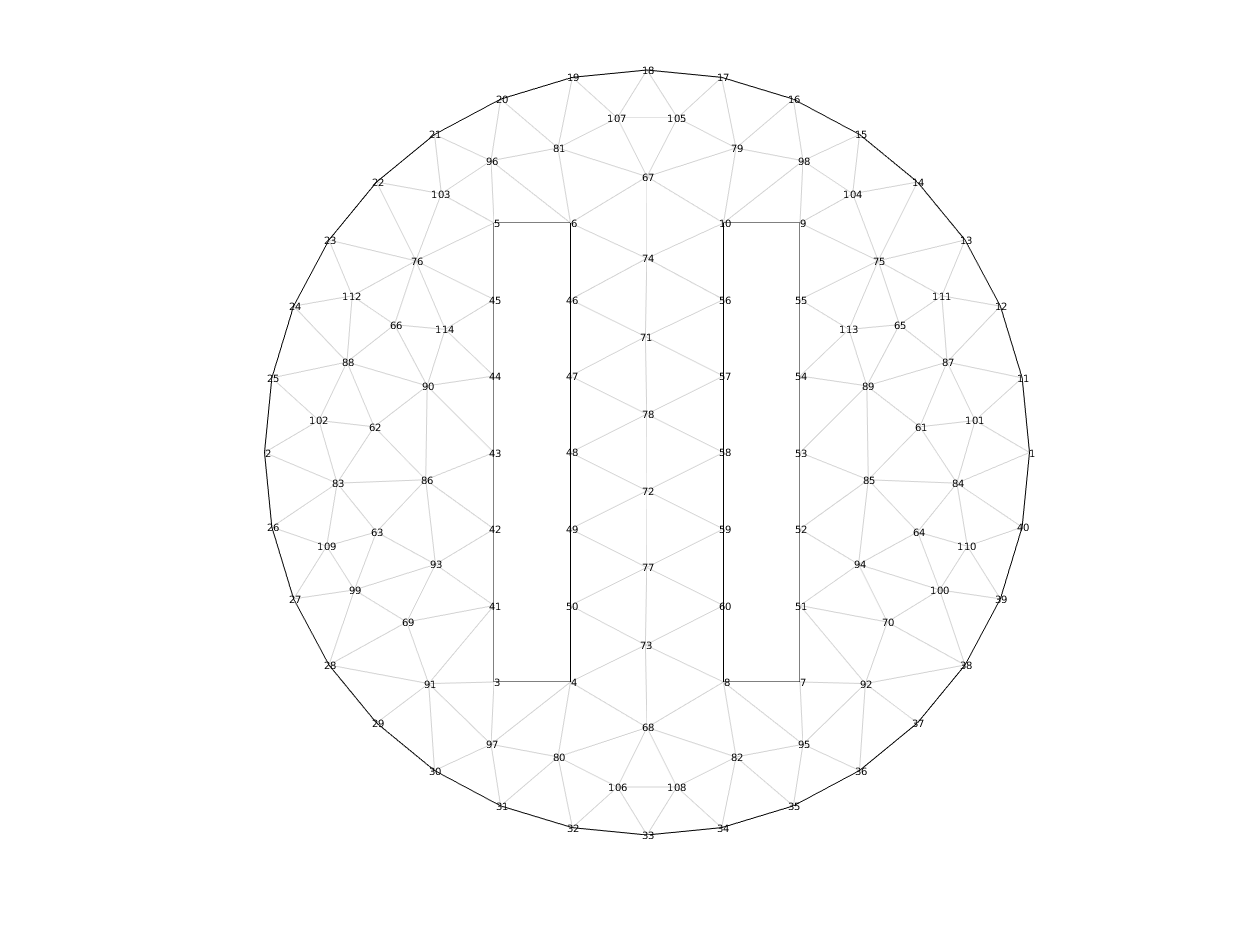

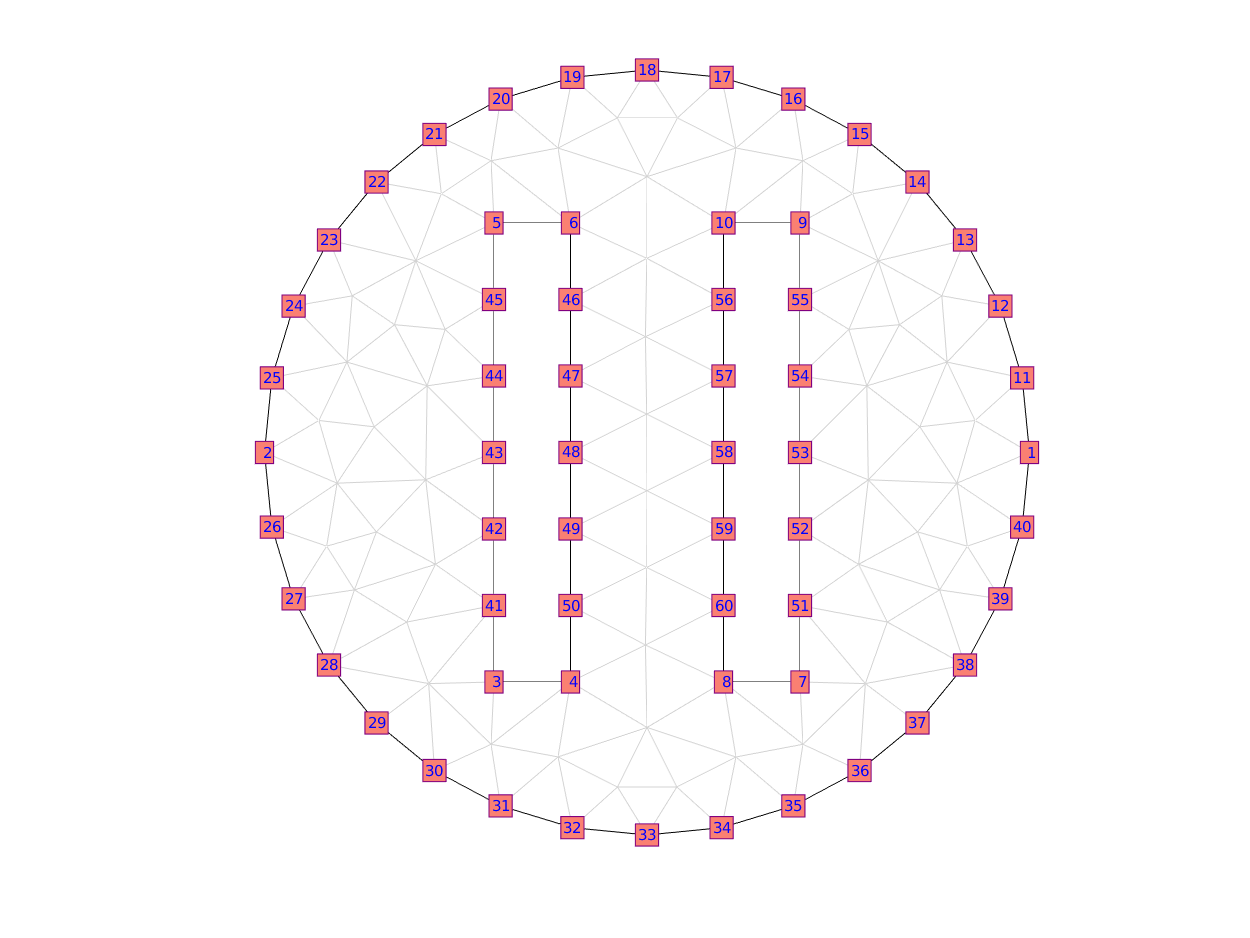

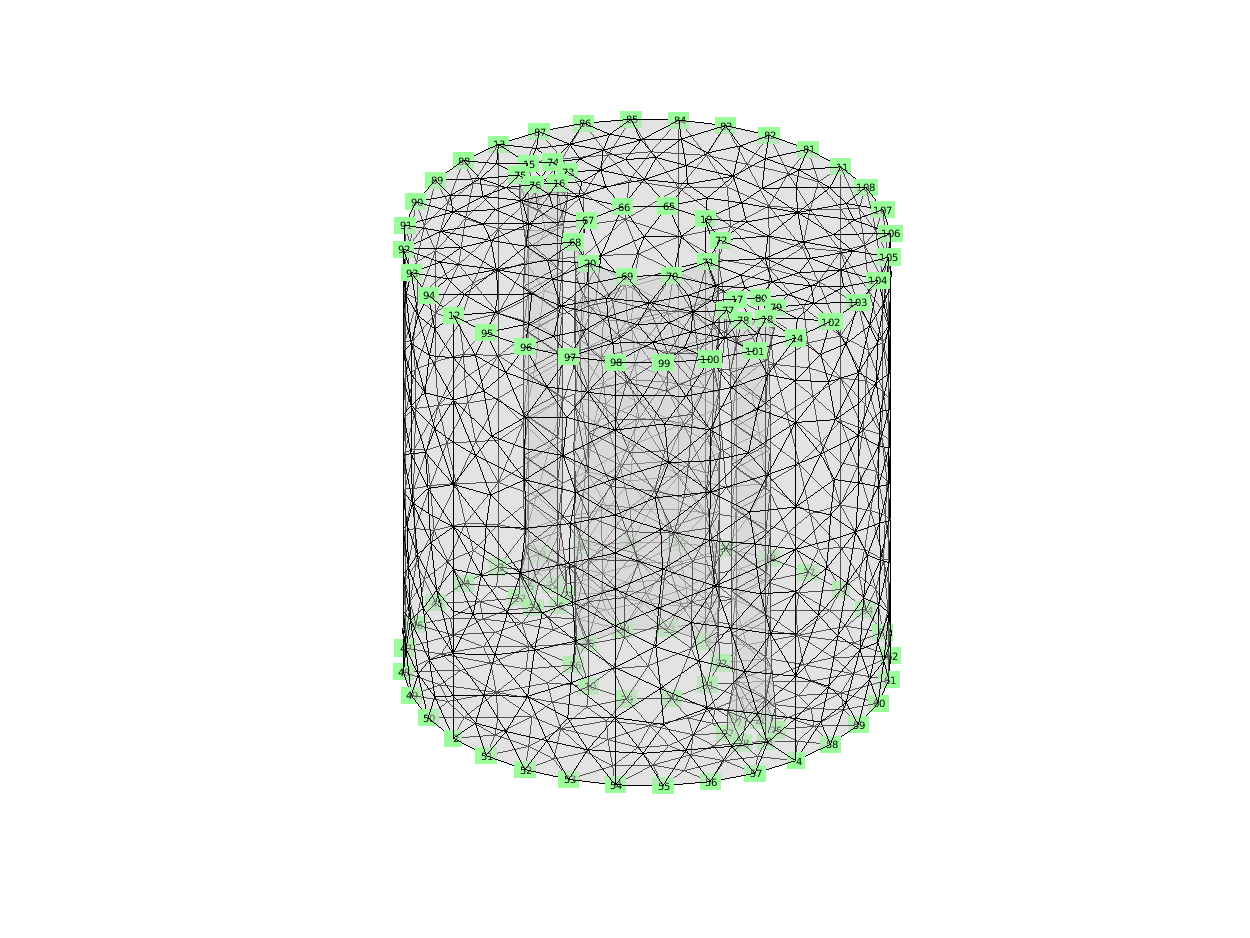

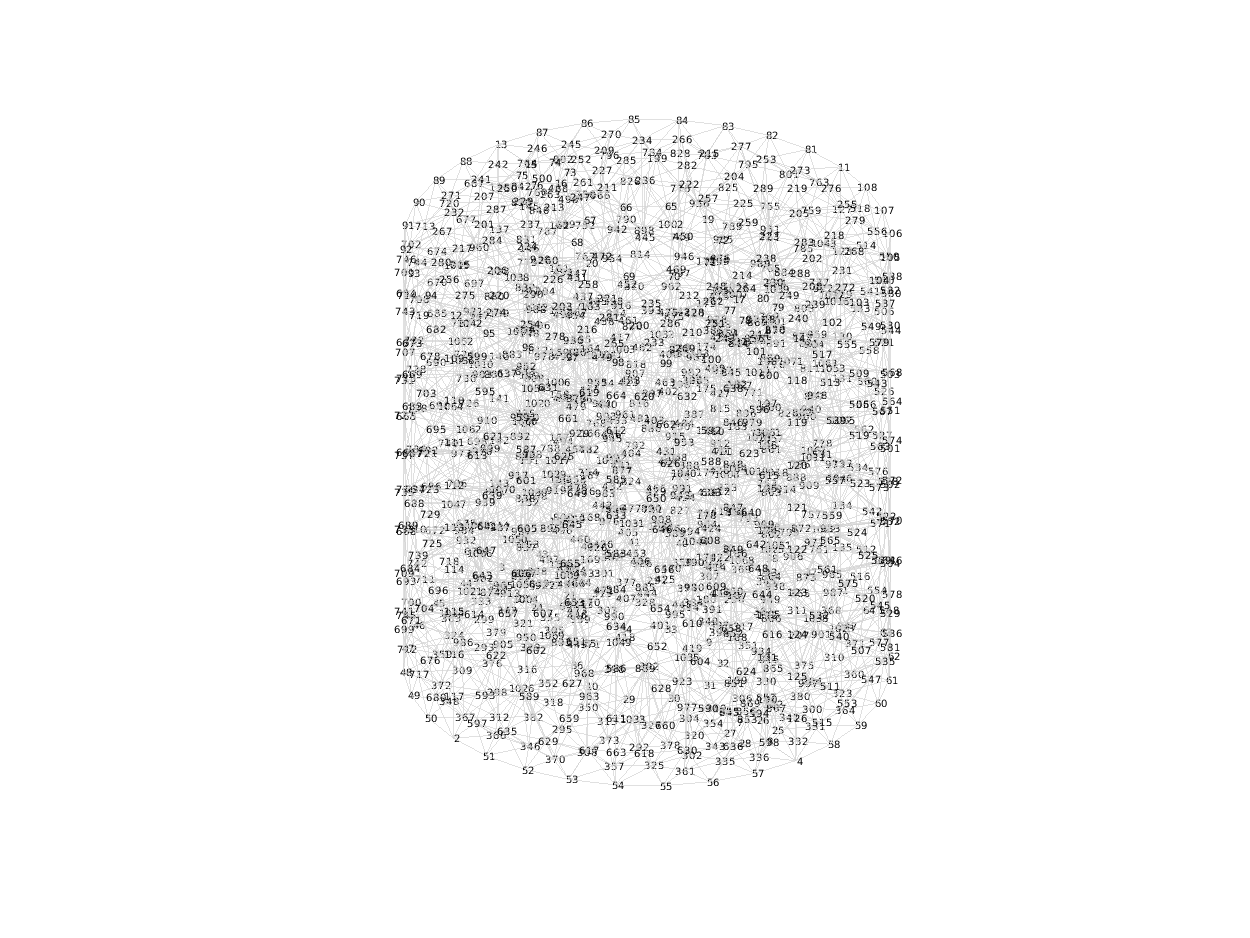

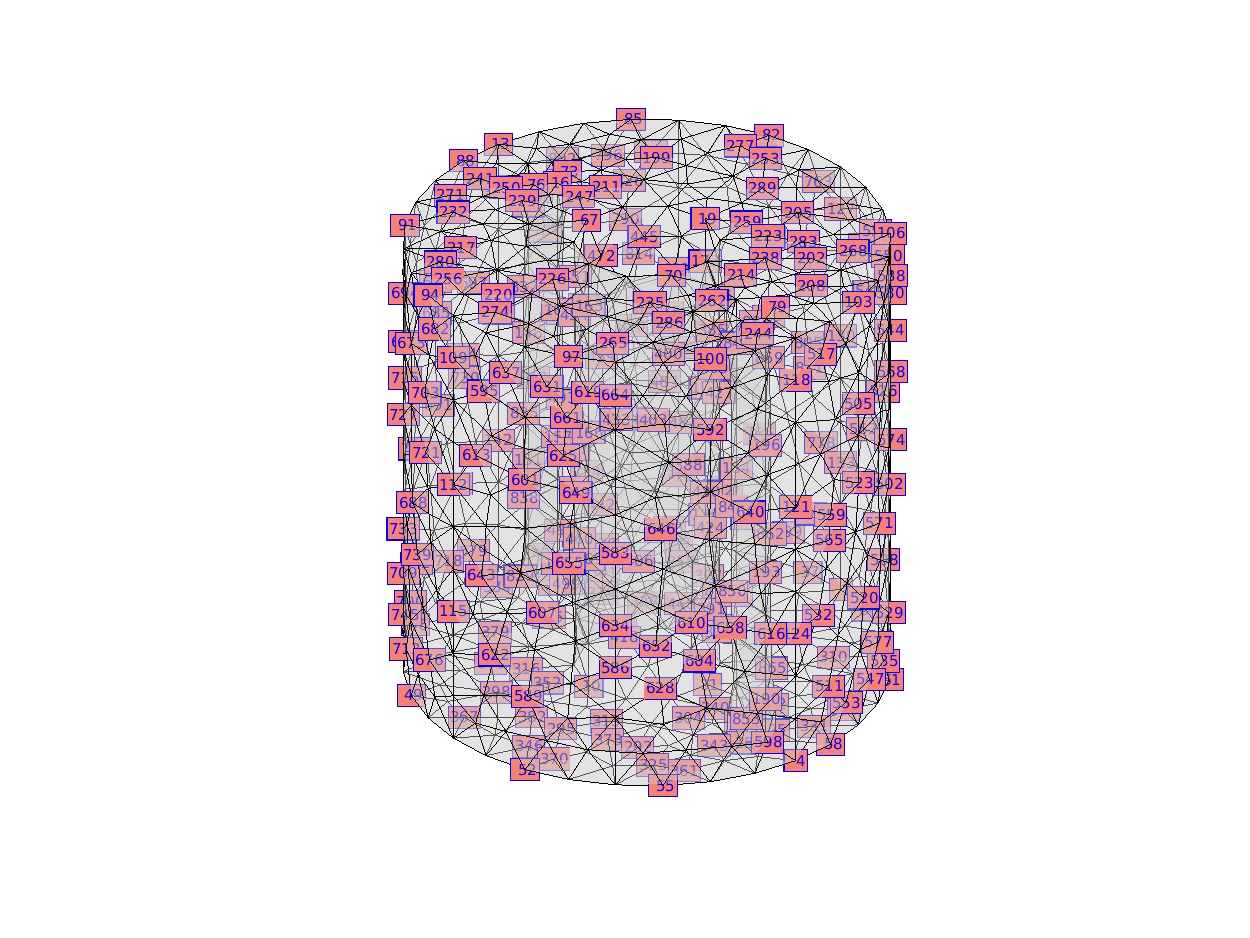

plotnodesidx2D plotnodesidx3D plotnodesidx3Ds












*  Matlab / Mesh / fc_graphics4mesh/ Current development release





Version

date

full archives

install

User guide






0.1.5

December 21, 2022

pict (1541 Ko)
pict (1734 Ko)
pict (1324 Ko)

pict (4 Ko)

pict (1205 Ko)






*  Matlab / Mesh / fc_graphics4mesh/ Tested on

This toolbox was only tested on Ubuntu 22.04.1 with Matlab R2022a.

*  Matlab / Mesh / fc_graphics4mesh/ Installation

For this method, one just have to get/download the install file pict mfc_graphics4mesh_install.m Thereafter, one run it under Matlab. This command download, extract and configure the pict package and all the required packages in the current directory.

For example, to install this toolbox in ~/Matlab directory, one have to copy the file mfc_graphics4mesh_install.m in the ~/Matlab directory. Then in a Matlab terminal run the following commands

Matlab Console

>> cd ~/Matlab
>> mfc_graphics4mesh_install

There is the output of the mfc_graphics4mesh_install command on a Linux computer:

Matlab Ouput

Parts of the <fc-graphics4mesh> Matlab toolbox.
Copyright (C) 2017-2022 F. Cuvelier

1- Downloading and extracting the toolboxes
2- Setting the <fc-graphics4mesh> toolbox
Write in ~/Matlab/fc-graphics4mesh-full/fc_graphics4mesh-0.1.5/configure_loc.m ...
3- Using toolboxes :
   ->             fc-tools : 0.0.34
   ->             fc-bench : 0.1.3
   ->              fc-amat : 0.1.3
   ->         fc-meshtools : 0.1.4
 with     fc-graphics4mesh : 0.1.5
*** Using instructions
   To use the <fc-graphics4mesh> toolbox:
   addpath(’~/Matlab/fc-graphics4mesh-full/fc_graphics4mesh-0.1.5’)
   fc_graphics4mesh.init()

   See ~/Matlab/mfc_graphics4mesh_set.m

The complete toolbox (i.e. with all the other needed toolboxes) is stored in the directory ~/Matlab/fc-graphics4mesh-full and, for each Matlab session, one have to set the toolbox by:

Matlab Console

>> addpath(’~/Matlab/fc-graphics4mesh-full/fc_meshtools.0.1.5’)
>> fc_graphics4mesh.init()

If it’s the first time the fc_meshtools.init() function is used, then its output is

Matlab Ouput

Try to use default parameters!
 Use fc_tools.configure to configure.
Write in /home/cuvelier/tmp/fc-graphics4mesh-full/fc_tools-0.0.34/configure_loc.m ...
Try to use default parameters!
 Use fc_bench.configure to configure.
Write in /home/cuvelier/tmp/fc-graphics4mesh-full/fc_bench-0.1.3/configure_loc.m ...
Try to use default parameters!
 Use fc_amat.configure to configure.
Write in /home/cuvelier/tmp/fc-graphics4mesh-full/fc_amat-0.1.3/configure_loc.m ...
Try to use default parameters!
 Use fc_meshtools.configure to configure.
Write in /home/cuvelier/tmp/fc-graphics4mesh-full/fc_meshtools-0.1.4/configure_loc.m ...
Using fc_graphics4mesh[0.1.5] with fc_tools[0.0.34], fc_bench[0.1.3], fc_amat[0.1.3], fc_meshtools[0.1.4].

Otherwise, the output of the fc_meshtools.init() function is

Matlab Ouput

Using fc_graphics4mesh[0.1.5] with fc_tools[0.0.34], fc_bench[0.1.3], fc_amat[0.1.3], fc_meshtools[0.1.4].

For uninstalling, one just have to delete directory

~/Matlab/fc-graphics4mesh-full

*  Manual installation

This package uses the fc_mesh toolbox. So one has to install it as explain in the dedicated web page.

Thereafter, on the fc_graphics4mesh dedicated web page, one can found link to archives ( zip, 7z or tar.gz format)

To quickly test this toolbox , one can run one of the examples located in the directory +fc_graphics4mesh/+demos. For example, runs

Matlab Console

>> fc_graphics4mesh.demos.plot2D()

or the complete demo (take a long time)

Matlab Console

>> fc_graphics4mesh.demos.alldemos()
