is an Octave package which allows to mesh any d-orthotope (hyperrectangle in dimension d) and their m-faces with simplices or orthotopes. The versions prior to 1.0.0 were created to show the implementation of the algorithms given in the report

Vectorized algorithms for regular tessellations of d-orthotopes and their faces .

From version 1.0.0, tesselation with p-order simplices or p-order orthotopes is provided and associated vectorized algorithms are described in the report:

Vectorized algorithms for regular tessellations of d-orthotopes and their faces with high-order orthotopes or simplicial elements .

This package uses Octave objects and is provided with meshes visualisation tools for dimension less than or equal to 3.

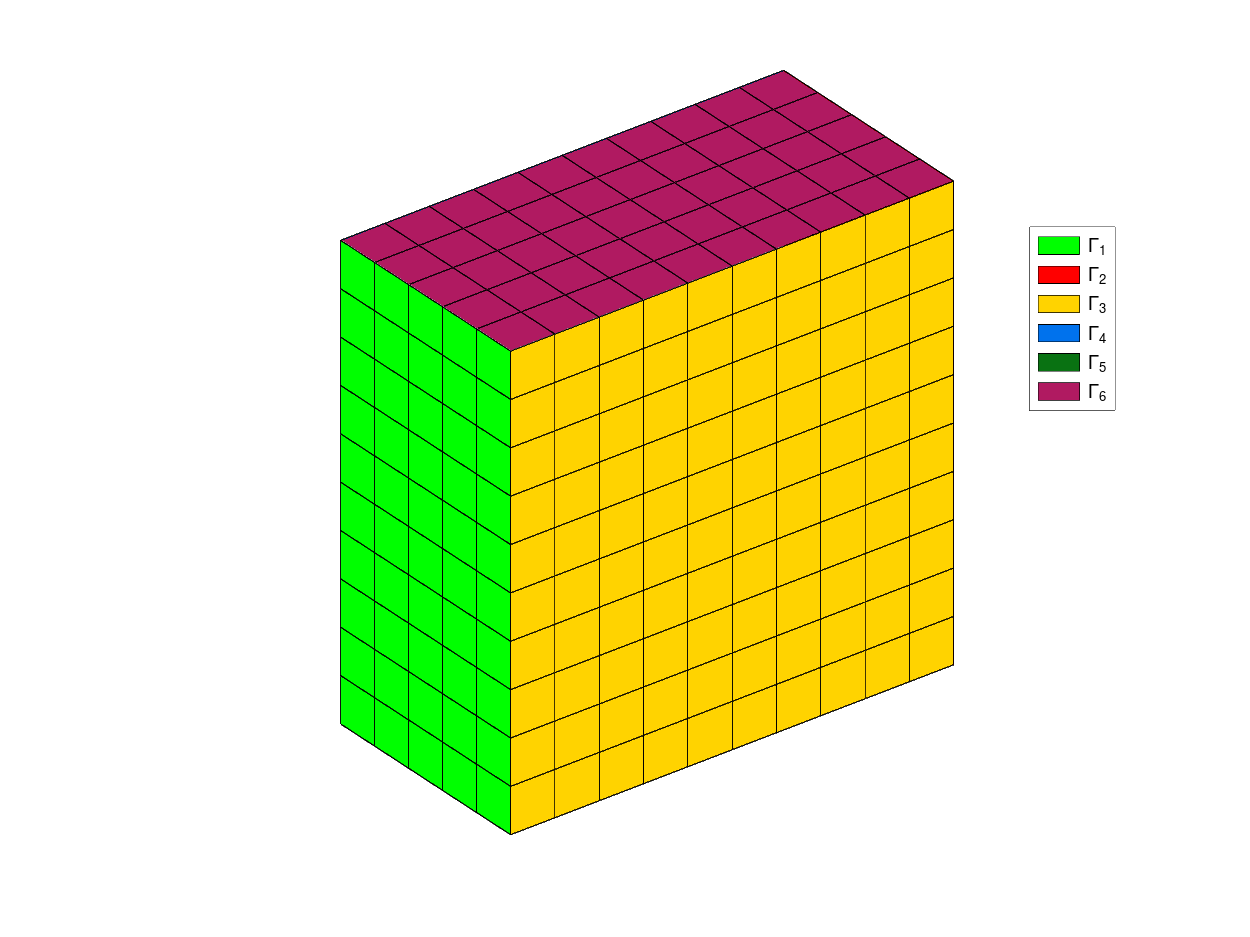

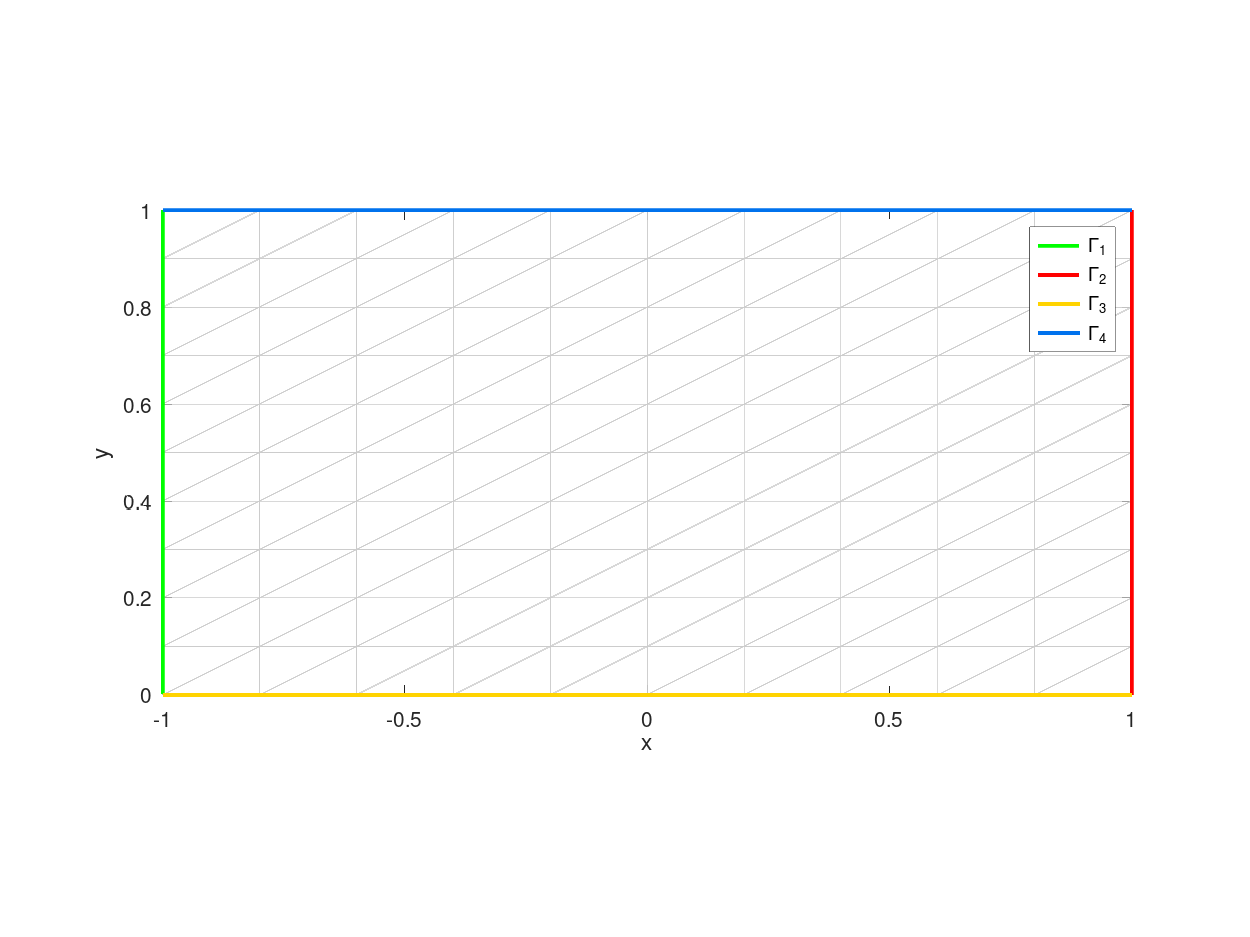

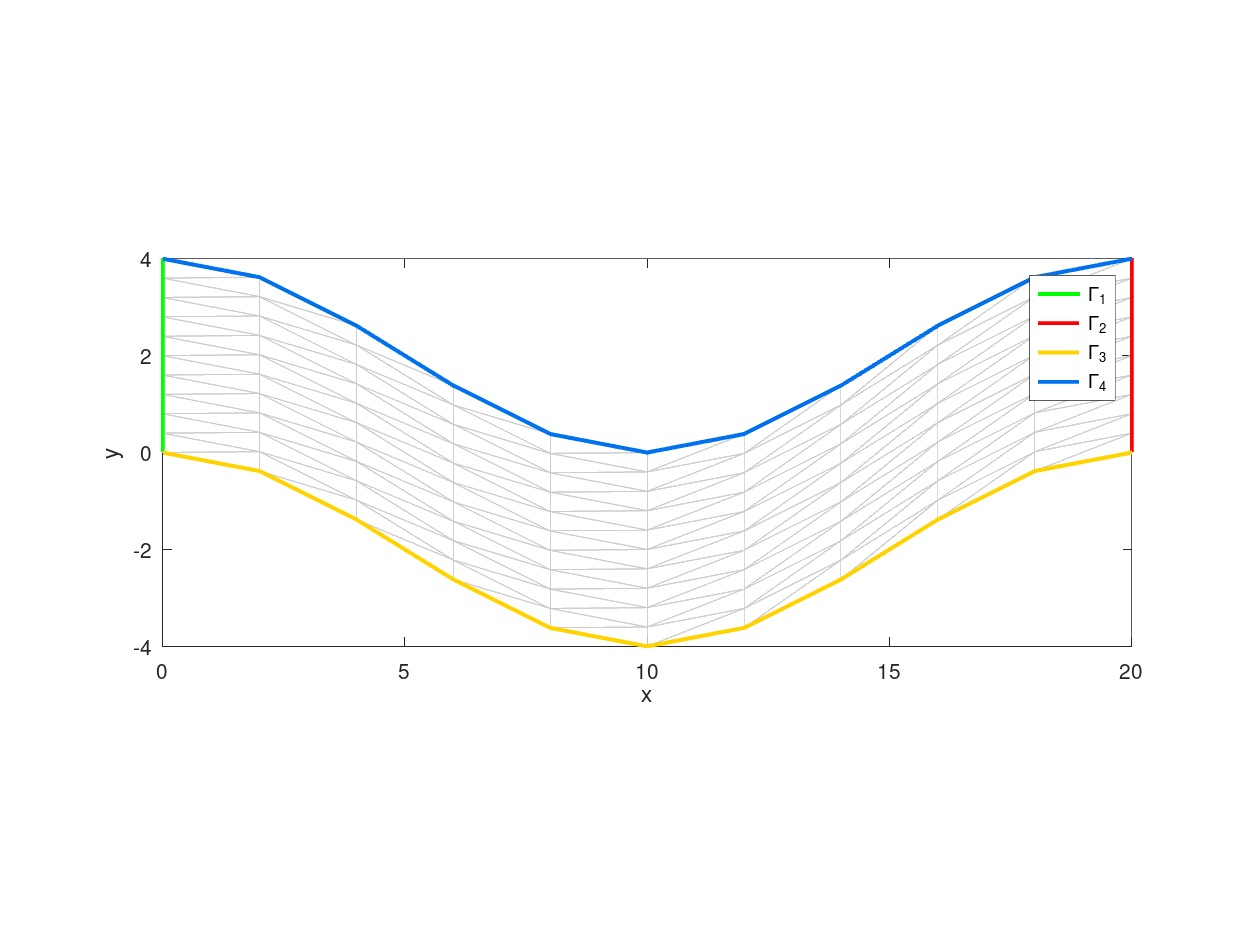

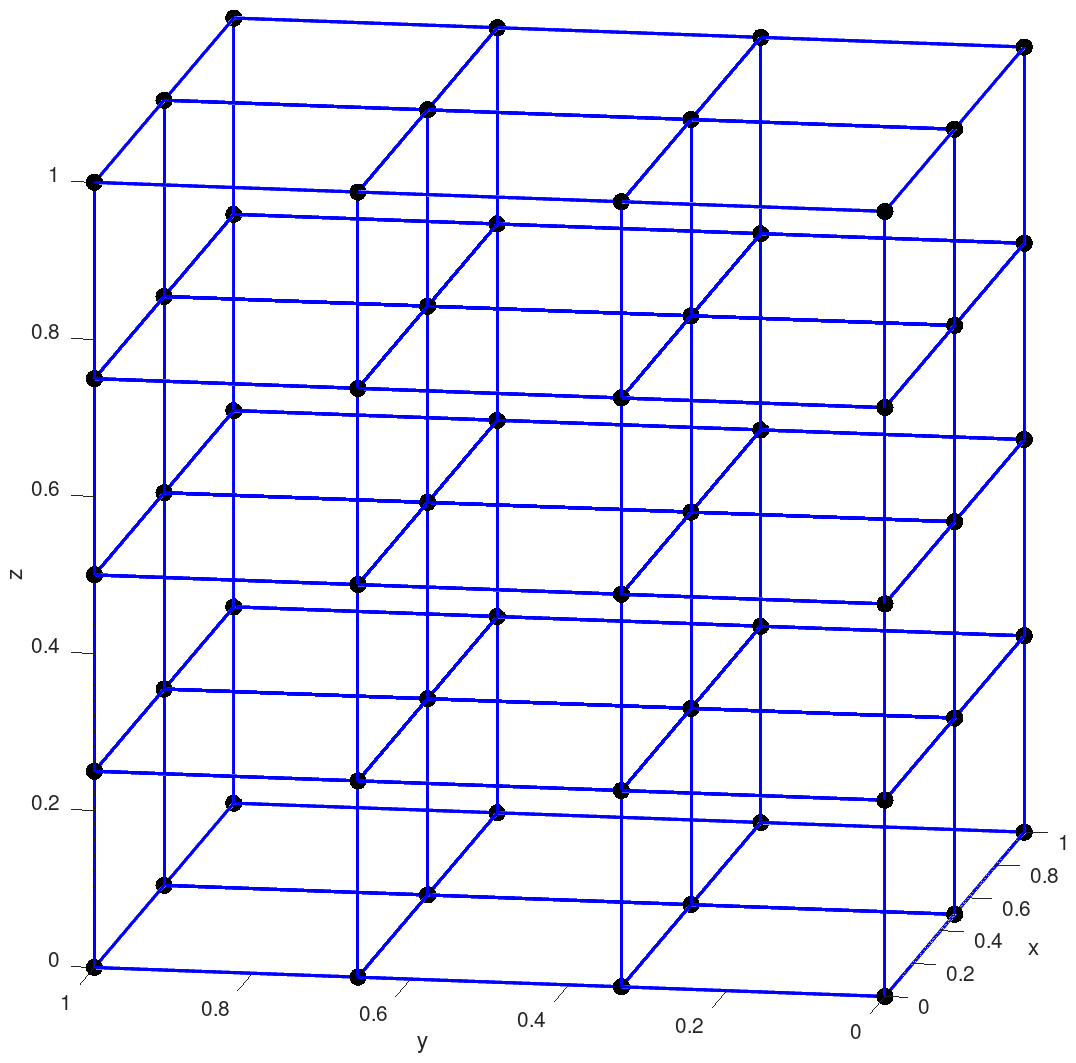

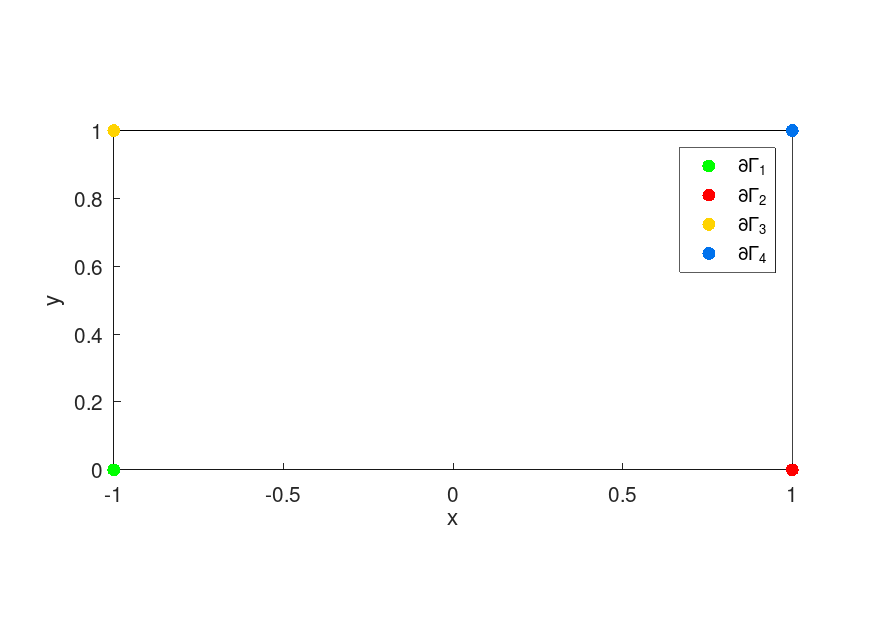

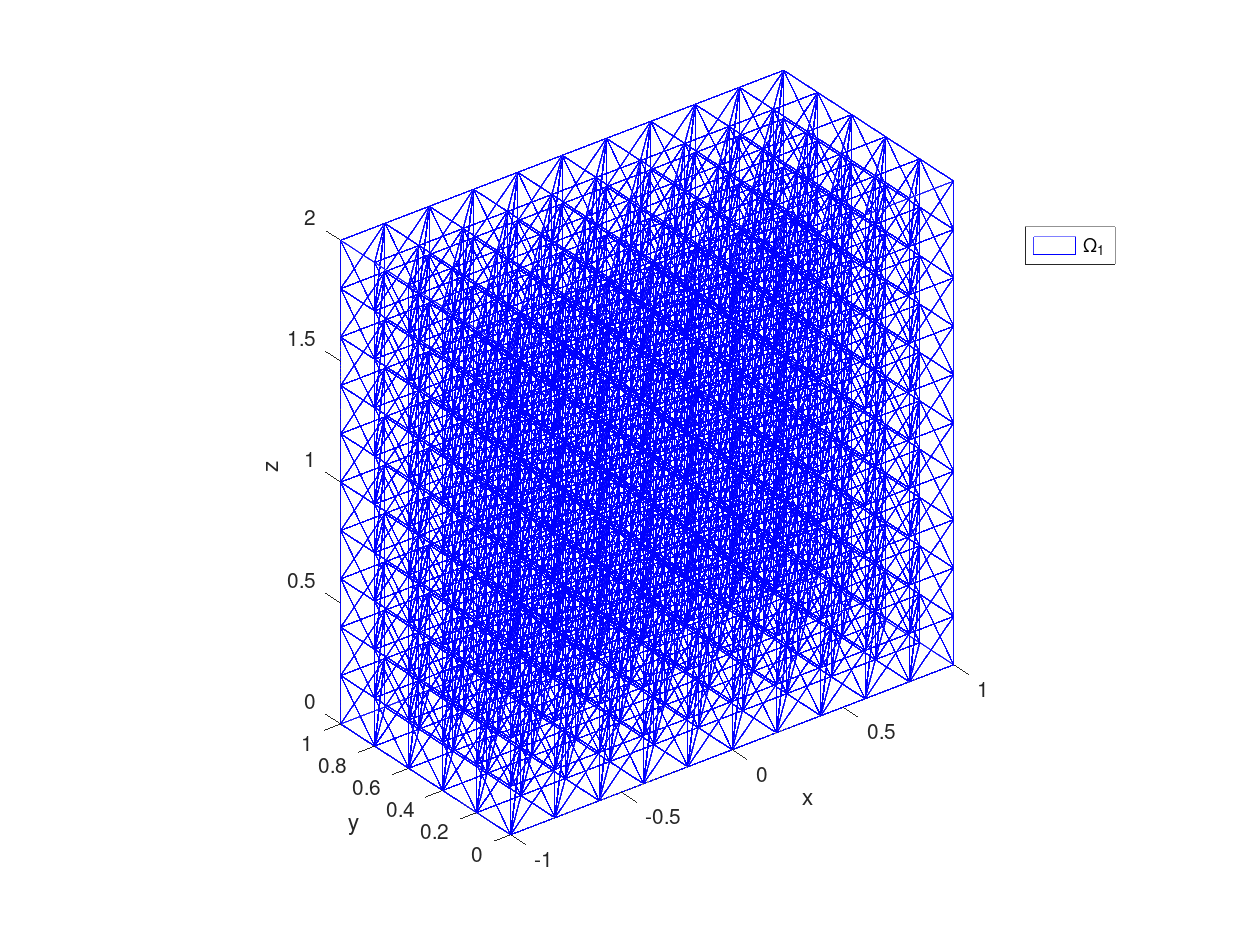

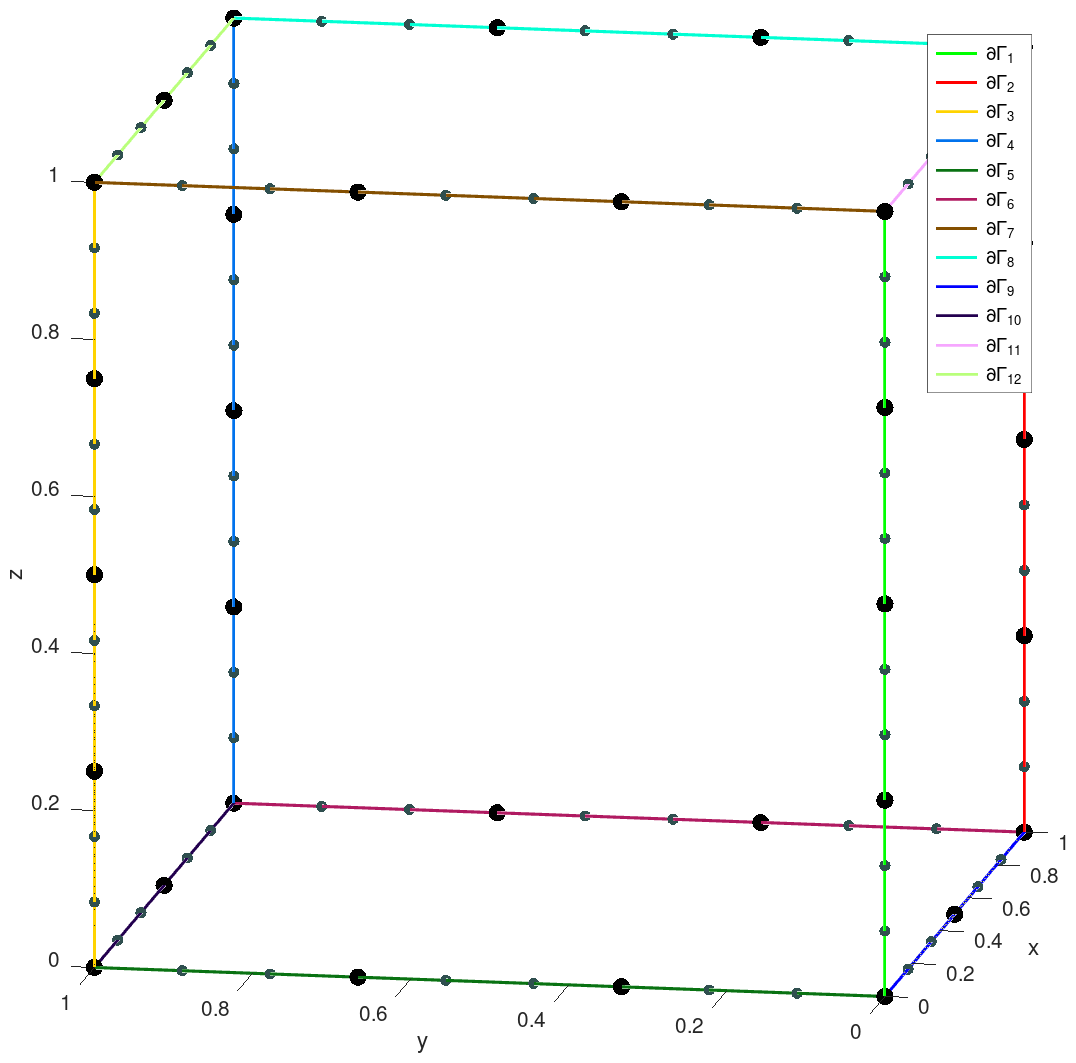

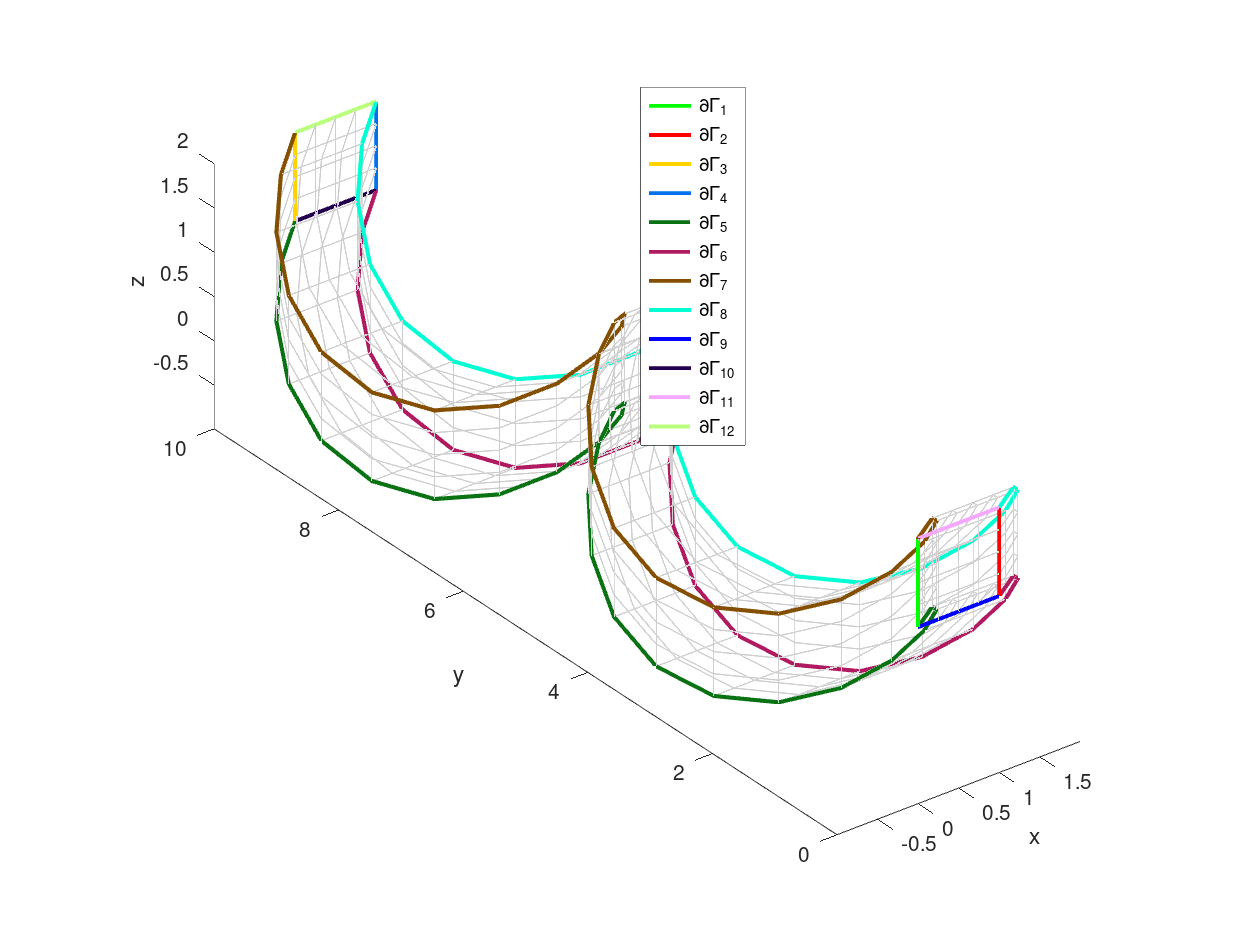

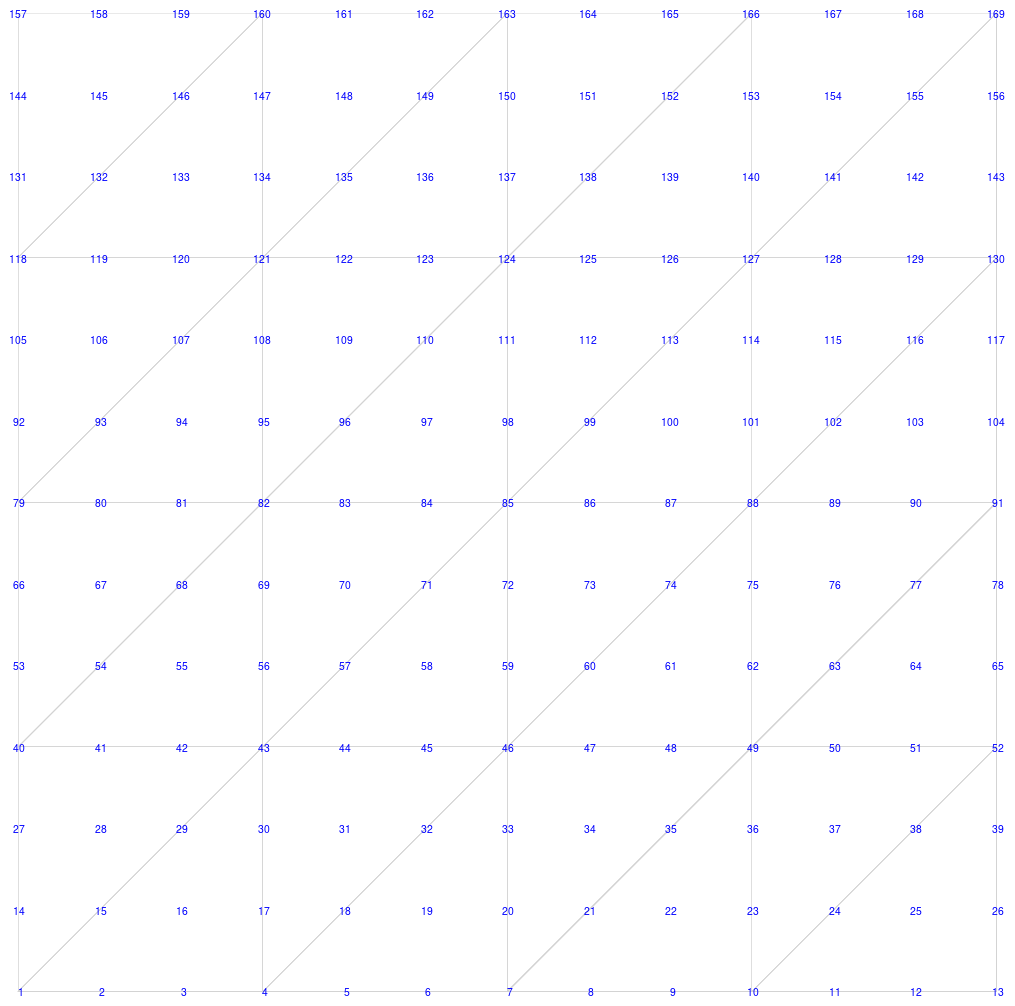

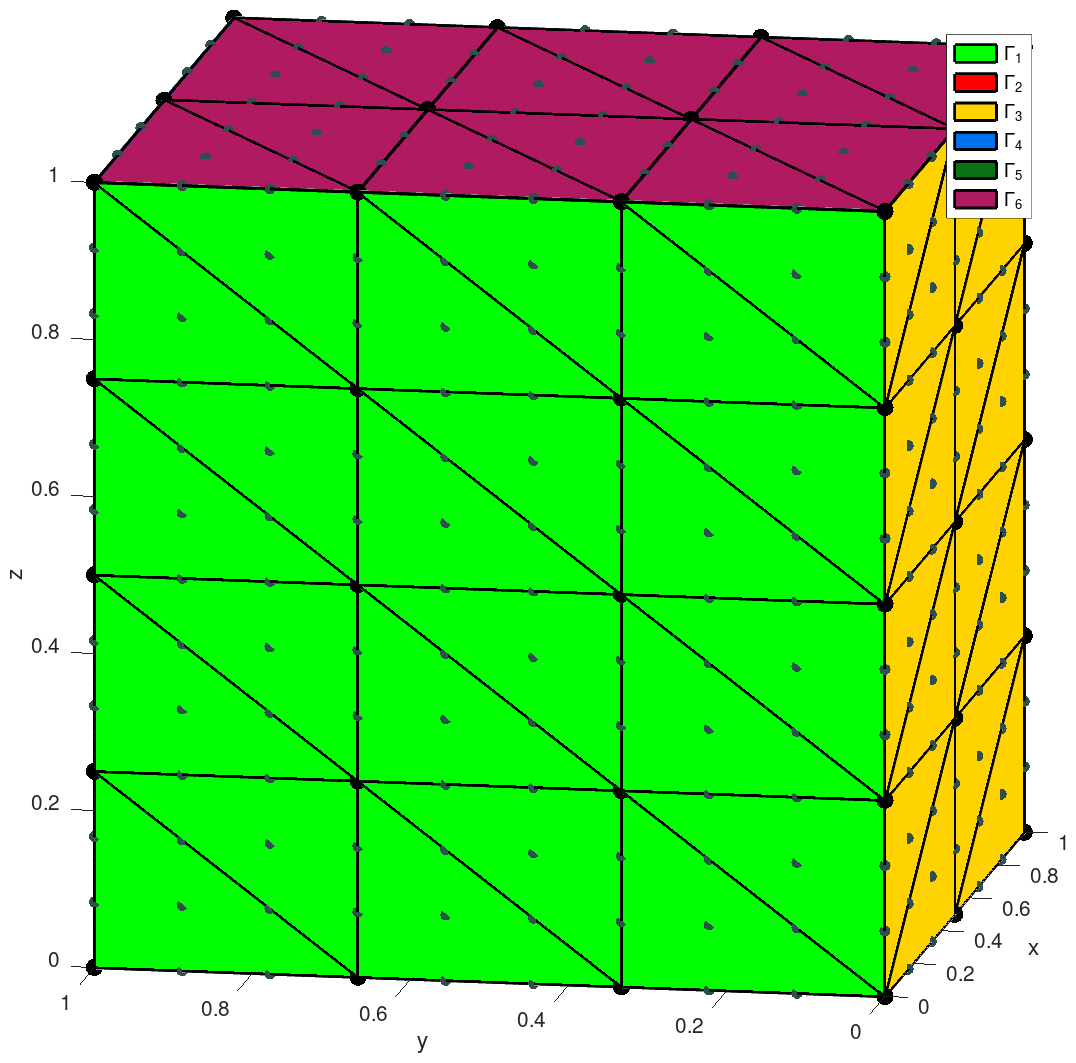

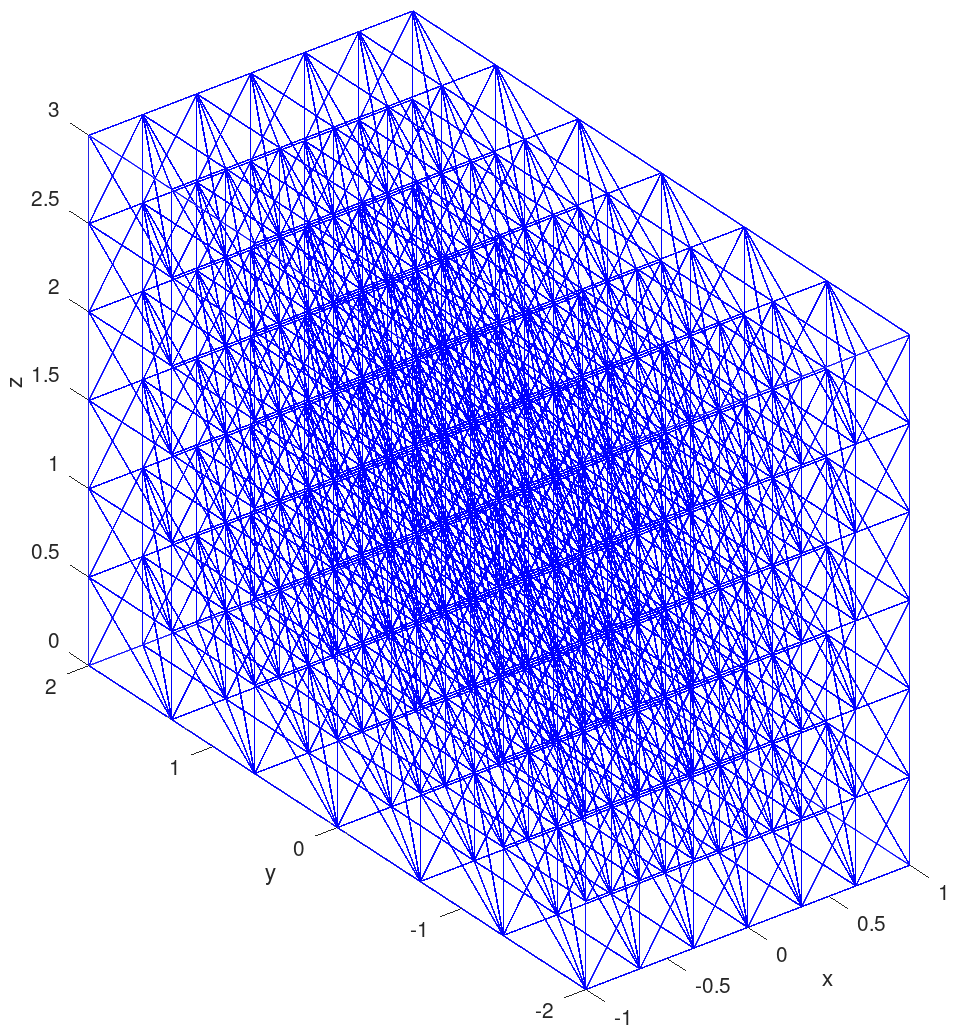

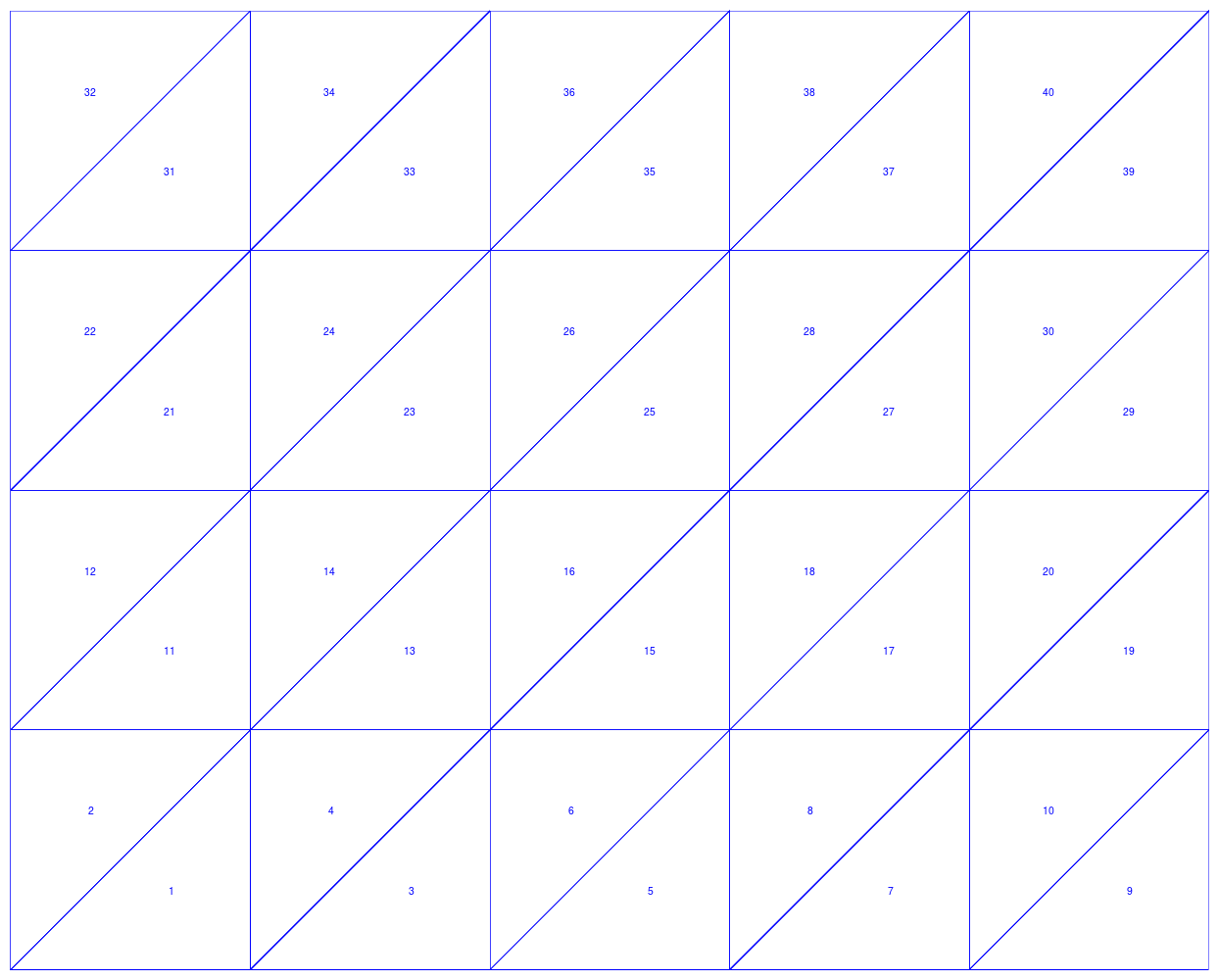

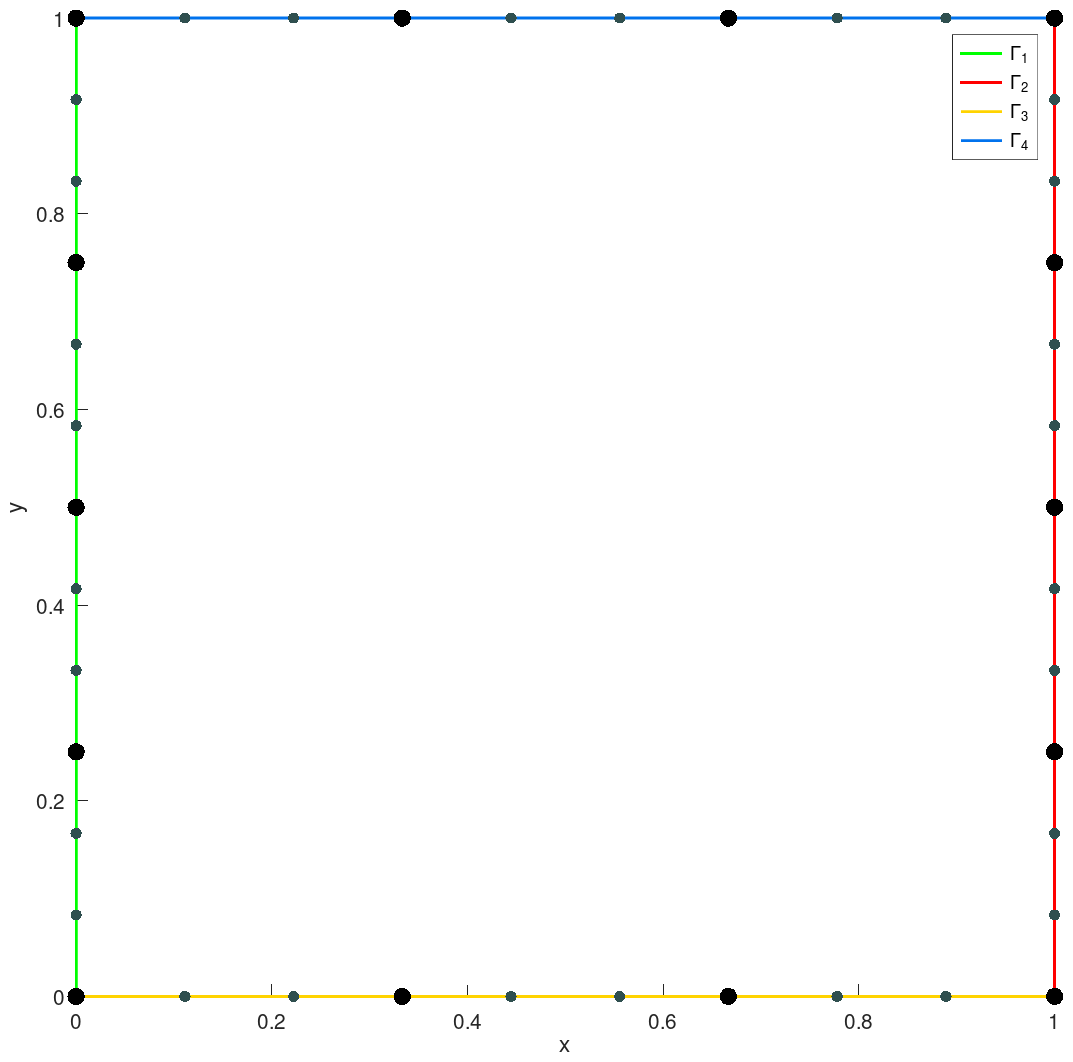

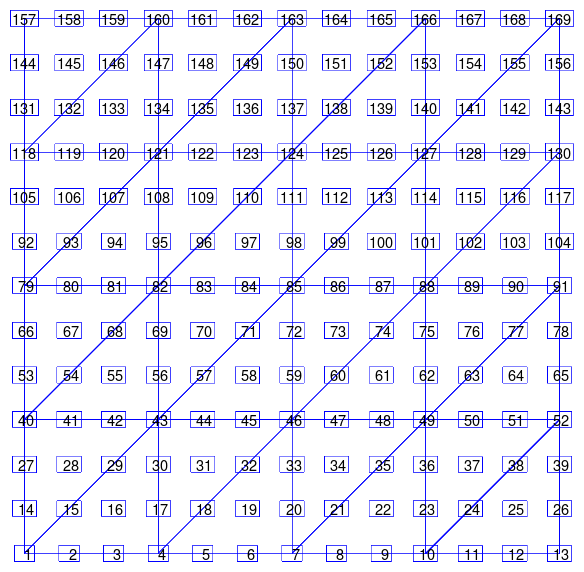

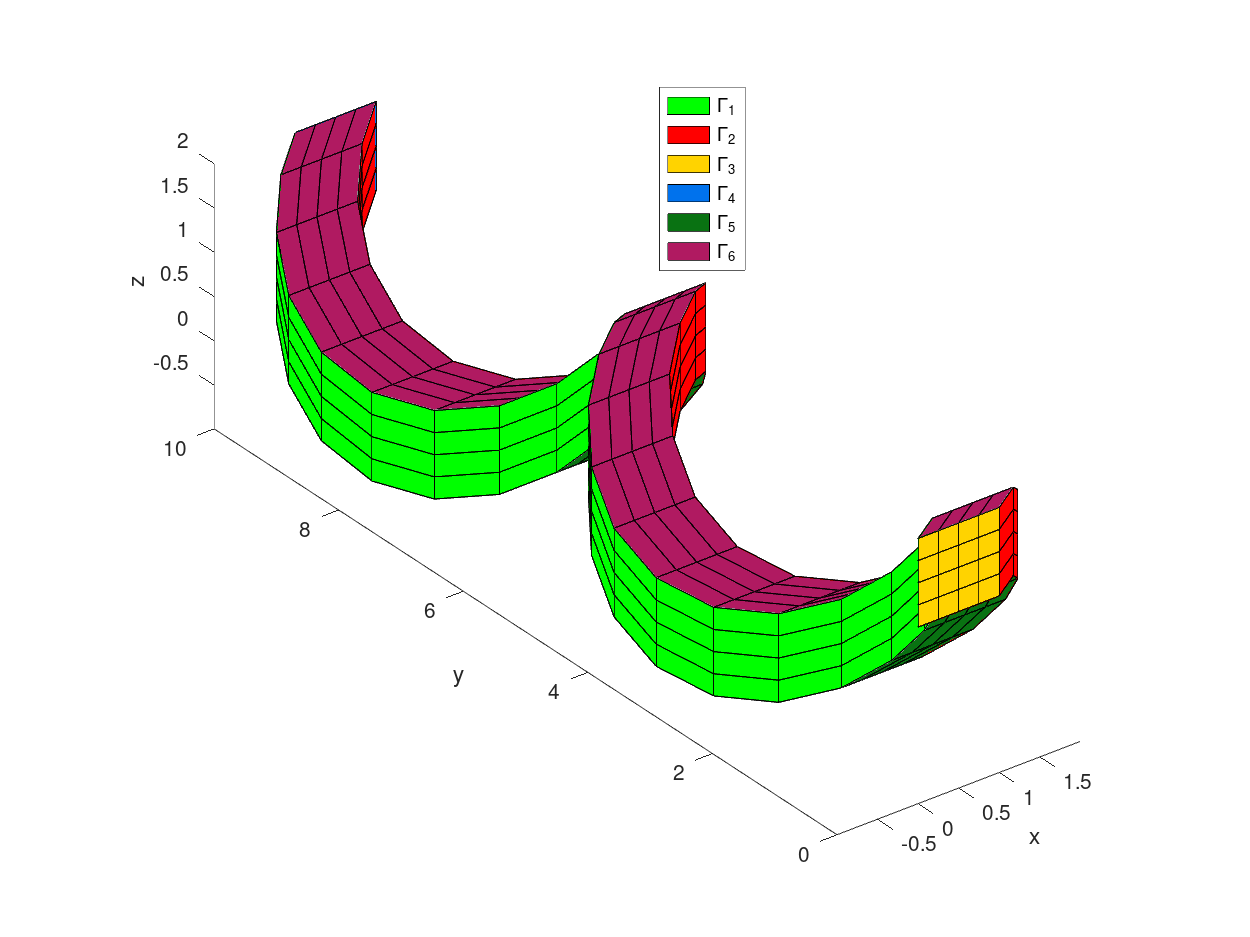

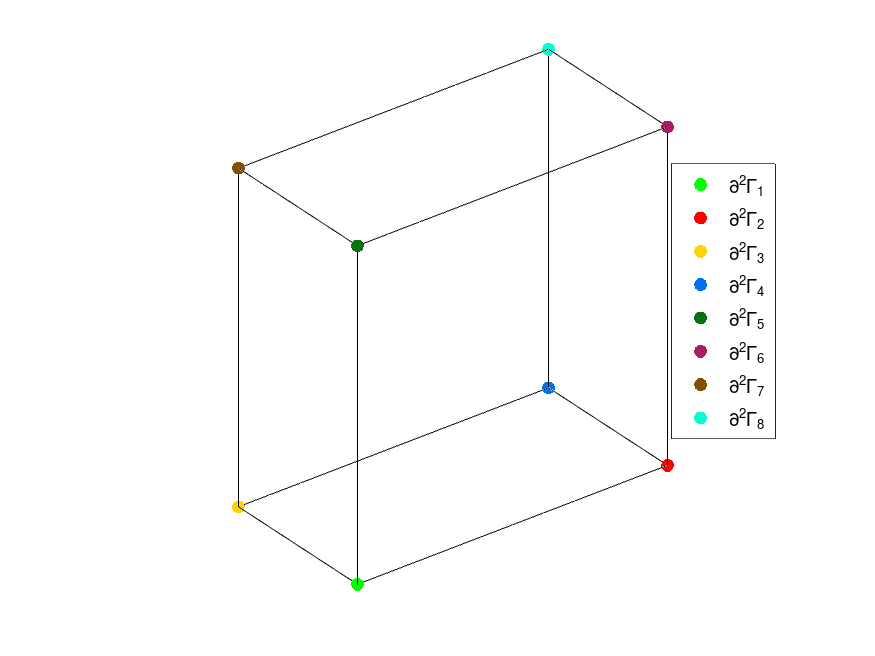

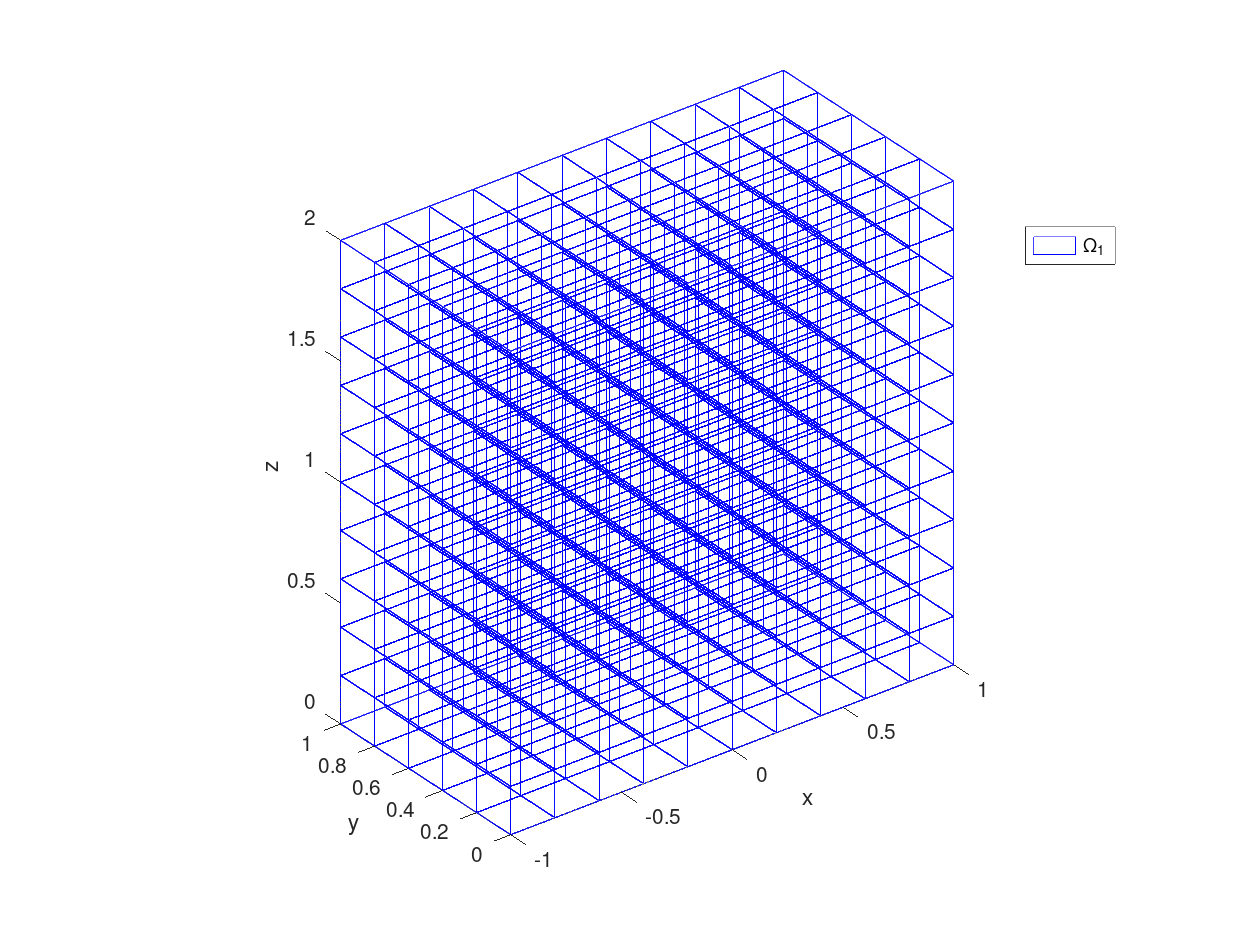

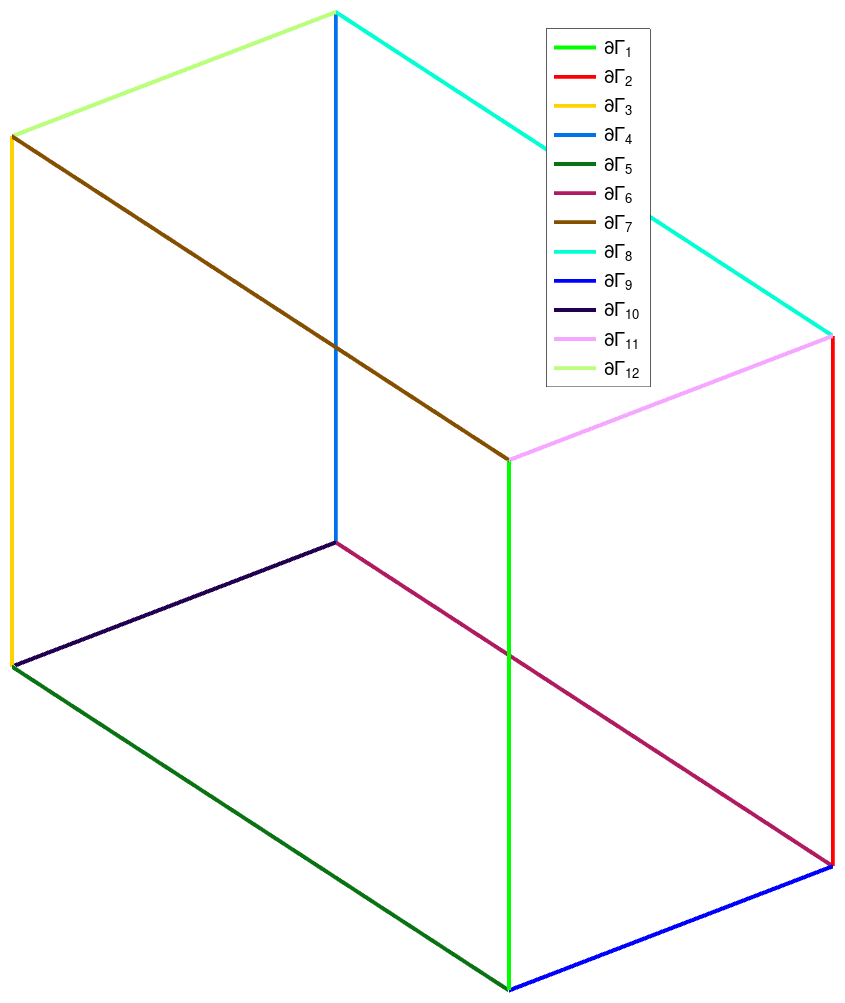

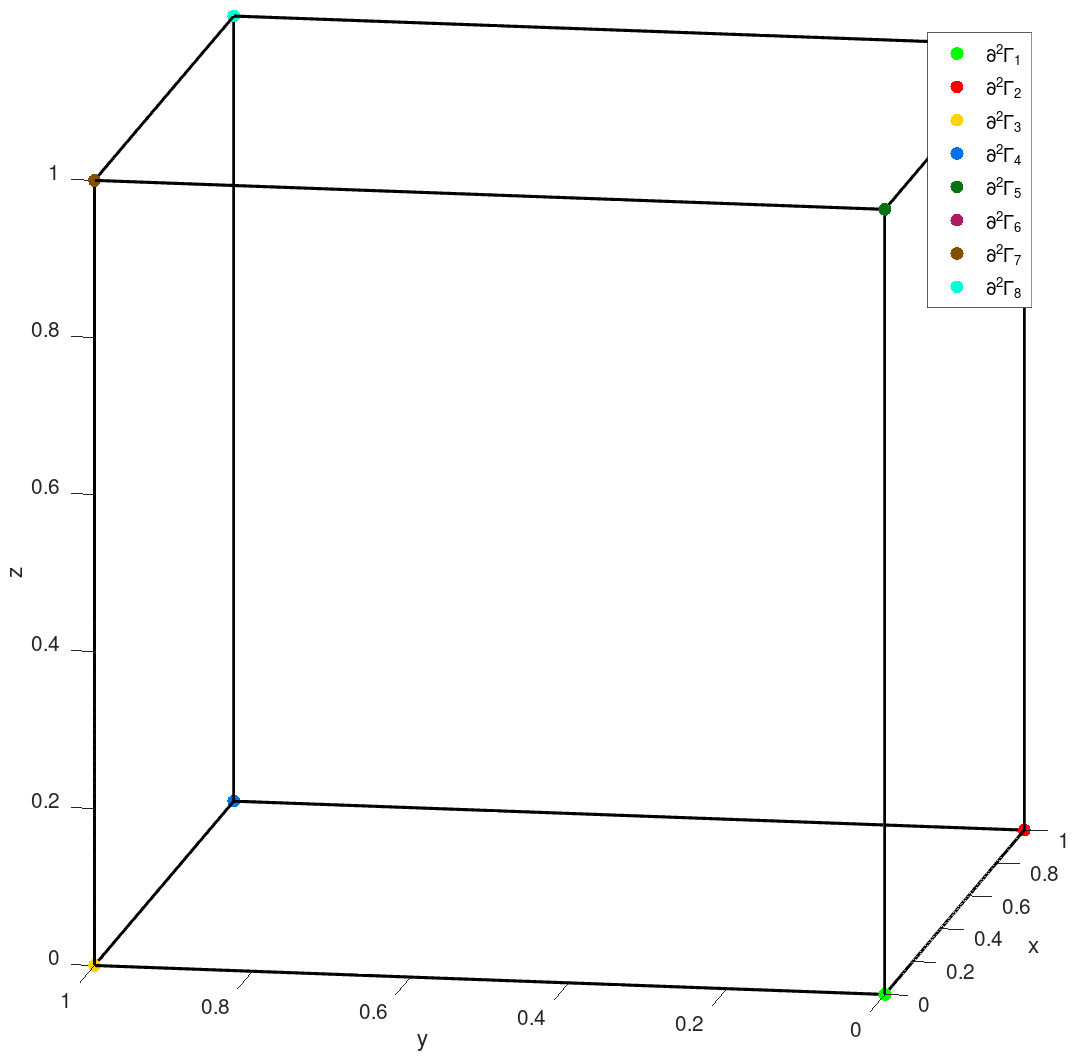

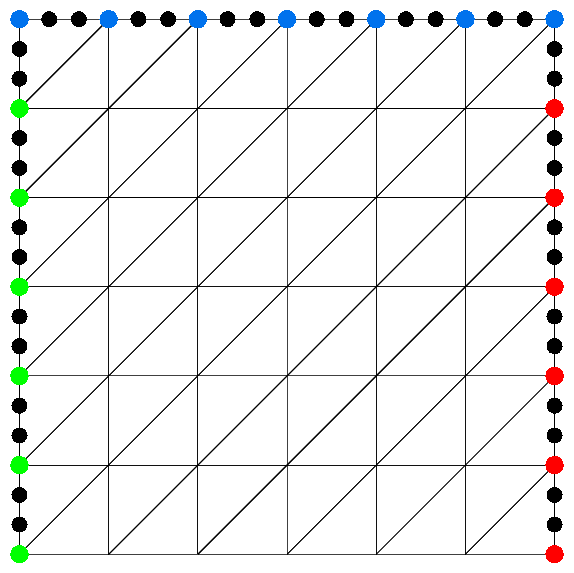

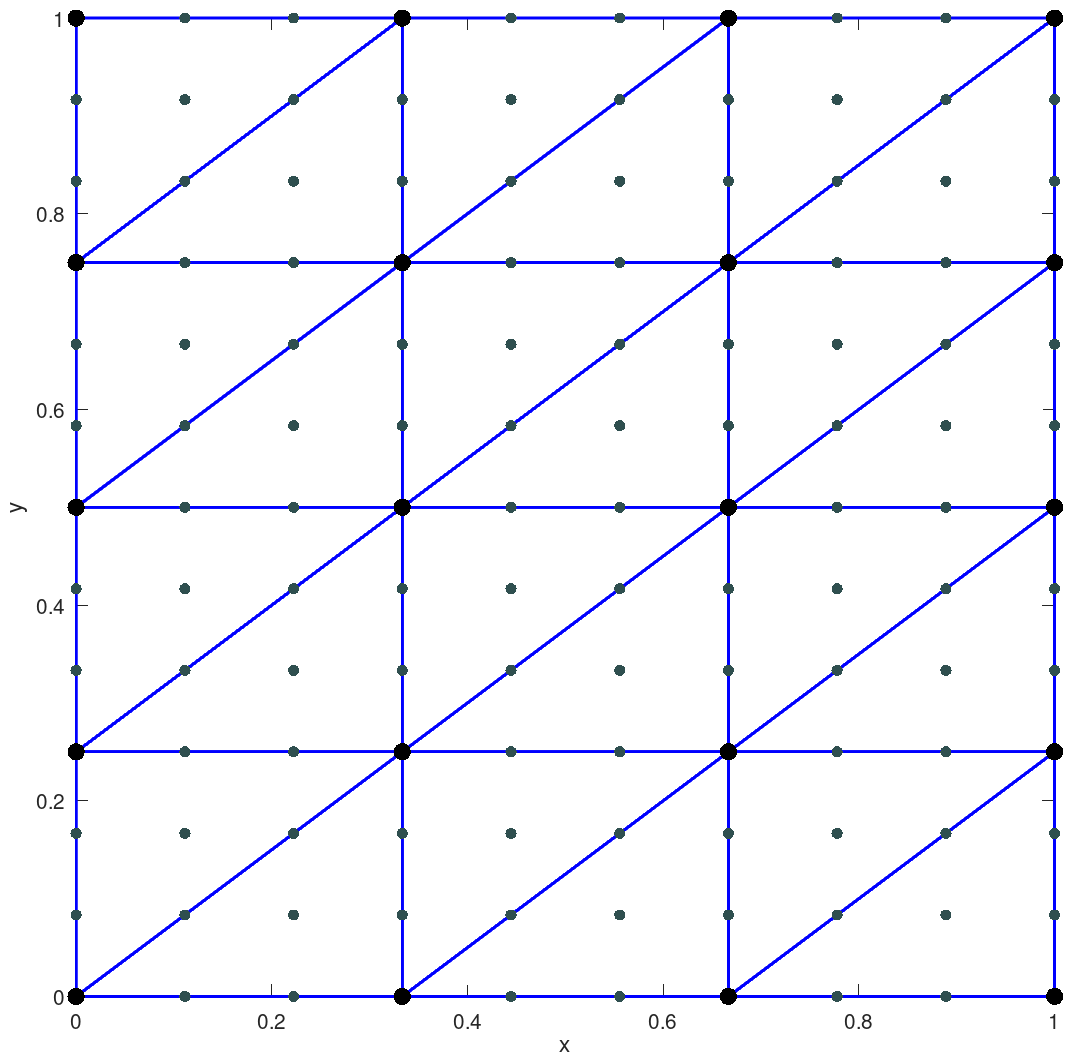

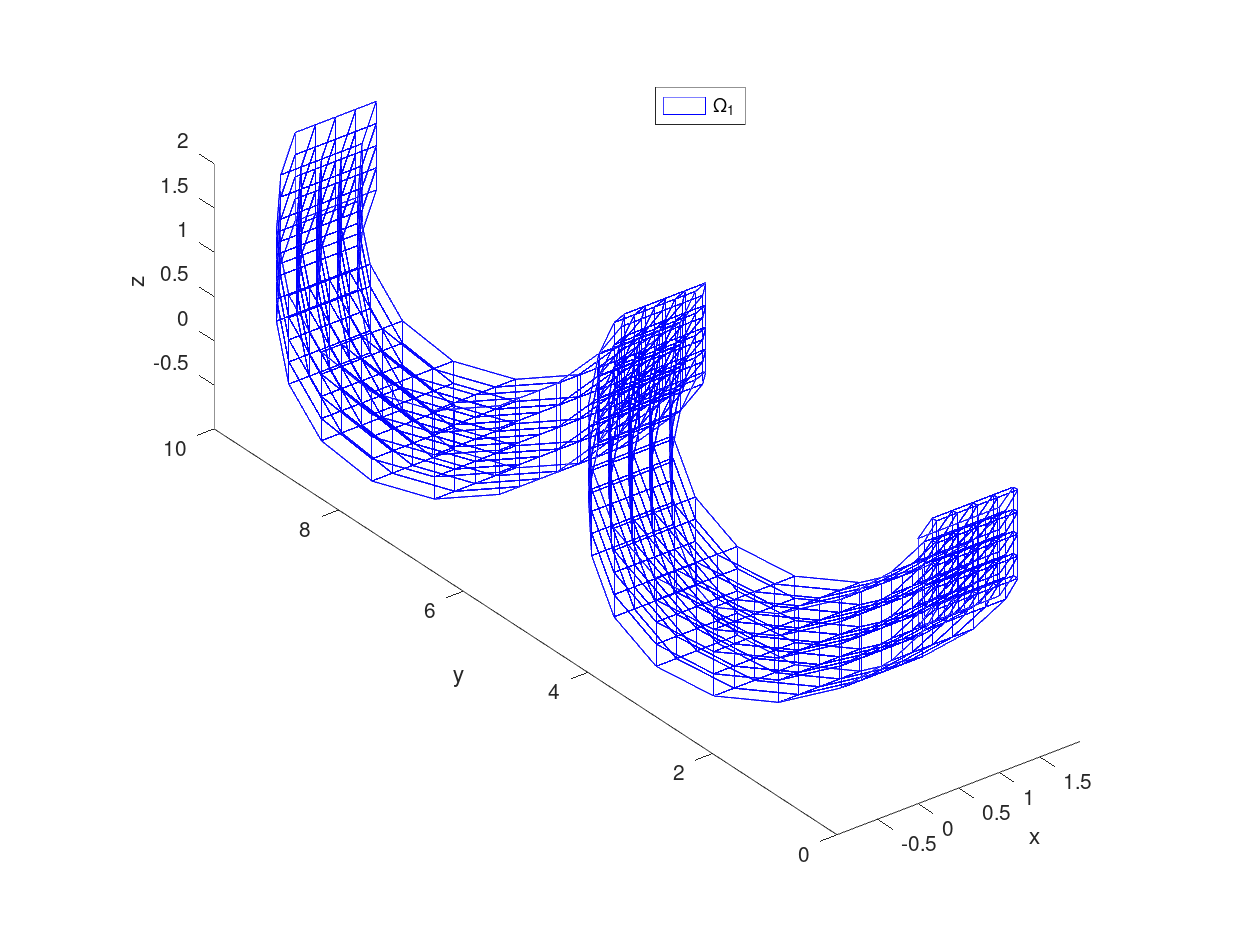

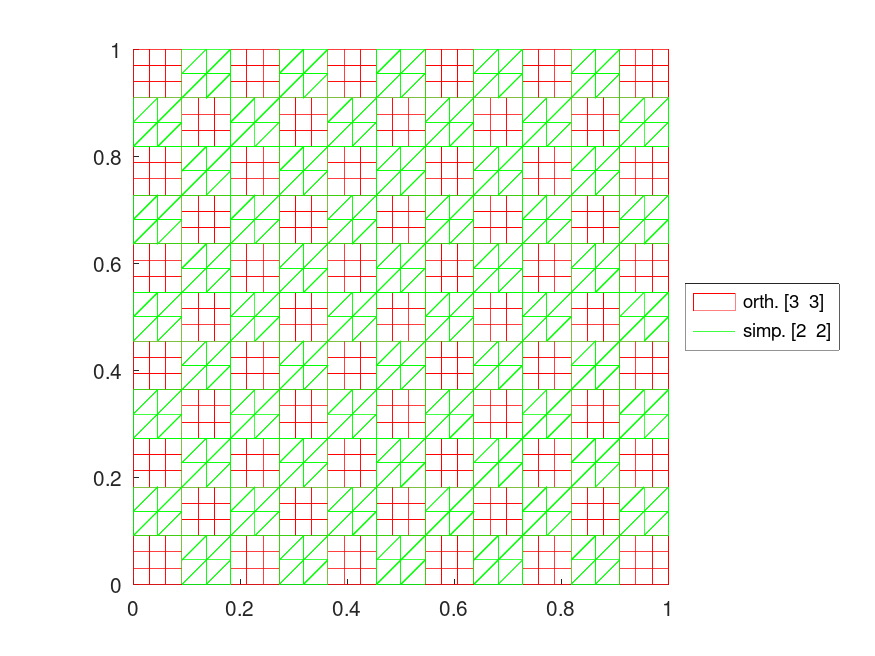

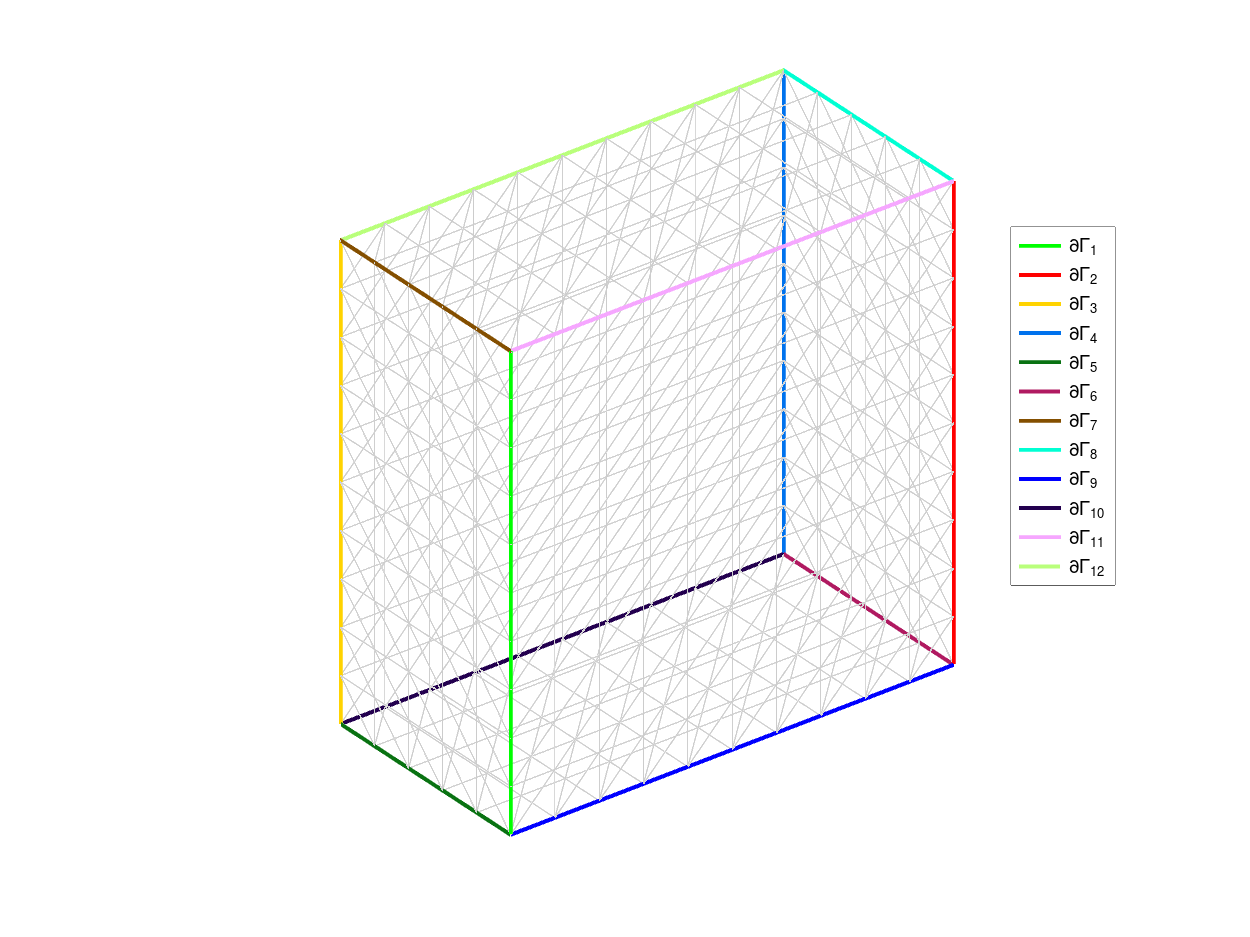

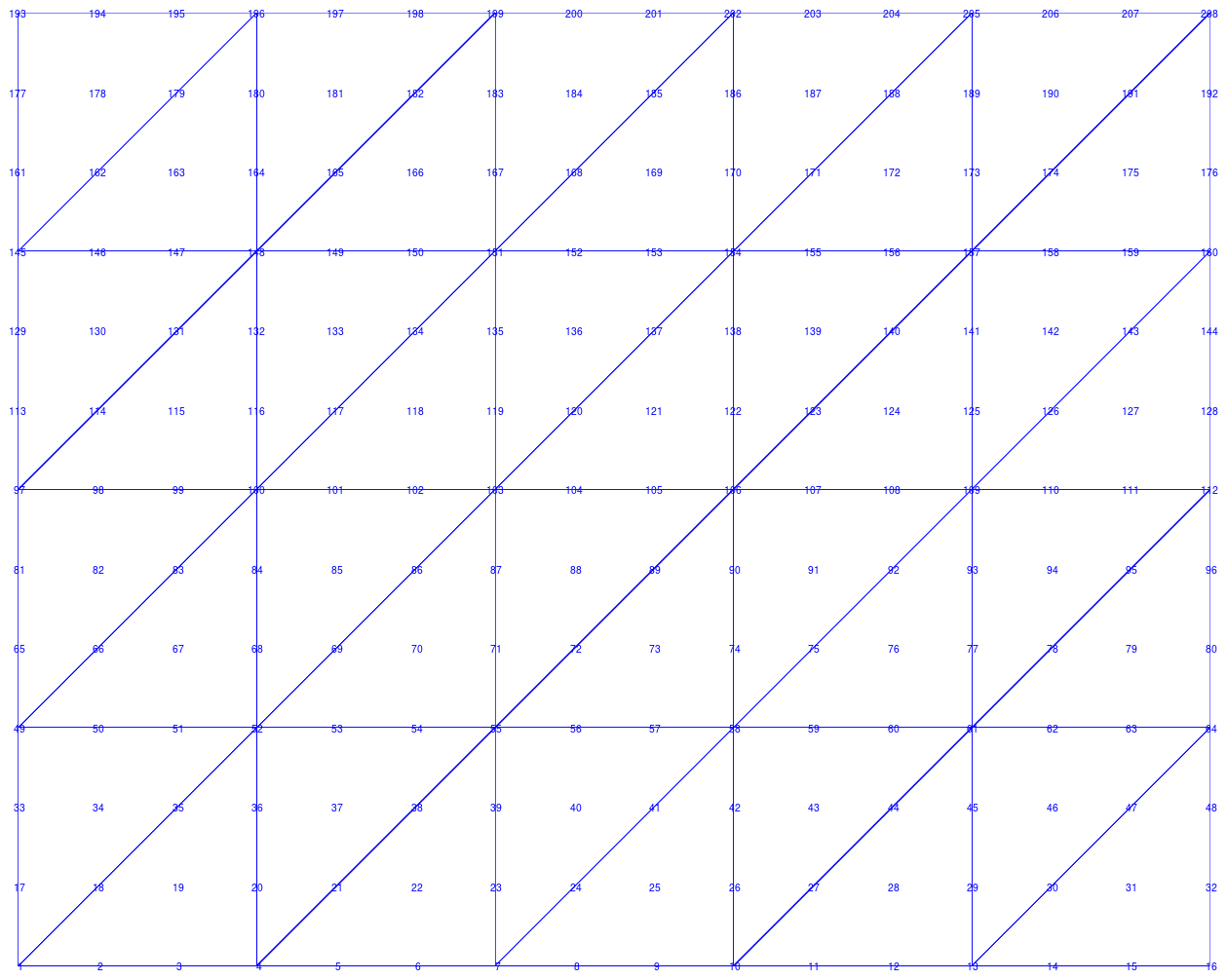

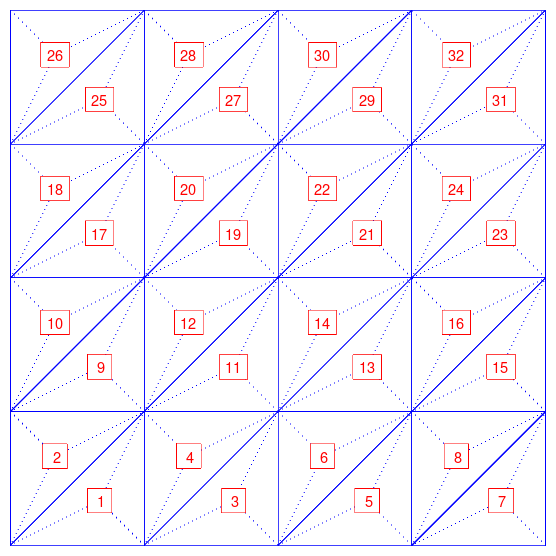

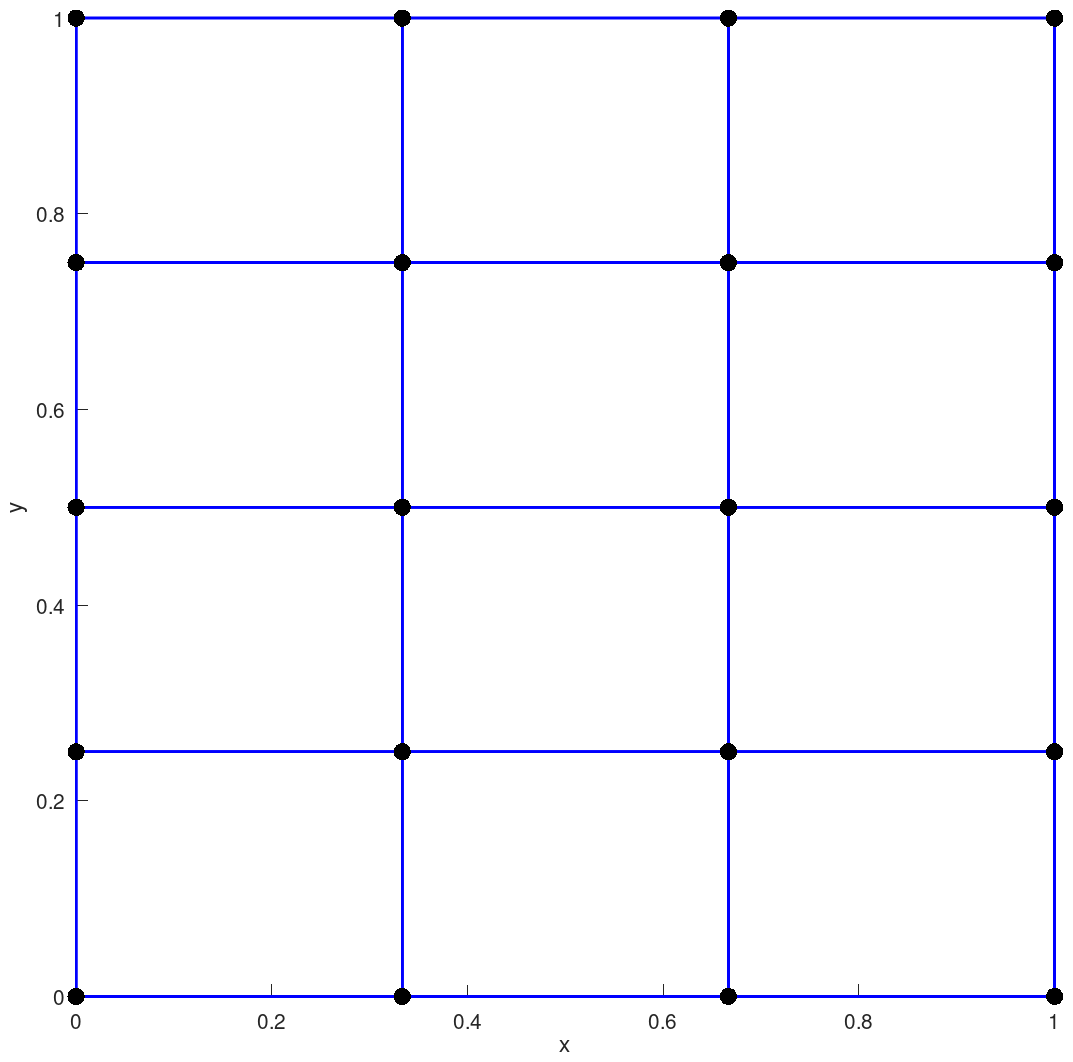

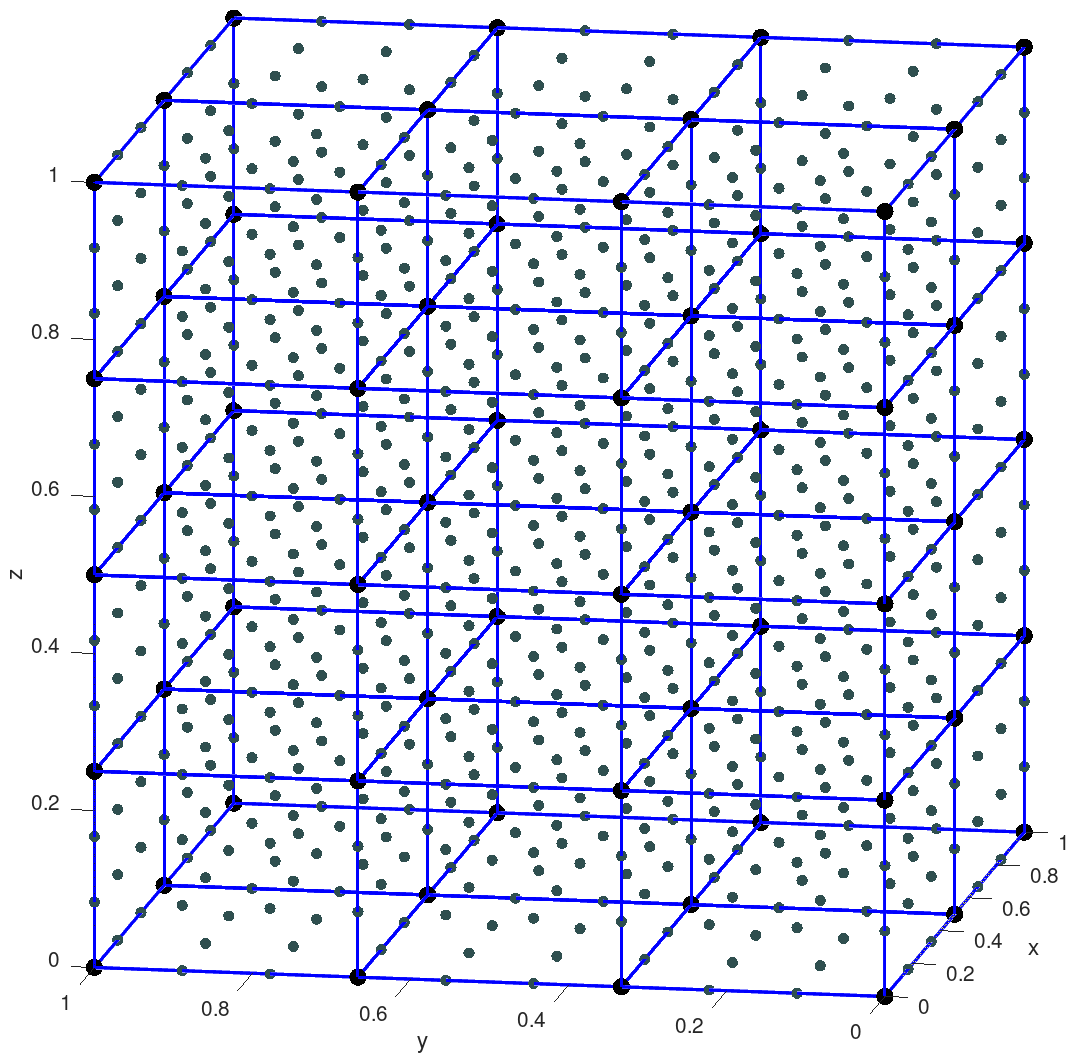

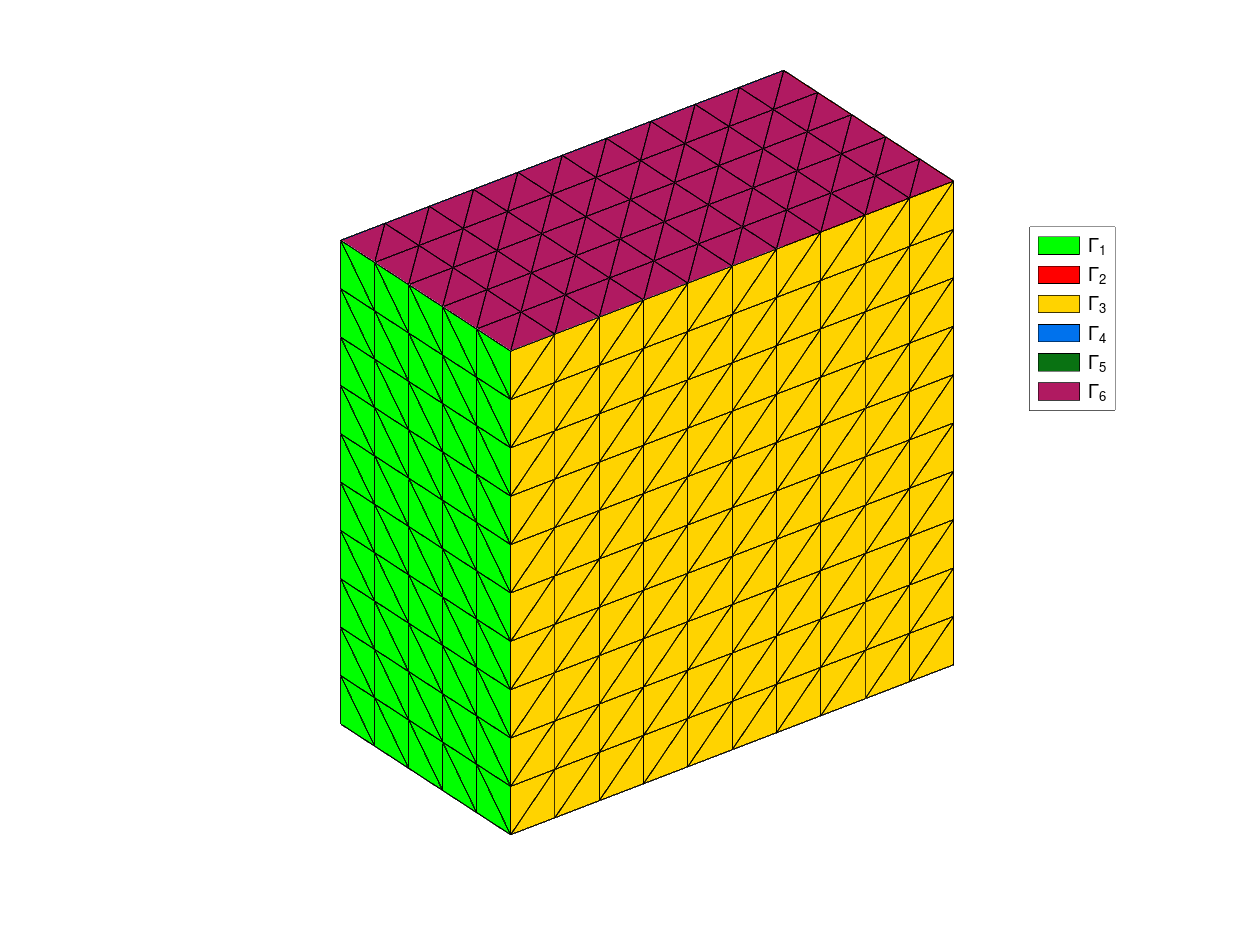

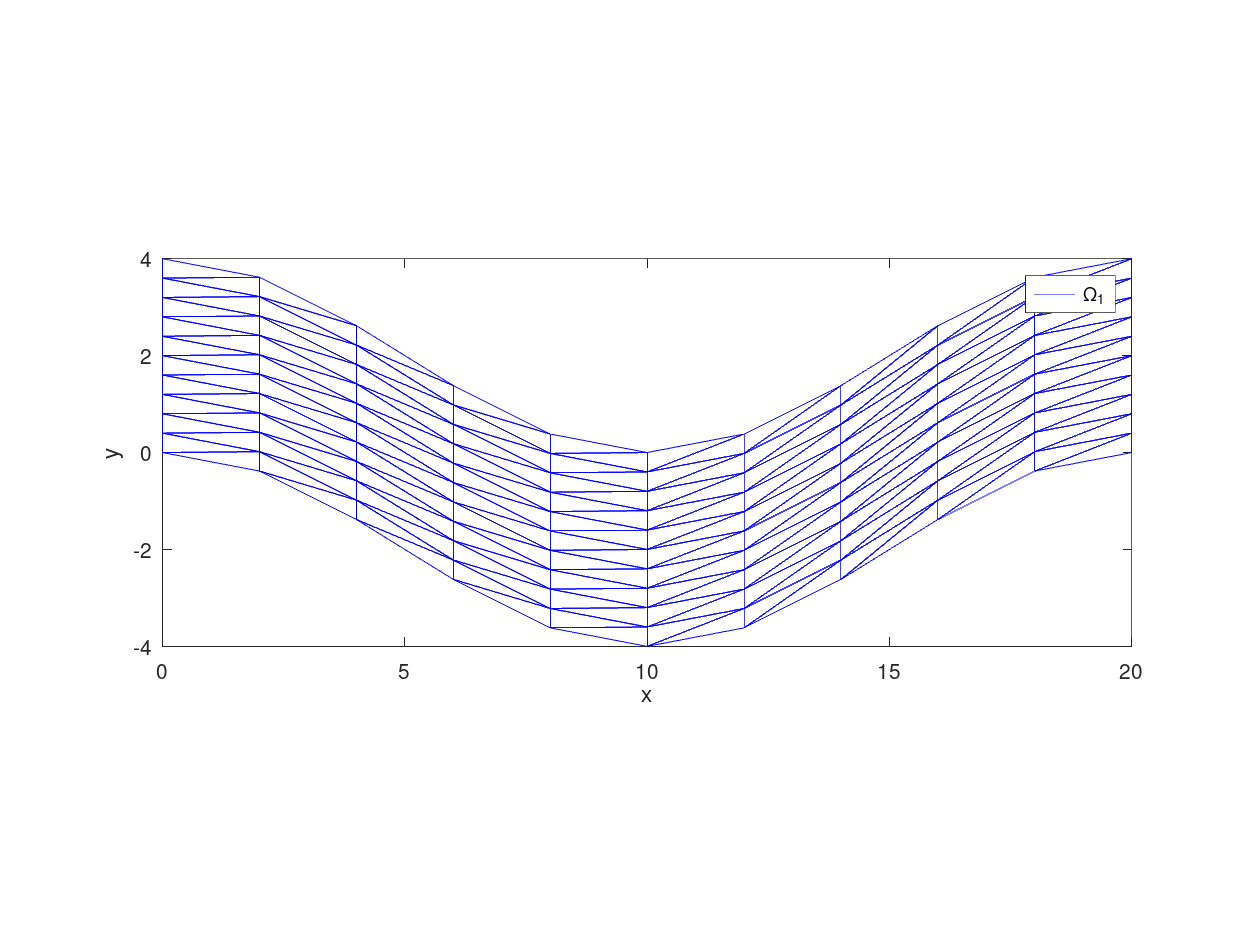

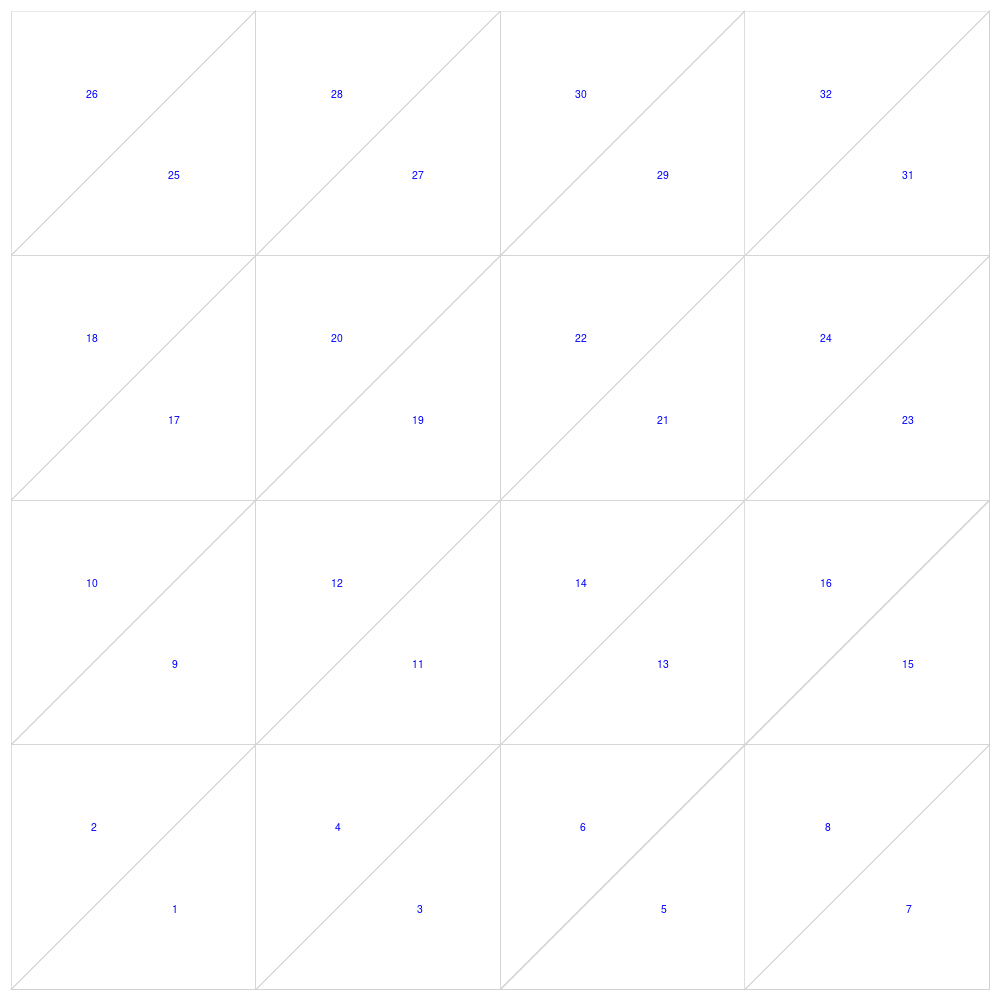

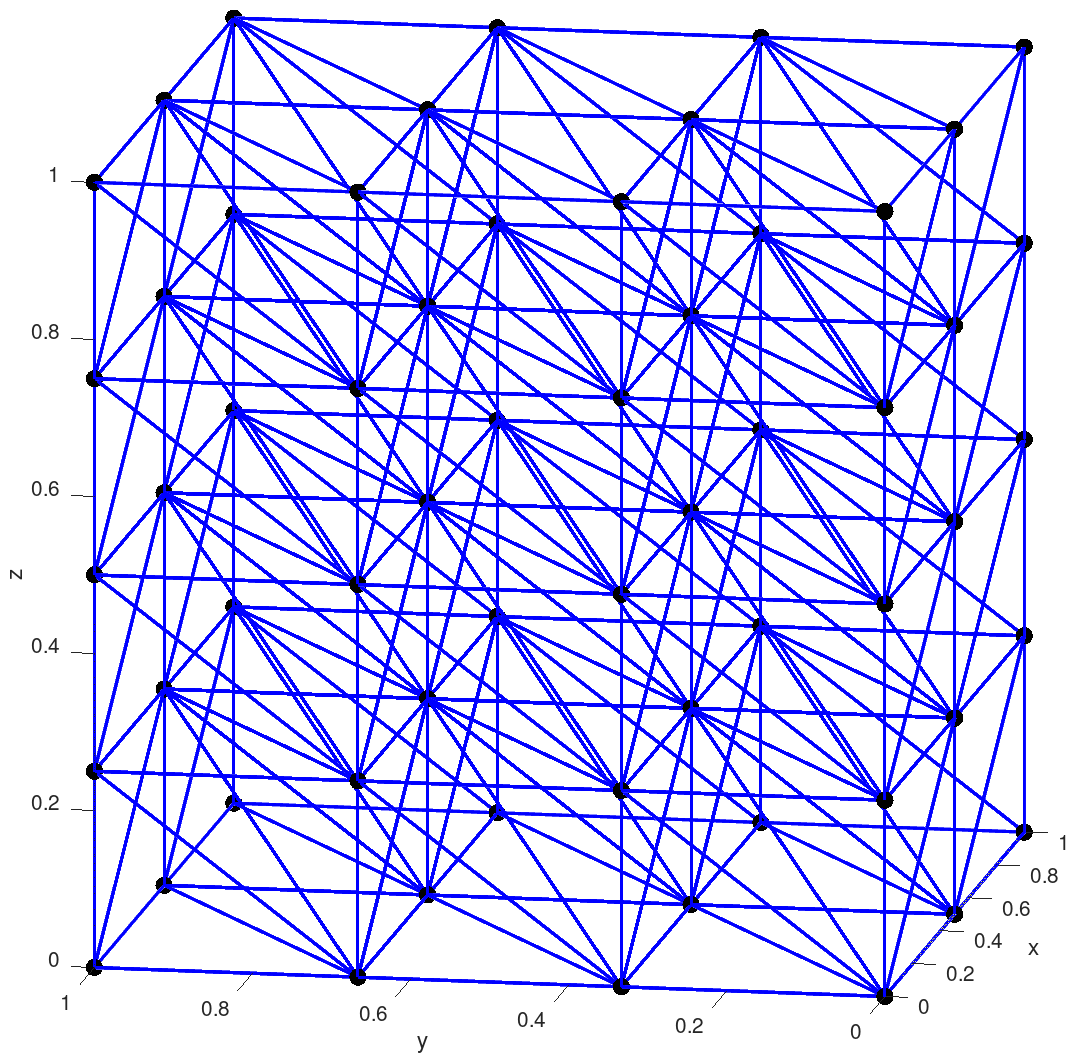

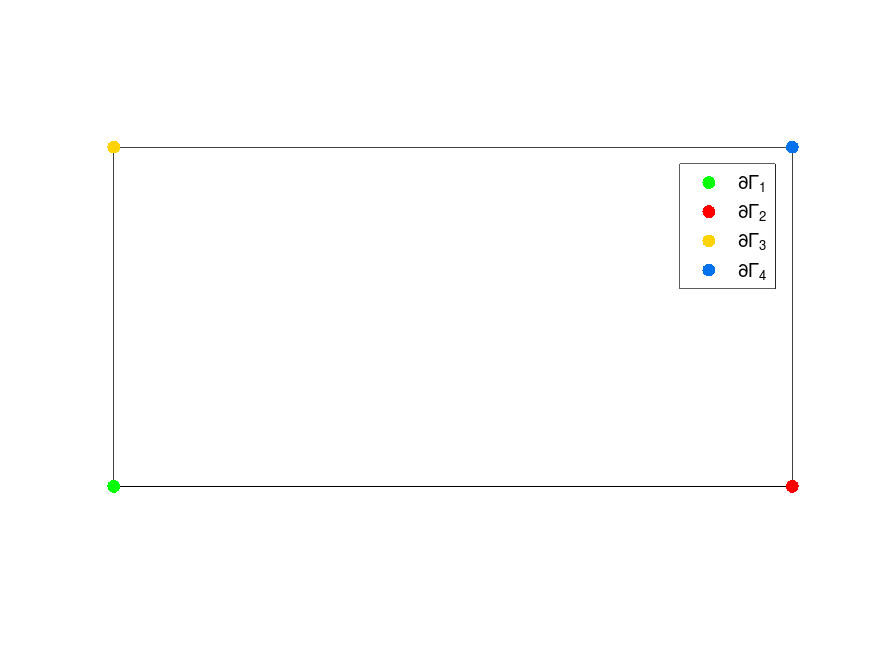

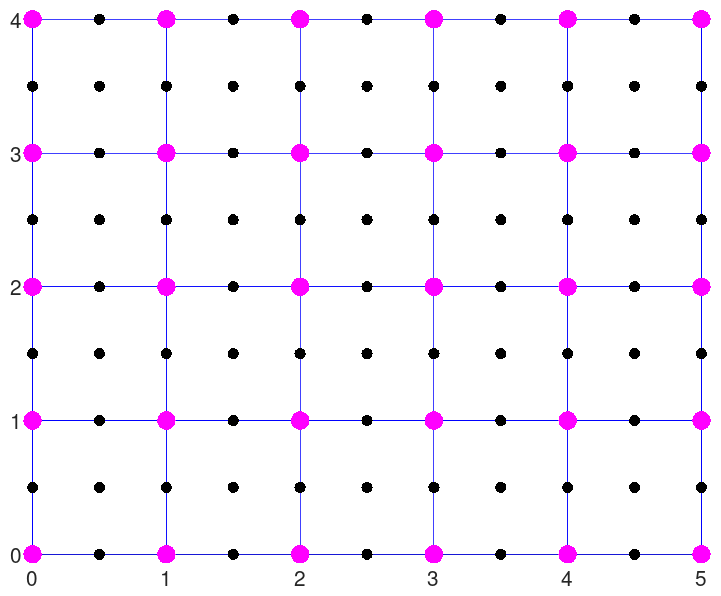

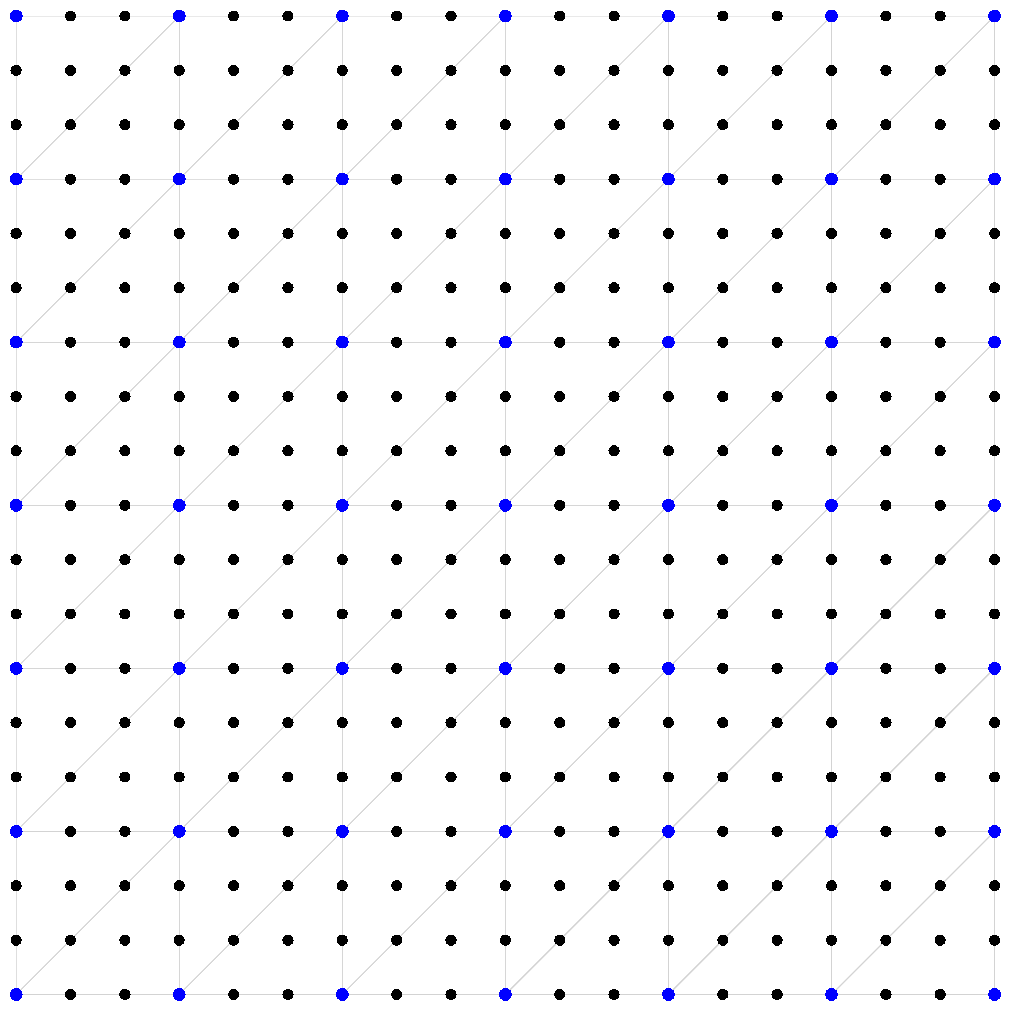

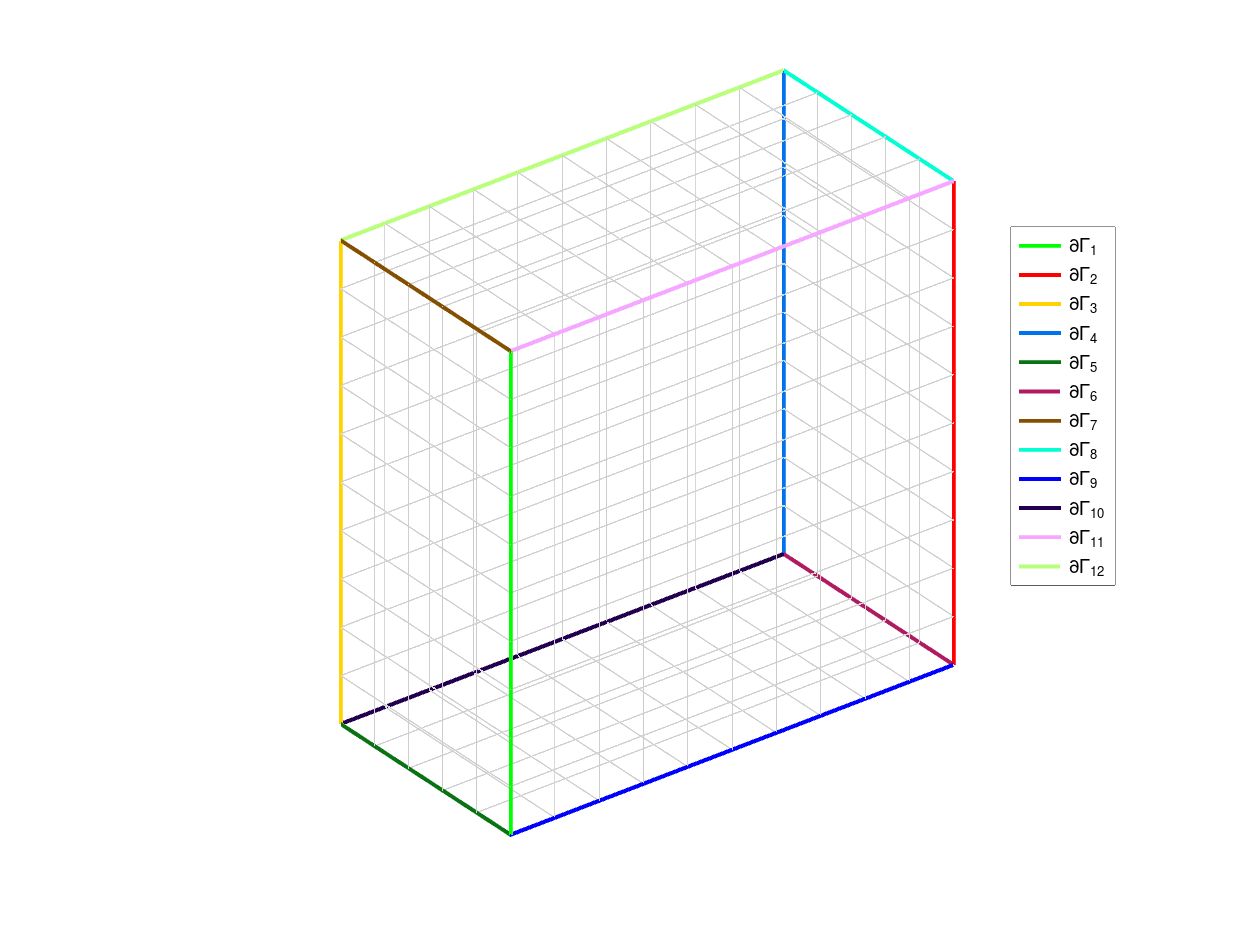

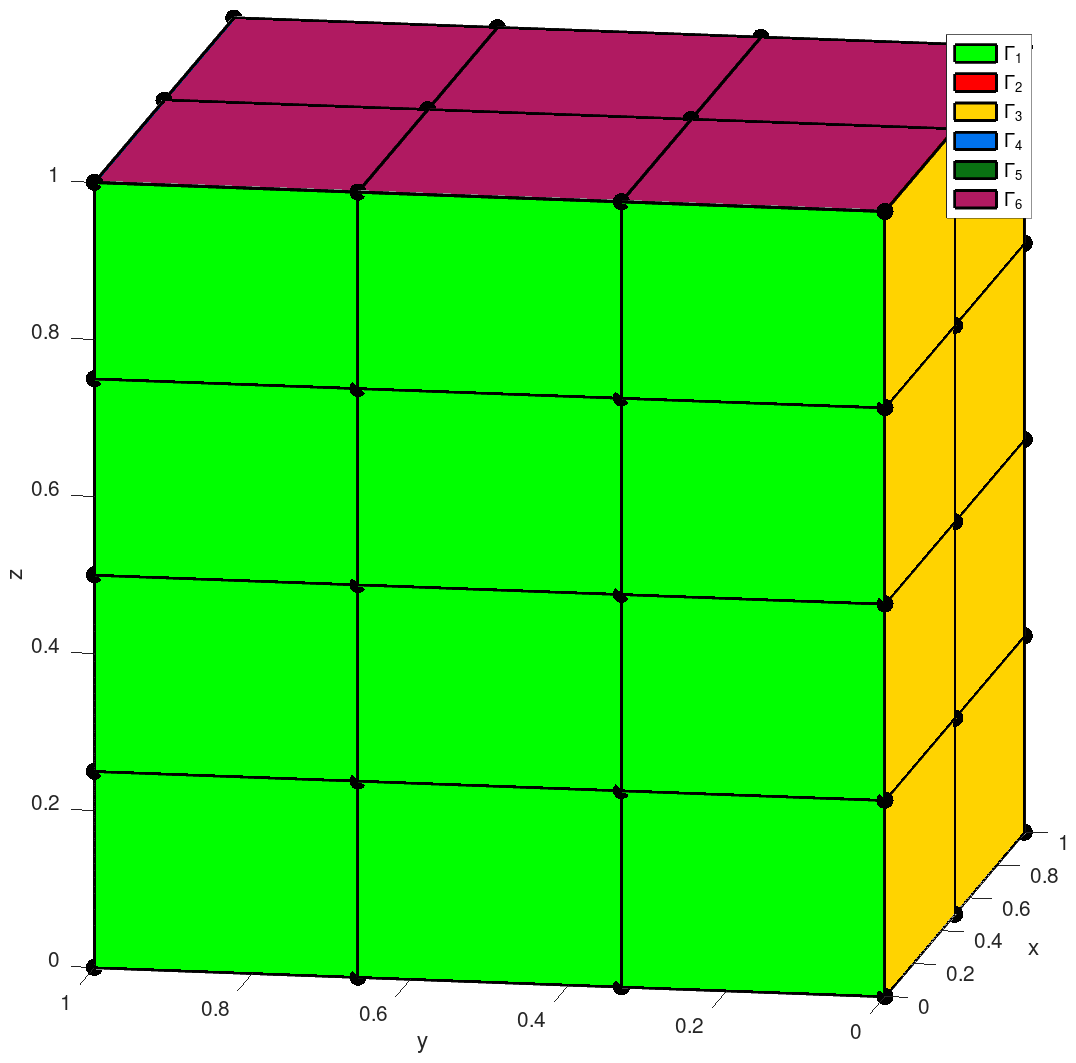

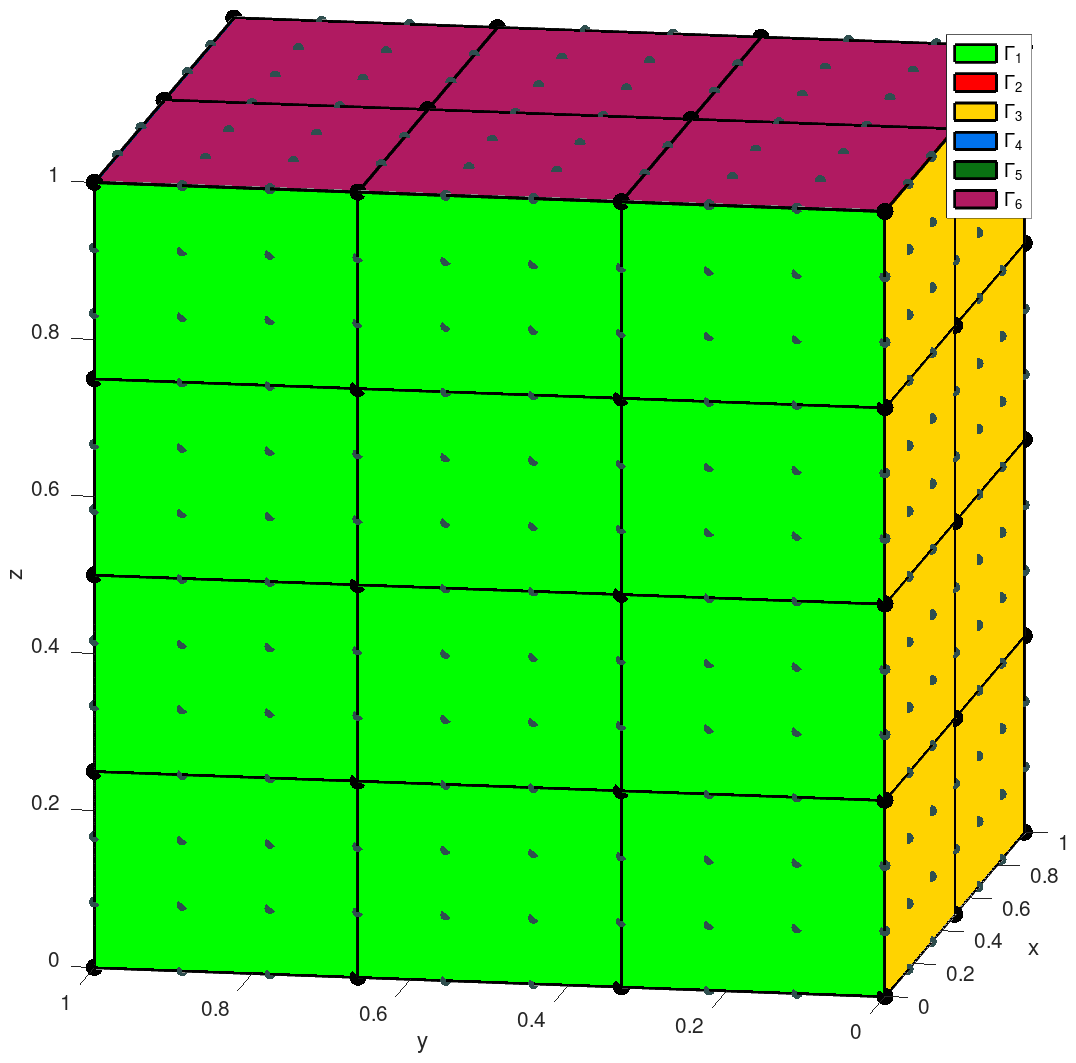

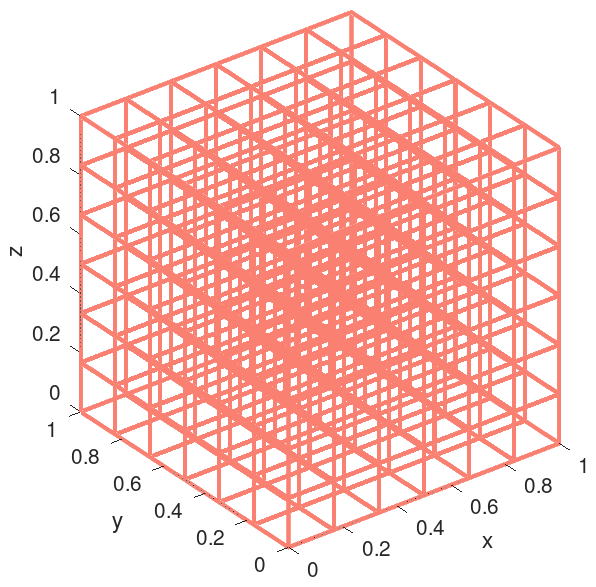

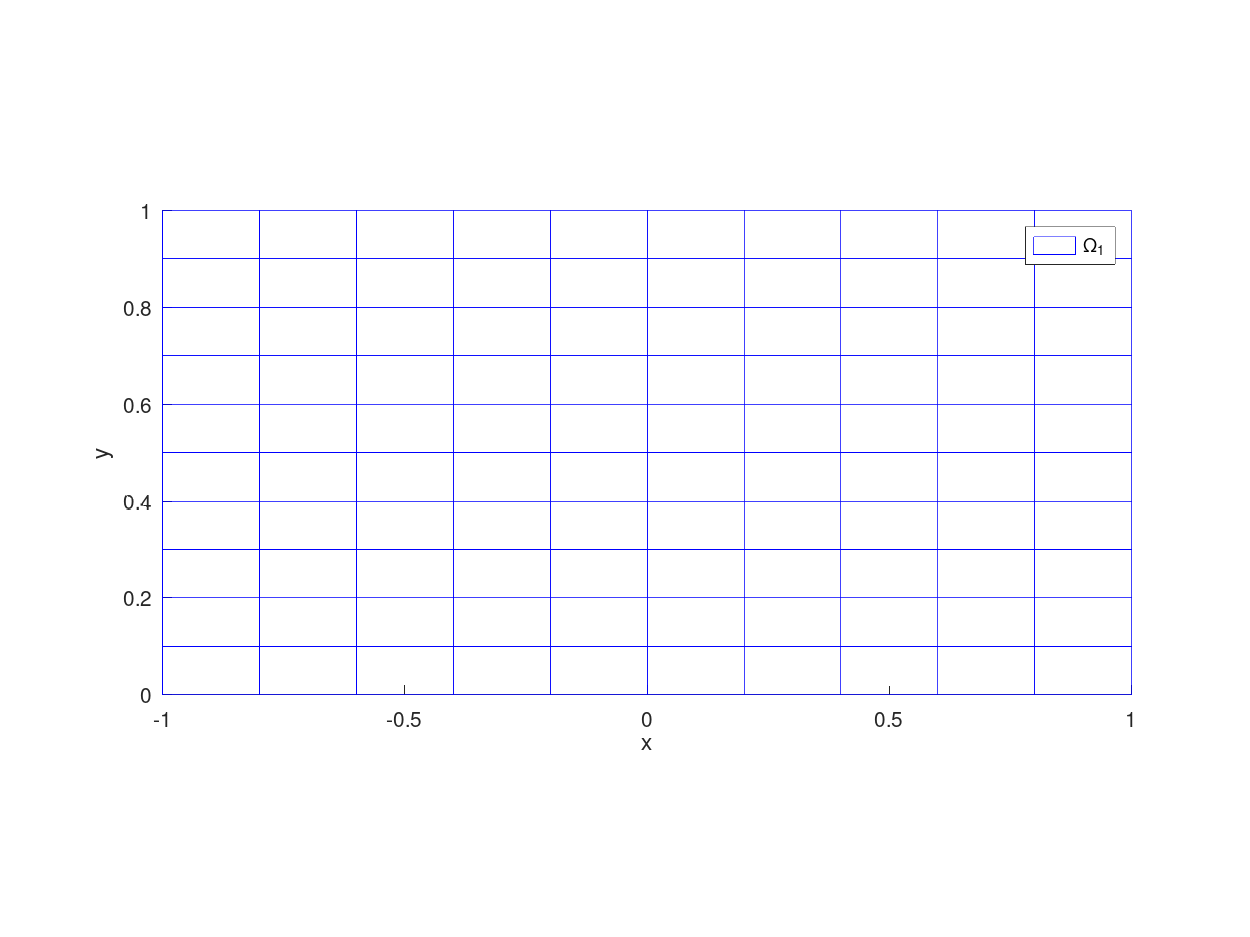

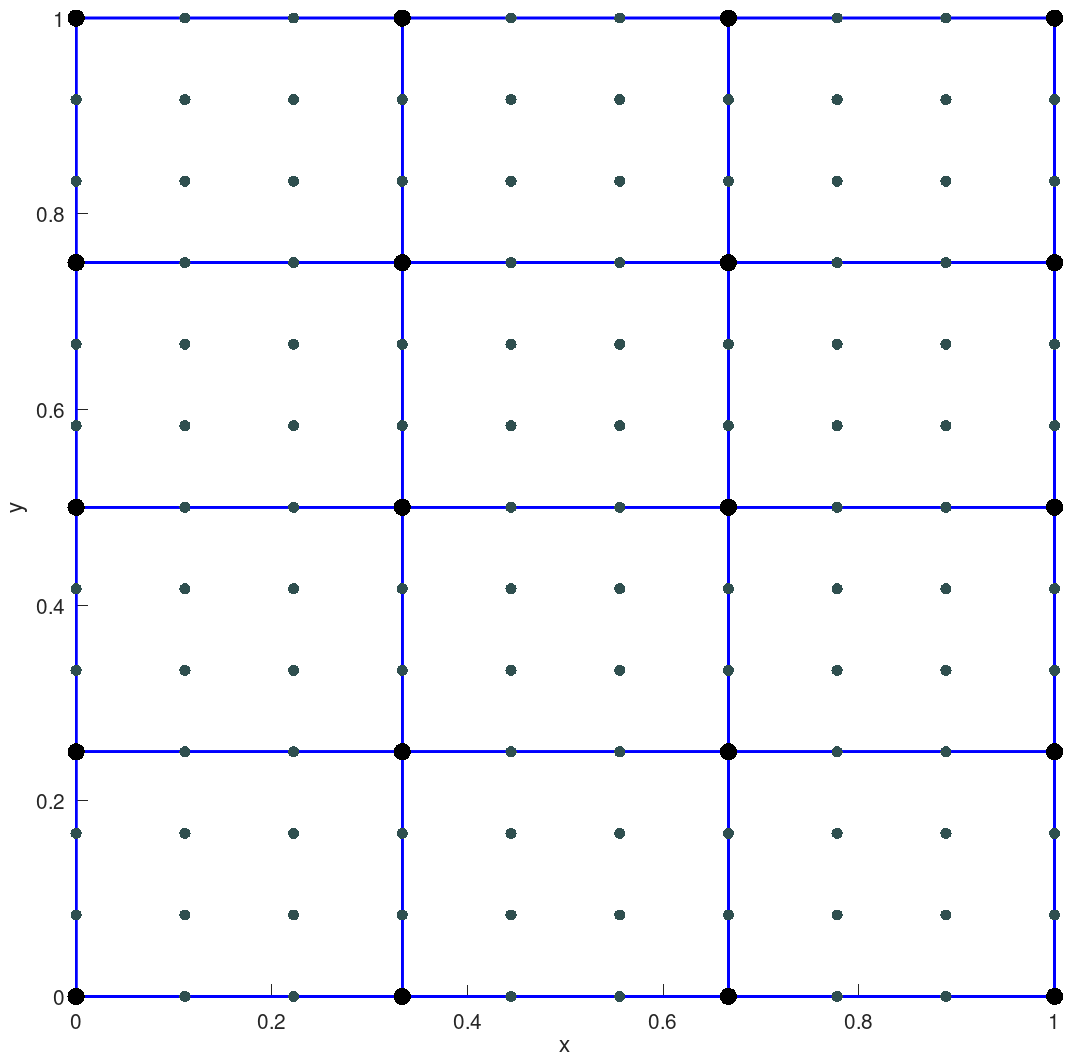

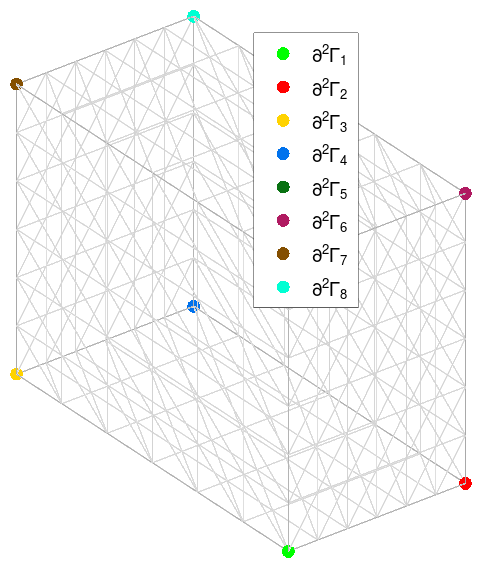

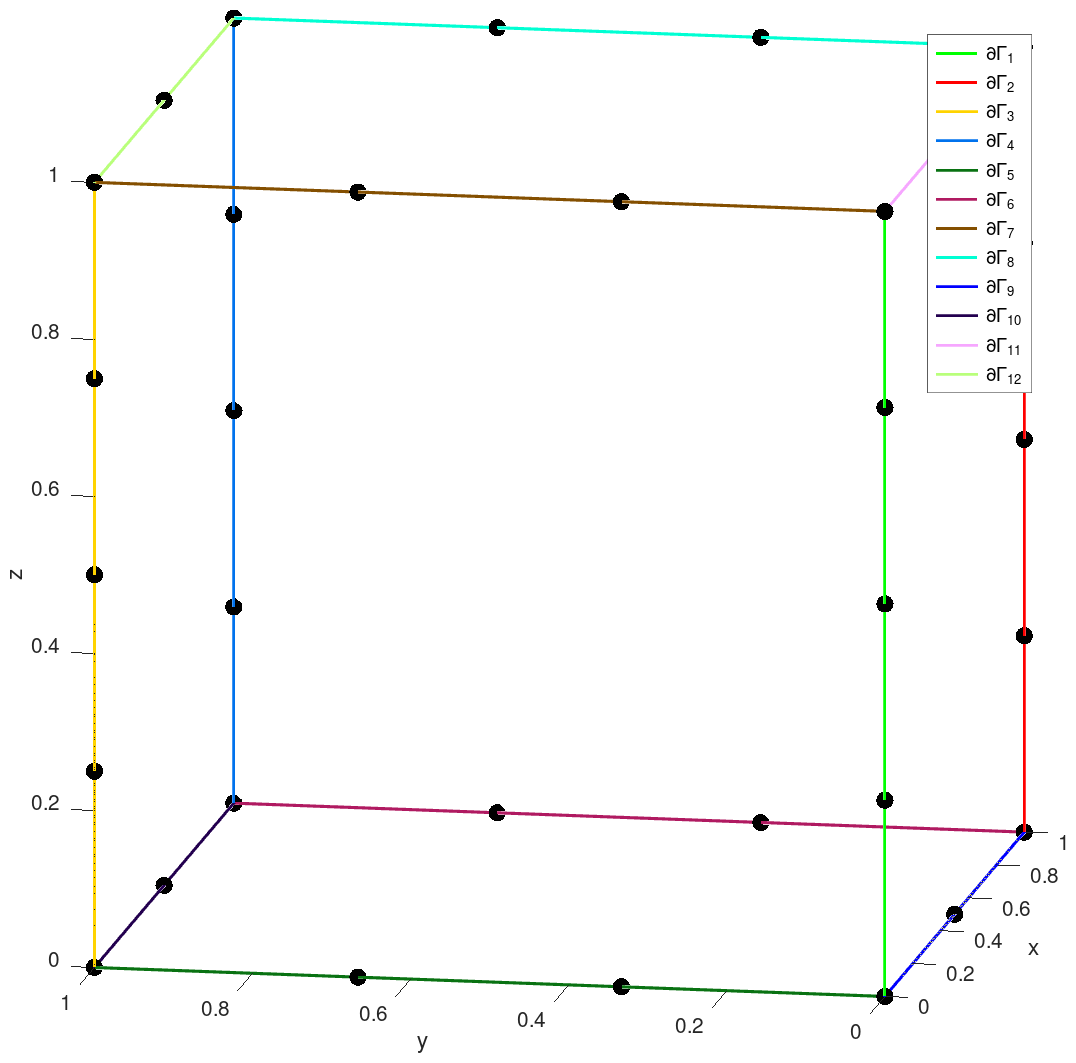

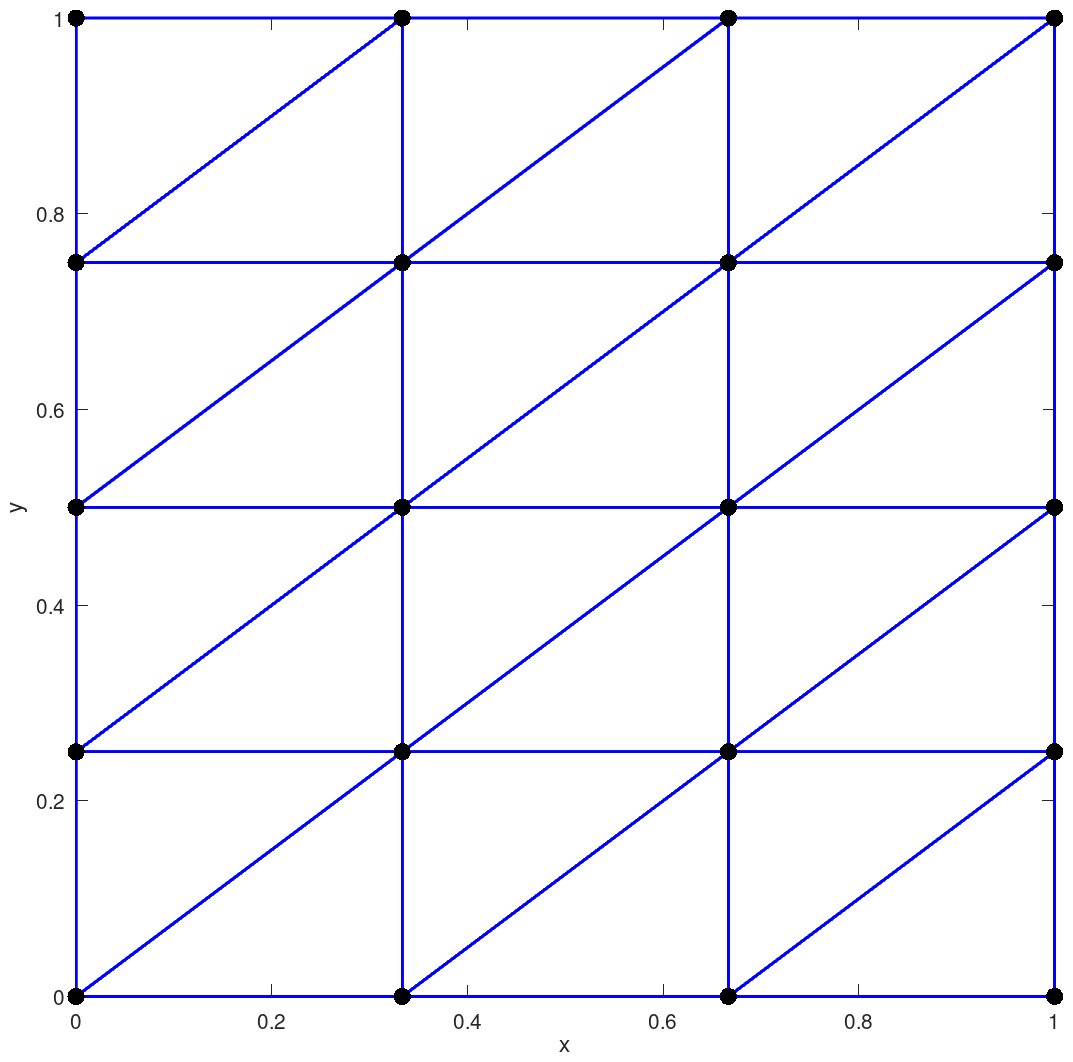

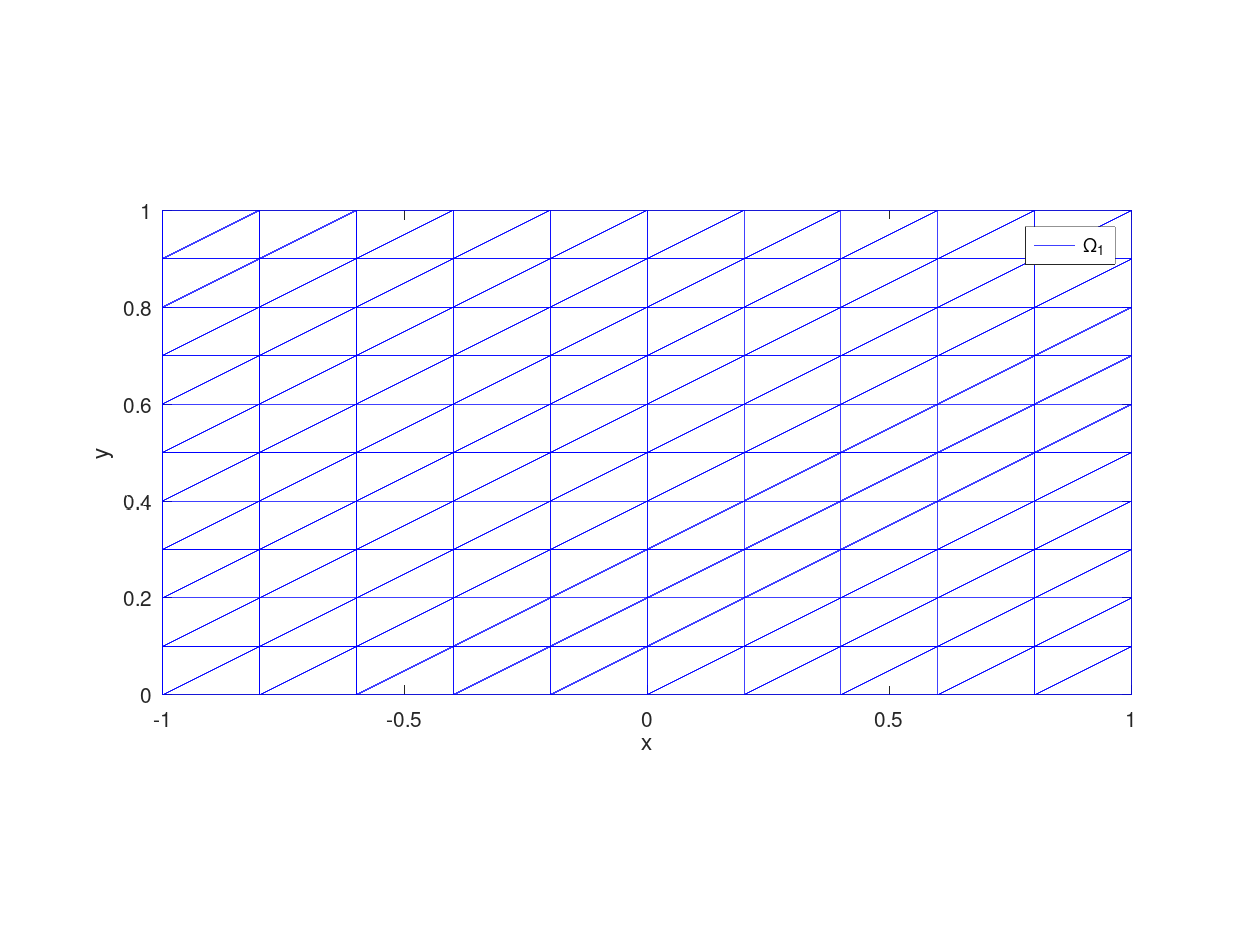

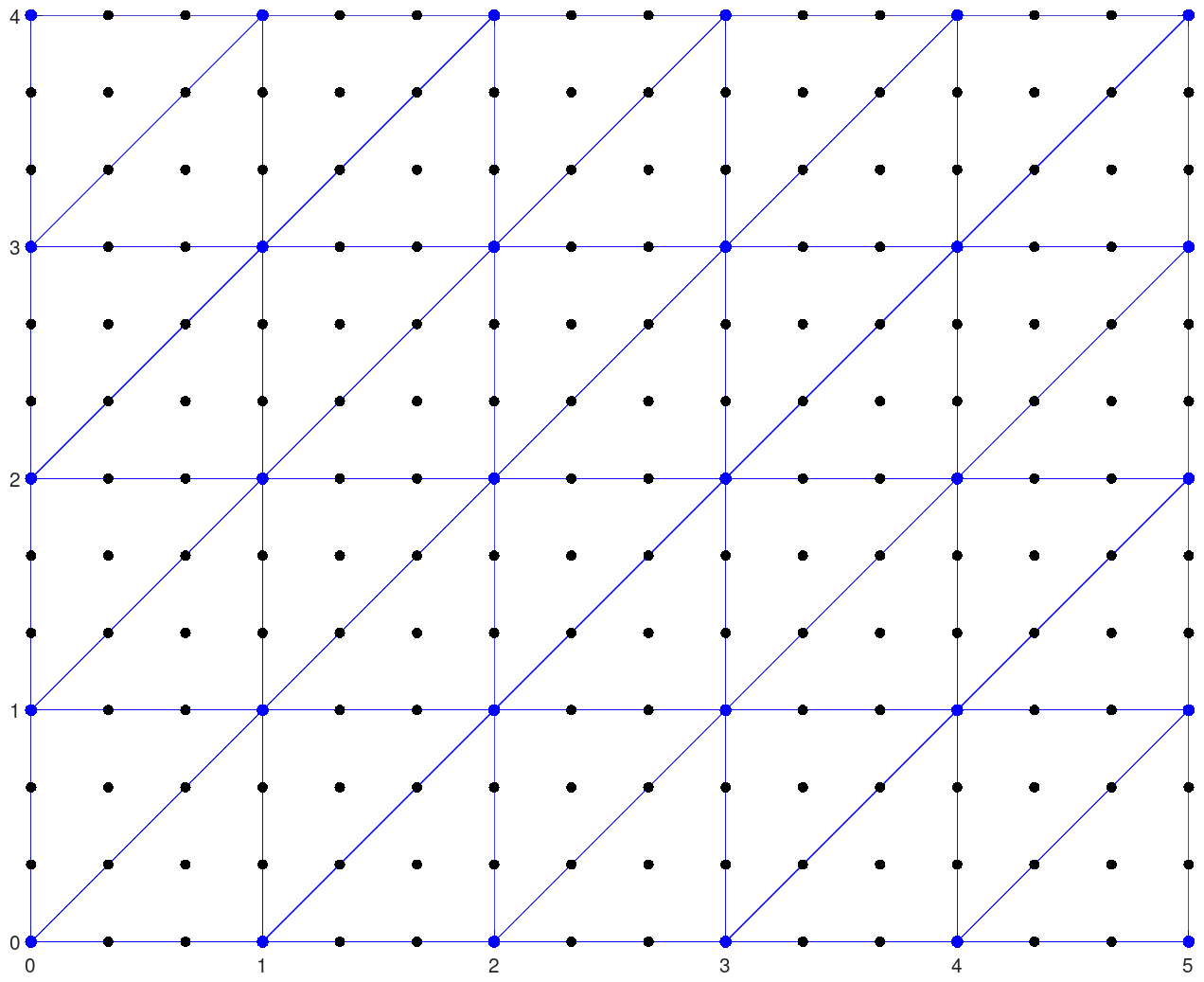

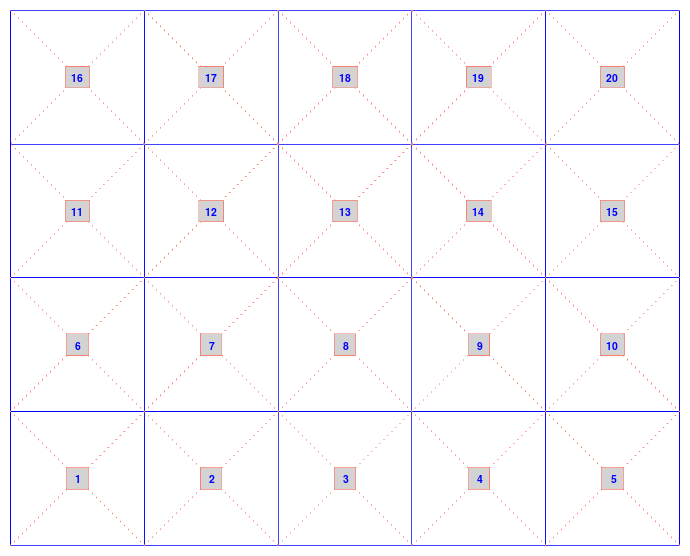

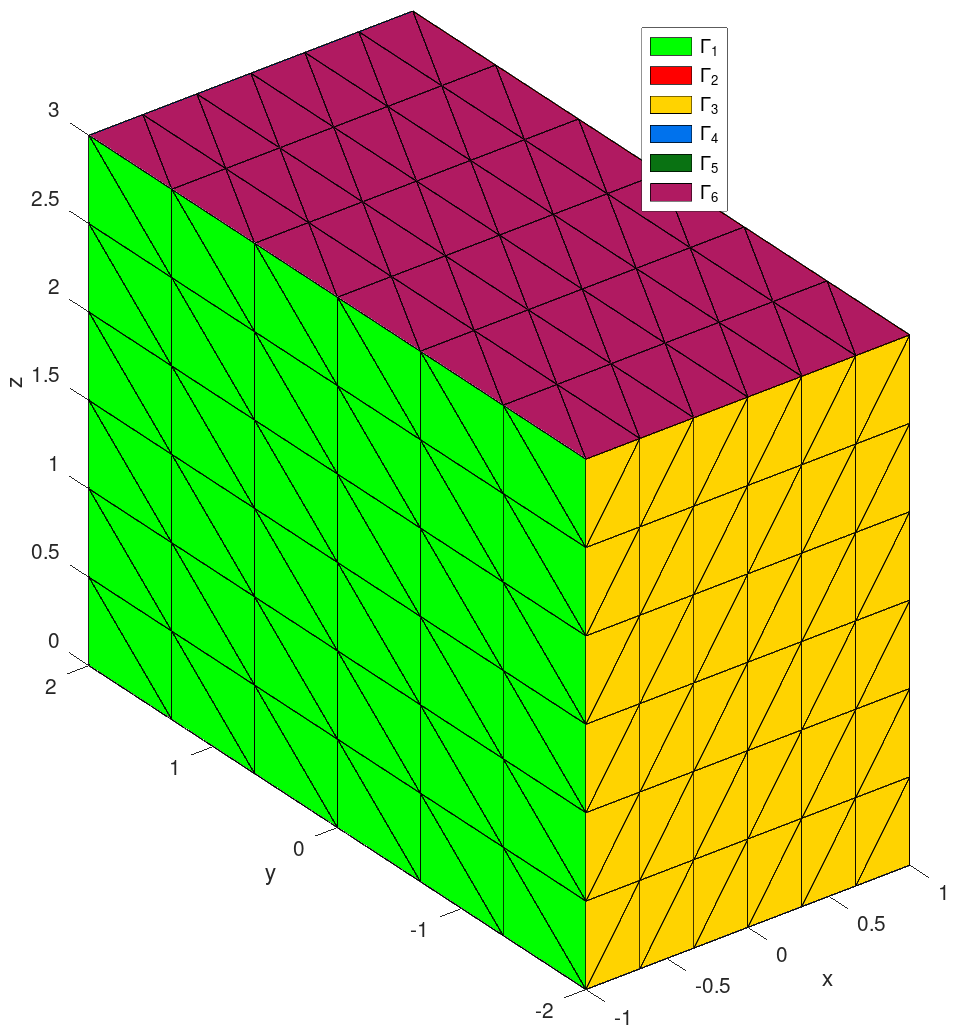

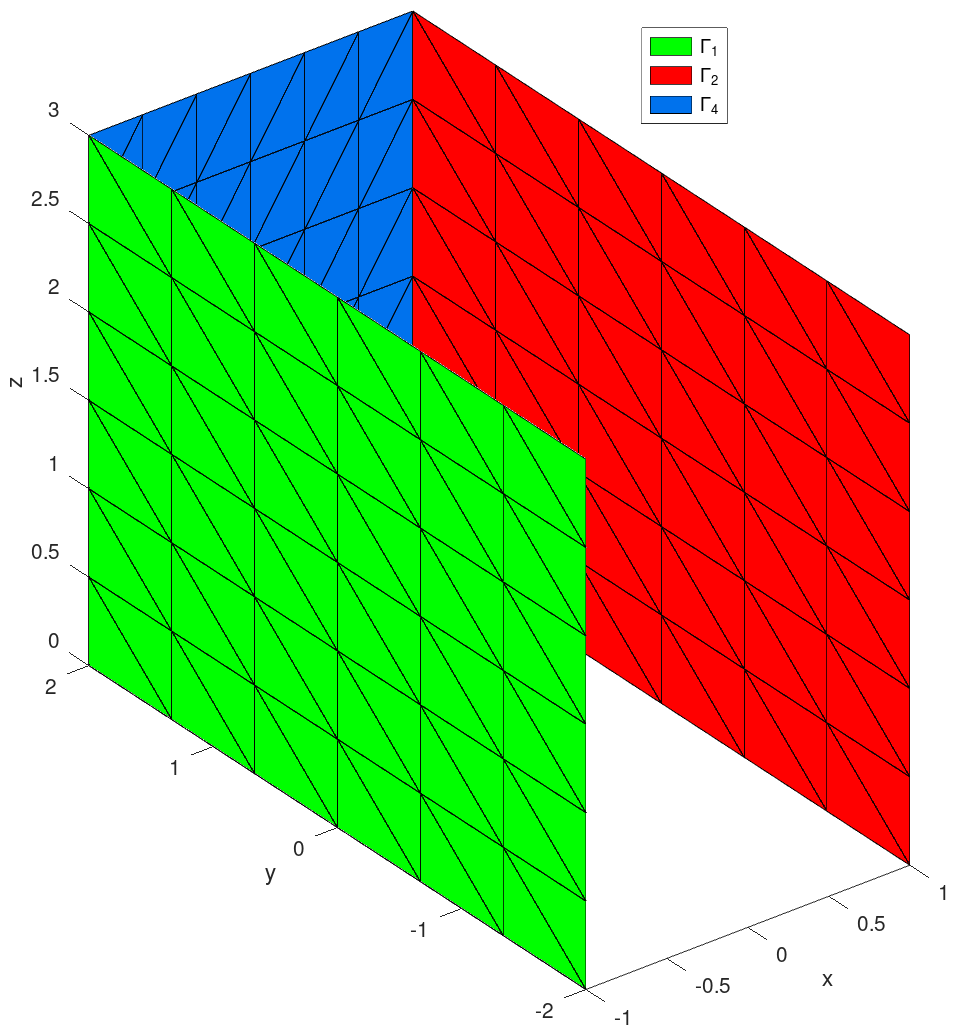

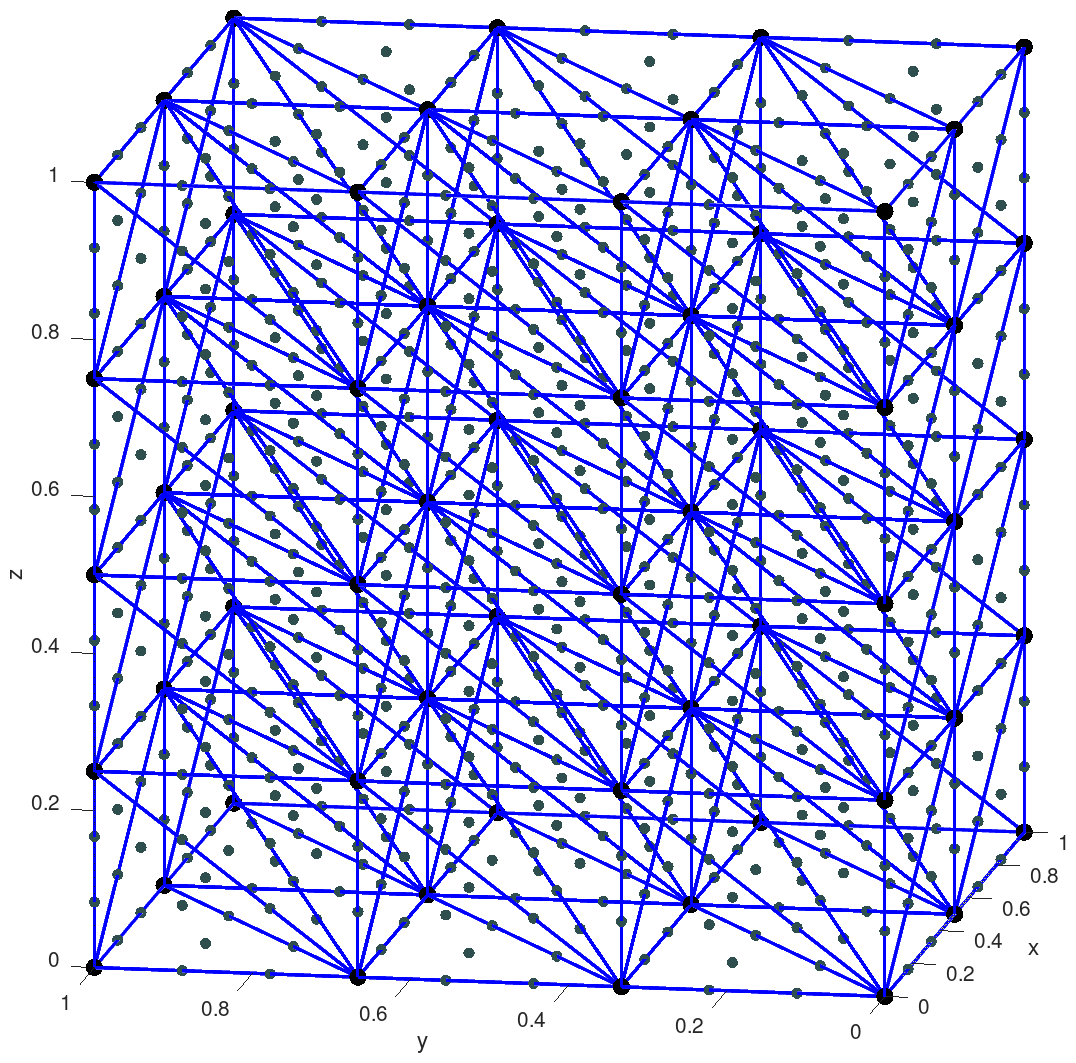

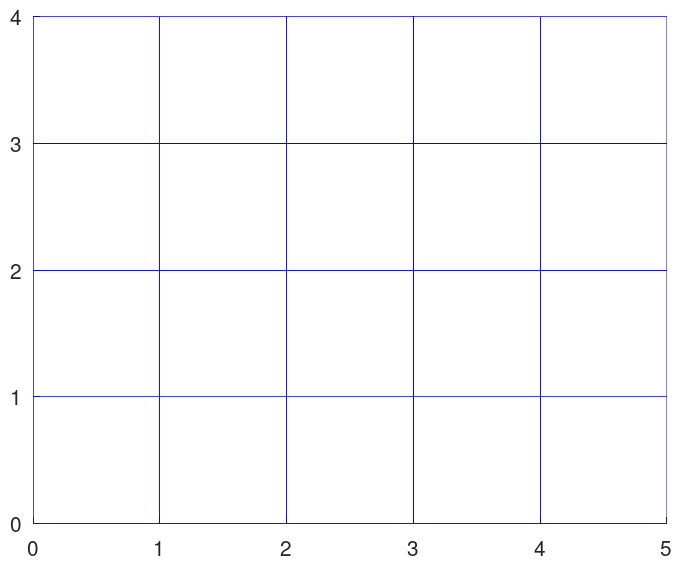

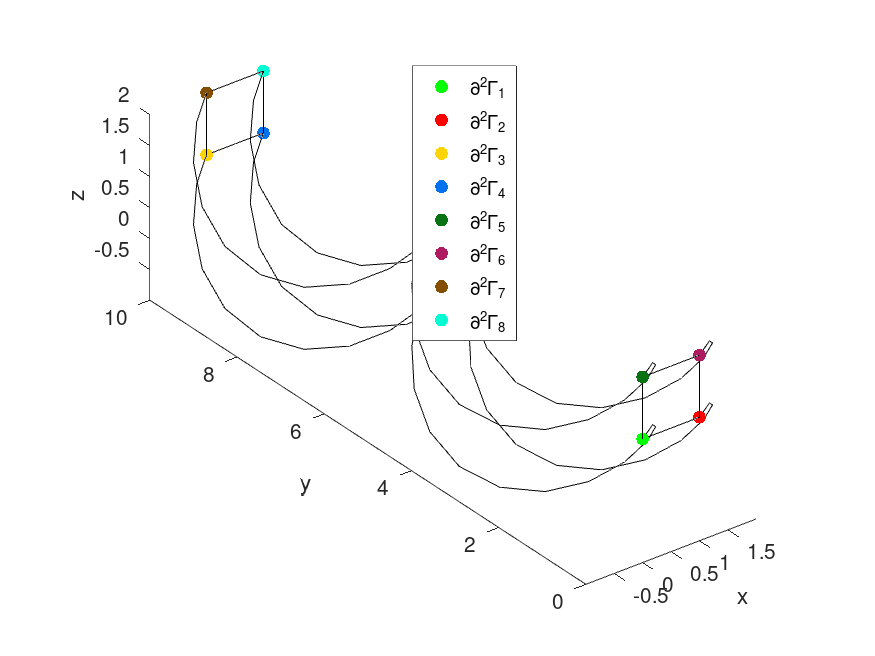

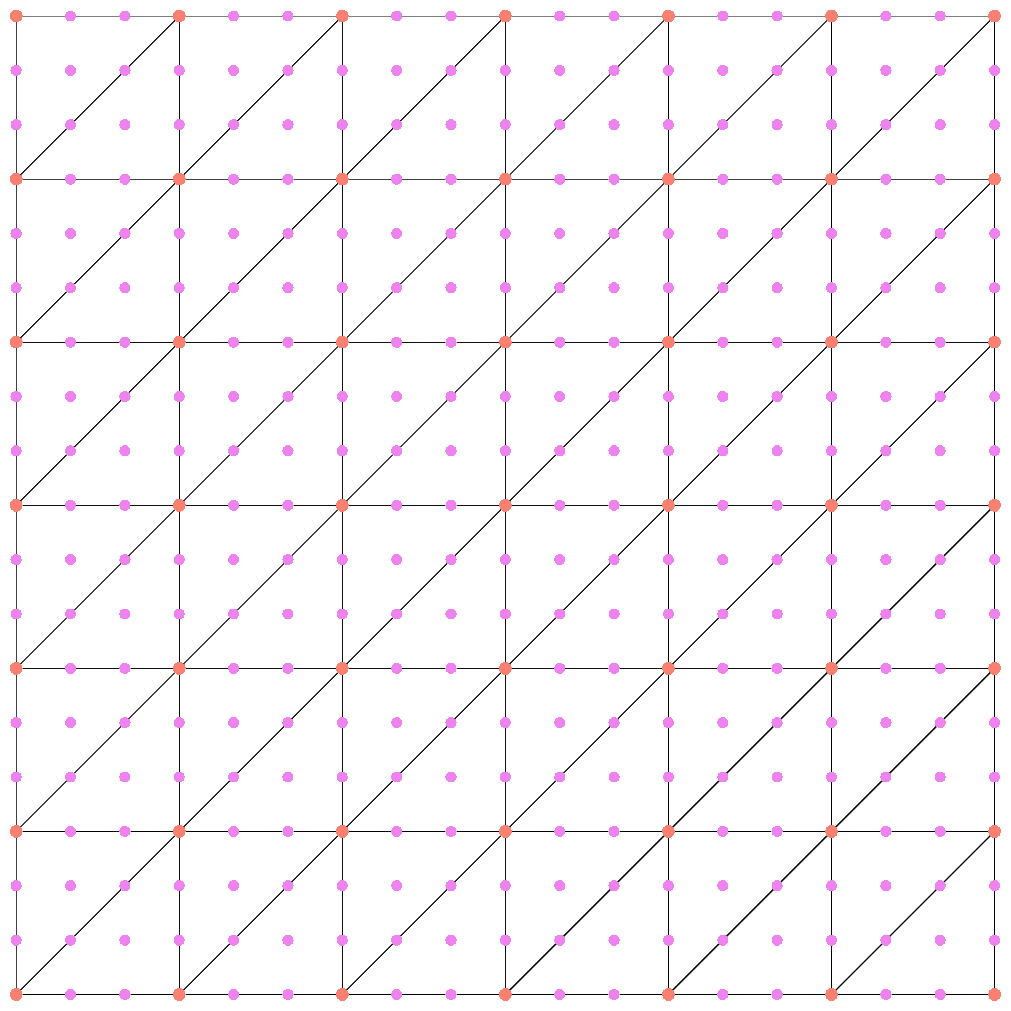

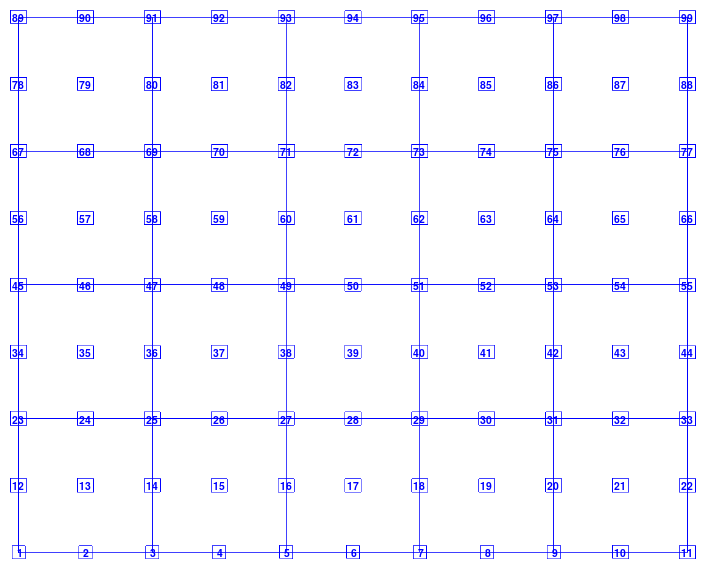

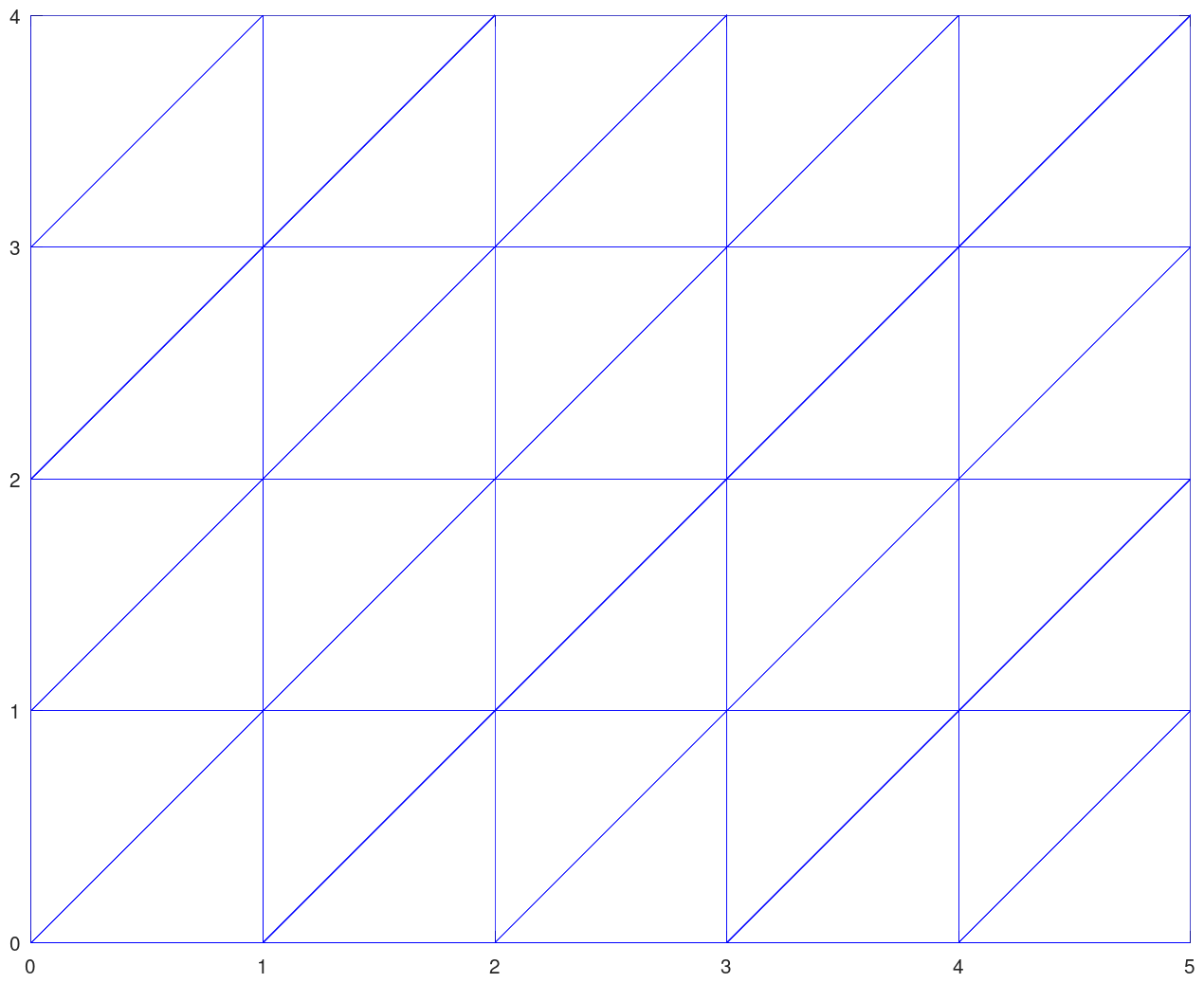

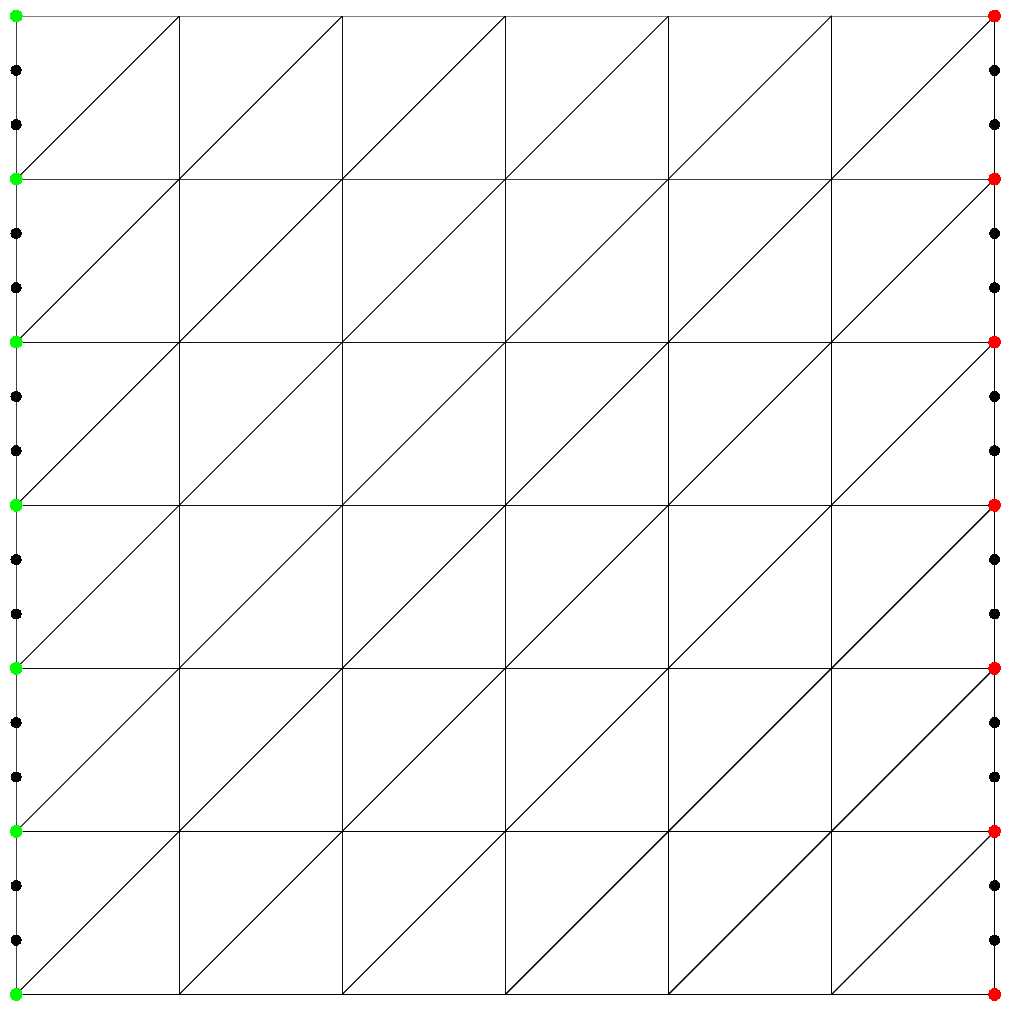

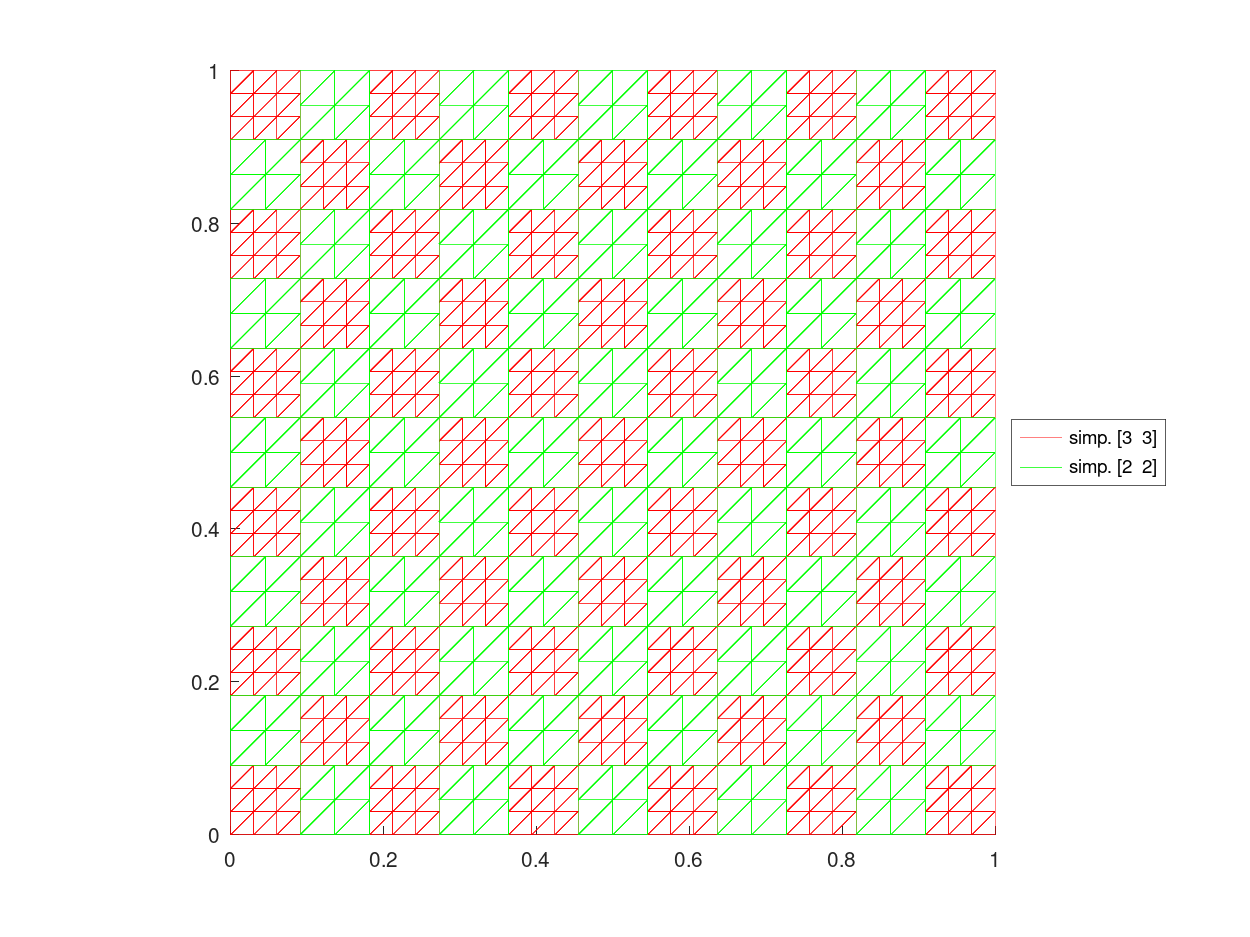

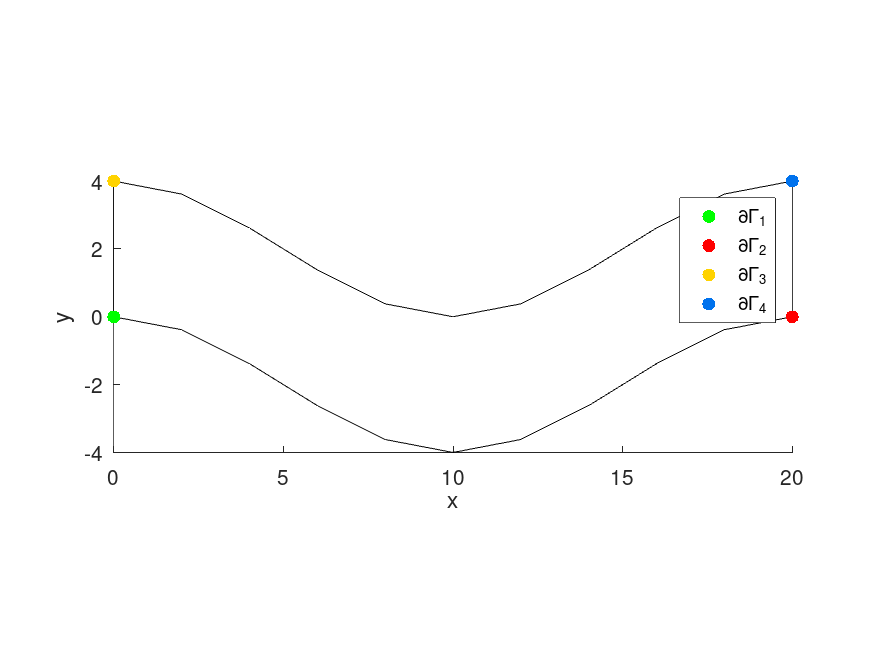

  Snapshots

This package was only tested on Ubuntu 22.04.1 with Octave 7.3.0.

  Octave / Mesh / fc_hypermesh/ demos

description	popup
demo11
demo12
demo13
demo14

  Current development release

Version	date	package	archives	install	User guide	preprint
1.0.3	February 17, 2019	(34 Ko)	(34 Ko) (70 Ko) (29 Ko)	(3 Ko)	(4939 Ko)

Here are two methods of installations. The first uses the Octave pkg command and the second a provided Octave script.

  All-in-one installation

For this method, one just has to get/download the install file ofc_hypermesh_install.m Thereafter, it should be run under Octave. This command downloads, extracts and configures the fc-hypermesh and all the required packages in the current directory.

For example, to install this package in directory ~/Octave/packages, in a terminal one can do:

# mkdir -p ~/Octave/packages
# cd ~/Octave/packages
# wget https://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave/fc-hypermesh/1.0.4/ofc_hypermesh_install.m

Then in a Octave terminal run the following commands

>> cd ~/Octave/packages
>> ofc_hypermesh_install

This is the output of the ofc_hypermesh_install command:

Parts of the <fc-hypermesh> Octave package.
Copyright (C) 2016-2023 F. Cuvelier

1- Downloading and extracting the packages
2- Setting the <fc-hypermesh> package
Write in ~/Octave/packages/fc-hypermesh-full/fc_hypermesh-1.0.4/configure_loc.m ...
3- Using packages :
   ->             fc-tools : 0.0.35
   ->             fc-bench : 0.1.3
*** Using instructions
   To use the <fc-hypermesh> package:
   addpath(’~/Octave/packages/fc-hypermesh-full/fc_hypermesh-1.0.4’)
   fc_hypermesh.init()

   See ~/Octave/packages/ofc_hypermesh_set.m

The complete package (i.e. with all the other needed packages) is stored in the directory

and, for each Octave session, one has to set the package by:

>> addpath(’~/Octave/packages/fc-hypermesh-full/ofc-hypermesh-1.0.4’)
>> fc_hypermesh.init()

To uninstall, one just has to delete directory

  Installation via pkg command

• Download the packages. For example, in a terminal:

  Linux Console

  wget https://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave/fc-tools/0.0.34/fc-tools-0.0.35.tar.gz
  wget https://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave/fc-bench/0.1.3/fc-bench-0.1.3.tar.gz
  wget https://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave/fc-hypermesh/1.0.4/fc-hypermesh-1.0.4.tar.gz

• Under Octave :

  Octave Console

  >> pkg install fc-tools-0.0.35.tar.gz
  >> pkg install fc-bench-0.1.3.tar.gz
  >> pkg install fc-hypermesh-1.0.4.tar.gz

  With all Octave releases beginning with 4.4.0, one can directly use

  Octave Console

  >> pkg install https://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave/fc-tools/0.0.35/fc-tools-0.0.35.tar.gz
  >> pkg install https://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave/fc-bench/0.1.3/fc-bench-0.1.3.tar.gz
  >> pkg install https://www.math.univ-paris13.fr/~cuvelier/software/codes/Octave/fc-hypermesh/1.0.4/fc-hypermesh-1.0.4.tar.gz

• Now to use fc-hypermesh in any Octave session, it is necessary to load and initialize the package :

  Octave Console

  >> pkg load fc-hypermesh
  >> fc_hypermesh.init()

• To try the package, one can launch a demo:

  Octave Console

  >> fc_hypermesh.demos.demo01

For uninstalling the package, just do in an Octave session:

>> pkg uninstall fc-hypermesh
>> pkg uninstall fc-bench
>> pkg uninstall fc-tools

  Version history

• 1.0.4 (December 19, 2022): .

• 1.0.3 (February 17, 2020): minor change in configure function.

• 1.0.2 (December 30, 2019):

  • Using fc-bench toolbox for benchmarks,

  • Modifying installation and configuration files.

• 1.0.0 (March 6, 2019):

  • Adding tessalation with p-order simplices or p-order orthotopes,

  • Adding benchmarks and ploting functions,

  • Modifying installation and configuration files.

• 0.0.8 (June 29, 2018):

  • Adding experimental non conforming refinements.

• ...

  Old development releases

Version	date	package	archives	install	User guide	preprint
1.0.3	February 17, 2019	(34 Ko)	(34 Ko) (70 Ko) (29 Ko)	(3 Ko)	(4939 Ko)
1.0.2	December 20, 2019	(34 Ko)	(34 Ko) (70 Ko) (29 Ko)	(3 Ko)	(2504 Ko)
1.0.0	March 6, 2019	(32 Ko)	(32 Ko) (65 Ko) (27 Ko)	(3 Ko)	(4799 Ko)
0.0.8	June 29, 2018	(25 Ko)	(25 Ko) (47 Ko) (22 Ko)	(2 Ko)	(1120 Ko)

Version	date	package	archives	install	User’s Guide
0.0.7	April 20, 2018	(22 Ko)	(22 Ko) (36 Ko) (20 Ko)	(2 Ko)	(914 Ko)
0.0.6	December 28, 2017	(22 Ko)	(22 Ko) (35 Ko) (19 Ko)	(2 Ko)	(876 Ko)
0.0.5	November 3, 2017	(21 Ko)	(21 Ko) (34 Ko) (19 Ko)	(2 Ko)	(980 Ko)
0.0.4	October 5, 2017	(21 Ko)	(21 Ko) (34 Ko) (18 Ko)	(2 Ko)	(826 Ko)
0.0.2	December 24, 2016	(19 Ko)	(20 Ko) (29 Ko) (17 Ko)	(2 Ko)	(585 Ko)
0.0.1	December 18, 2016	(19 Ko)	(20 Ko) (29 Ko) (17 Ko)	(2 Ko)
