The
eigs add-on to the
fc-vfemp1 Octave package contains codes which allow to compute numerically the
eigenvalues and
eigenfunctions of
scalar or
vector Boundary Value Problems.

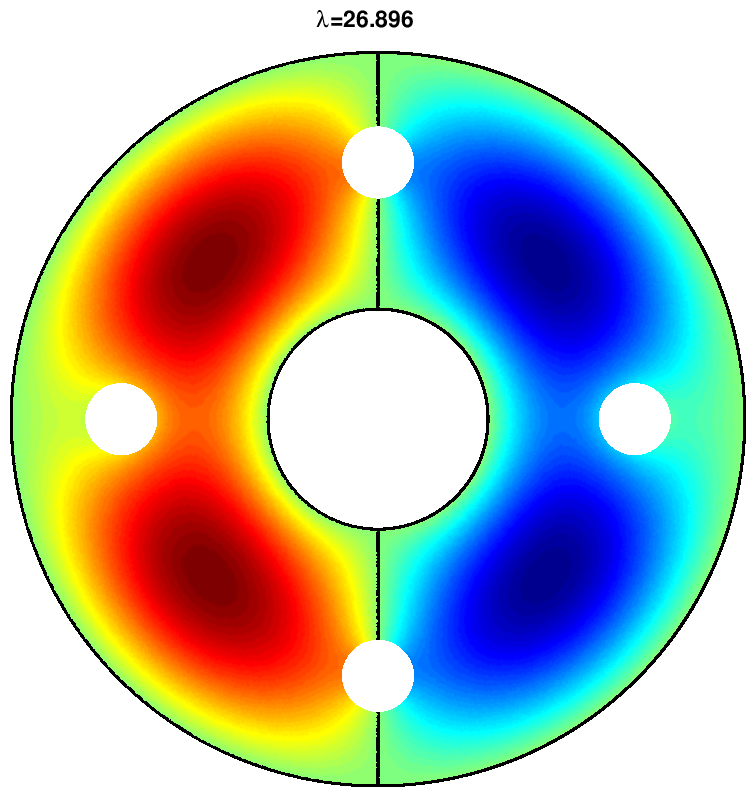

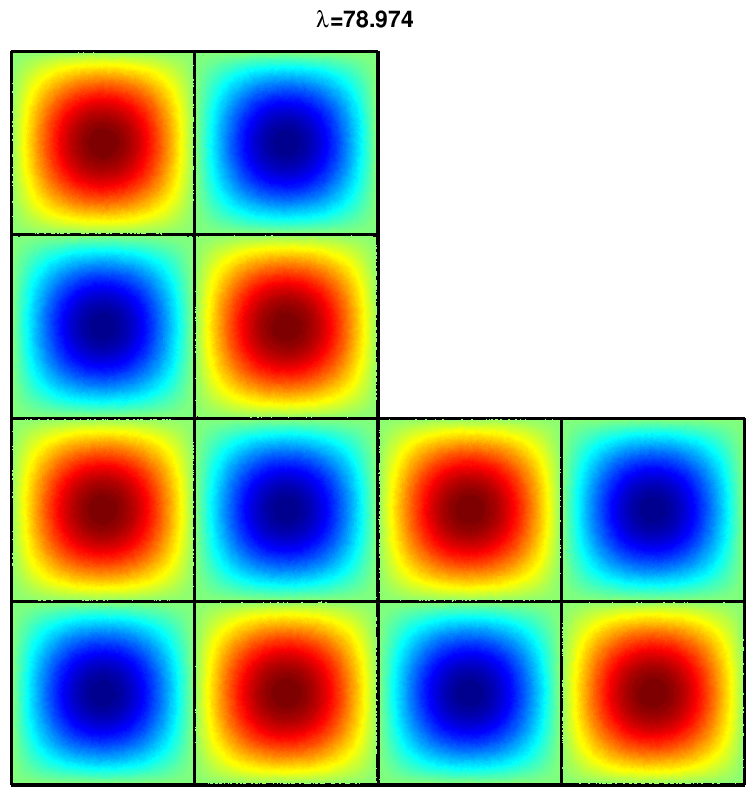

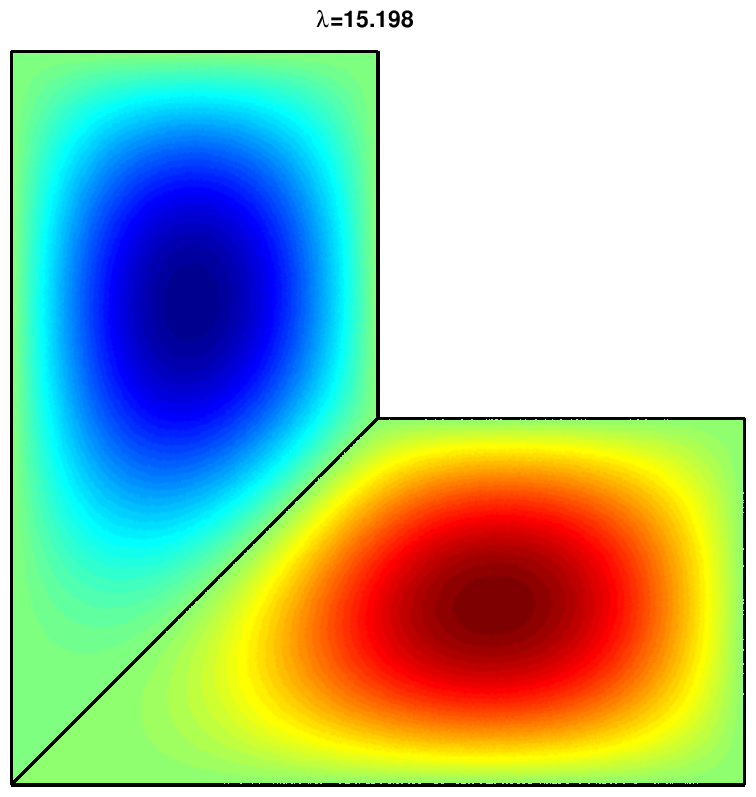

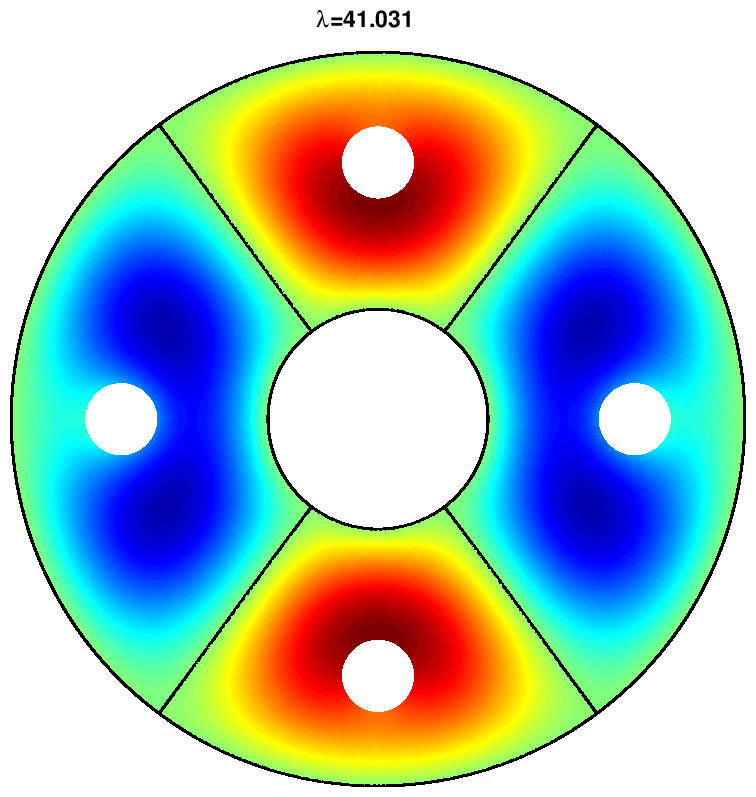

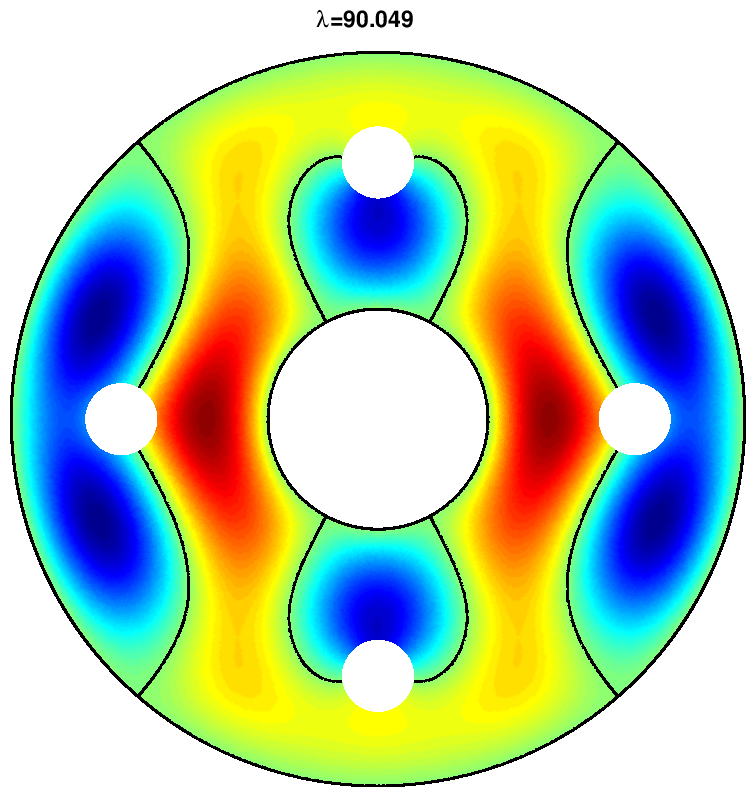

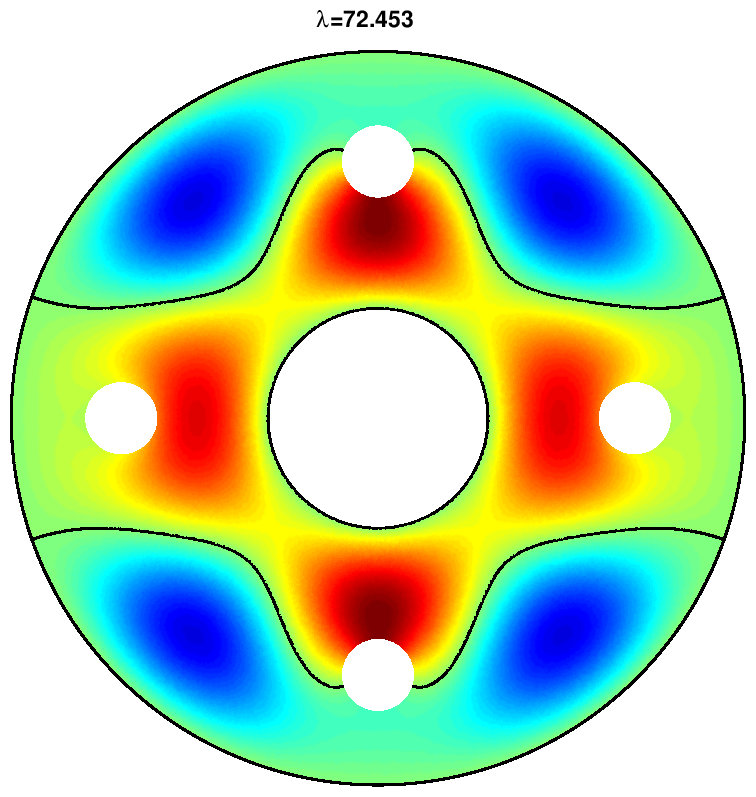

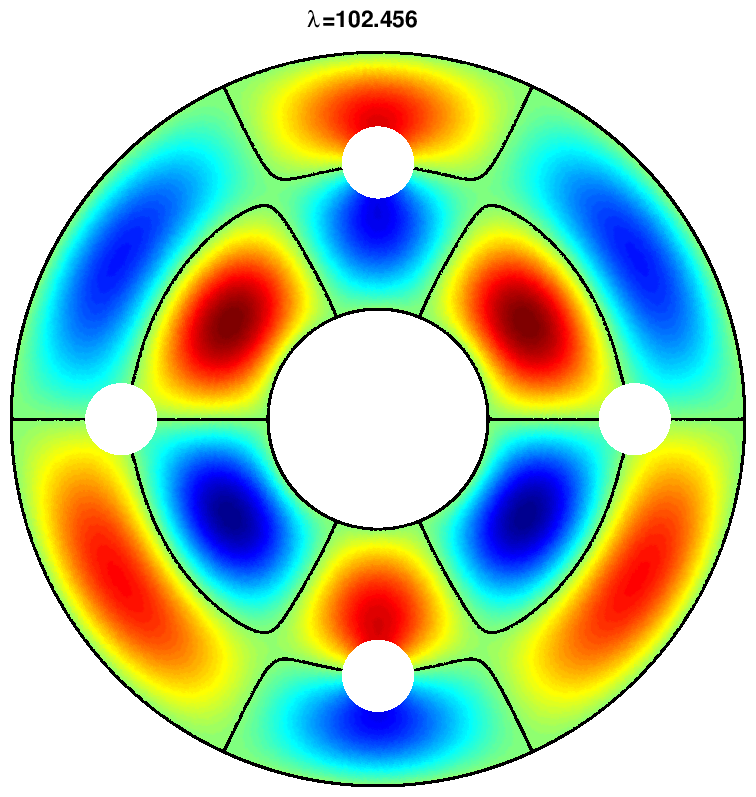

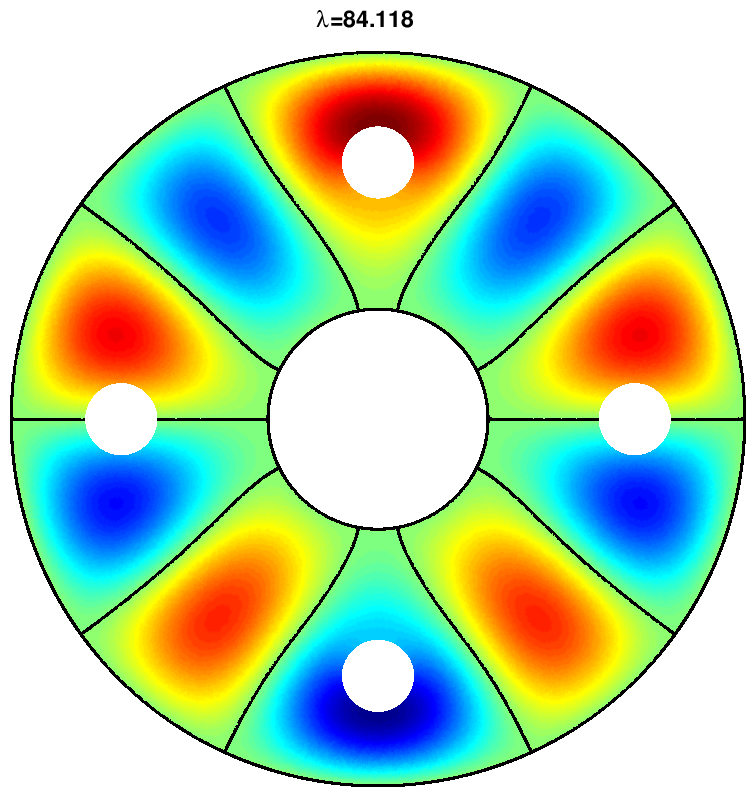

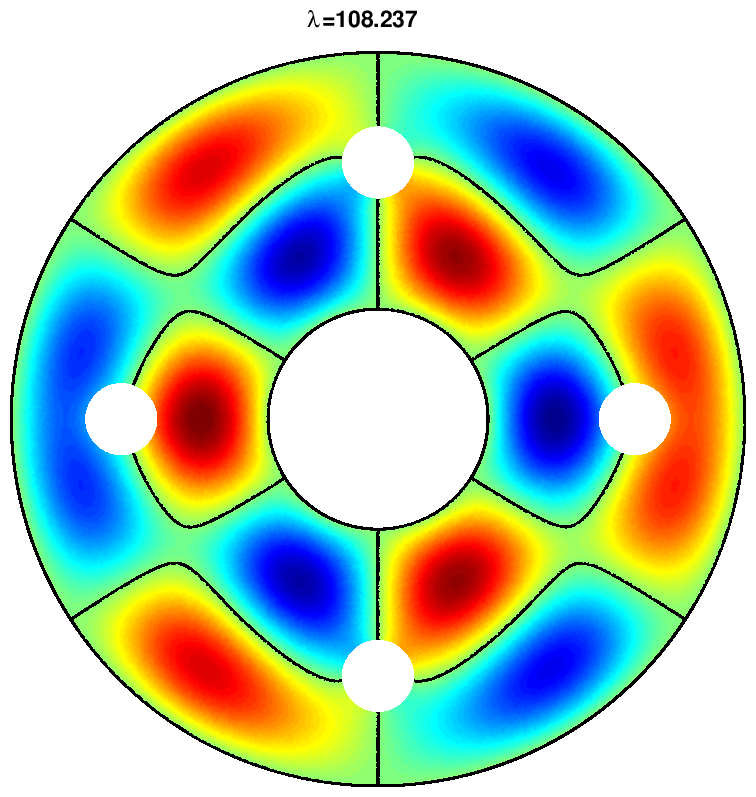

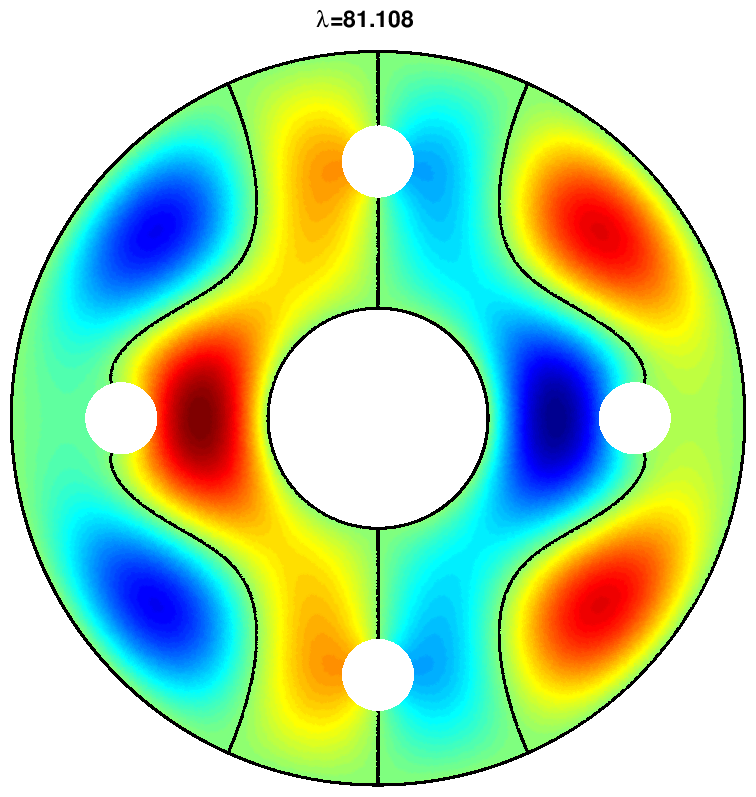

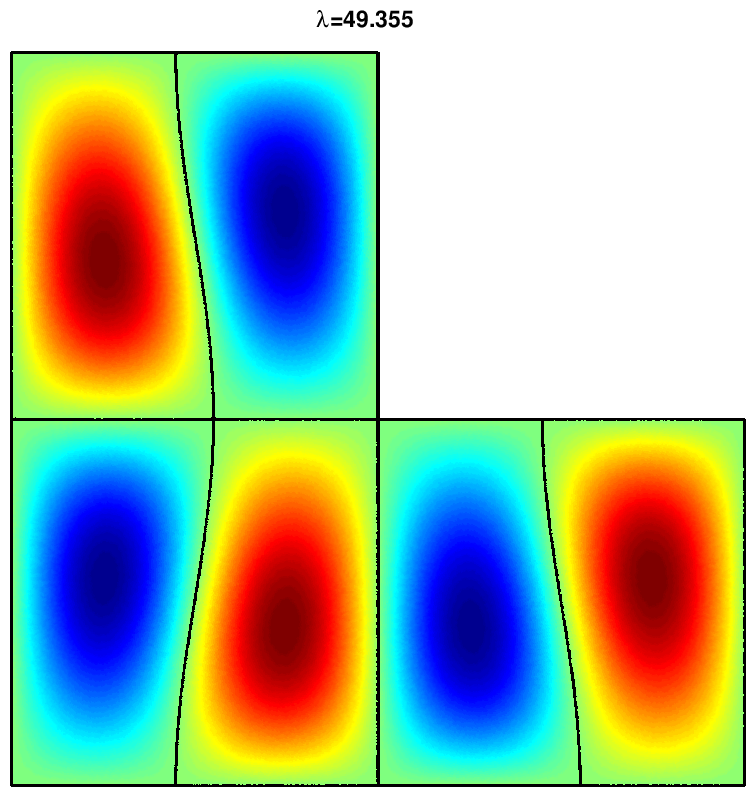

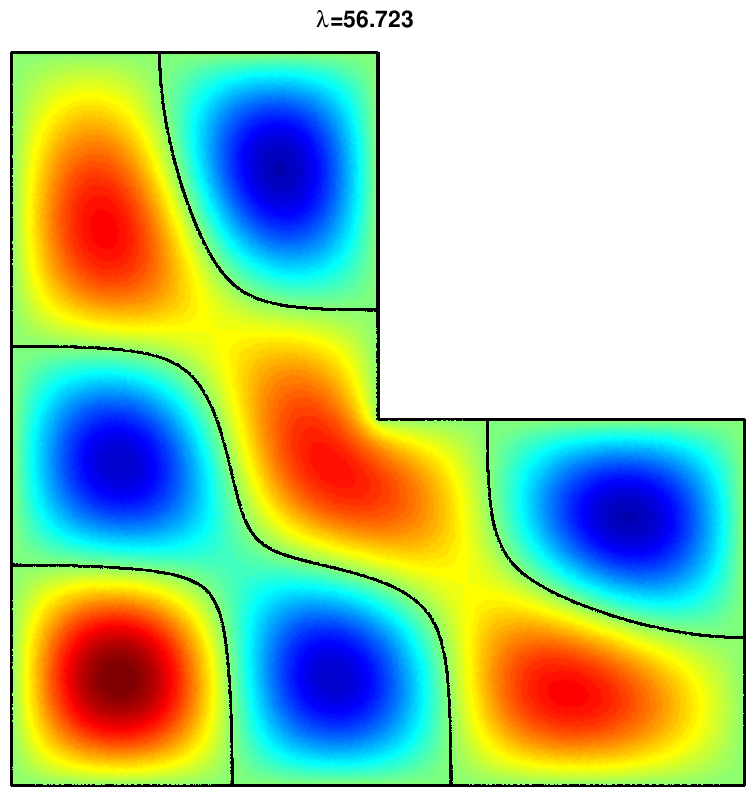

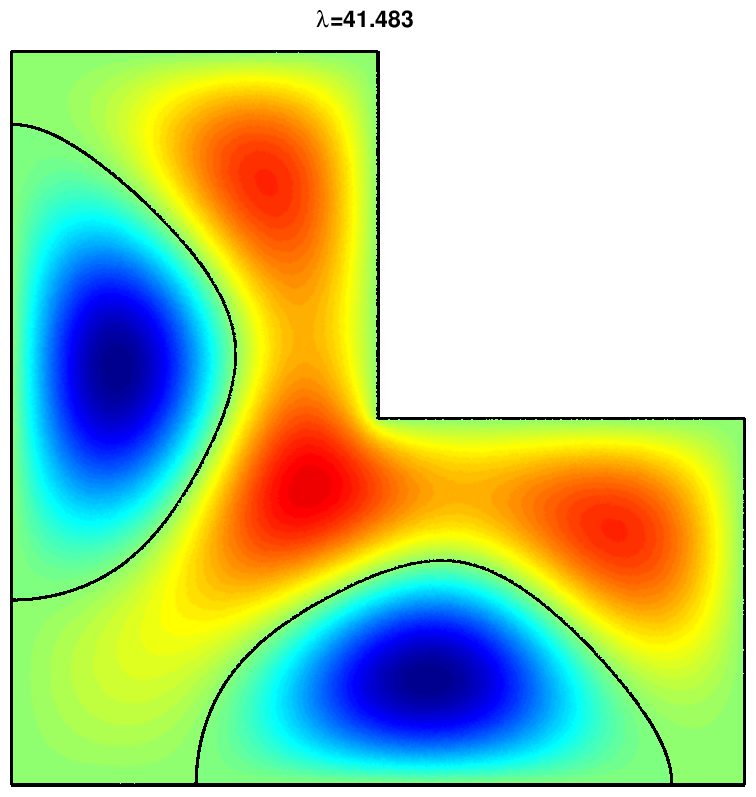

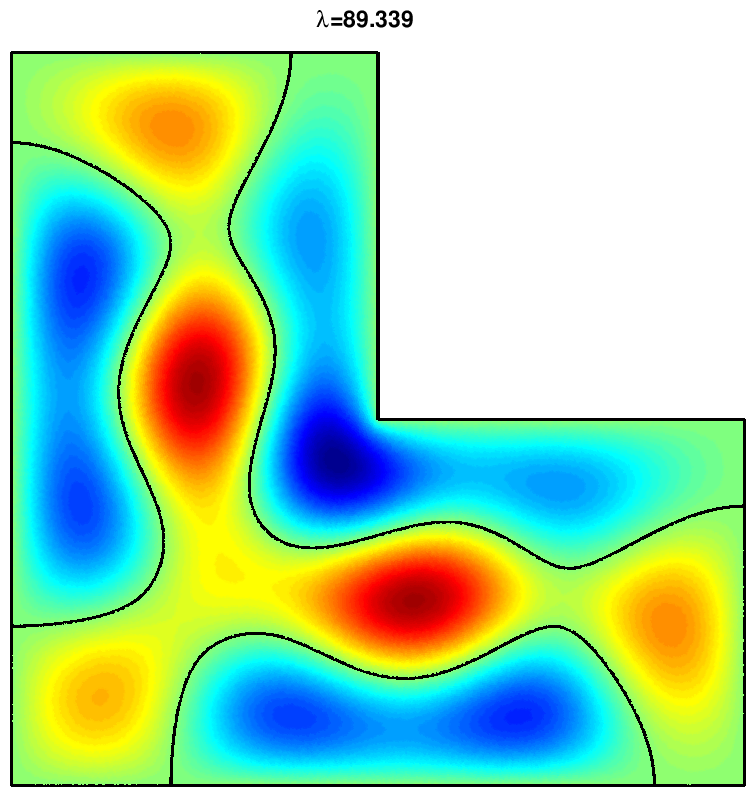

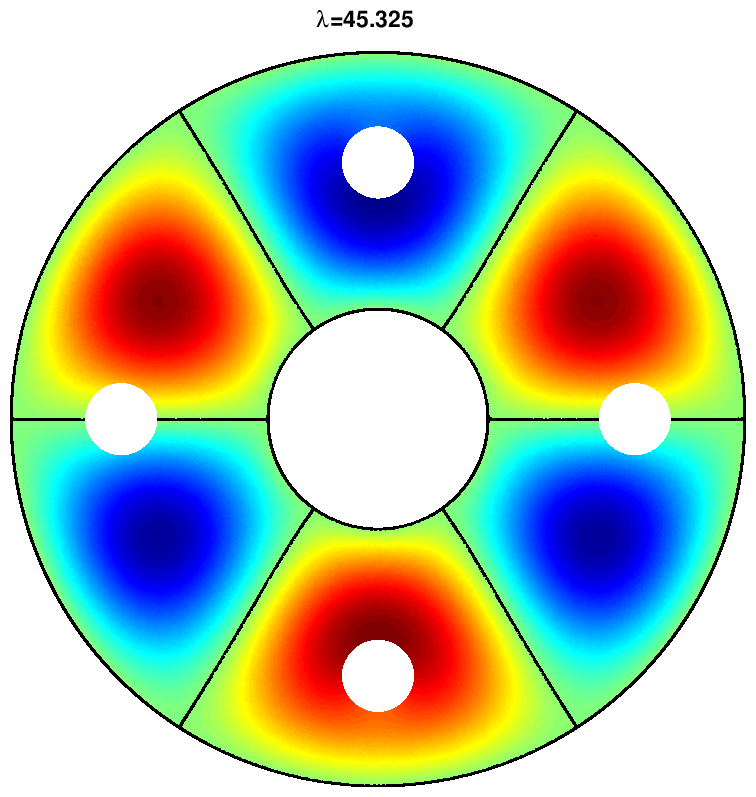

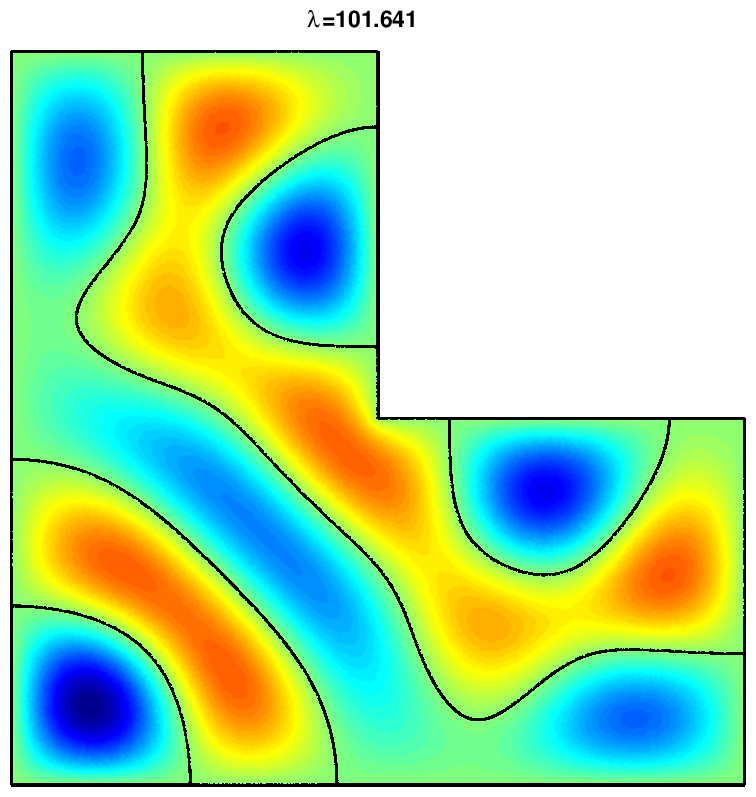

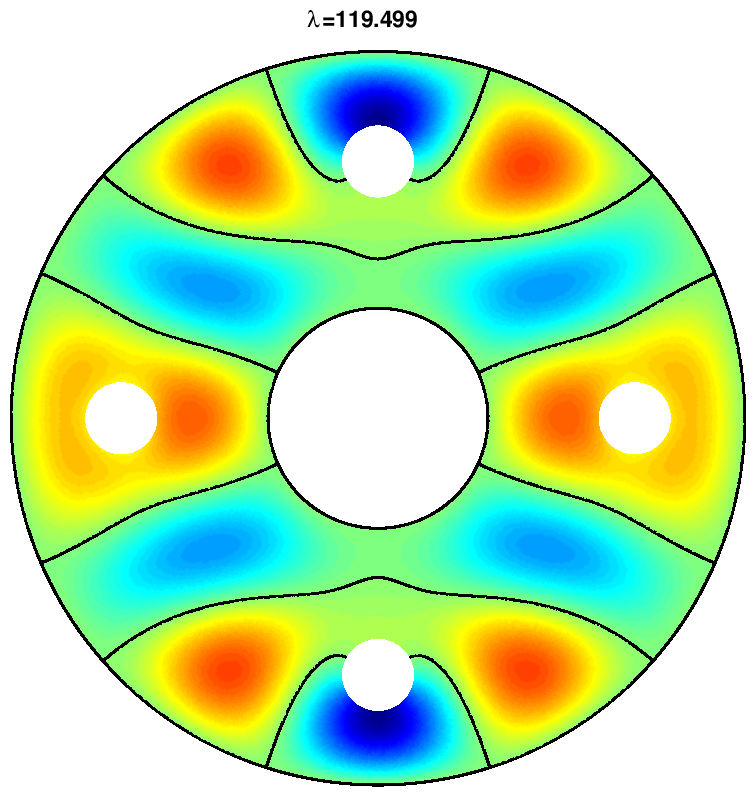

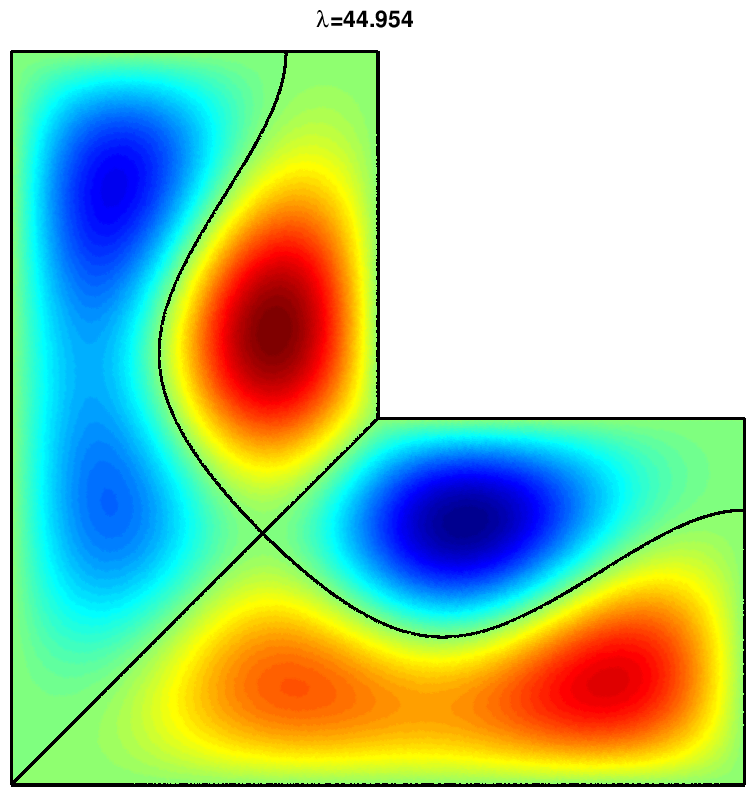

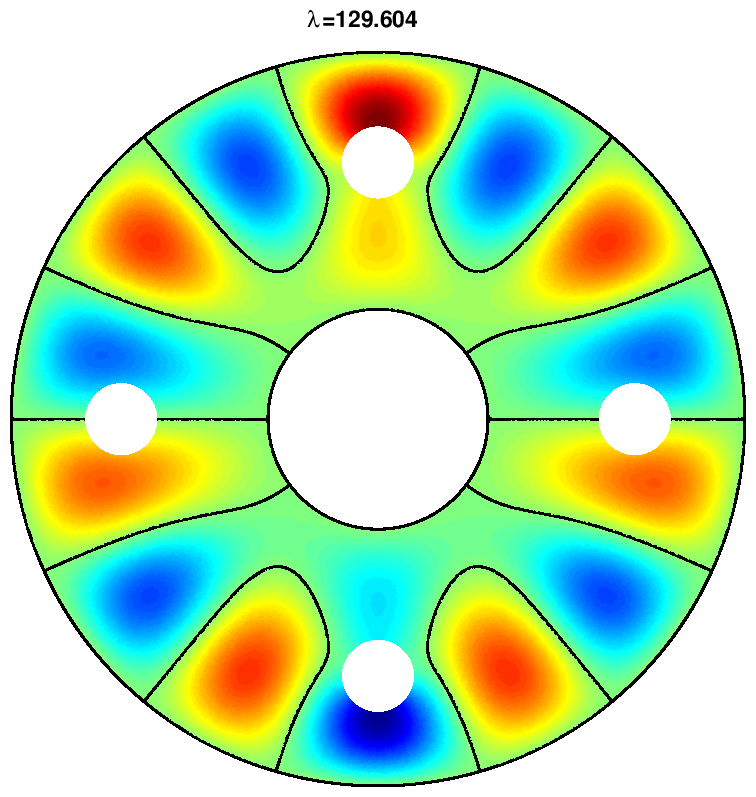

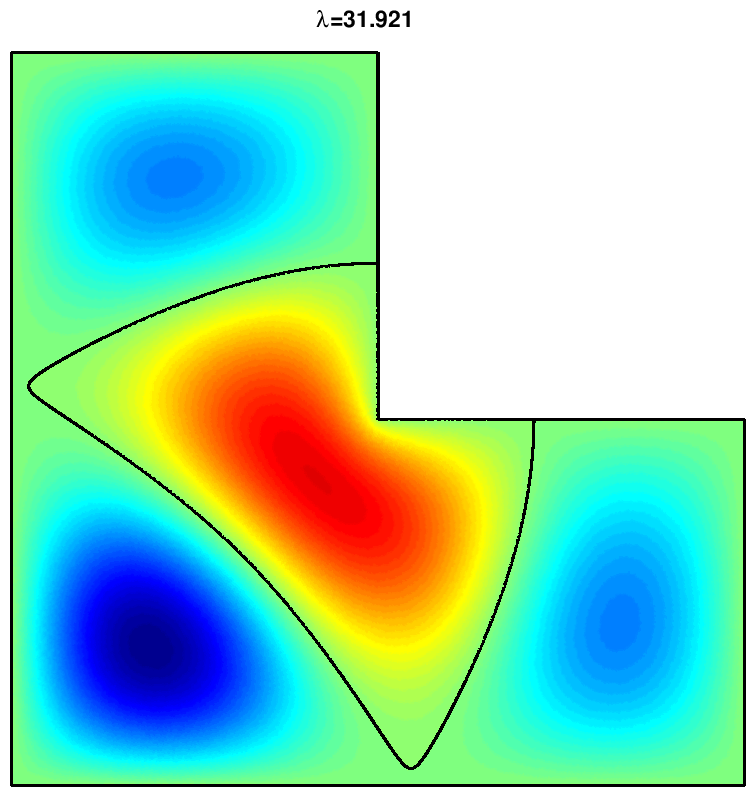

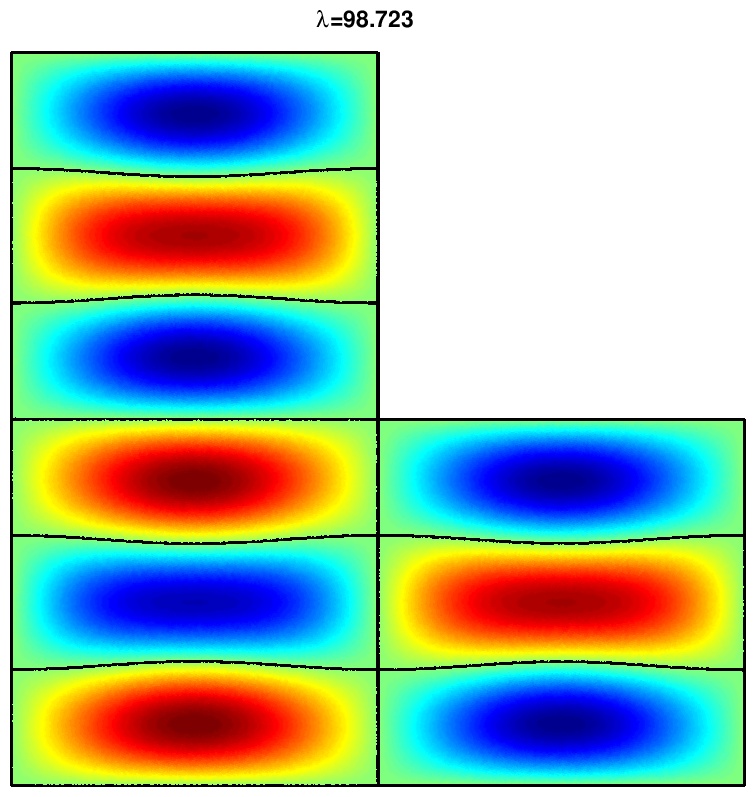

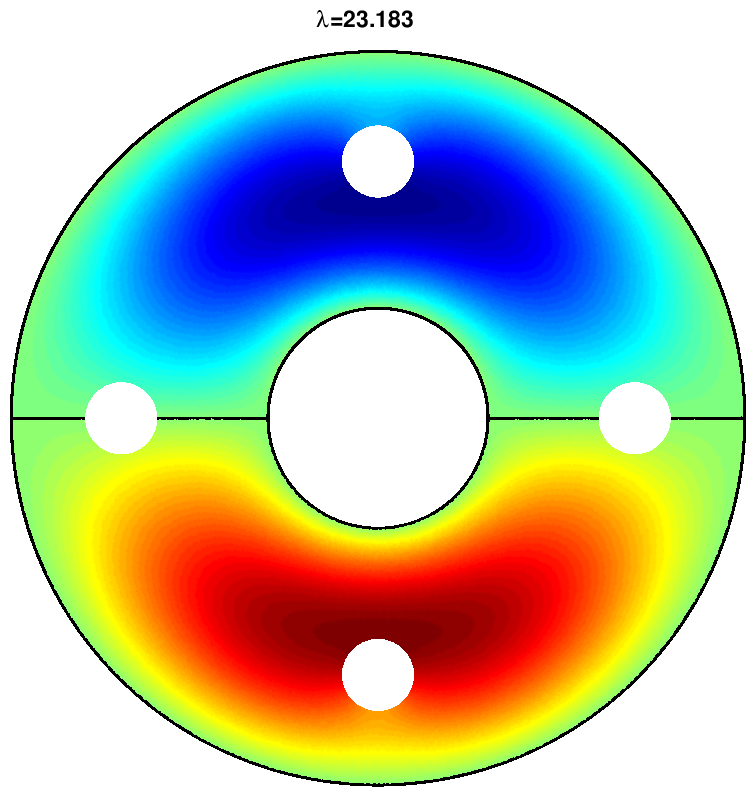

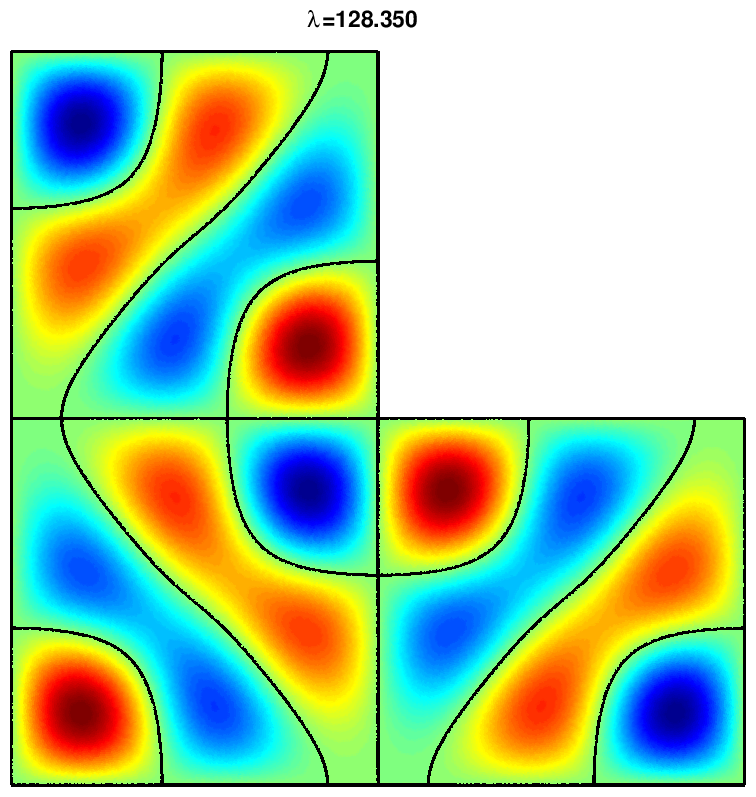

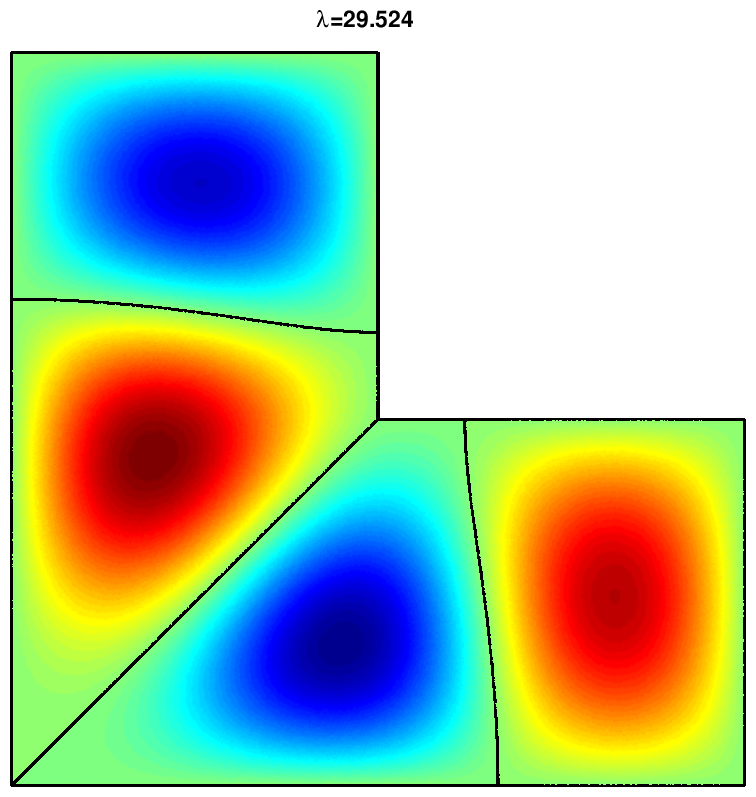

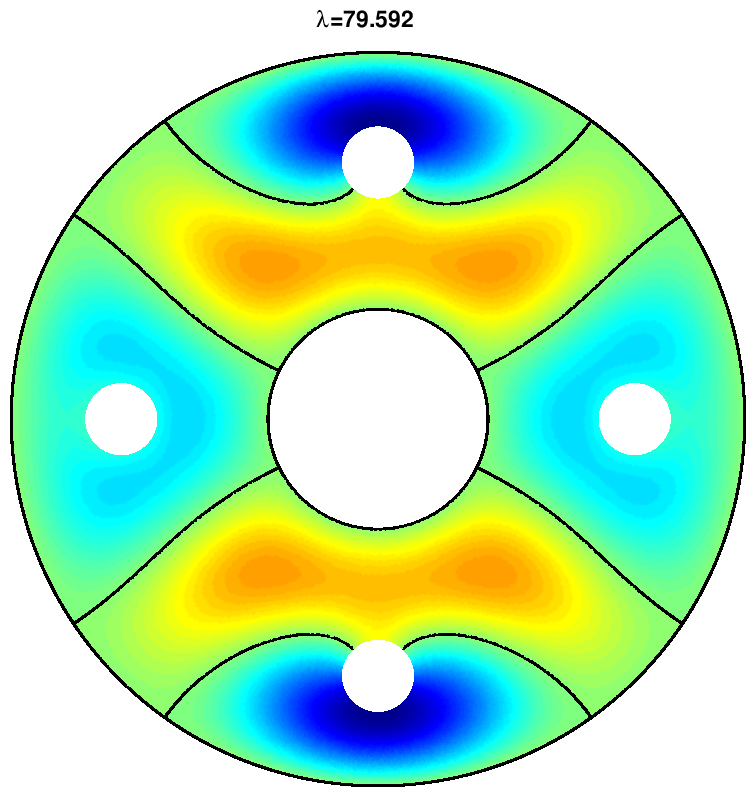

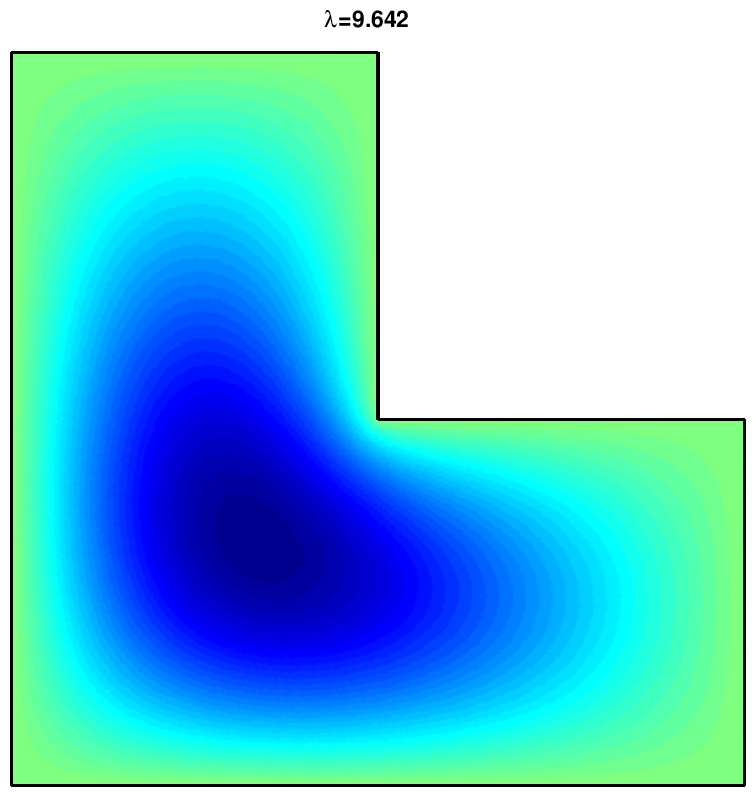

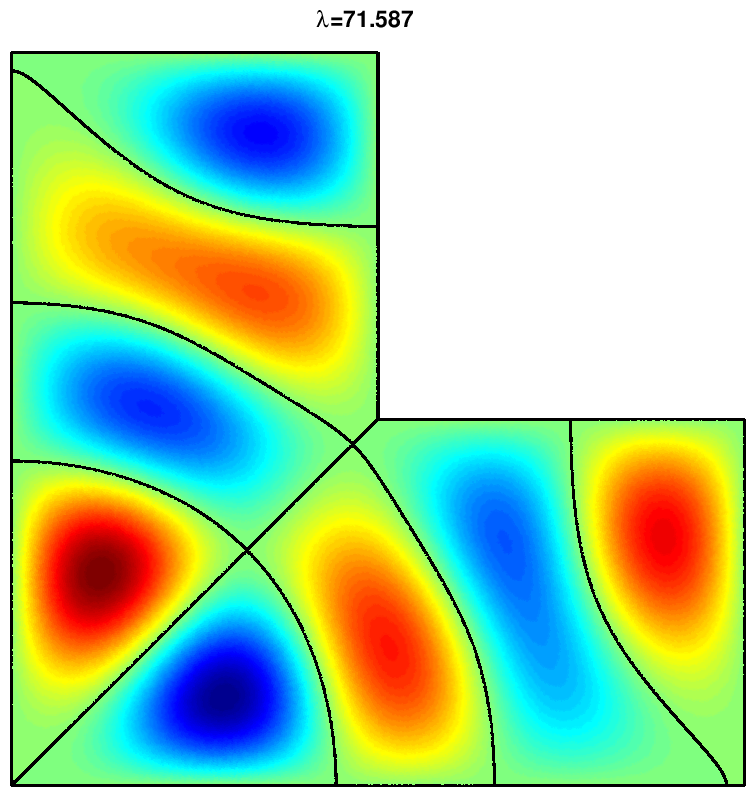

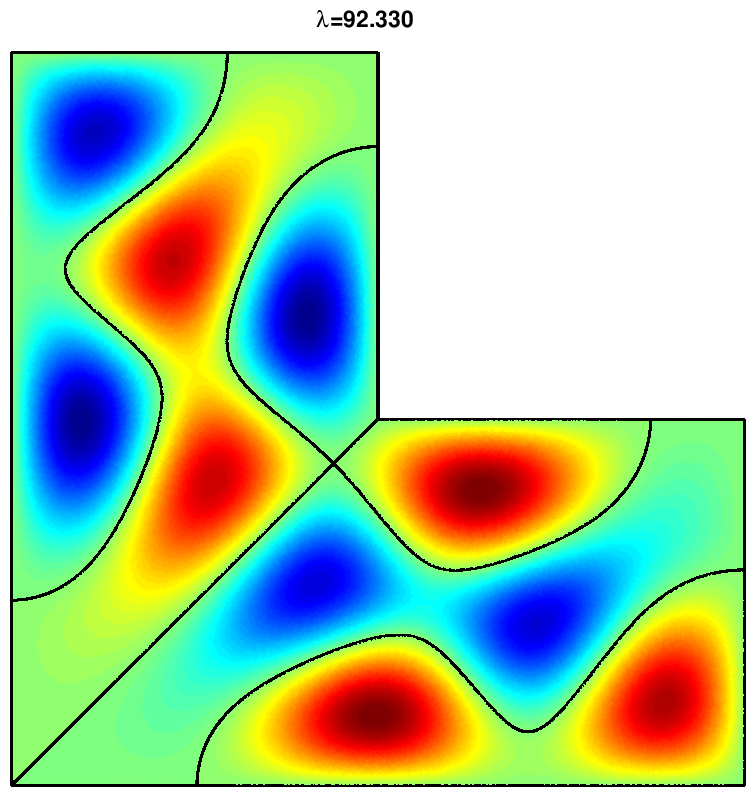

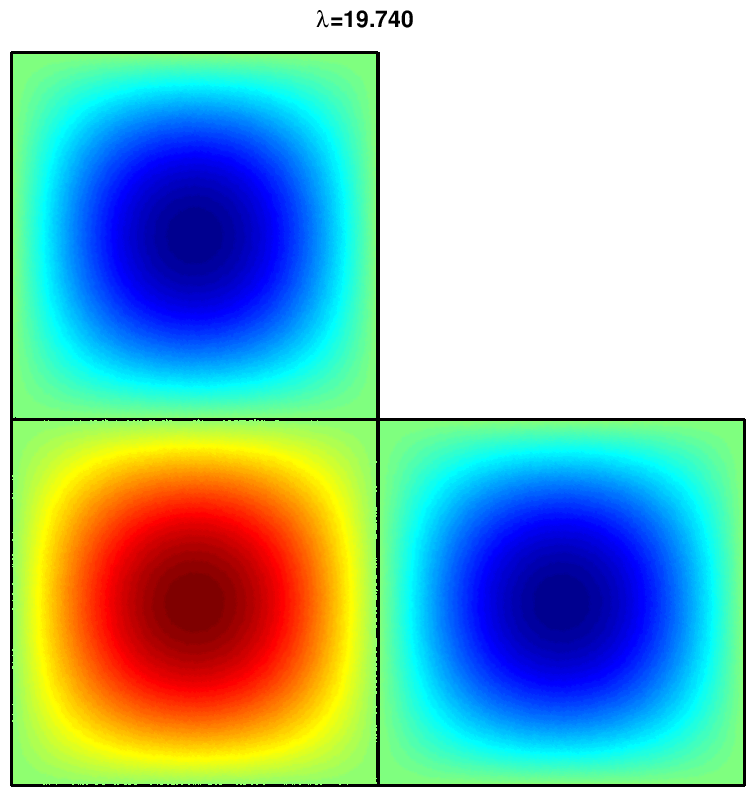

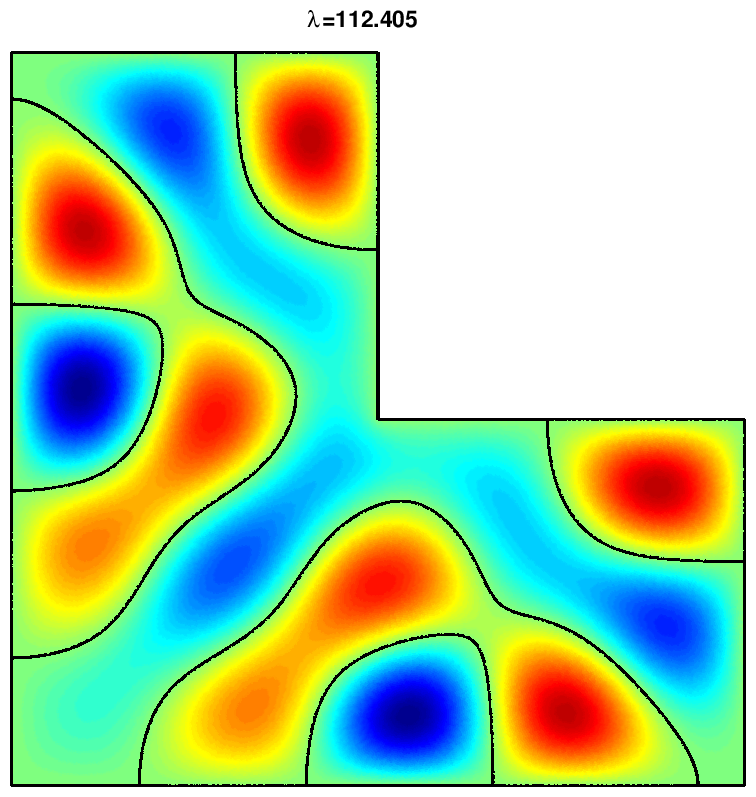

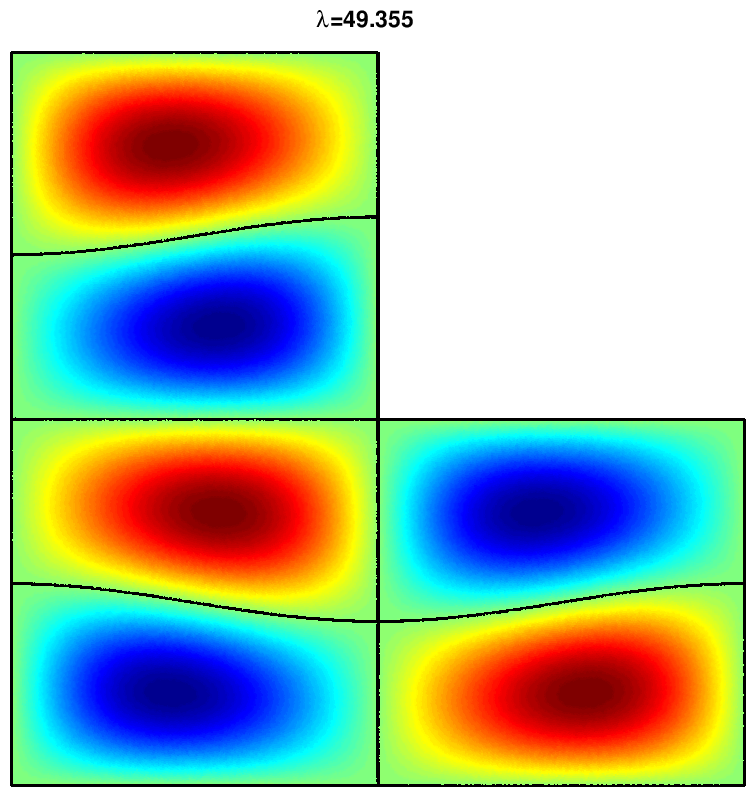

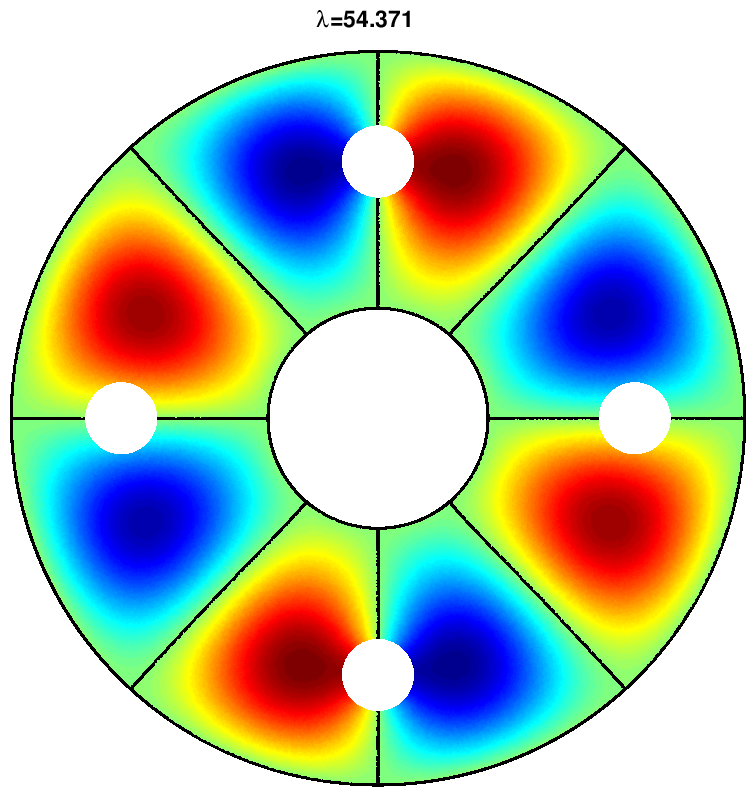

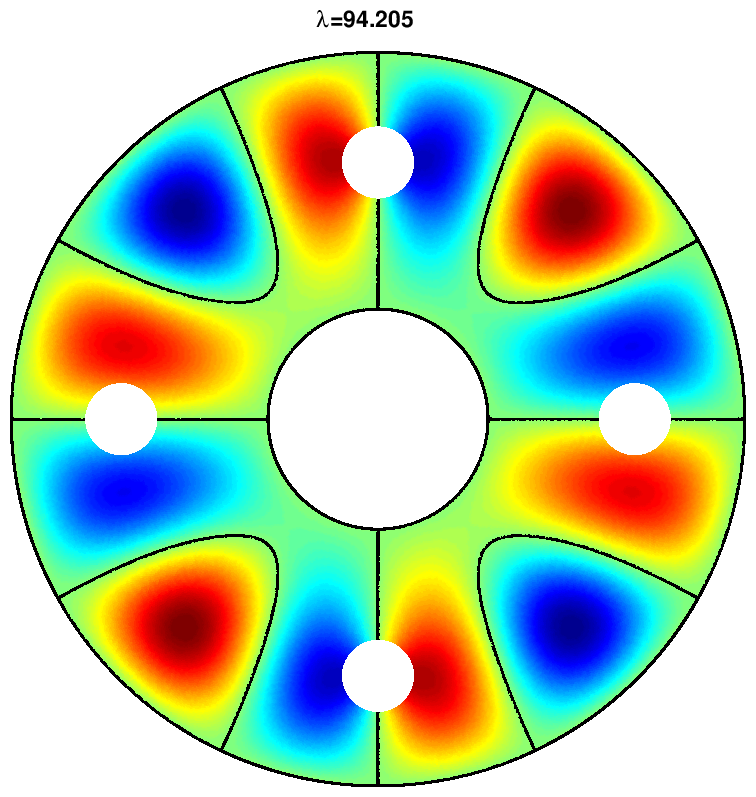

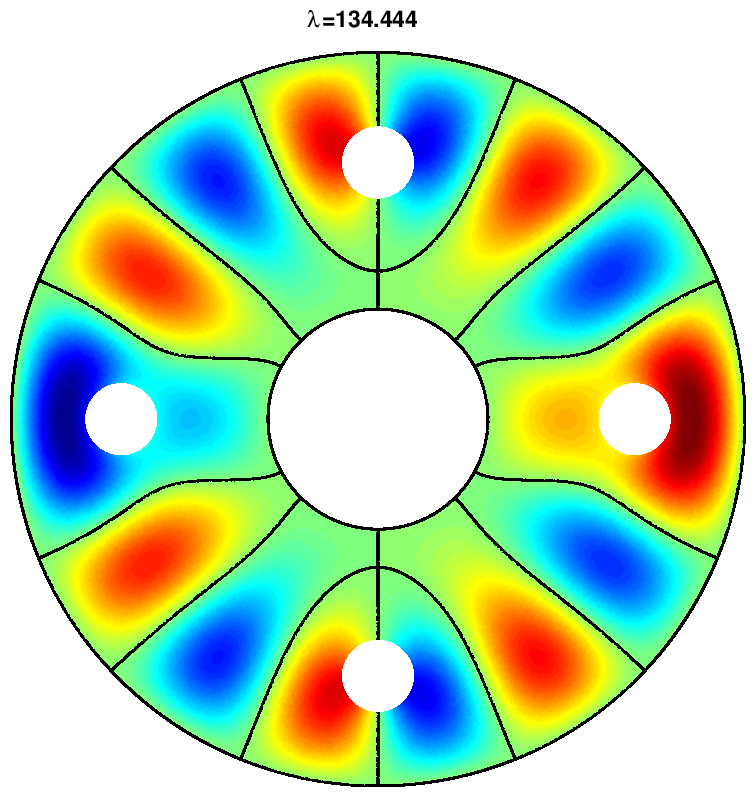

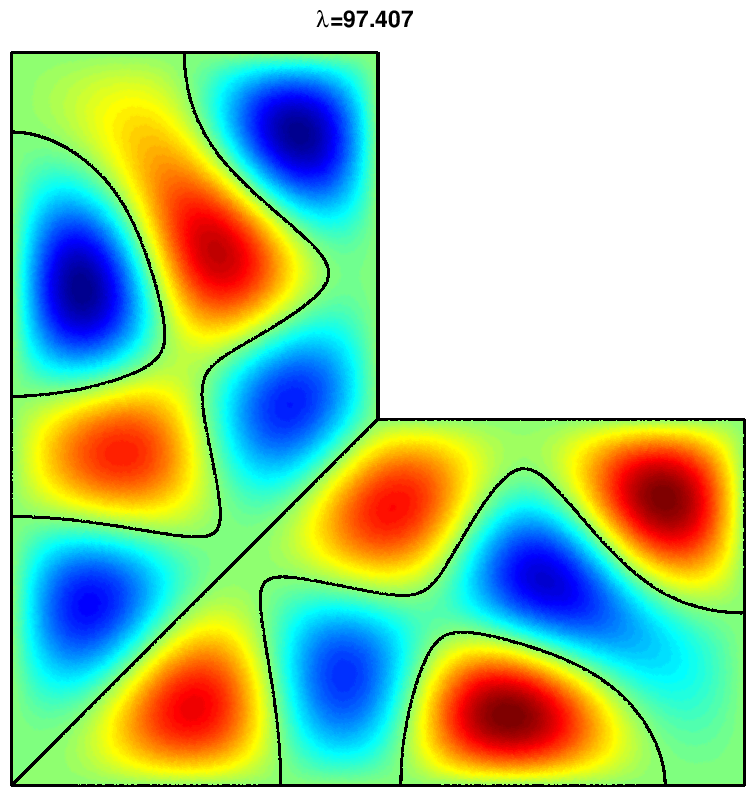

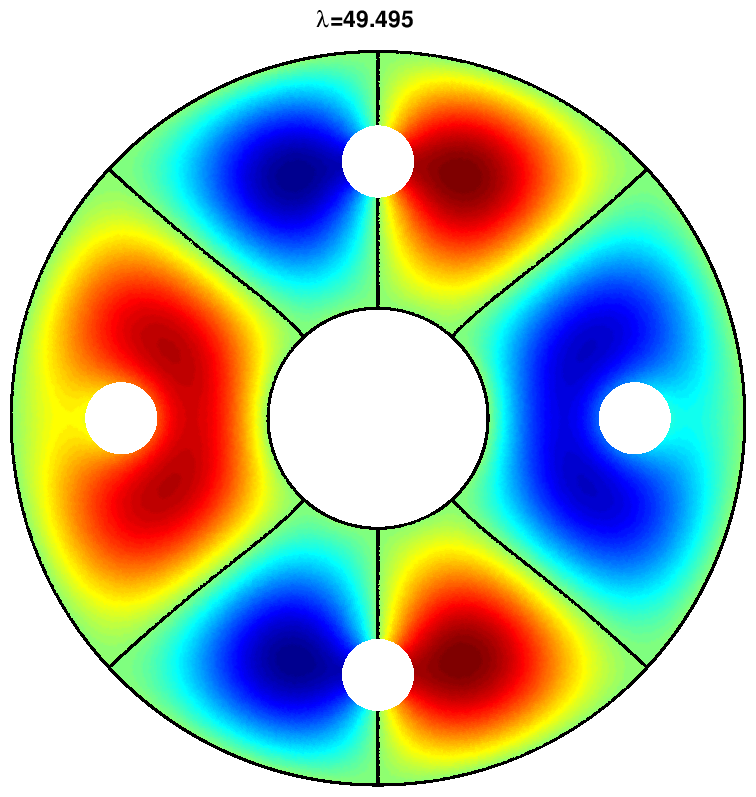

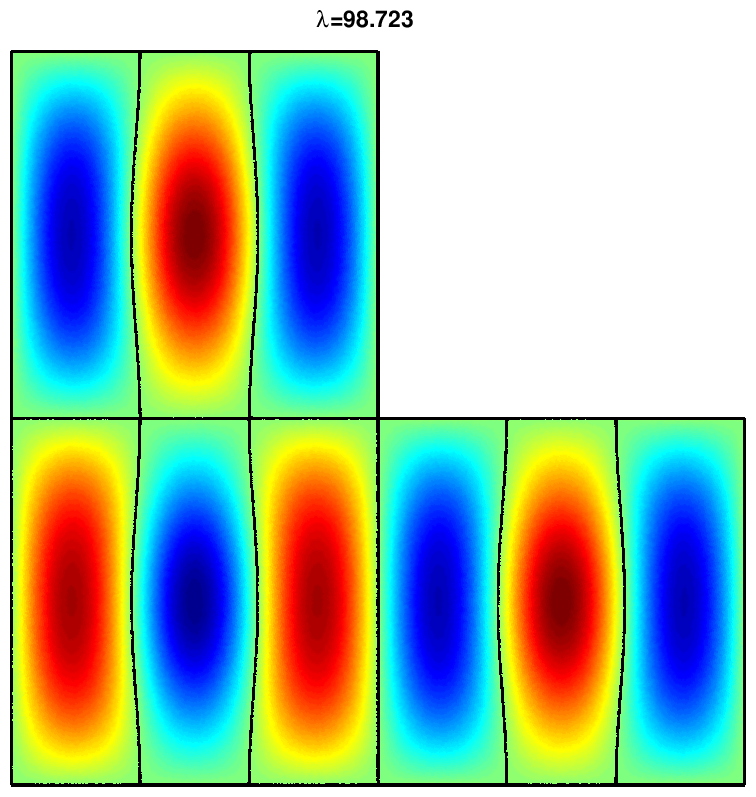

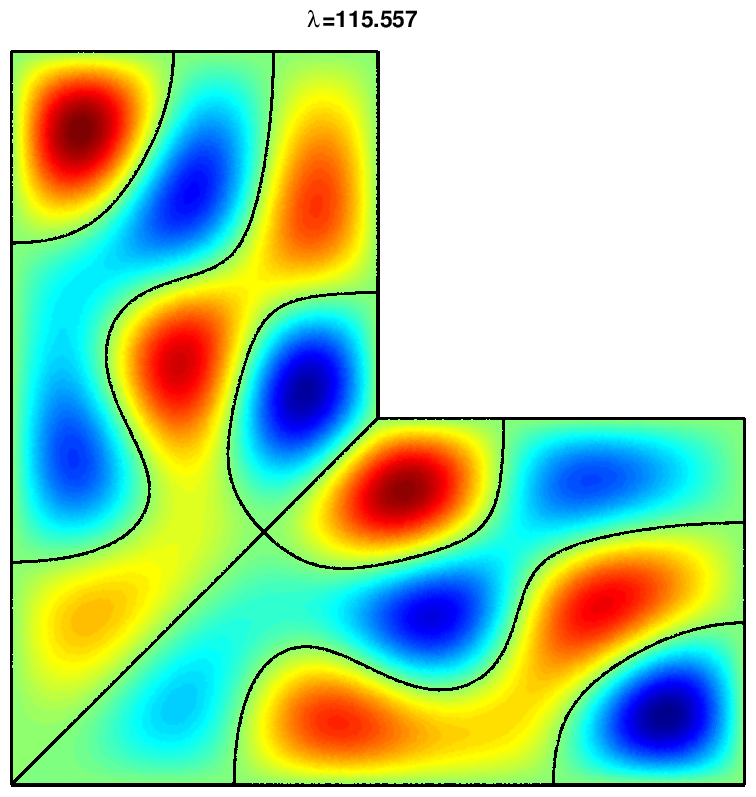

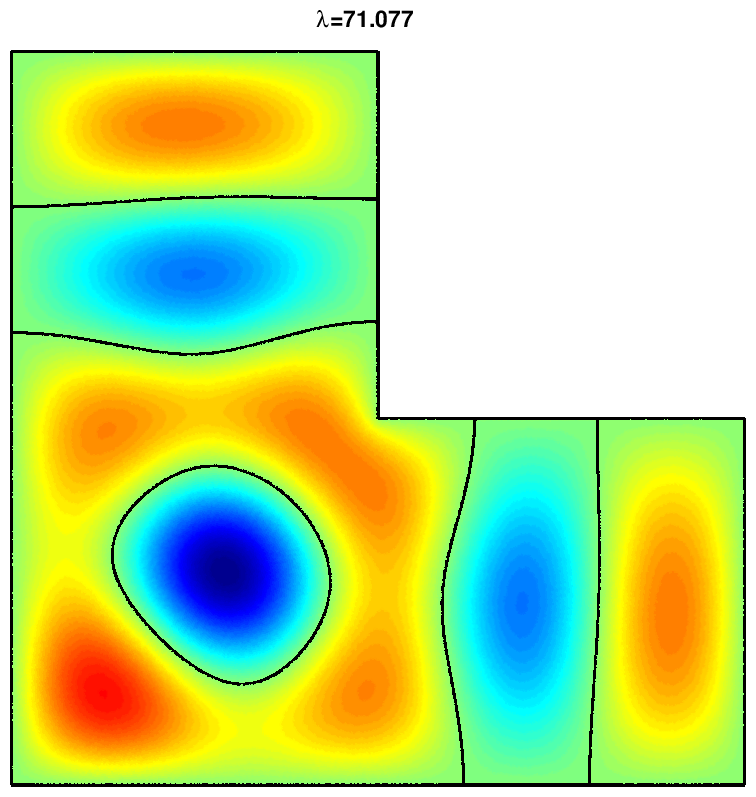

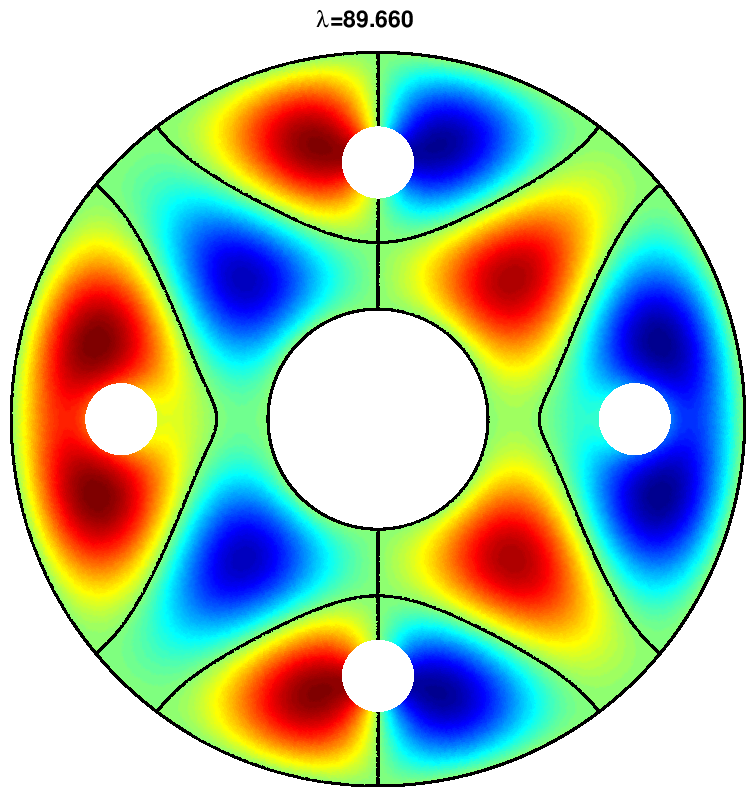

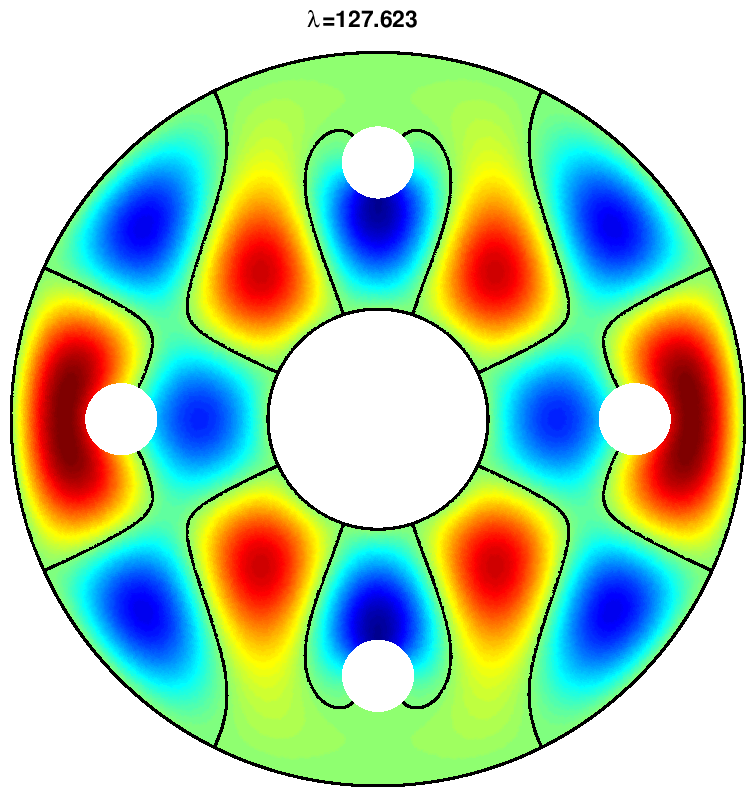

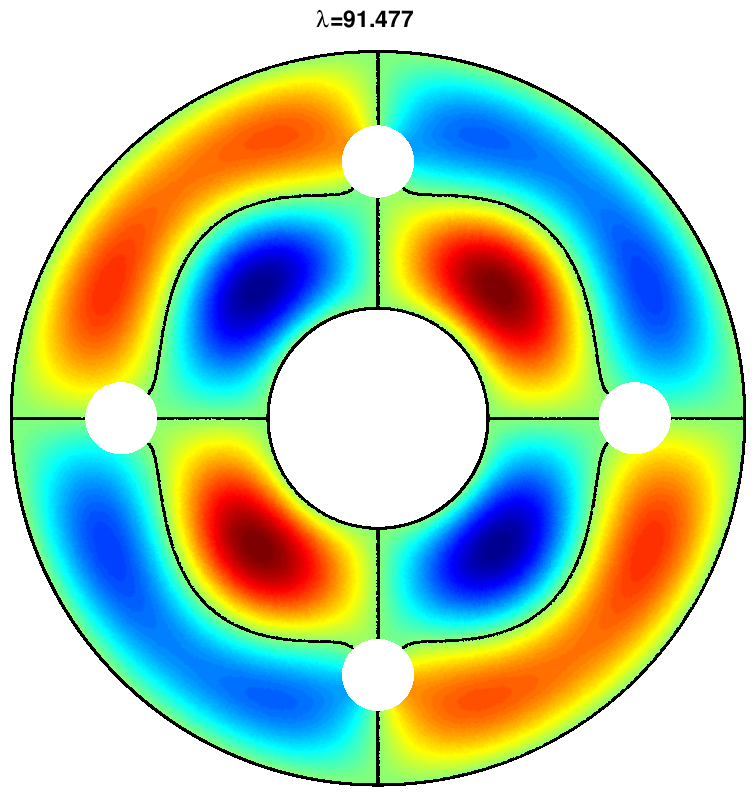

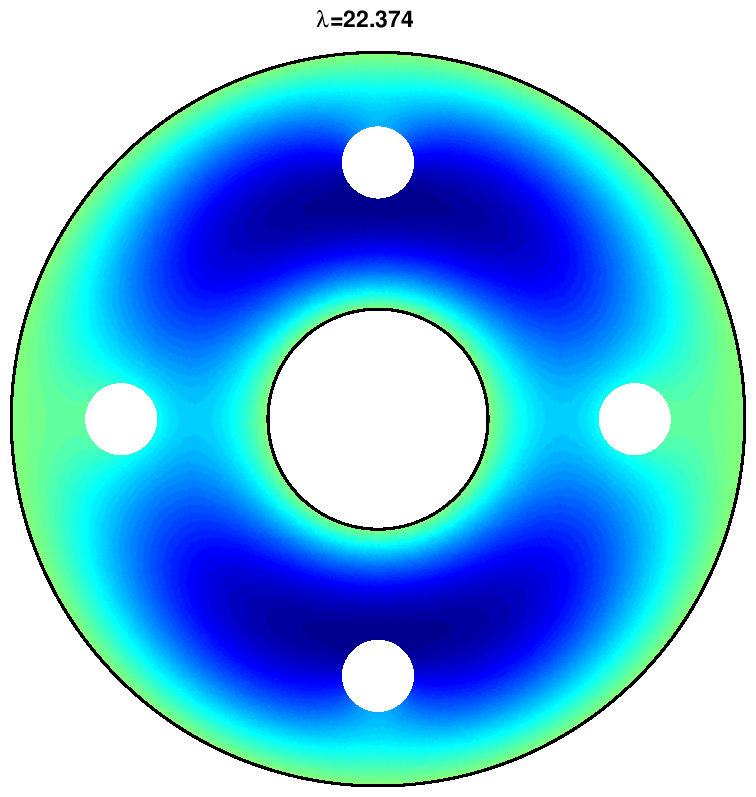

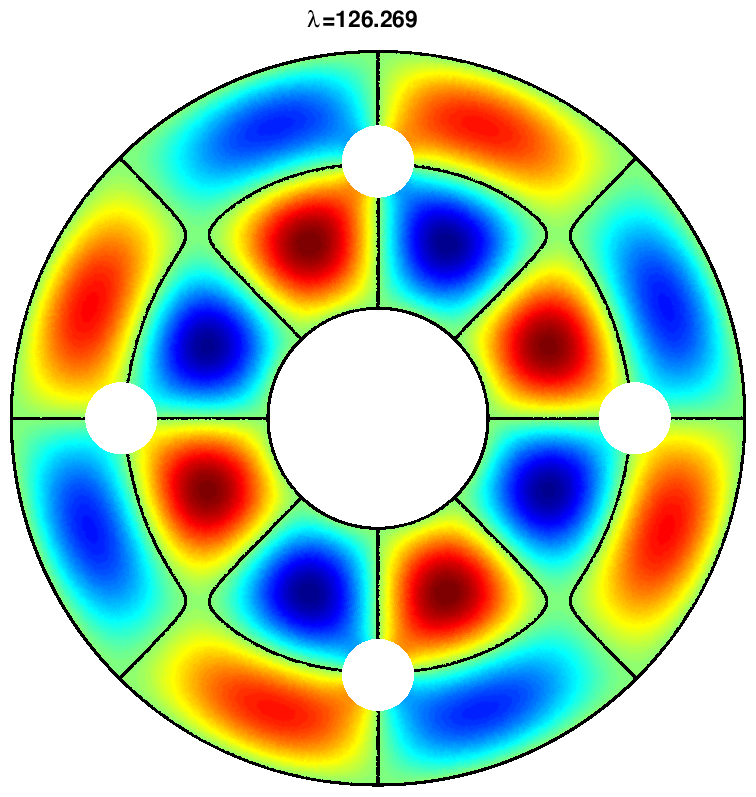

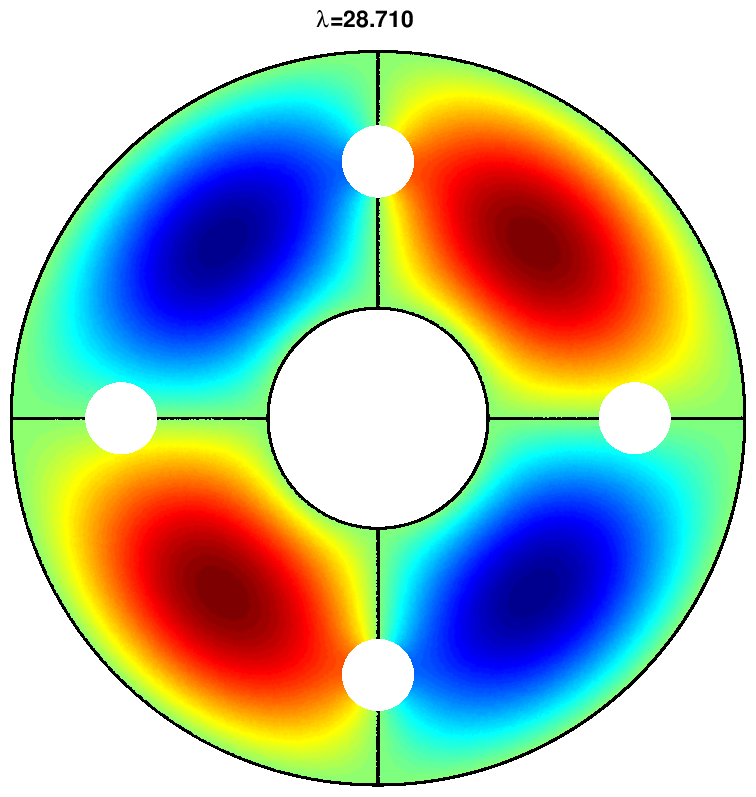

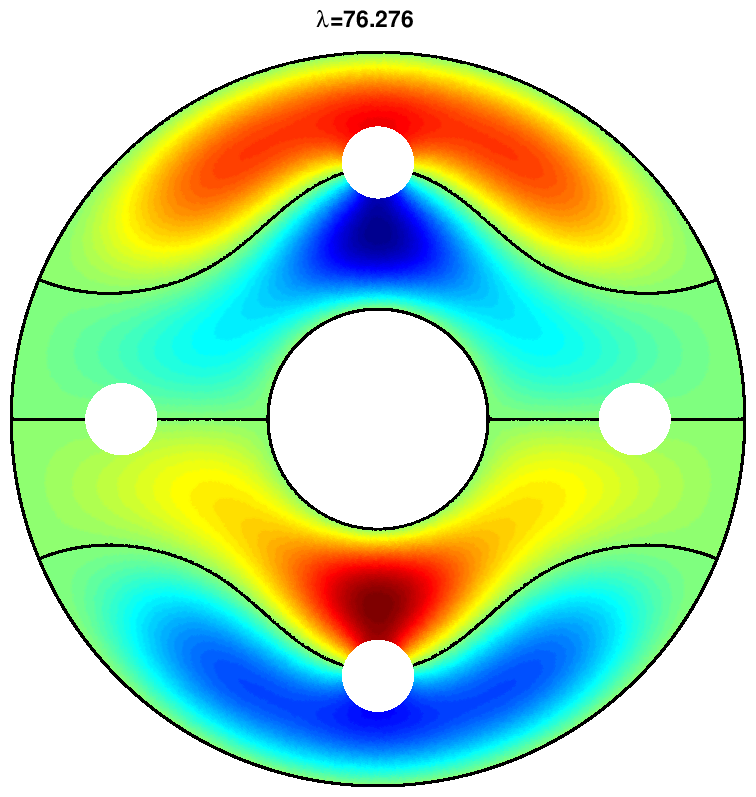

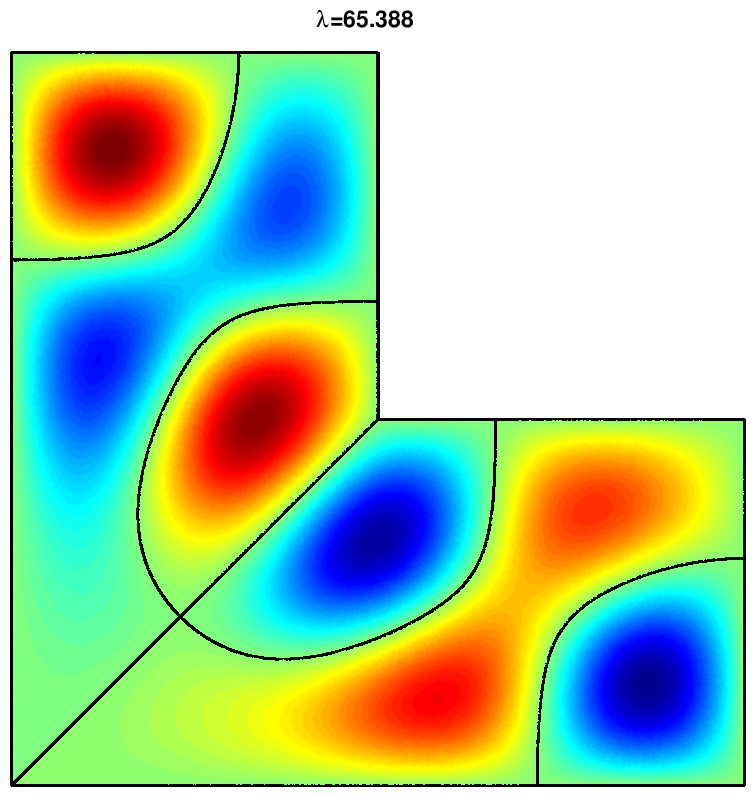

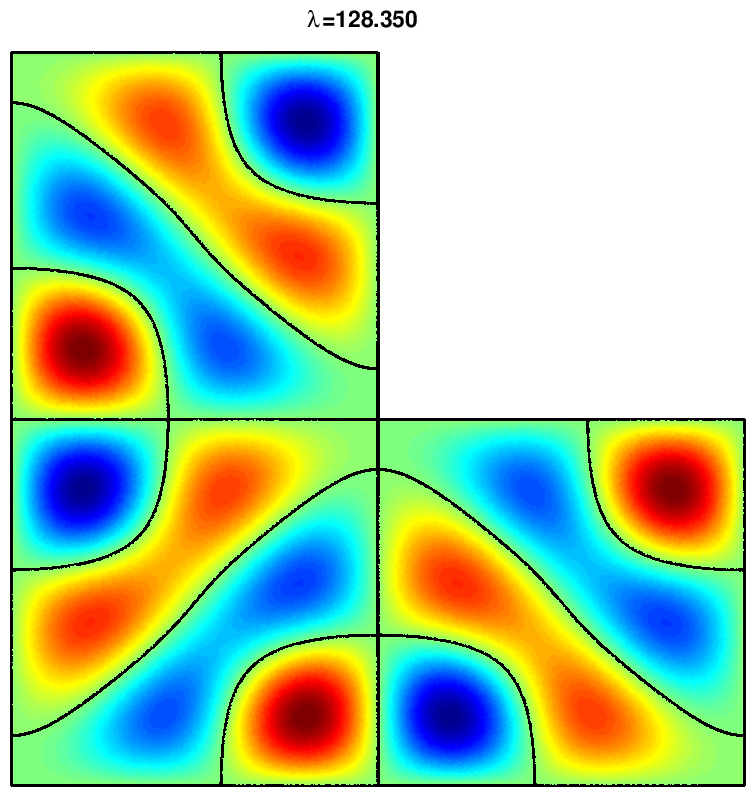

Snapshots
Requirements
This addon needs the
- gmsh, A three-dimensional finite element mesh generator with built-in pre- and post-processing
facilities to be installed. Under Windows, the 32bit version of gmsh is required even if the system
is 64bit.
- fc-vfemp1 Octave package (>= 0.0.5).
Current development release
|
|
|
|
|
|
Version | date | archives | User’s Guide |
|
|
|
|
|
0.0.2 | January 16, 2017 | | (10992 Ko)
|
|
|
|
|
|
|
Installation (experimental)
Then in an Octave terminal with the fc-vfemp1 package available run the following commands
Octave Console
>> fc_vfemp1.init
>> fc_vfemp1.addon.install(’name’,’eigs’)
Manual installation
The eigs archives must be extracted in the path of the fc-vfemp1 package. To obtain this path under
Octave we can used the command
Octave Console
>> env=fc_vfemp1.environment();
Then the path is given by env.Path
Test
To test this package quickly, one can run one of the script examples located in the directory
+fc_vfemp1/+addon/+eigs/+samples_2d. For example, runs
Octave Console
>> fc_vfemp1.addon.eigs.samples_2d.Laplacian_Dir_hypermesh_01ex
or the complete demo (take a long time) Octave Console
>> fc_vfemp1.addon.eigs.demos
Old development release
|
|
|
|
|
|
Version | date | archives | User’s Guide |
|
|
|
|
|
0.0.1 | January 16, 2017 | | (10992 Ko)
|
|
|
|
|
|
|
The
surface addon to the
fc-vfemp1 Octave package contains codes for solving
scalar surface Boundary
Value Problems.
Requirements
This addon needs the
- gmsh, A three-dimensional finite element mesh generator with built-in pre- and post-processing
facilities to be installed,
- fc-vfemp1 Octave package (>= 0.0.3),
- fc-simesh Octave package (>= 0.1.1),
- fc-tools Octave package (>= 0.0.16),
- fc-oogmsh Octave package (>= 0.0.12 ),
- fc-hypermesh Octave package (>= 0.0.2).
Current development release
|
|
|
|
|
|
Version | date | archives | User’s Guide |
|
|
|
|
|
0.0.1 | January 16, 2017 | | (6103 Ko)
|
|
|
|
|
|
|
This addon was tested under :
- Ubuntu 14.04 LTS with Octave 4.2.0, and gmsh version 2.15.0
Installation (experimental)
Then in an Octave terminal with the fc-vfemp1 package available run the following commands
Octave Console
>> fc_vfemp1.init
>> fc_vfemp1.addon.install(’name’,’surface’)
Manual installation
Get the surface archives and extract its contents in the fc-vfemp1 directory.
