The  Octave package make it possible to generate mesh files from .geo files by using gmsh. It’s also possible with the ooGmsh2 and ooGmsh4 classes to read the mesh file (respectively for MSH file format version 2.2 and version 4.x) and to store its contains in more user-friendly form. This package must be regarded as a very simple interface between gmsh files and Octave. So you are free to create any data structures or objects you want from an ooGmsh2 object or an ooGmsh4 object.

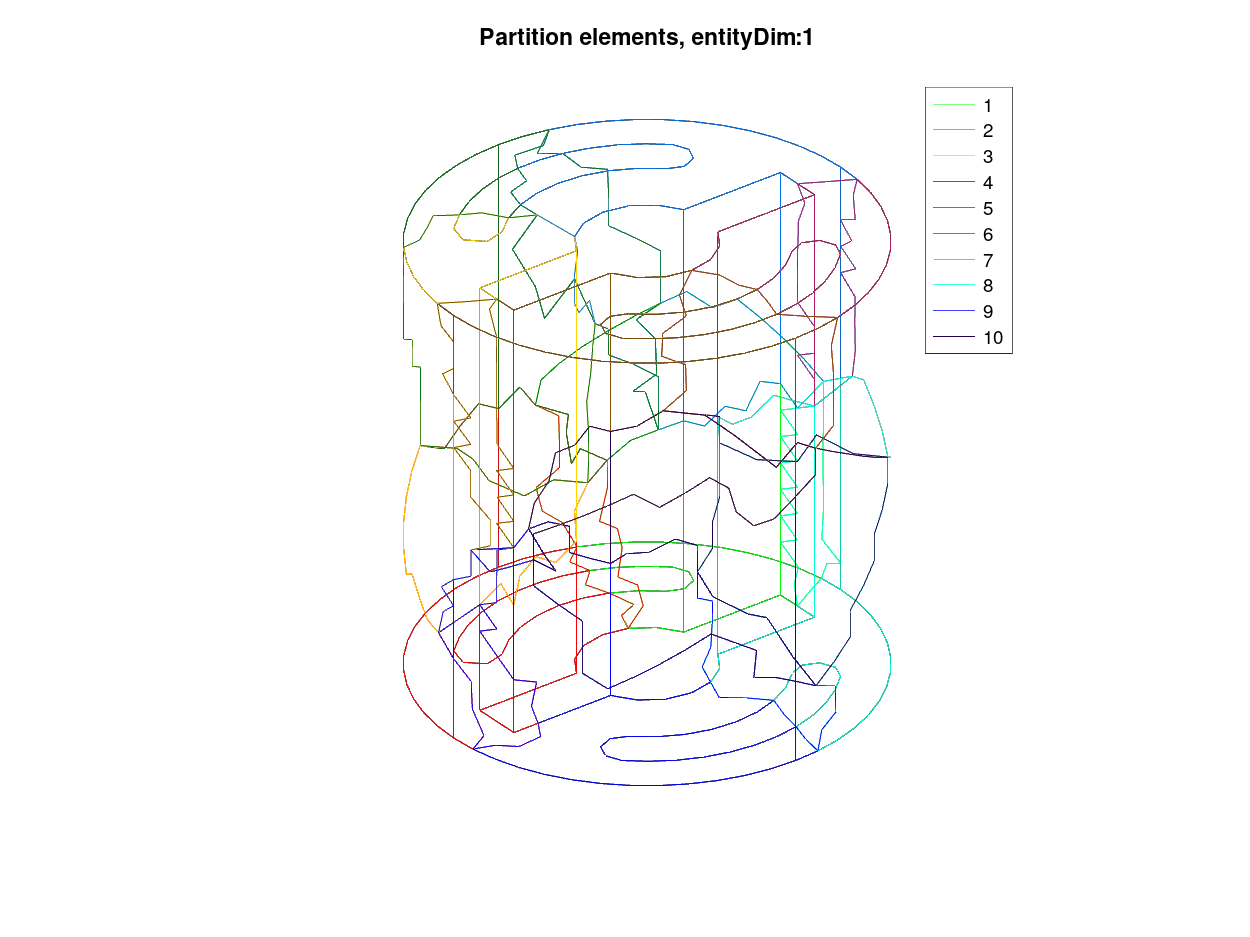

  Octave / Mesh / fc_oogmsh/ Snapshots

  Octave / Mesh / fc_oogmsh/ demos

Here are some examples using ooGmsh2 object:

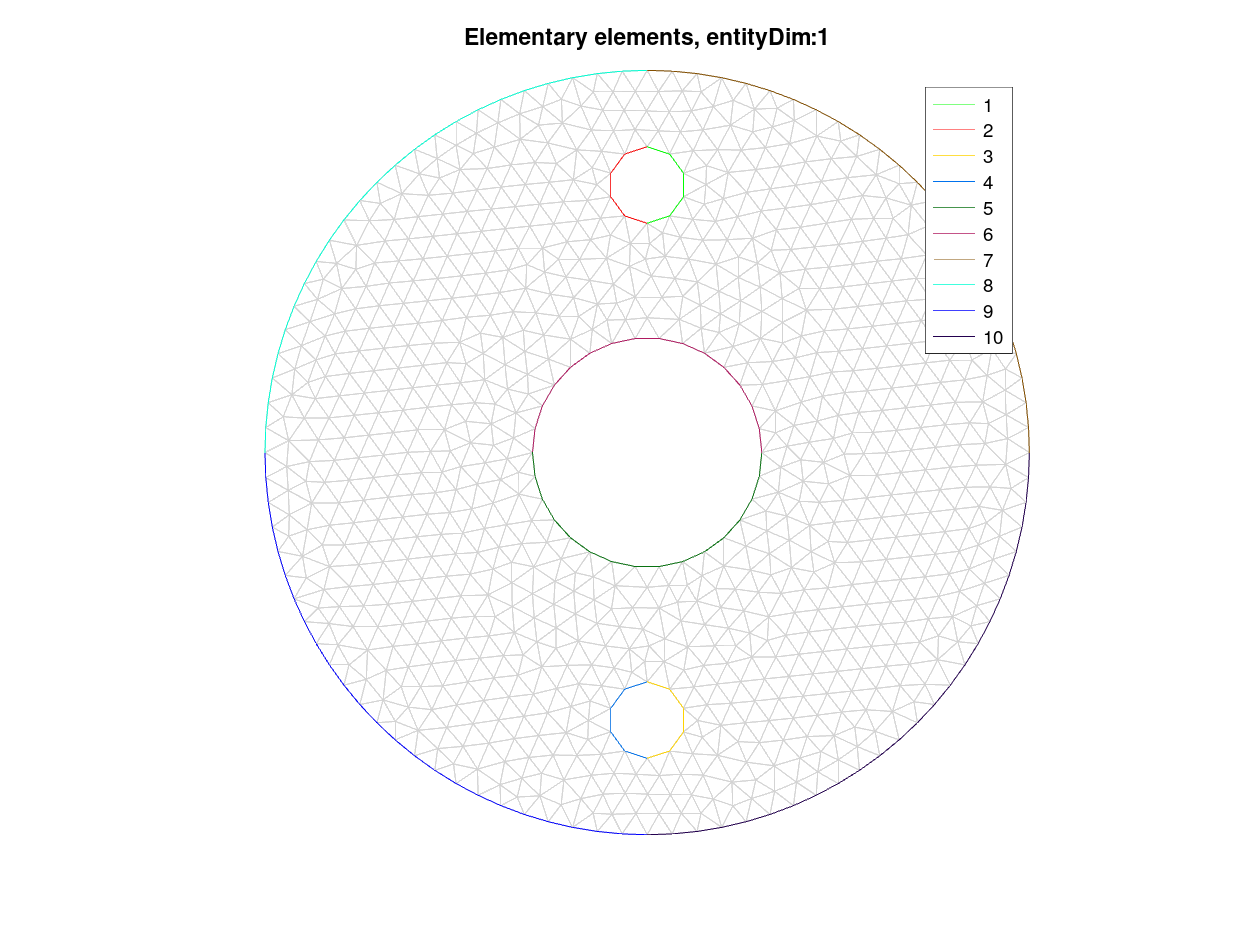

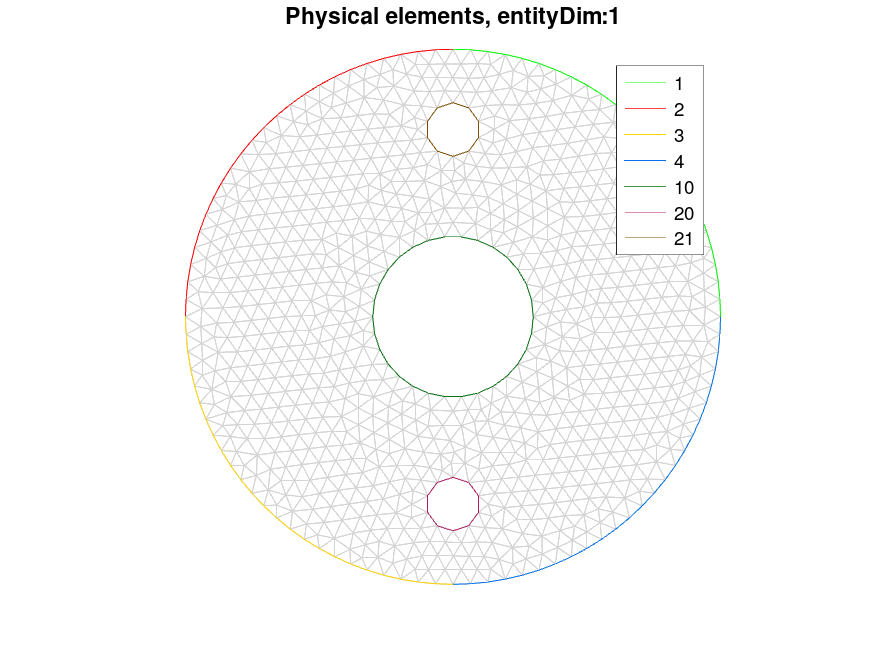

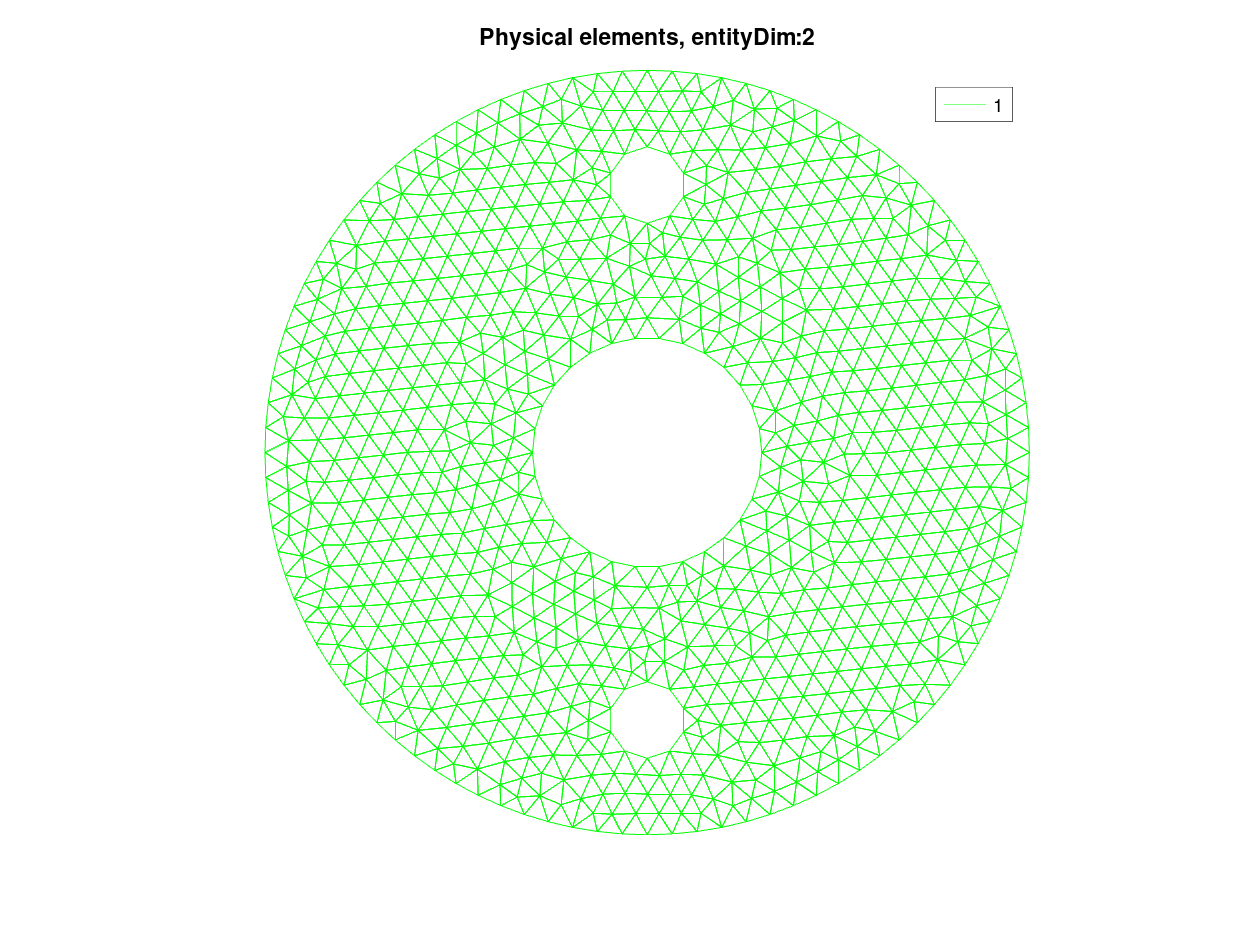

demo01	demo02	demo03	demo04	demo05	demo06

Here are some examples using ooGmsh4 object:

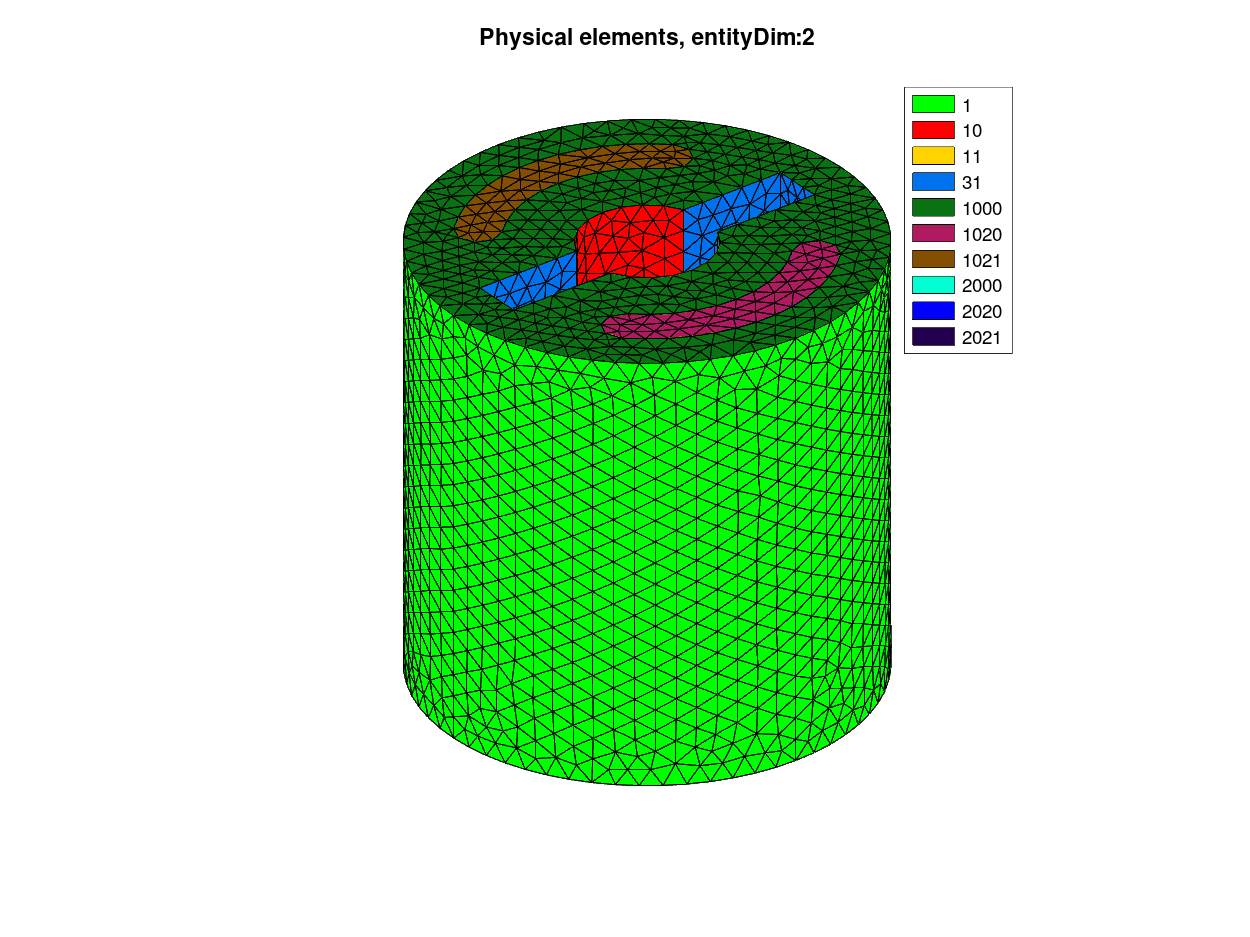

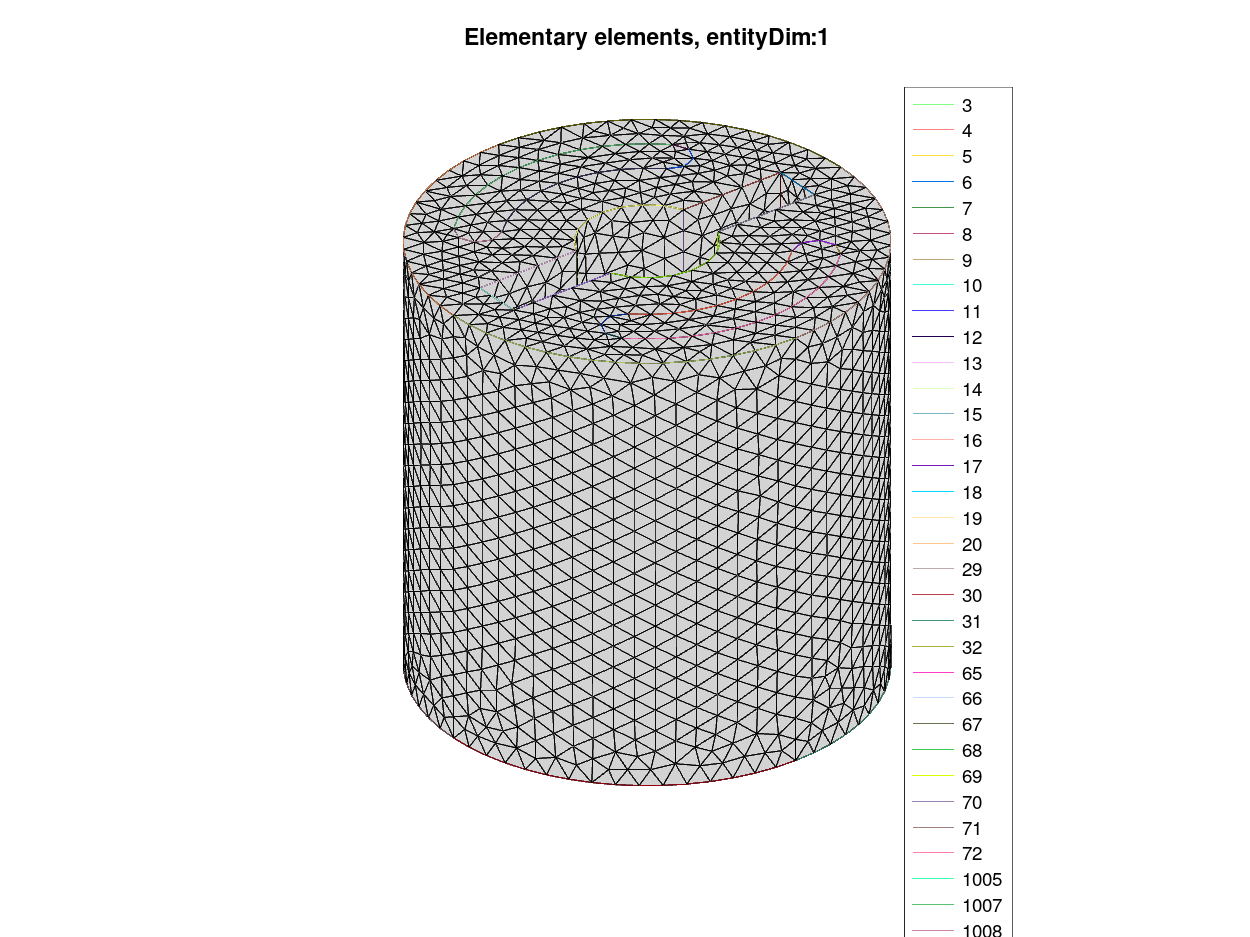

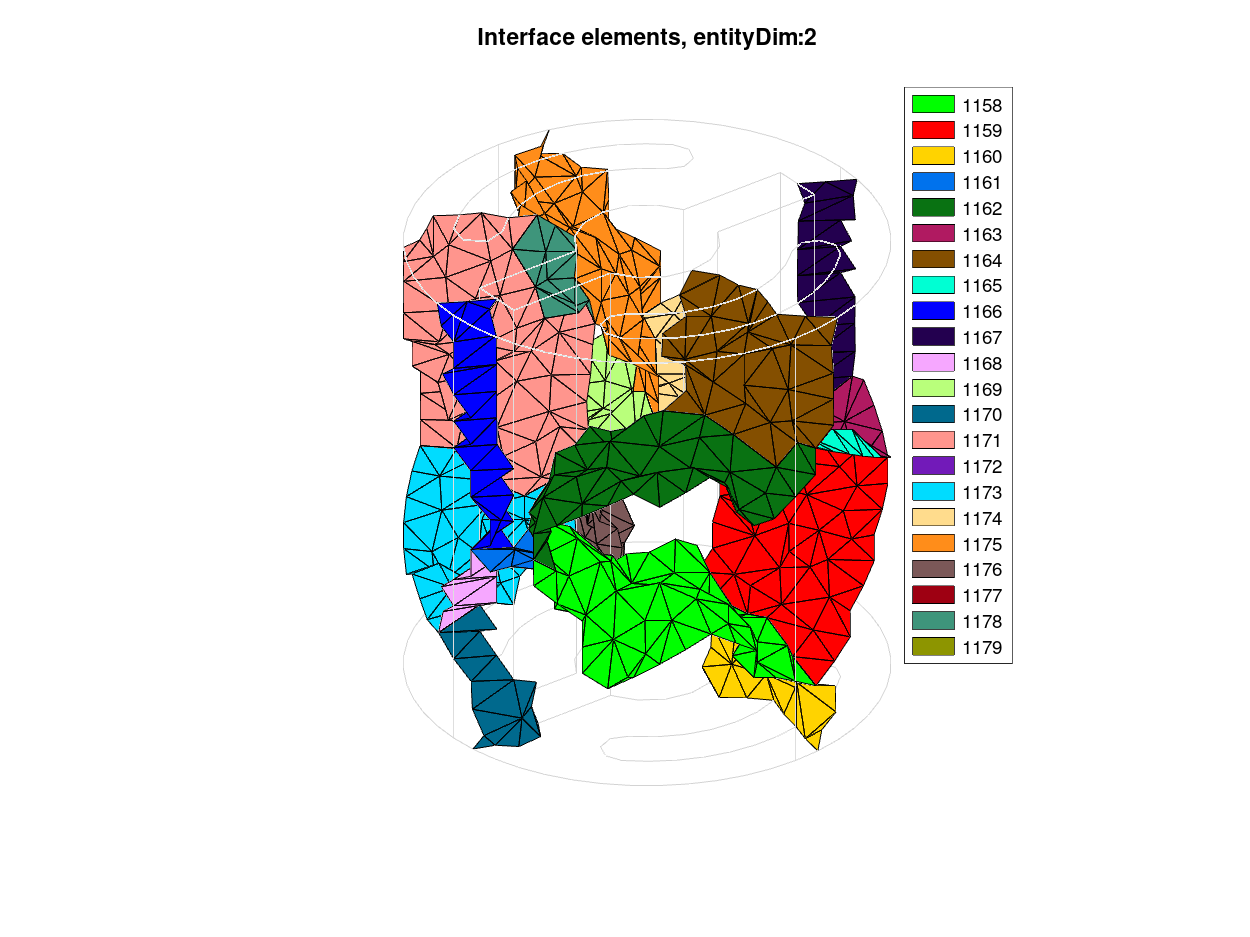

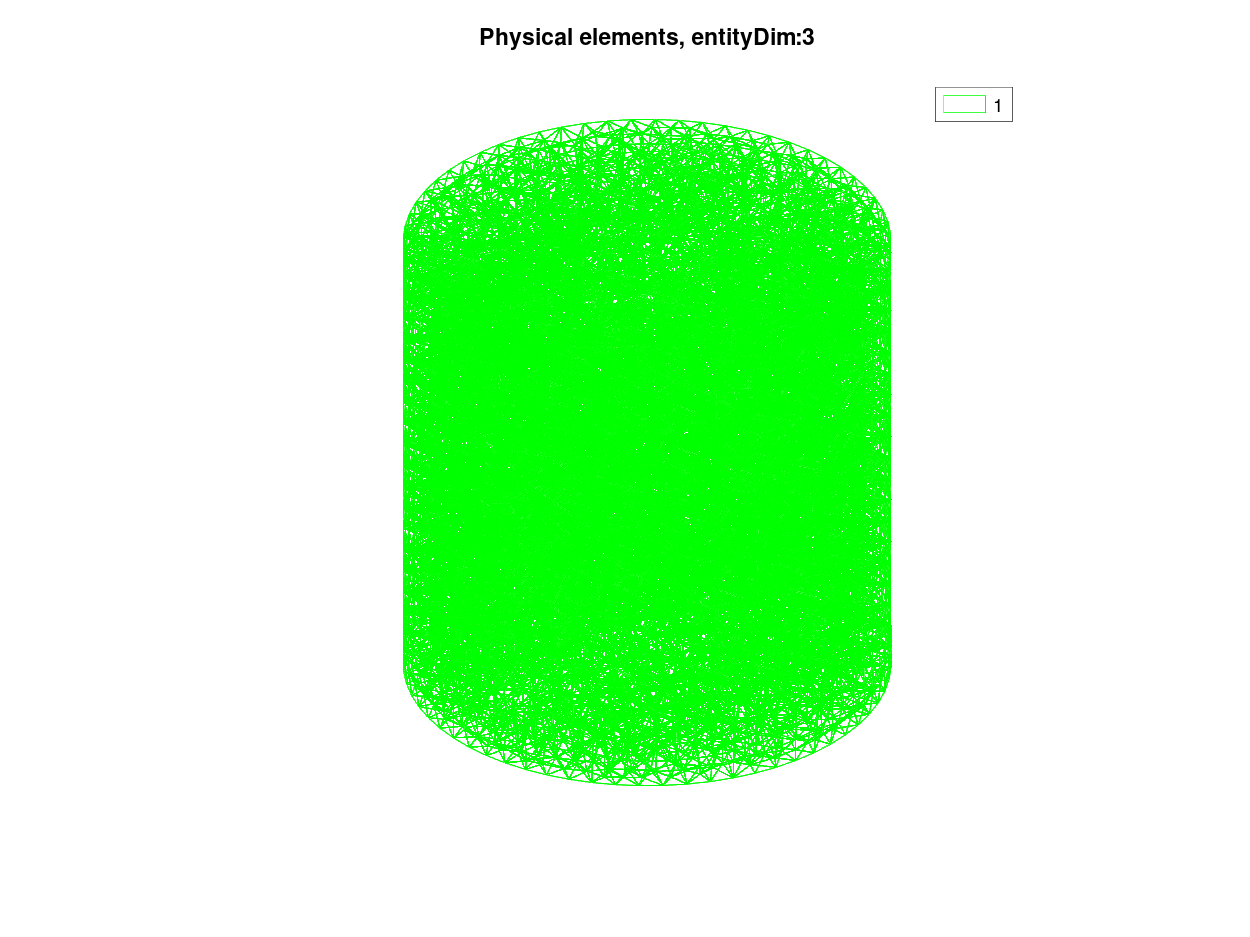

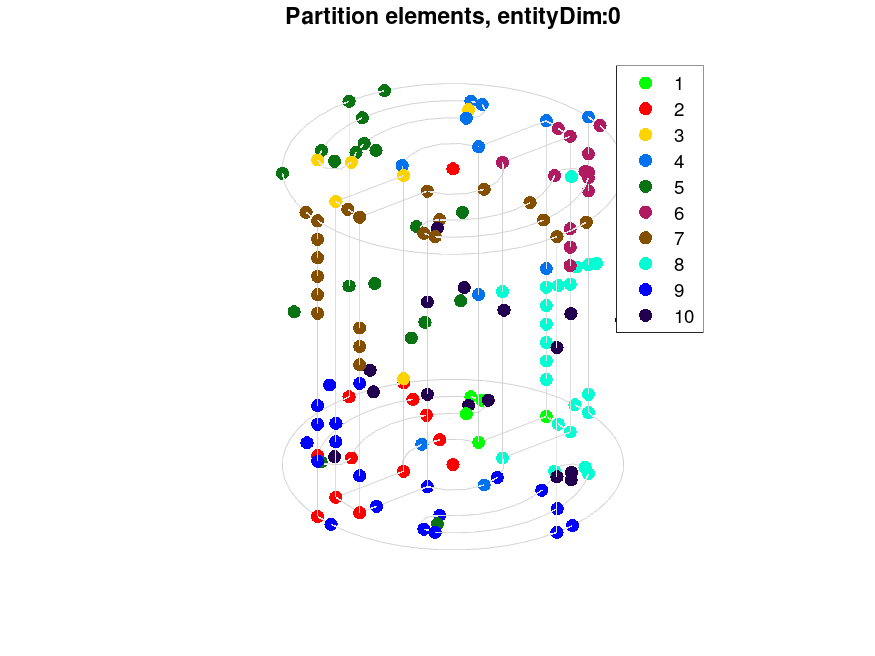

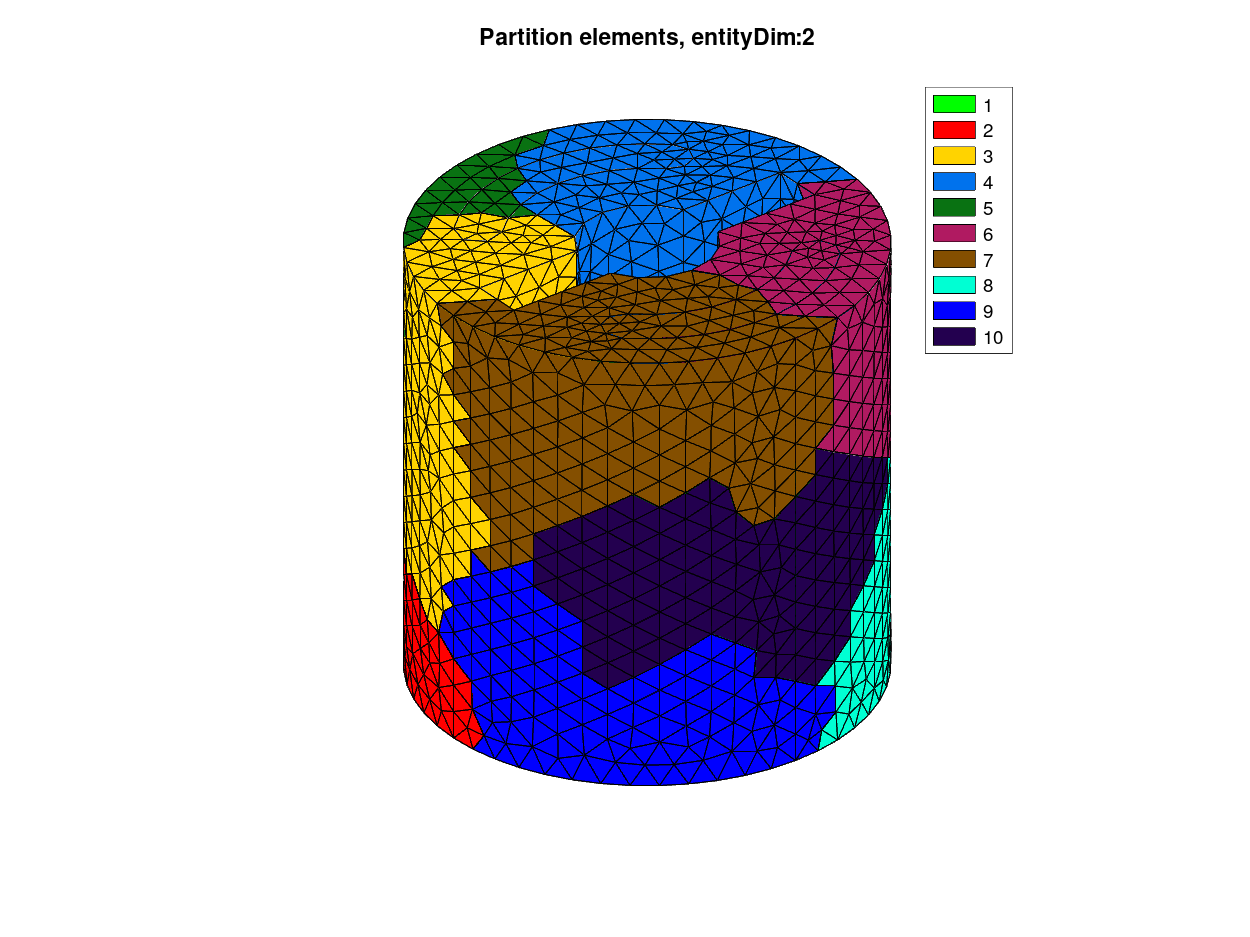

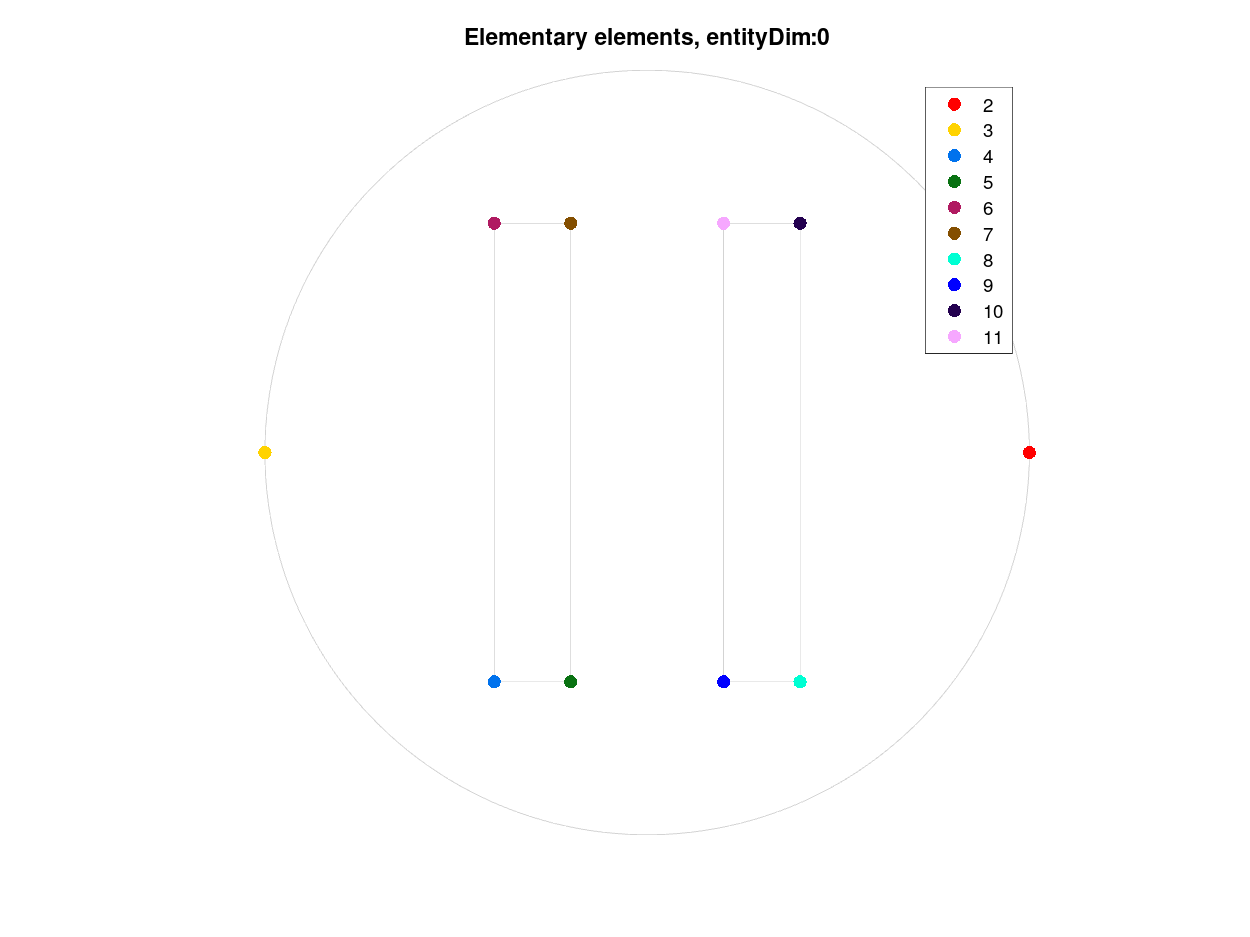

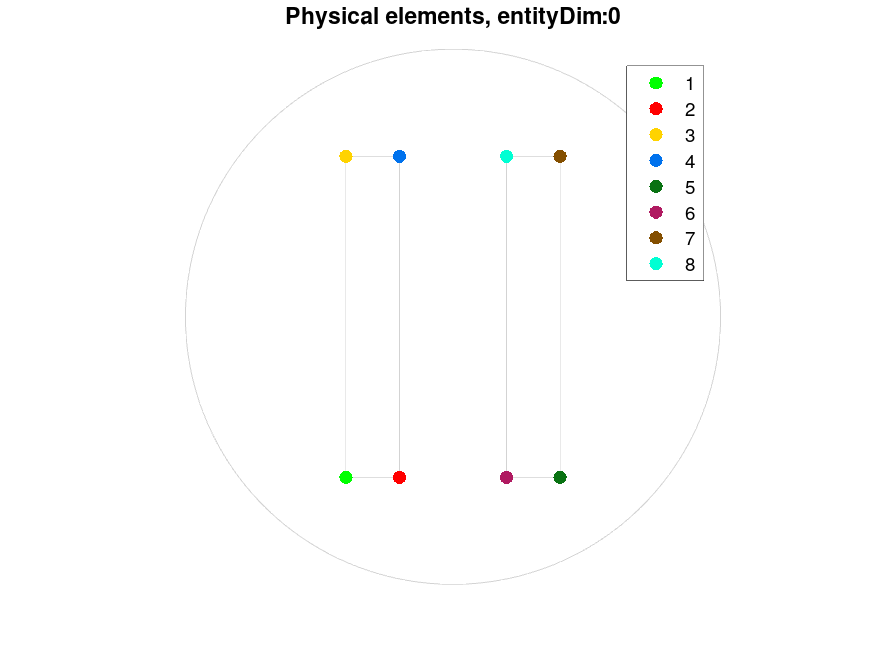

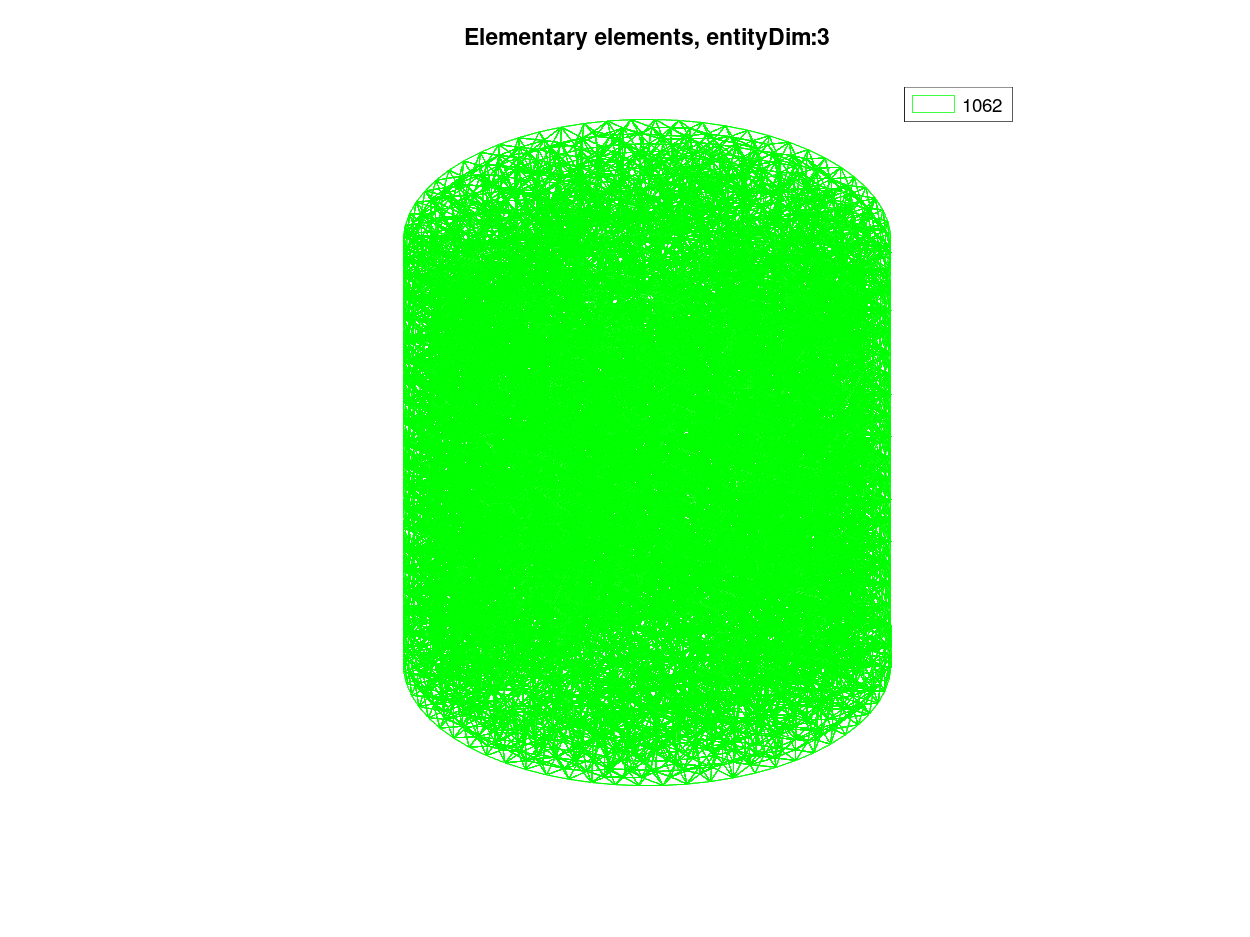

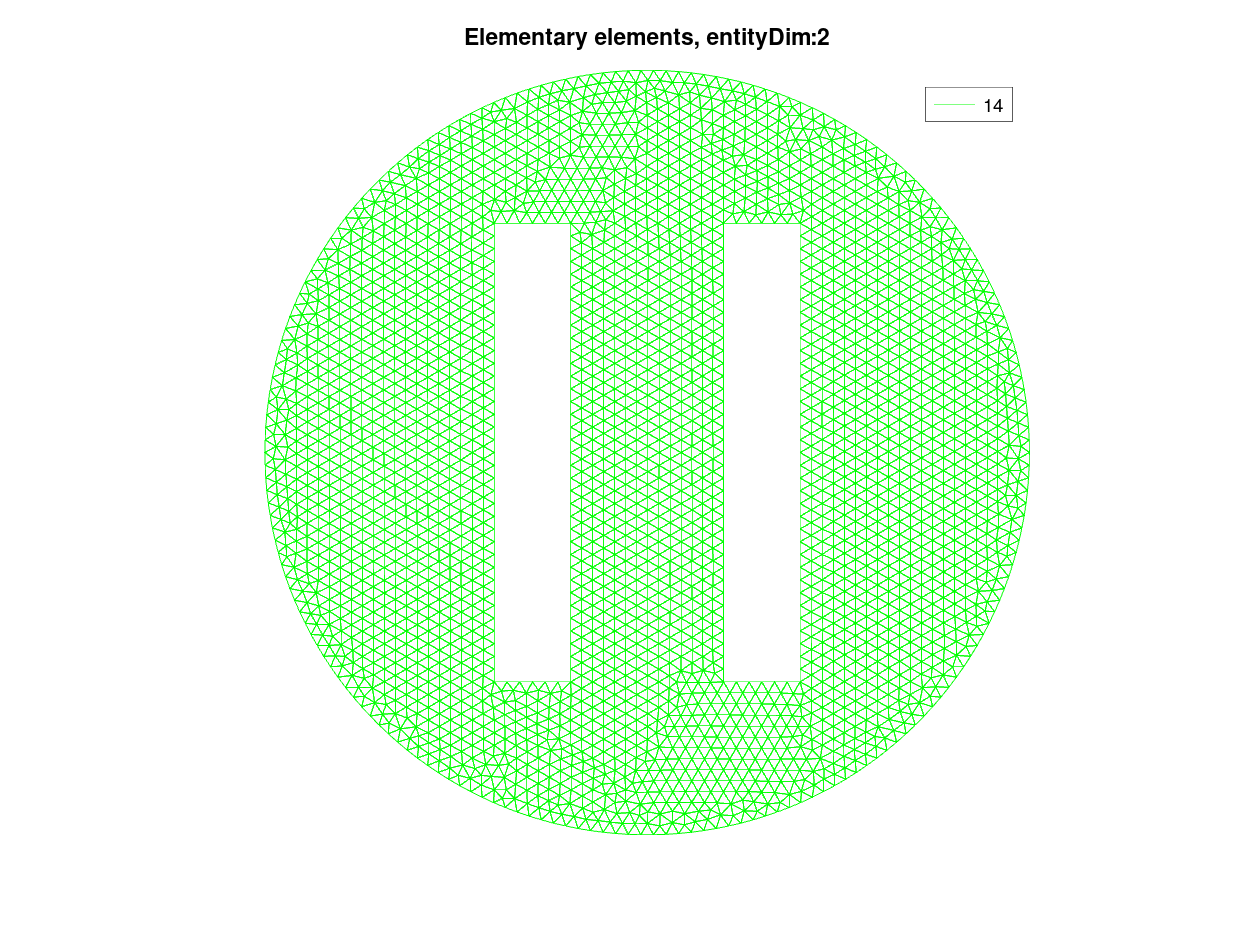

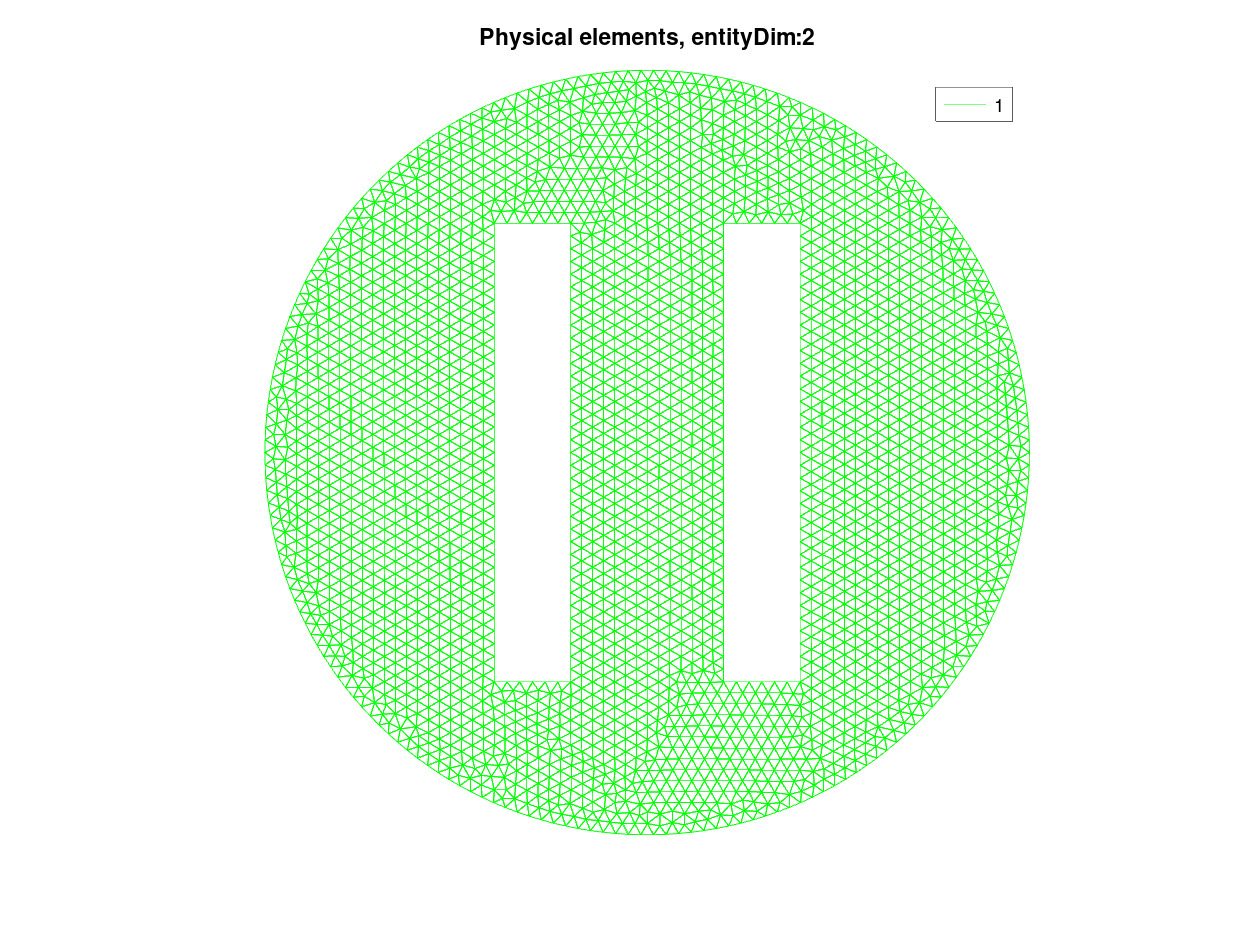

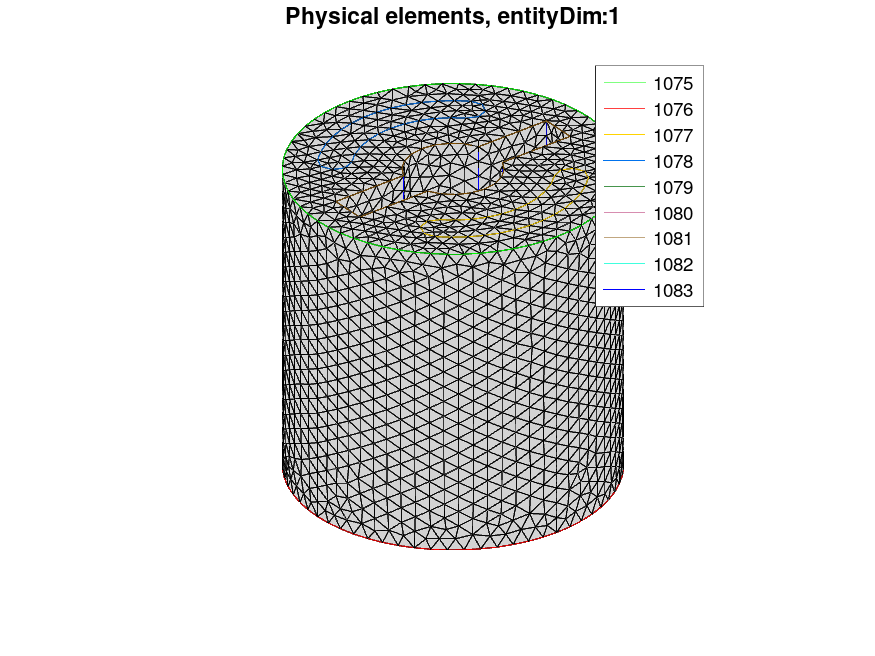

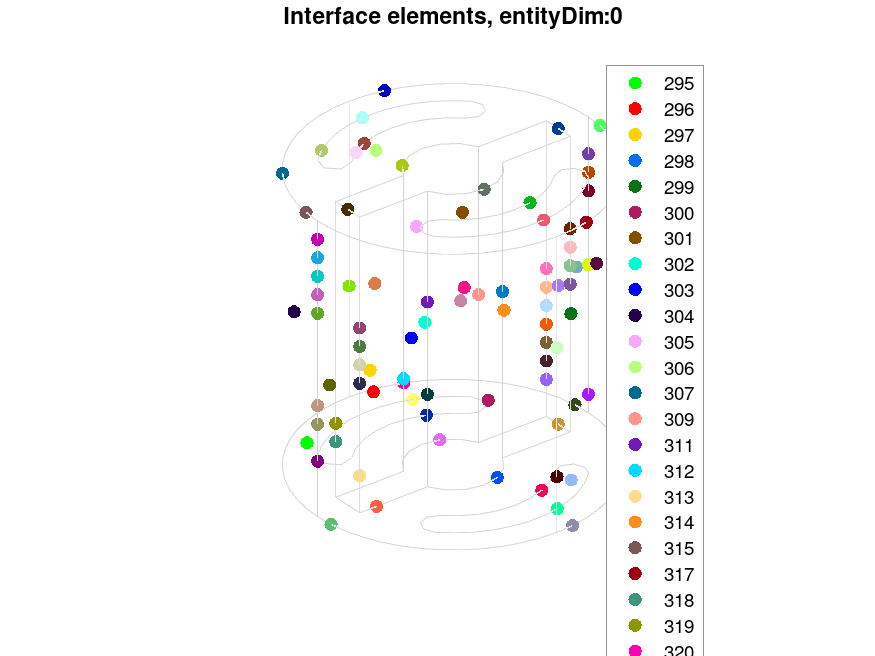

demo11	demo12	demo13	demo14	demo15	demo16

Graphical representations are done with the fc_graphics4mesh package.

  Octave / Mesh / fc_oogmsh/ Requirements

This package needs

• Octave (>= 4.2.0),

• gmsh, a three-dimensional finite element mesh generator with built-in pre- and post-processing facilities, to be installed. For automatic detection of gmsh binary, its location suppose to be

  • for Linux and MacOS, in ~/bin/gmsh,

  • for Windows 10, in %HOMEPATH%/Softwares/GMSH/gmsh.exe

  Octave / Mesh / fc_oogmsh/ Current development release

Version	date	package	archives	install	pdf
0.2.4	December 21, 2022	(52 Ko)	(52 Ko) (108 Ko) (42 Ko)	(3 Ko)	(3438 Ko)

  Octave / Mesh / fc_oogmsh/ Tested on

This package was only tested on Ubuntu 22.04.1 with Octave 7.3.0.

  Octave / Mesh / fc_oogmsh/ Tested on

This package was tested under This package was only tested on Ubuntu 22.04.1 with Octave 7.3.0.

  Octave / Mesh / fc_oogmsh/ Installation

For automatic installation, one has to get/download the install file ofc_oogmsh_install.m Thereafter, one run it under Octave. This command download, extract and configure the fc-oogmsh toolbox and and all the required packages in the current directory.

By default, the gmsh binary is supposed to be located in

• <USERDIR>/bin/gmsh under linux and MacOS,

• <USERDIR>/Softwares/GMSH/gmsh.exe under Windows 10

It can be directly given by using the ’gmsh_bin’ option of the install command:

>> ofc_oogmsh_install(’gmsh_bin’, GMSH)

>> fc_oogmsh.configure(’gmsh_bin’,’~/gmsh-4.11.0/bin/gmsh’)

For example, to install this package in ~/Octave directory, one have to copy the file ofc_oogmsh_install.m in the ~/Octave directory. Then in a Octave terminal run the following commands

>> cd ~/Octave
>> ofc_oogmsh_install

There is the output of the ofc_oogmsh_install command:

Parts of the <fc-oogmsh> Octave package.
Copyright (C) 2017-2022 F. Cuvelier

1- Downloading and extracting the packages
2- Setting the <fc-oogmsh> package
Write in ~/Octave/fc-oogmsh-full/fc_oogmsh-0.2.4/configure_loc.m ...
3- Using packages :
   ->             fc-tools : 0.0.34
   ->             fc-bench : 0.1.3
   ->              fc-amat : 0.1.3
   ->         fc-meshtools : 0.1.4
   ->     fc-graphics4mesh : 0.1.5
 with            fc-oogmsh : 0.2.4
*** Using instructions
   To use the <fc-oogmsh> package:
   addpath(’~/Octave/fc-oogmsh-full/fc_oogmsh-0.2.4’)
   fc_oogmsh.init()

   See ~/Octave/ofc_oogmsh_set.m

The complete toolbox (i.e. with all the other needed packages) is stored in the directory

>> addpath(’~/Octave/fc-oogmsh-full/fc-oogmsh-0.2.4’)
>> fc_oogmsh.init()

If it’s the first time the fc_oogmsh.init() function is used, then its output is

Try to use default parameters!
 Use fc_tools.configure to configure.
Write in ~/Octave/fc-oogmsh-full/fc_tools-0.0.34/configure_loc.m ...
Try to use default parameters!
 Use fc_bench.configure to configure.
Write in ~/Octave/fc-oogmsh-full/fc_bench-0.1.3/configure_loc.m ...
Try to use default parameters!
 Use fc_amat.configure to configure.
Write in ~/Octave/fc-oogmsh-full/fc_amat-0.1.3/configure_loc.m ...
Try to use default parameters!
 Use fc_meshtools.configure to configure.
Write in ~/Octave/fc-oogmsh-full/fc_meshtools-0.1.4/configure_loc.m ...
Try to use default parameters!
 Use fc_graphics4mesh.configure to configure.
Write in ~/Octave/fc-oogmsh-full/fc_graphics4mesh-0.1.5/configure_loc.m ...
Using fc_oogmsh[0.2.4] with fc_tools[0.0.34], fc_bench[0.1.3], fc_amat[0.1.3], fc_meshtools[0.1.4], fc_graphics4mesh[0.1.5].
Configured to use gmsh 4.11.0 with default MSH file format version 4.1

Using fc_oogmsh[0.2.4] with fc_tools[0.0.34], fc_bench[0.1.3], fc_amat[0.1.3], fc_meshtools[0.1.4], fc_graphics4mesh[0.1.5].
Configured to use gmsh 4.11.0 with default MSH file format version 4.1

For uninstalling, one just has to delete directory:

  Octave / Mesh / fc_oogmsh/ Version history

• 0.2.4 (December 21, 2022): using version 0.0.34 of the fc-tools toolbox.

• 0.2.3 (March 20, 2020): Bug fixed? error with space in directories and files. (not fully tested)

• 0.2.2 (February 18, 2020): minor change in configure function.

• 0.2.1 (January 30, 2020): Adding graphic tools using the fc-graphics4mesh package.

• 0.1.0 (March, 24 2019): Adding support of MSH file format versions 4.0 and 4.1.

• 0.0.19 (Septembre 17, 2018): using version 0.0.23 of the fc-tools package, compatible with version 4.0.1 of gmsh.

• 0.0.17 (December 13, 2017): using version 0.0.19 of the fc-tools package.

• 0.0.16 (November 22, 2017): modify sample in demo!.

• 0.0.14 (February 5, 2017): first version for Linux, Windows and Mac OS X.

  Octave / Mesh / fc_oogmsh/ Old development releases

Version	date	package	archives	install	pdf
0.2.3	March 20, 2020	(54 Ko)	(54 Ko) (107 Ko) (42 Ko)	(3 Ko)	(5205 Ko)
0.2.2	February 17, 2020	(54 Ko)	(54 Ko) (107 Ko) (42 Ko)	(3 Ko)	(5205 Ko)
0.2.1	January 30, 2020	(54 Ko)	(54 Ko) (107 Ko) (42 Ko)	(3 Ko)	(1700 Ko)
0.1.0	March 24, 2018	(48 Ko)	(48 Ko) (93 Ko) (37 Ko)	(3 Ko)	(1312 Ko)
0.0.19	September 17, 2018	(35 Ko)	(35 Ko) (62 Ko) (29 Ko)	(3 Ko)	(374 Ko)
0.0.17	December 13, 2017	(34 Ko)	(34 Ko) (60 Ko) (28 Ko)	(3 Ko)	(364 Ko)
0.0.16	November 22, 2017	(33 Ko)	(33 Ko) (59 Ko) (27 Ko)	(2 Ko)	(362 Ko)
0.0.15	October 31, 2017	(33 Ko)	(33 Ko) (59 Ko) (27 Ko)	(2 Ko)	(347 Ko)
0.0.14	February 5, 2017	(31 Ko)	(31 Ko) (50 Ko) (26 Ko)	(2 Ko)	(426 Ko)
0.0.13	February 1, 2017	(31 Ko)	(31 Ko) (50 Ko) (26 Ko)	(2 Ko)	(367 Ko)
0.0.13	December 27, 2016	(31 Ko)	(31 Ko) (50 Ko) (26 Ko)	(2 Ko)	(367 Ko)
0.0.11	December 23, 2016	(30 Ko)	(30 Ko) (49 Ko) (25 Ko)	(2 Ko)	(367 Ko)
0.0.10	December 20, 2016	(30 Ko)	(30 Ko) (49 Ko) (25 Ko)	(2 Ko)	(367 Ko)
