Octave / Mesh / fc_siplt package

Snapshots

Some demos

Current release

Tested on

Installation

History

Old releases

pict pict

This experimental pict

package uses a fc_simesh.siMesh object, comming from the

package, to display simplicial meshes or datas on simplicial meshes. Its kernel uses the

package.

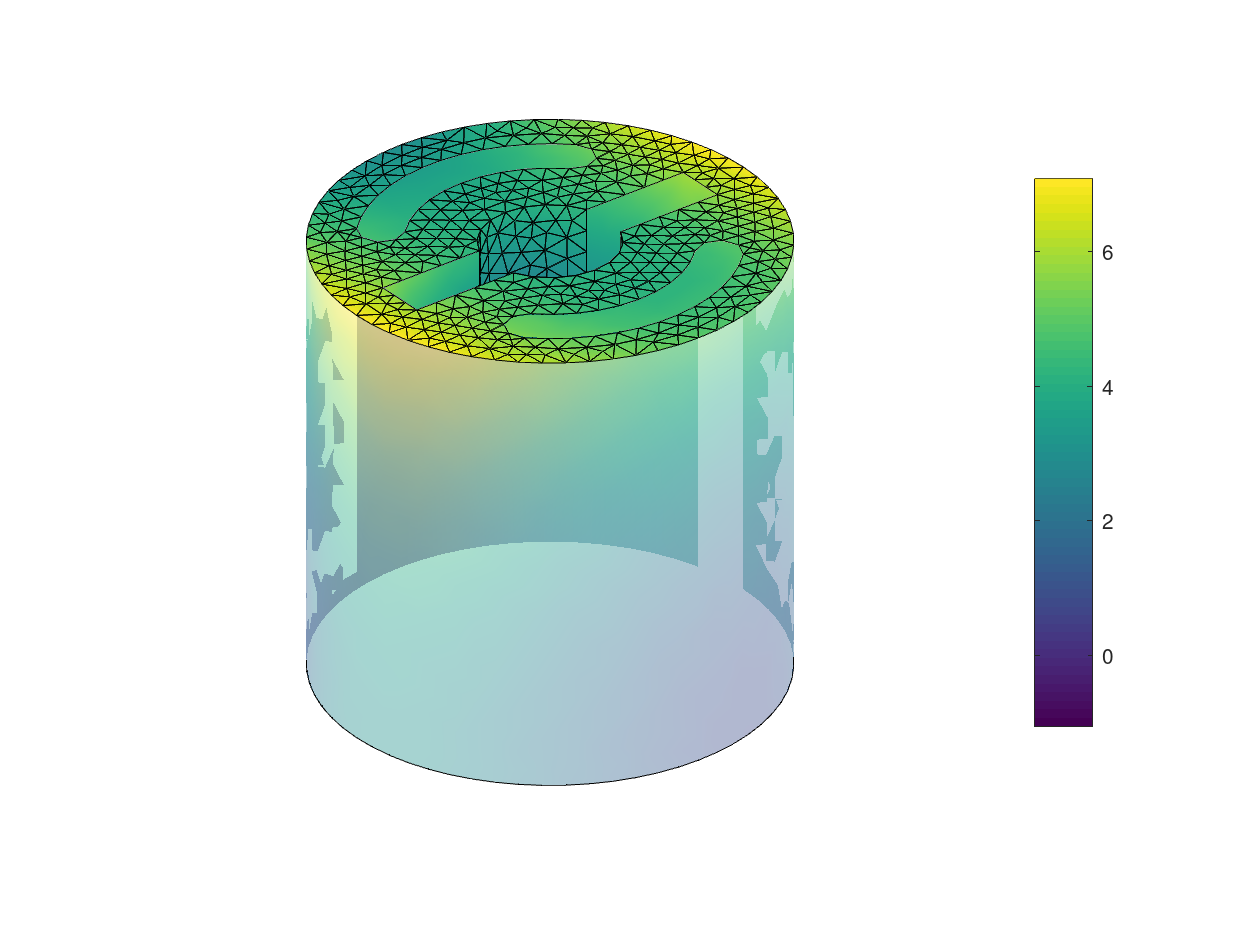

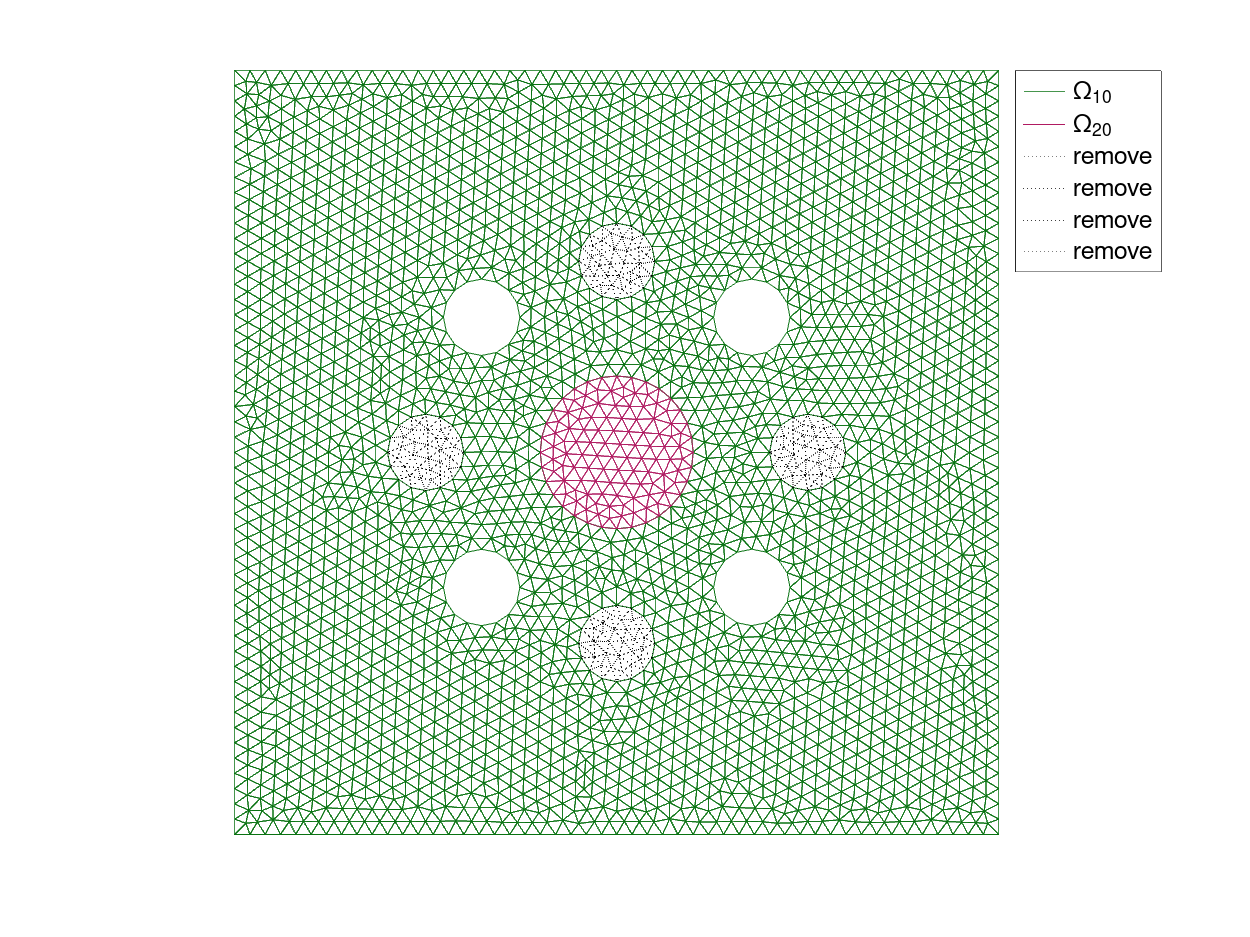

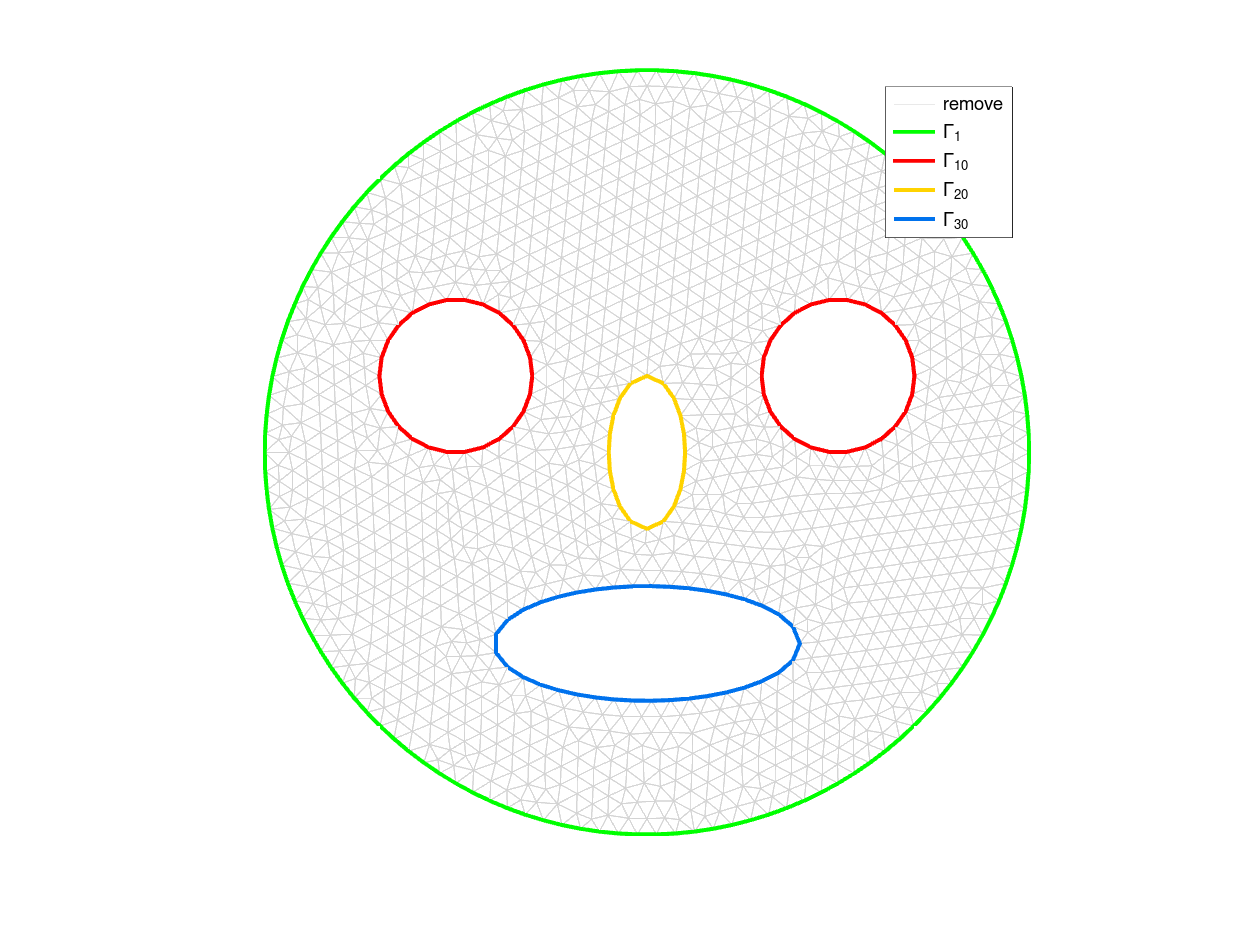

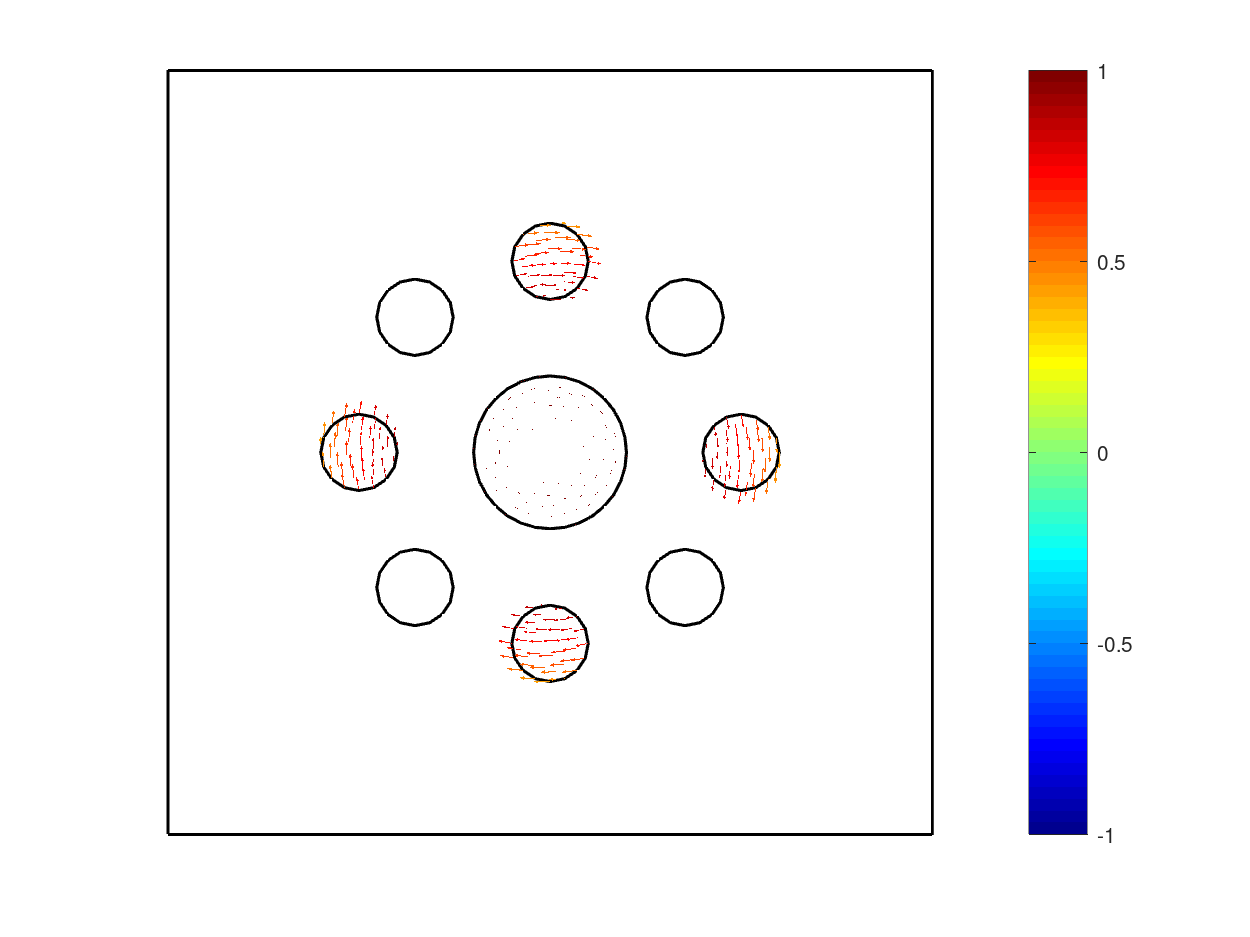

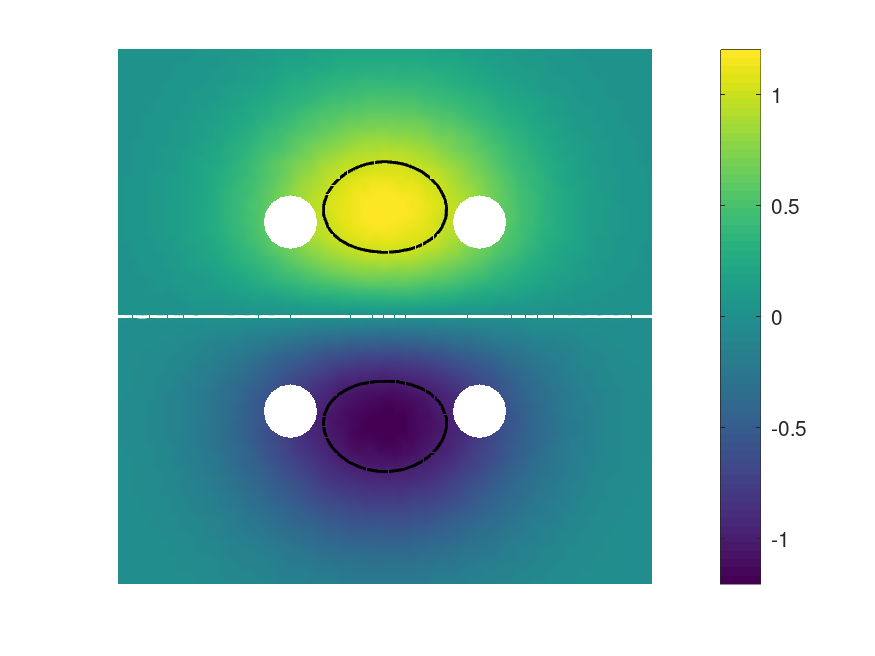

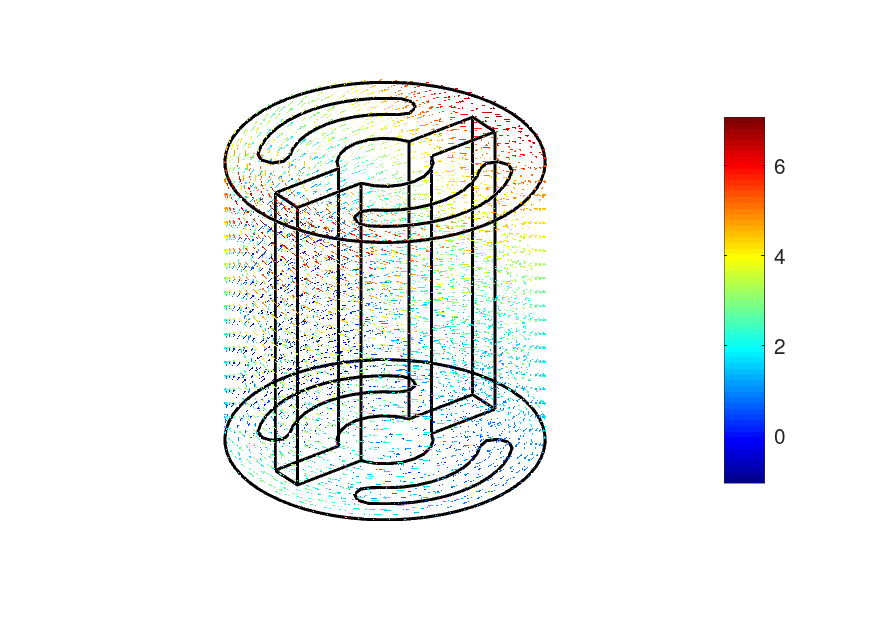

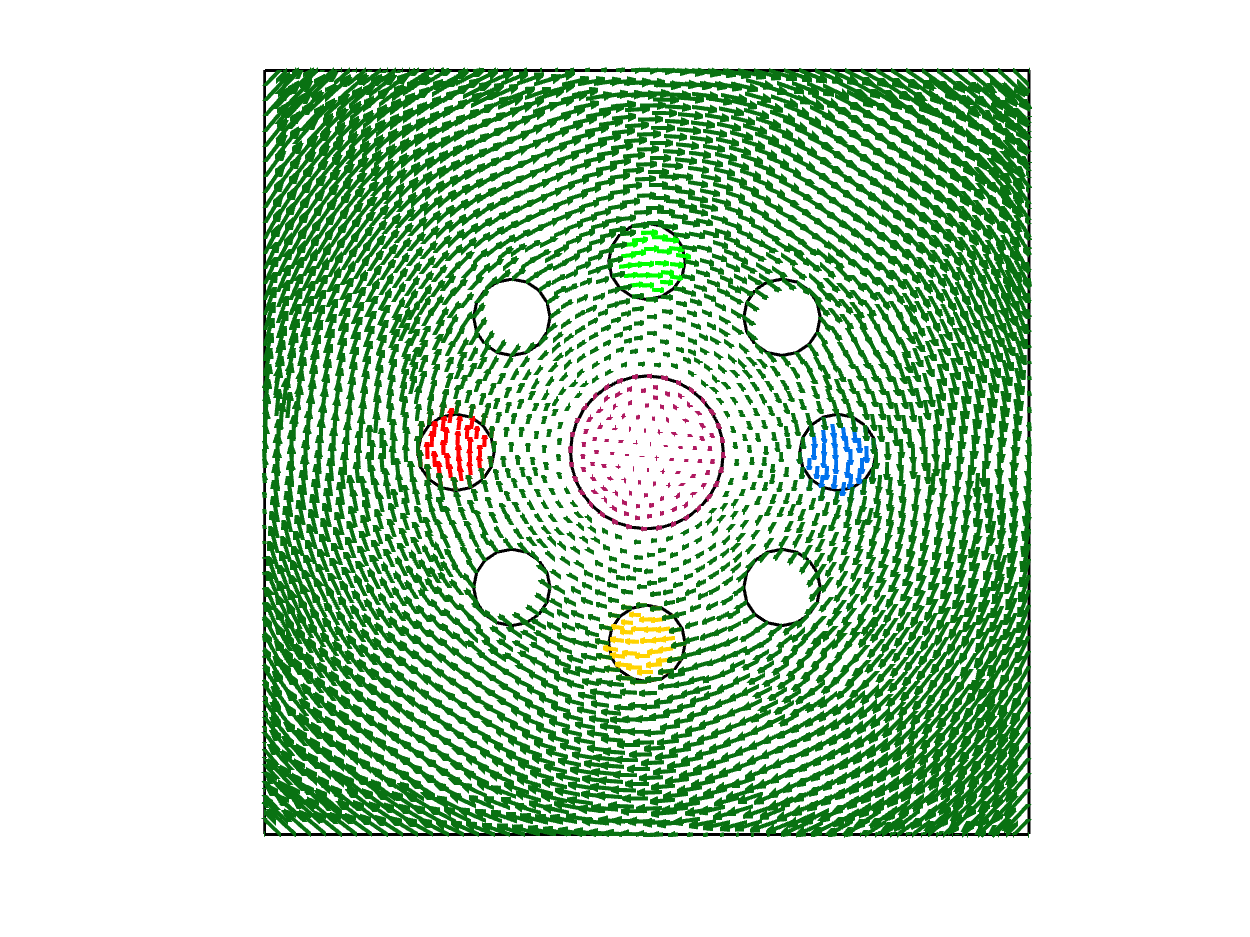

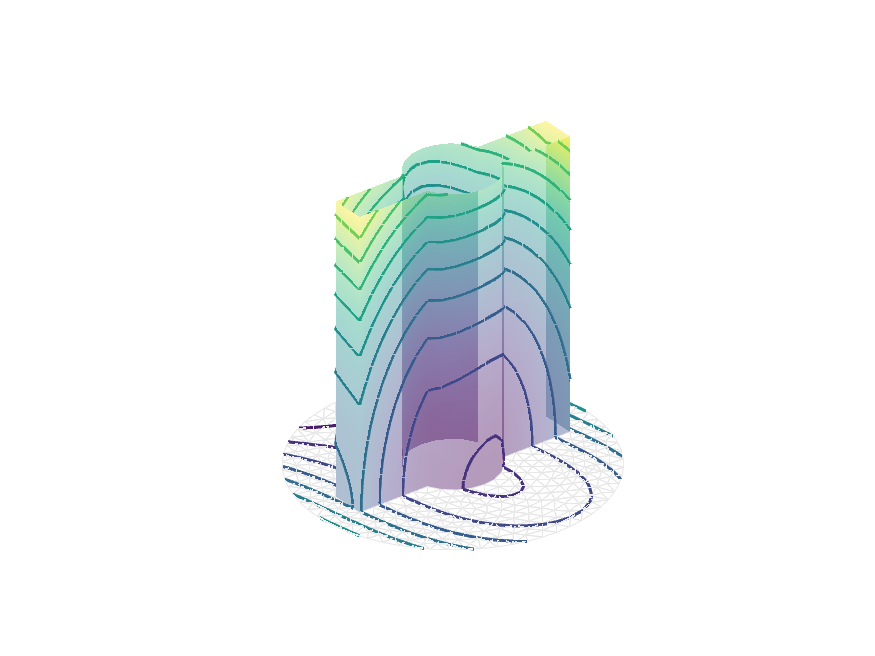

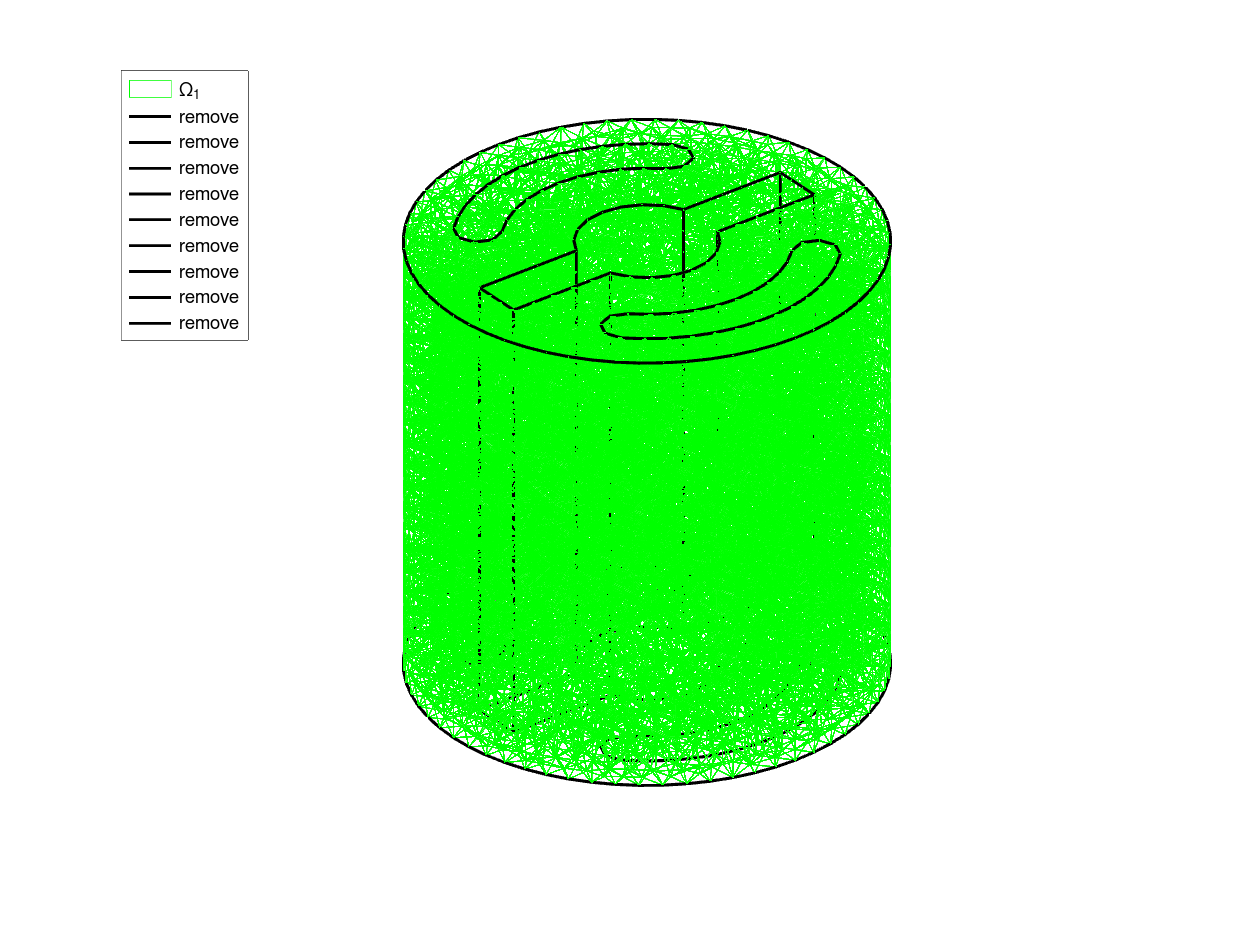

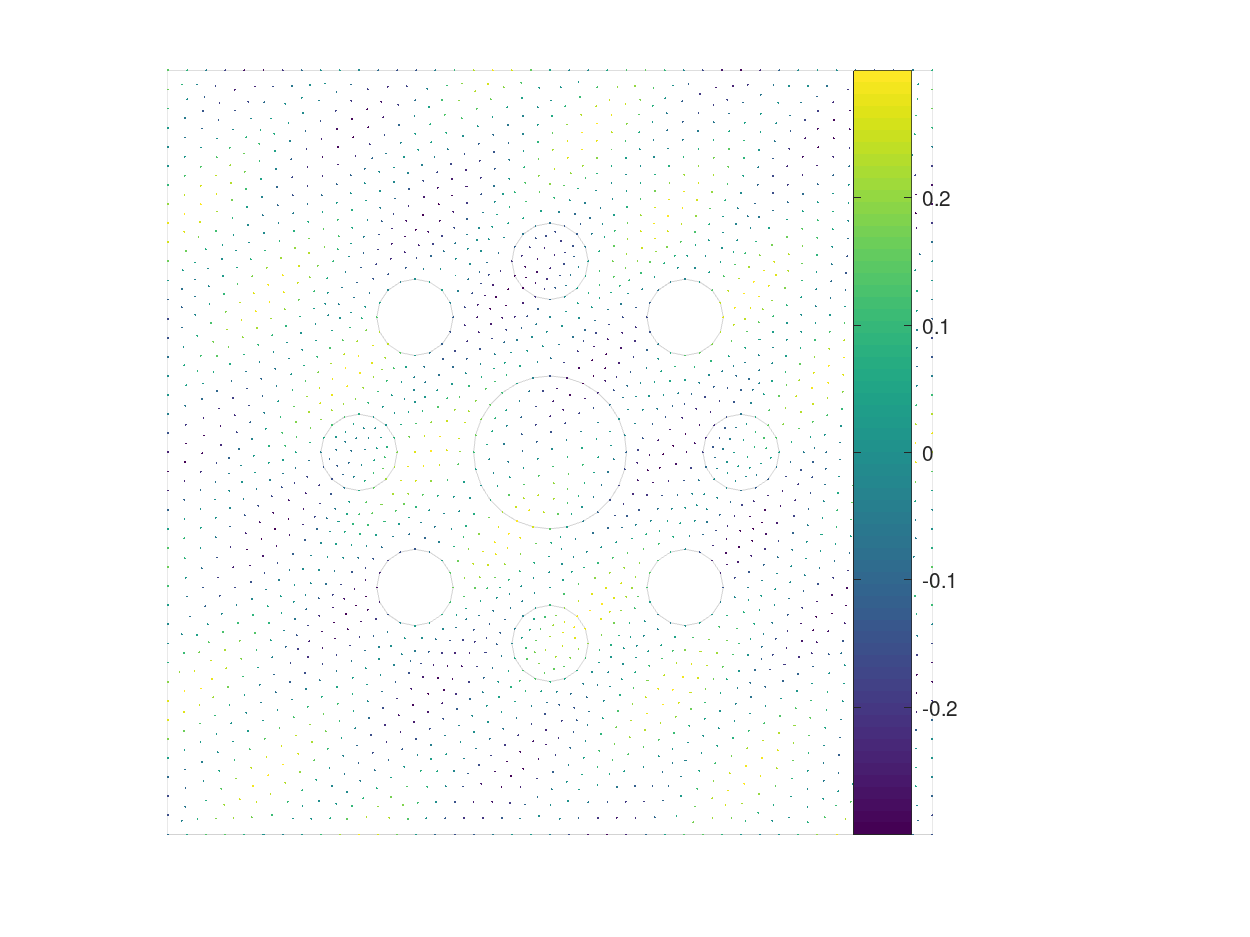

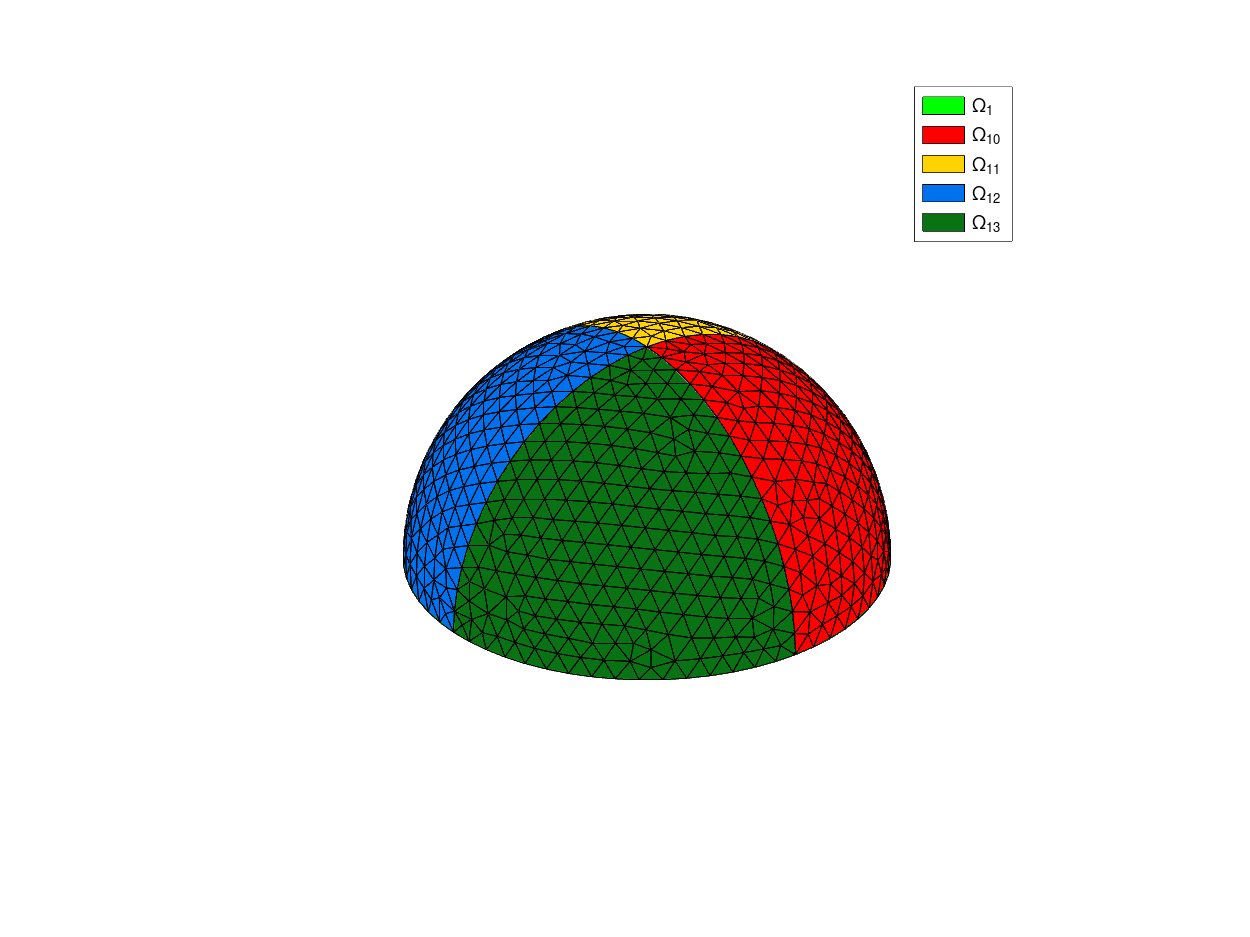

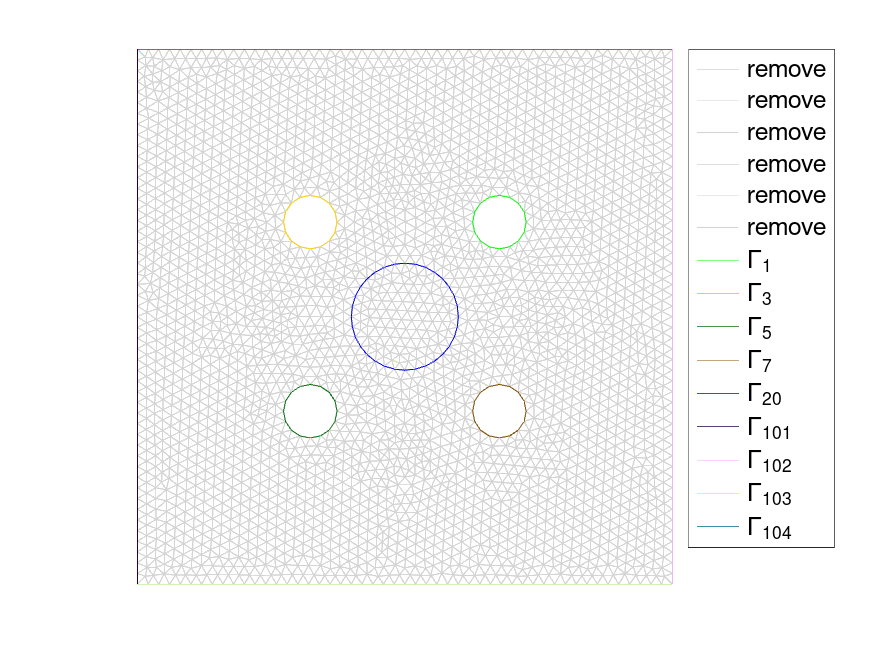

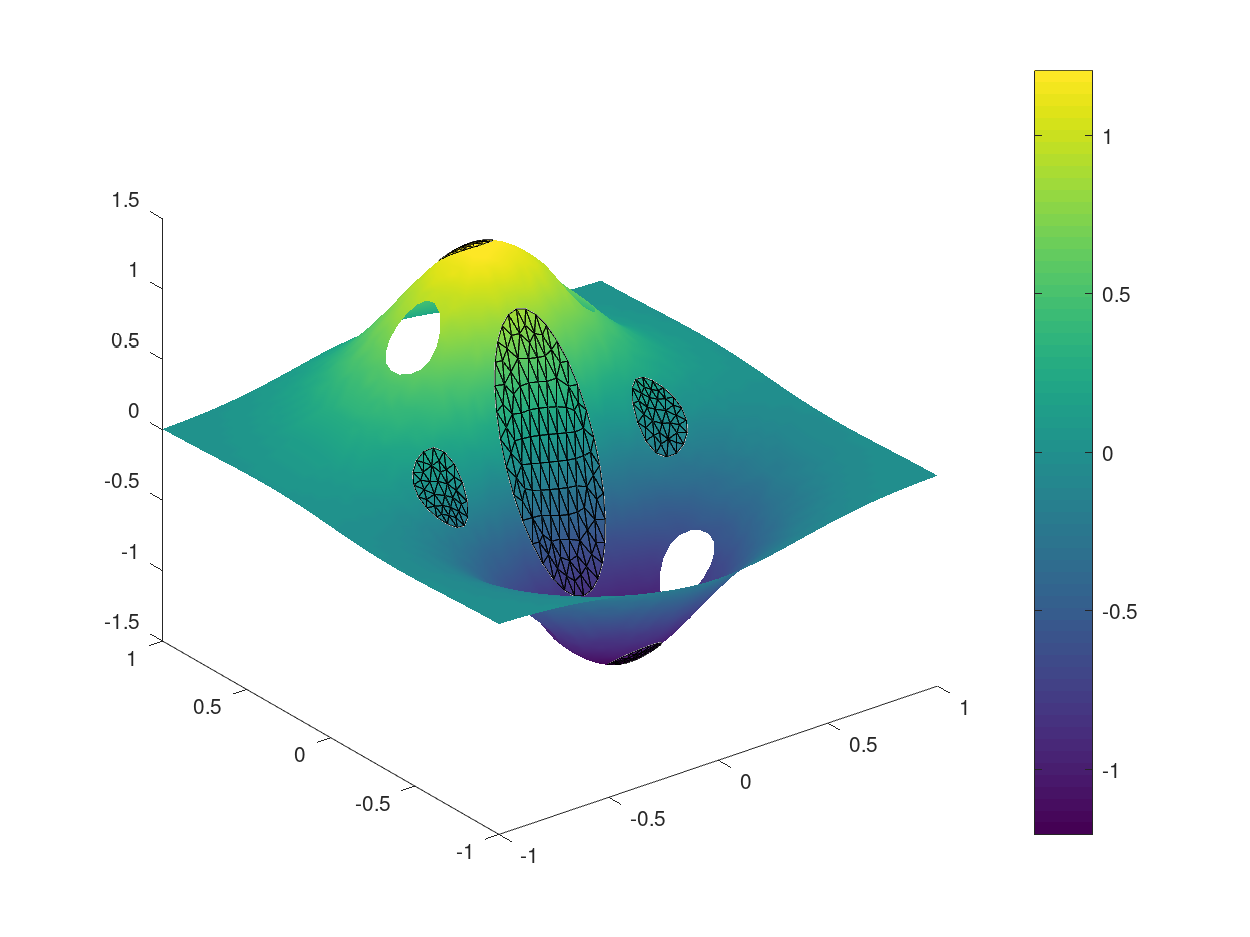

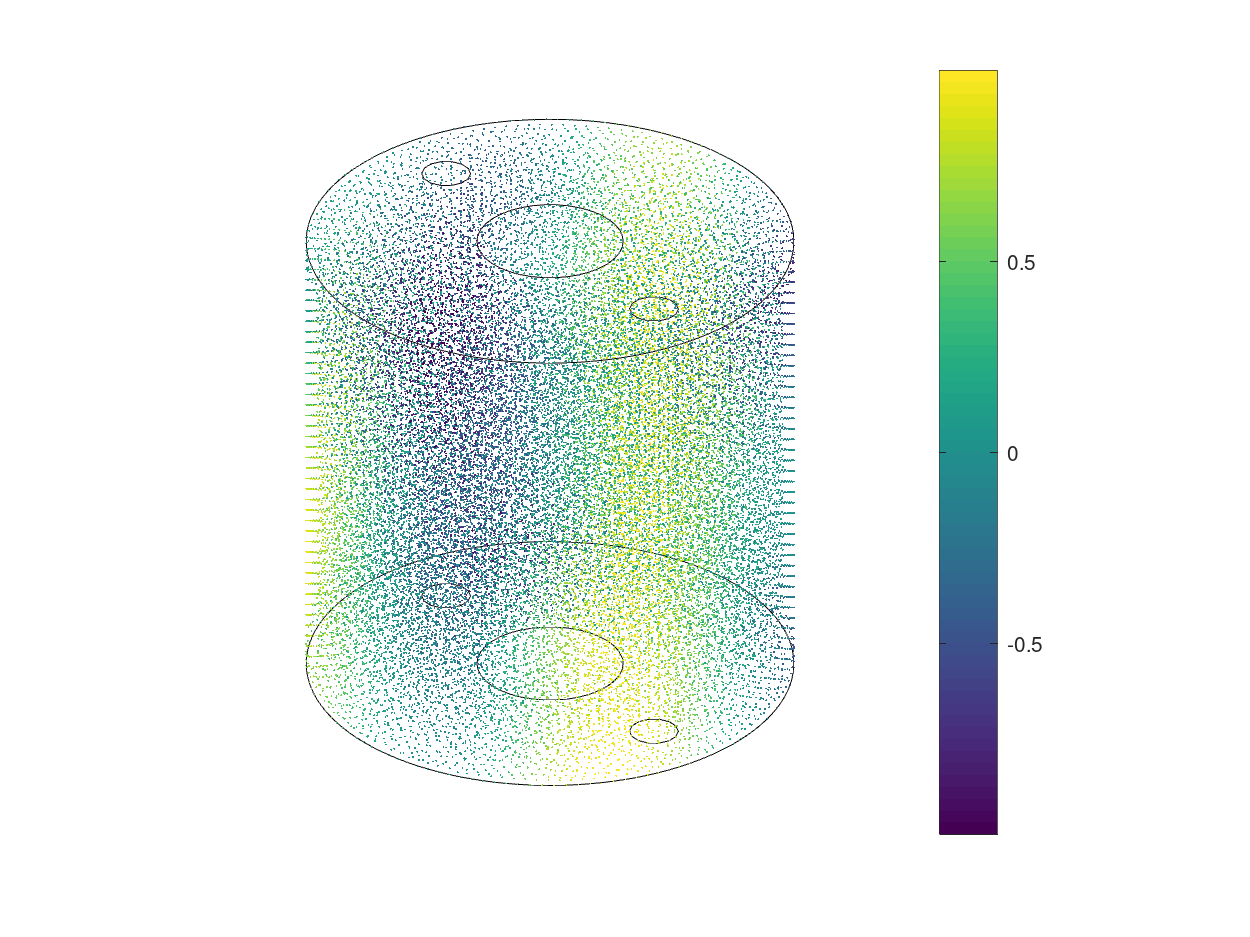

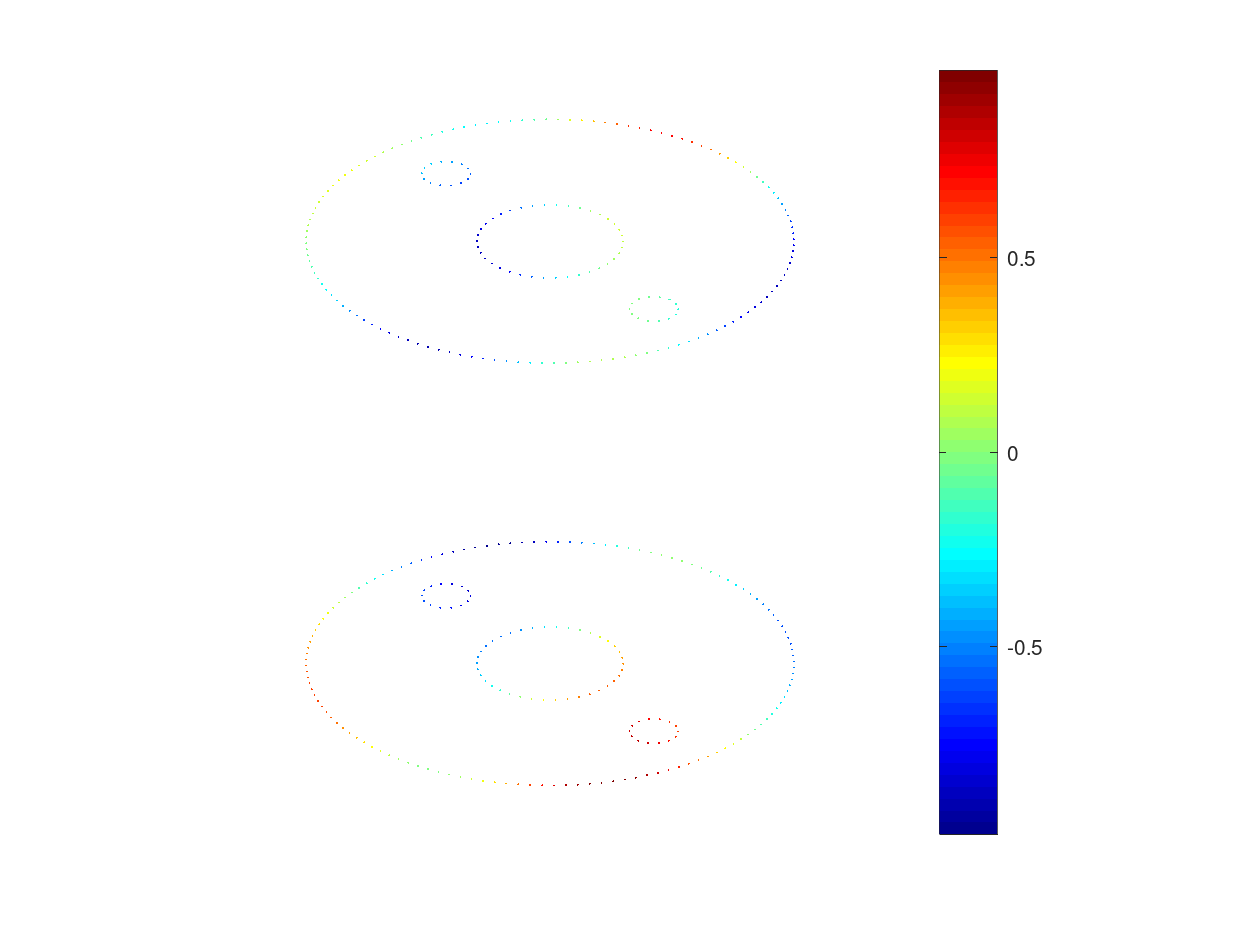

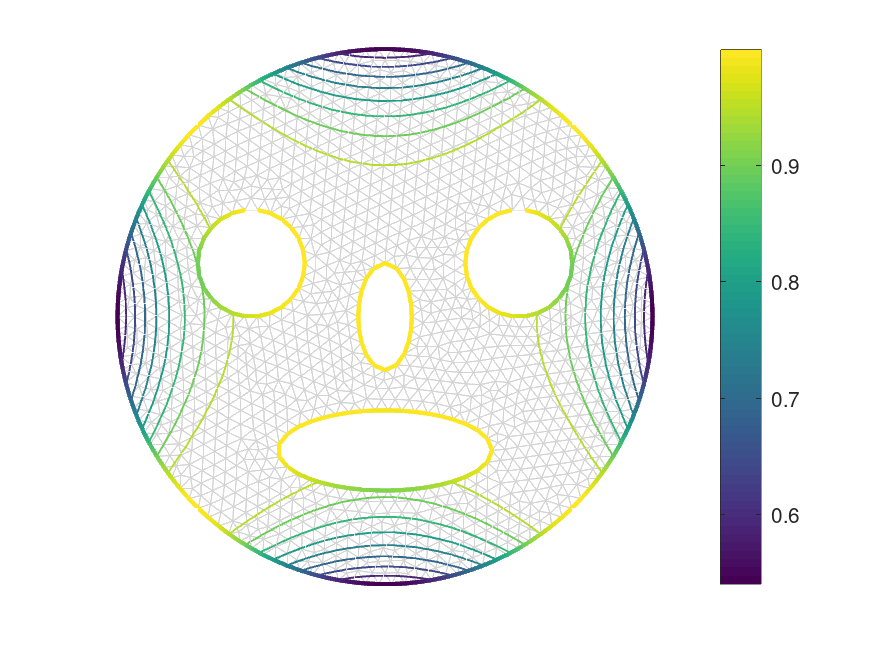

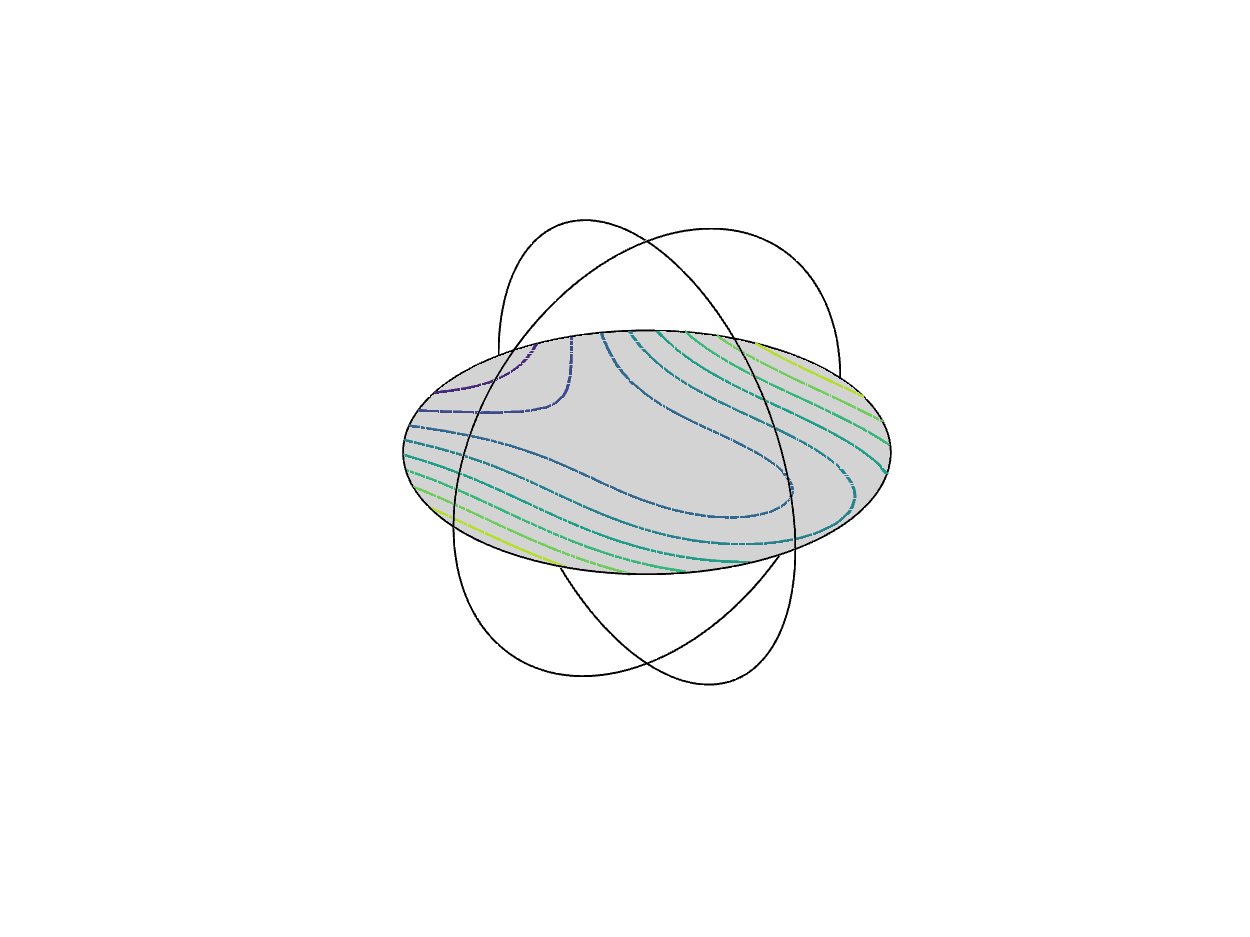

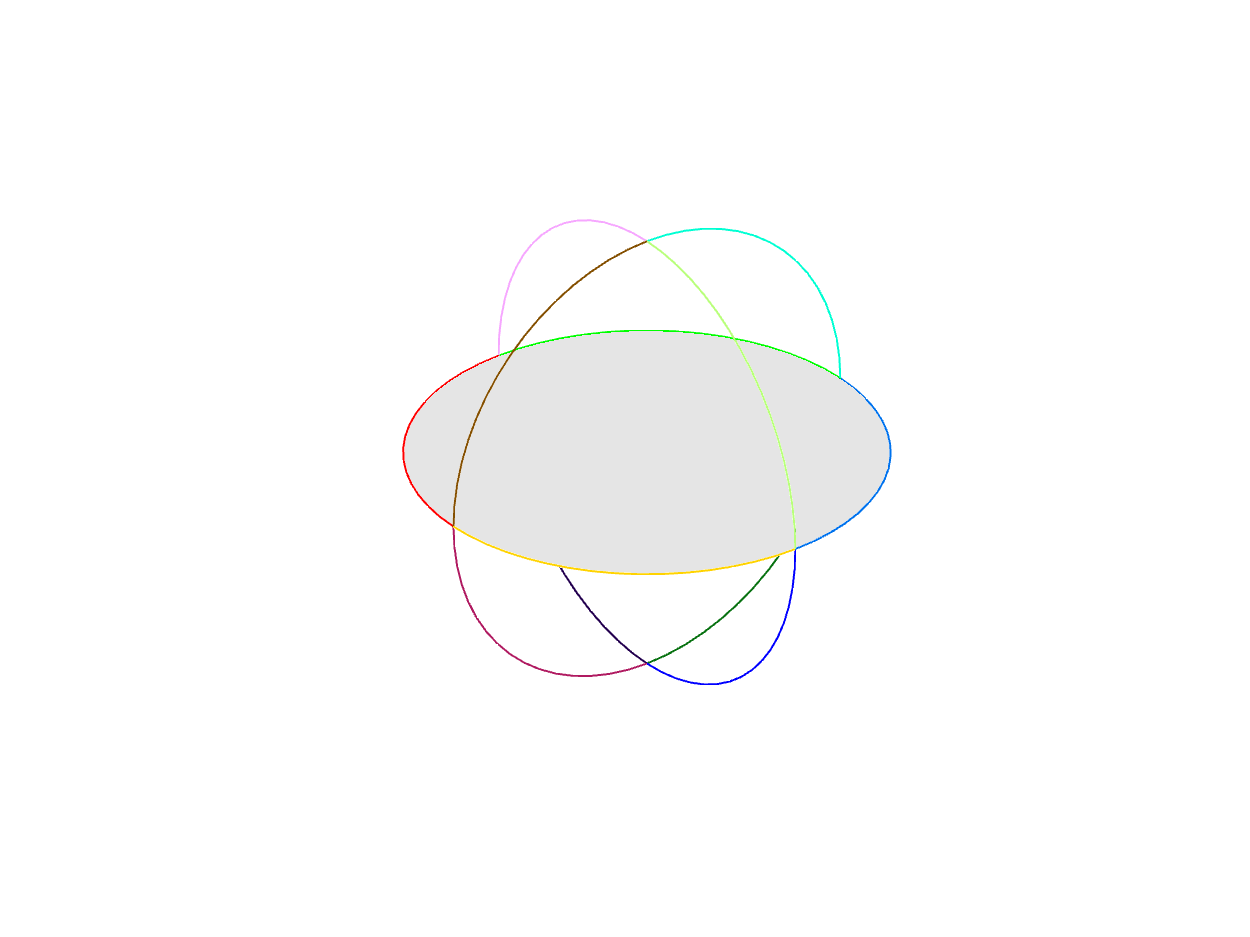

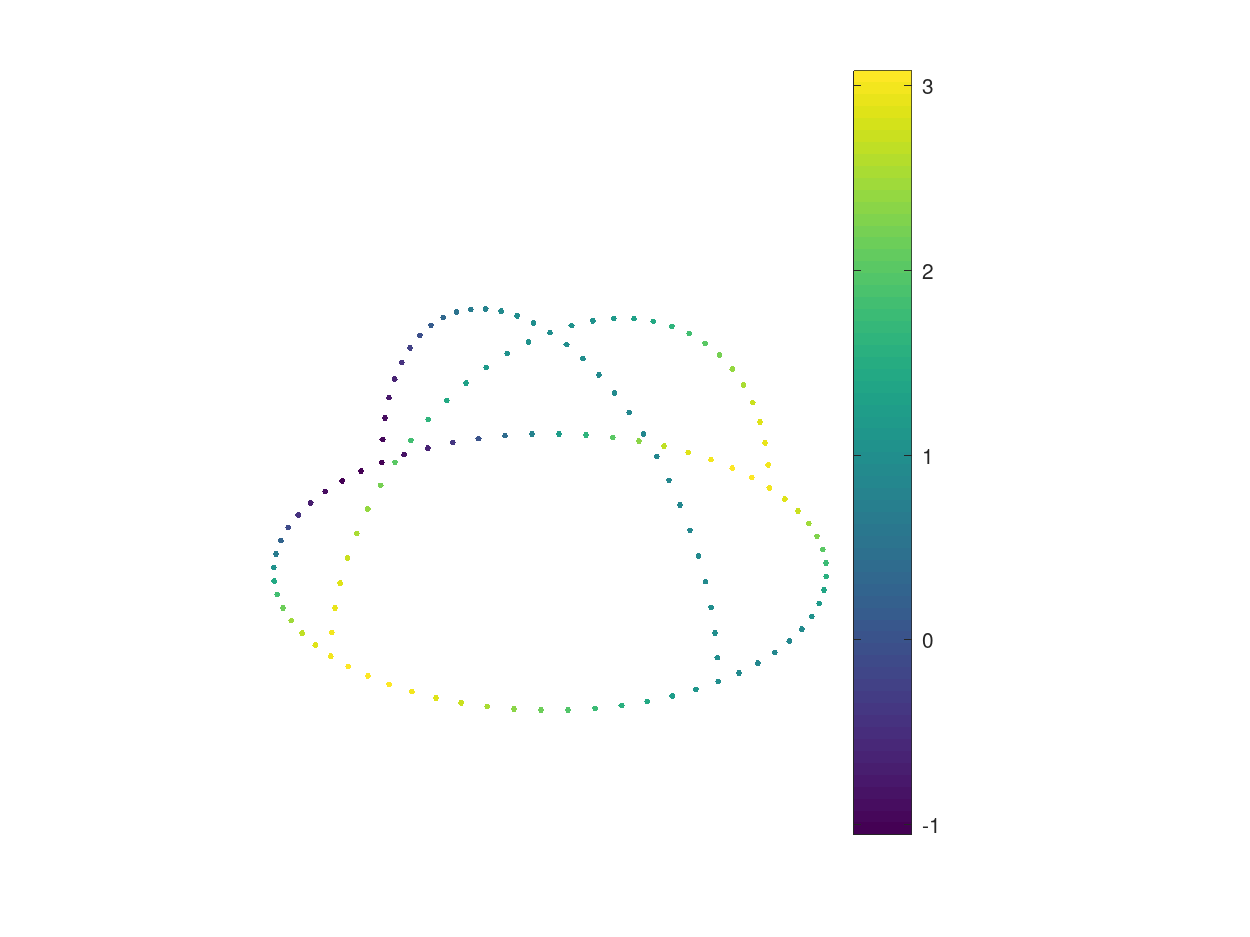

Octave / Mesh / fc_siplt/ Snapshots

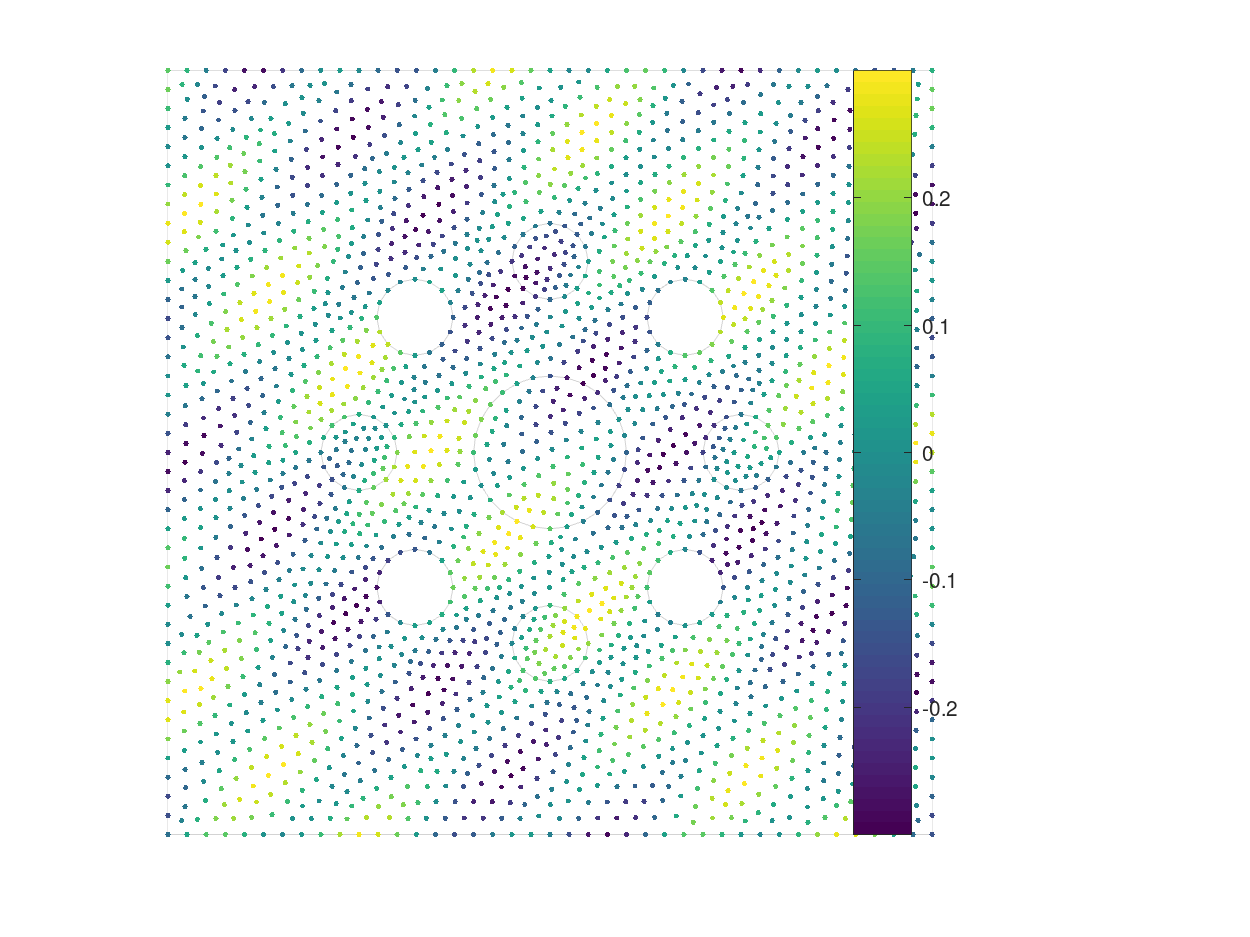

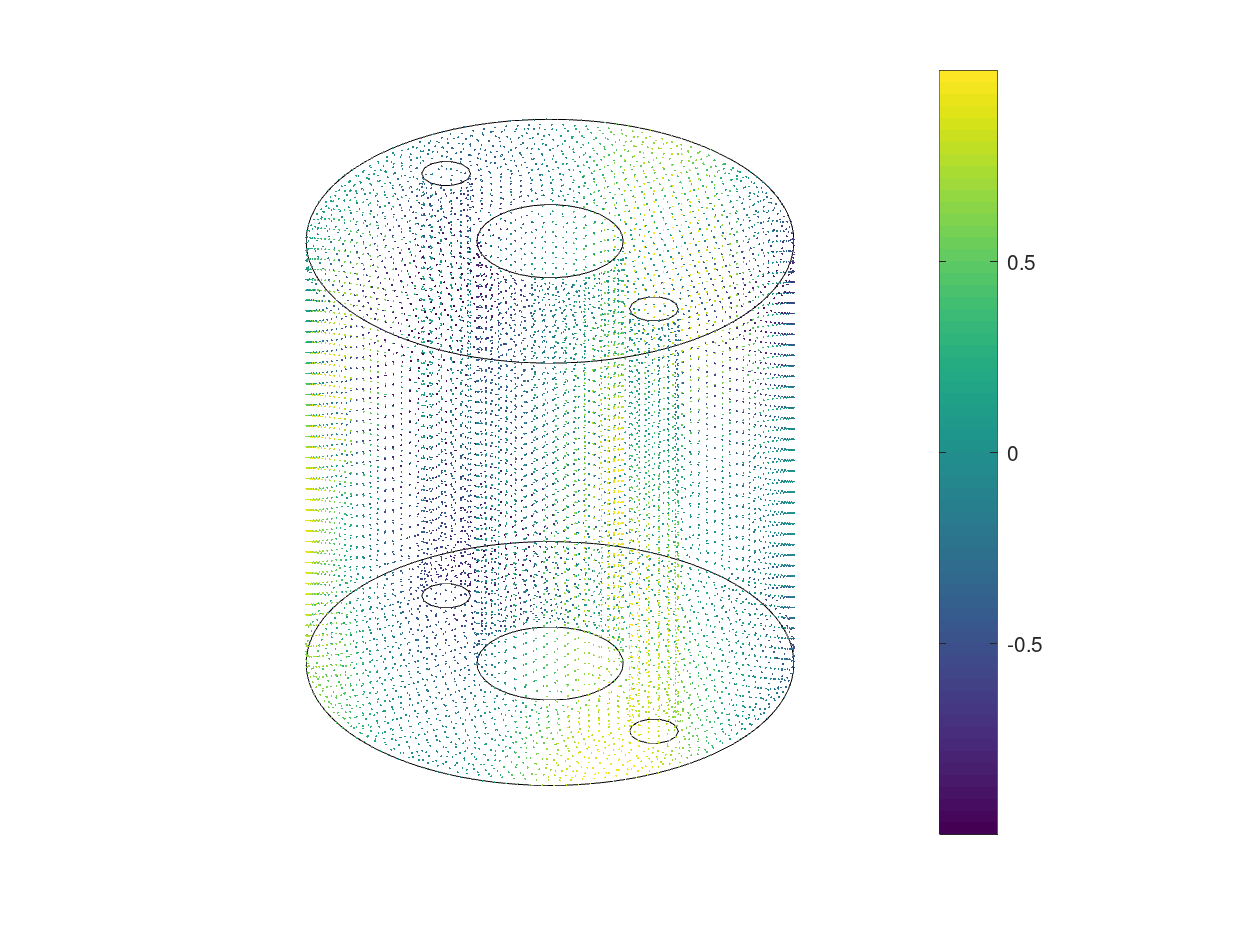

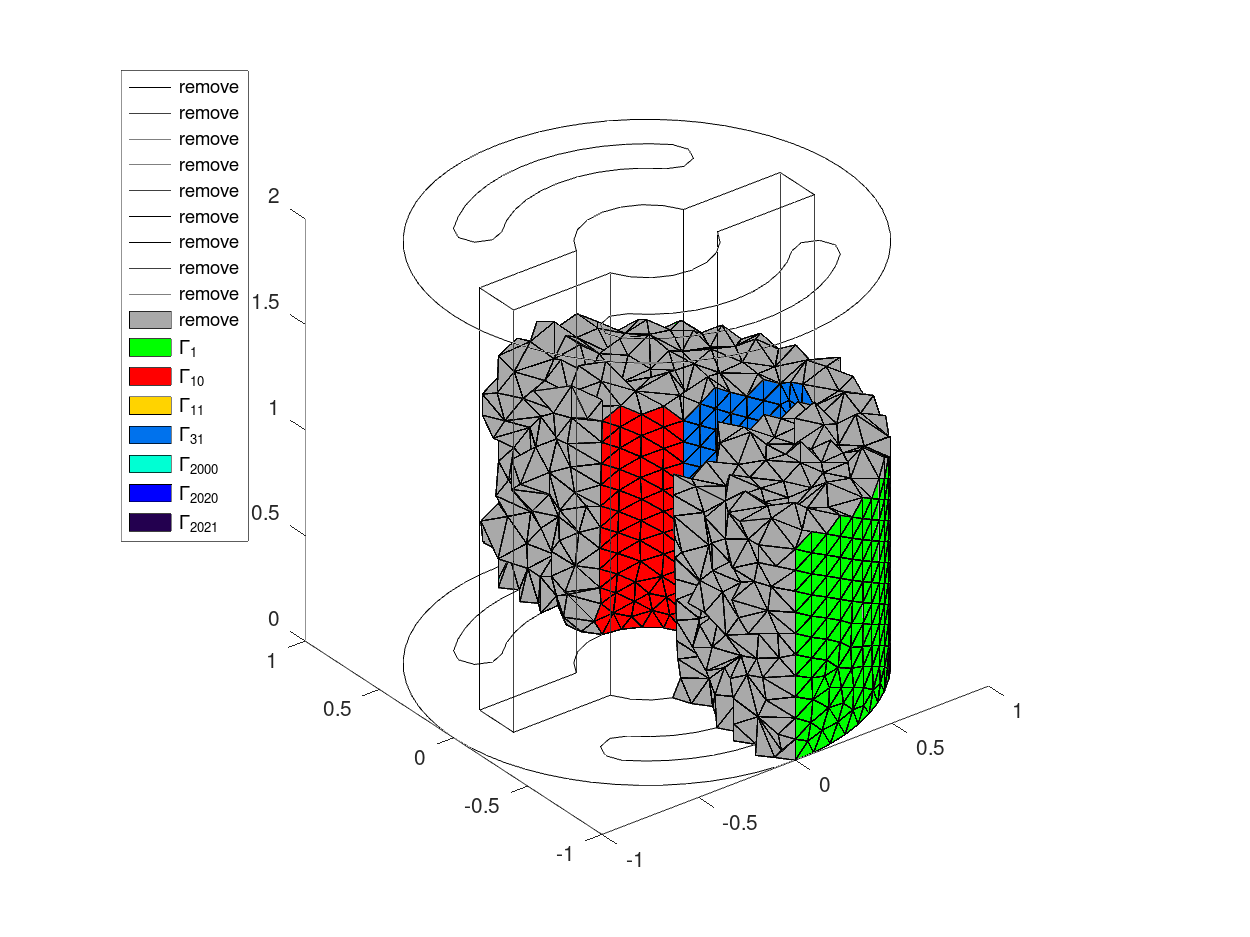

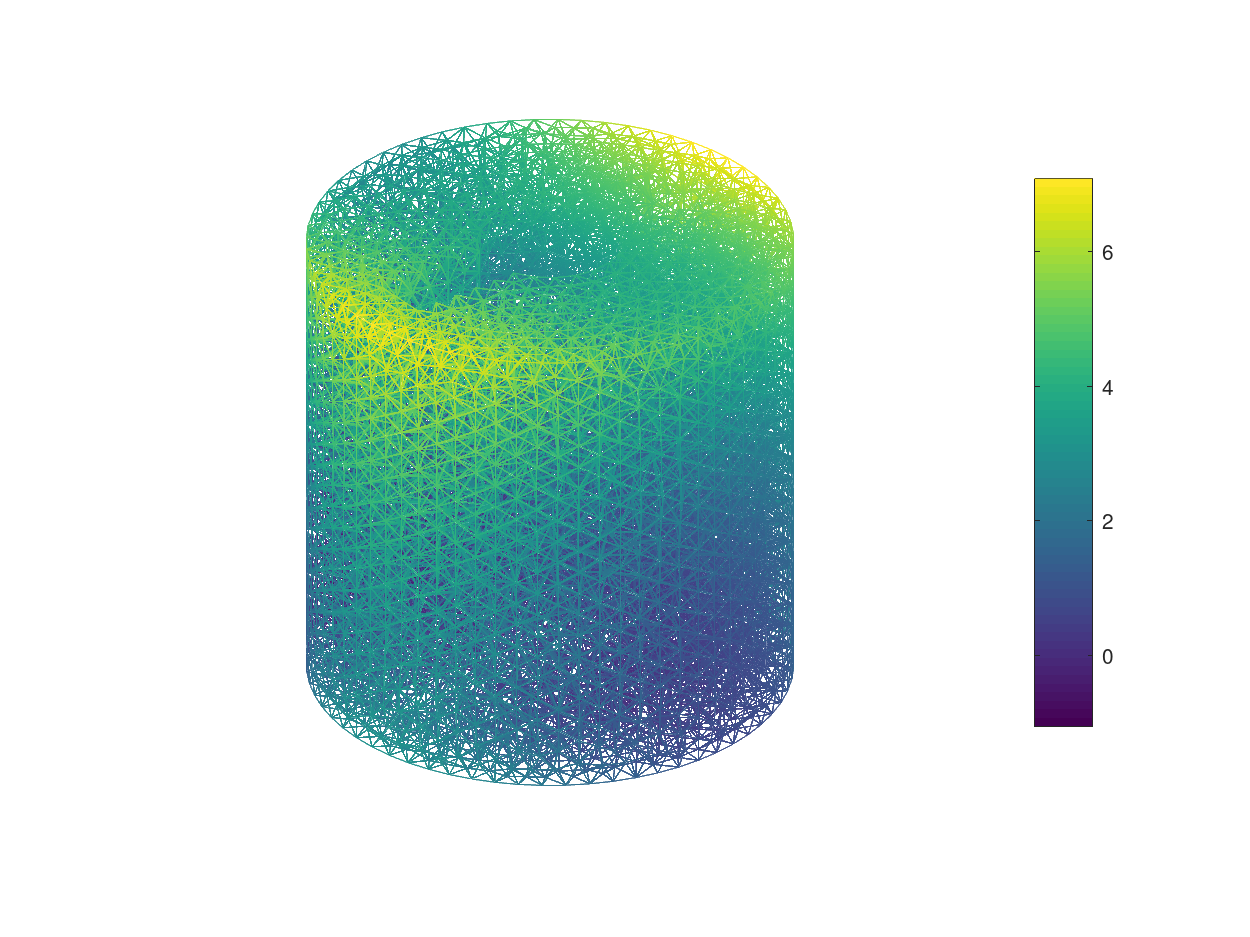

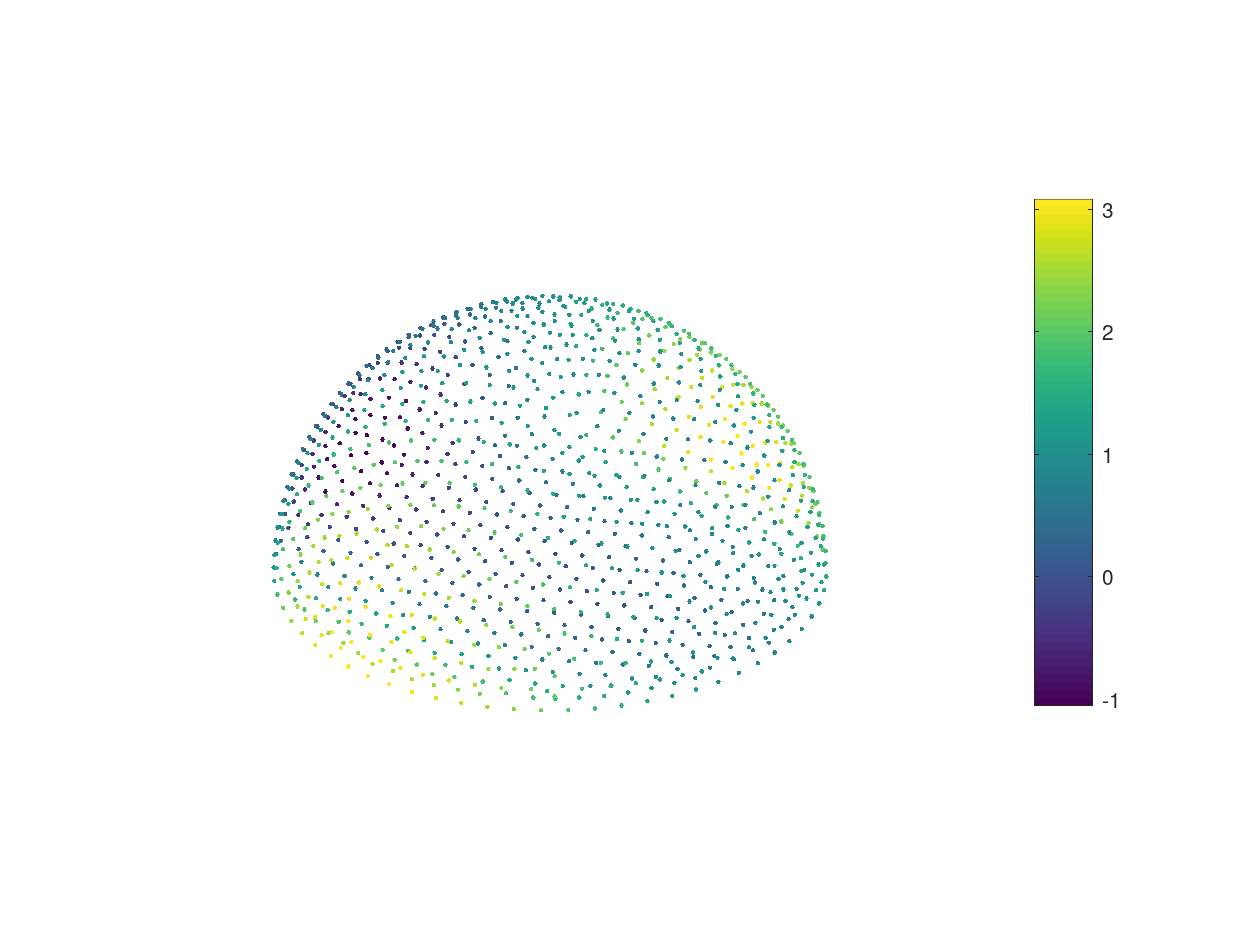

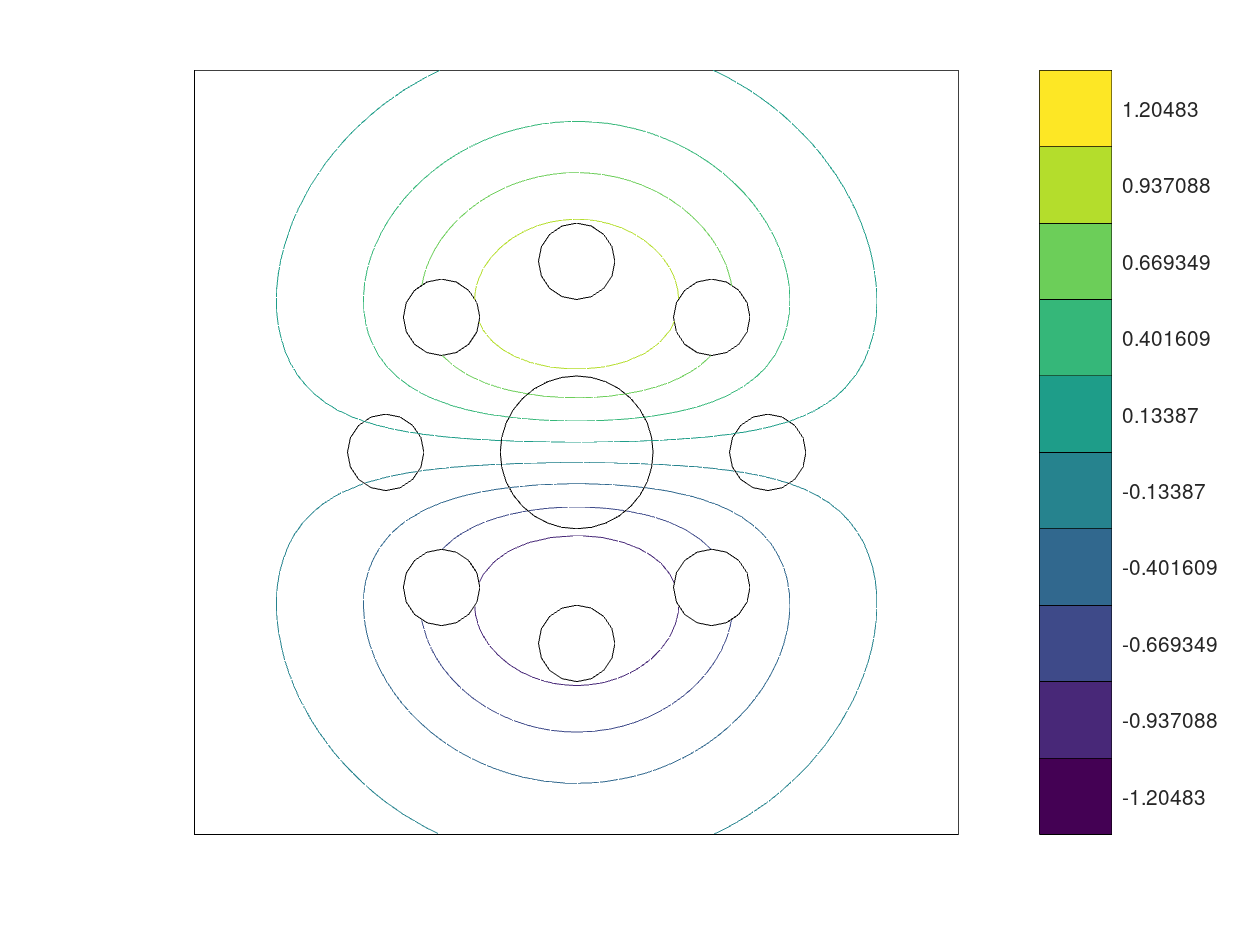

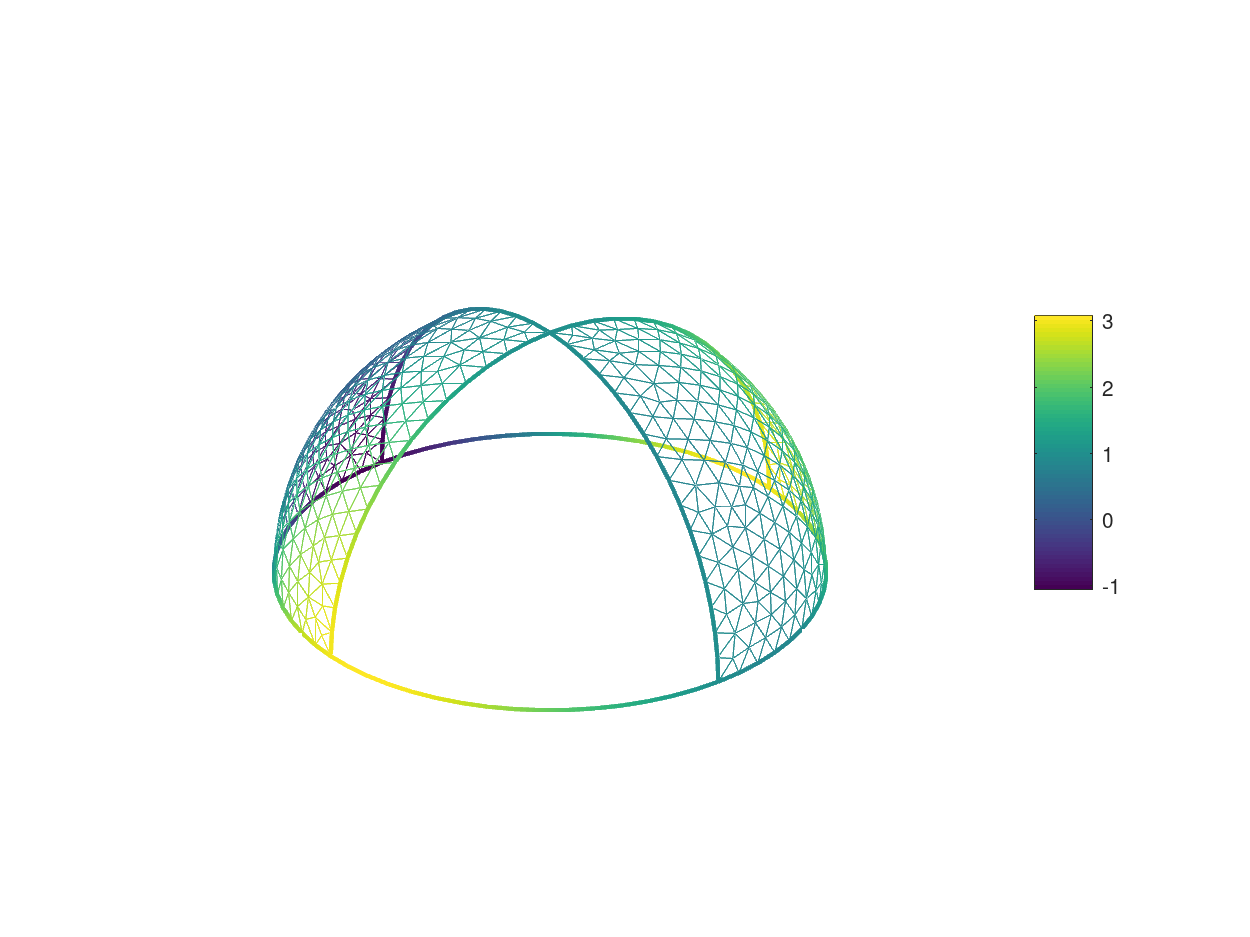

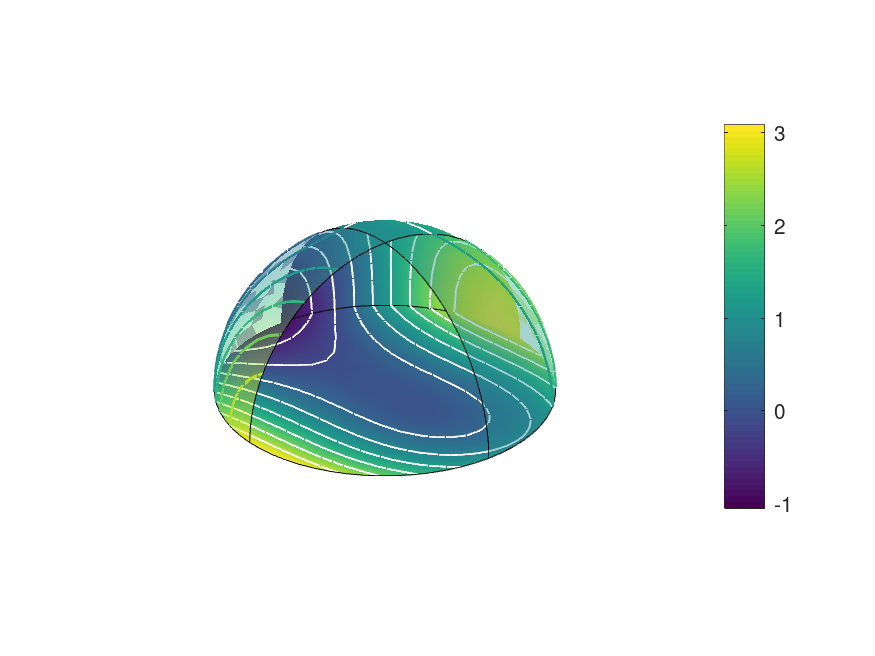

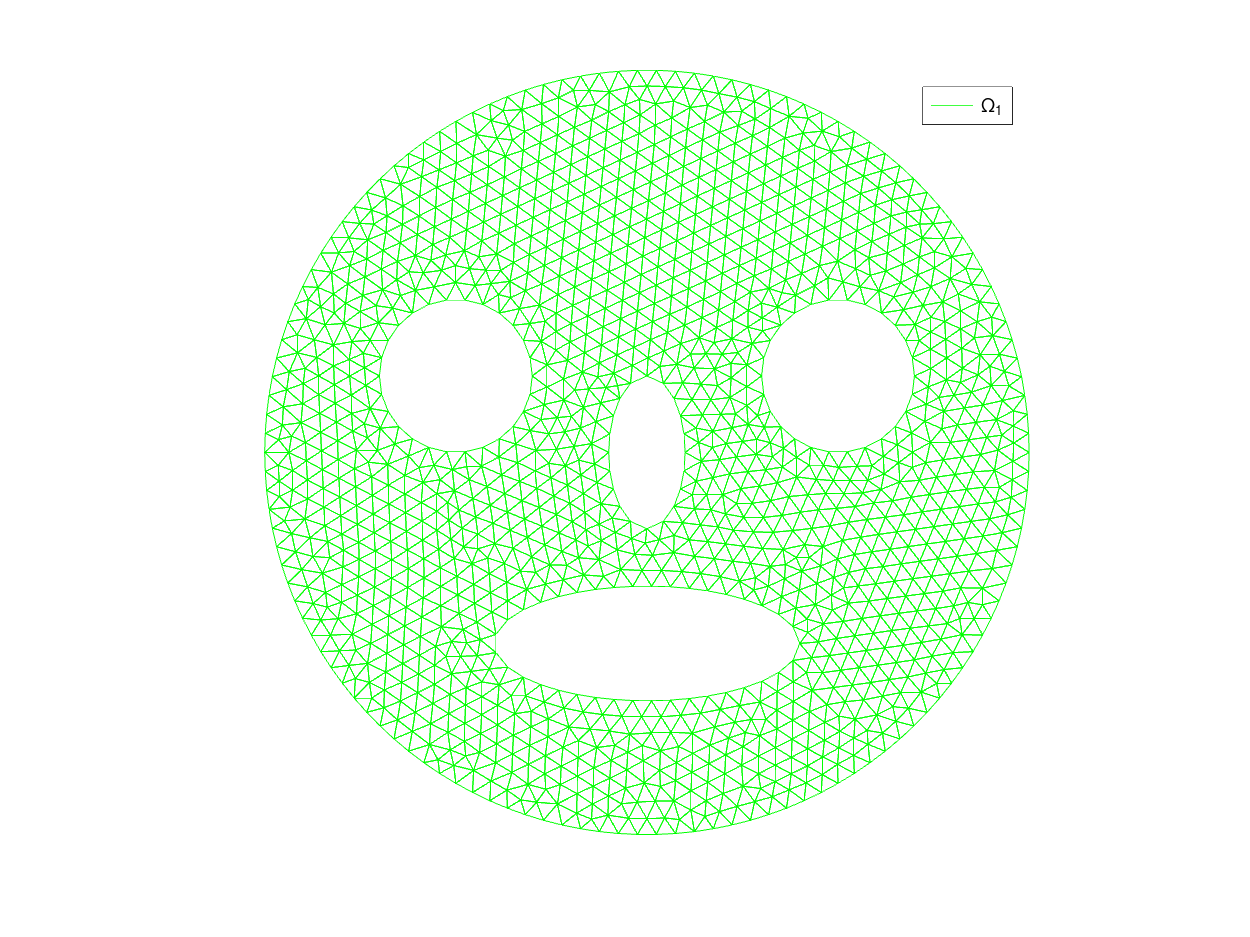

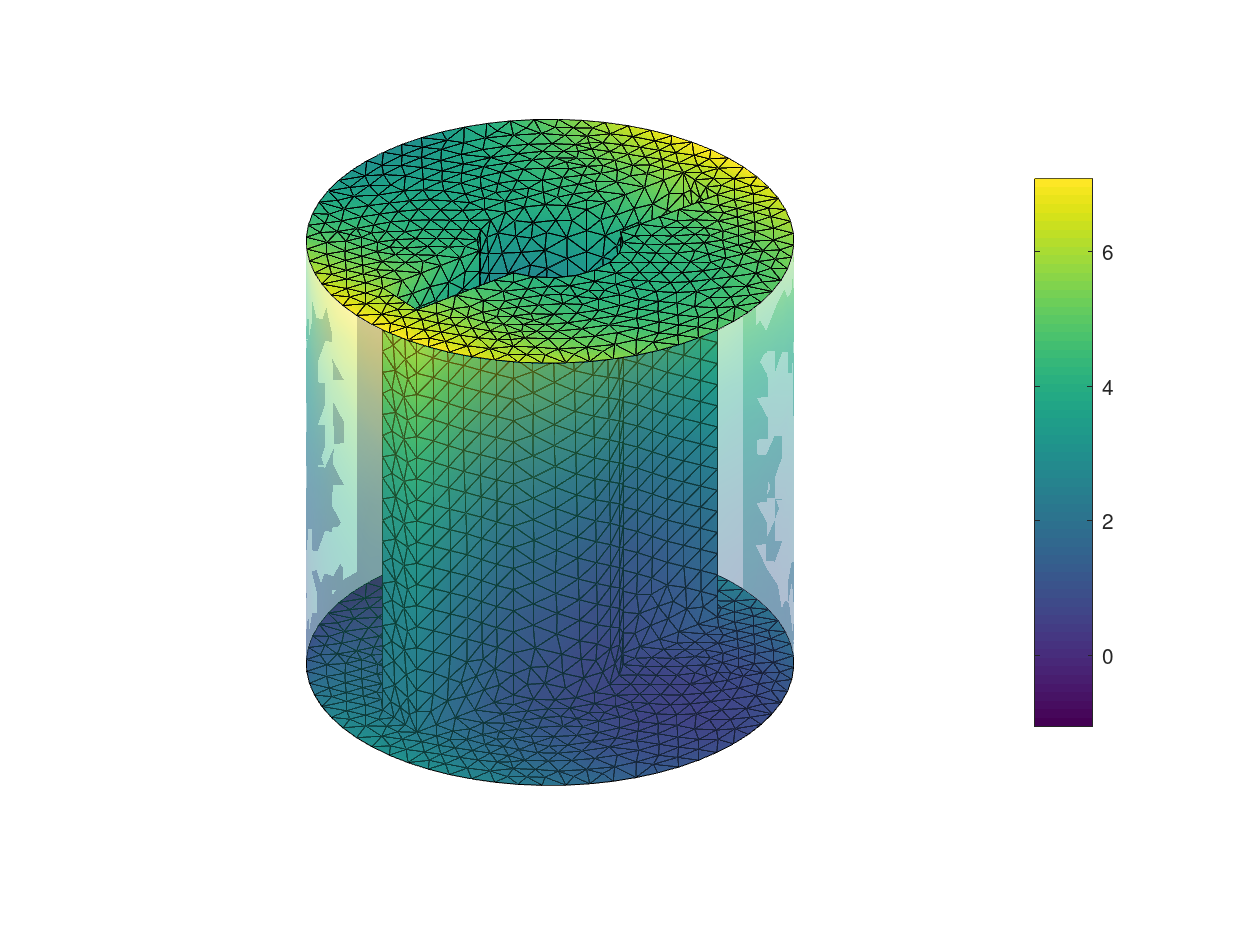

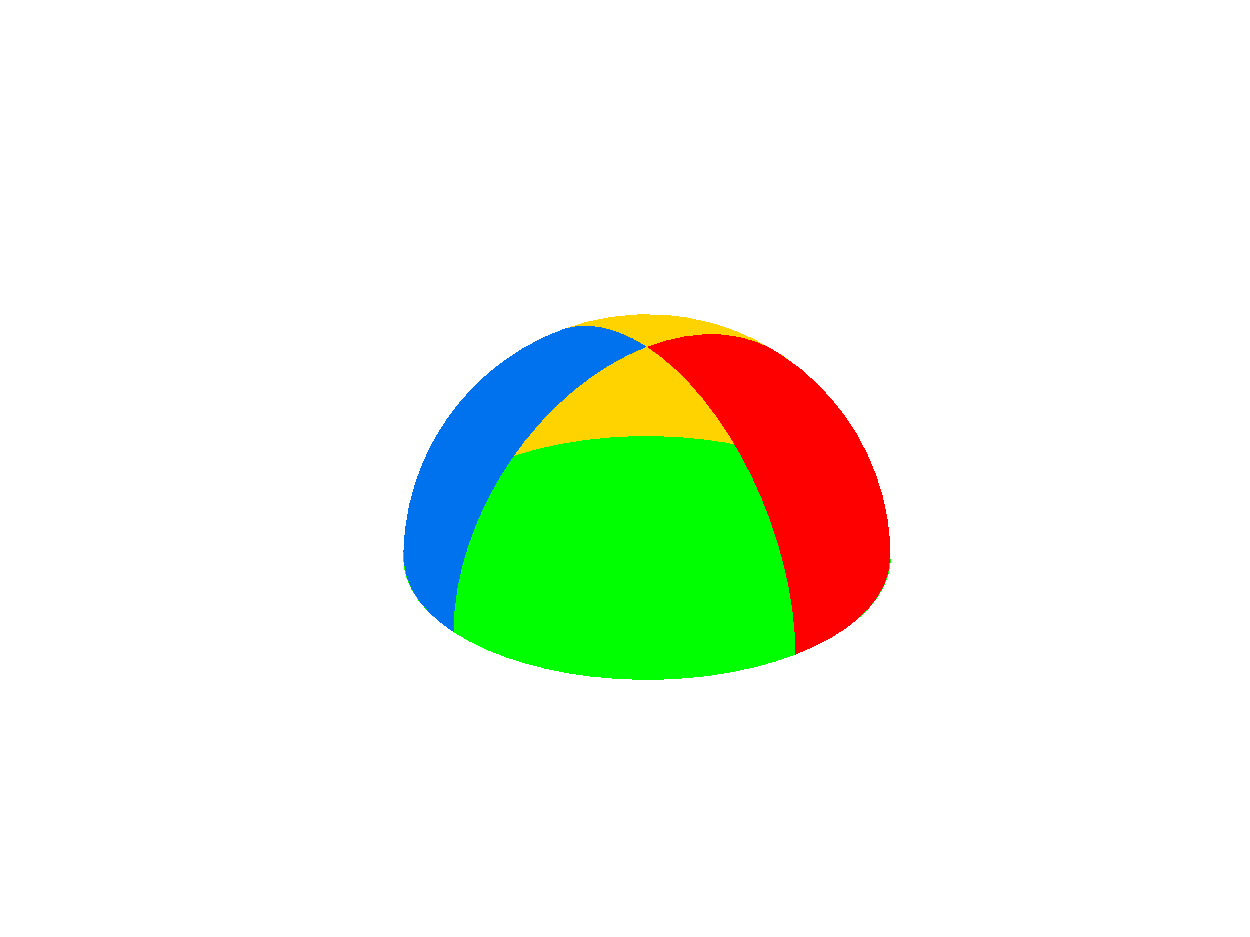

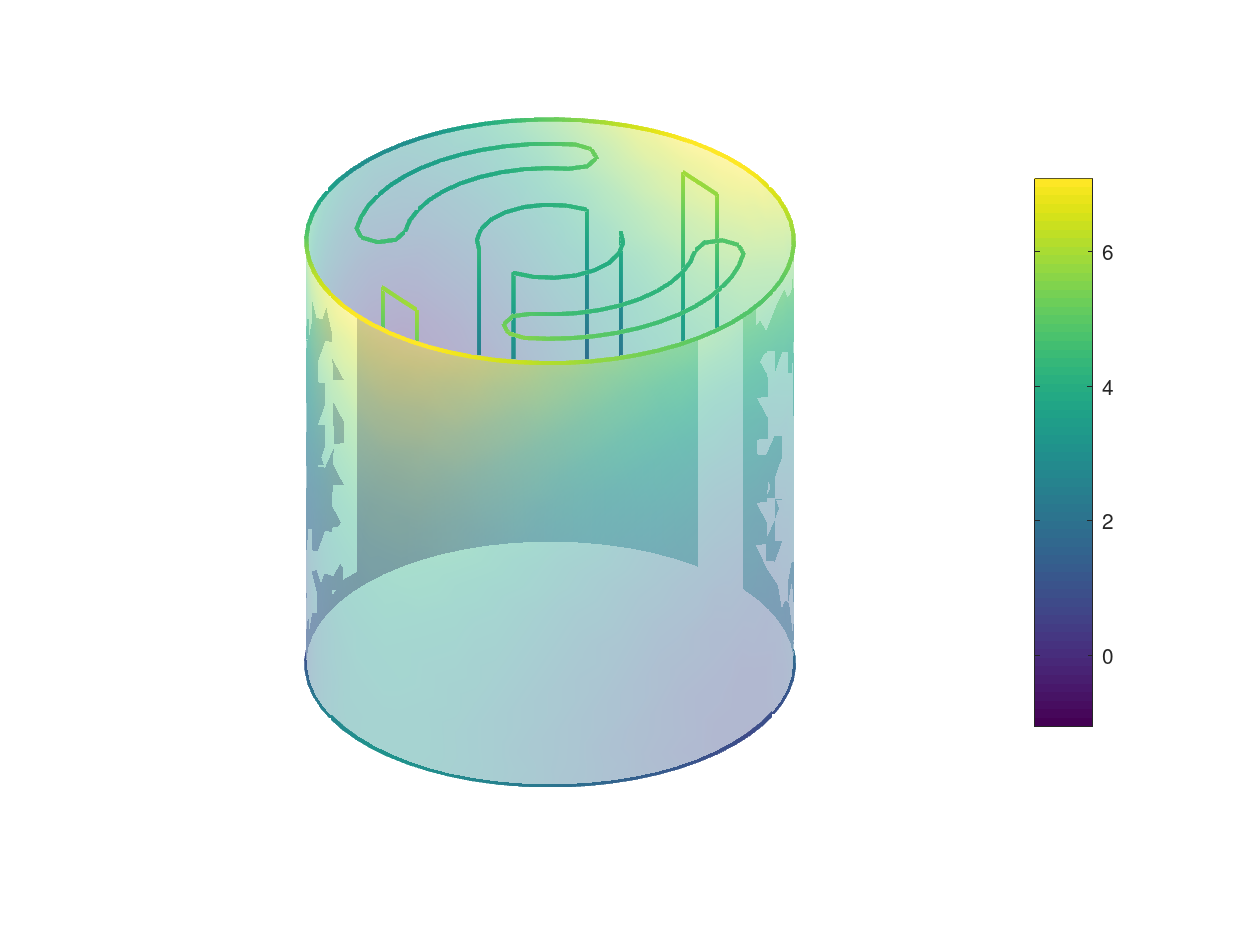

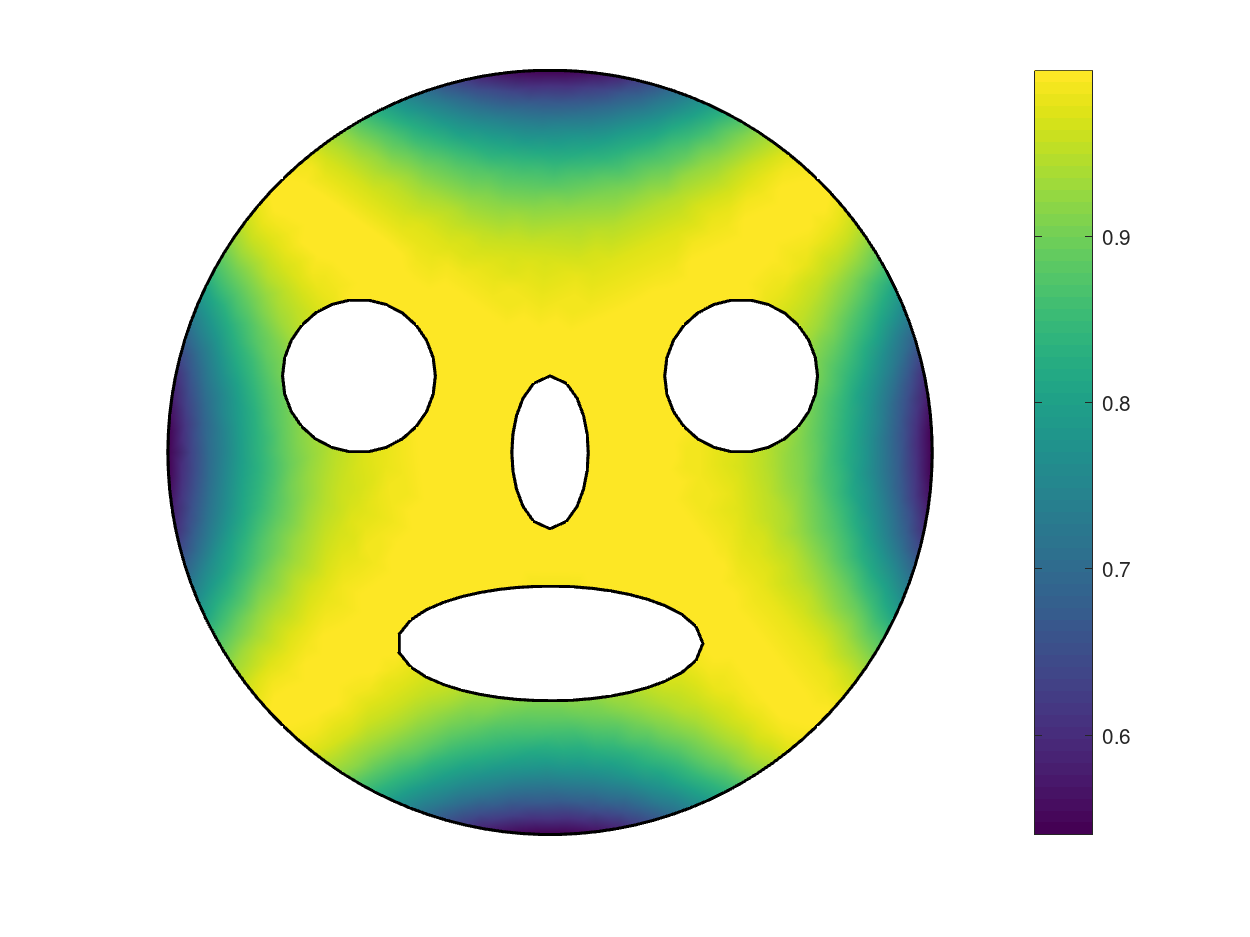

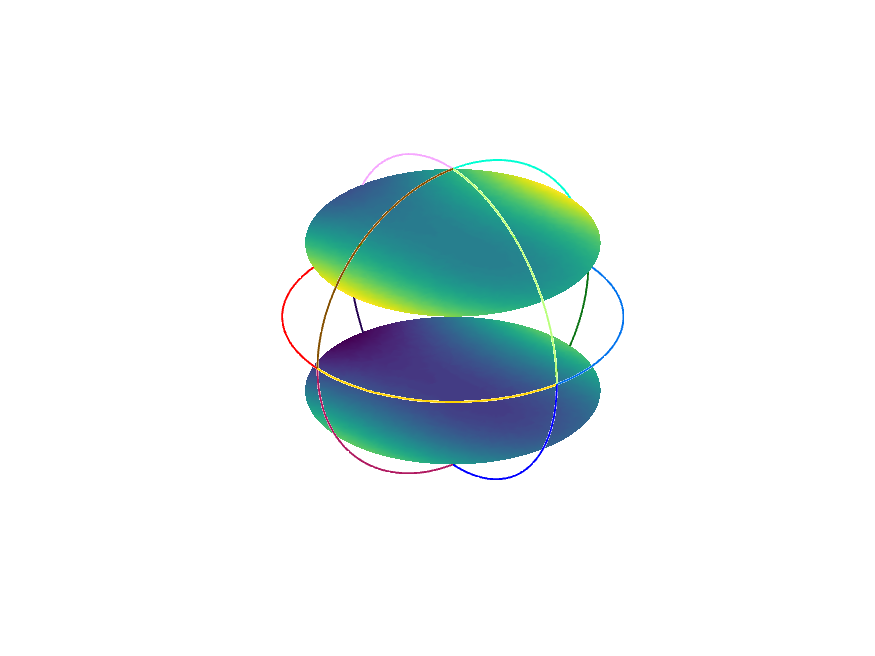

Octave / Mesh / fc_siplt/ demos

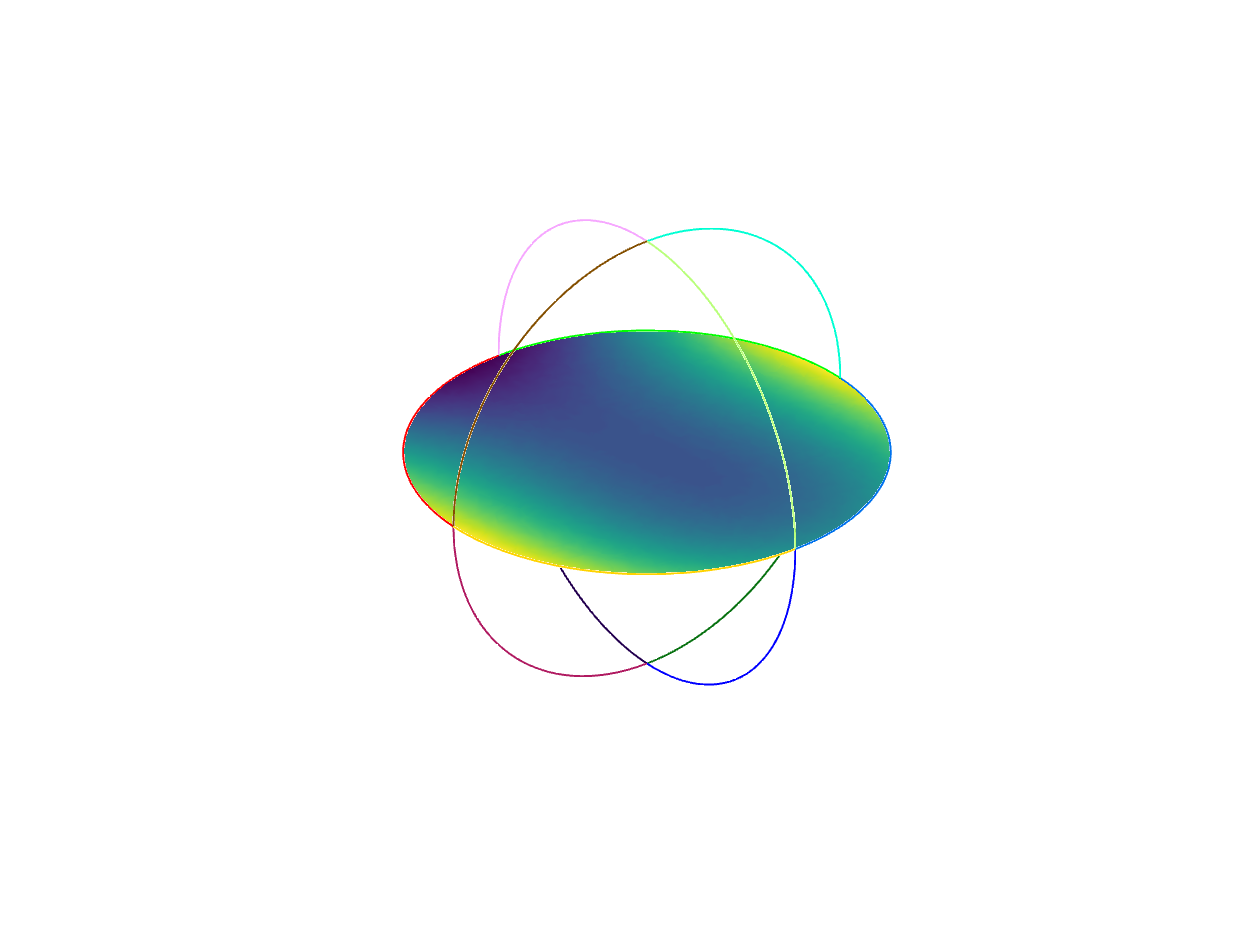

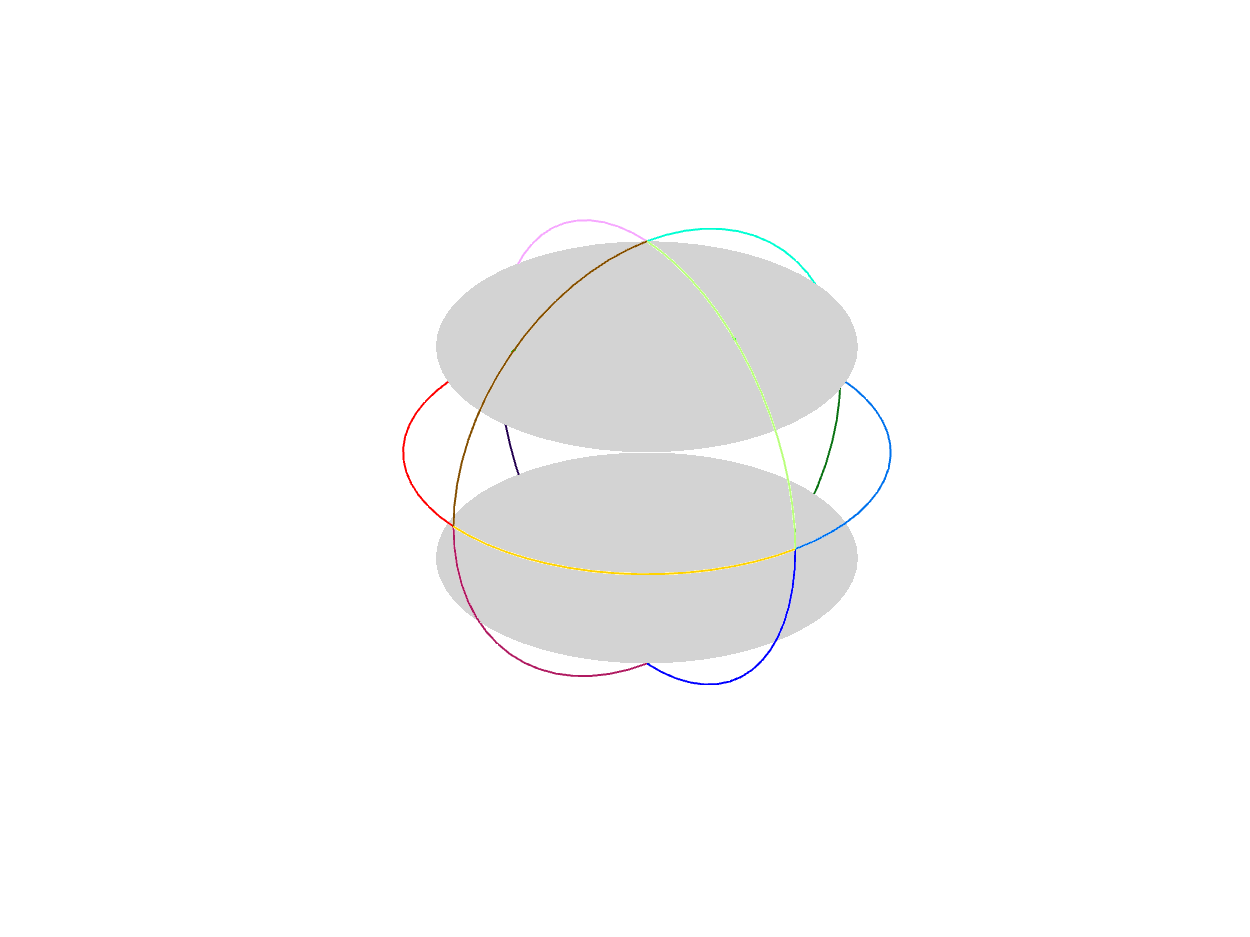

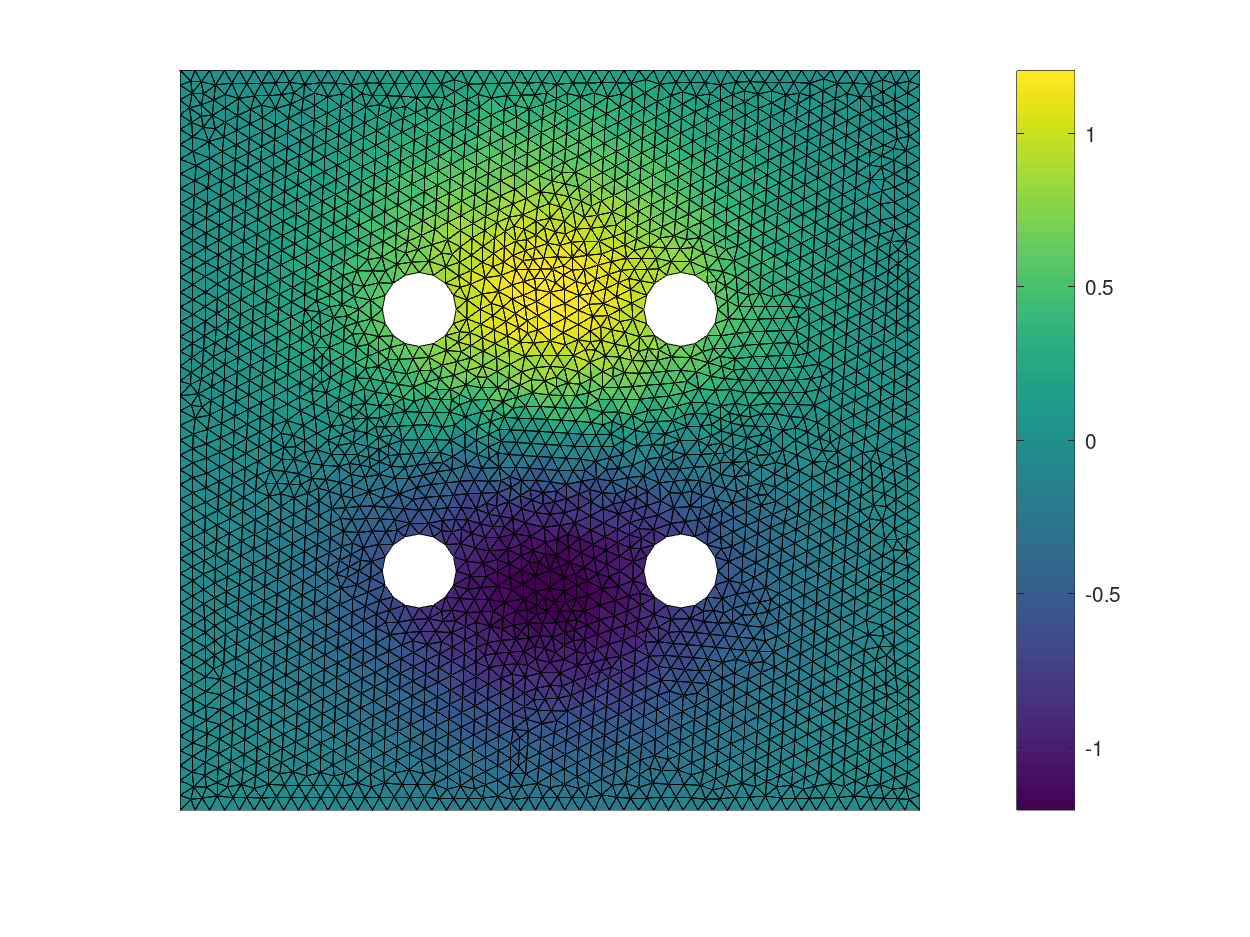

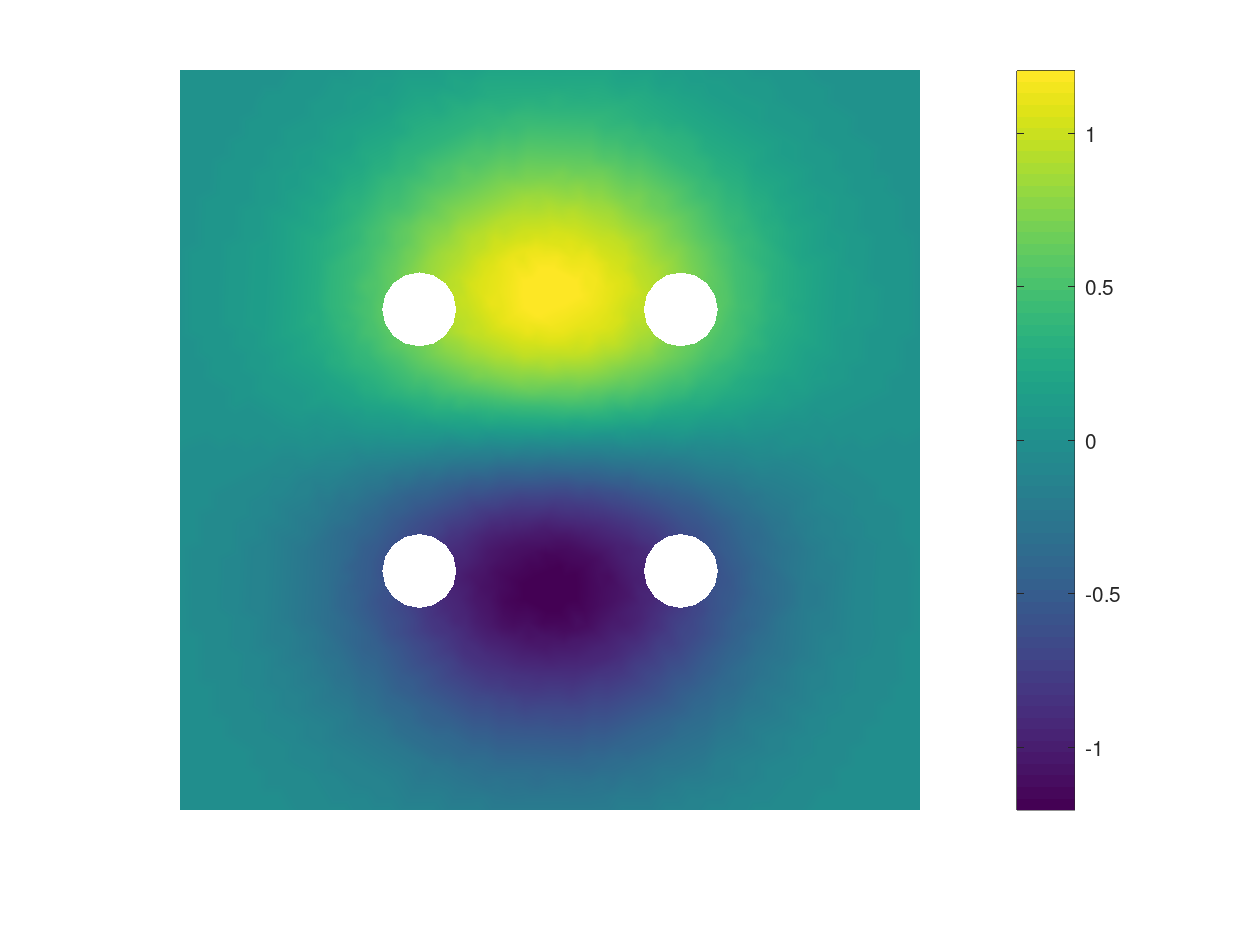

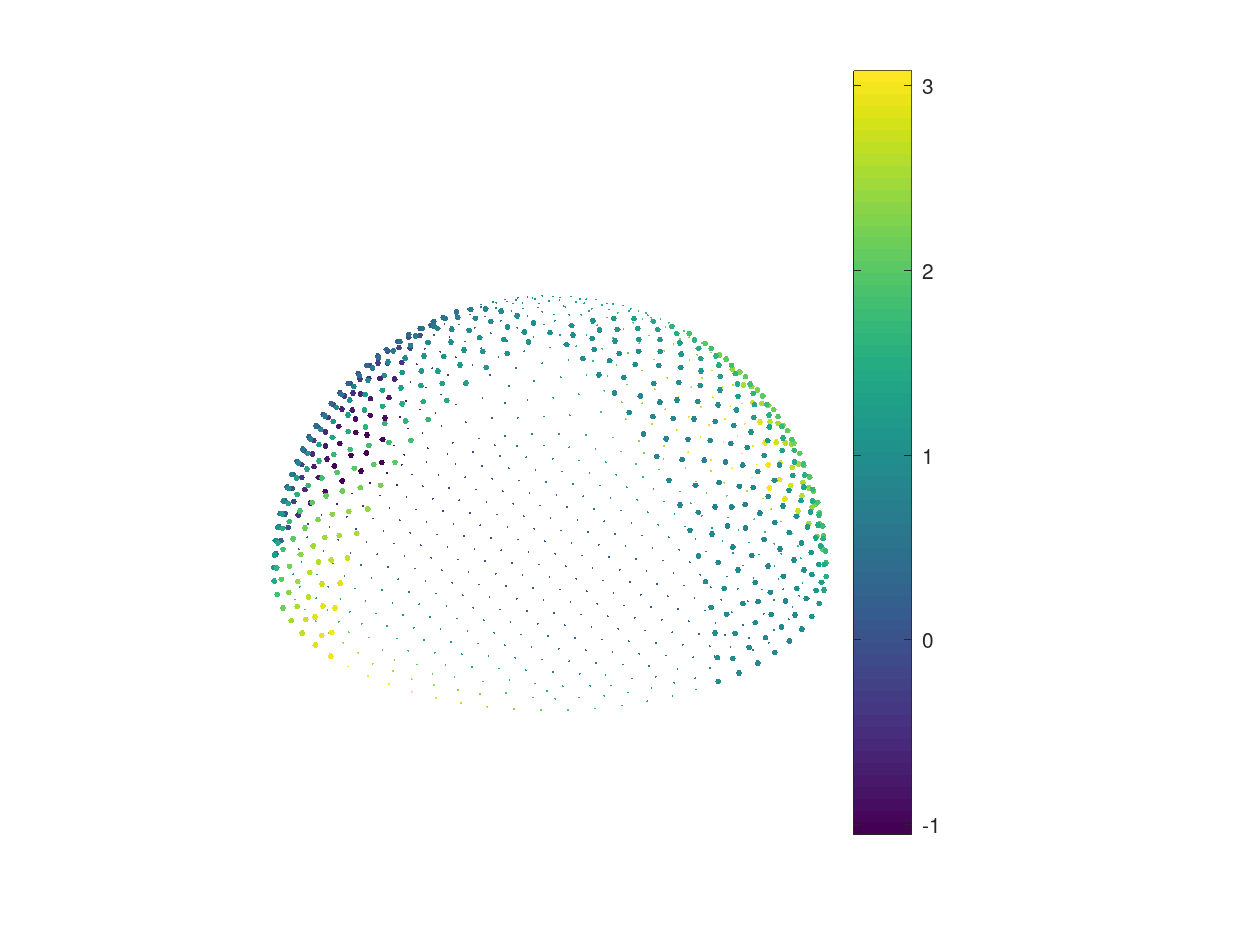

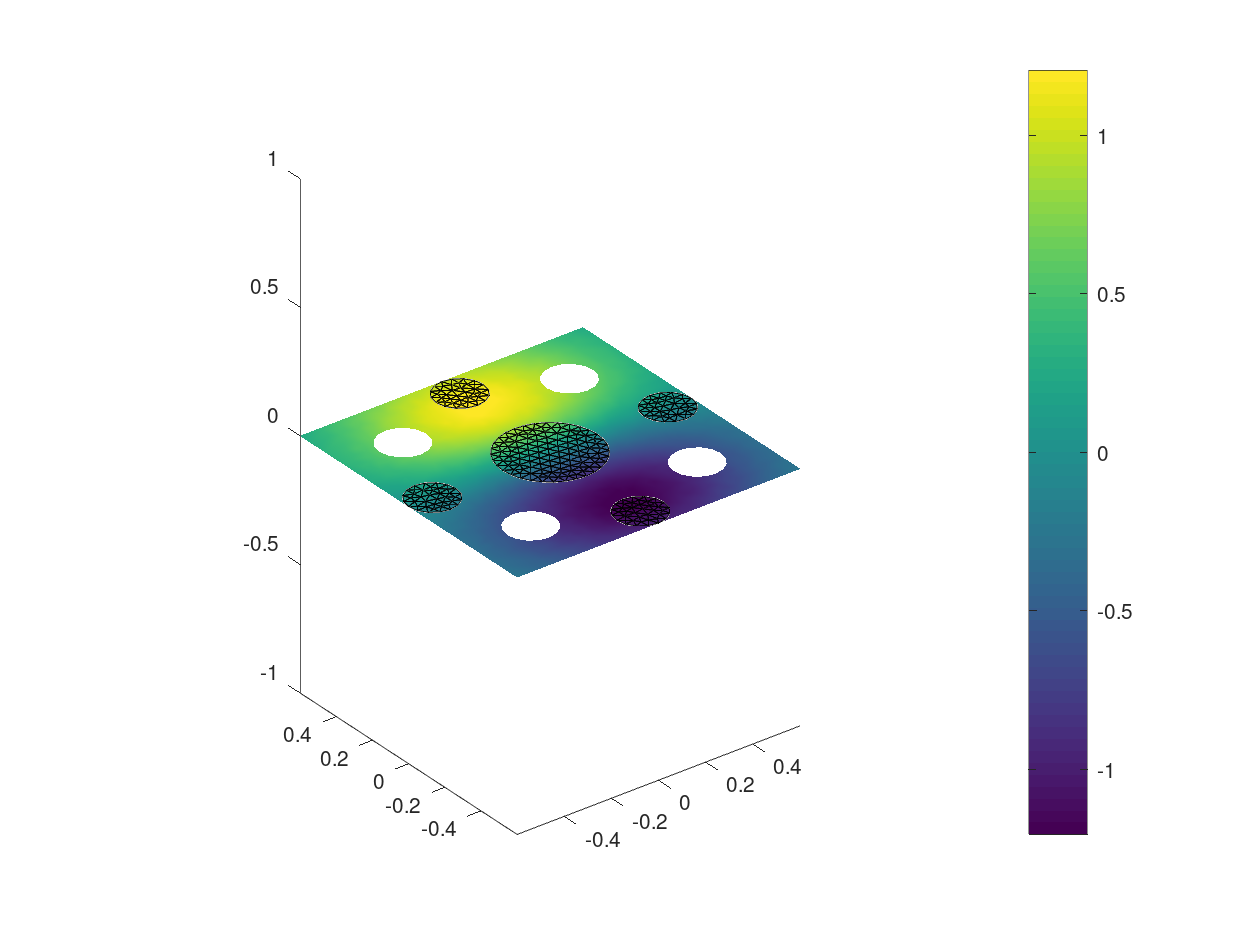

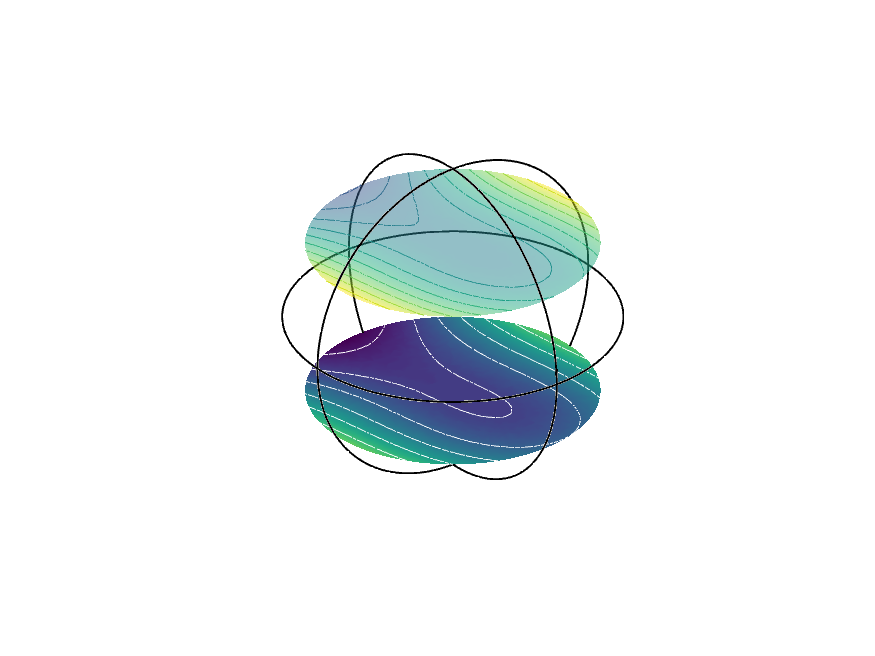

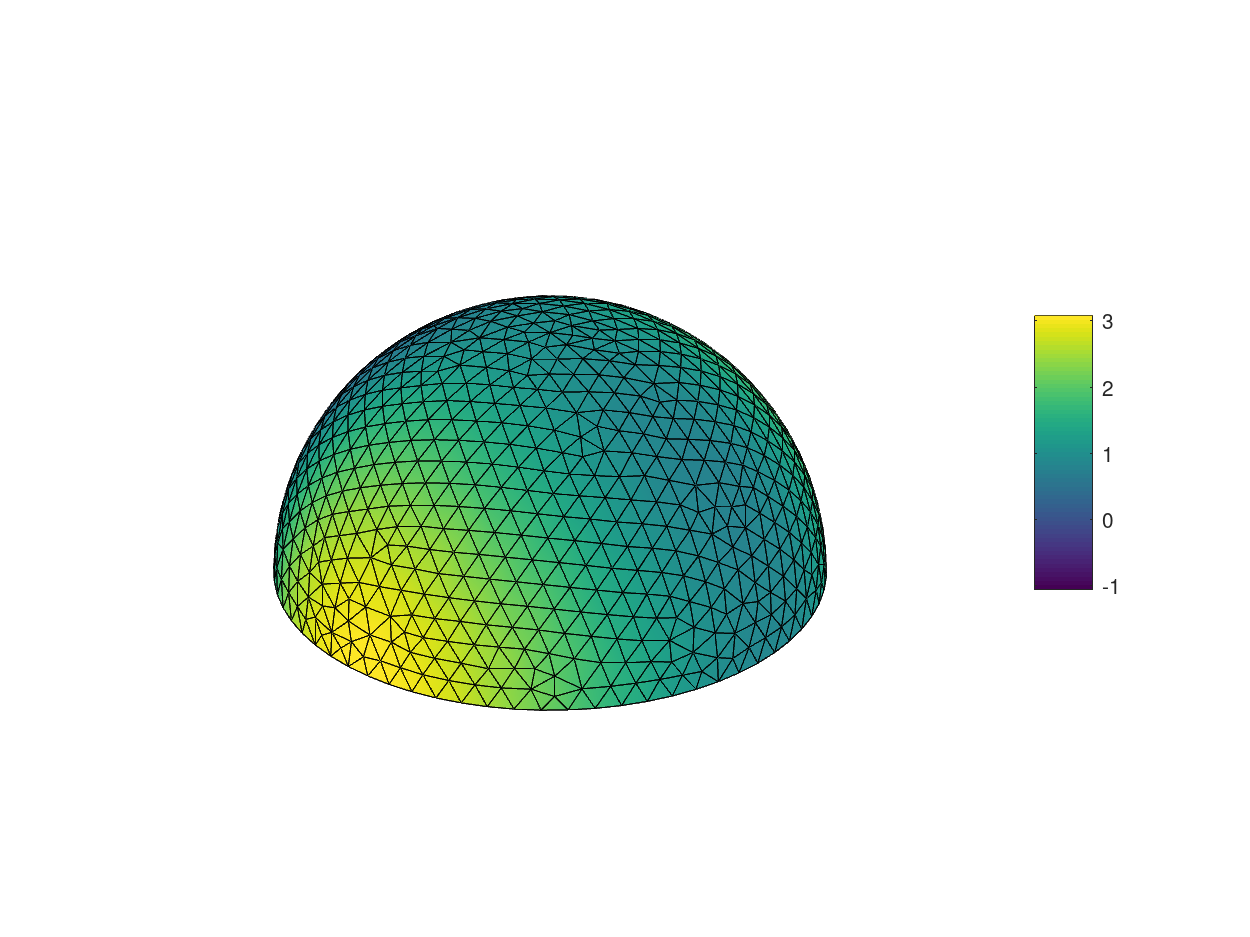

sliceiso	slice	slicemesh	plot2D	plot3D	plot3Ds

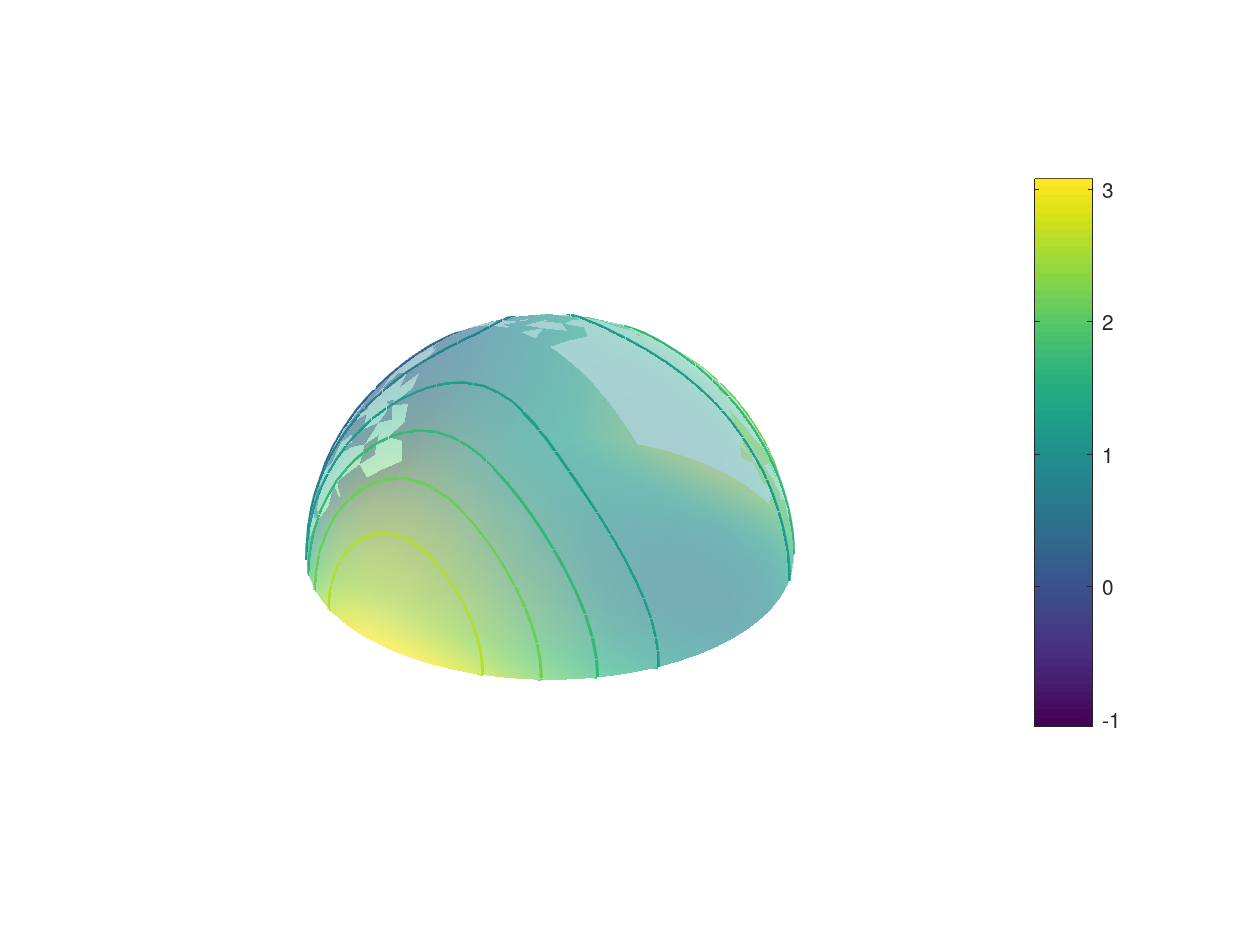

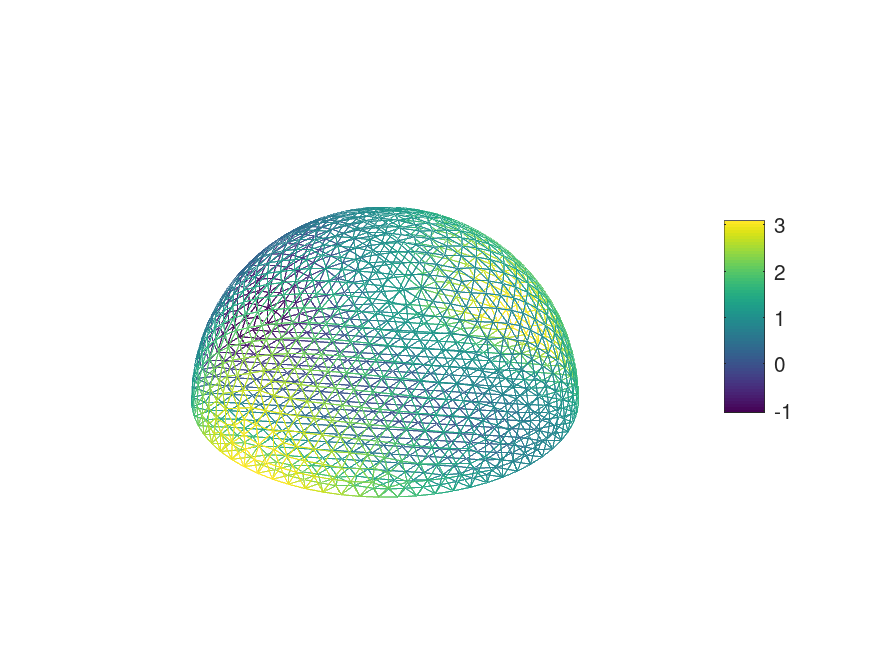

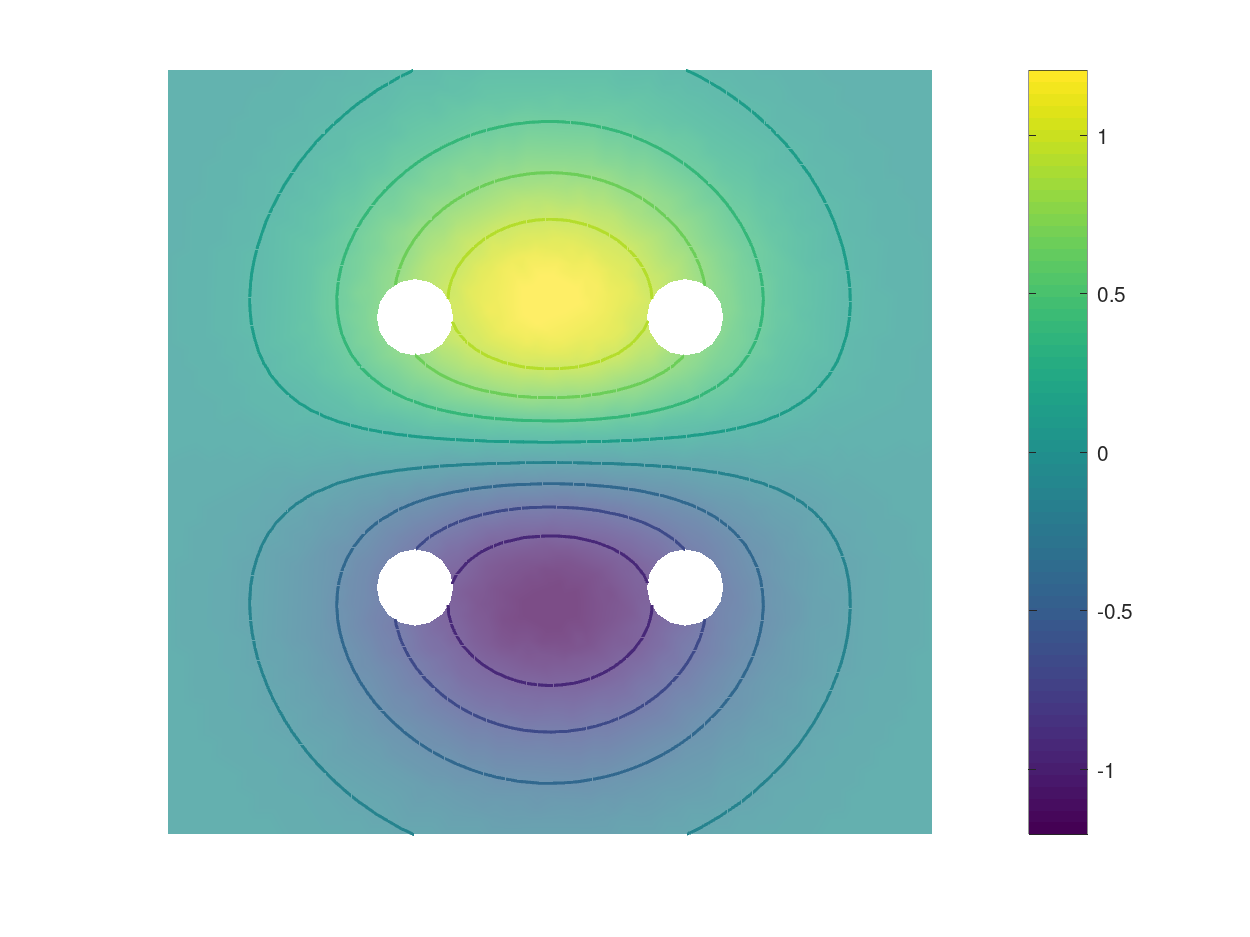

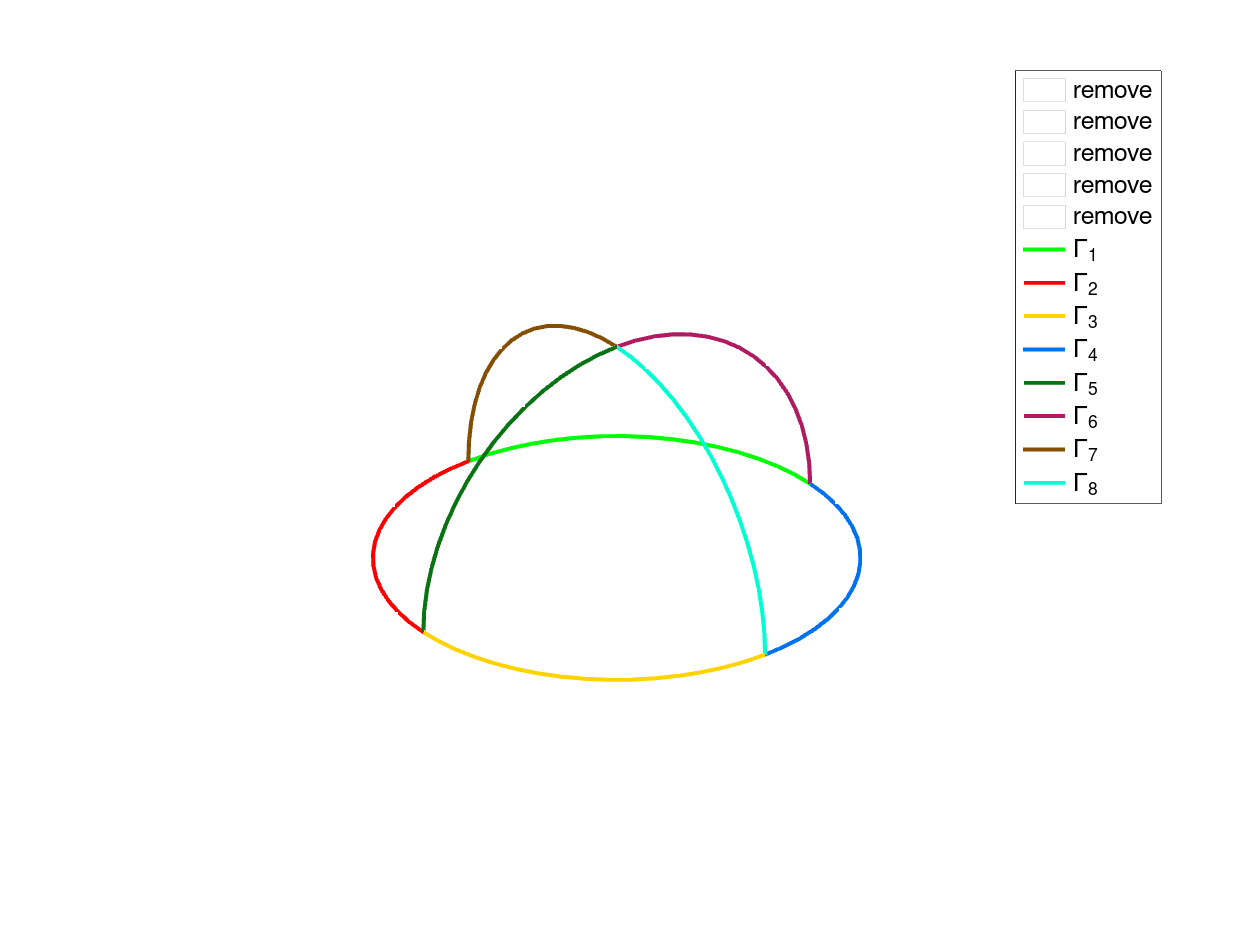

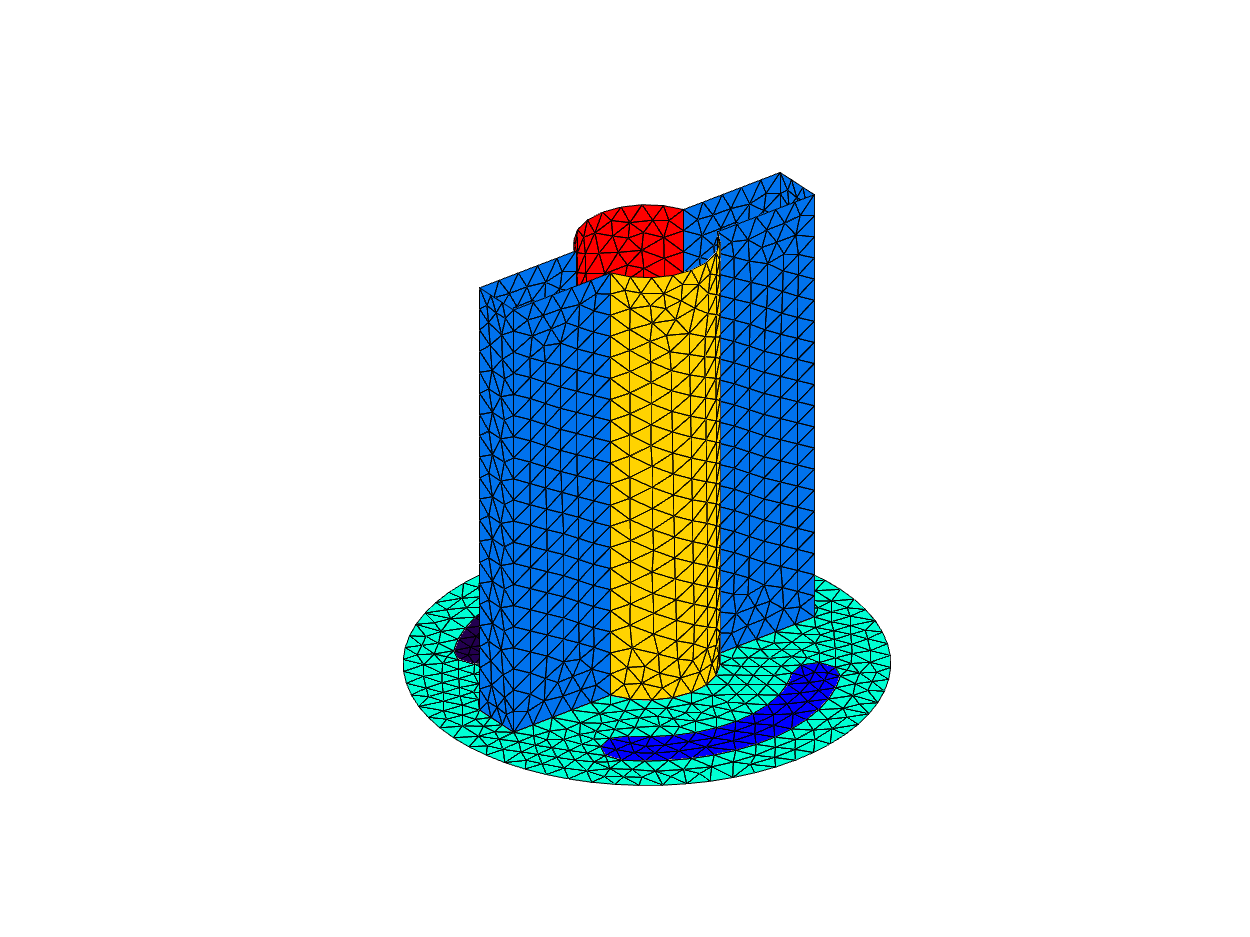

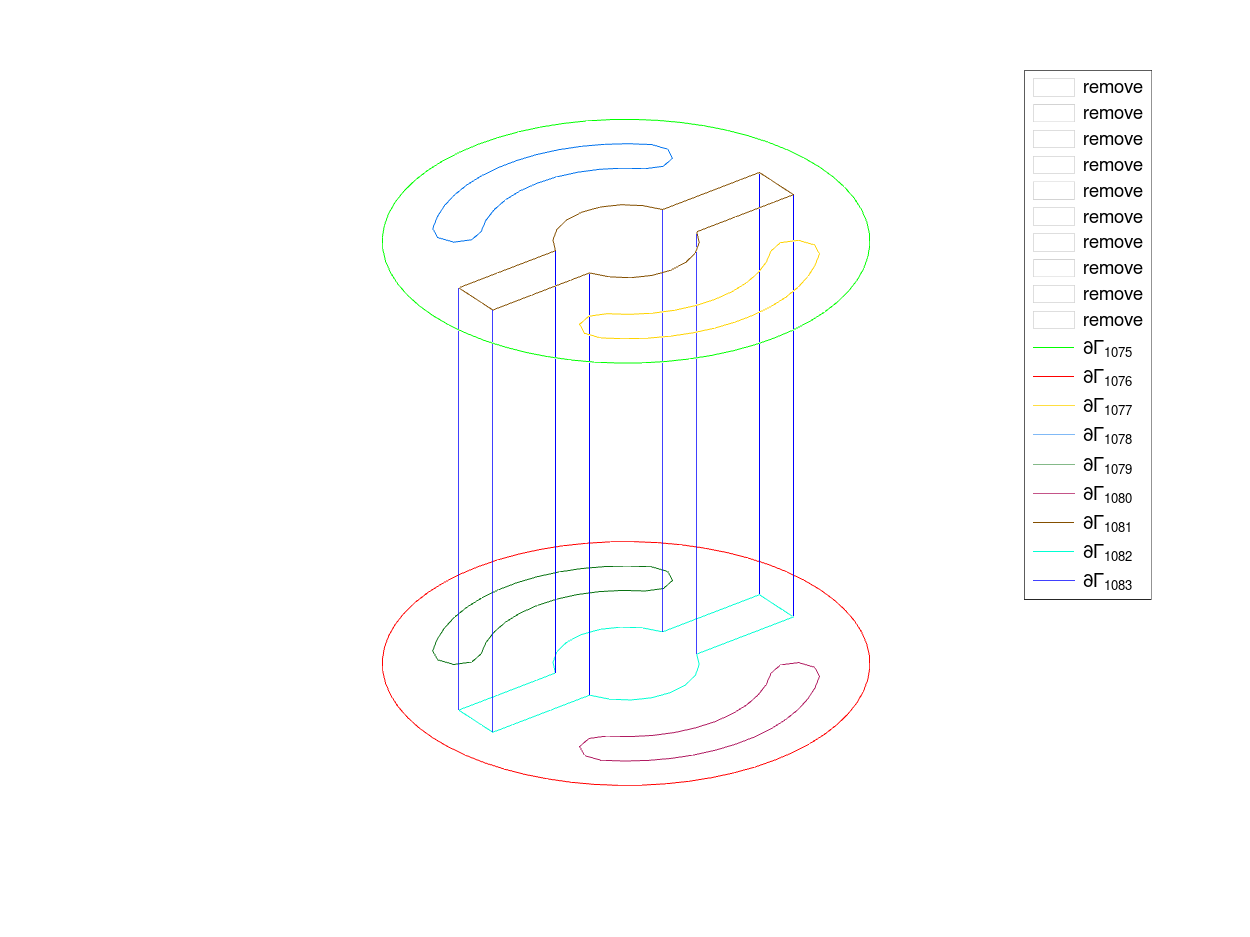

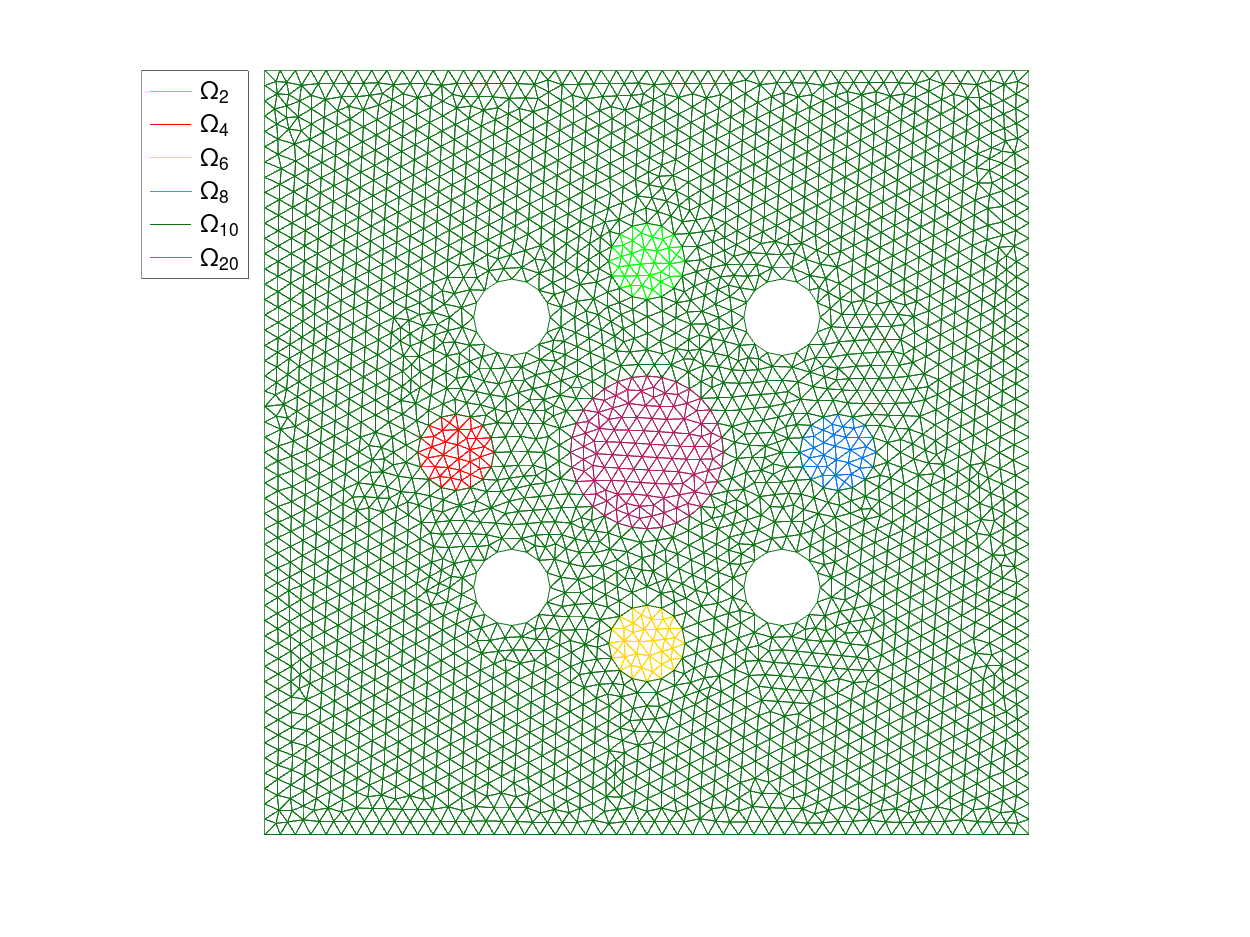

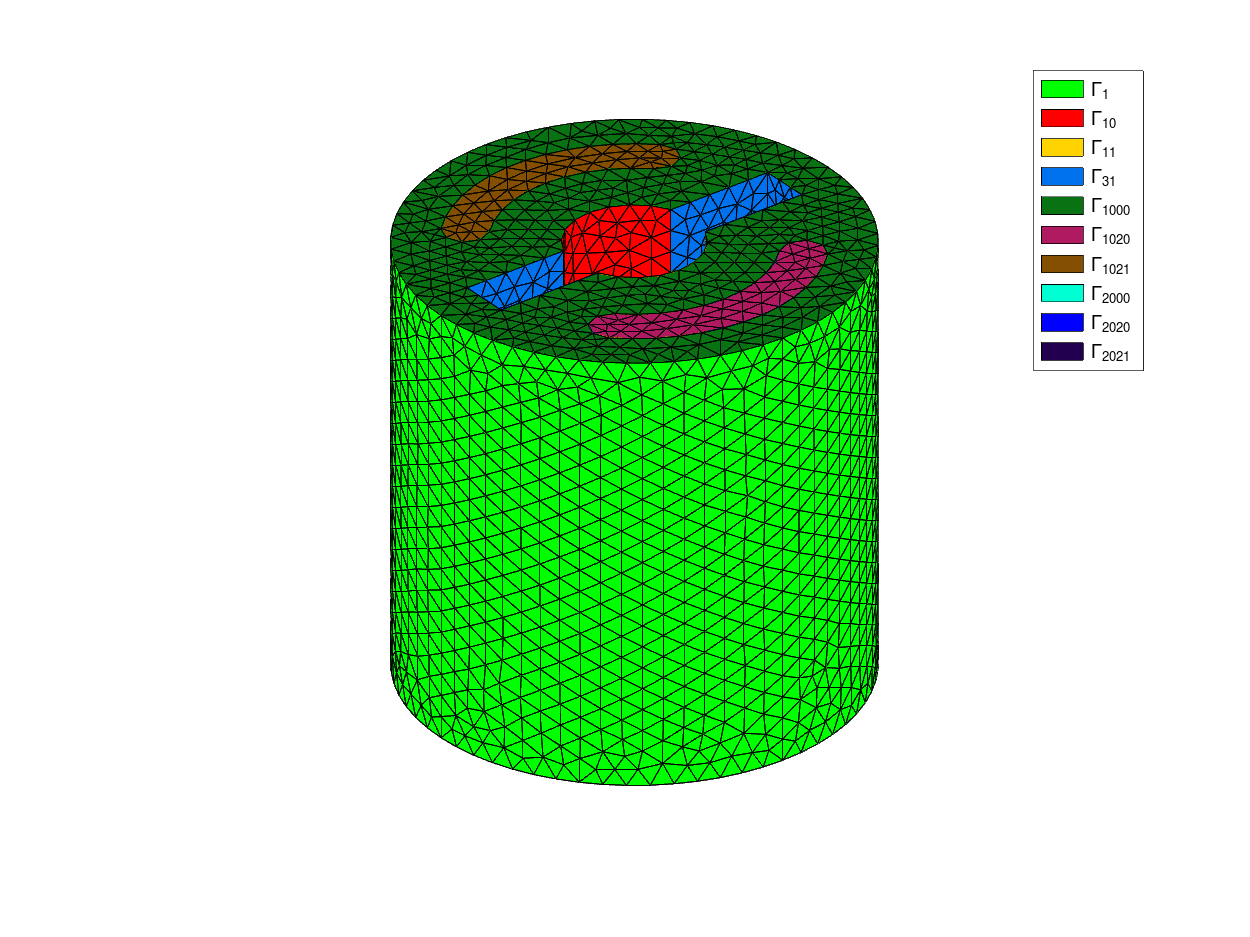

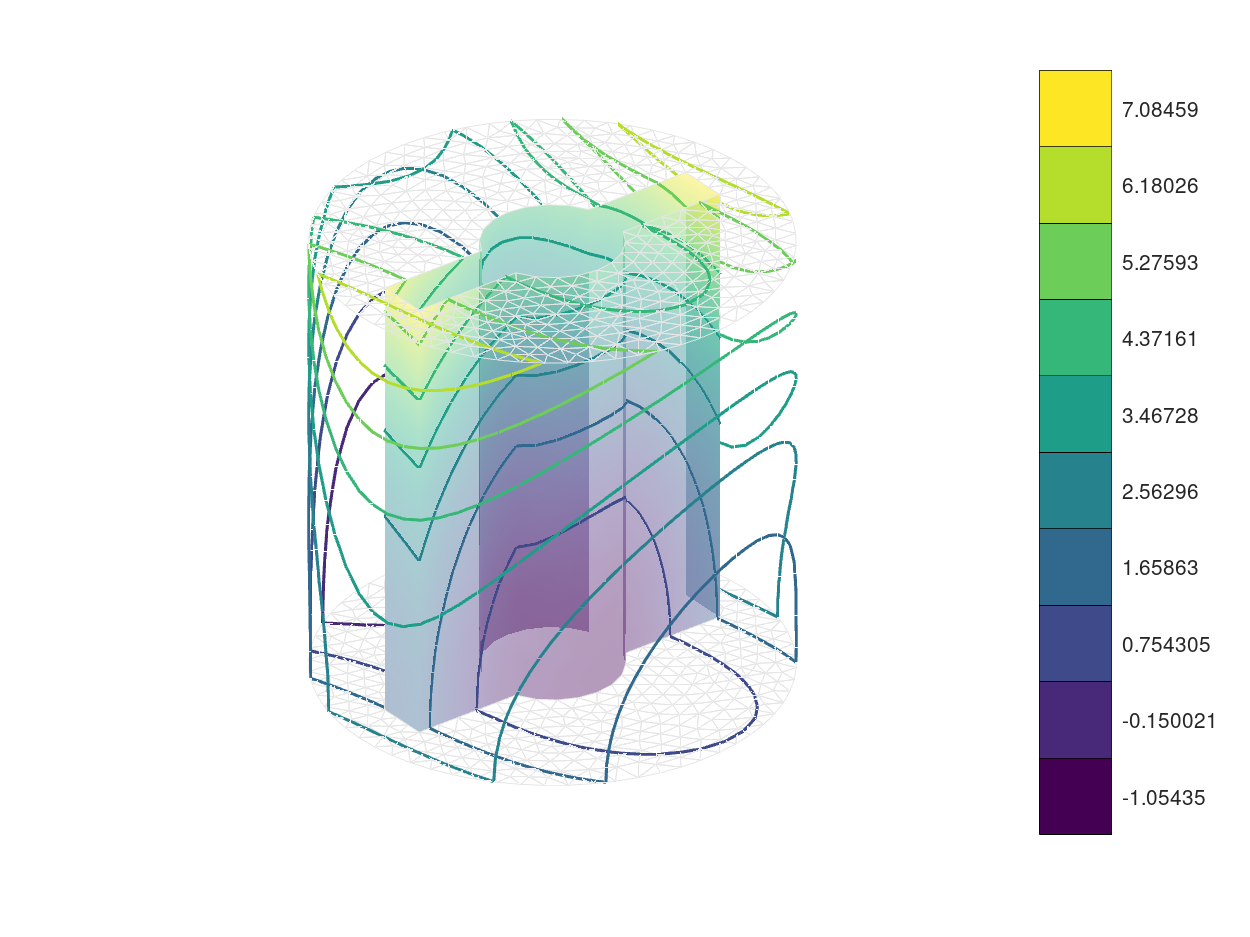

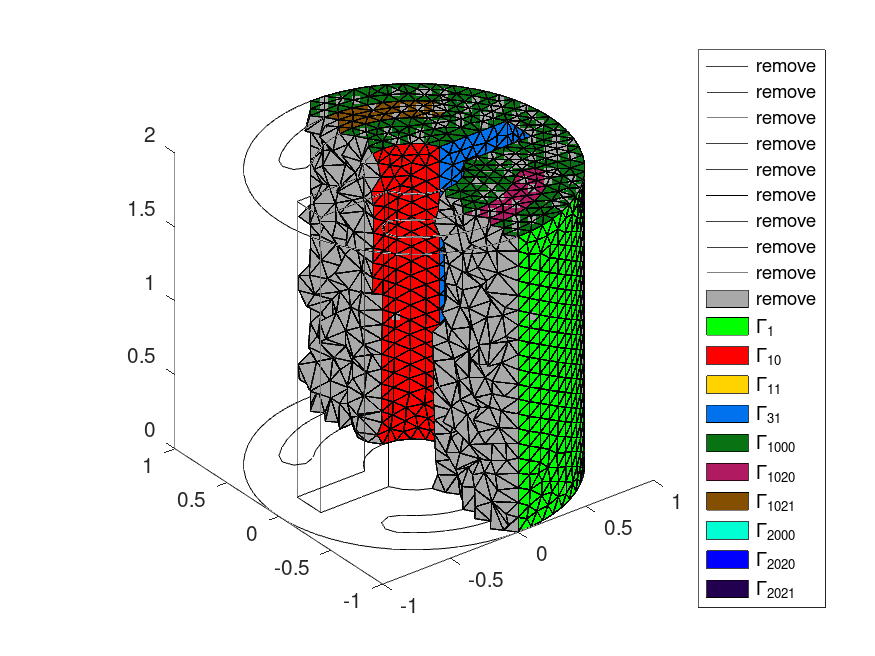

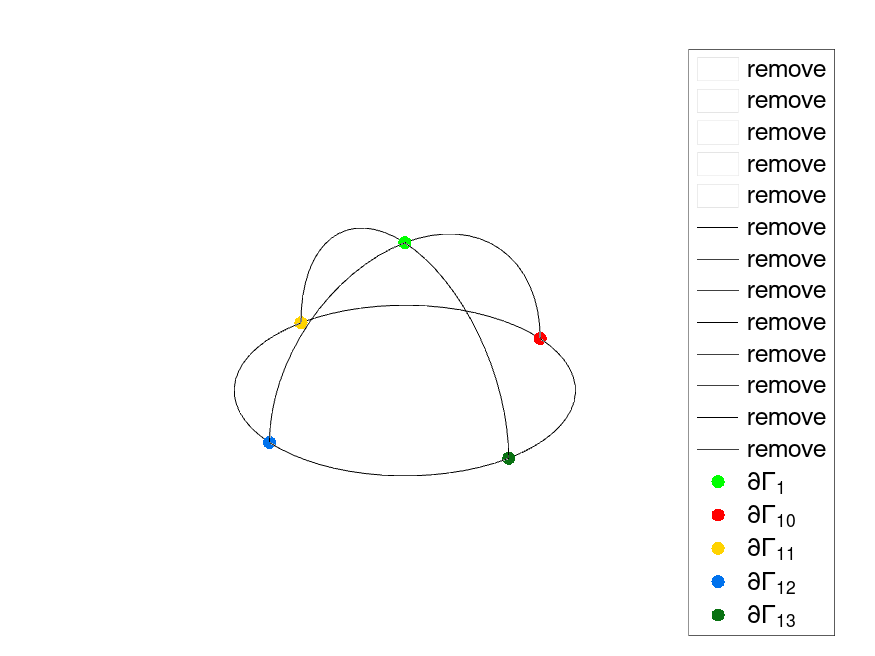

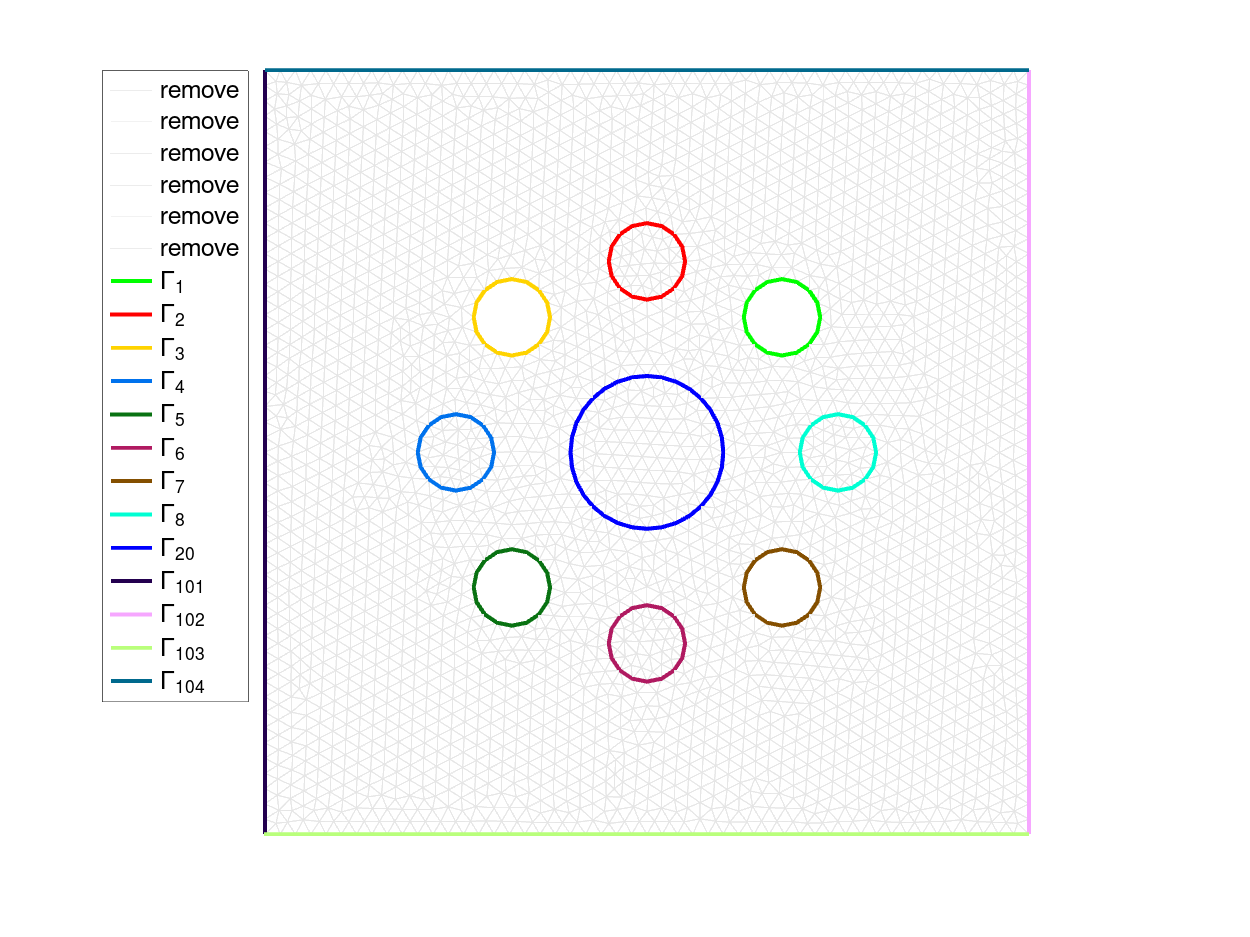

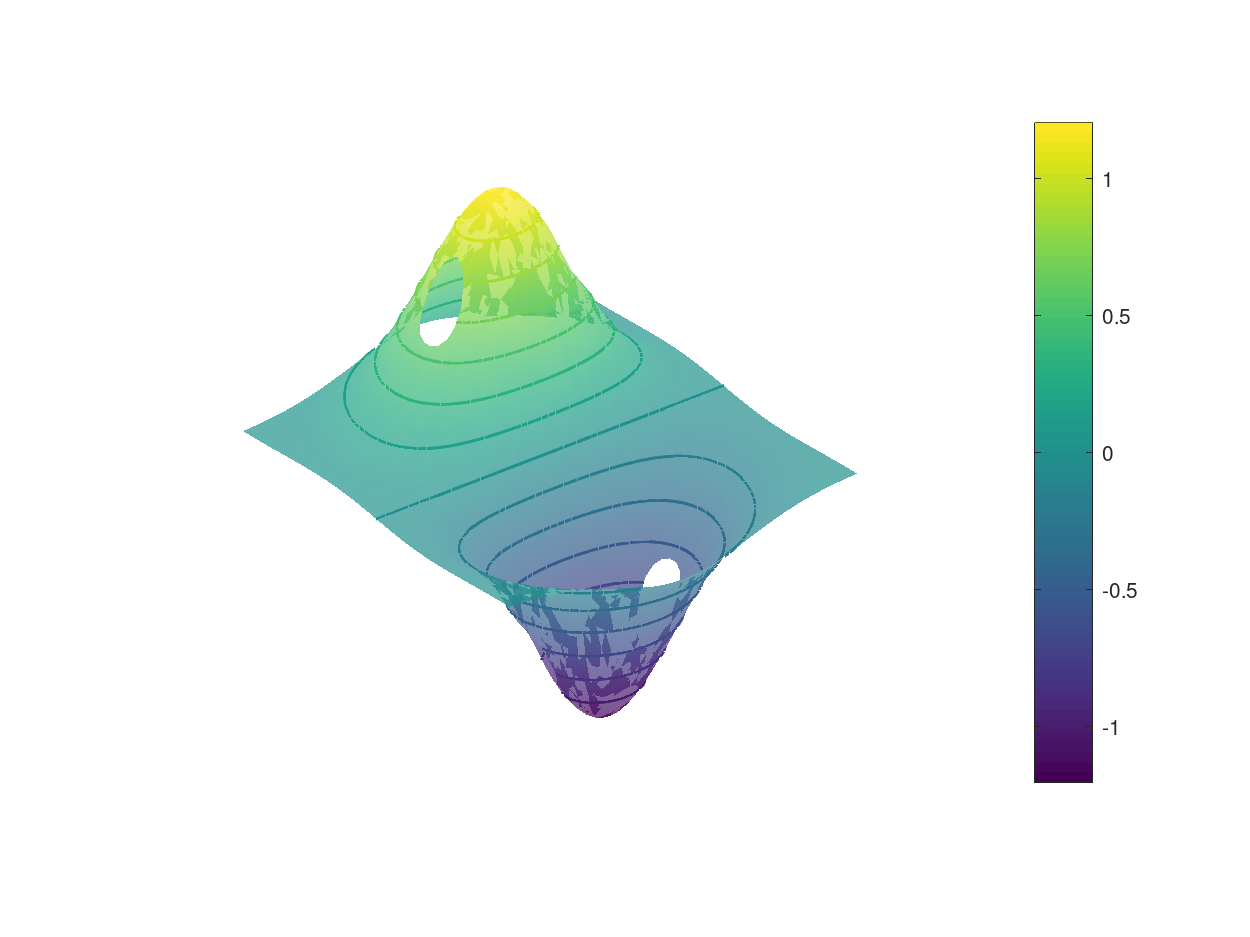

plotiso2D	plotiso3D	plotiso3Ds	plotmesh2D	plotmesh3D	plotmesh3Ds

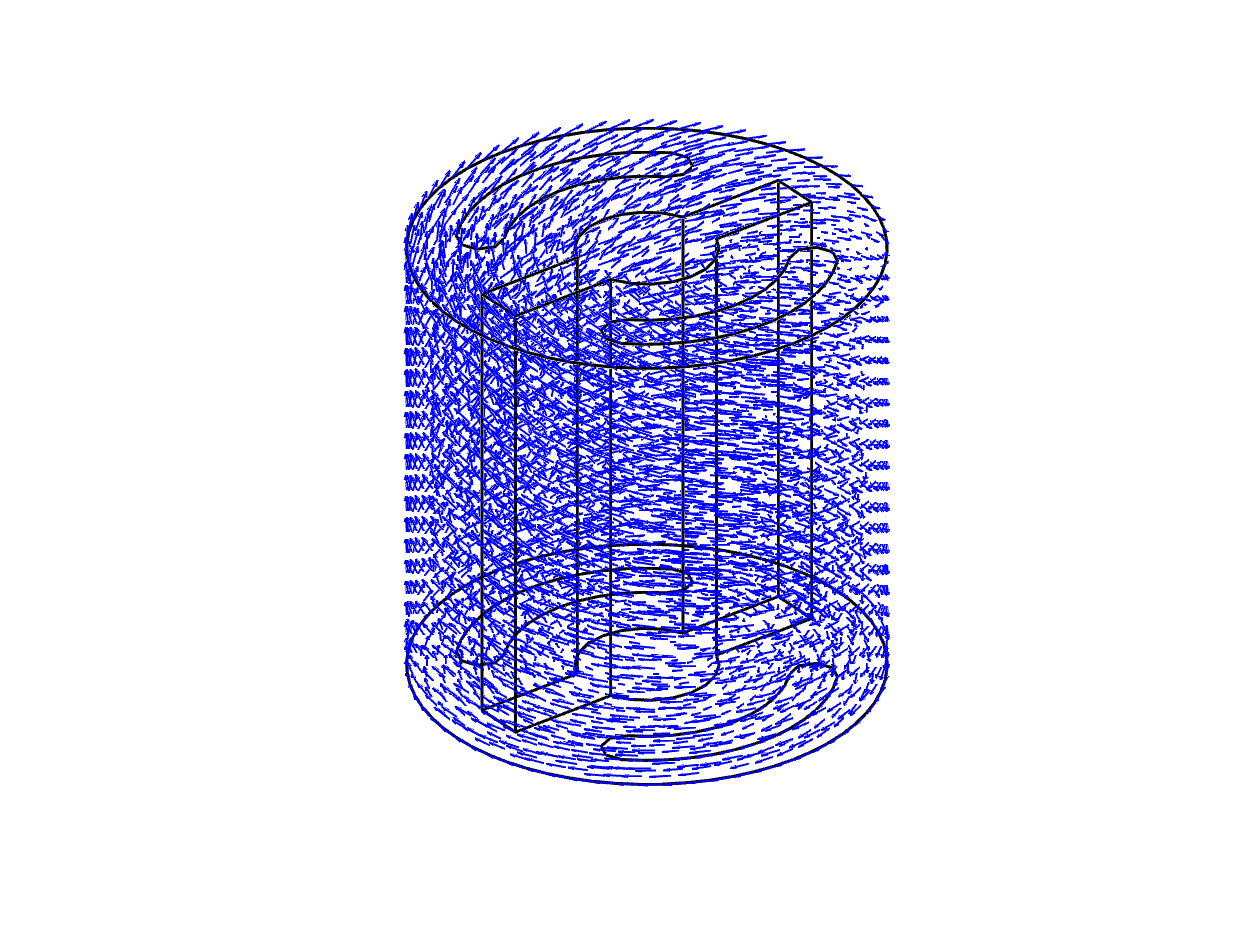

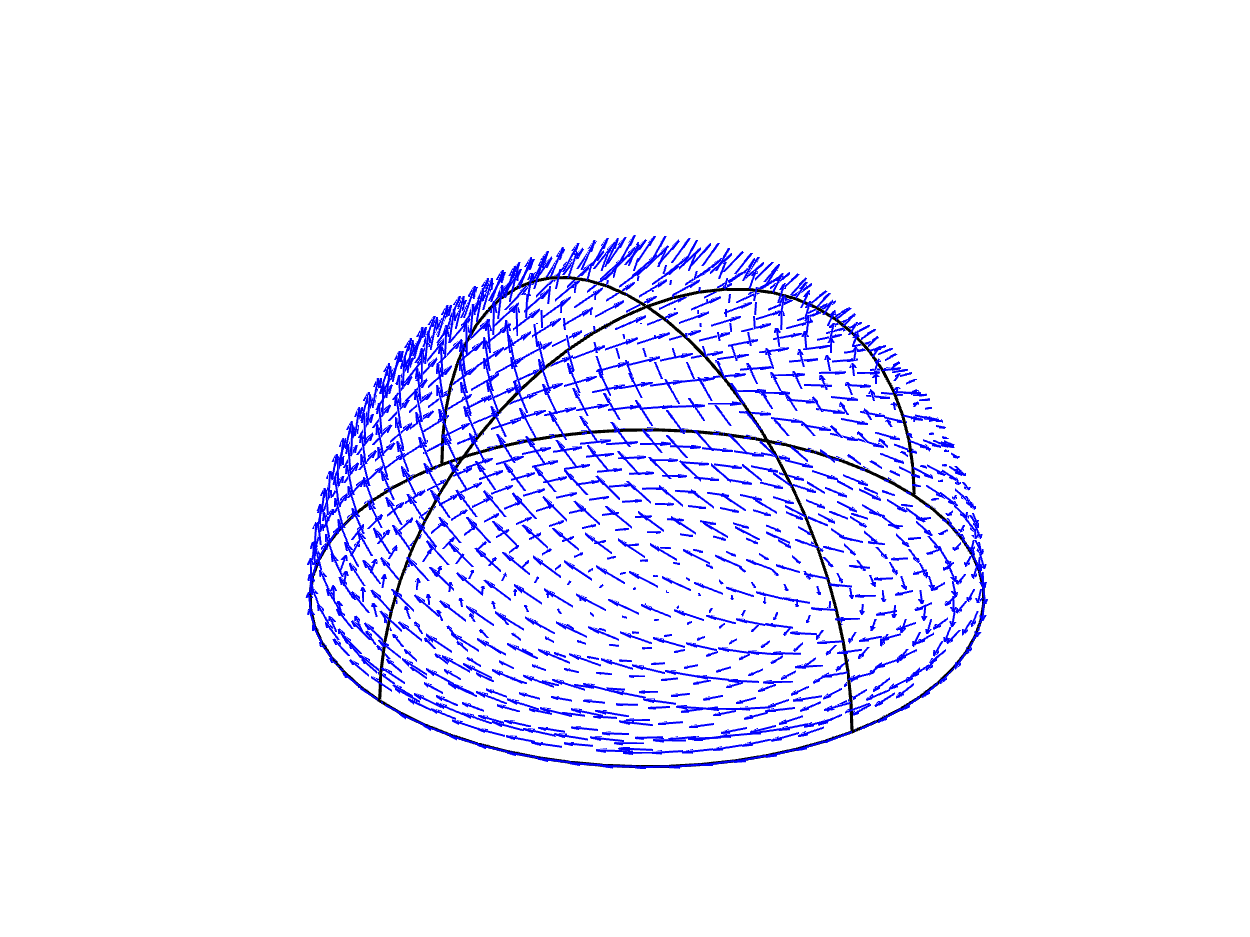

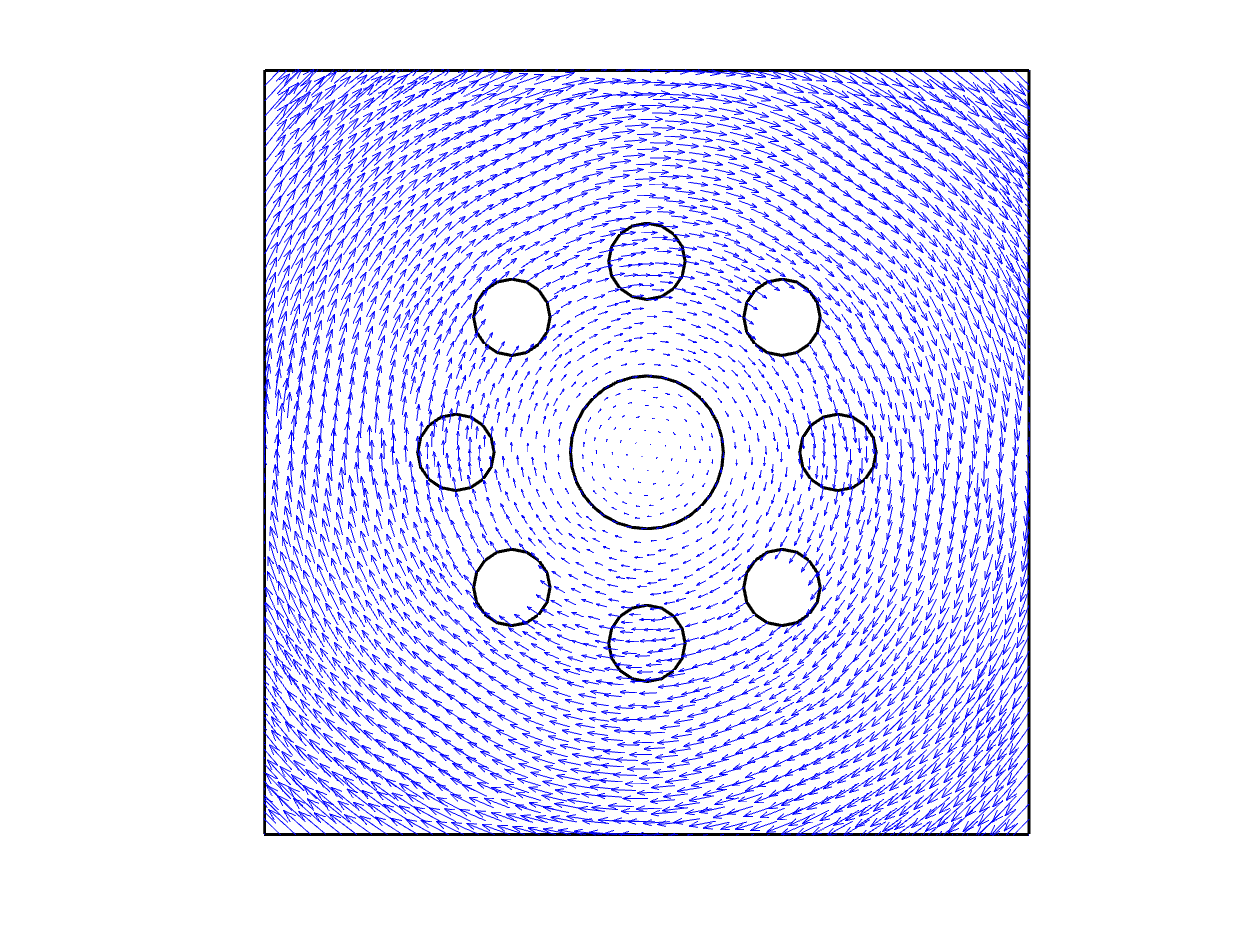

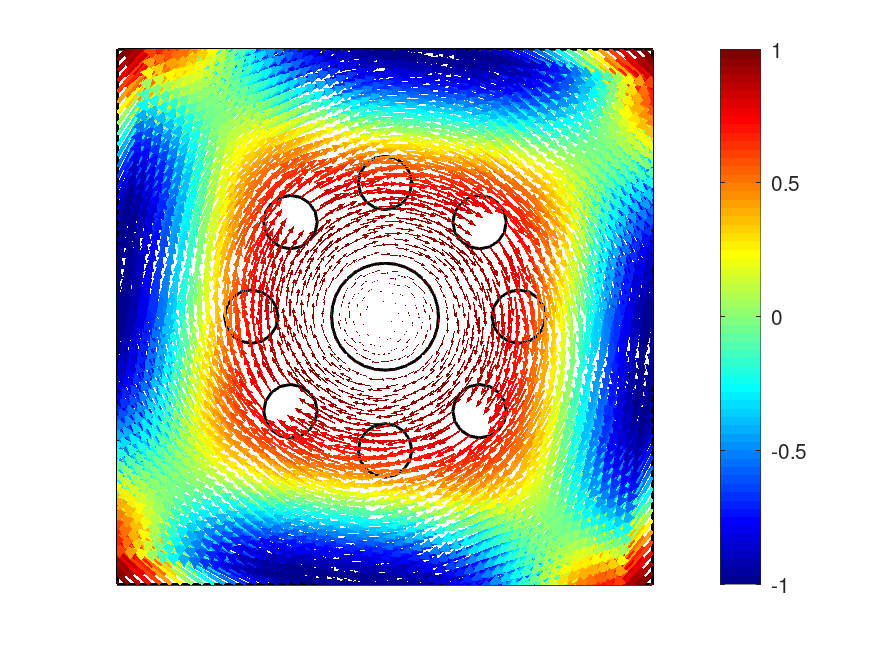

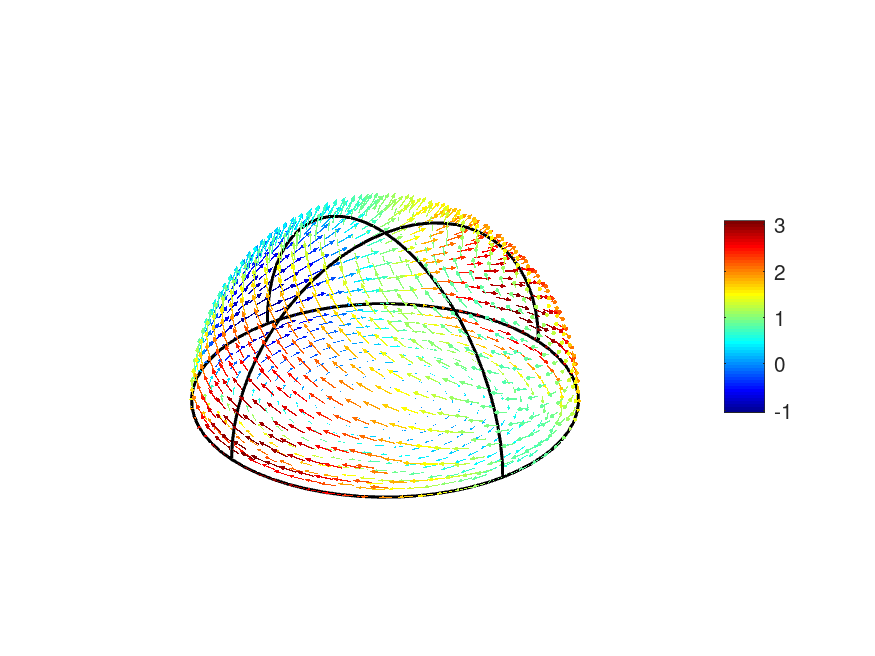

plotquiver2D	plotquiver3D	plotquiver3Ds

Octave / Mesh / fc_siplt/ Current development release

Version

date

package

full archives

install

User guide

0.2.2

March 20, 2020

(24 Ko)

(1678 Ko)

(2015 Ko)

(1375 Ko)

(3 Ko)

(10918 Ko)

Octave / Mesh / fc_siplt/ Tested on

This package was tested on various OS with Octave releases :


Operating system	4.4.0	4.4.1	5.1.0	5.2.0

CentOS 7.7.1908	✓	✓	✓	✓

Debian 9.11	✓	✓	✓	✓

Fedora 29	✓	✓	✓	✓

OpenSUSE Leap 15.0	✓	✓	✓	✓

Ubuntu 18.04.3 LTS	✓	✓	✓	✓


MacOS High Sierra 10.13.6		✓	✓	✓

MacOS Mojave 10.14.4		✓	✓	✓

MacOS Catalina 10.15.2		✓	✓	✓


Windows 10 (1909)	✓	✓	✓	✓

It is not compatible with Octave releases prior to 4.2.0. Here are the links used to install the Octave releases tested :

Linux : sources from https://www.gnu.org/software/octave/ ;
MacOS : release 4.4.1 installed with dmg ﬁle from http://octave-app.org/Download.html, releases 5.1.0 and 5.2.0 installed with Homebrew ;
Windows : binaries from https://www.gnu.org/software/octave/.

Octave / Mesh / fc_siplt/ Installation

One just has to get/download the install ﬁle ofc_siplt_install.m Thereafter, one run it under Octave. This command download, extract and conﬁgure the fc-siplt package and all the required packages in the current directory.

For example, to install this package in ~/Octave/packages directory, one have to copy the ﬁle mfc_siplt_install.m in the ~/Octave/packages directory. Then in a Octave terminal run the following commands

Octave Console

>> cd ~/Octave/packages
>> mfc_siplt_install

There is the output of the mfc_siplt_install command on a Linux computer :

Octave Ouput

Parts of the <fc-siplt> Octave package.
Copyright (C) 2017-2010 F. Cuvelier

1- Downloading and extracting the packages
2- Setting the <fc-siplt> package
Write in ~/Octave/fc-siplt-full/fc_siplt-0.2.2/configure_loc.m ...
3- Using packages :
   ->             fc-tools : 0.0.31
   ->             fc-bench : 0.1.2
   ->         fc-hypermesh : 1.0.3
   ->              fc-amat : 0.1.2
   ->         fc-meshtools : 0.1.3
   ->     fc-graphics4mesh : 0.1.3
   ->            fc-oogmsh : 0.2.3
   ->            fc-simesh : 0.4.2
with             fc-siplt : 0.2.2
*** Using instructions
   To use the <fc-siplt> package:
   addpath(’~/Octave/fc-siplt-full/fc_siplt-0.2.2’)
   fc_siplt.init()

   See ~/Octave/ofc_siplt_set.m

The complete package (i.e. with all the other needed packages) is stored in the directory ~/Octave/packages/fc-siplt-full and, for each Octave session, one have to set the package by :

Octave Console

>> addpath(’~/Octave/packages/fc-siplt-full/fc_siplt-0.2.2’)
>> fc_siplt.init()

If it’s the ﬁrst time the fc_siplt.init() function is used, then its output is

Octave Ouput

Try to use default parameters!
Use fc_tools.configure to configure.
Write in ~/Octave/fc-siplt-full/fc_tools-0.0.31/configure_loc.m ...
Try to use default parameters!
Use fc_bench.configure to configure.
Write in ~/Octave/fc-siplt-full/fc_bench-0.1.2/configure_loc.m ...
Try to use default parameters!
Use fc_hypermesh.configure to configure.
Write in ~/Octave/fc-siplt-full/fc_hypermesh-1.0.3/configure_loc.m ...
Try to use default parameters!
Use fc_amat.configure to configure.
Write in ~/Octave/fc-siplt-full/fc_amat-0.1.2/configure_loc.m ...
Try to use default parameters!
Use fc_meshtools.configure to configure.
Write in ~/Octave/fc-siplt-full/fc_meshtools-0.1.3/configure_loc.m ...
Try to use default parameters!
Use fc_graphics4mesh.configure to configure.
Write in ~/Octave/fc-siplt-full/fc_graphics4mesh-0.1.3/configure_loc.m ...
Try to use default parameters!
Use fc_oogmsh.configure to configure.
Write in ~/Octave/fc-siplt-full/fc_oogmsh-0.2.3/configure_loc.m ...
Configured to use gmsh 4.5.1 with default MSH file format version 4.1
Try to use default parameters!
Use fc_simesh.configure to configure.
Write in ~/Octave/fc-siplt-full/fc_simesh-0.4.2/configure_loc.m ...
Using fc_siplt[0.2.2] with fc_tools[0.0.31], fc_bench[0.1.2], fc_hypermesh[1.0.3],
fc_amat[0.1.2], fc_meshtools[0.1.3], fc_graphics4mesh[0.1.3],
fc_oogmsh[0.2.3], fc_simesh[0.4.2].

Otherwise, the output of the fc_siplt.init() function is

Octave Ouput

Configured to use gmsh 4.5.1 with default MSH file format version 4.1
Using fc_siplt[0.2.2] with fc_tools[0.0.31], fc_bench[0.1.2], fc_hypermesh[1.0.3],
fc_amat[0.1.2], fc_meshtools[0.1.3], fc_graphics4mesh[0.1.3],
fc_oogmsh[0.2.3], fc_simesh[0.4.2].

For uninstalling, one just have to delete directory

~/Octave/packages/fc-siplt-full

To quickly test this package, one can run one of the examples located in the directory +fc_siplt/+demos. For example, runs

Octave Console

>> fc_siplt.demos.plot3D()

or the complete demo (take a long time)

Octave Console

>> fc_siplt.demos.alldemos()

Octave / Mesh / fc_siplt/ Version history

0.2.2 (March 20, 2020) : Minor bugs ﬁxed. Using the package version 0.4.2.
0.2.1 (March 8, 2020) : correct bug in fc_siplt.demos.alldemos function. Using the toolbox version 0.0.31.
0.2.0 (February 19, 2020) : using the toolbox version 0.4.0.
0.0.2 (December 13, 2017) : correct bug in fc_siplt.plotquiver function and modify fc_siplt.configure fonction.
0.0.1 (November 23, 2017) : ﬁrst version tested under Linux, macOS and Windows.
